RACER KIT

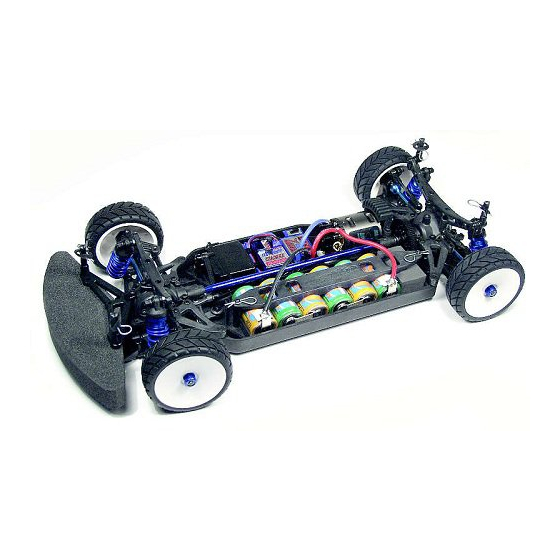

RC10TC3 Racer Kit
Shocks: VCS Macro shock.
Tires and Wheels: Pro-Line V-Rage
tires and Axis wheels.
Front & Rear Axles: Composite MIP
CVD's.
Turnbuckles: Associated steel
turnbuckles
Choice of three Protoform bodies,
with matching
Protoform decal.
Also includes: Precision stainless-
steel rubber-sealed ball bearings.

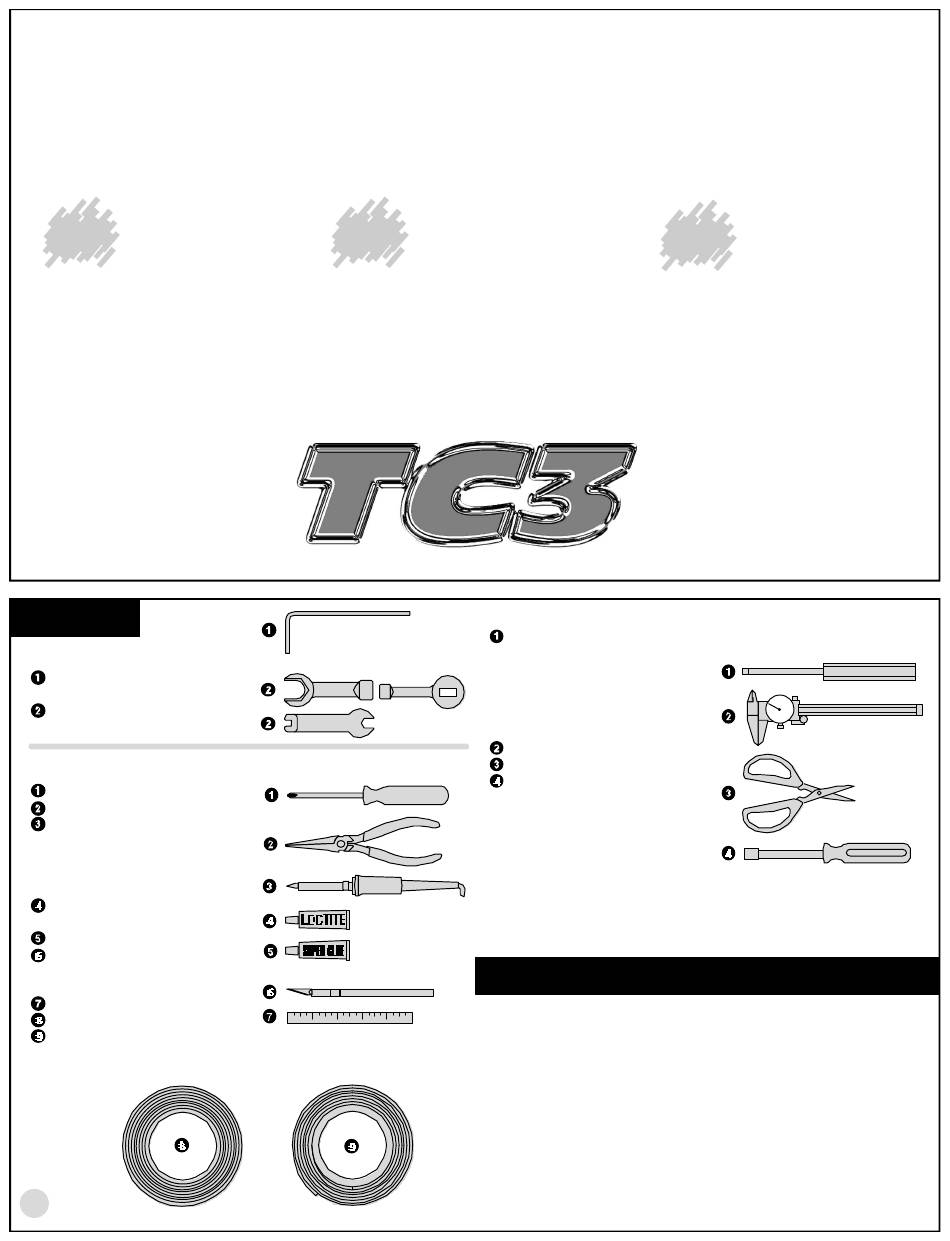

TOOLS
KIT TOOLS SUPPLIED
Allen wrenches, .050", 1/16",
3/32",
5/64"
molded tools
EXTRA STUFF NEEDED
Phillips screwdriver #2
needlenose pliers
soldering iron (40-50 watts) and a
small amount of Rosin core solder.
Pencil-type soldering iron is better
than the gun type. DANGER! Tip
is HOT!
Thread locking compound (#242
Blue Loctite© or equivalent)
Super glue (cyanoacrylic glue).
hobby knife WARNING! This knife
cuts plastic and fingers with equal
ease, so be careful.
precision ruler
electrician's tape
strapping tape
2
Revised 1/2000
EACH KIT INCLUDES
Pro-Line std. 12m Hex wheels & tires.
Aluminum motor mount with a built-in
heatsink.
Carbide ball aSSOC. differentials.
Adjustable caster, camber, toe-in, anti-
squat, kickup. Several tie-rod mounting
positions.
Foam bumper.
TC3 decal sheet
Rear bumper
HELPFUL TOOLS (NOT REQUIRED)
Allen drivers (straight Allen wrenches with hex shaped
handles)
such as the following made by Associated:
#6957
#6958
#6959
#6960
#6961
Vernier calipers
Hobby scissors
Nut drivers (screwdriver-
handled hex socket tools)
3/16" nut driver
1/4" nut driver
11/32" nut driver
WARNING! Do not use a power screwdriver to install screws
into nylon, plastic, or composite materials. The fast rotation
WARNING! Always
speed can heat up the screws being installed. They can then
use hand and eye
protection with cyano-
ITEMS NEEDED TO COMPLETE YOUR CAR
acrylic glue!
1 R/C two channel surface frequency radio system.
2 *Battery pack (6 cell).
3 Battery charger (we recommend a peak detection charger).
4 * Electronic speed control.
5 * R/C electric motor.
6 * Pinion gear, size to be determined by type and wind of motor you
will be using.
7 *1:10 scale Lexan body (Team Kit only).
*Available from Team Associated. See your catalogs.
TEAM KIT
#3030 RC10TC3 Team Kit
Shocks: Blue anodized aluminum-body
VCS Macro shocks.
Tires and Wheels: Pro-Line V-Rage
tires and Axis wheels.
Front & Rear Axles: Blue-anodized alloy
MIP CVD's.
Turnbuckles: Factory Blue titanium
turnbuckles.
Also includes: Precision stainless steel
PTFE/rubber-sealed ball bearings.
.050" driver
1/16" driver
5/64" driver
3/32" driver
2.5mm driver
