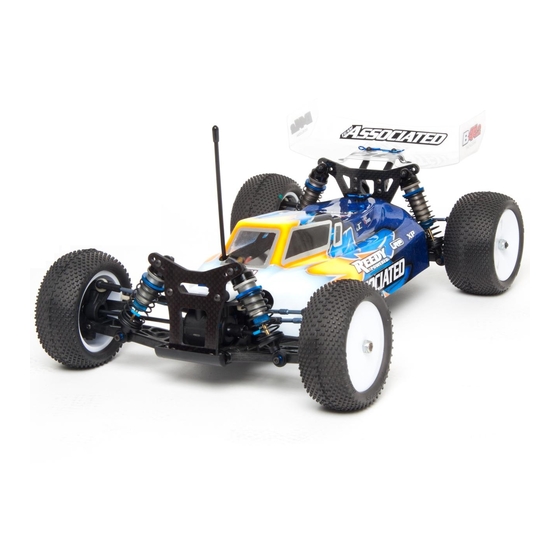

  • Page 2 :: Introduction Thank you for purchasing this Team Associated product. This assembly manual contains instructions and tips for building and maintaining your new RC10 B44.2. Please take a moment to read through this manual to help familiarize yourself with these steps.

  • Page 3: Table Of Contents

    Each part in the foldout This symbols indicates a has a number assigned to it for ordering special note or instruction replacement parts. in the manual. Associated Electrics, Inc. Customer Service 26021 Commercentre Dr. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...

  • Page 4: Cover

    :: Front and Rear Differential Build - Step 1 6581 3914 Carbide 6579 Bevel Diff balls 6579 Diff diff gear Diff outdrive outdrive ring ring 6909 Bearing 3/16x5/16 9734 9734 Outdrive, Outdrive, long short :: Front and Rear Differential Build - Step 2 Fully tightened position...

  • Page 5: Front Gearbox Build

    :: Front Gearbox Build - Step 1 9747 CVA bone 7381 Align the gap in center, front the pin retainer coupler to be opposite of the CVA pin. #1597 ca glue 1 drop! 7996 7381 9761 CVA pin CVA pin Racer’s Tip: CVA input retainer...

  • Page 6: Rear Gearbox Build

    :: Rear Gearbox Build - Step 1 9761 7996 CVA input CVA pin shaft retainer Align the gap in the pin retainer to be opposite of the CVA pin. 7381 #1597 ca glue coupler 1 drop! 7381 CVA pin 9911 CVA bone Racer’s Tip: center, rear...
  • Page 7 :: Steering and Center Battery Brace Build Step 1 6272 9744 9743 Dust cover 6276 Steering Steering foam Ballstud, .20 post rack silver, short 9630 9743 .030 Servo washer saver upper 9743 Servo saver 9743 lower Steering 9744 v-spacer 6277 Servo saver Ballstud, .30 spring...

  • Page 8: Steering And Center Battery Brace Build / Install

    :: Steering and Center Battery Brace Build / Install Step 4 9905 Center battery cradle 6292 4-40x3/8 fhcs :: Front End Build - Step 1 4449 4-40x3/16 aluminum locknut 9713 Front bulkhead 6292 6292 9765 4-40x3/8 4-40x3/8 4-40x7/16 fhcs fhcs fhcs :: Front End Build - Step 2 9716...

  • Page 9: Rear End Build

    :: Front End Build - Step 3 7413 1780 4-40x3/4 Shock bhcs bushing 9718 Front bumper 9903 6917 Front shock 6917 4-40x3/8 tower 4-40x3/8 bhcs bhcs :: Rear End Build - Step 1 4449 6936 4-40x3/16 #4 washer aluminum locknut 4449 4-40x3/16 aluminum...

  • Page 10: Slipper Build

    :: Slipper Build - Step 1 9910 Side view Slipper 1 flange Side view drive cup 9711 2 flanges 91177 spacer Center bearing slipper 9711 insert 9603 pads Center 7935 Slipper bearing 3/16x1/2 9736 9736 insert bearing Slipper spring Slipper spring 7935 retainer retainer...

  • Page 11: Center Bulkhead Mounts

    :: Center Bulkhead Mounts - Step 1 9709 9801 Slipper Center FT cam assembly bulkhead motor Install mount 6291 4-40x1/4 fhcs 6292 4-40x3/8 fhcs Set remaining Key CVA bones in motor mount the slipper pieces aside! outdrives! :: Front Top Deck Build - Step 1 9719 6937 4334...

  • Page 12: Rear Top Deck Build

    :: Rear Top Deck Build - Step 1 9904 6292 6937 9714 Shock tower, 4-40x3/8 4-40 blue Shock tower rear fhcs aluminum mount locknut 6936 Washers, aluminum #4 6917 4-40x3/8 9902 7413 bhcs Top deck, 4-40x3/4 6277 rear bhcs Ballstud, .30 silver, long 1780 9719...

  • Page 13: Turnbuckles Build

    :: Turnbuckles Build - Step 1 7230 Front Steering Link Ball cups, Steering large Build x2 1404 FT titanium 60mm turnbuckles 7230 1.77 Front Camber Link Ball cups, large 1406 Front Camber Build x2 FT titanium turnbuckles 64.5mm 7230 Rear Camber Link 2.00 Ball cups, large...
  • Page 14 :: Front Suspension Build - Step 2 6272 4449 7369 Dust cover 4-40x3/16 1/16 axle foam aluminum roll pin locknut Left Side Right Side Right Side Left Side 9750 3983 Axle drive 9720 Ballstud, .30 Caster block black, short (right, left) :: Front Suspension Build - Step 3 Left Side Left Side...

  • Page 15: Rear Cva Build

    :: Rear CVA Build - Step 1 9754 CVA bone 7381 rear CVA cross Align the gap in the pin retainer to be opposite of the CVA pin. #1597 ca glue 1 drop! CA glue not included 9755 7381 7996 CVA axle CVA coupler CVA pin...

  • Page 16: Rear Anti-Roll Bar Build

    :: Rear Suspension Build - Step 3 Install x2 (right and left side) 31286 Aluminum ballstud washer, 1mm (blue) Rear Orient the notch 9630 to the left camber .030 ballstud throughout the link car. It indicates washer which end has the left hand threads! 9645 9716...
  • Page 17 :: Battery Tray and Side Body Mounts Build - Step 1 9905 Battery cradle 9905 Battery spacer 6922 4-40x1/2 fhcs :: Battery Tray and Side Body Mounts Build - Step 2 Unlocked! Locked!

  • Page 18: Shock Build

    :: Shocks Build - Step 1 91308 6299 6299 12mm shock 1/8 E-clip 1/8 E-clip piston (1.6 front) (1.7 rear) 91305 21x3 TiN shock shaft (front) Racers Tip: 91306 27.5x3 TiN Use a marker over the shock shaft numbers on the pistons to 4187 (rear) make them easily visible!

  • Page 19: Servo Build

    :: Shocks Build - Step 4 91304 Front: 12mm threaded Racers Tip: Rear: collar 5.5mm o-ring Use your finger to rub shock oil on the o-ring for smoother adjustment! 91330 12mm front spring, Blue 91310 (3.60lb) 12mm shock spring cup 91304 91337 (5mm offset)

  • Page 20: Electronics Install

    :: Servo Build - Step 2 :: Electronics Install - Step 1 6951 7911 4-40x1/8 6338 Servo link set screw Antenna tube & cap 20.5m 6292 4-40x3/8 Receiver / Servo tape fhcs not included! :: Electronics Install - Step 2 9802 FT Motor mount...

  • Page 21: Body, Wheel, Tires Install

    :: Body, Wheels, Tires Install - Step 1 9695 Buggy rear Carefully apply wheel hex, tire adhesive to the tire bead on white both sides. Do one side at a time, allow it to dry before gluing the other side! 9767 Buggy front Tires / Inserts...

  • Page 22: Servo Chart

    :: Body, Wheels, Tires Install - Step 4 Painting Tips: #0248 Body : Your B44.2 FT comes with a clear polycarbonate B44.2 body. You will need to prep the body before you can Finnisher paint it. Wash the inside thoroughly with warm water body by and liquid detergent.

  • Page 23: Tuning Tips

    :: Tuning Tips Tips for Beginners: Before making any changes to the standard setup, make sure you can get around the track without crashing. Changes to your vehicle will not be beneficial if you can’t stay on the track. Your goal is consistent laps. Once you can get around the track consistently, start tuning your vehicle.

  • Page 24: Setup Sheets

    :: Tuning Tips (cont.) Rear Hub Spacing: You have 3 options for rear hub spacing, FORWARD, MIDDLE, & BACK. The kit setting is FORWARD, which provides the most rear traction and will be used most often. For improved handling in bumps or rhythm sections, try moving the hubs to MIDDLE or BACK.
  • Page 25 :: Shocks :: Differentials 1777 FT Blue Aluminum Shock Pivot Ball with Eyelet 4 ea. 2330 Diff T-nut 4187 .030 Nylon Washer 3911 Trans. Shim Set 5407 Red O-Rings 3914 Differential Ring Gear & Drive Pinion Gear 6299 E-Clip 3976 3/8 x 5/8 RS Ball Bearing 31327 VCS3 Shock Bottom Cap and O-Ring...
  • Page 26 :: Slipper / Spur Gears / Pinions 1654 FT Axle Pins 7485 FT V2 Slipper Hubs 7486 FT V2 Slipper Spring and Washer 7935 .187 x .50 x .196” Bearing 7935 9603 Slipper Pad 9711 9649 72T 48P Spur Gear 9650 75T 48P Spur Gear 9651...
  • Page 27 :: Front and Rear Gearboxes 3903 Drive Pinions 6860 3911 Trans. Shim Set 6860 6860 6860 3919 Input Shaft Hardware 6860 6860 3977 3/16 x 3/8” RS Ball Bearing 6860 6860 6860 6860 4334 2-56 x 5/16” BHCS 6860 9747 4334 6860 6299...
  • Page 28 :: Front and Rear Top Plates 1736 FT Body Clips, Short, blue 6925 4334 2-56 x 5/16” BHCS 4449 4-40 x 3/16” Alum. Locknut 6951 6277 Ballstud .30” Silver, short 6925 6288 4-40 x 1/4” BHCS 6338 6925 6292 4-40 x 3/8” FHCS 6338 Antenna Tube 12”, black 9714...
  • Page 29 :: Front Suspension 2221 4-40 x 7/16” BHCS 3977 3/16 x 3/8” RS Ball Bearing 3983 Ballstud .30” Black, short 4449 4-40 x 3/16” Alum. Locknut 6272 Foam Ballend Dust Covers 6277 Ballstud .30” Silver, short 6925 4-40 X 1/2” SHCS 6953 8-32 LP Steel Locknut 7381...
  • Page 30 :: Chassis and Battery Mounts 4449 4-40 x 3/16” Alum. Locknut 6292 4-40 x 3/8” FHCS 6915 4-40 x 5/8” FHCS 6917 4-40 x 3/8” BHCS 6922 4-40 X 1/2” FHCS 6936 Washers, Alum. #4 7673 4-40 x 5/16” FHCS 9645 2-56 x 1/8”...
  • Page 31 :: Reedy Batteries :: Factory Team and Option Parts AA Alkaline 1.5V (4) 1404 Ti Turnbuckle 1.775” Blue AA 2700mAh NiMH 1.2V Rechargeable 1406 Ti Turnbuckle 2.00” Blue LiPo 60C 5200mAh 7.4V SP 1411 Ti Turnbuckle 0.75” Blue TX Lightweight Battery 1350mAh 11.1V 1654 FT Solid Axle Pins TX Battery - 3PK, M11 3000mAh 11.1V...
  • Page 32 :: LRP Speed Controls :: 1/18 Kits and RTR’s LRP80230 Spin Super Brushless 20103 RC18B2 - RC18T2 Team Kit LRP80250 Spin Pro Brushless 20110 RC18MT RTR (ready-to-run) LRP80960 Flow Competition 20115 RC18R Kamino RTR (ready-to-run) LRP80970 Flow Works Team 20118 RC18R Niteline RTR (ready-to-run) 20121 SC18 RTR Brushless (ready-to-run)

  • Page 33: Notes

    FT 1/4” 5 Piece Power Tool Tips Set (5/64-2.0mm, 1.5mm, 2.5mm, 5/64”- 2.0mm ball, 2.5mm ball) 1719 FT Camber + Track Width Tool 1737 FT Body Scissors Associated Electrics, Inc. 3718 12 Inch Nylon Wire Ties 26021 Commercentre Drive 3719 6 Inch Nylon Wire Ties...

  • Page 34: Notes

    :: Notes...

  • Page 35: Notes

    Driver: B44.2 Team Setup Date: Track: Event: Conditions: Rev.1 Setup Sheet Front Suspension Rear Suspension Anti Roll Bar: Anti Roll Bar: 0.047” Black 0.047” Black 0.055” Silver 0.055” Silver None None -1˚ Camber: Bumpsteer 3˚ Toe: Washer: 20mm -1˚ Ride Height: Camber: 0.030 Anti-Squat:...
  • Page 36 :: Hardware - 1:1 Scale View Cap Head (shcs) Flat Head (fhcs) Button Head (bhcs) 4-40x5/16 (6932) 4-40x5/16 (7673) 2-56x1/8 (9645) (aluminum ,4145) 2-56x5/16 (4334) 4-40x3/8 (6924) 4-40x3/8 (6292) (aluminum ,6860) 4-40x1/4 (6288) 4-40x7/16 (7874) 4-40x7/16 (9765) (aluminum, 7873) 4-40x3/8 (6917) 4-40x1/2 (6925) 4-40x5/8 (6915) 4-40x7/16 (2221)
  • Page 37 Driver: Date: Track: Event: Conditions: Rev.1 Setup Sheet Front Suspension Rear Suspension Anti Roll Bar: Anti Roll Bar: 0.047” Black 0.047” Black 0.055” Silver 0.055” Silver None None Camber: Bumpsteer Toe: Washer: Ride Height: Camber: Anti-Squat: Toe: Aluminum Ride Height: Hub Tower: Washers: Steering Rack:...
