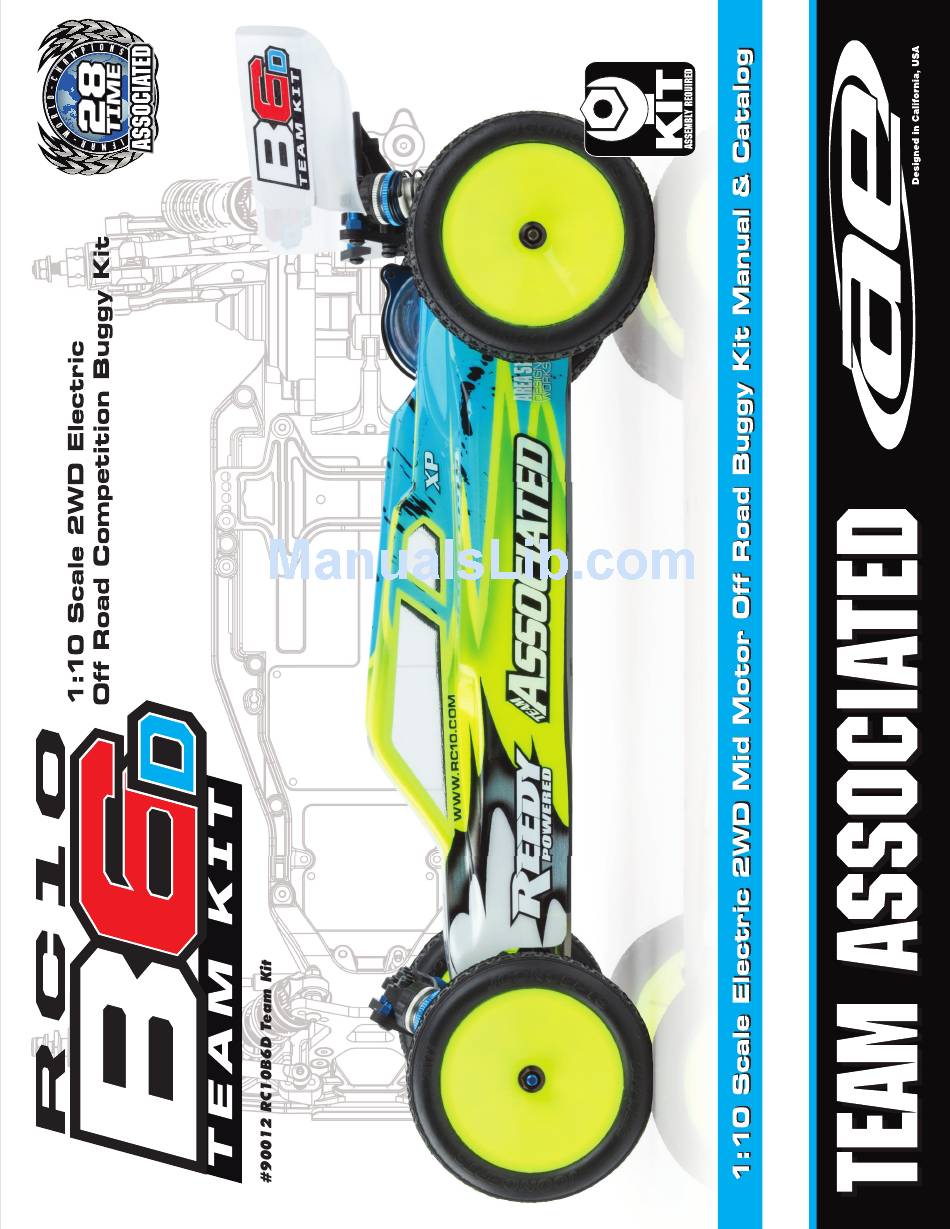

Associated Electrics RC10B6D Team Kit Manual & Catalog

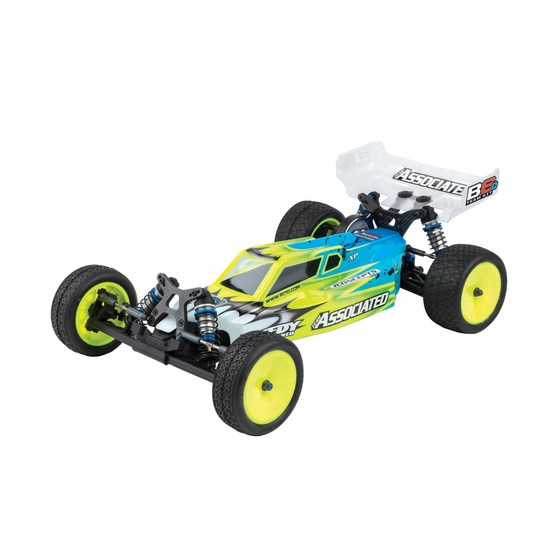

1:10 scale electric 2wd mid motor off road buggy kit
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the RC10B6D Team Kit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Associated Electrics RC10B6D Team Kit

Summary of Contents for Associated Electrics RC10B6D Team Kit

  • Page 2 • Multi Tool (AE Part #7494) • Hobby Knife • Soldering Iron • Calipers or a Precision Ruler • Green Slime shock lube (AE Part # 1105) Associated Electrics, Inc. Customer Service 26021 Commercentre Dr. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...
  • Page 3 :: Hardware - 1:1 Scale View Button Head (bhcs) Flat Head (fhcs) Ball Bearings 2x4mm (31510) 3x8mm (25201) 3x7x3mm (91475) Aluminum (8545) Aluminum (8553) Titanium (91592) 2.5x6mm (31520) 5x8x2.5mm (31400) 3x10mm (25202) 2.5x8mm (31521) Aluminum (8555) Titanium (91593) 5x10x4mm (91560) 3x4mm (91158) 3x12mm (25203) 3x5mm (31530)
  • Page 4 Team Associated’s Tech Tips foldout has a number assigned to it for ordering videos. These videos will help you replacement parts. with your build and setup! Associated Electrics, Inc. Customer Service 26021 Commercentre Dr. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...
  • Page 5 8/16 :: Bag 1 - Step 1 Front 91475 31286 3 x 7 x 3 FT Ballstud Ball Bearing 91667 Washer, Note orientation Steering of steering rack. Aluminum 91475 Bellcrank (2mm) 3 x 7 x 3 (Right) Ball Bearing 91667 Steering Rack 31286...
  • Page 6 :: Bag 2-4 - Step 2 Bag 2-4 Step 2 Step 2 91652 Servo not 31286 31284 Side Rails included! 8mm Ball FT Ballstud (L & R) Stud, Long Washer, aluminum (2mm) 89009 Servo Horn Servo screw Ring not included! 9180 25202 25201...
  • Page 7 :: Bag 2-4 - Step 5 91656 89202 Front Hinge M3 x 12mm Pin Brace, BHCS The front hinge pin brace has a sharp edged side, and a rounded edge side. Mount the sharp edge side towards the bulkhead. 31510 M2 x 4mm BHCS 91671...
  • Page 8 :: Bag 5-8 - Step 2 91049 91675 25215 31532 Heavy-duty Caster M3 Locknut, M3 x 8mm Ballstud, Block black BHCS There are three caster 10mm block inserts included (0°, +/- 2.5 °, +/- 5 °). +5 ° is the standard insert used.
  • Page 9 :: Bag 9-10 - Step 2 91692 91695 Rear Rear Gearbox Arms Brace 91670 Hinge Pin 91685 (rear, Inner) Rear Bumper 91692 25204 Arm Mount, M3 x 16mm FHCS :: Bag 11-14 - Step 1 6581 7666 7666 3/32 carbide Diff Drive Diff Drive diff balls...
  • Page 10 :: Bag 11-14 - Step 3 6575 As you tighten the diff bolt, you will notice the T-nut ears moving closer to the bottom of the outdrive slot. This compresses the Locking spring behind the T-nut. The spring should be completely t-nut compressed at the time the T-nut reaches the end of the slot.
  • Page 11 :: Bag 11-14 - Step 6 9603 Slipper 7485 FT V2 91713 Slipper Hub Stand-up Motor Plate There’s also a 72T 9652 25202 48P spur gear 78T 48P (#9649) M3 x 10mm included for stock Spur Gear FHCS motor use! :: Bag 11-14 - Step 7 Set nut Set nut...
  • Page 12 :: Bag 15-16 - Step 1 91563 91697 25215 10 x 15 x 4 Rear Hub M3 Locknut, Bearing black Link Insert Rear Hub Link Setting: 91698 89218 Rear Hub Link Nut 3 x 8mm Washer 91697 Down Rear Hub 91049 Heavy-duty Ballstud,...
  • Page 13 :: Bag 17 - Step 1 91722 91723 91722 Ball Cup Turnbuckle Ball Cup 3x48mm Steering Turnbuckle Racers Tip: 28.75mm Orient the notch Use black grease to the left throughout the (#6588) on the car. It indicates which end threads of the has the left hand threads! turnbuckles for easier ball cup...
  • Page 14 :: Bag 18-19 - Step 1 91533 Shock Bushing, Short 25188 M3 x 20mm 25203 BHCS M3 x 12mm FHCS 91661 Front Shock Tower, Flat :: Bag 18-19 - Step 2 91720 91718 Shock Rear Wing Bushing, Mount 91665 Long Rear Shock Tower 89202...
  • Page 15 :: Bag 20-22 - Step 2 91491 There is a short and 91480 long shock eyelet. 12mm 12x23mm V2 Front shocks use Shock Cap Shock Bodies the long eyelet, rear the long eyelet, rear O-Ring (front) shocks use the long shocks use the long Lightly rub shock oil eyelet.
  • Page 16 :: Bag 20-22 - Step 5 91447 Use outside Shock 91447 hole in Bushing front arm! Shock Bushing 25612 M3 Locknut w/Flange 25188 25612 M3 x 20mm 25187 M3 Locknut Use inside BHCS M3 x 14mm w/Flange hole in BHCS Build x2 (right and left side) rear arm! :: Bag 23 - Step 1...
  • Page 17 :: Bag 24-26 - Step 1 6338 25225 Antenna ESC not M3 x 3mm included! Tube & Cap Set Screw Receiver not 6727 included! Servo Tape 6727 Servo Tape There are two options for mounting your antenna. :: Bag 24-26 - Step 2 91734 Battery 91730...
  • Page 18 :: Bag 24-26 - Step 4 91729 89218 Thumb 3 x 8mm 25211 Screw, B6 Washer M3 x 10mm BHCS 91731 Battery 91731 Strap, B6 Battery Strap Nut, :: Bag 24-26 - Step 5 Body Trimming / Mounting: 25203 91718 M3 x 12mm There are 3 body trimming options depending on what transmission and Wing...
  • Page 19 :: Bag 24-26 - Step 7 91738 M4 Serrated 91738 Nut, with M4 Serrated Flange Nut, with Flange Build 2 (1 left, 1 right) Build 2 (1 left, 1 right) :: Painting Tips Your B6 Team Kit comes with a clear polycarbonate body. You will need to prep the body before you can paint it. Wash the INSIDE thoroughly with warm water and liquid detergent (do not use any detergents with scents or added hand lotion ingredients!).
  • Page 20 :: Tuning Tips (cont.) Motor Gearing: Proper motor gearing will result in maximum performance and run time while reducing the chance of overheating and premature motor failure. The gear ratio chart lists recommended starting gear ratios for the most widely used motor types.

  • Page 21: Ride Height

    :: Tuning Tips (cont.) Rear Camber Link: Changing the length of the camber link is considered a bigger step than adjusting the ball end height on the rear chassis brace. Shortening the camber link (or lowering the ball end) will give the rear end less roll and the car will tend to *Raise or lower accelerate or “square up”...
  • Page 22 :: Shocks :: Ball Differential 4187 .030 Nylon Washer 1733 Diff Shims 31327 VCS3 Shock Bottom Cap and O-Ring 2 ea. 6573 Diff Thrust Washer & Bolt 31510 2x4mm BHCS 6574 Precision Diff Thrust Balls, 5/64” 89278 2.5mm Washer 6575 Locking T-Nut, Diff Thrust Bolt, &...
  • Page 23 :: Transmission 25187 M3 x 14mm BHCS 91560 25202 M3 x 10mm FHCS 91710 25203 M3 x 12mm FHCS 25202 91048 31286 Ball Stud Washers, Alum. 4 ea. (1mm, 2mm) 31532 31532 M3 x 8mm BHCS 89218 3 x 8mm Washer 91717 91132 25187...
  • Page 24 :: Optional Gear Differential 4675 M2.5 x 6 FHCS 9831 Gear Diff O-Ring Set 9831 91605 91462 Gear Diff Gear and Cover 4675 91464 91463 Gear Diff Rebuild, B5 91464 FT Aluminum Gear Diff Cover 91465 91465 Gear Diff Outdrives, B5 91605 CVA Axle Shims 91465...
  • Page 25 :: Front Arm 25187 M3 x 14mm BHCS 25188 M3 x 20mm BHCS 25187 25215 M3 Locknut, Black 91048 31286 FT Ballstud Washer, aluminum 4 ea. (1mm, 2mm) 31510 M2 x 4mm BHCS 91049 31531 M3 x 6mm, BHCS 31286 25215 31532 M3 x 8mm, BHCS...
  • Page 26 :: Front Shock Tower 25188 M3 x 20mm BHCS 25203 M3 x 12mm FHCS 91533 25612 M3 Locknuts w/Flange 91447 Shock Bushing Balls 91447 91533 Shock Bushings, Short w/Balls 4 ea. 91661 Front Tower, Flat, B6 25612 25188 25203 91533 91447 91661 25203...
  • Page 27 :: Front Bulkhead / Steering 25188 M3 x 20mm BHCS 25204 M3 x 16mm FHCS 25188 25225 M3 x 3mm Set Screw 31283 Ball Studs, Long, 5mm 31286 FT Ball Stud Washer, aluminum 4 ea. (1mm, 2mm) 91667 89202 M3 x 12mm BHCS 91048 Heavy-duty Ballstud, 8mm 91475...
  • Page 28 :: Body and Decals :: Factory Team and Option Parts 7495 Vented V2 Slipper Hubs 91739 RC10B6 Clear Body 31286 FT Ballstud Washer, aluminum (1mm, 2mm) 4 ea. 91740 RC10B6 Lightweight Clear Body 91175 FT VTS Slipper Conversion 91741 RC10B6 Wing 91176 VTS Slipper Housing 91742...
  • Page 29 :: Reedy Motors / Spare Parts / Accessories :: Reedy Servos & Accessories Sonic 540-M3 25.5 27100 RS1206 Digital HV Hi-Speed Competition Servo Sonic 540-M3 21.5 27101 RT1508 Digital HV Hi-Torque Competition Servo Sonic 540-M3 17.5 27102 RS1206 Servo Case Set w/screws Sonic 540-M3 13.5 27103 RS1206 Servo Gear Set...
  • Page 30 :: Tools :: RePlay Cameras / Kicker Audio RP005 Replay XD PrimeX Camera System 1111 FT Turnbuckle Wrench RP021 Replay XD1080 Lens Bezel Kit 1113 12mm Big Bore Shock Tool RP022 Replay XD1080 Clear Lens Cover 1449 FT Off Road Ride Height Gauge RP023 Replay XD1080 Lens Bezel &...
  • Page 31 :: Notes :: Contact Information Check out the following web sites for all of our electric kits, current products, new releases, setup help, tips, and racing info! Associated Electrics, Inc. 26021 Commercentre Drive Lake Forest, CA 92630-8853 USA http://www.TeamAssociated.com http://www.RC10.com http://twitter/Team Associated http://bit.ly/AEonFacebook...
  • Page 32 Driver: Team Kit Stock Setup Event: Date: Track: Qualify: Main: Finish: Best Lap Time: Front Suspension: 23mm Anti Roll Bar: Axle Height: Ride Height: Bump Steer Spacing: Ball Stud Spacing: None -1° Camber: White (0.8mm) 0° Toe: Gray (0.9mm) Flat Arm Type: Blue (1.0mm) Flat...
  • Page 33 Driver: Event: Date: Track: Qualify: Main: Finish: Best Lap Time: Front Suspension: Anti Roll Bar: Axle Height: Ride Height: Bump Steer Spacing: Ball Stud Spacing: None Camber: White (0.8mm) Toe: Gray (0.9mm) Arm Type: Blue (1.0mm) Tower Type: Other: Caster Block Insert: Steering Plate: Bulkhead Type: Steering Stop Spacing:...
