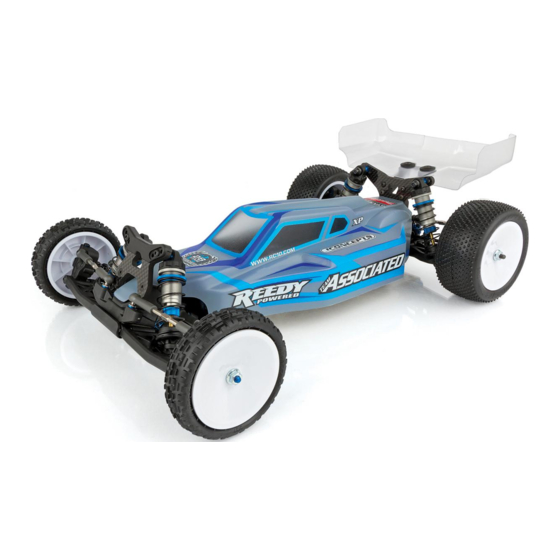

1:10 scale 2wd electric off road competition buggy kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC10B6.1 and is the answer not in the manual?

Questions and answers

Related Manuals for Associated Electrics RC10B6.1

Summary of Contents for Associated Electrics RC10B6.1

  • Page 2 New parts will be noted on supplementary sheets located in the appropriate parts bags. Check each bag for these sheets before you start to build. :: RC10B6.1 KIT Features • Easy access gear differential • Differential height adjustment with 0, 1, 2, & 3mm insert included •...
  • Page 3 :: Hardware - 1:1 Scale View Button Head (bhcs) Flat Head (fhcs) Ball Bearings 2x4mm (31510) 2x3mm (91743) 3x7x3mm (91475) Aluminum (8545) 3x8mm (25201) 2.5x6mm (31520) Aluminum (8553) 5x8x2.5mm (31400) Titanium (91592) 2.5x8mm (31521) 3x10mm (25202) 5x10x4mm (91560) 2.5x10mm (31522) Aluminum (8555) Titanium (91593) 3x4mm (91158)
  • Page 4 Each part in the This symbol indicates a Racers Tip. foldout has a number assigned to it for ordering replacement parts. Associated Electrics, Inc. Customer Service 26021 Commercentre Dr. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...
  • Page 5 12/17 :: Bag 1 - Step 1 Front 91475 31382 3 x 7 x 3 FT Ballstud Ball Bearing 91667 Washer, Note orientation Steering of steering rack. Aluminum 91475 Bellcrank (1mm) 3 x 7 x 3 (Right) Ball Bearing 91667 Steering Rack 31382...
  • Page 6 :: Bag 2 - Step 1 91765 Chassis, 91656 B6.1 Bulkhead There are two bulkhead settings (25 °, 30 °). 25 ° is the standard used. The arrow should point forward for the desired setting. 25204 M3 x 16mm FHCS :: Bag 2 - Step 2 91734 91652...
  • Page 7 :: Bag 2 - Step 4 91719 A - Airtronics Servo F - Futaba Mount H - Hitec J - JR Printed here Align the servo 91728 horn 90 degrees Servo Spacers 31532 89218 M3 x 8mm M3 x 8mm BHCS Washer #91728 - Servo Spacers...
  • Page 8 :: Bag 2 - Step 7 91685 Front Bumper 91670 25225 25204 Hinge Pin M3 x 3mm M3 x 16mm (front, Inner) Set Screw FHCS :: Bag 2 - Step 8 91771 91768 Front Shock Front Shock Tower Cover, Tower, Gull-Wing Gull-Wing 25202...
  • Page 9 :: Bag 3 - Step 2 91049 91675 25215 31532 Heavy-duty Caster M3 Locknut, M3 x 8mm Ballstud, Block black BHCS There are three caster 10mm block inserts included (0°, +/- 2.5 °, +/- 5 °). +5 ° is the standard insert used.
  • Page 10 :: Bag 4 - Step 2 91772 Out 0.5° Aluminum Arm Mount, 92014 Arm Mount 92014 Inserts (0.5°) Arm Mount Inserts (2.5°, 1°) 91670 31541 91685 Hinge Pin 91688 M3 x 6mm Corner 1° Rear (rear, Inner) Aluminum FHCS Bumper Arm Mount, D :: Bag 4 - Step 3 Toe-In...
  • Page 11 :: Bag 5 - Step 2 91780 91780 Gear Diff 91783 Planet Gear washer Gear Diff Diff Shim 5x15mm Crosspin 3.5 x 9mm 91783 91780 Gear Diff Planet Cover Gear 91782 Gear Diff 91782 O-Ring Gear Diff O-Ring 91785 3.3 x 0.6mm Gear Diff #91782 - Gear Diff O-Rings are a tuning option.
  • Page 12 :: Bag 6 - Step 2 Do not overtighten Add a drop of Diff Lube 25225 #25225 - M3 x 3mm set screw. (#6591 - not included) to M3 x 3mm You could bend the bar! the teeth of the diff gear, Set Screw idler gear, and top shaft.
  • Page 13 :: Bag 6 - Step 5 91801 Slipper Spring Adapter, Inner 91801 Slipper Spring Adapter, Inner 25215 Locknut 91801 Set nut Set nut Slipper flush with flush with Spring top shaft. top shaft. 25204 M3 x 16mm 25202 25202 FHCS See page 20 for gear See page 20 for gear M3 x 10mm...
  • Page 14 :: Bag 7 - Step 2 91436 91563 91438 CVA Wheel 10 x 15 x 4 Hex Pin Bearing Coupler 91611 91762 M1.6 x 5mm HD CVA 91434 SHCS Axle, V2 CVA Bone, 67mm 91438 71034 CVA Pin Clamping CVA Axle Holes 91562 Wheel Hex, There are two hole locations on the #91762 CVA axle.
  • Page 15 :: Bag 8 - Step 2 91722 91723 91722 Ball Cup Turnbuckle Ball Cup 3x48mm Front Camber Turnbuckle 26.75mm Racers Tip: Orient the notch to the left throughout the Use black grease car. It indicates which end (#6588) on the has the left hand threads! threads of the turnbuckles for...
  • Page 16 :: Bag 9 - Step 2 91491 There is a short and 91480 long shock eyelet. long shock eyelet. 12mm 12x23mm V2 Front shocks use Front shocks use Shock Cap Shock Bodies the short eyelet. O-Ring (front) Rear shocks use Rear shocks use Lightly rub shock oil the long eyelet.
  • Page 17 :: Bag 9 - Step 5 25612 M3 Locknut w/Flange Use center hole in front arm! Make sure the flange on the shock pivot ball is towards the rear 25188 arm. 25612 M3 x 20mm 25187 M3 Locknut BHCS M3 x 14mm w/Flange BHCS Build x2 (right and left side)
  • Page 18 :: Bag 10 - Step 3 89218 91729 3 x 8mm 31531 Thumb 91731 Washer M3 x 6mm Screw, B6 Battery BHCS Strap, B6 Front 91731 Battery Strap Nut, :: Bag 10 - Step 4 Wing Mount 25202 M3 x 10mm 91718 0°...
  • Page 19 :: Bag 10 - Step 5 Wheels / Tires and Inserts are not included! Carefully apply ca glue (tire adhesive) to the tire bead on the side. Do one Wheels / Tires and side at a time, allowing it Inserts are to dry before gluing the not included! other side!
  • Page 20 :: Tuning Tips (cont.) Motor Gearing: Proper motor gearing will result in maximum performance and run time while reducing the chance of overheating and premature motor failure. The gear ratio chart lists recommended starting gear ratios for the most widely used motor types.

  • Page 21: Ride Height

    :: Tuning Tips Front Camber Links: Changing the length of the camber link is considered a bigger step than adjusting the ball end height on the tower. Shortening the camber link (or lowering the ball end) will give the front end less roll and quicken steering *Raise or lower the response.
  • Page 22 :: Shocks :: Optional Ball Differential 4187 .030 Nylon Washer 1733 Diff Shims 31327 VCS3 Shock Bottom Cap and O-Ring 2 ea. 6573 Diff Thrust Washer & Bolt 31510 2x4mm BHCS 6574 Precision Diff Thrust Balls, 5/64” 89278 2.5mm Washer 6575 Locking T-Nut, Diff Thrust Bolt, &...
  • Page 23 :: Transmission 4671 M3 x 10mm Set Screw 25225 25225 91821 89203 25188 M3 x 20mm BHCS 25202 M3 x 10mm FHCS 91823 89203 91821 25204 M3 x 16mm FHCS 89202 25225 M3 x 3mm Set Screw 31382 Ballstud Washers, 5.5x1.0 mm, 91820 91791 blue aluminum...
  • Page 24 :: Gear Differential 31522 M2.5 x 10mm BHCS 91563 31522 91563 FT Bearings, 10x15x4 mm 91792 91780 B6.1 Gear Differential Rebuild 91782 91782 B6.1 Gear Differential Seals 91783 B6.1 Gear Differential Case 91785 91780 91784 B6.1 Aluminum Cross Pins 91783 91785 B6.1 Gear Differential Outdrives 91782...
  • Page 25 :: Front Arm 25187 M3 x 14mm BHCS 25188 M3 x 20mm BHCS 25187 25215 M3 Locknut, Black 31510 M2 x 4mm BHCS 31531 M3 x 6mm, BHCS 91049 91048 31532 31532 M3 x 8mm, BHCS 91048 Heavy-duty Ballstud, 8mm 25215 91049 Heavy-duty Ballstud, 10mm...
  • Page 26 :: Front Shock Tower 25188 M3 x 20mm BHCS 25202 M3 x 10mm FHCS 25612 M3 Locknuts w/Flange 91768 B6.1 Front Shock Tower 91771 B6.1 Shock Tower Covers 91815 Shock Bushing, 10mm 91771 91768 91815 25612 25188 25188 91815 25612 25202 25202 :: Rear Shock Tower...
  • Page 27 :: Front Bulkhead / Steering 25187 M3 x 14mm BHCS 25204 M3 x 16mm FHCS 91821 91821 91821 91821 25211 M3 x 10mm BHCS 31500 25225 M3 x 3mm Set Screw 25225 31283 Ball Studs, Long, 5mm 25225 31382 Ballstud Washers, 5.5x1.0 mm, 91822 blue aluminum 91821...
  • Page 28 Adhesive Hook and Loop 91553 Factory Team Bearing Kit, B5, B5M 91827 RC10B6.1 Clear Body 91580 Titanium Screws, 3x6mm BHCS 91828 RC10B6.1 Lightweight Clear Body 91581 Titanium Screws, 3x8mm BHCS 91582 Titanium Screws, 3x10mm BHCS 91583 Titanium Screws, 3x12mm BHCS 91584...
  • Page 29 :: Reedy Motors / Spare Parts / Accessories :: Reedy ESC’s MOTORS 253C Blackbox 800Z/540-M3 21.5 Combo Sonic 540-M3 10.5 254C Blackbox 800Z/540-M3 17.5 Combo Sonic 540-M3 9.5 255C Blackbox 800Z/540-M3 15.5 Combo Sonic 540-M3 8.5 256C Blackbox 1000Z+/540-M3 10.5 Combo Sonic 540-M3 8.0 258C Blackbox 1000Z+/540-M3 8.5 Combo...
  • Page 30 :: Apparel / Promotional :: Tools TEE SHIRTS 1111 FT Turnbuckle Wrench SP11* 2016 Worlds T-shirt, blue, (S, M, L, XL-5XL) 1112 FT 4mm Turnbuckle Wrench SP12* 2016 Worlds T-shirt, black, (S, M, L, XL-5XL) 1113 12mm Big Bore Shock Tool SP113* AE Worlds Car Retro T-Shirt, (S, M, L, XL-3XL) 1114...
  • Page 31 :: Notes :: Contact Information Check out the following web sites for all of our electric kits, current products, new releases, setup help, tips, and racing info! Associated Electrics, Inc. 26021 Commercentre Drive Lake Forest, CA 92630-8853 USA http://www.TeamAssociated.com http://www.RC10.com http://twitter/Team_Associated http://www.instagram.com/teamassociatedrc/...
  • Page 32 Team Kit Stock Setup Driver: Event: Date: Track: Qualify: Main: Finish: Best Lap Time: Front Suspension: 19mm Ride Height: Anti Roll Bar: Axle Height: Bump Steer Spacing: Ball Stud Spacing: None -1° Camber: White (0.8mm) 0° Toe: Gray (0.9mm) Gull-Wing Arm Type: Blue (1.0mm) Gull-Wing...
  • Page 33 Driver: Event: Date: Track: Qualify: Main: Finish: Best Lap Time: Front Suspension: Ride Height: Anti Roll Bar: Axle Height: Bump Steer Spacing: Ball Stud Spacing: None Camber: White (0.8mm) Toe: Gray (0.9mm) Arm Type: Blue (1.0mm) Tower Type: Other: Caster Block Insert: Steering Plate: Steering Block: Steering Stop Spacing:...
