The Orleans

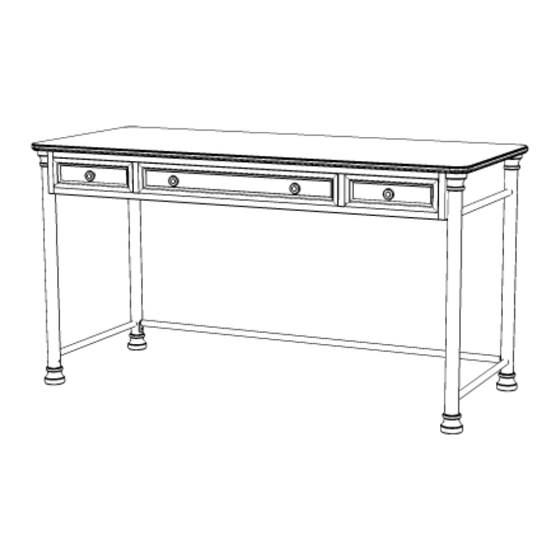

Executive Desk
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
Hardware List
Hex Wrench
1 Pc.
Tools required for assembly : Phillips screwdriver
A.
Top Unit
1 Pc.
B.
Stretcher
1 Pc.
Small Hex Wrench
1 Pc.
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
C.
Side Frame
1 Pc.
Head Cap Bolt (short)
Head Cap Bolt (long)
2 Pcs.(+1 extra)
8 Pcs.(+1 extra)
Tools recommended for assembly : Level
D.
Side Frame
1 Pc.
Wood Screw
4 Pcs.(+1 extra)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Styles The Orleans 88 5061 15
Summary of Contents for Home Styles The Orleans 88 5061 15
- Page 1 Head Cap Bolt (long) Wood Screw 1 Pc. 1 Pc. 2 Pcs.(+1 extra) 8 Pcs.(+1 extra) 4 Pcs.(+1 extra) Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2 IMPORTANT * Please keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Do not tighten up all the bolts until each part is properly assembled. * Use a soft cloth between these parts and the fl...
- Page 3 Assembly Instructions 3 Head Cap Bolt (short) STEP 3 Attach Stretcher (B) to Side Frame (C) and Side Frame (D) with Head Cap Bolts (short). STEP 4 Remove Knobs that are on the inside of the drawers and attach to the outside of the drawers with Machine Screws.
