88 5061 01

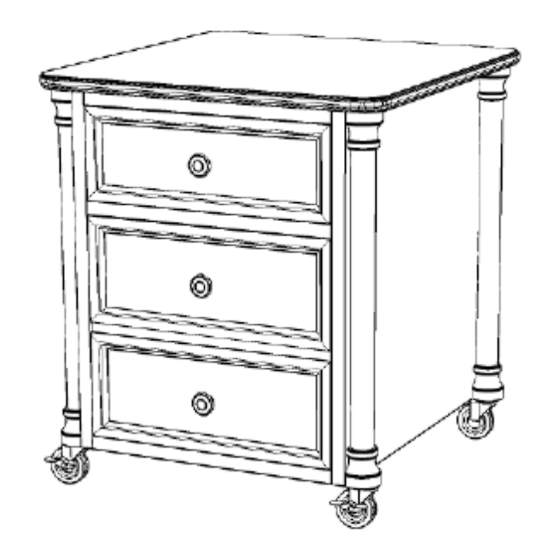

Mobile File
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Hardware List
IMPORTANT
* Use a soft cloth between these parts and the fl oor.
STEP 1
Attach Casters underneath unit with the
Locking Casters to the front.
Tighten all Casters with Key Wrench.
(see Figure 1)
Tools required for assembly : Phillips screwdriver
Caster
Two with lock and
Two without lock
4 Pcs.
Figure 1
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
Locking Caster
Non-Locking Caster
Key Wrench
1 Pc.
Assembly Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 88506101
Summary of Contents for Home Styles 88506101
- Page 1 Attach Casters underneath unit with the Locking Casters to the front. Tighten all Casters with Key Wrench. (see Figure 1) Locking Caster Non-Locking Caster Figure 1 Tools required for assembly : Phillips screwdriver Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2 Figure 2 STEP 2 Remove the Knobs that are on the inside of the drawers and attach to the outside of the drawers with Machine Screws. (see Figure 2) Slide Drawers into position. STEP 3 Remove the tape holding the Metal Strips in place.
