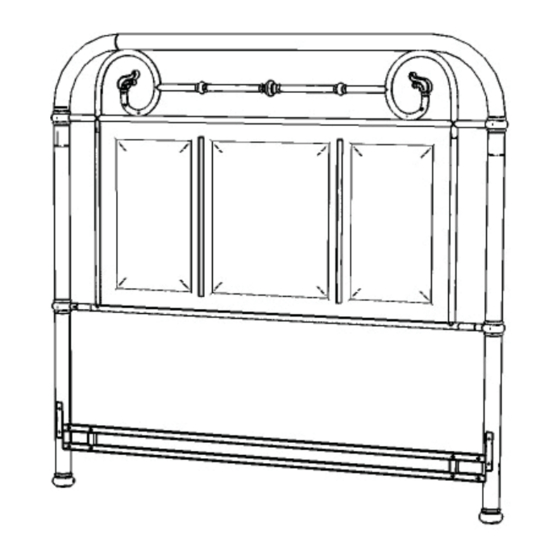

Queen Headboard
Important NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Frame
1 Pc.
B.
Headboard
1 Pc.
C.
Stretcher
1 Pc.
Hardware List
Hex Wrench
1 Pc.
Tools required for assembly : Phillips screwdriver
M6x16
Head Cap Bolt
8 Pcs.(+1 extra)
Small Hex Wrench
1 Pc.
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
D.
Stretcher
1 Pc.
E.
F.
Post
Post
1 Pc.
1 Pc.
M6x32
Tapered Head Cap Bolt
6 Pcs.(+1 extra)
Flat Washer
8 Pcs. (+1 extra)
G.
Upright
2 Pcs.
M4x13
Wood Screw
8 Pcs.(+1 extra)
