88 5061 66

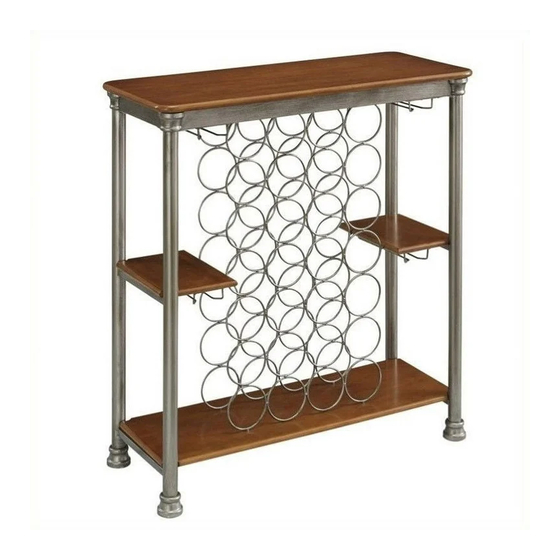

Orleans
Wine Rack
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Top Unit
1 Pc.
B.
Side Frame
2 Pcs.
Hardware List
Hex Wrench
1 Pc.
Head Cap Bolt (long)
4 Pcs.(+1 extra)
Small Hex Wrench
1 Pc.
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
D.
Shelf
1 Pc.
E.
Support
1 Pc.
G.
Wine Glass Rack (long)
2 Pcs.
M6x38
M6x16
Head Cap Bolt (short)
2 Pcs.(+1 extra)
C.
Shelf
2 Pcs.
M6x16
Spring Washer
Tapered Head Cap Bolt
20 Pcs.(+1 extra)
6 Pcs.(+1 extra)
Tools recommended for assembly : Level
F.
Wine Rack
2 Pcs.
H.
Wine Glass Rack (short)
2 Pcs.
M3x32
Flat Washer
Wood Screw
6 Pcs.(+1 extra)
8 Pcs.(+1 extra)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Styles Orleans 88 5061 66
Summary of Contents for Home Styles Orleans 88 5061 66
- Page 1 6 Pcs.(+1 extra) 6 Pcs.(+1 extra) 8 Pcs.(+1 extra) 4 Pcs.(+1 extra) 2 Pcs.(+1 extra) Small Hex Wrench 1 Pc. Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2 IMPORTANT * Please keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Do not tighten up all the bolts until each part is properly assembled. * Use a soft cloth between these parts and the fl...
- Page 3 Assembly Instructions 3 STEP 3 Attach Shelf (D) to the unit with Wood Screws. Wood Screw Flat Washer Spring Washer Head Cap Bolt (long) STEP 4 Figure 4 Slide Wine Racks (F) into position by putting their bottom tabs into the pre-drilled holes in Shelf (D).
- Page 4 Assembly Instructions 4 STEP 5 Turn the unit to its’ upright position. Attach Wine Glass Racks (long) (G) to the unit with Tapered Head Cap Bolts. Attach Shelves (C) to the unit with Wood Screws. Tapered Head Cap Bolt Wood Screw STEP 6 Turn the unit to its’...
