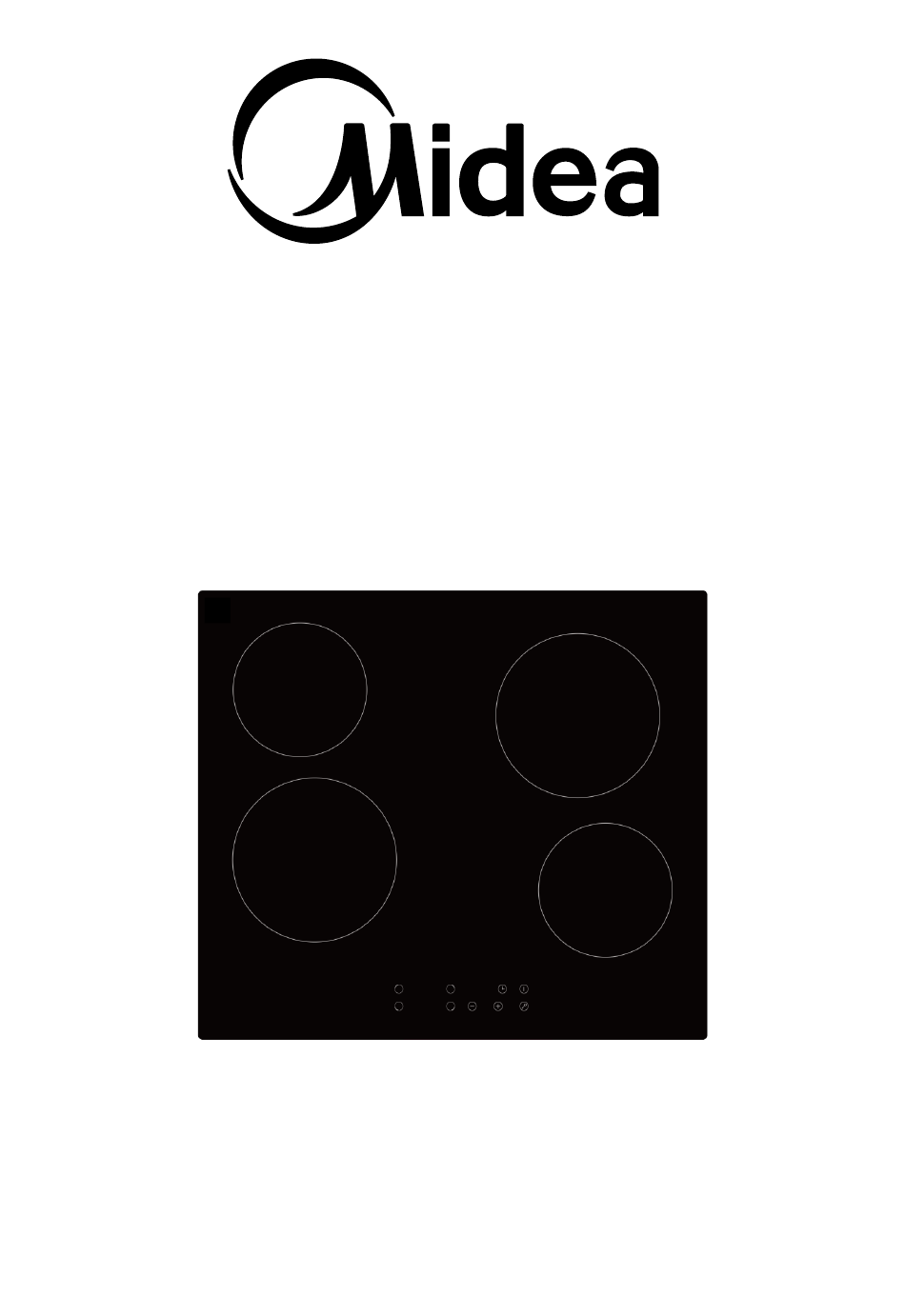

- Page 1 Ceramic Hob Instruction Manual / Installation Manual MODEL: CH6002...
-
Page 2: Table Of Contents
Content 1. Foreword ..................3 1.1 Safety Warnings ................. 3 1.2 Installation ................3 1.2.1 Electrical Shock Hazard ..........3 1.2.2 Cut Hazard ..............3 1.2.3 Important safety instructions .......... 3 1.3 Operation and maintenance ............4 1.3.1 Electrical Shock Hazard ..........4 1.3.2 Health Hazard .............. -
Page 3: Foreword
1. Foreword 1.1 Safety Warnings Your safety is important to us. Please read this information before using your cooktop. 1.2 Installation 1.2.1 Electrical Shock Hazard Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. ... -
Page 4: Operation And Maintenance
incorporates an isolating switch providing full disconnection from the power supply. Failure to install the appliance correctly could invalidate any warranty or liability claims. 1.3 Operation and maintenance 1.3.1 Electrical Shock Hazard Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician. -
Page 5: Cut Hazard
1.3.4 Cut Hazard The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children. Failure to use caution could result in injury or cuts. 1.3.5 Important safety instructions ... - Page 6 Ceramic glass surface as this can scratch the glass. Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the Ceramic glass. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
-

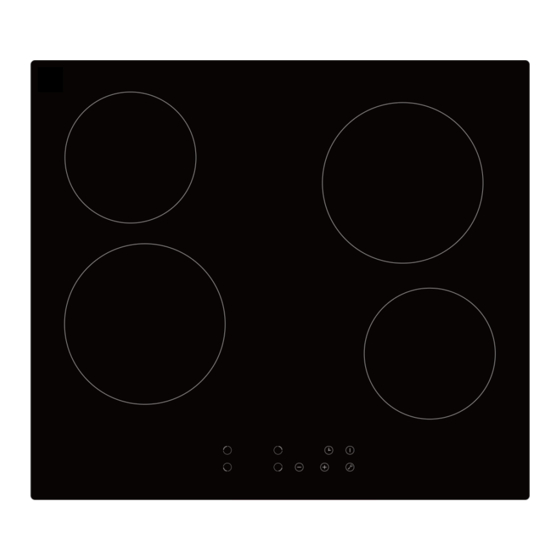

Page 7: Product Introduction
Congratulations on the purchase of your new Ceramic Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference. -
Page 8: Before Using Your New Ceramic Hob
2.5 Before using your New Ceramic Hob Read this guide, taking special note of the ‘Safety Warnings’ section. Remove any protective film that may still be on your ceramic hob. 2.6 Technical Specification Cooking Hob CH6002 Cooking Zones 4 Zones Supply Voltage 220-240V~ 50... -
Page 9: How To Use
Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone. Always lift pans off the ceramic hob – do not slide, or they may scratch the glass. 3.3 How to use 3.3.1 Start cooking After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that... -
Page 10: Finish Cooking
3.3.2 Finish cooking Touching the heating zone selection control that you wish to switch off. (e.g. zone 3#) Turn the cooking zone off by scrolling down to “ 0 ” or touching “-” and “+” control together Turn the whole cooktop off by touching the ON/OFF control. - Page 11 b) You can set it to turn one or more cooking zones off after the set time is up. The timer of maximum is 99 minutes a) Using the Timer as a Minute Minder If you are not selecting any cooking zone Make sure the cooktop is turned on.
-
Page 12: Over-Temperature Protection
Touch the timer control, the timer indicator show “10” Adjust the timer setting by touch the “-” or “+” control. The minute minder indicator will start flashing and will show in the timer display. Touching the “-” and “+” together, the timer is cancelled, and the “--”... -
Page 13: Residual Heat Warning
3.3.6 Residual Heat Warning When the hob has been operating for some time, there will be some residual heat. The letter “ H ”appears to warn you to keep away from it. 3.3.7 Default working times Another safety feature of the hob is automatic shutdown. This occurs whenever you forget to switch off a cooking zone. -
Page 14: Heat Settings
3. Preheat the pan briefly and add two tablespoons of oil. 4. Cook any meat first, put it aside and keep warm. 5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce. -
Page 15: Hints And Tips
Boilovers, Remove these immediately with a fish slice, • Remove stains left by melts and melts, and palette knife or razor blade scraper suitable sugary food or spillovers as soon hot sugary for Ceramic glass cooktops, but beware of as possible. If left to cool on the spills on hot cooking zone surfaces: glass, they may be difficult to... -
Page 16: Installation
8. Installation 8.1 Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant and insulated work surface material (Wood and similar fibrous or hygroscopic material shall not be used as work surface material unless impregnated) to avoid the electrical shock and larger deformation caused by the heat radiation from the hotplate. -
Page 17: Before Locating The Fixing Brackets
A(mm) B(mm) C(mm) 50 mini 20 mini Air intake Air exit 5mm WARNING: Ensuring Adequate Ventilation Make sure the ceramic hob is well ventilated and that air inlet and outlet are not blocked. In order to avoid accidental touch with the overheating bottom of the hob, or getting unexpectable electric shock during working, it is necessary to put a wooden insert, fixed by screws, at a minimum distance of 50mm from the bottom of the hob. -
Page 18: Cautions
screw bracket Screw hole base Adjust the bracket position to suit for different work surface’s thickness. TABLE TABLE BRACKET BRACKET Under any circumstances, the brackets cannot touch with the inner surfaces of the worktop after installation (see picture) 8.3 Cautions 1. - Page 19 Yellow / Green Black Brown Blue If the total number of heating unit of the appliance you choose is not less than 4, the appliance can be connected directly to the mains by single-phase electric connection, as shown below. Yellow / Green Black Brown Blue...
- Page 20 This appliance is labeled in compliance with European directive 2012/19/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.
