Summary of Contents for Midea MC-IF686

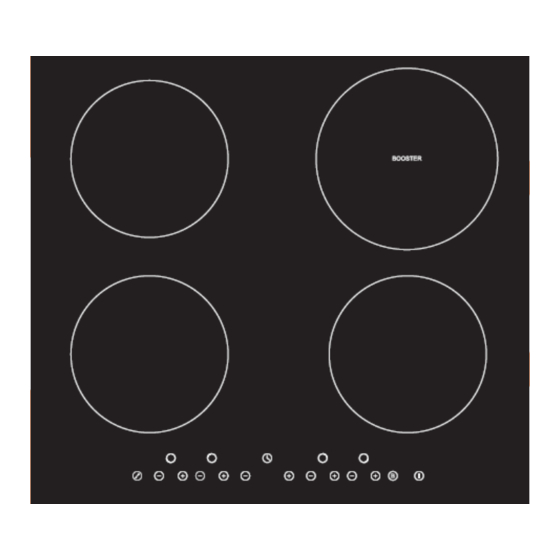

- Page 1 Instruction Manual of Induction hotplate Model: MC-IF686 Thank you for purchasing the induction hotplate, please read this instructions manual carefully before using and keep it cautiously for your future reference. Midea ELETTRODOMESTICI S.r.l.
-
Page 2: Product Introduction
Dear customer: Thank you for purchasing the Midea induction hotplate our product can serve you many years to your satisfaction. Please read this instructions manual carefully before using and installation, keep it cautiously after reading for future reference. Thank you for your purchase of Midea induction hotplate again, and wish you to enjoy the pleasure by it. - Page 3 Safety We have designed this hob for private use in home. With a view to constantly improving our products, we reserve the right to make any changes to their technical, program or aesthetic features connected with their technical evolution. Over- Temperature Protection A temperature sensor equipped can monitor the temperature inside the hotplate.
-
Page 4: Installation
Installation Selection of installation equipment Drill holes on the table surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 50 mm space shall be preserved around the hole. Be sure the thickness of the table surface is at least 30mm. Please select heat-resistant table material to avoid larger deformation caused by the heat radiation from the hotplate. - Page 5 Fix the hob on the table by screw four brackets on the bottom of hob (see picture) after installation. Adjust the bracket position to suit for different table top thickness. Cautions 1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service.
- Page 6 If the cable is damaged or to be replaced, the operation must be carried out the by after-sale agent with dedicated tools to avoid any accidents. If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
-
Page 7: Instructions For Use
Instructions for Use Preparation before using: After power on, the buzzer beep once, all the indicators light up for 1 second then go out, indicating the induction hotplate enters the state of standby. Put the pot in the center of the heating zone. Operation Instructions After the “ON/OFF”... - Page 8 Minute reminder Timer can be used as a Minute reminder. Active timer by press timer key, display shows "00", adjust timer by press +/- key, single touch +/- key will increase or decrease 1 Minute, by press and hold +/- key you can adjust time by 10 Minutes. After set time press timer key again to confirm time setting.
- Page 9 The max. power of each heating zone are as follows: Max. power (W) Heating zone Boost Normal ----- 2000 ----- 1500 2800 2000 ----- 1500 The above power may vary if the material or the size of pot is different. Selection of heating appliances Iron oil frying pan Iron pan...
- Page 10 Never have the induction For sealed food such as After being used for a long hotplate to work without food canned goods, please do not time, the corresponding i n s i d e , o t h e r w i s e i t s heat them before opening their heating zone of the induction...
- Page 11 DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. Cleanness and Maintenance You can easily clean the surface of the induction hotplate if following the methods given in the table. Articles used for Type of contam- Method of cleaning...
-
Page 12: Failure Display And Inspection
Failure Display and Inspection If an abnormality comes up, the induction hotplate will enter the protective state automatically and display corresponding protective codes: Troubles Possible reasons Solutions Temperature Please contact the F3-F8 sensor failure supplier. Please inspect whether power supply is normal. E1/E2 Abnormal supply voltage Power on after the... -
Page 13: Customer Care Service
Customer Care Service Before calling the After Sales Service In case the appliance should not work correctly we suggest to: -verify if the plug is correctly inserted in the socket -read the Failure and Display table above In case it is not possible to establish the reason for the bad functioning of the appliance: switch it off, do not try to manumit it and call the After Sales Service.
