  • Page 1 Cabaret Colour HEX User Manual Order code: EQLED037B...

  • Page 2: Safety Advice

    Please note: These fixtures are intended for stage lighting and entertainment applications only, and are not intended for extended periods of use, including but not limited to house-light, industrial or architectural applications and should only be operated with short duty cycles. www.prolight.co.uk Cabaret Colour HEX User Manual...

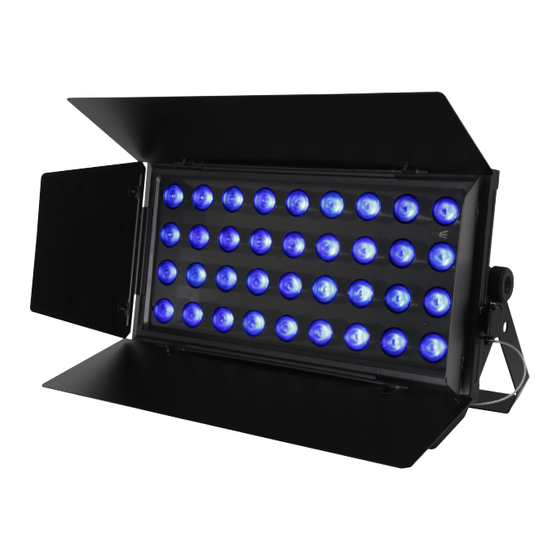

  • Page 3 Cabaret Colour HEX The Cabaret Colour HEX has been designed for entertainers on the go. The 36 six-colour LEDs are housed in an ultra slim and lightweight housing with an adjustable bracket which can be used for hanging, stand mount and floor applications.

  • Page 4: Technical Specifications

    In the box: 1 x fixture, 03 - 3-Pin DMX input 07 - On/off switch adjustment knobs & 1 x power cable 04 - 3-Pin DMX output 08 - Mounting bracket 10 - Fan cooling vents www.prolight.co.uk Cabaret Colour HEX User Manual...
  • Page 5 C G 0 1 S P 0 1 C H A G Colour change mode C G 0 4 S p 9 9 S E 0 0 S o U n Sound active S E 9 9 www.prolight.co.uk Cabaret Colour HEX User Manual...
  • Page 6 Sky Blue Channel Value Function 176-185 Turquoise 000-255 Red dimmer (0-100%) 186-195 Mint Green 000-255 Green dimmer (0-100%) 196-205 White (Blue tint) 000-255 Blue dimmer (0-100%) 206-215 White 216-225 Cool White 226-235 White (Pink tint) www.prolight.co.uk Cabaret Colour HEX User Manual...
  • Page 7 3 colour change (CMY) 096-105 Fuschia Pink 181-205 4 colour change (RGBW) 106-115 Magenta 206-230 7 colour change (RGBWCMY) 116-125 Pink 231-255 Sound active 126-135 Purple 000-255 Program speed (slow-fast)/Sensitivity (low-high) 136-145 Medium Blue www.prolight.co.uk Cabaret Colour HEX User Manual...

  • Page 8: Master/Slave Mode

    - Warm White Co05 Co12 Co19 - Yellow Green - Pink - Mint Green Co06 Co13 Co20 - Yellow - Purple - White (Blue tint) Co07 Co14 Co21 - Orange Yellow - Medium Blue - White www.prolight.co.uk Cabaret Colour HEX User Manual...
  • Page 9 - Press the “ENTER” button and use the “UP” and “DOWN” buttons to select the sound SE00 SE99 sensitivity between . Press the “ENTER” button to confirm the setting. (00 = low sensitivity, 09 = high sensitivity). www.prolight.co.uk Cabaret Colour HEX User Manual...

  • Page 10: Dmx Setup

    CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Cabaret Colour HEX User Manual...

  • Page 11: Line Termination

    5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Cabaret Colour HEX User Manual...

  • Page 12: Weee Notice

    Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Cabaret Colour HEX User Manual...
