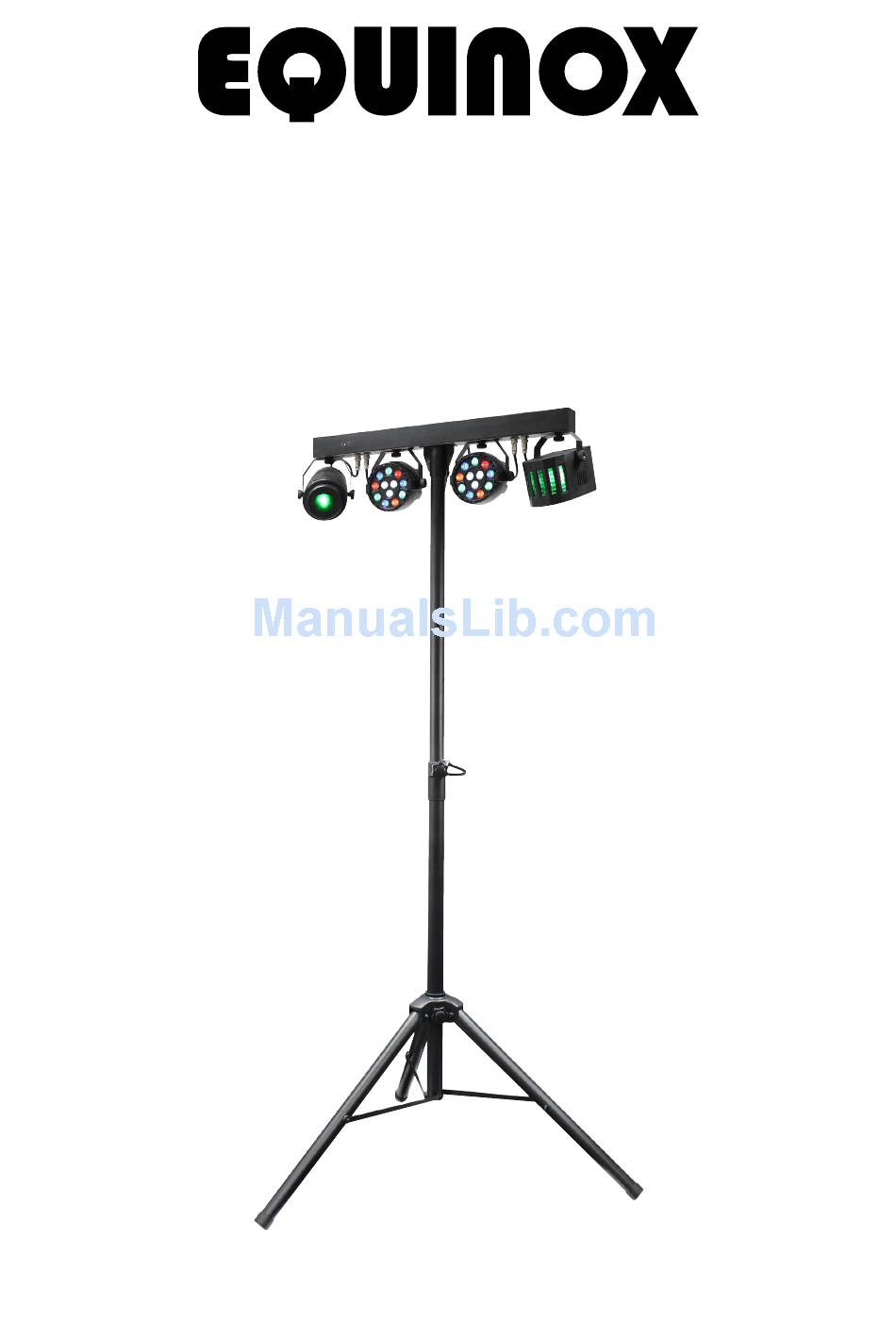

- Page 1 Microbar Multi System User Manual Order code: EQLED136...
-
Page 2: Safety Advice

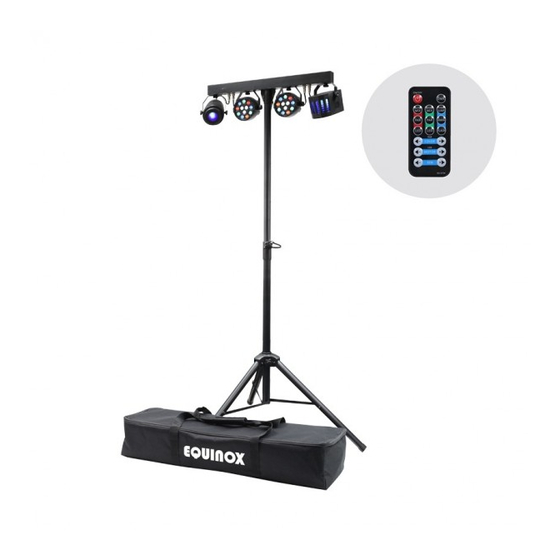

Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CARE- FULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! TAKE CARE USING KEEP THIS EQUIPMENT THIS EQUIPMENT! AWAY FROM RAIN, HIGH VOLTAGE-RISK MOISTURE AND LIQUIDS OF ELECTRIC SHOCK!! - Page 3 • Carry bag included modes plus built-in programs Specifications Power consumption Power supply 100~240V, 50/60Hz Fuse F3A 250V Dimensions (without stand) 200 x 750 x 165mm Weight 5.7kg Order code EQLED136 750mm 165mm 01 - LED display 02 - Function buttons 03 - DMX input 04 - DMX output 05 - IEC power input www.prolight.co.uk M U L T I S Y S T E M POWER INPUT: 100-240V~50/60Hz DMX INPUT DMX OUTPUT...
- Page 4 Operating instructions Operating instructions A P 0 1 S. 0 1 A u t P Par - Auto A P 1 3 S. 3 2 A f 0 1 S. 0 1 N. 0 0 A u t F Effect - Auto a f 0 7 S.
- Page 5 Operating instructions DMX mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. To access the DMX address mode, press the “MENU” button on the rear of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the required DMX address. Press the “ENTER” button to confirm the setting. Now use the “UP” and “DOWN” buttons to choose one of the 3/6 or 15 DMX channel modes. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. 3 channel mode: Channel Value Function 020-039 AF02/SF02 000-009 No function 040-059 AF03/SF03 When CH1 010-049 APXX - Par auto 060-079 AF04/SF04 is 050-089 or 050-089 AFXX - Effect auto 080-099 AF05/SF05 170-209 090-129 ANXX - Par & Effect auto 100-119 AF06/SF06 130-169 SPXX - Par sound active 120-255...
- Page 6 Operating instructions 6 channel mode: 15 channel mode: Channel Value Function Channel Value Function 000-255 Red (0-100%) 000-255 Red (0-100%) 000-255 Green (0-100%) 000-255 Green (0-100%) 000-255 Blue (0-100%) 000-255 Blue (0-100%) Effect 1 000-255 White (0-100%) 000-255 White (0-100%) 000-255 Strobe (slow-fast) 000-255 Motor 000-255 Motor speed (slow-fast) 000-255 Red (0-100%) 000-255 Green (0-100%) Pars 1 & 2 000-255...
- Page 7 Sound/sound sensitivity: To access the sound modes, press the “MENU” button on the rear of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose SouP SouF SouN between (Par - Sound active), (Effect - Sound active) or (Par & Effect - Sound active). Press the “ENTER” button to confirm the setting and use the “UP” and “DOWN” buttons to SP01 SP13 SF01 SF07 choose the sound program between ~ (Par - Sound active), ~ (Effect - Sn01 Sn10 Sound active) or ~ (Par & Effect - Sound active). Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. To adjust the sound sensitivity, press the “MENU” button on the rear of the unit to show on the ASEN LED display. Now press the “ENTER” button to display . Press the “ENTER” button and use the Sn. 0 1 Sn. 0 4 “UP” and “DOWN” buttons to choose between Press the “ENTER” button to confirm the setting.
-
Page 8: Led Flash
Operating instructions IR remote functions: Button functions: 01 - Sets the unit into blackout on or off 02 - Puts the unit into DMX mode - Press the button AUTO SOUND once for 3 channel, press twice for 6 channel modes. JUMP 03 - Runs the Par & Effects auto show mode 04 - Runs the Par auto show mode 05 - Runs the Effect auto show mode GRADUAL 06 - Par & Effects sound active mode 07 - Runs the Par sound active mode 08 - Runs the Effect sound active mode FLASH 09 - Runs colour change (pars only) - Use ‘par colour’ to adjust speed 10 - Runs colour fade (pars only) - Use ‘par colour’ to adjust speed – COLOR 11 - Runs strobe (pars only) - Use ‘par colour’ to adjust speed 12 - Sets the run speed - Use the ‘+’ and ‘-’ buttons – to change the desired speed (note: only available in MOTOR the auto shows, colour change, colour fade and strobe modes) Sets the motor speed for the effects motor rotation – - Use the ‘+’ and ‘-’ buttons to change the desired speed 13 - Sets the sound sensitivity - Use the ‘+’ and ‘-’ buttons to set the desired sensitivity (1-4) www.prolight.co.uk Microbar Multi System User Manual... -
Page 9: Dmx Setup
DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a fixture that occupies or uses 7 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the chain starts at 107. DMX 512: DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out” terminal). DMX linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. -
Page 10: Line Termination
DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used, Termination reduces signal transmission you may need to use a terminator on problems and interferance. it is always advisable to connect a DMX terminal, the last unit to avoid erratic behaviour. (resistance 120 Ohm 1/4 W) between pin 2 Using a cable terminator will decrease (DMX-) and pin 3 (DMX+) of the last fixture. the possibilities of erratic behaviour. (3-pin - Order ref: CABL9O, 5-pin - Order ref: CABL89) 5-pin XLR DMX connectors: Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion. -
Page 11: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Microbar Multi System User Manual... - Page 12 www.prolight.co.uk Microbar Multi System User Manual...
