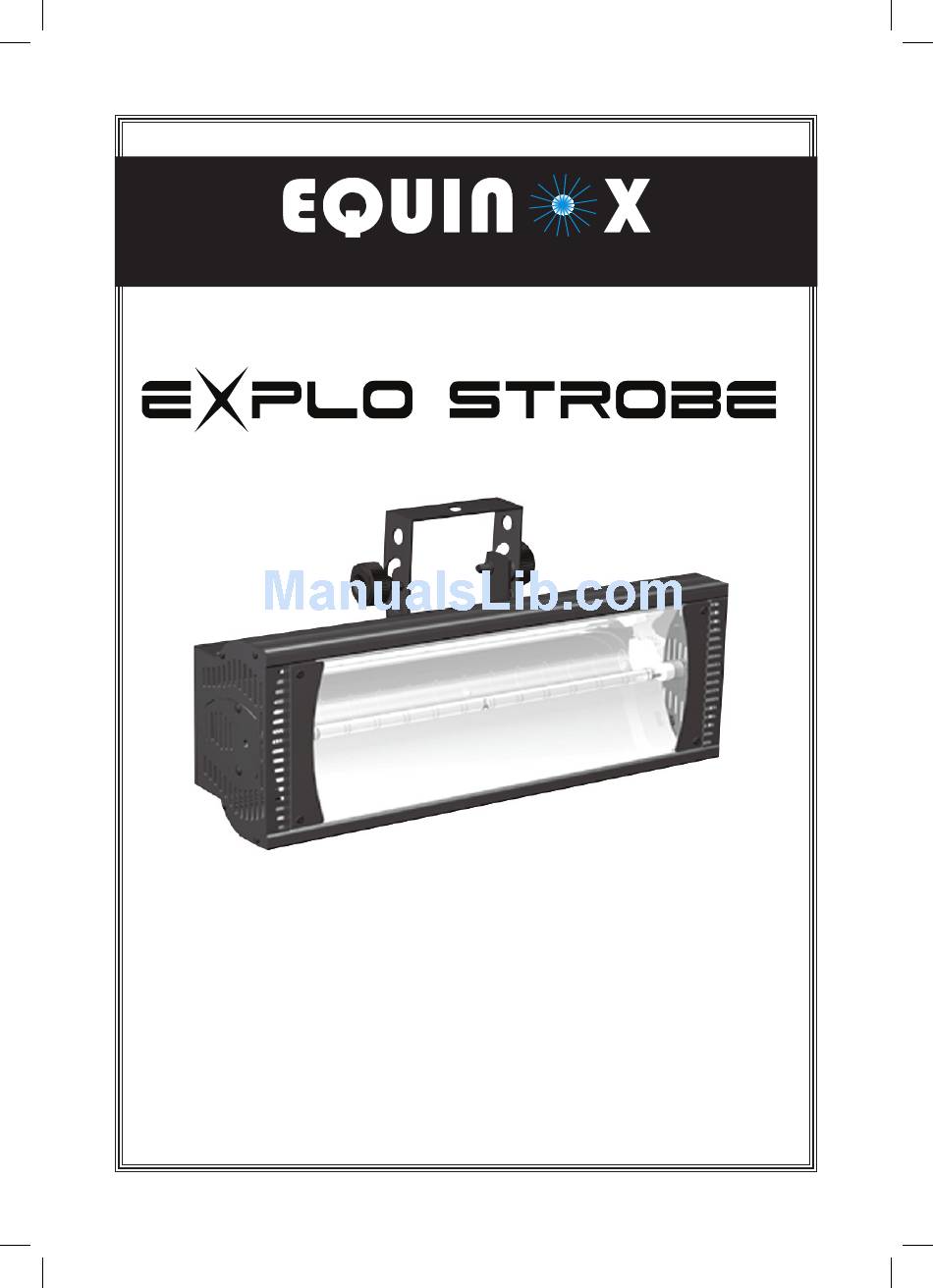

- Page 1 w w w . p r o l i g h t . c o . u k EX-2500 (Order code: STRO14) User manual...
-
Page 2: Safety Instructions
Equinox EX-2500 Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual... -
Page 3: Operating Determinations
Equinox EX-2500 Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 Equinox EX-2500 Operations Remote control operation: To operate the EX-2500 strobe using the remote control, first plug the EC-3 remote controllers 1/4” stereo jack cable (signal) into the “INPUT” Jack socket on the underside of the unit. Finally plug the unit into an appropriate mains power supply. Please be sure to set all of the manual control knobs to the off position and refer to the strobe controller user manual for operation.
-
Page 5: Top View
Equinox EX-2500 Operations EX-2500 Overview: TOP VIEW BOTTOM VIEW Identification: 1, Power Supply 2, Fuse 3, 1/4” Stereo Jack Output 4, 1/4” Stereo Jack Input EC-3 Overview Identification: 5M Remote Cable 1, Blinder control knob 2, Flash control knob 3, Intensity control knob 4, Cycle mode button 5, Fade/Wink button 6, Normality/Blinder button... - Page 6 Equinox EX-2500 Operations EC-3 Operations: For normal strobe operation: Make sure all three switches and indicators are OFF, you can now adjust the “INTENSITY” and “FLASH SPEED” controls to your desired setting. The strobe will now function as normal, the speed can be adjusted from 1 to 25 flashes per second.
- Page 7 Equinox EX-2500 Specifications EX-2500 Specifications: Lamp ST-2500 Blinding Rate 0.2 - 1 second Flash speed 1-25fps Dimming 0-100% Signal Connector 1/4” stereo jack Control mode EC-3 remote Fuse NFB 20A Power Consumption 3000W (12A) Strobe, 4000W (16A) Blinder effect Power Supply 240V Dimensions 442 x 114 x 242mm...
