VIDEOKIT

VK4K/6358 SERIES

"6 Wire" bus one way, two way videokit

VK4K

VK4KC

66251400-EN

V 3.4

31/08/16

Installation handbook

6358

We recommend

This equipment is installed by a

Competent Electrician, Security or

Communications Engineer.

Table of Contents

Need help?

Do you have a question about the 6358 and is the answer not in the manual?

Questions and answers

Summary of Contents for Videx 6358

Page 1 English VIDEOKIT VK4K/6358 SERIES “6 Wire” bus one way, two way videokit VK4K VK4KC 6358 Installation handbook We recommend 66251400-EN This equipment is installed by a V 3.4 Competent Electrician, Security or 31/08/16 Communications Engineer.
Page 2: Table Of Contents
Introduction The VK4K Series is a new range of videokits that use the 4000 Series external door station and the Art. 6358 videophone. The camera / audio unit is the size of a single 4000 Series module and is available in either flush (VK4K) or surface (VK4K-S) mounting versions.
Page 3: System Components And Available Versions
Art. 850K 43,8 pag. 5 120,0 Flush Surface Mounting Mounting Fig. 1 - VK4K/6358 components (measures in mm) VK4K-1/6358 - flush mounting 1 Outdoor station composed of: 1 Colour videophone 1 Power supply 1 Art. 4833-1/C: 1 button camera unit Art. 6358 Art. 850K 1 Art. 4851:...

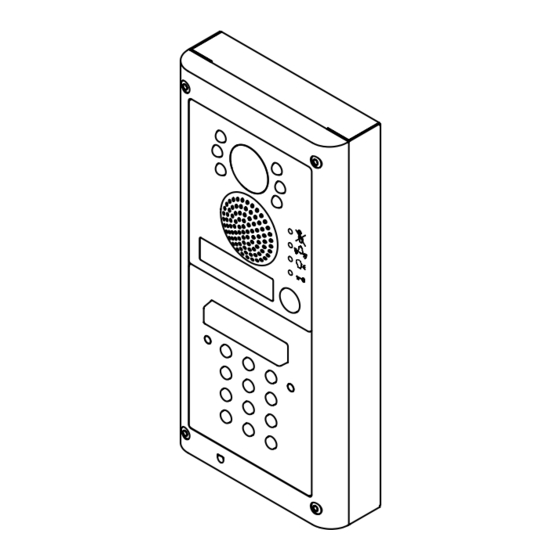

Page 4 5 Art. 4800M pag. 10 Flush Surface Mounting Mounting Fig. 2 - VK4KC/6358 components (measures in mm) VK4KC-1/6358 - flush mounting 1 Outdoor station composed of: 1 Colour videophone 1 Power supply 1 Art. 4833-1/C: 1 button camera unit Art. 6358 Art. 850K 1 Art. 4800M: Codelock module...
Page 5: General Directions For Installation
VK4K/6358 Series “6 wire Bus” videokit General directions for installation CONNECTION TO MAINS The system must be installed according to national rules in force, in particular we recommend to: • Connect the system to the mains through an all-pole circuit breaker which shall have contact separation of at least 3mm in each pole and shall disconnect all poles simultaneously;...
Page 6: Troubleshooting Guide
VK4K/6358 Series “6 wire Bus” videokit Troubleshooting guide In case of system failure, try the following preliminary checks: • Check that the cables are connected as shown in the installation diagram and that the cables are firmly fixed into the relevant terminals;...
Page 7 VK4K/6358 Series “6 wire Bus” videokit Art. 4833 Speaker unit R02A 1 2 3 4 J1 J2 J3 J4 12Vout DATA Fig. 1 Fig. 2 DESCRIPTION Speaker unit module Art. 4833 comprising of high quality auto iris lens CCD Day/Night colour camera with infrared illumination LEDs.
Page 8: Art. 4833 Speaker Unit
VK4K/6358 Series “6 wire Bus” videokit Art. 4833 Speaker unit SETTINGS (DIP-SWITCH & JUMPERS) 4 WAY DIP-SWITCH First two switches are used to set the speaker unit address: the speaker unit address is required for camera recall operation on 2 or more entrance systems.
Page 9 VK4K/6358 Series “6 wire Bus” videokit Art. 4833 Speaker unit BUILT-IN RELAYS – BACK EMF PROTECTION The Art. 4833 includes selectable back EMF protection on the relays. The jumpers marked J4 (One jumper for each relay) are used to select the protection type. When using a fail secure lock with connections C & NO the jumper should be in the NO position. When using a fail open lock with connections C &...
Page 10 GENERAL DIRECTIONS FOR INSTALLATION In order to achieve the best results from the schematics described it is necessary to install only original VIDEX equipment, strictly keeping to the items indicated on each schematic and follow these General Directions for Installation: •...
Page 11: Art. 4800 - 4800M Digital Codelock Module
VK4K/6358 Series “6 wire Bus” videokit Art. 4800M Digital codelock module BUZZER BACK EMF When using intercoms with buzzer call (Art.924/926, SMART1/2, 3101/2, 3001/2 and 3021/2) add one 0.1uF (100nF) capacitor be- tween terminals 3 and 6 on the telephone. BUILT-IN RELAYS – BACK EMF PROTECTION The Art. 4800M includes selectable back EMF protection on the relays.
Page 12 VK4K/6358 Series “6 wire Bus” videokit Art. 4800M Digital codelock module TECHNICAL SPECIFICATION Power Supply: 12/24 Vac/dc – 2VA Power Consumption: Stand-by: 20mA Operating: 70mA Working Temperature: -10 +50° C PROGRAMMING FLOW-CHART ENTER “ENGINEER’S CODE“ First time 6 times 1 "111111"...
Page 13 VK4K/6358 Series “6 wire Bus” videokit 4000 Series Surface and flush mounting door station installation EXAMPLE: INSTALLING A FOUR MODULE OUTDOOR STATION fig. 1 fig. 2 fig. 3 fig. 4 fig. 5 fig. 6 fig. 7 fig. 8 fig. 9 fig.
Page 14: 4000 Series Surface And Flush Mounting Door Station Installation
VK4K/6358 Series “6 wire Bus” videokit 4000 Series Surface and flush mounting door station installation INSTALLING A SURFACE MOUNT DOOR STATION 1. Place the surface box against the wall (165-170cm between the top of the box and the floor level as shown in Fig. 1) and mark the fixing holes for the wall plugs and the hole for the cables E (fig. 2).
Page 15 VK4K/6358 Series “6 wire Bus” videokit Art. 6358 3.5" hands free colour display digital videophone 27 mm 102 mm − 4A 5A 12M DSW1 DSW2 Fig. 1 Fig. 2 DESCRIPTION Surface mount hands free videophone incorporating a 3.5” Hi-Res full colour active matrix LCD monitor designed specifically for the “6 wire”...
Page 16 VK4K/6358 Series “6 wire Bus” videokit Art. 6358 3.5" hands free colour display digital videophone PUSH BUTTONS (FIG. 1) Answer push button. On an incoming call, pressing this button allows the user to answer and converse with the visitor. The relevant LED will illuminate.
Page 17 VK4K/6358 Series “6 wire Bus” videokit Art. 6358 3.5" hands free colour display digital videophone 2 WAY DIP-SWITCH (SW2) The two way dip-switch adjusts the impedance of the video signal. The default setting is “ON” for both switches (75 Ohm): when there are more videophones in parallel connection (without video distributor) both switches must be “ON”...
Page 18 VK4K/6358 Series “6 wire Bus” videokit 6300 Series Wall mounting instructions Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 1. In order to install the videophone, it is necessary to remove the cover, which contains all the electronics, from the base: press lightly on the bottom part of the videophone and simultaneously pulling outwards the upper part as shown in Fig.
Page 19: Installation Diagrams
This manual has been written and revised carefully. The instructions and the descriptions which are included in it are referred to VIDEX parts and are correct at the time of print. However, subsequent VIDEX parts and manuals, can be subject to changes without notice.
Page 20 VK4K/6358 Series “6 wire Bus” videokit Installation diagrams VIDEOKIT VK4K-1/6358, VK4K-1S/6358 Local Bell Art.6358 Address N. 1 Ext. 1 Affinche qualsiasi modifica alle impostazioni dei dip switch del videocitofono o del posto esterno venga riconosciuta dal sistema, è necessario togliere l'alimentazione di rete all'impianto e restituirla.
Page 21 VK4K/6358 Series “6 wire Bus” videokit Installation diagrams VIDEOKIT VK4K-2/6358, VK4K-2S/6358 30/11/2015 30/11/2015 Marco Rongoni vk4k63h-003.dwg VK4K/6358 Series - Installation handbook 66251400-EN - V 3.4 - 31/08/16...
Page 22 VK4K/6358 Series “6 wire Bus” videokit Installation diagrams VIDEOKIT VK4KC-1/6358, VK4KC-1S/6358 Local Bell Art.6358 Address N. 1 Ext. 1 Push to Exit Door Monitor Affinche qualsiasi modifica alle impostazioni dei dip switch del videocitofono o del posto esterno venga riconosciuta dal sistema, è...
Page 23 VK4K/6358 Series “6 wire Bus” videokit Installation diagrams VIDEOKIT VK4KC-2/6358, VK4KC-2S/6358 30/11/2015 30/11/2015 Marco Rongoni vk4k62h-005.dwg VK4K/6358 Series - Installation handbook 66251400-EN - V 3.4 - 31/08/16...
Page 24 VK4K/6358 Series “6 wire Bus” videokit Installation diagrams VIDEOKIT VK4K-1/6358, VK4K-1S/6358 WITH ADDITIONAL INTERCOM AND EXTENSION SOUNDER Local Bell Art.6358 Address N. 1 Ext. 1 Affinche qualsiasi modifica alle impostazioni dei dip switch del videocitofono o del posto esterno venga riconosciuta dal sistema, è...
Page 25 VK4K/6358 Series “6 wire Bus” videokit Installation diagrams VIDEOKIT VK4K-1/6358, VK4K-1S/6358 WITH ADDITIONAL DOOR PANEL FOR 2 ENTRANCES SYSTEM Local Bell Art.6358 Address N. 1 Ext. 1 Affinche qualsiasi modifica alle impostazioni dei dip switch del videocitofono o del posto esterno venga riconosciuta dal sistema, è...
Page 26 VK4K/6358 Series “6 wire Bus” videokit Installation diagrams VIDEOKIT VK4KC-1/4900/6358 - VK4KC-1S/4900/6358 WITH 3 ADDITIONAL VIDEOPHONES 30/11/2015 30/11/2015 Marco Rongoni vk4k63h-010.dwg VK4K/6358 Series - Installation handbook 66251400-EN - V 3.4 - 31/08/16...
Page 27 VK4K/6358 Series “6 wire Bus” videokit Installation diagrams VIDEOKIT VK4K-1/6358 - VK4K-1S/6358 WITH EXTERNAL CAMERA CONTROLLED BY SERVICE PUSH BUTTON Local Bell Art.6358 Address N. 1 Ext. 1 Power Supply Ext Camera 12Vdc Relay Art.506T Coax to Balanced video converter...
Page 28 VK4K/6358 Series “6 wire Bus” videokit Installation diagrams VIDEOKIT VK4KC-1/6358 - VK4KC-1S/6358 WITH ADDITIONAL VIDEOPHONE 30/11/2015 30/11/2015 Marco Rongoni vk4k63h-012.dwg VK4K/6358 Series - Installation handbook 66251400-EN - V 3.4 - 31/08/16...
Page 29 VK4K/6358 Series “6 wire Bus” videokit Installation diagrams VIDEOKIT VK4K-2/6358 - VK4K-2S/6358 WITH ART. 316 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 21/10/2015 17/11/2015 Marco Rongoni vk4k62h-001.dwg VK4K/6358 Series - Installation handbook...
Page 30 VK4K/6358 Series “6 wire Bus” videokit Installation diagrams TWO ENTRANCES SYSTEM INSTALLATION 18Vdc ART. 323/18 230V Push to exit Push to exit Title: Data creazione: Foglio 29/10/2015 Titolo: Data modifica: 29/10/2015 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File:...
Page 31 VK4K/6358 Series “6 wire Bus” videokit Installation diagrams FOUR ENTRANCES SYSTEM INSTALLATION 30/11/2015 30/11/2015 Marco Rongoni vk4k63h-013.dwg VK4K/6358 Series - Installation handbook 66251400-EN - V 3.4 - 31/08/16...
Page 32 MANUFACTURER CUSTOMER SUPPORT VIDEX ELECTRONICS S.P.A. All Countries: VIDEX ELECTRONICS S.P.A. Via del Lavoro, 1 - 63846 Monte Giberto (FM) Italy www.videx.it - technical@videx.it Tel (+39) 0734 631669 - Fax (+39) 0734 632475 Tel: +39 0734-631669 - Fax: +39 0734-632475 www.videx.it - info@videx.it...
