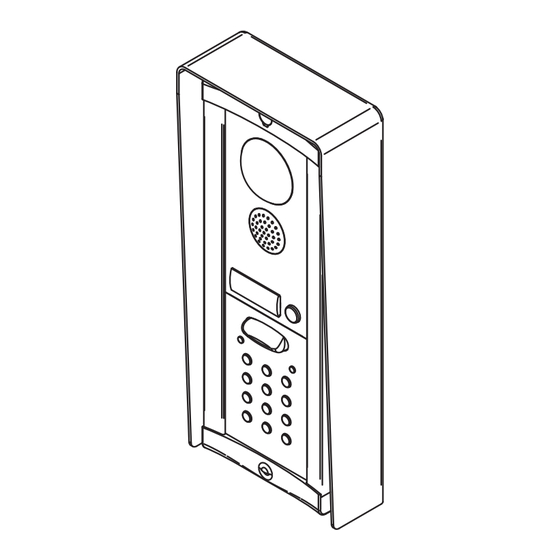

Videx VK8KC Installation Handbook

“6 wire” bus one way, two way videokit
Hide thumbs Also See for VK8KC:

Advertisement

Table of Contents

VIDEOKIT
VK8K/6358 SERIES
"6 Wire" bus one way, two way videokit
VK8K
VK8KC
66250864-EN - V4.0 - 15/03/19
Installation handbook
6358
We recommend
This equipment is installed by a
Competent Electrician, Security or
Communications Engineer.
Rev.0.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VK8KC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Videx VK8KC

Summary of Contents for Videx VK8KC

  • Page 1 VIDEOKIT Rev.0.1 VK8K/6358 SERIES “6 Wire” bus one way, two way videokit VK8K VK8KC 6358 Installation handbook We recommend 66250864-EN - V4.0 - 15/03/19 This equipment is installed by a Competent Electrician, Security or Communications Engineer.

  • Page 2: Table Of Contents

    This manual has been written and revised carefully. The instructions and the descriptions which are included in it are referred to VIDEX parts and are correct at the time of print. However, subsequent VIDEX parts and manuals, can be subject to changes without notice.

  • Page 3: System Components And Available Versions

    VK8K/6358 Series “6 wire Bus” videokit System components and available versions VK8K/6358 Colour videokit. OUTDOOR INDOOR STATION STATION Videophone Art. 6358 pag. 14 Camera unit Art. 8833 pag. 7 ACCESSORIES Power supply Art. 850K pag. 5 Video distributor Flush Surface Art. 316N Mounting Mounting pag.
  • Page 4 Video distributor Art. 316N pag. 18 Flush Surface Mounting Mounting Fig. 2 - VK8KC/6358 components (measures in mm) VK8KC-1/6358 - flush mounting 1 Outdoor station composed of: 1 Colour videophone 1 Power supply 1 Art. 8833-1: 1 button camera unit Art. 6358 Art. 850K 1 Art. 8800:...

  • Page 5: General Directions For Installation

    VK8K/6358 Series “6 wire Bus” videokit General directions for installation CONNECTION TO MAINS The system must be installed according to national rules in force, in particular we recommend to: • Connect the system to the mains through an all-pole circuit breaker which shall have contact separation of at least 3mm in each pole and shall disconnect all poles simultaneously;...

  • Page 6: Troubleshooting Guide

    VK8K/6358 Series “6 wire Bus” videokit Troubleshooting guide In case of system failure, try the following preliminary checks: • Check that the cables are connected as shown in the installation diagram and that the cables are firmly fixed into the relevant terminals; •...
  • Page 7 VK8K/6358 Series “6 wire Bus” videokit Art. 8833 Speaker unit Rev.0.1 When installing you see the back side of the door panel. 8833-1 Colour Aluminium 8833-2 B&W Stainless steel Fig. 1 Front Fig. 2 Back (upside down view) CONTROLS (SPEAKER & MICROPHONE VOLUME) Trimmer to adjust the speaker volume.

  • Page 8: Art. 8833 Speaker Unit

    VK8K/6358 Series “6 wire Bus” videokit Art. 8833 Speaker unit HOW TO CONNECT ELECTRIC LOCK The “door-open” relay can operate either as “dry contact” or “capacitive discharge” mode. • In “dry contact” operation mode the relay works in a traditional way, a power supply or a power source is needed to operate the lock (12-24Vac/dc 2A max), and activation lasts according to the door opening time programmed.
  • Page 9 GENERAL DIRECTIONS FOR INSTALLATION In order to achieve the best results from the schematics described it is necessary to install only original VIDEX equipment, strictly keeping to the items indicated on each schematic and follow these General Directions for Installation: •...
  • Page 10 VK8K/6358 Series “6 wire Bus” videokit Art. 8800 - Art. 8800-3 Digital codelock module PROGRAMMING • Enter ENGINEER’S CODE: first time type six times 1 (111111 First time six times ENTER THE factory preset) and press ENTER (The red LED will illuminate). 1 “111111”...
  • Page 11 VK8K/6358 Series “6 wire Bus” videokit Art. 8800 - Art. 8800-3 Digital codelock module RE-PROGRMMING GUIDE Engineer’s code ENTER THE ENGINEER’S CODE Press Enter Relay 1 code (Red light will illu- Relay 2 code minate*) Alternatively enter a RE-ENTER THE new engineer’s code ENGINEER’S CODE Relay 3 code*** (4 to 8 digits)
  • Page 12 VK8K/6358 Series “6 wire Bus” videokit 8000 Series Surface and flush mounting door station installation EXAMPLE: INSTALLING A TWO MODULE OUTDOOR STATION Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9 Fig.
  • Page 13 VK8K/6358 Series “6 wire Bus” videokit 8000 Series Surface and flush mounting door station installation INSTALLING A FLUSH MOUNTING DOOR STATION 1. Mount back box (Fig. 2) at 165 cm from ground level (Fig. 1); 2. If more than one flush box is needed, connect them by using the plastic spacers provided (Fig. 2);...
  • Page 14 VK8K/6358 Series “6 wire Bus” videokit Art. 6358 3.5" hands free colour display digital videophone 27 mm 102 mm DSW1 DSW2 Fig. 1 Fig. 2 DESCRIPTION LEGEND Surface mount hands free videophone incorporating a 3.5” Hi- Connection terminals Res full colour active matrix LCD monitor specific for “6 wire” 8 Way dip switch bank videokit (VK4K, VRVK and VK8K range).
  • Page 15 VK8K/6358 Series “6 wire Bus” videokit Art. 6358 3.5" hands free colour display digital videophone PUSH BUTTONS Answer push button On an incoming call, pressing this button allows the user to answer and converse with the visitor. The relevant LED will illuminate.
  • Page 16 VK8K/6358 Series “6 wire Bus” videokit Art. 6358 3.5" hands free colour display digital videophone 2 WAY DIP-SWITCH (SW2) The two way dip-switch adjusts the impedance of the video signal. The default setting is “ON” for both switches (75 Ohm): when there are more videophones in parallel connection (without video distributor) both switches must be “ON”...
  • Page 17 VK8K/6358 Series “6 wire Bus” videokit 6300 Series Wall mounting instructions Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 1. In order to install the videophone, it is necessary to remove the cover, which contains all the electronics, from the base: insert a 5.5mm flat screw driver into the clip then rotate clockwise until you listen a “CLICK!”.
  • Page 18 VK8K/6358 Series “6 wire Bus” videokit Art. 316 - Art. 316N 4 Way video distributor for system with balanced video signal DESCRIPTION ART. 316 4 Way video distributor for systems with balanced video signal. In white plastic ABS box 11x70x30mm surface mount. ART. 316N As Art.

  • Page 19: Installation Diagrams

    Art.8833-1 Art.8833-1 Title: Data creazione: Foglio 02/12/2015 Titolo: Data modifica: 02/12/2015 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63020 Monte Giberto (AP) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 vk8k63h-002.dwg www.videx.it - info@videx.it...
  • Page 20 VK8K/6358 Series “6 wire Bus” videokit Installation diagrams VIDEOKIT VK8K-2/6358, VK8K-2S/6358 02/12/2015 02/12/2015 Marco Rongoni vk8k63h-003.dwg - 20 - VK8K/6358 Series - Installation handbook 66250864-EN - V4.0 - 15/03/19...
  • Page 21 VK8K/6358 Series “6 wire Bus” videokit Installation diagrams VIDEOKIT VK8KC-1/6358, VK8KC-1S/6358 Local Bell Art.6358 Address N. 1 Ext. 1 In caso di modifica alle impostazioni dei dip switch del videocitofono o Art.8800 del posto esterno, togliere temporaneamente l'alimentazione di rete.
  • Page 22 VK8K/6358 Series “6 wire Bus” videokit Installation diagrams VIDEOKIT VK8KC-2/6358, VK8KC-2S/6358 02/12/2015 02/12/2015 Marco Rongoni vk8k63h-005.dwg - 22 - VK8K/6358 Series - Installation handbook 66250864-EN - V4.0 - 15/03/19...
  • Page 23 Art.8833-1 Art.8833-1 Title: Data creazione: Foglio 02/12/2015 Titolo: Data modifica: 02/12/2015 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 vk8k63h-006.dwg www.videx.it - info@videx.it...
  • Page 24 Art.8833-1 Art.8833-1 Title: Data creazione: Foglio 02/12/2015 Titolo: Data modifica: 02/12/2015 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 vk8k63h-007.dwg www.videx.it - info@videx.it...
  • Page 25 VK8K/6358 Series “6 wire Bus” videokit Installation diagrams VIDEOKIT VK8KC-1/6358, VK8KC-1S/6358 WITH 3 ADDITIONAL VIDEOPHONES 02/12/2015 02/12/2015 Marco Rongoni vk8k63h-008.dwg - 25 - VK8K/6358 Series - Installation handbook 66250864-EN - V4.0 - 15/03/19...
  • Page 26 VK8K/6358 Series “6 wire Bus” videokit Installation diagrams VIDEOKIT VK8K-2/6358 - VK8K-2S/6358 WITH ART. 316 02/12/2015 02/12/2015 Marco Rongoni vk8k63h-001.dwg - 26 - VK8K/6358 Series - Installation handbook 66250864-EN - V4.0 - 15/03/19...
  • Page 27 ID:1 ID:2 Title: Data creazione: Foglio 28/10/2015 Titolo: Data modifica: 28/10/2015 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 vk8k-1-001-2e.dwg www.videx.it - info@videx.it...
  • Page 28 - 28 - 66250864-EN - V4.0 - 15/03/19...
  • Page 29 - 29 - 66250864-EN - V4.0 - 15/03/19...
  • Page 30 - 30 - 66250864-EN - V4.0 - 15/03/19...
  • Page 31 DISPOSAL In accordance with the Legislative Decree no. 49 of 14 March 2014 “Implementation of the Directive 2012/19/EU on waste electrical and electronic equipment (WEEE)”. The crossed-out bin symbol on the equipment or on the packaging indicates that when the product reaches the end of its lifetime, it must be collected separately from mixed municipal waste.
  • Page 32 MANUFACTURER VIDEX ELECTRONICS S.P.A. FABBRICANTE Via del Lavoro, 1 FABRICANT 63846 Monte Giberto (FM) Italy FABRICANTE Tel (+39) 0734 631669 FABRIKANT Fax (+39) 0734 632475 www.videx.it - info@videx.it CUSTOMER SUPPORT VIDEX ELECTRONICS S.P.A. UK Customers only: SUPPORTO CLIENTI www.videx.it - technical@videx.it...

This manual is also suitable for:

6358 seriesVk8kVk8k series
