Videx 6200 Series Manual

6200 Series
Art. 6272

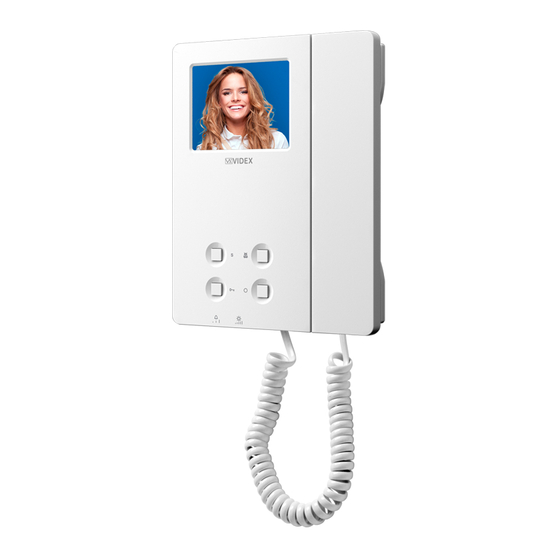

3.5" colour display videophone
27 mm

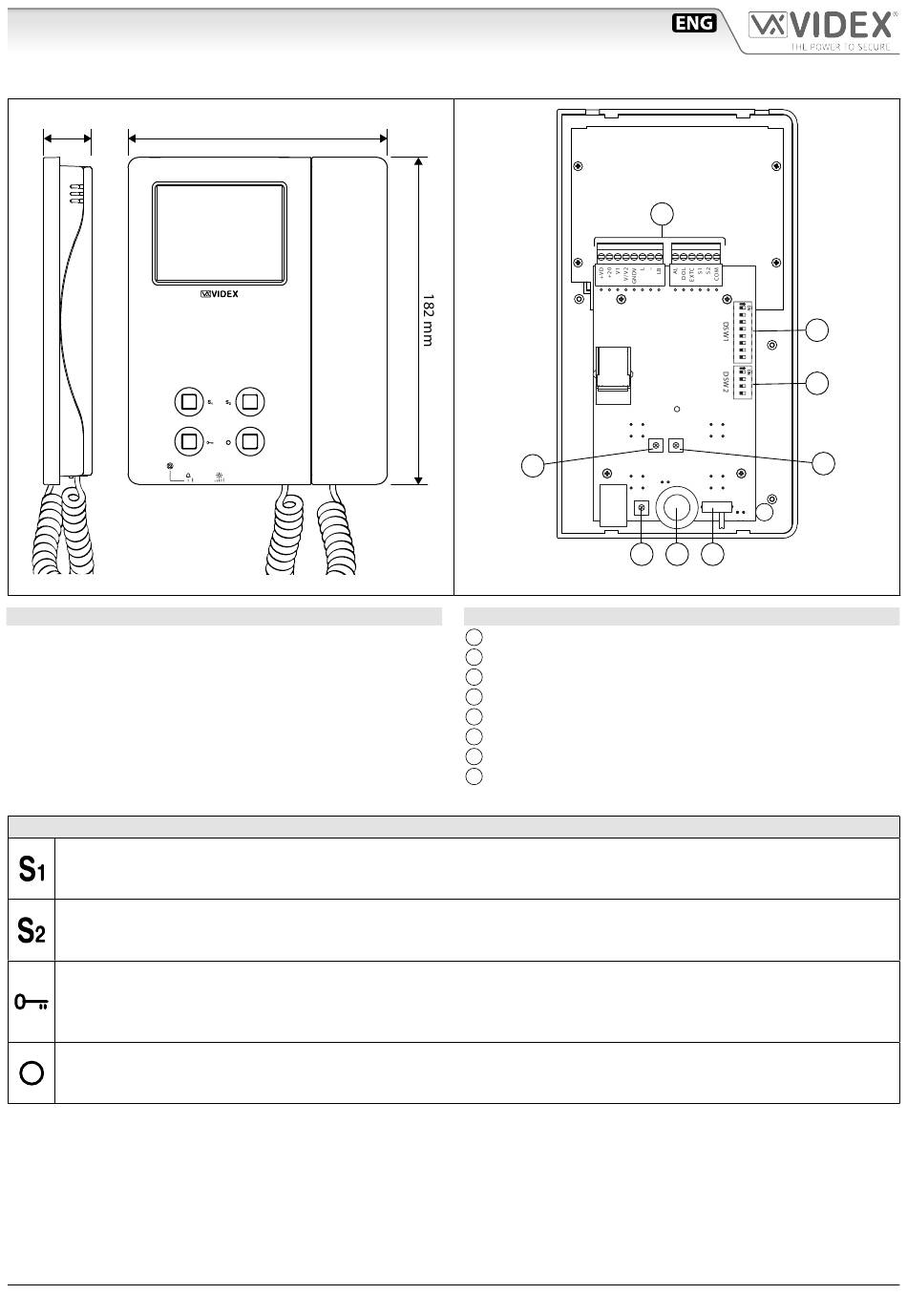

Fig. 1 Front
DESCRIPTION
Intelligent videophone for the VX2200 digital system using
composite video signal (coax) or balanced (twisted pair) incor-
porating a 3.5" full colour active matrix LCD monitor, with "cam-
era recall", "door open/concierge call", 2 "service" buttons plus
2 LEDs one for generic use (door opening usually) and one to
indicate privacy service enabled. Programmable settings: video
mode (coax or balanced), melody and number of rings.
Adjustments: call tone volume (2 levels plus privacy position),
microphone volume, picture hue, contrast and brightness.
PUSH BUTTONS
Service button S1
Press at any time to short internally the terminals S1 and COM (MAX 24Vdc @50mA). The short remains until the button is re-
leased.
Service button S2
Press at any time to short internally the terminals S2 and COM (MAX 24Vdc @50mA). The short remains until the button is re-
leased.
Door Open Push Button
• During a conversation, operation of this button will release the door from where the call originated. This will be confirmed by
an acoustic tone. If terminal DOL is connected, the "door open" LED under the symbol will also illuminate.
• When the system is in stand-by, picking up the handset and pressing the buttons will book a call to the concierge (If available).
Camera recall.
When the system is in standby (No calls on the system), pick up the handset then press this button to open the SPEECH/
VIDEO to the door station. Press as many time as the ID value of the door panel to connect to.
Art. 6272 - Installation instructions
144 mm
D
Fig. 2 Back
LEGEND
Connection terminals
A
8 Way dip switch
B
4 Way dip switch
C
Contrast adjustment trimmer
D
Hue adjustment trimmer
E
Microphone volume adjustment trimmer
F
Brightness control
G
Call tone volume and privacy switch
H
- 1 -
A
PT3 PT2
PT1
VR1
SW1
F G H
66251122 - V4.0 - 30/04/19
B
C
E
