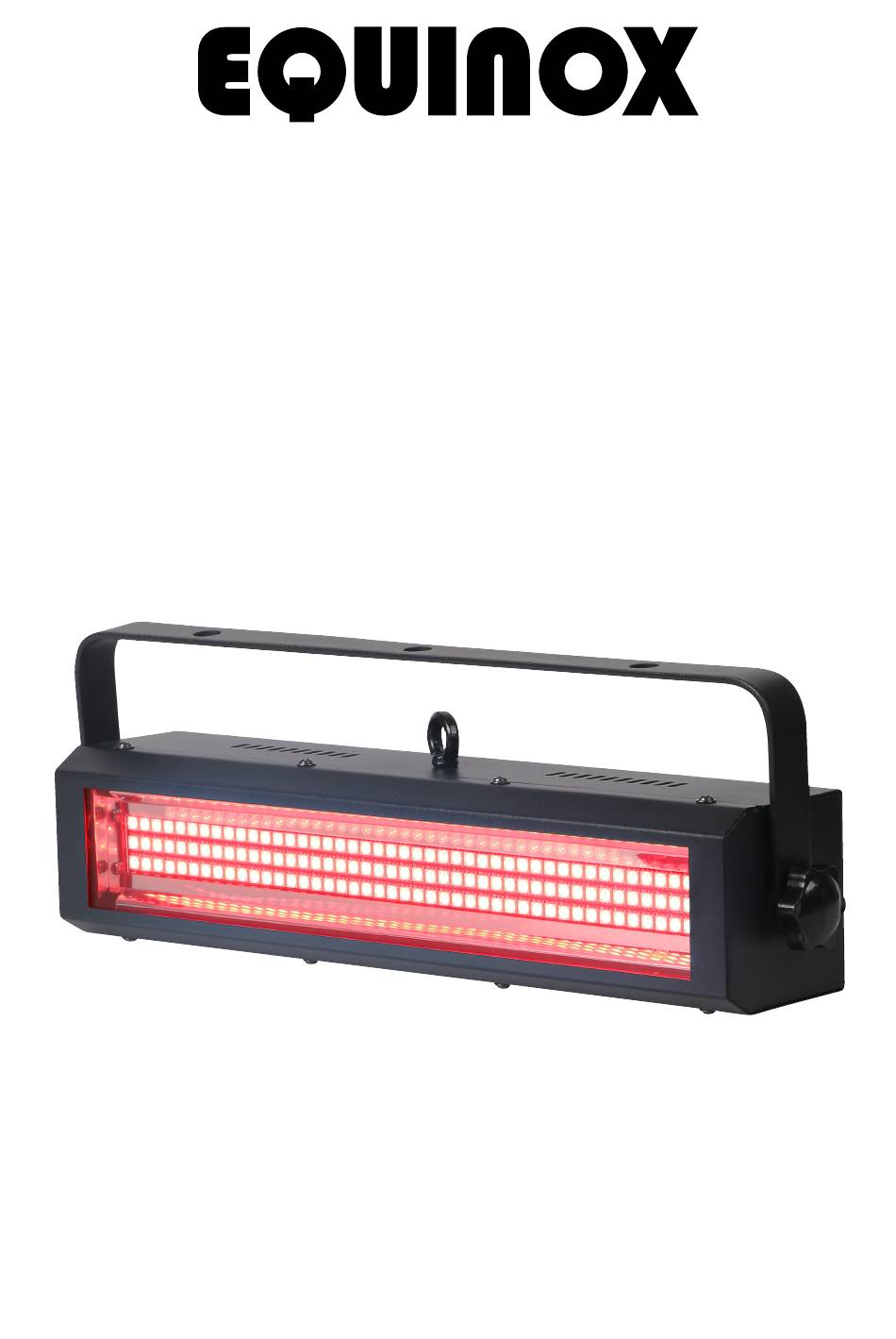

- Page 1 Blitzer RGB Strobe User Manual Order code: EQLED365...
-
Page 2: Safety Advice
NO USER SERVICEABLE PARTS. pulling the power-cable. • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: One year from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Blitzer RGB Strobe User Manual... - Page 3 • 132 tri-colour 5050 SMD LEDs (RGB • Beam angle: 80° • DMX channels: 1/2-1/2-2/3-1/3-2/3-3/ 4 or 6 selectable • Auto, sound active and master/slave modes • 0 - 100% dimming and variable strobe • Supplied with hanging bracket • 4 push button menu with LED display • IEC power input • 3-Pin XLR input/output • Convection cooled Specifications Power consumption Power supply 100~240V, 50/60Hz Fuse F2A 250V Dimensions 120 x 345 x 75mm Weight 1.35kg Order codes EQLED365 345mm 75mm www.prolight.co.uk Blitzer RGB Strobe User Manual...
-
Page 4: Technical Specifications
BLITZER RGB POWER INPUT: MENU DOWN ENTER 100-240V~50/60Hz FUSE: F2A 250V 01 - Earth point 05 - DMX input socket 09 - Hanging bracket In the box: 1 x fixture, 02 - LED display 06 - DMX output socket 10 - Hanging bracket 1 x power cable, 03 - Function buttons 07 - IEC power input socket adjustment knob & 1 x user manual 04 - Microphone 08 - Fuse F2A 250V 11 - Safety eye www.prolight.co.uk Blitzer RGB Strobe User Manual... - Page 5 S O U N Sound active 2 C h 2 S 0 9 9 3 C h 1 DMX channel setting 3 C h 2 3 C h 3 4 C h 6 C h www.prolight.co.uk Blitzer RGB Strobe User Manual...
- Page 6 3 channel mode 1: 078-085 Mauve 086-093 Magenta Channel Value Function 094-101 Pink 000-255 Master dimmer (0-100%) 102-109 Warm White 000-005 No function 110-117 White 006-010 Blackout 118-125 Cool White 011-250 Strobe (slow-fast) 126-128 Colour change stop 251-255 No function 129-192 Colour change (slow-fast) 000-255 Flash duration (slow-fast) 193-255 Colour fade (slow-fast) www.prolight.co.uk Blitzer RGB Strobe User Manual...
- Page 7 Colour change (slow-fast) 094-101 Pink 193-255 Colour fade (slow-fast) 102-109 Warm White 110-117 White 3 channel mode 3: 118-125 Cool White 126-128 Colour change stop Channel Value Function 129-192 Colour change (slow-fast) 000-255 Red dimmer (0-100%) 193-255 Colour fade (slow-fast) 000-255 Green dimmer (0-100%) 000-005 Sound active OFF 000-255 Blue dimmer (0-100%) 006-255 Sound active ON (sens low-high) www.prolight.co.uk Blitzer RGB Strobe User Manual...
- Page 8 LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select the colour macro required between . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. CN01 CN05 CN09 CN13 - Red - Green - Lavender - Warm White CN02 CN06 CN10 CN14 - Amber - Turquoise - Mauve - White CN03 CN07 CN11 CN15 - Yellow/Orange - Cyan - Magenta - Cool White CN04 CN08 CN12 - Yellow - Blue - Pink www.prolight.co.uk Blitzer RGB Strobe User Manual...
-
Page 9: Master/Slave Mode
LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select the auto program speed between . Press the “ENTER” button to confirm the setting. Value: 00 - 99 (00 = slow, 99 = fast). To exit out of any of the above options, press the “MENU” button. Sound/sound sensitivity: SOUN To access the sound mode, press the “MENU” button on the front of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select the sound sensitivity between . Press the “ENTER” button to confirm the setting. Value: 00 - 99 (00 = low, 99 = high). To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Blitzer RGB Strobe User Manual... -
Page 10: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Blitzer RGB Strobe User Manual... -
Page 11: Line Termination
5-pin XLR (socket) 3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Blitzer RGB Strobe User Manual... -
Page 12: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Blitzer RGB Strobe User Manual...
