Summary of Contents for Equinox Systems Beamtastic

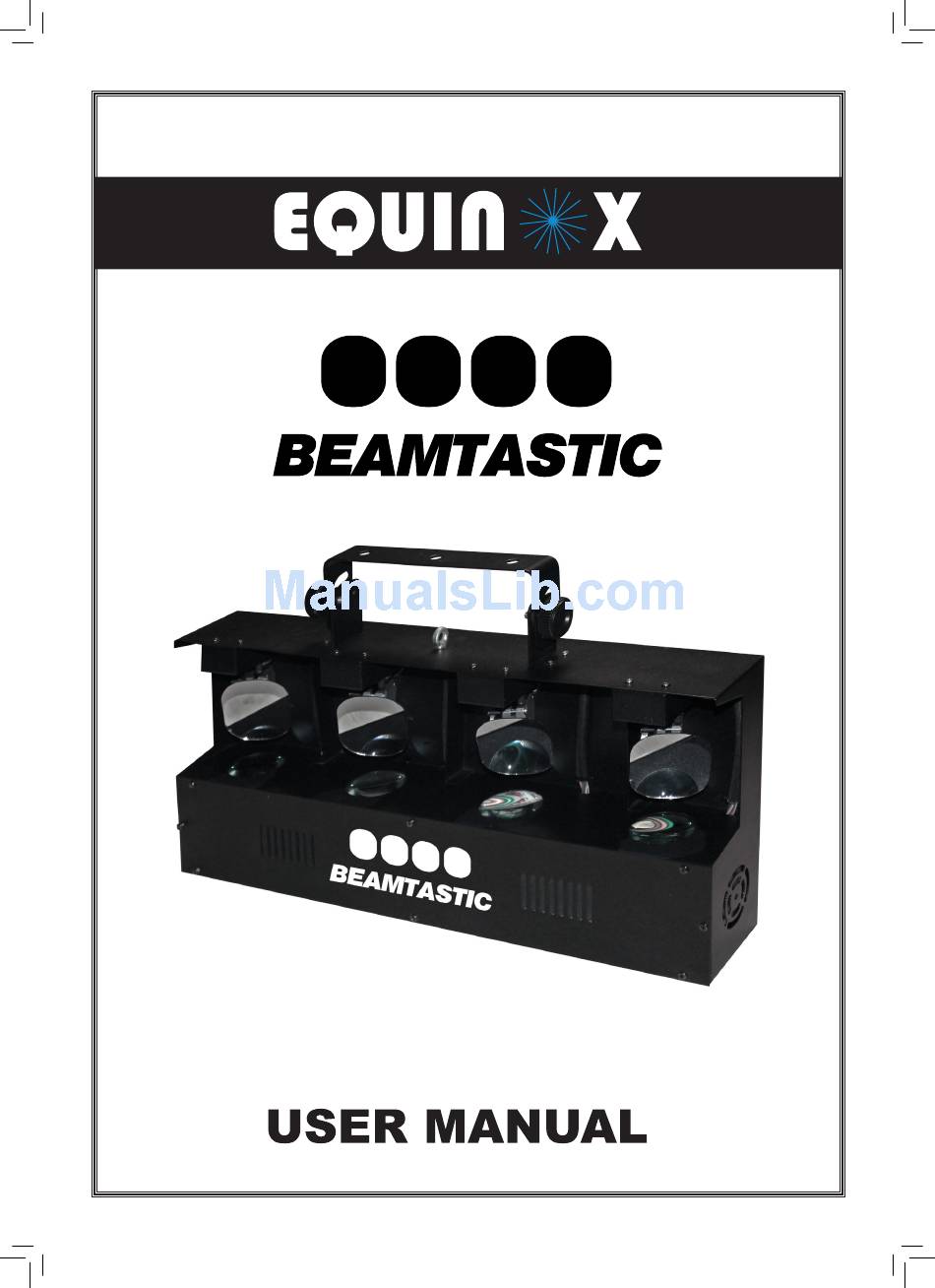

- Page 1 ORDER CODE: EQLED56...
- Page 2 Equinox Beamtastic Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...
- Page 3 Equinox Beamtastic Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 Equinox Beamtastic Technical specifications You should find inside the carton the following items: 1, Equinox Beamtastic 2, Power cable 3, User manual Technical Specifications: DMX channels: 9 or 12 selectable Operating modes: 1, Sound Activated 2, Auto Run 3, DMX...
- Page 5 Equinox Beamtastic Operation modes Operation modes: DMX mode: To select DMX mode, press the “MENU” button to show “ADDR” on the display. Now use the “UP” and “DOWN” buttons to set the DMX address from 001-512. When you have finished setting the desired DMX address press the “ENTER”...
- Page 6 Equinox Beamtastic DMX Charts Display mode In this mode you can flip the display over to match which way the unit is being used. To flip the display, press the “MENU” button to show “DISP” on the display. Now press the “ENTER” button to flip the display over and again to flip it back to its original position.
- Page 7 DATA Cable (DMX cable) requirements (for DMX operation): • The Equinox Beamtastic can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
- Page 8 Equinox Beamtastic DMX Set Up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
