Summary of Contents for Anritsu 11 Series

  • Page 1 T h e t e s t & me a s u r e me n t e q u i p me n t y o u n e e d a t t h e p r i c e y o u w a n t . A l l t e s t I n s t r u me n t s , I n c .

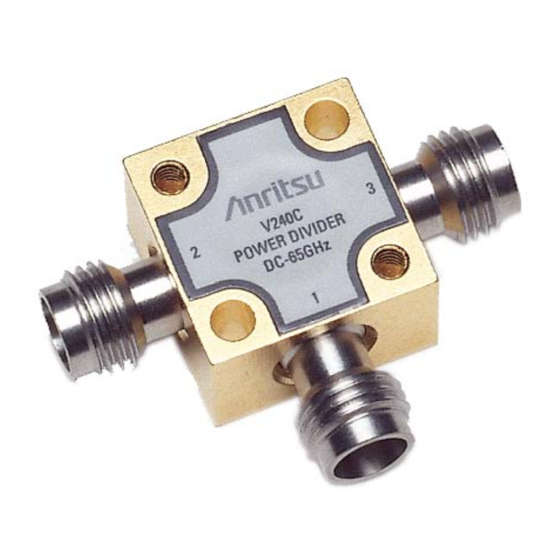

  • Page 2 Figure 1. Model V240 Series Power Divider DESCRIPTION ANRITSU precision power dividers are produced in three models: • 11 Series, DC to 3000 MHz using N connectors ® • K240B, DC to 26.5 GHz using K Connectors K240C, DC to 40 GHz using K Connectors ®...
  • Page 3 The the other hand, if the test device connector measures power divider should be returned to ANRITSU for out of tolerance in the “–” region, the center pin is too repair and/or service when needed.
  • Page 4 Table 3. Performance Specifications Connectors Frequency Insertion Loss Impedance Model Range (GHz) (dB max.) (Ohms) Input Output 11N50B DC to 3 < 1.25 N female N female 11N75B Connectors Frequency Impedance Model Range (GHz) (Ohms) Input Output K240B DC to 26.5 K female K female K240C...
  • Page 5 LIMITATION OF WARRANTY The foregoing warranty does not apply to Anritsu connectors that have failed due to normal wear. Also, the warranty does not apply to defects resulting from improper or inadequate maintenance by the Buyer, unauthorized modification or misuse, or operation outside of the environmental specifications of the product.

This manual is also suitable for:

K240xV240c
