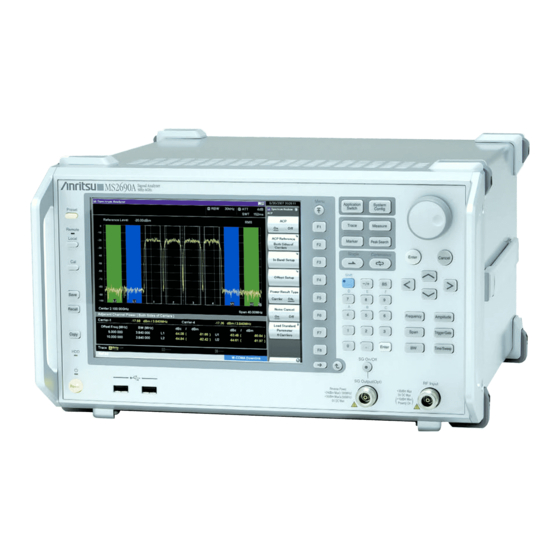

Anritsu MS2690A Operation Manual
  1. Manuals
  2. Brands
  3. Anritsu Manuals
  4. Measuring Instruments
  5. MS2690A
  6. Operation manual

Anritsu MS2690A Operation Manual

Signal analyzer spectrum analyzer function remote control
Hide thumbs Also See for MS2690A:
1
2
3
4
5
6
7
Table Of Contents
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
783
784
785
786
787
788
789
790
791
792
793
794
795
796
797
798
799
800
801
802
803
804
805
806
807
808
809
810
811
812
813
814
815
816
817
818
819
820
821
822
823
824
825
826
827
828
829
830
831
832
833
834
835
836
837
838
839
840
841
842
843
844
845
846
847
848
849
850
851
852
853
854
855
856
857
858
859
860
861
862
863
864
865
866
867
868
869
870
871
872
873
874
875
876
877
878
879
880
881
882
883
884
885
886
887
888
889
890
891
892
893
894
895
896
897
898
899
900
901
902
903
904
905
906
907
908
909
910
911
912
913
914
915
916
917
918
919
920
921
922
923
924
925
926
927
928
929
930
931
932
933
934
935
936
937
938
939
940
941
942
943
944
945
946
947
948
949
950
951
952
953
954
955
956
957
958
959
960
961
962
963
964
965
966
967
968
969
970
971
972
973
974
975
976
977
978
979
980
981
982
983
984
985
986
987
988
989
990

Advertisement

Quick Links

MS2690A/MS2691A/MS2692A
MS2830A/MS2840A/MS2850A
Signal Analyzer
Operation Manual
Spectrum Analyzer Function

Remote Control

52nd Edition
• For safety and warning information, please read this
manual before attempting to use the equipment.
• Additional safety and warning information is provided
within the MS2690A/MS2691A/MS2692A Signal
Analyzer Operation Manual (Mainframe Operation),
MS2830A Signal Analyzer Operation Manual
(Mainframe Operation), MS2840A Signal Analyzer
Operation Manual (Mainframe Operation), or MS2850A
Signal Analyzer Operation Manual (Mainframe
Operation). Please also refer to this document before
using the equipment.
• Keep this manual with the equipment.
ANRITSU CORPORATION
Document No.: M-W2855AE-52.0
and

Advertisement

loading
Need help?

Need help?

Do you have a question about the MS2690A and is the answer not in the manual?

Questions and answers

Related Manuals for Anritsu MS2690A

Summary of Contents for Anritsu MS2690A

  • Page 1: Remote Control

    • For safety and warning information, please read this manual before attempting to use the equipment. • Additional safety and warning information is provided within the MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Mainframe Operation), MS2830A Signal Analyzer Operation Manual (Mainframe Operation), MS2840A Signal Analyzer...

  • Page 2: Safety Symbols

    Ensure that you clearly understand the meanings of the symbols BEFORE using the equipment. Some or all of the following symbols may be used on all Anritsu equipment. In addition, there may be other labels attached to products that are not shown in the diagrams in this manual.
  • Page 3 Notes On Export Management This product and its manuals may require an Export License/Approval by the Government of the product's country of origin for re-export from your country. Before re-exporting the product or manuals, please contact us to confirm whether they are export-controlled items or not. When you dispose of export-controlled items, the products/manuals need to be broken/shredded so as not to be unlawfully used for military purpose.

  • Page 5: About This Manual

    About This Manual  Operation manual configuration The operation manual configuration of the MS2690A/MS2691A/MS2692A, MS2830A, MS2840A, and MS2850A Signal Analyzer is shown below. MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Main Frame Operation) MS2830A Signal Analyzer Operation Manual (Main Frame Operation) MS2840A Signal Analyzer Operation Manual (Main Frame Operation)
  • Page 6  Signal Analyzer Operation Manual (Mainframe Operation)  Signal Analyzer Operation Manual (Mainframe Remote Control) Description of basic operations, maintenance procedures, common functions and common remote functions of the mainframe  Signal Analyzer Operation Manual (Signal Analyzer Function)  Signal Analyzer Operation Manual (Signal Analyzer Function Remote Control) Description of basic operations, functions and remote functions of the signal analyzer...

  • Page 7: Overview

    ble of C Content bout This s Manual l........... I hapter 1 Overview w ..........1-1 erview ............... 1-2 hapter 2 SCPI Dev vice Mes ssage De etails ..2-1 equency/Spa an ....

  • Page 8: Table Of Contents

    gnal Search S Settings ..........3-13 ace Settings ............. 3-15 weep/Trigger/ /Gate Setting gs ........3-18 3.10 Me easure Funct ion Settings ......... 3-23 3.11 Bat tch Measure Function Se ettings ..

  • Page 9: Chapter 1 Overview

    Chapter 1 Overview This chapter provides an overview of the remote control of the Spectrum Analyzer function (hereinafter, referred to as “this application”). Overview ............... 1-2...
  • Page 10 GPIB, Ethernet, and USB interfaces. You can also select a remote control command from the SCPI mode, which is a command format defined by the SCPI Consortium, and Native mode, which is our unique format. MS2690A/MS2691A/MS2692A and See the MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Mainframe Remote Control) for how to switch the language mode.

  • Page 11: Table Of Contents

    Chapter 2 SCPI Device Message Details This chapter describes detailed specifications on SCPI remote control commands for executing functions of this application in alphabetical order. MS2690A/MS2691A/MS2692A and Refer to the MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Mainframe Remote Control) for detailed specifications on IEEE488.2 common device messages and application common device messages.

  • Page 12: Table Of Contents

    Chapter 2 SCPI Device Message Details :UNIT:POWer? ......................... 2-66 :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:LINear:PDIVision <percent> ........2-67 :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:LINear:PDIVision? ..........2-67 :DISPlay:WINDow[1]:TRACe:Y[:SCALe][:LOGarithmic] <lines> ..........2-68 :DISPlay:WINDow[1]:TRACe:Y[:SCALe][:LOGarithmic]? ............2-69 :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel:OFFSet <rel_ampl> ........2-70 :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel:OFFSet? ............ 2-70 :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel:OFFSet:STATe ON|OFF|1|0 ..... 2-71 :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel:OFFSet:STATe? ........2-72 [:SENSe]:POWer[:RF]:GAIN[:STATe] ON|OFF|1|0 ..............2-72 [:SENSe]:POWer[:RF]:GAIN[:STATe]? ...................

  • Page 13: Table Of Contents

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition <integer> .......... 2-112 :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition? ............2-113 :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X <freq>|<time> ..........2-115 :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X? ................ 2-116 :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:DELTa <freq>|<time> ........2-118 :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:DELTa? ............2-120 :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence <integer> .......... 2-122 :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence? ............2-123 :CALCulate:MARKer:TABLe[:STATe] OFF|ON|0|1 ............... 2-125 :CALCulate:MARKer:TABLe[:STATe]? .................. 2-125 :CALCulate:MARKer:SLINe[:STATe] OFF|ON|0|1 ..............

  • Page 14: Table Of Contents

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:FCOunt:X? ............2-161 :CALCulate:MARKer:TRCKing[:STATe] OFF|ON|0|1 ............2-162 :CALCulate:MARKer:TRCKing[:STATe]? ................2-162 :CALCulate:BANDwidth|:BWIDth:NDB:STATe OFF|ON|0|1 ..........2-163 :CALCulate:BANDwidth|:BWIDth:NDB:STATe? ..............2-163 :CALCulate:BANDwidth|:BWIDth:NDB <rel_ampl> ............... 2-164 :CALCulate:BANDwidth|:BWIDth:NDB? ................2-164 :CALCulate:BANDwidth|:BWIDth:NDB:RESult? ..............2-165 Signal Search ......................... 2-166 :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum ............2-167 :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:NEXT ..........

  • Page 15: Table Of Contents

    Chapter 2 SCPI Device Message Details :CALCulate:LLINe[1]|2|3|4|5|6:DISPlay? ................2-202 :CALCulate:LLINe[1]|2|3|4|5|6:STATe OFF|ON|0|1 .............. 2-202 :CALCulate:LLINe[1]|2|3|4|5|6:STATe? ................. 2-203 :CALCulate:LLINe[1]|2|3|4|5|6:FAIL? ..................2-203 :CALCulate:LLINe[1]|2|3|4|5|6:MARGin:STATe OFF|ON|0|1 ..........2-204 :CALCulate:LLINe[1]|2|3|4|5|6:MARGin:STATe? ..............2-204 :CALCulate:LLINe[1]|2|3|4|5|6:MARGin <ampl_rel> ............. 2-205 :CALCulate:LLINe[1]|2|3|4|5|6:MARGin? ................2-205 :CALCulate:LLINe[1]|2|3|4|5|6:DELete .................. 2-206 :CALCulate:LLINe:ALL:DELete ..................... 2-206 :CALCulate:LLINe[1]|2|3|4|5|6:CMODe:AMPLitude FIXed|RELative ........2-207 :CALCulate:LLINe[1]|2|3|4|5|6:CMODe:AMPLitude? ............

  • Page 16: Table Of Contents

    Chapter 2 SCPI Device Message Details :MMEMory:STORe:LLINe[1]|2|3|4|5|6 [<filename>[,<device>]] ..........2-238 :MMEMory:LOAD:LLINe[1]|2|3|4|5|6 <filename>[,<device>] ..........2-239 :MMEMory:DELete:LLINe <filename>[,<device>] ..............2-240 :MMEMory:DELete:LLINe:ALL [<device>] ................2-241 :MMEMory:DELete:WAVEform <foldername>[,<device>] ............. 2-242 :MMEMory:DELete:WAVEform:ALL [<device>] ..............2-243 :CALCulate:NTData[:STATe] OFF|ON|0|1 ................2-243 :CALCulate:NTData[:STATe]? ....................2-244 :TRACe:COPY <source_trace>,<dest_trace> ............... 2-244 :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:NRLevel <rel_ampl>...

  • Page 17: Table Of Contents

    Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:SOURce? ..................2-276 :TRIGger[:SEQuence]:VIDeo:LEVel[:LOGarithmic] <level> ..........2-277 :TRIGger[:SEQuence]:VIDeo:LEVel[:LOGarithmic]? ............. 2-278 :TRIGger[:SEQuence]:VIDeo:LEVel:LINear <level> ............. 2-278 :TRIGger[:SEQuence]:VIDeo:LEVel:LINear? ................ 2-279 :TRIGger[:SEQuence]:WIF|:RFBurst:LEVel:ABSolute <level> ..........2-280 :TRIGger[:SEQuence]:WIF|:RFBurst:LEVel:ABSolute? ............2-280 :TRIGger[:SEQuence]:EXTernal[1|2]:SLOPe POSitive|NEGative ........2-281 :TRIGger[:SEQuence]:EXTernal[1|2]:SLOPe? ..............2-282 :TRIGger[:SEQuence]:WIF|:RFBurst:SLOPe POSitive|NEGative ......... 2-283 :TRIGger[:SEQuence]:WIF|:RFBurst:SLOPe? ..............

  • Page 18: Table Of Contents

    Chapter 2 SCPI Device Message Details [:SENSe]:SWEep:EGATe[:VIEW]:TIME? ................2-305 [:SENSe]:SWEep:EGATe:VIEW:BANDwidth[:RESolution]:AUTO ON|OFF|1|0 ....2-306 [:SENSe]:SWEep:EGATe:VIEW:BANDwidth[:RESolution]:AUTO? ........2-307 [:SENSe]:SWEep:EGATe:VIEW:BANDwidth[:RESolution] <freq> ........2-308 [:SENSe]:SWEep:EGATe:VIEW:BANDwidth[:RESolution]? ..........2-309 [:SENSe]:SWEep:EGATe:VIEW:BANDwidth:VIDeo:AUTO ON|OFF|1|0 ......2-309 [:SENSe]:SWEep:EGATe:VIEW:BANDwidth:VIDeo:AUTO? ..........2-310 [:SENSe]:SWEep:EGATe:VIEW:BANDwidth:VIDeo <freq> ..........2-311 [:SENSe]:SWEep:EGATe:VIEW:BANDwidth:VIDeo? ............2-311 [:SENSe]:SWEep:EGATe:VIEW:DETector[:FUNCtion] NORMal|POSitive|SAMPle |NEGative|RMS ......................2-312 [:SENSe]:SWEep:EGATe:VIEW:DETector[:FUNCtion]? ............

  • Page 19: Table Of Contents

    Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CARRier[1]:RCARrier:METHod STOTal|CTOTal|BSIDes|CSELect .. 2-360 [:SENSe]:ACPower:CARRier[1]:RCARrier:METHod? ............2-361 :CALCulate:ACPower:CARRier[1]:RCARrier:METHod? ............2-362 [:SENSe]:ACPower:CORRection:NOISe[:AUTO] ON|OFF|1|0 ..........2-363 :CALCulate:ACPower:CORRection:NOISe[:AUTO] ON|OFF|1|0.......... 2-364 [:SENSe]:ACPower:CORRection:NOISe[:AUTO]? ..............2-364 :CALCulate:ACPower:CORRection:NOISe[:AUTO]? ............2-365 [:SENSe]:ACPower:OFFSet[1]:BANDwidth[:INTegration] <freq> ......... 2-365 :CALCulate:ACPower:OFFSet[1]:BANDwidth[:INTegration] <freq> ........2-366 [:SENSe]:ACPower:OFFSet[1]:BANDwidth[:INTegration]? ........... 2-366 :CALCulate:ACPower:OFFSet[1]:BANDwidth[:INTegration]? ..........

  • Page 20: Table Of Contents

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:FILTer[:RRC][:STATe]? ................. 2-386 :CALCulate:ACPower:FILTer[:RRC][:STATe]? ..............2-386 [:SENSe]:ACPower:OFFSet[1]:FILTer:TYPE RECT|NYQuist|RNYQuist ......2-387 :CALCulate:ACPower:OFFSet[1]:FILTer:TYPE RECT|NYQuist|RNYQuist ......2-387 [:SENSe]:ACPower:OFFSet[1]:FILTer:TYPE? ..............2-388 :CALCulate:ACPower:OFFSet[1]:FILTer:TYPE? ..............2-388 [:SENSe]:ACPower:ADVanced:OFFSet:MODE NORMal|ADVanced ........2-389 [:SENSe]:ACPower:ADVanced:OFFSet:MODE? ..............2-390 [:SENSe]:ACPower:ADVanced:OFFSet:BANDwidth[:INTegration] <bandwidth>,<bandwidth>,<bandwidth>,<bandwidth>,<bandwidth>,<bandwidth>, <bandwidth>,<bandwidth> ..................2-391 [:SENSe]:ACPower:ADVanced:OFFSet:BANDwidth[:INTegration]? ........2-392 [:SENSe]:ACPower:ADVanced:OFFSet:LIST:STATe ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0 ...................

  • Page 21: Table Of Contents

    Chapter 2 SCPI Device Message Details :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:POWer:NEXT ....2-419 :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum ..........2-420 :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum:NEXT ........2-420 :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE NORMal|POSition|DELTa |FIXed|OFF ......................... 2-421 :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE? ..........2-421 :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X <freq>|<time> ........2-422 :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X? ............2-422 :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition <integer> ......2-423 :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition? ........2-423 :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? ............2-424 :DISPlay:ACPower:ANNotation:TITLe:DATA <string>...

  • Page 22: Table Of Contents

    Chapter 2 SCPI Device Message Details :CALCulate:ACPower:DETector[:FUNCtion]? ............... 2-440 [:SENSe]:ACPower:FREQuency:SPAN <freq> ..............2-441 [:SENSe]:ACPower:FREQuency:SPAN? ................2-441 [:SENSe]:ACPower:FREQuency:SPAN:FULL ..............2-441 [:SENSe]:ACPower:SWEep:POINts <integer> ..............2-442 [:SENSe]:ACPower:SWEep:POINts? ..................2-442 [:SENSe]:ACPower:SWEep:TIME <time> ................2-443 [:SENSe]:ACPower:SWEep:TIME? ..................2-443 [:SENSe]:ACPower:SWEep:TIME:AUTO OFF|ON|0|1 ............2-444 [:SENSe]:ACPower:SWEep:TIME:AUTO? ................2-444 :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence <integer>...

  • Page 23: Table Of Contents

    Chapter 2 SCPI Device Message Details :TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce? ............2-464 [:SENSe]:BPOWer|:TXPower:AVERage:COUNt <integer> ..........2-465 [:SENSe]:BPOWer|:TXPower:AVERage:COUNt?..............2-465 [:SENSe]:BPOWer|:TXPower:AVERage[:STATe] ON|OFF|1|0 ..........2-466 [:SENSe]:BPOWer|:TXPower:AVERage[:STATe]? ............... 2-466 [:SENSe]:BPOWer|:TXPower:SWEep:TIME <time> ............. 2-467 [:SENSe]:BPOWer|:TXPower:SWEep:TIME? ............... 2-467 :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE NORMal|POSition|DELTa|FIXed|OFF ............... 2-468 :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE? ....... 2-468 :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X <freq>|<time> ....2-469 :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X? ........

  • Page 24: Table Of Contents

    Chapter 2 SCPI Device Message Details :CALCulate:CHPower:FILTer:TYPE? ..................2-489 [:SENSe]:CHPower:FILTer[:RRC][:STATe] ON|OFF|1|0 ............2-490 :CALCulate:CHPower:FILTer[:RRC][:STATe] ON|OFF|1|0 ........... 2-490 [:SENSe]:CHPower:FILTer[:RRC][:STATe]? ................. 2-491 :CALCulate:CHPower:FILTer[:RRC][:STATe]? ..............2-491 [:SENSe]:CHPower:FILTer[:RRC]:ALPHa <real> ..............2-492 :CALCulate:CHPower:FILTer[:RRC]:ALPHa <real> .............. 2-492 [:SENSe]:CHPower:FILTer[:RRC]:ALPHa? ................2-493 :CALCulate:CHPower:FILTer[:RRC]:ALPHa? ............... 2-494 :CONFigure:CHPower ......................2-494 :INITiate:CHPower .........................

  • Page 25: Table Of Contents

    Chapter 2 SCPI Device Message Details [:SENSe]:CHPower:BANDwidth[:RESolution] <freq> ............2-514 :CALCulate:CHPower:BANDwidth[:RESolution] <freq> ............2-514 [:SENSe]:CHPower:BANDwidth[:RESolution]? ..............2-515 :CALCulate:CHPower:BANDwidth[:RESolution]? ..............2-515 [:SENSe]:CHPower:BANDwidth[:RESolution]:AUTO ON|OFF|1|0........2-516 :CALCulate:CHPower:BANDwidth[:RESolution]:AUTO ON|OFF|1|0 ........2-516 [:SENSe]:CHPower:BANDwidth[:RESolution]:AUTO? ............2-517 :CALCulate:CHPower:BANDwidth[:RESolution]:AUTO? ............2-517 [:SENSe]:CHPower:BANDwidth[:RESolution]:MODE NORMal|CISPr ........2-518 :CALCulate:CHPower:BANDwidth[:RESolution]:MODE NORMal|CISPr ......2-518 [:SENSe]:CHPower:BANDwidth[:RESolution]:MODE? ............

  • Page 26: Table Of Contents

    Chapter 2 SCPI Device Message Details :CALCulate:OBWidth:PERCent? ................... 2-538 [:SENSe]:OBWidth:XDB <rel_ampl> ..................2-539 [:SENSe]:OBWidth:XDB? ...................... 2-540 :CALCulate:OBWidth:XDB <rel_ampl> .................. 2-541 :CALCulate:OBWidth:XDB? ....................2-541 :CONFigure:OBWidth ......................2-542 :INITiate:OBWidth ........................2-542 :FETCh:OBWidth[n]? ......................2-543 :FETCh:OBWidth:FERRor? ....................2-545 :READ:OBWidth[n]? ....................... 2-546 :READ:OBWidth:FERRor? ....................2-546 :MEASure:OBWidth[n]? ......................

  • Page 27: Table Of Contents

    Chapter 2 SCPI Device Message Details :CALCulate:OBWidth:BANDwidth[:RESolution]:AUTO? ............2-564 [:SENSe]:OBWidth:BANDwidth[:RESolution]:MODE NORMal|CISPr ........2-565 [:SENSe]:OBWidth:BANDwidth[:RESolution]:MODE? ............2-565 :CALCulate:OBWidth:BANDwidth[:RESolution]:MODE NORMal|CISPr ....... 2-566 :CALCulate:OBWidth:BANDwidth[:RESolution]:MODE? ............2-566 [:SENSe]:OBWidth:BANDwidth:VIDeo <freq> ............... 2-567 [:SENSe]:OBWidth:BANDwidth:VIDeo? ................2-567 [:SENSe]:OBWidth:BANDwidth:VIDeo:AUTO OFF|ON|0|1 ........... 2-568 [:SENSe]:OBWidth:BANDwidth:VIDeo:AUTO? ..............2-568 [:SENSe]:OBWidth:DETector[:FUNCtion] NORMal|POSitive|SAMPle|NEGative|RMS|QPEak|CAVerage|CRMS ..... 2-569 [:SENSe]:OBWidth:DETector[:FUNCtion]?................

  • Page 28: Table Of Contents

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:OFFSet[1]:LIST:ATTenuation <rel_ampl_1>|AUTO [,<rel_ampl_2>|AUTO [,<rel_ampl_3>|AUTO [,<rel_ampl_4>|AUTO [,<rel_ampl_5>|AUTO [,<rel_ampl_6>|AUTO [,<rel_ampl_7>|AUTO [,<rel_ampl_8>|AUTO [,<rel_ampl_9>|AUTO [,<rel_ampl_10>|AUTO [,<rel_ampl_11>|AUTO [,<rel_ampl_12>|AUTO]]]]]]]]]]] ................... 2-598 [:SENSe]:SEMask:OFFSet[1]:LIST:ATTenuation? ..............2-599 [:SENSe]:SEMask:BANDwidth[1][:RESolution] <bandwidth> ..........2-600 [:SENSe]:SEMask:BANDwidth[1][:RESolution]? ..............2-601 [:SENSe]:SEMask:BANDwidth[1][:RESolution]:AUTO ON|OFF|1|0 ........2-602 [:SENSe]:SEMask:BANDwidth[1][:RESolution]:AUTO? ............2-603 [:SENSe]:SEMask:OFFSet[1]:LIST:BANDwidth[1][:RESolution] <bandwidth_1>[,<bandwidth_2>[,<bandwidth_3>[,<bandwidth_4>[,<bandwidth_5> [,<bandwidth_6>[,<bandwidth_7>[,<bandwidth_8>[,<bandwidth_9>[,<bandwidth_10>...

  • Page 29: Table Of Contents

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:OFFSet[1]:LIST:SWEep[1]:TIME? ............2-623 [:SENSe]:SEMask:SWEep[1]:TIME:AUTO ON|OFF|1|0 ............2-624 [:SENSe]:SEMask:SWEep[1]:TIME:AUTO? ................2-625 [:SENSe]:SEMask:OFFSet[1]:LIST:SWEep[1]:TIME:AUTO <switch_1>[,<switch_2>[,<switch_3>[,<switch_4>[,<switch_5>[,<switch_6>[,<switch_7> [,<switch_8>[,<switch_9>[,<switch_10>[,<switch_11>[,<switch_12>]]]]]]]]]]] ..... 2-626 [:SENSe]:SEMask:OFFSet[1]:LIST:SWEep[1]:TIME:AUTO? ..........2-627 [:SENSe]:SEMask:SWEep[1]:TIME:AUTO:MODE NORMal|FAST ........2-628 [:SENSe]:SEMask:SWEep[1]:TIME:AUTO:MODE? .............. 2-629 [:SENSe]:SEMask:OFFSet[1]:LIST:SWEep[1]:TIME:AUTO:MODE <mode_1>[,<mode_2>[,<mode_3>[,<mode_4>[,<mode_5>[,<mode_6>[,<mode_7> [,<mode_8>[,<mode_9>[,<mode_10>[,<mode_11>[,<mode_12>]]]]]]]]]]] ....2-630 [:SENSe]:SEMask:OFFSet[1]:LIST:SWEep[1]:TIME:AUTO:MODE? ........2-631 [:SENSe]:SEMask:DETector[:FUNCtion] NORMal|POSitive|NEGative|SAMPle|RMS |AVERage ........................

  • Page 30: Table Of Contents

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:OFFSet[1]:LIST:BANDwidth[1]:INTegration <bandwidth_1>[,<bandwidth_2>[,<bandwidth_3>[,<bandwidth_4>[,<bandwidth_5> [,<bandwidth_6>[,<bandwidth_7>[,<bandwidth_8>[,<bandwidth_9>[,<bandwidth_10> [,<bandwidth_11>[,<bandwidth_12>]]]]]]]]]]] ............... 2-651 [:SENSe]:SEMask:OFFSet[1]:LIST:BANDwidth[1]:INTegration? .......... 2-652 [:SENSe]:SEMask:OFFSet[1]:LIST:BANDwidth[1]:INTegration:AUTO <switch_1>[,<switch_2>[,<switch_3>[,<switch_4>[,<switch_5>[,<switch_6>[,<switch_7> [,<switch_8>[,<switch_9>[,<switch_10>[,<switch_11>[,<switch_12>]]]]]]]]]]] ..... 2-653 [:SENSe]:SEMask:OFFSet[1]:LIST:BANDwidth[1]:INTegration:AUTO? ....... 2-654 [:SENSe]:SEMask:OFFSet[1]:LIST:RLEVel <ampl_1>[,<ampl_2>[,<ampl_3>[,<ampl_4>[,<ampl_5>[,<ampl_6>[,<ampl_7> [,<ampl_8>[,<ampl_9>[,<ampl_10>[,<ampl_11>[,<ampl_12>]]]]]]]]]]] ......2-655 [:SENSe]:SEMask:OFFSet[1]:LIST:RLEVel? ................ 2-656 [:SENSe]:SEMask:OFFSet[1]:LIST:RLEVel:AUTO <switch_1>[,<switch_2>[,<switch_3>[,<switch_4>[,<switch_5>[,<switch_6> [,<switch_7>[,<switch_8>[,<switch_9>[,<switch_10>[,<switch_11> [,<switch_12>]]]]]]]]]]] ....................2-657 [:SENSe]:SEMask:OFFSet[1]:LIST:RLEVel:AUTO? ............. 2-658 [:SENSe]:SEMask:OFFSet[1]:LIST:STATe <switch_1>[,<switch_2>[,<switch_3>[,<switch_4>[,<switch_5>[,<switch_6>...

  • Page 31: Table Of Contents

    Chapter 2 SCPI Device Message Details :CALCulate:SEMask:OFFSet[1]:LIST:STARt:RCARrier <ampl_1>[,<ampl_2>[,<ampl_3>[,<ampl_4>[,<ampl_5>[,<ampl_6>[,<ampl_7> [,<ampl_8>[,<ampl_9>[,<ampl_10>[,<ampl_11>[,<ampl_12>]]]]]]]]]]] ......2-671 :CALCulate:SEMask:OFFSet[1]:LIST:STARt:RCARrier? ............2-672 [:SENSe]:SEMask:OFFSet[1]:LIST:STOP:RCARrier <ampl_1>[,<ampl_2>[,<ampl_3>[,<ampl_4>[,<ampl_5>[,<ampl_6>[,<ampl_7> [,<ampl_8>[,<ampl_9>[,<ampl_10>[,<ampl_11>[,<ampl_12>]]]]]]]]]]] ......2-673 [:SENSe]:SEMask:OFFSet[1]:LIST:STOP:RCARrier? ............2-674 :CALCulate:SEMask:OFFSet[1]:LIST:STOP:RCARrier <ampl_1>[,<ampl_2>[,<ampl_3>[,<ampl_4>[,<ampl_5>[,<ampl_6>[,<ampl_7> [,<ampl_8>[,<ampl_9>[,<ampl_10>[,<ampl_11>[,<ampl_12>]]]]]]]]]]] ......2-675 :CALCulate:SEMask:OFFSet[1]:LIST:STOP:RCARrier? ............2-676 [:SENSe]:SEMask:LOGic:OFFSet[1]:LIST:TEST <logic_1>[,<logic_2>[,<logic_3>[,<logic_4>[,<logic_5>[,<logic_6>[,<logic_7> [,<logic_8>[,<logic_9>[,<logic_10>[,<logic_11>[,<logic_12>]]]]]]]]]]] ......2-677 [:SENSe]:SEMask:LOGic:OFFSet[1]:LIST:TEST? ..............2-678 :CALCulate:SEMask:LOGic:OFFSet[1]:LIST:TEST <logic_1>[,<logic_2>[,<logic_3>[,<logic_4>[,<logic_5>[,<logic_6>[,<logic_7> [,<logic_8>[,<logic_9>[,<logic_10>[,<logic_11>[,<logic_12>]]]]]]]]]]] ......

  • Page 32: Table Of Contents

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:RACouple? ....................2-707 [:SENSe]:SEMask:SWEep[1][:TYPE][:AUTO]:RULes:FFT:RWIDth? ........2-708 [:SENSe]:SEMask:OFFSet[1]:LIST:SWEep[1][:TYPE][:AUTO]:RULes:FFT:RWIDth? ..2-709 [:SENSe]:SEMask:SWEep[1][:TYPE][:AUTO]:RULes:RTYPe? ..........2-710 [:SENSe]:SEMask:OFFSet[1]:LIST:SWEep[1][:TYPE][:AUTO]:RULes:RTYPe? ....2-710 2.14 Spurious Emission Measurement Function ................2-712 [:SENSe]:SPURious[:STATe] ON|OFF|1|0 ................2-720 [:SENSe]:SPURious[:STATe]? ....................2-721 [:SENSe]:SPURious:TYPE WORSt|EXAMine|PEAKs|FULL ..........2-722 [:SENSe]:SPURious:TYPE? ....................2-723 :DISPlay:SPURious:SEGMent:MODE ON|OFF|1|0 ..............
  • Page 33 Chapter 2 SCPI Device Message Details :DISPlay:SPURious:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real_1>,<real_2>,<real_3>,<real_4>,<real_5>,<real_6>,<real_7>,<real_8>,<real_9>, <real_10>,<real_11>,<real_12>,<real_13>,<real_14>,<real_15>,<real_16>,<real_17>, <real_18>,<real_19>,<real_20> ................2-744 :DISPlay:SPURious:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? ........ 2-745 [:SENSe]:SPURious:ATTenuation <rel_ampl_1>|AUTO,<rel_ampl_2>|AUTO,<rel_ampl_3>|AUTO,<rel_ampl_4>|AUTO, <rel_ampl_5>|AUTO,<rel_ampl_6>|AUTO,<rel_ampl_7>|AUTO,<rel_ampl_8>|AUTO, <rel_ampl_9>|AUTO,<rel_ampl_10>|AUTO,<rel_ampl_11>|AUTO, <rel_ampl_12>|AUTO,<rel_ampl_13>|AUTO,<rel_ampl_14>|AUTO, <rel_ampl_15>|AUTO,<rel_ampl_16>|AUTO,<rel_ampl_17>|AUTO, <rel_ampl_18>|AUTO,<rel_ampl_19>|AUTO,<rel_ampl_20>|AUTO ......2-746 [:SENSe]:SPURious:ATTenuation? ..................2-747 [:SENSe]:SPURious[:RANGe][:LIST]:BANDwidth[:RESolution]:AUTO ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0 ......2-748 [:SENSe]:SPURious[:RANGe][:LIST]:BANDwidth[:RESolution]:AUTO? ....... 2-749 [:SENSe]:SPURious[:RANGe][:LIST]:BANDwidth[:RESolution] <bandwidth_1>,<bandwidth_2>,<bandwidth_3>,<bandwidth_4>,<bandwidth_5>, <bandwidth_6>,<bandwidth_7>,<bandwidth_8>,<bandwidth_9>,<bandwidth_10>, <bandwidth_11>,<bandwidth_12>,<bandwidth_13>,<bandwidth_14>,<bandwidth_15>, <bandwidth_16>,<bandwidth_17>,<bandwidth_18>,<bandwidth_19>, <bandwidth_20>...
  • Page 34 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:TIME:AUTO? ..........2-758 [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:TIME <seconds_1>,<seconds_2>,<seconds_3>,<seconds_4>,<seconds_5>,<seconds_6>, <seconds_7>,<seconds_8>,<seconds_9>,<seconds_10>,<seconds_11>, <seconds_12>,<seconds_13>,<seconds_14>,<seconds_15>,<seconds_16>, <seconds_17>,<seconds_18>,<seconds_19>,<seconds_20> ......... 2-759 [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:TIME? ............2-760 [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:PAUSe ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0 ......2-761 [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:PAUSe? ............2-762 [:SENSe]:SPURious:POWer[:RF]:GAIN[:STATe] ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0 ......2-763 [:SENSe]:SPURious:POWer[:RF]:GAIN[:STATe]? ..............2-764 [:SENSe]:SPURious[:RANGe][:LIST]:DETector[1][:FUNCtion] NORMal|POSitive|SAMPle|NEGative|RMS,NORMal|POSitive|SAMPle|NEGative|RMS, NORMal|POSitive|SAMPle|NEGative|RMS,NORMal|POSitive|SAMPle|NEGative|RMS, NORMal|POSitive|SAMPle|NEGative|RMS,NORMal|POSitive|SAMPle|NEGative|RMS,...
  • Page 35 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious[:RANGe][:LIST]:AVERage:COUNt? ............. 2-772 :CALCulate:SPURious[:RANGe][:LIST]:CORRection:COMMon <segment> ......2-772 :CALCulate:SPURious[:RANGe][:LIST]:CORRection:RECall <segment>,<filename> [,<device>] ........................2-773 :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer]:DATA[:STARt] <ampl_1>,<ampl_2>,<ampl_3>,<ampl_4>,<ampl_5>,<ampl_6>,<ampl_7>,<ampl_8>, <ampl_9>,<ampl_10>,<ampl_11>,<ampl_12>,<ampl_13>,<ampl_14>,<ampl_15>, <ampl_16>,<ampl_17>,<ampl_18>,<ampl_19>,<ampl_20> ........2-774 :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer]:DATA[:STARt]? ....2-775 :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer]:DATA:STOP:AUTO ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0 ......2-776 :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer]:DATA:STOP:AUTO? ..2-777 :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer]:DATA:STOP <ampl_1>,<ampl_2>,<ampl_3>,<ampl_4>,<ampl_5>,<ampl_6>,<ampl_7>,<ampl_8>, <ampl_9>,<ampl_10>,<ampl_11>,<ampl_12>,<ampl_13>,<ampl_14>,<ampl_15>, <ampl_16>,<ampl_17>,<ampl_18>,<ampl_19>,<ampl_20>...
  • Page 36 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth:VIDeo:COUPle ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0 ......2-789 [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth:VIDeo:COUPle? ..... 2-790 [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth:VIDeo <bandwidth_1>|OFF,<bandwidth_2>|OFF,<bandwidth_3>|OFF,<bandwidth_4>|OFF, <bandwidth_5>|OFF,<bandwidth_6>|OFF,<bandwidth_7>|OFF,<bandwidth_8>|OFF, <bandwidth_9>|OFF,<bandwidth_10>|OFF,<bandwidth_11>|OFF, <bandwidth_12>|OFF,<bandwidth_13>|OFF,<bandwidth_14>|OFF, <bandwidth_15>|OFF,<bandwidth_16>|OFF,<bandwidth_17>|OFF, <bandwidth_18>|OFF,<bandwidth_19>|OFF,<bandwidth_20>|OFF ......2-791 [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth:VIDeo? ........2-792 [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:SWEep:TIME <seconds_1>,<seconds_2>,<seconds_3>,<seconds_4>,<seconds_5>,<seconds_6>, <seconds_7>,<seconds_8>,<seconds_9>,<seconds_10>,<seconds_11>, <seconds_12>,<seconds_13>,<seconds_14>,<seconds_15>,<seconds_16>, <seconds_17>,<seconds_18>,<seconds_19>,<seconds_20> ......... 2-793 [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:SWEep:TIME? ........... 2-794 [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:DETector[1][:FUNCtion] POSitive|SAMPle|RMS,POSitive|SAMPle|RMS,POSitive|SAMPle|RMS, POSitive|SAMPle|RMS,POSitive|SAMPle|RMS,POSitive|SAMPle|RMS, POSitive|SAMPle|RMS,POSitive|SAMPle|RMS,POSitive|SAMPle|RMS, POSitive|SAMPle|RMS,POSitive|SAMPle|RMS,POSitive|SAMPle|RMS,...
  • Page 37 Chapter 2 SCPI Device Message Details :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE NORMal|POSition|DELTa |FIXed|OFF ......................... 2-807 :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE? ..........2-807 :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:X <freq> ..........2-808 :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:X? ............2-808 :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition <integer> ......2-809 :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition? ........2-809 :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? ............2-810 :CALCulate:SPURious:MARKer:AOFF .................. 2-810 :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum .......... 2-811 :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:NEXT ....... 2-811 :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:POWer ......
  • Page 38 Chapter 2 SCPI Device Message Details [:SENSe]:TOI:ZSPan[:STATe]? ..................... 2-836 [:SENSe]:TOI:ZSPan:BANDwidth|BWIDth[:RESolution] <freq> ..........2-837 [:SENSe]:TOI:ZSPan:BANDwidth|BWIDth[:RESolution]? ............. 2-838 [:SENSe]:TOI:ZSPan:BANDwidth|BWIDth[:RESolution]:AUTO ON|OFF|1|0 ....... 2-839 [:SENSe]:TOI:ZSPan:BANDwidth|BWIDth[:RESolution]:AUTO? .......... 2-840 [:SENSe]:TOI:ZSPan:SWEep:TIME <time> ................2-841 [:SENSe]:TOI:ZSPan:SWEep:TIME? ..................2-842 [:SENSe]:TOI:ZSPan:SWEep:TIME:AUTO ON|OFF|1|0 ............2-843 [:SENSe]:TOI:ZSPan:SWEep:TIME:AUTO? ................. 2-844 [:SENSe]:TOI:FREQuency:IM3:SEARch ON|OFF|1|0 ............2-845 :CALCulate:TOI:FREQuency:IM3:SEARch ON|OFF|1|0 ............
  • Page 39 Chapter 2 SCPI Device Message Details :DISPlay:ANNotation:TITLe[:STATe]? ................... 2-956 :DISPlay:ANNotation:TITLe:DATA <string> ................2-957 :DISPlay:ANNotation:TITLe:DATA? ..................2-957 :CALibration:YTF ........................2-958 :CALibration:YTF? ......................... 2-959 [:SENSe]:POWer[:RF]:PADJust <freq> ................. 2-960 [:SENSe]:POWer[:RF]:PADJust? ..................2-961 :CALibration:RCLock[:VALue] <integer> ................2-962 :CALibration:RCLock[:VALue]? ..................... 2-962 :CALibration:RCLock[:VALue]:PRESet .................. 2-963 [:SENSe]:POWer[:RF]:MW:PRESelector[:STATe] ON|OFF|1|0 ..........2-963 [:SENSe]:POWer[:RF]:MW:PRESelector[:STATe]? ..............
  • Page 40 Chapter 2 SCPI Device Message Details [:SENSe]:MIXer:CABLe:LOSS <power> ................2-995 [:SENSe]:MIXer:CABLe:LOSS? .................... 2-996 [:SENSe]:MIXer:LOSS:MODE FIXed|TABLe ................ 2-997 [:SENSe]:MIXer:LOSS:MODE? ..................... 2-998 [:SENSe]:MIXer:LOSS[:FIXed] <power> ................2-999 [:SENSe]:MIXer:LOSS[:FIXed]? ..................2-1000 [:SENSe]:MIXer:LOSS:TABLe ..................... 2-1001 [:SENSe]:MIXer:LOSS:TABLe:SERial? ................2-1002 [:SENSe]:MIXer:PS[:Center] ON|OFF|1|0 ................2-1003 [:SENSe]:MIXer:PS[:Center]? ....................2-1004 [:SENSe]:MIXer:SIGNal ON|OFF|1|0 ..................

  • Page 41: Frequency/Span

    Frequency/Span Frequency/Span Table 2.1-1 lists device messages for frequency/span. Table 2.1-1 Device messages for frequency/span Function Device Messages [:SENSe]:FREQuency:CENTer <freq> Center Frequency [:SENSe]:FREQuency:CENTer? [:SENSe]:FREQuency:CENTer:STEP[:INCRement] <freq> Frequency Step Size [:SENSe]:FREQuency:CENTer:STEP[:INCRement]? [:SENSe]:FREQuency:OFFSet <freq> Frequency Offset [:SENSe]:FREQuency:OFFSet? [:SENSe]:FREQuency:OFFSet:STATe ON|OFF|1|0 Frequency Offset Mode [:SENSe]:FREQuency:OFFSet:STATe? [:SENSe]:FREQuency:SPAN <freq>...

  • Page 42: Sense]:Frequency:center

    Command [:SENSe]:FREQuency:CENTer <freq> Parameter Center frequency <freq> Range –100 MHz to 6.05 GHz (MS2690A) [MS269xA] –100 MHz to 13.6 GHz (MS2691A) –100 MHz to 26.6 GHz (MS2692A) –100 MHz to 3.7 GHz (Option 040) [MS2830A] –100 MHz to 6.1 GHz (Option 041) –100 MHz to 13.6 GHz (Option 043)
  • Page 43 Frequency/Span Details This command is not available during the Spurious Emission measurement. When Internal Signal Generator Control On/Off is On, the center frequency range depends on the frequency range of Signal Generator. Example of Use To set the center frequency to 123.456 kHz. FREQ:CENT 123456 2-33...

  • Page 44: Sense]:Frequency:center?

    Response <freq> Parameter Center frequency <freq> Range –100 MHz to 6.05 GHz (MS2690A) [MS269xA] –100 MHz to 13.6 GHz (MS2691A) –100 MHz to 26.6 GHz (MS2692A) –100 MHz to 3.7 GHz (Option 040) [MS2830A] –100 MHz to 6.1 GHz (Option 041) –100 MHz to 13.6 GHz (Option 043)

  • Page 45: Sense]:Frequency:center:step[:Increment]

    Command [:SENSe]:FREQuency:CENTer:STEP[:INCRement] <freq> Parameter Step size <freq> Range 1 Hz to 6.00 GHz (MS2690A) [MS269xA] 1 Hz to 13.5 GHz (MS2691A) 1 Hz to 26.5 GHz (MS2692A) 1 Hz to 3.6 GHz (Option 040) [MS2830A] 1 Hz to 6.0 GHz (Option 041) 1 Hz to 13.5 GHz (Option 043)

  • Page 46: Sense]:Frequency:center:step[:Increment]?

    Response <freq> Parameter Step size <freq> Range 1 Hz to 6.0 GHz (MS2690A) [MS269xA] 1 Hz to 13.5 GHz (MS2691A) 1 Hz to 26.5 GHz (MS2692A) 1 Hz to 3.6 GHz (Option 040) [MS2830A] 1 Hz to 6.0 GHz (Option 041) 1 Hz to 13.5 GHz (Option 043)

  • Page 47: Sense]:Frequency:offset

    Frequency/Span [:SENSe]:FREQuency:OFFSet <freq> Frequency Offset Function This command sets the frequency offset. Command [:SENSe]:FREQuency:OFFSet <freq> Parameter Offset <freq> Range –100 to 100 GHz Resolution 1 Hz Suffix code HZ, KHZ, KZ, MHZ, MZ, GHZ, GZ Hz is used when omitted. Default value 0 Hz Example of Use...

  • Page 48: Sense]:Frequency:offset:state On|Off|1|0

    Chapter 2 SCPI Device Message Details [:SENSe]:FREQuency:OFFSet:STATe ON|OFF|1|0 Frequency Offset Mode Function This command enables/disables the frequency offset. Command [:SENSe]:FREQuency:OFFSet:STATe <switch> Parameter Frequency offset On/Off <switch> Enables the frequency offset. ON|1 Disables the frequency offset (Default value). OFF|0 Example of Use To enable the frequency offset.

  • Page 49: Sense]:Frequency:span

    [:SENSe]:FREQuency:SPAN <freq> Parameter Frequency span <freq> Range 0 Hz, 300 Hz to 6.15 GHz (MS2690A) [MS269xA] 0 Hz, 300 Hz to 13.7 GHz (MS2691A) 0 Hz, 300 Hz to 26.7 GHz (MS2692A) 0 Hz, 300 Hz to 3.8 GHz (Option 040) [MS2830A] 0 Hz, 300 Hz to 6.2 GHz (Option 041)
  • Page 50 Chapter 2 SCPI Device Message Details 32 GHz (Option 047) [MS2850A] 44.5 GHz (Option 046) Details This command is not available during the Spectrum Emission Mask measurement or the Spurious Emission measurement. Frequency span cannot be set to 0 Hz when Internal Signal Generator Control On/Off is On.

  • Page 51: Sense]:Frequency:span?

    <freq> Parameter Frequency span <freq> Range 0 Hz, 300 Hz to 6.15 GHz (MS2690A) [MS269xA] 0 Hz, 300 Hz to 13.7 GHz (MS2691A) 0 Hz, 300 Hz to 26.7 GHz (MS2692A) 0 Hz, 300 Hz to 3.8 GHz (Option 040) [MS2830A] 0 Hz, 300 Hz to 6.2 GHz (Option 041)

  • Page 52: Sense]:Frequency:span:full

    Function This command maximizes the frequency span. Command [:SENSe]:FREQuency:SPAN:FULL Parameter Full span frequency <freq> Range 6.15 GHz (MS2690A) [MS269xA] 13.70 GHz (MS2691A) 27.10 GHz (MS2692A) 3.8 GHz (Option 040) [MS2830A] 6.2 GHz (Option 041) 13.7 GHz (Option 043) 26.7 GHz (Option 044) 43.2 GHz (Option 045)

  • Page 53: Sense]:Frequency:start

    Command [:SENSe]:FREQuency:STARt <freq> Parameter Start frequency <freq> Range –100 MHz to 6.0499997 GHz (MS2690A) [MS269xA] –100 MHz to 13.5999997 GHz (MS2691A) –100 MHz to 26.5999997 GHz (MS2692A) –100 MHz to 3.6999997 GHz (Option 040) [MS2830A] –100 MHz to 6.0999997 GHz (Option 041) –100 MHz to 13.5999997 GHz (Option 043)

  • Page 54: Sense]:Frequency:start?

    Response <freq> Parameter Start frequency <freq> Range –100 MHz to 6.0499997 GHz (MS2690A) [MS269xA] –100 MHz to 13.5999997 GHz (MS2691A) –100 MHz to 26.5999997 GHz (MS2692A) –100 MHz to 3.6999997 GHz (Option 040) [MS2830A] –100 MHz to 6.0999997 GHz (Option 041) –100 MHz to 13.5999997 GHz (Option 043)

  • Page 55: Sense]:Frequency:stop

    Command [:SENSe]:FREQuency:STOP <freq> Parameter Stop frequency <freq> Range –99.9997 MHz to 6.05 GHz (MS2690A) [MS269xA] –99.9997 MHz to 13.6 GHz (MS2691A) –99.9997 MHz to 26.6 GHz (MS2692A) –99.9997 MHz to 3.7 GHz (Option 040) [MS2830A] –99.9997 MHz to 6.1 GHz (Option 041) –99.9997 MHz to 13.6 GHz (Option 043)

  • Page 56: Sense]:Frequency:stop?

    Response <freq> Parameter Stop frequency <freq> Range –99.9997 MHz to 6.05 GHz (MS2690A) [MS269xA] –99.9997 MHz to 13.6 GHz (MS2691A) –99.9997 MHz to 26.6 GHz (MS2692A) [ MS2830A] –99.9997 MHz to 3.7 GHz (Option 040) –99.9997 MHz to 6.1 GHz (Option 041) –99.9997 MHz to 13.6 GHz (Option 043)

  • Page 57: Sense]:Frequency:span:zero

    Frequency/Span [:SENSe]:FREQuency:SPAN:ZERO Zero Span Function This command sets the frequency span to 0 Hz (Time domain display). Command [:SENSe]:FREQuency:SPAN:ZERO Details When Zero Span is executed during other than the Burst Average measurement, the Measure function is set to Off. This command is disabled when Internal Signal Generator Control On/Off or the N dB Bandwidth measurement function is set to On.

  • Page 58: Sense]:Frequency:band:mode Normal|Spurious

    Chapter 2 SCPI Device Message Details [:SENSe]:FREQuency:BAND:MODE NORMal|SPURious Frequency Band Mode Function This command sets the frequency band path. The frequency at which the path is switched to the preselector band or a path that does not pass through the preselector can be set with this function. Command [:SENSe]:FREQuency:BAND:MODE <mode>...

  • Page 59: Sense]:Frequency:band:mode?

    Frequency/Span FREQ:BAND:MODE NORM [:SENSe]:FREQuency:BAND:MODE? Frequency Band Mode Query Function This command queries the frequency band path. The frequency at which the path is switched to the preselector band or a path that does not pass through the preselector can be set with this function. Query [:SENSe]:FREQuency:BAND:MODE? Response...

  • Page 60: Sense]:Frequency:band:mode:state?

    Chapter 2 SCPI Device Message Details [:SENSe]:FREQuency:BAND:MODE:STATe? Frequency Band Mode Status Query Function This command queries the Spurious Mode status of the frequency band with the current measurement conditions. Query [:SENSe]:FREQuency:BAND:MODE:STATe? Response <status> Parameter Spurious Mode status of frequency band <status>...

  • Page 61: Sense]:Frequency:domain:couple On|Off|1|0

    Frequency/Span [:SENSe]:FREQuency:DOMain:COUPle ON|OFF|1|0 Couple Time/Freq. Domain Function Sets whether to couple the time domain parameters and frequency domain parameters. Command [:SENSe]:FREQuency:DOMain:COUPle <switch> Parameter Enables/disables coupling <switch> Couples (shares) the RBW, VBW, detection mode, ON|1 and trace point between the time domain and the frequency domain (Default).

  • Page 62: Sense]:Frequency:synthesis[:State] Bphase|Normal|Fast

    Chapter 2 SCPI Device Message Details Parameter Enables/disables coupling <switch> The RBW, VBW, detection mode, and trace point are coupled (shared) between the time domain and the frequency domain. The RBW, VBW, detection mode, and trace point for the time domain are separate from those for the frequency domain.

  • Page 63: Sense]:Frequency:synthesis[:State]?

    Frequency/Span [:SENSe]:FREQuency:SYNThesis[:STATe]? Switching Speed Query Function This command queries the switching speed of frequency. Query [:SENSe]:FREQuency:SYNThesis[:STATe]? Response <mode> Parameter Frequency switching speed <mode> The operation is done so as to improve the phase noise characteristic rather than the frequency switching speed. The operation is done so as to increase the FAST frequency switching speed.

  • Page 64: Level

    Chapter 2 SCPI Device Message Details Level The table below shows device messages for level. Table 2.2-1 Device messages for level Function Device Message :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real> Reference Level :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? [:SENSe]:POWer[:RF]:ATTenuation <rel_ampl> RF Attenuator [:SENSe]:POWer[:RF]:ATTenuation? [:SENSe]:POWer[:RF]:ATTenuation:AUTO ON|OFF|1|0 RF Attenuator Auto/Manual [:SENSe]:POWer[:RF]:ATTenuation:AUTO? :DISPlay:WINDow[1]:TRACe:Y[:SCALe][:LOGarithmic]:PDIVision <rel_ampl>...

  • Page 65: Display:window[1]:Trace:y[:Scale]:Rlevel

    Level :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real> Reference Level Function This command sets the reference level. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real> Parameter Reference level <real> Range Value equivalent to –130 to +50 dBm Resolution 0.01 dB (When scale unit settings are dB-system units) 0.01 pV (When scale unit settings are V-system units) 0.01 yW (When scale unit settings are W-system units)
  • Page 66 Chapter 2 SCPI Device Message Details Example of Use To set the reference level to 0 dBm. DISP:WIND:TRAC:Y:RLEV 0DBM Related command This command has the same function as the following commands. :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:SEMask:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel :DISPlay:BPOWer|:TXPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCAL e]:RLEVel 2-56...

  • Page 67: Display:window[1]:Trace:y[:Scale]:Rlevel?

    Level :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? Reference Level Query Function This command queries the reference level. Query :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? Response <real> Parameter Reference level <real> Range Value equivalent to –130 to +50 dBm Resolution 0.01 dB (When scale unit settings are dB-system units) 0.01 pV (When scale unit settings are V-system units) 0.01 yW (When scale unit settings are W-system units)

  • Page 68: Sense]:Power[:Rf]:Attenuation

    Chapter 2 SCPI Device Message Details [:SENSe]:POWer[:RF]:ATTenuation <rel_ampl> RF Attenuator Function This command sets the attenuation. Command [:SENSe]:POWer[:RF]:ATTenuation <rel_ampl> Parameter Attenuation <rel_ampl> Range 0 to 60 dB Resolution [MS269xA], [MS2850A] 2 dB [MS2830A] , [MS2840A] 2 dB or 10 dB Refer to “Table 2.4.2-3 Resolution of Input Attenuator”...

  • Page 69: Sense]:Power[:Rf]:Attenuation?

    Level [:SENSe]:POWer[:RF]:ATTenuation? RF Attenuator Query Function This command queries the attenuation. Query [:SENSe]:POWer[:RF]:ATTenuation? Response <rel_ampl> Parameter Attenuation <rel_ampl> Range 0 to 60 dB Resolution [MS269xA], [MS2850A] 2 dB [MS2830A], [MS2840A] 2 dB or 10 dB Refer to “Table 2.4.2-3 Resolution of Input Attenuator” in the MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) Suffix code...

  • Page 70: Sense]:Power[:Rf]:Attenuation:auto On|Off|1|0

    Chapter 2 SCPI Device Message Details [:SENSe]:POWer[:RF]:ATTenuation:AUTO ON|OFF|1|0 RF Attenuator Auto/Manual Function This command enables/disables the automatic attenuation setting function. Command [:SENSe]:POWer[:RF]:ATTenuation:AUTO <switch> Parameter Automatic attenuation setting function On/Off <switch> state Disables the automatic attenuation setting 0|OFF function. Enables the automatic attenuation setting 1|ON function (Default value).

  • Page 71: Sense]:Power[:Rf]:Attenuation:auto?

    Level [:SENSe]:POWer[:RF]:ATTenuation:AUTO? RF Attenuator Auto/Manual Query Function This command queries the On/Off state of the automatic attenuation. Query [:SENSe]:POWer[:RF]ATTenuation:AUTO? Response <switch> Parameter Automatic attenuation is disabled/enabled. <switch> Disabled. Enabled. Example of Use To query the On/Off state of the automatic attenuation setting. POW:ATT:AUTO? >...

  • Page 72: Display:window[1]:Trace:y[:Scale][:Logarithmic]:Pdivision

    Chapter 2 SCPI Device Message Details :DISPlay:WINDow[1]:TRACe:Y[:SCALe][:LOGarithmic]:PDIVision <rel_ampl> Log Scale Range Function This command sets the Y-axis scale magnification when Scale Mode is set to Log. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe][:LOGarithmic]:PDIVisi on <rel_ampl> Parameter Y-axis scale magnification <rel_ampl> 0.1 dB/div 0.2 dB/div 0.5 dB/div 1 dB/div 2 dB/div 5 dB/div...

  • Page 73: Display:window[1]:Trace:y[:Scale][:Logarithmic]:Pdivision?

    Level :DISPlay:WINDow[1]:TRACe:Y[:SCALe][:LOGarithmic]:PDIVision? Log Scale Range Query Function This command queries the Y-axis scale magnification when Scale Mode is set to Log. Query :DISPlay:WINDow[1]:TRACe:Y[:SCALe][:LOGarithmic]:PDIVisi Response <rel_ampl> Parameter Y-axis scale magnification <rel_ampl> 0.1 dB/div 0.2 dB/div 0.5 dB/div 1 dB/div 2 dB/div 5 dB/div 10 dB/div 20 dB/div...

  • Page 74: Display:window[1]:Trace:y[:Scale]:Spacing Linear|Logarithmic

    Chapter 2 SCPI Device Message Details :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:SPACing LINear|LOGarithmic Scale Mode Function This command switches the scale mode. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:SPACing <mode> Parameter Scale mode <mode> Log scale (Default value) LOGarithmic Linear scale LINear Details When the scale mode has been set to Linear, the following functions are set to Off.

  • Page 75: Unit:power Dbm|Dbmv|V|W|Dbuv|Dbuve|Dbuvm

    Level :UNIT:POWer DBM|DBMV|V|W|DBUV|DBUVE|DBUVM Log Scale Unit Function This command sets the level display unit system at log scale. Command :UNIT:POWer <unit> Parameter Level display unit system at log scale <unit> dBmV DBMV dBµV DBUV dBmV (emf) DBUVE dBµV/m DBUVM Default value Details This command is not available during the Spectrum Emission Mask measurement or the Spurious Emission measurement.

  • Page 76: Unit:power?

    Chapter 2 SCPI Device Message Details :UNIT:POWer? Log Scale Unit Query Function This command queries the level display unit system at Log scale. Query :UNIT:POWer? Response <unit> Parameter Level display unit system at Log scale <unit> dBmV DBMV dBµV DBUV dBmV (emf) DBUVE dBµV/m...

  • Page 77: Display:window[1]:Trace:y[:Scale]:Linear:pdivision

    Level :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:LINear:PDIVision <percent> Linear Scale Range Function This command sets the Y-axis scale magnification for the linear scale display. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:LINear:PDIVision <percent> Parameter Y-axis scale magnification <percent> 1 %/div 2 %/div 5 %/div 10 %/div Default value 10 %/div Example of Use To set the scale magnification to 5%/div.

  • Page 78: Display:window[1]:Trace:y[:Scale][:Logarithmic]

    Chapter 2 SCPI Device Message Details Example of Use To query the scale magnification. DISP:WIND:TRAC:Y:LIN:PDIV? > 5 :DISPlay:WINDow[1]:TRACe:Y[:SCALe][:LOGarithmic] <lines> Log Scale Line Function This command sets the number of Y-axis scale segments in Log scale mode. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe][:LOGarithmic] <lines> Parameter Number of Y-axis scale segments <lines>...

  • Page 79: Display:window[1]:Trace:y[:Scale][:Logarithmic]?

    Level :DISPlay:WINDow[1]:TRACe:Y[:SCALe][:LOGarithmic]? Log Scale Line Query Function This command queries the number of Y-axis segments in Log scale mode. Query :DISPlay:WINDow[1]:TRACe:Y[:SCALe][:LOGarithmic]? Response <lines> Parameter Number of Y-axis scale segments <lines> 10 segments 12 segments Details This command is available only in Log scale mode. Example of Use To query the number of Y-axis scale segments in Log scale mode.

  • Page 80: Display:window[1]:Trace:y[:Scale]:Rlevel:offset

    Chapter 2 SCPI Device Message Details :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel:OFFSet <rel_ampl> Ref.Level Offset Value Function This command sets the offset value of the reference level offset function. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel:OFFSet <rel_ampl> Parameter Reference level offset value <rel_ampl> Range –100.00 to +100.00 dB Resolution 0.01 dB Suffix code dB is used even when omitted.

  • Page 81: Display:window[1]:Trace:y[:Scale]:Rlevel:offset:state On|Off|1|0

    Level Example of Use To query the reference level offset. DISP:WIND:TRAC:Y:RLEV:OFFS? > 10.00 :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel:OFFSet:STATe ON|OFF|1|0 Reference Level Offset Mode Function This command enables/disables the reference level offset function. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel:OFFSet:STATe <switch> Parameter Reference level offset function On/Off <switch> Enables the reference level offset function. ON|1 Disables the reference level offset function OFF|0...

  • Page 82: Display:window[1]:Trace:y[:Scale]:Rlevel:offset:state?

    Chapter 2 SCPI Device Message Details :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel:OFFSet:STATe? Reference Level Offset Mode Query Function This command queries the On/Off state of the reference level offset function. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel:OFFSet:STATe? Response <switch> Parameter Reference level offset function On/Off <switch> Reference level offset function is enabled. Reference level offset function is disabled.

  • Page 83: Sense]:Power[:Rf]:Gain[:State]?

    Level 008/108/068/168 Preamplifier is not installed. [MS2840A] This command is fixed to Off and cannot be set when the Option 008/108/068/168/069/169 Preamplifier is not installed. [MS2850A] This command is fixed to Off and cannot be set when the Option 068/168 Preamplifier is not installed.

  • Page 84: Display:window[1]:Trace:y[:Scale]:Line[:Logarithmic]

    Chapter 2 SCPI Device Message Details :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:LINE[:LOGarithmic] <lines> Log Scale Line Function This command sets the number of Y-axis segments in Log scale mode. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:LINE[:LOGarithmic] <lines> Parameter Number of Y-axis scale segments <lines> 10 segments (Default value) 12 segments Details This function can be set only in Log scale mode.

  • Page 85: Sense]:Correction:impedance[:Input][:Magnitude] 50|75

    Level [:SENSe]:CORRection:IMPedance[:INPut][:MAGNitude] 50|75 Impedance Function This command sets the input impedance. Command [:SENSe]:CORRection:IMPedance[:INPut][:MAGNitude] 50|75 Parameter Impedance <mode> Sets impedance to 50 Ω. (Default) Sets impedance to 75 Ω. Example of Use To set the impedance to 75 Ω. CORR:IMP 75 [:SENSe]:CORRection:IMPedance[:INPut][:MAGNitude]? Impedance Query Function...

  • Page 86: Rbw/Vbw

    Chapter 2 SCPI Device Message Details RBW/VBW Table 2.3-1 lists device messages for RBW/VBW. Table 2.3-1 Device messages for RBW/VBW Function Device Message [:SENSe]:BANDwidth|:BWIDth[:RESolution] <freq> [:SENSe]:BANDwidth|:BWIDth[:RESolution]? Resolution Bandwidth :CALCulate:BANDwidth|:BWIDth[:RESolution] <freq> :CALCulate:BANDwidth|:BWIDth[:RESolution]? [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO ON|OFF|1|0 Resolution [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO? Bandwidth :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO ON|OFF|1|0 Auto/Manual :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO? [:SENSe]:BANDwidth|:BWIDth[:RESolution]:MODE NORMal|CISPr Resolution [:SENSe]:BANDwidth|:BWIDth[:RESolution]:MODE?

  • Page 87: Sense]:Bandwidth|:Bwidth[:Resolution]

    RBW/VBW [:SENSe]:BANDwidth|:BWIDth[:RESolution] <freq> Resolution Bandwidth Function This command sets the resolution bandwidth (RBW). When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement. Command [:SENSe]:BANDwidth|:BWIDth[:RESolution] <freq> Parameter Resolution bandwidth (RBW) <freq>...
  • Page 88 Chapter 2 SCPI Device Message Details Details In MS269xA, MS2830A, MS2840A RBW Mode: Normal • The resolution bandwidth Auto setting is switched off when the resolution bandwidth (RBW) is changed. • For MS2830A, MS2840A RBW 20 MHz or greater is only available for MS2830A-005/105/007/009/109, MS2840A-005/105/009/109.

  • Page 89: Calculate:bandwidth|:Bwidth[:Resolution]

    RBW/VBW :CALCulate:BANDwidth|:BWIDth[:RESolution] <freq> Resolution Bandwidth Function This command sets the resolution bandwidth (RBW). When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement. Command :CALCulate:BANDwidth|:BWIDth[:RESolution] <freq> Parameter Resolution bandwidth (RBW) <freq>...
  • Page 90 Chapter 2 SCPI Device Message Details Details In MS269xA, MS2830A, MS2840A RBW Mode: Normal • The resolution bandwidth Auto setting is switched off when the resolution bandwidth (RBW) is changed. For MS2830A, MS2840A RBW 20 MHz or greater is only available for MS2830A-005/105/007/009/109, MS2840A-005/105/009/109.

  • Page 91: Sense]:Bandwidth|:Bwidth[:Resolution]?

    RBW/VBW [:SENSe]:BANDwidth|:BWIDth[:RESolution]? Resolution Bandwidth Query Function This command queries the resolution bandwidth (RBW). When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement. Query [:SENSe]:BANDwidth|:BWIDth[:RESolution]? Response <freq> Parameter Resolution bandwidth(RBW) <freq>...

  • Page 92: Calculate:bandwidth|:Bwidth[:Resolution]?

    Chapter 2 SCPI Device Message Details Example of Use To query RBW. BAND? > 3000 Related command This command has the same function as the following commands. [:SENSe]:ACPower:BANDwidth[:RESolution]? [:SENSe]:CHPower:BANDwidth[:RESolution]? [:SENSe]:OBWidth:BANDwidth[:RESolution]? [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]? :CALCulate:BANDwidth|:BWIDth[:RESolution] :CALCulate:ACPower:BANDwidth[:RESolution]? :CALCulate:CHPower:BANDwidth[:RESolution]? :CALCulate:OBWidth:BANDwidth[:RESolution]? :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution]? :CALCulate:BANDwidth|:BWIDth[:RESolution]? Resolution Bandwidth Query Function This command queries the resolution bandwidth (RBW).
  • Page 93 RBW/VBW 10 MHz, 20 MHz, or 31.25 MHz. RBW Mode CISPR (With MS2830A-016/116, MS2840A-016/116) Range/Resolution The settable value is 200 Hz, 9 kHz, 120 kHz, or 1 MHz. [MS2850A] Range/Resolution 1 Hz to 10 MHz However, the settable value is 1 Hz to 3 MHz (for 1 to 3 sequences), 500 Hz, 50 kHz, 2 MHz, 5 MHz, or 10 MHz.

  • Page 94: Sense]:Bandwidth|:Bwidth[:Resolution]:Auto On|Off|1|0

    Chapter 2 SCPI Device Message Details [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO ON|OFF|1|0 Resolution Bandwidth Auto/Manual Function This command enables/disables the resolution bandwidth (RBW) automatic setting function. When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement. Command [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO <switch>...
  • Page 95 RBW/VBW Related command This command has the same function as the following commands. [:SENSe]:ACPower:BANDwidth[:RESolution]:AUTO [:SENSe]:CHPower:BANDwidth[:RESolution]:AUTO [:SENSe]:OBWidth:BANDwidth[:RESolution]:AUTO :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO :CALCulate:ACPower:BANDwidth[:RESolution]:AUTO :CALCulate:CHPower:BANDwidth[:RESolution]:AUTO :CALCulate:OBWidth:BANDwidth[:RESolution]:AUTO 2-85...

  • Page 96: Calculate:bandwidth|:Bwidth[:Resolution]:Auto On|Off|1|0

    Chapter 2 SCPI Device Message Details :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO ON|OFF|1|0 Resolution Bandwidth Auto/Manual Function This command sets the resolution bandwidth (RBW) automatically. When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement.

  • Page 97: Sense]:Bandwidth|:Bwidth[:Resolution]:Auto?

    RBW/VBW [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO? Resolution Bandwidth Auto/Manual Query Function This command queries the On/Off state of the automatic resolution bandwidth setting. When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement. Query [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO? Response...

  • Page 98: Calculate:bandwidth|:Bwidth[:Resolution]:Auto?

    Chapter 2 SCPI Device Message Details :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO? Resolution Bandwidth Auto/Manual Query Function This command queries the On/Off state of the automatic resolution bandwidth setting. When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement.

  • Page 99: Sense]:Bandwidth|:Bwidth[:Resolution]:Mode Normal|Cispr

    RBW/VBW [:SENSe]:BANDwidth|:BWIDth[:RESolution]:MODE NORMal|CISPr Resolution Bandwidth Normal/CISPR Function This command switches the Resolution Bandwidth (RBW) mode. When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement. Command [:SENSe]:BANDwidth|:BWIDth[:RESolution]:MODE <mode> Parameter Resolution Bandwidth (RBW) <mode>...

  • Page 100: Calculate:bandwidth|:Bwidth[:Resolution]:Mode Normal|Cispr

    Chapter 2 SCPI Device Message Details :CALCulate:BANDwidth|:BWIDth[:RESolution]:MODE NORMal|CISPr Resolution Bandwidth Normal/CISPR Function This command switches the Resolution Bandwidth (RBW) mode. When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement.

  • Page 101: Sense]:Bandwidth|:Bwidth[:Resolution]:Mode?

    RBW/VBW [:SENSe]:BANDwidth|:BWIDth[:RESolution]:MODE? Resolution Bandwidth Normal/CISPR Query Function This command queries the Resolution Bandwidth (RBW) mode. When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement. Query [:SENSe]:BANDwidth|:BWIDth[:RESolution]:MODE? Response <mode>...

  • Page 102: Calculate:bandwidth|:Bwidth[:Resolution]:Mode?

    Chapter 2 SCPI Device Message Details :CALCulate:BANDwidth|:BWIDth[:RESolution]:MODE? Resolution Bandwidth Normal/CISPR Query Function This command queries the Resolution Bandwidth (RBW) mode. When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement.

  • Page 103: Sense]:Bandwidth|:Bwidth:video

    RBW/VBW [:SENSe]:BANDwidth|:BWIDth:VIDeo <freq> Video Bandwidth Function This command sets the video bandwidth (VBW). When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement. Command [:SENSe]:BANDwidth|:BWIDth:VIDeo <freq> Parameter Video bandwidth (VBW) <freq>...

  • Page 104: Sense]:Bandwidth|:Bwidth:video?

    Chapter 2 SCPI Device Message Details [:SENSe]:BANDwidth|:BWIDth:VIDeo? Video Bandwidth Query Function This command queries the video bandwidth (VBW). When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement. Query [:SENSe]:BANDwidth|:BWIDth:VIDeo? Response...

  • Page 105: Sense]:Bandwidth|:Bwidth:video:auto On|Off|1|0

    RBW/VBW [:SENSe]:BANDwidth|:BWIDth:VIDeo:AUTO ON|OFF|1|0 Video Bandwidth Auto/Manual Function This command enables/disables the automatic video bandwidth (VBW) setting function. When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement. Command [:SENSe]:BANDwidth|:BWIDth:VIDeo:AUTO <switch>...

  • Page 106: Sense]:Bandwidth|:Bwidth:video:auto?

    Chapter 2 SCPI Device Message Details [:SENSe]:BANDwidth|:BWIDth:VIDeo:AUTO? Video Bandwidth Auto/Manual Query Function This command queries the On/Off state of the automatic video bandwidth (VBW) setting. When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement.

  • Page 107: Sense]:Bandwidth|:Bwidth:video:mode Video|Power

    RBW/VBW [:SENSe]:BANDwidth|:BWIDth:VIDeo:MODE VIDeo|POWer Video Bandwidth Mode Function This command sets the video bandwidth (VBW) processing method. Command [:SENSe]:BANDwidth|:BWIDth:VIDeo:MODE <method> Parameter VBW processing method <method> Normal VBW VIDeo Power VBW (Default) POWer Details This command is not available in the following cases: •...

  • Page 108: Sense]:Bandwidth|:Bwidth:video:mode?

    Chapter 2 SCPI Device Message Details [:SENSe]:BANDwidth|:BWIDth:VIDeo:MODE? Video Bandwidth Mode Query Function This command queries the video bandwidth (VBW) processing method. Query [:SENSe]:BANDwidth|:BWIDth:VIDeo:MODE? Response <method> Parameter VBW processing method <method> Normal VBW Power VBW Details This command is fixed to Off and cannot be set if Detection is set to the following: •...

  • Page 109: Sense]:Freqency:span:bandwidth|:Bwidth[:Resolution]:Ratio:auto On|Off|1|0

    RBW/VBW [:SENSe]:FREQency:SPAN:BANDwidth|:BWIDth[:RESolution]:RATio:AUTO ON|OFF|1|0 Span:RBW Ratio Switch Function This command turns On or Off the automatic RBW setting by Span:RBW Ratio. Command [:SENSe]:FREQency:SPAN:BANDwidth|:BWIDth[:RESolution]:RA Tio:AUTO <switch> Parameter Turns On or Off the automatic RBW setting by <switch> Span:RBW Ratio. Turns Off the automatic setting. Turns On the automatic setting.

  • Page 110: Sense]:Freqency:span:bandwidth|:Bwidth[:Resolution]:Ratio:auto?

    Chapter 2 SCPI Device Message Details [:SENSe]:FREQency:SPAN:BANDwidth|:BWIDth[:RESolution]:RATio:AUTO? Span:RBW Ratio Switch Query Function This command queries the automatic RBW setting by Span:RBW Ratio. Query [:SENSe]:FREQency:SPAN:BANDwidth|:BWIDth[:RESolution]:RA Tio:AUTO? Response <switch> Parameter Automatic setting <switch> The automatic setting is Off. The automatic setting is On. Example of Use To query the On/Off status of automatic RBW setting by Span:RBW Ratio.

  • Page 111: Sense]:Freqency:span:bandwidth|:Bwidth[:Resolution]:Ratio

    RBW/VBW [:SENSe]:FREQency:SPAN:BANDwidth|:BWIDth[:RESolution]:RATio <number> Span:RBW Ratio Function This command specifies the ratio of Span to RBW. Command [:SENSe]:FREQency:SPAN:BANDwidth|:BWIDth[:RESolution]:RA Tio <number> Parameter Span:RBW Ratio <number> Range 2 to 10000 Resolution Default Details • Unavailable when the Measure function is On. • Unavailable when the RBW mode is CISPR. •...

  • Page 112: Sense]:Freqency:span:bandwidth|:Bwidth[:Resolution]:Ratio?

    Chapter 2 SCPI Device Message Details [:SENSe]:FREQency:SPAN:BANDwidth|:BWIDth[:RESolution]:RATio? Span:RBW Ratio Query Function This command queries the ratio of Span to RBW. Query [:SENSe]:FREQency:SPAN:BANDwidth|:BWIDth[:RESolution]:RA Tio? Response <number> Parameter Span:RBW Ratio <number> Range 2 to 10000 Example of Use To query the ratio of Span to RBW. FREQ:SPAN:BAND:RAT? >...

  • Page 113: Marker

    Marker Marker Table 2.4-1 lists device messages for marker. Table 2.4-1 Device messages for marker Function Device Message :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE NORMal|POSition|DELTa|FIXed|OFF Marker Mode :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE? :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:STATe OFF|ON|0|1 Marker State :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:STATe? :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:ACTive OFF|ON|0|1 Active Marker :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:ACTive? :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition <integer> Zone Marker Position :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition? :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X <freq>|<time> Zone Marker Frequency (Time) :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X?
  • Page 114 Chapter 2 SCPI Device Message Details Table 2.4-1 Device messages for marker (Cont’d) Function Device message Marker to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:SET]:RLEVel Reference Level :CALCulate:MARKer:RESult INTegration|DENSity|PEAK Marker Result :CALCulate:MARKer:RESult? Marker Position :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:PEAK:X:POSition? Query Marker Frequency :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:PEAK:X? (Time) Query Marker Level Query :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y? Marker Relative :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y:DELTa? Level Query Reference Marker...

  • Page 115: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Mode Normal|Position|Delta|Fixed|Off

    Marker :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE NORMal|POSition|DELTa|FIXed|OFF Marker Mode Function This command sets the marker mode. Command :CALCulate:MARKer[n]:MODE <mode> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9 Marker 10 When omitted: Marker 1 Marker mode <mode>...
  • Page 116 Chapter 2 SCPI Device Message Details Related command This command has the same function as the following commands. :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: MODE 2-106...

  • Page 117: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Mode?

    Marker :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE? Marker Mode Query Function This command queries the marker mode. Query :CALCulate:MARKer[n]:MODE? Response <mode> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9 Marker 10 When omitted: Marker 1 Marker mode...

  • Page 118: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:State Off|On|0|1

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:STATe OFF|ON|0|1 Marker State Function This command sets the marker to On/Off. Command :CALCulate:MARKer[n]:STATe <switch> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9 Marker 10 When omitted:...

  • Page 119: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:State?

    Marker :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:STATe? Marker State Query Function This command queries the On/Off state of the marker. Query :CALCulate:MARKer[n]:STATe? Response <switch> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9 Marker 10 When omitted: Marker 1...

  • Page 120: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Active Off|On|0|1

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:ACTive OFF|ON|0|1 Active Marker Function This command specifies the active marker. Command :CALCulate:MARKer[n]:ACTive <switch> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9 Marker 10 When omitted:...

  • Page 121: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Active?

    Marker :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:ACTive? Active Marker Query Function This command queries the active marker. Query :CALCulate:MARKer[n]:ACTive? Response <switch> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9 Marker 10 When omitted: Marker 1 Active marker...

  • Page 122: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:X:position

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition <integer> Zone Marker Position Function This command moves the center of the zone marker to the specified position. Command :CALCulate:MARKer[n]:X:POSition <integer> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7...

  • Page 123: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:X:position?

    Marker Related command This command has the same function as the following commands. :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSiti :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSiti :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSiti :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: X:POSition :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSit :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition? Zone Marker Position Query Function This command queries the center position of the zone marker. Query :CALCulate:MARKer[n]:X:POSition? Response <integer> Parameter Marker number <n>...
  • Page 124 Chapter 2 SCPI Device Message Details Example of Use To query the center of the zone marker. CALC:MARK:X:POS? > 500 Related command This command has the same function as the following commands. :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSiti :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSiti :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSiti :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: X:POSition? :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSit ion? 2-114...

  • Page 125: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:X |

    Marker 10 When omitted: Marker 1 Center frequency of zone marker <freq> Range –100 MHz to 6.05 GHz (MS2690A) [MS269xA] –100 MHz to 13.6 GHz (MS2691A) –100 MHz to 26.6 GHz (MS2692A) –100 MHz to 3.7 GHz (Option 040) [MS2830A] –100 MHz to 6.1 GHz (Option 041)

  • Page 126: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:X?

    Chapter 2 SCPI Device Message Details Resolution 1 ns Suffix code NS, US, MS, S S is used when omitted. Details This command is not available during Spurious Emission measurement and when Displayed Segment Mode is Auto. Not available during Spectrum Emission Mask measurement. When Internal Signal Generator Control On/Off is On, the center frequency range of zone marker depends on the frequency range of Signal Generator.
  • Page 127 Marker 10 When omitted: Marker 1 Center frequency of zone marker <freq> Range –100 MHz to 6.05 GHz (MS2690A) [MS269xA] –100 MHz to 13.6 GHz (MS2691A) –100 MHz to 26.6 GHz (MS2692A) –100 MHz to 3.7 GHz (Option 040) [MS2830A] –100 MHz to 6.1 GHz (Option 041)

  • Page 128: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:X:delta |

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:DELTa <freq>|<time> Zone Marker Relative Frequency (Time) Function This command moves the center of the zone marker to the frequency (time), specified by relative value. Command :CALCulate:MARKer[n]:X:DELTa <freq>|<time> Parameter <n> Marker Number Specifies marker 1 Specifies marker 2 Specifies marker 3 Specifies marker 4...
  • Page 129 Marker Example of Use When Frequency Span is 0 Hz, and Active Marker is Maker 2. To move the center of Marker 1 zone marker to +100 MHz of Marker 2 (reference marker). CALC:MARK1:REF 2 CALC:MARK1:X:DELT 100MHZ When Frequency Span is 0 Hz, and Active Marker is Maker 2. To move the center of Marker 1 zone marker to 15 ms of Marker 2 (reference marker).
  • Page 130 Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:DELTa? Zone Marker Relative Frequency (Time) Query Function This command queries the center of zone marker in relative value. Query :CALCulate:MARKer[n]:X:DELTa? Response <freq> <time> Parameter Marker Number <n> Specifies marker 1 Specifies marker 2 Specifies marker 3 Specifies marker 4 Specifies marker 5...
  • Page 131 Marker To query the center of Marker 1 zone marker in relative value. CALC:MARK:X:DELT? > 100000000.00 When Frequency Span is 0 Hz, and Active Marker is Maker 2. To move the center of Marker 1 zone marker to 15 ms of Marker 2 (reference marker).
  • Page 132 Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence <integer> Relative To Function This command sets the reference marker when the marker mode is set to Delta. Command :CALCulate:MARKer[n]:REFerence <integer> Parameter Marker number to set <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6...

  • Page 133: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Reference?

    Marker Example of Use To set the reference marker for Marker 2 to 4. CALC:MARK2:REF 4 Related Commands This command has the same function as the following commands. :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: REFerence :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence? Relative To Query Function This command queries the reference marker when the marker mode is set to Delta.
  • Page 134 Chapter 2 SCPI Device Message Details Marker number for reference <integer> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9 Marker 10 Example of Use To query the reference marker for the marker 2. CALC:MARK2:REF? >...

  • Page 135: Calculate:marker:table[:State] Off|On|0|1

    Marker :CALCulate:MARKer:TABLe[:STATe] OFF|ON|0|1 Marker List Function This command selects the marker list display On/Off. Command :CALCulate:MARKer:TABLe[:STATe] <switch> Parameter Marker list display On/Off <switch> Sets the marker list to On. ON|1 Sets the marker list to Off. OFF|0 Details This command is not available when the Measure function is set to On and during the Spurious Emission measurement.

  • Page 136: Calculate:marker:sline[:State] Off|On|0|1

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer:SLINe[:STATe] OFF|ON|0|1 Spot Line Function This command selects the marker line display in spot marker On/Off. Command :CALCulate:MARKer:SLINe[:STATe] <switch> Parameter Marker list display On/Off <switch> Displays the marker line. ON|1 Hides the marker line. OFF|0 Details This command is not available during Spurious Emission measurement...

  • Page 137: Calculate:marker:sline[:State]?

    Marker :CALCulate:MARKer:SLINe[:STATe]? Spot Line Query Function This command queries the On/Off state of the marker line display setting in spot marker. Query :CALCulate:MARKer:SLINe[:STATe]? Response <switch> Parameter Marker line display On/Off <switch> Displays the marker line. Hides the marker line. Example of Use To query the On/Off state of the marker line display setting.

  • Page 138: Calculate:marker:couple:zone[:State]?

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer:COUPle:ZONE[:STATe]? Couple Zone Query Function This command queries the On/Off state of the Zone Width shared setting. Query :CALCulate:MARKer:COUPle:ZONE[:STATe]? Response <switch> Parameter Zone Width shared setting On/Off <switch> Details Shares the Zone Width setting of each marker when set to On. Example of Use To query the On/Off state of the Zone Width shared setting.

  • Page 139: Calculate:pmarker:mode On|Off|1|0

    Marker :CALCulate:PMARker:MODE ON|OFF|1|0 Power Marker Function This command switches the display mode of the marker value. Command :CALCulate:PMARker:MODE <switch> Parameter Display mode of the marker value <switch> Integration ON|1 Peak OFF|0 Details This command is not available during Spurious Emission measurement and when Displayed Segment Mode is Auto.

  • Page 140: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Width:division

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:WIDTh:DIVision <division> Zone Marker Width Function This command sets the width of the zone marker by the number of screen segments. Command :CALCulate:MARKer[n]:WIDTh:DIVision <division> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6...

  • Page 141: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Width:division?

    Marker :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:WIDTh:DIVision? Zone Marker Width Query Function This command queries the zone marker width by the number of screen segments. Query :CALCulate:MARKer[n]:WIDTh:DIVision? Response <division> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9...

  • Page 142: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Width:point

    Chapter 2 SCPI Device Message Details Example of Use To query the zone marker width by the number of screen segments. CALC:MARK:WIDT:DIV? > 5 :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:WIDTh:POINt <integer> Zone Marker Width (by Point) Function This command sets the zone marker width by the point. Command :CALCulate:MARKer[n]:WIDTh:POINt <integer>...

  • Page 143: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Width:point?

    Marker :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:WIDTh:POINt? Zone Marker Width (by Point) Query Function This command queries the zone marker width by the point. Query :CALCulate:MARKer[n]:WIDTh:POINt? Response <integer> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9 Marker 10...

  • Page 144: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Width

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:WIDTh <freq> Zone Marker Width (by Frequency) Function This command sets the zone marker width by the frequency. Command :CALCulate:MARKer[n]:WIDTh <freq> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8...

  • Page 145: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Width?

    Marker :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:WIDTh? Zone Marker Width (by Frequency) Query Function This command queries the zone marker width. Query :CALCulate:MARKer[n]:WIDTh? Response <freq> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9 Marker 10 When omitted:...

  • Page 146: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Width:type Zone|Spot

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:WIDTh:TYPE ZONE|SPOT Zone Width Type Function This command sets the zone type of the marker. Command :CALCulate:MARKer[n]:WIDTh:TYPE <zone_type> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9...

  • Page 147: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Width:type?

    Marker :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:WIDTh:TYPE? Zone Width Type Query Function This command queries the zone type of the marker. Query :CALCulate:MARKer[n]:WIDTh:TYPE? Response <zone_type> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9 Marker 10 When omitted:...

  • Page 148: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Trace 1|2|3|4|5|6

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:TRACe 1|2|3|4|5|6 Marker Trace Function This command selects a trace to operate the marker (marker trace). Command :CALCulate:MARKer[n]:TRACe <mode> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9...

  • Page 149: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Trace?

    Marker :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:TRACe? Marker Trace Query Function This command queries the trace to operate the marker (marker trace). Query :CALCulate:MARKer[n]:TRACe? Response <mode> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9 Marker 10 When omitted:...

  • Page 150: Calculate:marker[1]|2|3|4|5|6|7|8|9|10[:Set]:Center

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:SET]:CENTer Marker to Center Frequency Function This command sets the marker frequency to the center frequency. Command :CALCulate:MARKer[n][:SET]:CENTer Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9...

  • Page 151: Calculate:marker[1]|2|3|4|5|6|7|8|9|10[:Set]:Rlevel

    Marker :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:SET]:RLEVel Marker to Reference Level Function This command sets the marker level to the reference level. Command :CALCulate:MARKer[n][:SET]:RLEVel Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9 Marker 10 When omitted: Marker 1...

  • Page 152: Calculate:marker:result Integration|Density|Peak

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer:RESult INTegration|DENSity|PEAK Marker Result Function This command sets the type of the marker display value. Command :CALCulate:MARKer:RESult <mode> Parameter Type of Marker display value <mode> Total Power in the zone band INTegration Power per 1 Hz in the zone band DENSity Peak power in the zone PEAK...

  • Page 153: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Peak:x:position?

    Marker :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:PEAK:X:POSition? Marker Position Query Function This command queries the marker position by the number of display points from the left edge of the screen. Query :CALCulate:MARKer[n]:PEAK:X:POSition? Response <point> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7...

  • Page 154: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Peak:x?

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:PEAK:X? Marker Frequency (Time) Query Function This command queries the frequency or time at the marker point. As for the delta marker, this command queries the frequency difference or time difference between the delta marker and the marker specified by Relative Query :CALCulate:MARKer[n]:PEAK:X? Response...

  • Page 155: Calculate:marker[1]|2|3|4|5|6|7|8|9|10[:Peak]:Y?

    Marker :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y? Marker Level Query Function This command queries the level at the marker point. In case of delta marker, it queries the level ratio. Query :CALCulate:MARKer[n][:PEAK]:Y? Response <level> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7...
  • Page 156 Chapter 2 SCPI Device Message Details When Marker Mode is Delta and Scale Mode is Log resolution: 0.001 dB Suffix code None. Value is returned in dB units. –999.0 is returned at no measurement or error When Marker Mode is Delta and Scale Mode is Lin Range 0.0000 to 10000 Resolution...

  • Page 157: Calculate:marker[1]|2|3|4|5|6|7|8|9|10[:Peak]:Y:delta?

    Marker :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y:DELTa? Marker Relative Level Query Function This command queries the marker level in relative value. Query :CALCulate:MARKer[n][:PEAK]:Y:DELTa? Response <level> Parameter Marker Number <n> Specifies marker 1 Specifies marker 2 Specifies marker 3 Specifies marker 4 Specifies marker 5 Specifies marker 6 Specifies marker 7 Specifies marker 8 Specifies marker 9...

  • Page 158: Calculate:marker:reference:x:position?

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer:REFerence:X:POSition? Reference Marker Position Query Function This command queries the position of the marker specified by Relative To of the active marker by the display points from the left edge of the screen. Query :CALCulate:MARKer:REFerence:X:POSition? Response <integer>...

  • Page 159: Calculate:marker:reference:x?

    Marker :CALCulate:MARKer:REFerence:X? Reference Marker Frequency (Time) Query Function This command queries the frequency or time at the marker point set in Relative To of the active marker. Query :CALCulate:MARKer:REFerence:X? Response <freq> <time> Parameter <freq> Resolution 0.01 Hz Suffix code None. Value is returned in Hz units. <time>...

  • Page 160: Calculate:marker:reference:y?

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer:REFerence:Y? Reference Marker Level Query Function This command queries the level data at the marker point set in Relative To of the active marker. Query :CALCulate:MARKer:REFerence:Y? Response <real> Parameter Level at reference marker point <real>...

  • Page 161: Calculate:pmarker[1]|2|3|4|5|6|7|8|9|10:Y?

    Marker :CALCulate:PMARker[1]|2|3|4|5|6|7|8|9|10:Y? Power Marker Result Query Function This command queries the total power and the power density within the range of the zone marker. Query :CALCulate:PMARker[n]:Y? Response <power>,<density> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7...
  • Page 162 Chapter 2 SCPI Device Message Details When scale unit settings are V-system units. Resolution 0.001 dB Suffix code None. Value is returned in dBm units. –999.0 is returned when no measurement is performed or an error occurs. –999.0 is returned when Marker Mode is set to Fixed or Off. –999.0 is returned when Zone Width Type is set to Spot.

  • Page 163: Calculate:pmarker:delta:y?

    Marker :CALCulate:PMARker:DELTa:Y? Power Marker Result Query Function This command queries the total power ratio and the power density ratio within the range of the zone marker, regarding the active marker and the marker specified by Relative To. Query :CALCulate:PMARker:DELTa:Y? Response <power>,<density>...

  • Page 164: Calculate:marker:aoff

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer:AOFF All Marker Off Function This command sets all the markers to Off. Command :CALCulate:MARKer:AOFF Details This command is not available during Spurious Emission measurement and when Displayed Segment Mode is Auto. Not available during Spectrum Emission Mask measurement. Example of Use To set all the markers to Off.

  • Page 165: Calculate:marker:readout?

    Marker :CALCulate:MARKer:READout? Marker READout Query Function This command queries all the marker values. Query :CALCulate:MARKer:READout? Response <freq_1>,<power_1>,<freq_2>,<power_2>,..., <freq_10>,<power_10> (in frequency domain) <time_1>,<power_1>,<time_2>,<power_2>,..., <time_10>,<power_10> (in time domain) Parameter Frequency of maker n <freq_n> Resolution 0.01 Hz Suffix code None. Value is returned in Hz units. –999999999999 is returned when no measurement is performed, an error has occurred, or the marker is Off.
  • Page 166 Chapter 2 SCPI Device Message Details Suffix code None. Value is returned in W units. –999.0 is returned when no measurement is performed, an error has occurred, or the marker is Off. When marker level display units are X multiple-system units. Resolution 0.0001 Suffix code...

  • Page 167: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Fcount:gatetime

    Marker :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:FCOunt:GATetime <time> Frequency Counter Gate Time Function This command sets the counter gate time for frequency counter. Command :CALCulate:MARKer[n]:FCOunt:GATetime <time> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9 Marker 10 When omitted:...

  • Page 168: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Fcount:gatetime?

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:FCOunt:GATetime? Frequency Counter Gate Time Query Function This command queries the counter gate time of the frequency counter. Query :CALCulate:MARKer[n]:FCOunt:GATetime? Response <time> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7...

  • Page 169: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Fcount[:State] Off|On|0|1

    Marker :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:FCOunt[:STATe] OFF|ON|0|1 Frequency Counter State Function This command turns On/Off the frequency counter. Command :CALCulate:MARKer[n]:FCOunt[:STATe] <switch> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9 Marker 10 When omitted: Marker 1 Frequency counter On/Off...

  • Page 170: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Fcount[:State]?

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:FCOunt[:STATe]? Frequency Counter State Query Function This command queries the On/Off status of frequency counter. Query :CALCulate:MARKer[n]:FCOunt[:STATe]? Response <switch> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9...

  • Page 171: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Fcount:x?

    Marker :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:FCOunt:X? Frequency Counter Query Function This command queries the measured value of the frequency counter. Query :CALCulate:MARKer[n]:FCOunt:X? Response <freq> Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9 Marker 10 When omitted:...

  • Page 172: Calculate:marker:trcking[:State] Off|On|0|1

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer:TRCKing[:STATe] OFF|ON|0|1 Marker Tracking Function This command sets the Marker tracking function to On/Off. Command :CALCulate:MARKer:TRCKing[:STATe] <switch> Parameter Marker tracking function On/Off <switch> Marker tracking On ON|1 Marker tracking Off OFF|0 Details Conducts sweep after adjusting the center frequency of trace to that of the active marker frequency.

  • Page 173: Calculate:bandwidth|:Bwidth:ndb:state Off|On|0|1

    Marker :CALCulate:BANDwidth|:BWIDth:NDB:STATe OFF|ON|0|1 N dB Bandwidth Function This command enables/disables the N dB Bandwidth measurement function. Command :CALCulate:BANDwidth|:BWIDth:NDB:STATe <switch> Parameter N dB Bandwidth measurement function On/Off <switch> Enables N dB Bandwidth measurement function ON|1 Disables N dB Bandwidth measurement function OFF|0 (Default) Details...

  • Page 174: Calculate:bandwidth|:Bwidth:ndb

    Chapter 2 SCPI Device Message Details :CALCulate:BANDwidth|:BWIDth:NDB <rel_ampl> N dB Value Function This command sets the N dB value when the N dB Bandwidth measurement is executed. Command :CALCulate:BANDwidth|:BWIDth:NDB <rel_ampl> Parameter N dB value <rel_ampl> Range –140.00 to –0.01 dB Resolution 0.01 dB Suffix code...

  • Page 175: Calculate:bandwidth|:Bwidth:ndb:result?

    Marker :CALCulate:BANDwidth|:BWIDth:NDB:RESult? N dB Bandwidth Result Query Function This command queries the measurement result for the N dB Bandwidth measurement. Query :CALCulate:BANDwidth|:BWIDth:NDB:RESult? Response <freq> Parameter N dB Bandwidth <freq> Range 0.01 Hz to 3.7 GHz (MS2830A-040) 0.01 Hz to 6.1 GHz (MS2830A-041) 0.01 Hz to 13.6 GHz (MS2830A-043) 0.01 Hz to 26.6 GHz (MS2830A-044)

  • Page 176: Signal Search

    Chapter 2 SCPI Device Message Details Signal Search Table 2.5-1 lists device messages for signal search. Table 2.5-1 Device messages for signal search Function Device Message Peak Search :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum Next Peak Search :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:NEXT Power Peak :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:POWer Search Next Power :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:POWer:NEXT Peak Search Minimum Search :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum...

  • Page 177: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Maximum

    Signal Search :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum Peak Search Function This command searches for the peak point of active trace and moves the marker point. Command :CALCulate:MARKer[n]:MAXimum Parameter Marker number <n> Marker 1 Marker 2 Marker 3 Marker 4 Marker 5 Marker 6 Marker 7 Marker 8 Marker 9 Marker 10...

  • Page 178: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Maximum:next

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:NEXT Next Peak Search Function This command searches for the characteristics of the active trace and moves the marker to a smaller level peak than the present marker level. Command :CALCulate:MARKer[n]:MAXimum:NEXT Parameter Marker number <n>...

  • Page 179: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Maximum:power

    Signal Search :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:POWer Power Peak Search Function This command moves the active marker to the position where the peak power of the zone width of the active marker becomes maximum in the measurement band. Command :CALCulate:MARKer[n]:MAXimum:POWer Parameter Marker Number <n> Specifies marker 1 Specifies marker 2 Specifies marker 3...
  • Page 180 Chapter 2 SCPI Device Message Details Related command This has the same function as the following commands. :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum: POWer :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum: POWer :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum: POWer :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: MAXimum:POWer :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :POWer 2-170...

  • Page 181: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Maximum:power:next

    Signal Search :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:POWer:NEXT Next Power Peak Search Function This command searches for the next largest peak power in the zone width compared to the total power of the zone width of the active marker in the measurement band and moves the active marker. Command :CALCulate:MARKer[n]:MAXimum:POWer:NEXT Parameter...

  • Page 182: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Minimum

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum Minimum Search Function This command moves the marker so that the minimum level point in the measurement band becomes the center frequency of the zone marker. Command :CALCulate:MARKer[n]:MINimum Parameter Marker Number <n> Specifies marker 1 Specifies marker 2 Specifies marker 3 Specifies marker 4...

  • Page 183: Calculate:marker[1]|2|3|4|5|6|7|8|9|10:Minimum:next

    Signal Search :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum:NEXT Next Minimum Search Function This command searches for the next dip of the active marker and moves the marker so that it becomes the center frequency of the zone marker. Command :CALCulate:MARKer[n]:MINimum:NEXT Parameter Marker Number <n> Specifies marker 1 Specifies marker 2 Specifies marker 3 Specifies marker 4...

  • Page 184: Calculate:marker:peak:resolution|Excursion |

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer:PEAK:RESolution|EXCursion <rel_ampl>|<percent> Marker Peak Excursion Function This command sets the resolution in detecting the peak point. Command When Scale Mode is set to Log. :CALCulate:MARKer:PEAK:RESolution|EXCursion <rel_ampl> When Scale Mode is set to Lin. :CALCulate:MARKer:PEAK:RESolution|EXCursion <percent> Parameter <rel_ampl>...

  • Page 185: Calculate:marker:peak:resolution|Excursion?

    Signal Search :CALCulate:MARKer:PEAK:RESolution|EXCursion? Marker Peak Excursion Query Function This command queries the resolution when a peak point is detected. Query :CALCulate:MARKer:PEAK:RESolution|EXCursion? Response (When Scale Mode is set to Log.) <rel_ampl> (When Scale Mode is set to Lin.) <percent> Parameter <rel_ampl> Range 0.001 to 100.000 dB Suffix code...

  • Page 186: Calculate:marker:peak:threshold

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer:PEAK:THReshold <ampl> Peak Search Threshold Level Function This command sets the threshold when a peak point is detected. Command :CALCulate:MARKer:PEAK:THReshold <ampl> Parameter Threshold when searching for the peak point <ampl> Range Full width of Y axis Resolution 0.01 dB (When Scale Unit settings are dB-system.)

  • Page 187: Calculate:marker:peak:threshold?

    Signal Search :CALCulate:MARKer:PEAK:THReshold? Peak Search Threshold Level Query Function This command queries the threshold when searching for the peak point. Query :CALCulate:MARKer:PEAK:THReshold? Response <ampl> Parameter Threshold when searching for the peak point <ampl> Range Full width of Y-axis Resolution 0.01 dB (When scale unit settings are dB-system units) 0.01 pV (When scale unit settings are V-system units)

  • Page 188: Calculate:marker:peak:threshold:state On|Off|1|0

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer:PEAK:THReshold:STATe ON|OFF|1|0 Peak Search Threshold Level On/Off Function This command sets the threshold On/Off, when searching for the peak point. Command :CALCulate:MARKer:PEAK:THReshold:STATe <switch> Parameter Threshold when searching for the peak point <switch> Sets the threshold to Off (Default). 0|OFF Sets the threshold to On.

  • Page 189: Calculate:marker:peak:threshold:mode Above|Below

    Signal Search Example of Use To query the On/Off state of the threshold when searching for the peak point. CALC:MARK:PEAK:THR:STAT? > 1 :CALCulate:MARKer:PEAK:THReshold:MODE ABOVe|BELow Peak Search Mode Function This command specifies the detection mode for the threshold value (Peak Search Threshold Level) in peak point detection. Command :CALCulate:MARKer:PEAK:THReshold:MODE <mode>...

  • Page 190: Calculate:marker:peak:threshold:mode?

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer:PEAK:THReshold:MODE? Peak Search Mode Query Function This command queries the detection mode for the threshold (Peak Search Threshold Level) when searching for the peak point. Query :CALCulate:MARKer:PEAK:THReshold:MODE? Response <mode> Parameter Detection mode for threshold <mode>...

  • Page 191: Calculate:data:peaks[:Logarithmic]? ,[,]

    Signal Search :CALCulate:DATA:PEAKs[:LOGarithmic]? <threshold>,<resolution>[,<sort>] All Peak Search and Query Function This command queries the frequency (or time) and level of all the peak points in the trace data of the active trace in a lump sum. Query :CALCulate:DATA:PEAKs[:LOGarithmic]? <threshold>,<resolution>[,<sort>] Response <total_number>, <level_1>,<freq_1>, <level_2>,<freq_2>,...
  • Page 192 Chapter 2 SCPI Device Message Details µW Follows the setting of Scale Unit, when omitted. V is used when it is Linear Scale. <resolution> when Scale Mode is Log. Range 0.001 to 100.000 dB Suffix code dB is used even when omitted. when Scale Mode is Lin.

  • Page 193: Calculate:marker:peak:sort:y

    Signal Search Peak time <time_n> Resolution 0.01 µs Suffix code None. Value is returned in s units. –999999999999 is returned when not measured or an error occurs. Example of Use To query the frequency and level of the active trace at once. CALC:DATA:PEAK? –40.000,10.000 :CALCulate:MARKer:PEAK:SORT:Y Search Peaks Sort Y...

  • Page 194: Calculate:marker:peak:sort:x

    Chapter 2 SCPI Device Message Details :CALCulate:MARKer:PEAK:SORT:X Search Peaks Sort X Function This command sorts as many markers as the number set in Search Peaks Number by frequency (time) on the trace. Command :CALCulate:MARKer:PEAK:SORT:X Details This command is not available in the following cases: •...

  • Page 195: Calculate:marker:peak:sort:count?

    Signal Search :CALCulate:MARKer:PEAK:SORT:COUNt? Search Peaks Number Query Function This command queries the number of searches when executing Search Peaks Sort Y/X. Query :CALCulate:MARKer:PEAK:SORT:COUNt? Response <integer> Parameter Number of searches <integer> Range 1 to 10 Resolution Example of Use To query the number of searches. CALC:MARK:PEAK:SORT:COUN? >...

  • Page 196: Trace

    Chapter 2 SCPI Device Message Details Trace Table 2.6-1 lists device messages for trace. Note: All commands can be also executed even when LIMit is described instead of LLINe . Table 2.6-1 Device message for trace Function Device Message :TRACe:ACTive A|B|C|D|E|F Active Trace :TRACe:ACTive? :TRACe[1]|2|3|4|5|6:TYPE WRITe|VIEW|BLANk...
  • Page 197 Trace Table 2.6-1 Device message for trace (Cont’d) Function Device Message :MMEMory:STORe:TRACe Save Wave Data TRACe1|TRACe2|TRACe3|TRACe4|TRACe5|TRACe6|ALL[,<filename>[,<device>]] Save Correction Data :MMEMory:STORe:TRACe:CORRection [<filename>[,<device>]] Query Trace Data :TRACe[:DATA]? TRACe1|TRACe2|TRACe3|TRACe4|TRACe5|TRACe6|GVIew Query Negative :TRACe[:DATA]:NEGative? Trace Data TRACe1|TRACe2|TRACe3|TRACe4|TRACe5|TRACe6|GVIew Query Trace Data :TRACe[:DATA]:SEMask? Spectrum Emission REFerence|LOWer1|LOWer2|LOWer3|LOWer4|LOWer5|LOWer6|UPPer1|UPPer2|UP Mask Per3|UPPer4|UPPer5|UPPer6|ALL Query Negative Trace :TRACe[:DATA]:SEMask:NEGative?
  • Page 198 Chapter 2 SCPI Device Message Details Table 2.6-1 Device message for trace (Cont’d) Function Device Message :CALCulate:NTData[:STATe] OFF|ON|0|1 Normalize On/Off :CALCulate:NTData[:STATe]? Store Ref. :TRACe:COPY <source_trace>,<dest_trace> :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:NRLevel <rel_ampl> Reference Level (Normalize) :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:NRLevel? :CALCulate:MATH <active_trace>,<math_type>[,<operand1_trace>,<operand2_trace>] Math :CALCulate:MATH? <trace> 2-188...

  • Page 199: Trace:active A|B|C|D|E|F

    Trace :TRACe:ACTive A|B|C|D|E|F Active Trace Function This command selects the trace (active trace) to operate the marker. Command :TRACe:ACTive <trace> Parameter Type of trace to set to active. <trace> Trace A (Default) Trace B Trace C Trace D Trace E Trace F Details This command is not available during Spectrum Emission Mask...

  • Page 200: Trace:active?

    Chapter 2 SCPI Device Message Details :TRACe:ACTive? Active Trace Query Function This command queries the trace (active trace) to operate the marker. Command :TRACe:ACTive? Response <trace> Parameter Type of trace to be activated <trace> Trace A Trace B Trace C Trace D Trace E Trace F...

  • Page 201: Trace[1]|2|3|4|5|6:Type Write|View|Blank

    Trace :TRACe[1]|2|3|4|5|6:TYPE WRITe|VIEW|BLANk Trace Write Mode Function This command sets the trace-writing mode. Command :TRACe[n]:TYPE <mode> Parameter Target trace <n> Trace A Trace B Trace C Trace D Trace E Trace F When omitted: Trace A Trace-writing mode <mode> Updates the display per measurement (Write WRITe mode) Does not update the display per measurement...

  • Page 202: Trace[1]|2|3|4|5|6:Type?

    Chapter 2 SCPI Device Message Details :TRACe[1]|2|3|4|5|6:TYPE? Trace Write Mode Query Function This command queries the writing mode for trace. Command :TRACe[n]:TYPE? Response <mode> Parameter Target trace <n> Trace A Trace B Trace C Trace D Trace E Trace F When omitted: Trace A Trace-writing mode...

  • Page 203: Trace[1]|2|3|4|5|6:Storage:mode Off|Maxhold|Average|Minhold|Laverage

    Trace :TRACe[1]|2|3|4|5|6:STORage:MODE OFF|MAXHold|AVERage|MINHold|LAVerage Storage Mode Function This command sets the storage mode of trace data. Command :TRACe[n]:STORage:MODE <mode> Parameter Target trace <n> Trace A Trace B Trace C Trace D Trace E Trace F When omitted: Trace A Storage mode <mode>...

  • Page 204: Trace[1]|2|3|4|5|6:Storage:mode?

    Chapter 2 SCPI Device Message Details :TRACe[1]|2|3|4|5|6:STORage:MODE? Storage Mode Query Function This command queries the storage mode of trace data. Query :TRACe[n]:STORage:MODE? Response <mode> Parameter Target trace <n> Trace A Trace B Trace C Trace D Trace E Trace F When omitted: Trace A Storage mode...

  • Page 205: Sense]:Average:count

    Trace [:SENSe]:AVERage:COUNt <integer> Average Count Function This command sets the storage count. Command [:SENSe]:AVERage:COUNt <integer> Parameter Storage count <integer> Range 2 to 9999 Default Details This command is not available during the Spurious Emission measurement. Example of Use To set the storage count to 110. AVER:COUN 110 Command This command has the same function as the following commands.

  • Page 206: Sense]:Average:count?

    Chapter 2 SCPI Device Message Details [:SENSe]:AVERage:COUNt? Average Count Query Function This command queries the storage count. Query [:SENSe]:AVERage:COUNt? Response <integer> Parameter Storage count <integer> Range 2 to 9999 Example of Use To query the storage count. AVER:COUN? > 110 Command This command has the same function as the following commands.

  • Page 207: Trace:sweep:count?

    Trace :TRACe:SWEep:COUNt? Sweep Count Query Function This command queries the sweep count. Query :TRACe:SWEep:COUNt? Response <integer> Parameter Storage count <integer> Range 2 to 9999 Details During the Spectrum Emission Mask measurement, the sweep count is displayed as a percentage in the screen. Formula to convert into percentage: Integer / Specified storage count ×...
  • Page 208 Chapter 2 SCPI Device Message Details :CALCulate:LLINe[1]|2|3|4|5|6:DATA <x-axis_1>,<ampl_1>,<connected_1>[,<x-axis_2>,<ampl_2>,<connected_2>] ,,,[,<x-axis_n>,<ampl_n>,<connected_n>] Limit Edit Function This command sets the Frequency, Amplitude, and Connected to Previous Pt parameters for Limit Points on the specified Limit Line. Command :CALCulate:LLINe[1]|2|3|4|5|6:DATA <x-axis_1>,<ampl_1>,<connected_1>[,<x-axis_2>,<ampl_2>,< connected_2>],,,[,<x-axis_n>,<ampl_n>,<connected_n>] Parameter Frequency Offset <x-axis_n> Range 0 to 325 GHz (Fixed/Absolute) –100 GHz to 100 GHz (Relative)

  • Page 209: Calculate:lline[1]|2|3|4|5|6:Data?

    Trace :CALCulate:LLINe[1]|2|3|4|5|6:DATA? Limit Edit Query Function This command queries the parameter settings for Limit Points on the specified Limit Line. Query :CALCulate:LLINe[1]|2|3|4|5|6:DATA? Response <x-axis_1>,<ampl_1>,<connected_1>,<x-axis_2>,<ampl_2>,<c onnected_2>,,,,<x-axis_n>,<ampl_n>,<connected_n> Parameter <x- > Frequency Offset axis Range 0 to 325 GHz (Fixed/Absolute) –100 GHz to 100 GHz (Relative) Amplitude <ampl>...

  • Page 210: Calculate:lline[1]|2|3|4|5|6:Type Upper|Lower

    Chapter 2 SCPI Device Message Details :CALCulate:LLINe[1]|2|3|4|5|6:TYPE UPPer|LOWer Limit Type Function This command sets the Limit Line type to either Upper Limit or Lower Limit. Command :CALCulate:LLINe[1]|2|3|4|5|6:TYPE <mode> Parameter Type of Limit Line <mode> Upper Limit (Default) UPPer Lower Limit LOWer Details References for judging Pass/Fail depend on the types: Upper and Lower.

  • Page 211: Calculate:lline[1]|2|3|4|5|6:Type?

    Trace :CALCulate:LLINe[1]|2|3|4|5|6:TYPE? Limit Type Query Function This command queries the Limit Line type setting. Query :CALCulate:LLINe[1]|2|3|4|5|6:TYPE? Response <mode> Parameter Type of Limit Line <mode> Upper Limit Lower Limit Example of Use To query the Limit Line type setting. CALC:LLIN:TYPE? > LOW :CALCulate:LLINe[1]|2|3|4|5|6:DISPlay OFF|ON|0|1 Limit Display Function...

  • Page 212: Calculate:lline[1]|2|3|4|5|6:Display?

    Chapter 2 SCPI Device Message Details :CALCulate:LLINe[1]|2|3|4|5|6:DISPlay? Limit Display Query Function This command queries the Limit Display settings. Query :CALCulate:LLINe[1]|2|3|4|5|6:DISPlay? Response <switch> Parameter Limit Display On/Off <switch> Limit Display Off Limit Display On Example of Use To query the Limit Display setting. CALC:LLIN:DISP? >...

  • Page 213: Calculate:lline[1]|2|3|4|5|6:State?

    Trace :CALCulate:LLINe[1]|2|3|4|5|6:STATe? Limit Test Query Function This command queries whether to judge Pass/Fail. Query :CALCulate:LLINe[1]|2|3|4|5|6:STATe? Response <switch> Parameter Pass/Fail <switch> Pass/Fail judgment is Off. Pass/Fail judgment is On. Example of Use To query the Pass/Fail judgment. CALC:LLIN:STAT? > 1 :CALCulate:LLINe[1]|2|3|4|5|6:FAIL? Limit Test Result Query Function This command queries a result of Pass/Fail judgment.

  • Page 214: Calculate:lline[1]|2|3|4|5|6:Margin:state Off|On|0|1

    Chapter 2 SCPI Device Message Details :CALCulate:LLINe[1]|2|3|4|5|6:MARGin:STATe OFF|ON|0|1 Margin Function This command enables/disables the Offset (Margin) function of Limit Line. Command :CALCulate:LLINe[1]|2|3|4|5|6:MARGin:STATe <switch> Parameter <switch> Sets the Margin function to Off. (Default) OFF|0 Sets the Margin function to On. ON|1 Example of Use To set the Margin function to On.
  • Page 215 Trace :CALCulate:LLINe[1]|2|3|4|5|6:MARGin <ampl_rel> Margin Value Function This command sets the Offset value of Limit Line. Command :CALCulate:LLINe[1]|2|3|4|5|6:MARGin <ampl_rel> Parameter Offset value <ampl_rel> Range –40.00 to 0.00 (Upper) 0.000 to 40.00 (Lower) Resolution 0.01 dB Unit Suffix code dB is used when omitted. Default Example of Use To set the Offset value to 10 dB.

  • Page 216: Calculate:lline[1]|2|3|4|5|6:Delete

    Chapter 2 SCPI Device Message Details Example of Use To query the Offset value of Limit Line. CALC:LLIN:MARG? > 10.00 :CALCulate:LLINe[1]|2|3|4|5|6:DELete Delete Limit Function This command deletes all Limit Points of the currently selected Limit Line. Command :CALCulate:LLINe[1]|2|3|4|5|6:DELete Example of Use To delete all Limit Points of the currently selected Limit Line.

  • Page 217: Calculate:lline[1]|2|3|4|5|6:Cmode:amplitude Fixed|Relative

    Trace :CALCulate:LLINe[1]|2|3|4|5|6:CMODe:AMPLitude FIXed|RELative Limits Line Type (Amplitude) Function This command sets the vertical axis of Limit Line to represent in absolute or relative values. Command :CALCulate:LLINe[1]|2|3|4|5|6:CMODe:AMPLitude <mode> Parameter Vertical axis <mode> FIXed/ABSolute Represent vertical axis in absolute values Represent vertical axis in relative values RELative (Default) Example of Use...

  • Page 218: Calculate:lline[1]|2|3|4|5|6:Cmode:amplitude?

    Chapter 2 SCPI Device Message Details :CALCulate:LLINe[1]|2|3|4|5|6:CMODe:AMPLitude? Limits Line Type (Amplitude) Query Function This command queries whether the vertical axis of Limit Line represents in absolute or relative values. Query :CALCulate:LLINe[1]|2|3|4|5|6:CMODe:AMPLitude? Response <mode> Parameter Vertical axis <mode> Representation in absolute values. Representation in relative values.

  • Page 219: Calculate:lline[1]|2|3|4|5|6:Cmode:frequency Fixed|Absolute|Relative

    Trace :CALCulate:LLINe[1]|2|3|4|5|6:CMODe:FREQuency FIXed|ABSolute|RELative Limit Line Type (Frequency) Function This command sets the horizontal axis of Limit Line to represent in absolute or relative values. Command :CALCulate:LLINe[1]|2|3|4|5|6:CMODe:FREQuency <mode> Parameter Representation of setting values for horizontal axis <mode> FIXed/ABSolute Absolute values Relative values (Default) RELative Example of Use To represent the horizontal axis of Limit Line in absolute values.

  • Page 220: Calculate:lline[1]|2|3|4|5|6:Cmode:frequency?

    Chapter 2 SCPI Device Message Details :CALCulate:LLINe[1]|2|3|4|5|6:CMODe:FREQuency? Limit Line Type (Frequency) Query Function This command queries whether the horizontal axis of Limit Line represents in absolute or relative values. Query :CALCulate:LLINe[1]|2|3|4|5|6:CMODe:FREQuency? Response <mode> Parameter Representation of setting values for horizontal axis <mode>...

  • Page 221: Trace1|Trace2|Trace3|Trace4|Trace5|Trace6|Gview|All[,]]

    0 to 99 are added to a file when a file name is omitted. No more file can be saved if 99 files are used. Files are saved in the following directory of the specified drive. \Anritsu Corporation\Signal Analyzer\User Data\TraceData\Spectrum Analyzer Up to 1000 files can be saved in the folder.

  • Page 222: Mmemory:store:trace:correction [[,]]

    • The saved level frequency correction table can be loaded from the configuration. For how to query the level frequency correction table, refer to Chapter MS2690A/MS2691A/MS2692A and 4 “Correction File Recall” in the MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Mainframe Remote Control)

  • Page 223: Trace[:Data]? Trace1|Trace2|Trace3|Trace4|Trace5|Trace6|Gview

    In the case of the binary format too, the response message terminator is attached (refer to “1.7.2 SCPI response message format” in MS2690A/MS2691A/MS2692A and MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Mainframe Remote Control). Example: :If 1001 point trace data is read out when REAL,32 is set...
  • Page 224 Chapter 2 SCPI Device Message Details > #44004<4004 bytes of data> the “4” after “#” indicates that “this is followed by 4 characters indicating the binary data length.”“4004” indicates that “this is followed by 4004 bytes of binary data.” Details This function writes or queries the trace data of the Positive detection, when the detection mode is Positive &...

  • Page 225: Trace[:Data]:Negative? Trace1|Trace2|Trace3|Trace4|Trace5|Trace6 Gview

    (ASCII format)”, and “Trace data string (binary format)”, in this order. In the case of the binary format too, the response message terminator is attached (refer to “1.7.2 SCPI response message format” in MS2690A/MS2691A/MS2692A and MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Mainframe Remote Control) Example: If 1001 point trace data is read out when REAL,32 is set for :FORMat[:DATA], >...
  • Page 226 Chapter 2 SCPI Device Message Details Details This function queries the trace data of the Negative detection, when the detection mode is Positive & Negative (Normal mode). –999.0 is returned for traces A, B, C, D, E and F while Spectrum Emission Mask measurement is performed.

  • Page 227: Reference|Lower1|Lower2|Lower3|Lower4|Lower5|Lower6|Upper1|Upper2 Upper3|Upper4|Upper5|Upper6|All

    (ASCII format)”, and “Trace data string (binary format)”, in this order. In the case of the binary format too, the response message terminator is attached (refer to “1.7.2 SCPI response message format” in MS2690A/MS2691A/MS2692A and MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Mainframe Remote Control) 2-217...
  • Page 228 Chapter 2 SCPI Device Message Details Example: If 1001 point trace data is read out when REAL,32 is set for :FORMat[:DATA], > #44004<4004 bytes of data> the “4” after “#” indicates that “this is followed by 4 characters indicating the binary data length.”“4004” indicates that “this is followed by 4004 bytes of binary data.”...
  • Page 229 (ASCII format)”, and “Trace data string (binary format)”, in this order. In the case of the binary format too, the response message terminator is attached (refer to “1.7.2 SCPI response message format” in MS2690A/MS2691A/MS2692A and MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Mainframe Remote Control) 2-219...
  • Page 230 Chapter 2 SCPI Device Message Details Example: If 1001 point trace data is read out when REAL,32 is set for :FORMat[:DATA], > #44004<4004 bytes of data> the “4” after “#” indicates that “this is followed by 4 characters indicating the binary data length.”“4004” indicates that “this is followed by 4004 bytes of binary data.”...

  • Page 231: Format:border Normal|Swapped

    Trace :FORMat:BORDer NORMal|SWAPped Binary Data Byte Order Function This command sets the byte order of the query data when REAL,32 or INTeger,32 is set for :FORMat[:DATA]. Command :FORMat:BORDer <border> Parameter Byte order <border> Sets the byte order to big endian (Default). NORMal Sets the byte order to little endian.

  • Page 232: Format:border?

    Chapter 2 SCPI Device Message Details :FORMat:BORDer? Binary Data Byte Order Query Function This command reads the byte order of the query data when REAL,32 or INTeger,32 is set for :FORMat[:DATA]. Query :FORMat:BORDer? Response <border> Parameter Byte order <border> Byte order: big endian NORM Byte order: little endian SWAP...

  • Page 233: Format[:Data] Ascii|Real|Integer[,]

    Trace :FORMat[:DATA] ASCii|REAL|INTeger[,<length>] Numeric Data Format Function This command sets the format of the data that is read out with [:SENSe]:DATA?. Command :FORMat[:DATA] <format>[,<length>] Parameter Data format <format> ASCii format (Default). ASCii 32-bit binary floating point format REAL 32-bit binary fixed point format. INTeger Supplementary setting for selected format <length>...

  • Page 234: Format[:Data]?

    Chapter 2 SCPI Device Message Details :FORMat[:DATA]? Numeric Data Format Query Function This command queries the format of the data that is read out with [:SENSe]:DATA?. Query :FORMat[:DATA]? Response <format>,<length> Parameter Data format <format> ASCii format. 32-bit binary floating point format REAL 32-bit binary fixed point format.

  • Page 235: Calculate:lline[1]|2|3|4|5|6:Trace

    Trace :CALCulate:LLINe[1]|2|3|4|5|6:TRACe <trace> Test Trace Function This command sets the evaluation target trace of the current Limit Line. Command :CALCulate:LLINe[1]|2|3|4|5|6:TRACe <Trace> Parameter Trace to be evaluated <Trace> Trace A (Default) Trace B Trace C Trace D Trace E Trace F When omitted Example of Use To set Trace C of Limit Line3 as an evaluation target.

  • Page 236: Calculate:lline[1]|2|3|4|5|6:Trace?

    Chapter 2 SCPI Device Message Details :CALCulate:LLINe[1]|2|3|4|5|6:TRACe? Test Trace Query Function This command queries the evaluation target trace of the current Limit Line. Query :CALCulate:LLINe[1]|2|3|4|5|6:TRACe? Response <Trace> Parameter Trace to be evaluated <Trace> Trace A Trace B Trace C Trace D Trace E Trace F Example of Use...

  • Page 237: Calculate:lline[1]|2|3|4|5|6:Point:level:offset [,,,,]

    Trace :CALCulate:LLINe[1]|2|3|4|5|6:POINt:LEVel:OFFSet <ampl_1>[,<ampl_2>,,,<ampl_n>] Previous Pt Level Offset Function This command sets the offset from the current Limit point for making linear interpolation between Limit Points. Command :CALCulate:LLINe[1]|2|3|4|5|6:POINt:LEVel:OFFSet <amp_1>[,<ampl_2>,,,<ampl_n>] Parameter Offset level <amp_n> Range –300.00 to 300.00 dB Resolution 0.01 dB Unit Suffix code dB is used when omitted.

  • Page 238: Calculate:lline[1]|2|3|4|5|6:Point:level:offset?

    Chapter 2 SCPI Device Message Details :CALCulate:LLINe[1]|2|3|4|5|6:POINt:LEVel:OFFSet? Previous Pt Level Offset Query Function This command queries the specified offset value from the current Limit point for making linear interpolation between Limit Points. Query :CALCulate:LLINe[1]|2|3|4|5|6:POINt:LEVel:OFFSet? Response <amp_1>[,<ampl_2>,,,<ampl_n>] Parameter Offset level <amp_n> Range –300.00 to 300.00 dB Resolution...

  • Page 239: Calculate:lline[1]|2|3|4|5|6:Mirror On|Off|1|0

    Trace :CALCulate:LLINe[1]|2|3|4|5|6:MIRRor ON|OFF|1|0 Mirror Limit Function This command turns on or off the mirroring function that copies the Limit Line settings of the right half to the left half. Command :CALCulate:LLINe[1]|2|3|4|5|6:MIRRor <switch> Parameter Mirroring function <switch> OFF (Default) OFF|0 ON|1 Details This command is available only when the Limit Line Type (Frequency) is set to Relative.

  • Page 240: Calculate:lline[1]|2|3|4|5|6:Mirror?

    Chapter 2 SCPI Device Message Details :CALCulate:LLINe[1]|2|3|4|5|6:MIRRor? Mirror Limit Query Function This command queries the setting of the mirroring function that copies the Limit Line settings of the right half to the left half. Query :CALCulate:LLINe[1]|2|3|4|5|6:MIRRor? Response <switch> Parameter Mirroring function <switch>...

  • Page 241: Calculate:lline[1]|2|3|4|5|6:Envelope:create

    Trace :CALCulate:LLINe[1]|2|3|4|5|6:ENVelope:CREate Create Envelope Function This command automatically creates a Limit Line from the current Trace data. Command :CALCulate:LLINe[1]|2|3|4|5|6:ENVelope:CREate Details This command automatically creates a Limit Line from the current Trace data according to the following settings: Envelope Points, Envelope Offset and Envelope Shape.

  • Page 242: Calculate:lline[1]|2|3|4|5|6:Envelope:point

    Chapter 2 SCPI Device Message Details :CALCulate:LLINe[1]|2|3|4|5|6:ENVelope:POINt <number> Envelope Points Function This command sets the number of Envelope Points for automatically creating a Limit Line from the current Trace Point value. Command :CALCulate:LLINe[1]|2|3|4|5|6:ENVelope:POINt <number> Parameter The number of Envelope Points <number>...

  • Page 243: Calculate:lline[1]|2|3|4|5|6:Envelope:point?

    Trace :CALCulate:LLINe[1]|2|3|4|5|6:ENVelope:POINt? Envelope Points Query Function This command queries the set number of Envelope Points. Query :CALCulate:LLINe[1]|2|3|4|5|6:ENVelope:POINt? Response <number> Parameter The number of Envelope Points <number> Range 2 to Trace Point (Max 100) Example of Use To query the number of Envelope Points. CALC:LLIN:ENV:POIN? >...

  • Page 244: Calculate:lline[1]|2|3|4|5|6:Envelope[:Level]:Offset

    Chapter 2 SCPI Device Message Details :CALCulate:LLINe[1]|2|3|4|5|6:ENVelope[:LEVel]:OFFSet <amplitude> Envelope Offset Function This command sets the offset level (from the current peak Trace Point to the Limit Point). Command :CALCulate:LLINe[1]|2|3|4|5|6:ENVelope[:LEVel]:OFFSet <amplitude> Parameter Offset level <amplitude> Range –300.00 to 300.00 dB Resolution 0.01 dB Unit Default...

  • Page 245: Calculate:lline[1]|2|3|4|5|6:Envelope[:Level]:Offset?

    Trace :CALCulate:LLINe[1]|2|3|4|5|6:ENVelope[:LEVel]:OFFSet? Envelope Offset Query Function This command queries the offset level (from the current peak Trace Point to the Limit Point). Query :CALCulate:LLINe[1]|2|3|4|5|6:ENVelope[:LEVel]:OFFSet? Response <amplitude> Parameter Offset level <amplitude> Range –300.00 to 300.00 dB Example of Use To query the offset level to the Limit Point. :CALC:LLIN:ENV:OFFS? >...

  • Page 246: Calculate:lline[1]|2|3|4|5|6:Envelope:shape Square|Slope

    Chapter 2 SCPI Device Message Details :CALCulate:LLINe[1]|2|3|4|5|6:ENVelope:SHAPe SQUare|SLOPe Envelope Shape Function This command sets the shape of Limit Lines to be automatically created. Command :CALCulate:LLINe[1]|2|3|4|5|6:ENVelope:SHAPe <mode> Parameter Shape of Limit Lines <mode> Connects Limit Points by vertical and horizontal SQUare lines.

  • Page 247: Calculate:lline[1]|2|3|4|5|6:Envelope:shape?

    Trace :CALCulate:LLINe[1]|2|3|4|5|6:ENVelope:SHAPe? Envelope Shape Query Function This command queries the shape setting of Limit Lines to be automatically created. Query :CALCulate:LLINe[1]|2|3|4|5|6:ENVelope:SHAPe? Response <mode> Parameter Shape of the Limit Line <mode> Connects Limit Points by vertical and horizontal lines. Connects Limit Points by straight lines. (Default) SLOP Example of Use To query the shape setting of the Limit Lines.

  • Page 248: Mmemory:store:lline[1]|2|3|4|5|6 [[,]]

    When the sequential number reaches 999, no more files can be saved. • Files are saved to the following directory in the specified drive. \Anritsu Corporation\Signal Analyzer\User Data\Limit • Up to 1000 files can be stored in the folder. Example of Use To save the Limit data "Limit"...

  • Page 249: Mmemory:load:lline[1]|2|3|4|5|6 [,]

    • This command can recall Limit files in csv, lim, or xml format. • From the following folder in the specified drive, the specified file is loaded: \Anritsu Corporation\Signal Analyzer\User Data\Limit Example of Use To load the Limit data file “Limit.csv” from E drive to Limit3.

  • Page 250: Mmemory:delete:lline [,]

    Drive name <device> A,B,D,E,F,... Defaults to D when omitted. Details From the following folder in the specified drive, the specified file is deleted: \Anritsu Corporation\Signal Analyzer\User Data\Limit Example of Use To delete the Limit data file “Limit.csv”. MMEM:DEL:LLIN "Limit.csv" 2-240...

  • Page 251: Mmemory:delete:lline:all []

    A,B,D,E,F,... Defaults to D when omitted. Details From the following folder in the specified drive, all Limit Data Files are deleted: \Anritsu Corporation\Signal Analyzer\User Data\Limit Example of Use To delete all Limit data files stored in D drive. MMEM:DEL:LLIN:ALL 2-241...

  • Page 252: Mmemory:delete:waveform [,]

    <device> A,B,D,E,F,... Defaults to D when omitted. Details This command deletes a waveform data folder from the following folder in the specified drive: \Anritsu Corporation\Signal Analyzer\User Data\Waveform Example of Use To delete the Waveform data folder "Waveform". MMEM:DEL:WAVE "Waveform" 2-242...

  • Page 253: Mmemory:delete:waveform:all []

    Details From the following folder in the specified drive, all data folders and all files in those folders are deleted: \Anritsu Corporation\Signal Analyzer\User Data\Waveform Example of Use To delete the Waveform data folders and all files in those folders. MMEM:DEL:WAVE:ALL...

  • Page 254: Calculate:ntdata[:State]?

    Chapter 2 SCPI Device Message Details :CALCulate:NTData[:STATe]? Normalize Query Function This command queries the On/Off state of the Normalize function. Query :CALCulate:NTData[:STATe]? Response <switch> Parameter Normalize function On/Off <switch> Normalize function is On. ON|1 Normalize function is Off. OFF|0 Details This command is available only for MS2830A.
  • Page 255 Trace Details This command is available only for MS2830A. The destination trace means the selected trace. Trace-writing mode where Store Ref. is executed is set to View. This cannot be executed under the following conditions: • Internal Signal Generator Control function On/Off is Off. •...

  • Page 256: Display:window[1]:Trace:y[:Scale]:Nrlevel

    Chapter 2 SCPI Device Message Details :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:NRLevel <rel_ampl> Reference Level (Normalize) Function This command sets the Reference Level when the Normalize function is performed. Command :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:NRLevel <rel_ampl> Parameter Reference Level <rel_ampl> Range –120.00 to 50.00 dB Resolution 0.01 dB Suffix code DB, dB is used even when omitted Default 0 dB...

  • Page 257: Calculate:math ,[,,]

    Trace :CALCulate:MATH <active_trace>,<math_type>[,<operand1_trace>,<operand2_trace>] Math Function This command performs calculations between traces. Command :CALCulate:MATH <active_trace>,<math_type>[,<operand1_trace>,<operand2_t race>] Parameter Type of trace to be activated <active_trace> Trace A (Default) TRACe1 Trace B TRACe2 Trace C TRACe3 Trace D TRACe4 TRACe5 Trace E Trace F TRACe6 Calculation type <math_type>...
  • Page 258 Chapter 2 SCPI Device Message Details • When the Measure function is On • When Signal identifier is On • When the Normalize function is On • When Gate View is On When Scale Mode is Linear, calculation type is not set to the Log calculation (LDIFference, LSUM).

  • Page 259: Calculate:math?

    Trace :CALCulate:MATH? <trace> Math Query Function This command queries the Math setting of trace. Query :CALCulate:MATH? <trace> Response <math_type>,<operand1_trace>,<operand2_trace> Parameter Type of trace <trace> Trace A TRACe1 Trace B TRACe2 Trace C TRACe3 Trace D TRACe4 Trace E TRACe5 Trace F TRACe6 Calculation type <math_type>...

  • Page 260: Sweep/Trigger/Gate

    Chapter 2 SCPI Device Message Details Sweep/Trigger/Gate Table 2.7-1 lists device messages for sweep/trigger/gate. Table 2.7-1 Device messages for sweep/trigger/gate Function Device Message :INITiate:CONTinuous OFF|ON|0|1 Continuous :INITiate:CONTinuous? Measurement :INITiate:MODE:CONTinuous Single :INITiate:MODE:SINGle Measurement Initiate :INITiate[:IMMediate] :INITiate:SWP Single Sweep :INITiate:SWP? [:SENSe]:SWEep:TIME <time> Sweep Time [:SENSe]:SWEep:TIME? [:SENSe]:SWEep:TIME:AUTO OFF|ON|0|1...
  • Page 261 Sweep/Trigger/Gate Table 2.7-1 Device messages for sweep/trigger/gate (Cont’d) Function Device Message :TRIGger[:SEQuence]:WIF|:RFBurst:LEVel:ABSolute <level> Wide IF Trigger Level :TRIGger[:SEQuence]:WIF|:RFBurst:LEVel:ABSolute? :TRIGger[:SEQuence]:EXTernal[1|2]:SLOPe POSitive|NEGative :TRIGger[:SEQuence]:EXTernal[1|2]:SLOPe? :TRIGger[:SEQuence]:WIF|:RFBurst:SLOPe POSitive|NEGative Trigger Slope :TRIGger[:SEQuence]:WIF|:RFBurst:SLOPe? :TRIGger[:SEQuence]:VIDeo:SLOPe POSitive|NEGative :TRIGger[:SEQuence]:VIDeo:SLOPe? :TRIGger[:SEQuence]:EXTernal[1|2]:DELay <time> :TRIGger[:SEQuence]:EXTernal[1|2]:DELay? :TRIGger[:SEQuence]:WIF|:RFBurst:DELay <time> Trigger Delay :TRIGger[:SEQuence]:WIF|:RFBurst:DELay? :TRIGger[:SEQuence]:VIDeo:DELay <time> :TRIGger[:SEQuence]:VIDeo:DELay? :TRIGger[:SEQuence]:HOLDoff <time>...
  • Page 262 Chapter 2 SCPI Device Message Details Table 2.7-1 Device messages for sweep/trigger/gate (Cont’d) Function Device Message Gate View [:SENSe]:SWEep:EGATe:VIEW:BANDwidth[:RESolution]:AUTO ON|OFF|1|0 Resolution Bandwidth [:SENSe]:SWEep:EGATe:VIEW:BANDwidth[:RESolution]:AUTO? Auto/Manual Gate View [:SENSe]:SWEep:EGATe:VIEW:BANDwidth[:RESolution] <freq> Resolution [:SENSe]:SWEep:EGATe:VIEW:BANDwidth[:RESolution]? Bandwidth Gate View [:SENSe]:SWEep:EGATe:VIEW:BANDwidth:VIDeo:AUTO ON|OFF|1|0 Video Bandwidth [:SENSe]:SWEep:EGATe:VIEW:BANDwidth:VIDeo:AUTO? Auto/Manual [:SENSe]:SWEep:EGATe:VIEW:BANDwidth:VIDeo <freq> Gate View Video Bandwidth [:SENSe]:SWEep:EGATe:VIEW:BANDwidth:VIDeo?

  • Page 263: Initiate:continuous Off|On|0|1

    Sweep/Trigger/Gate :INITiate:CONTinuous OFF|ON|0|1 Continuous Measurement Function This command switches Single/Continuous of the sweep mode. Command :INITiate:CONTinuous <switch> Parameter Sweep mode <switch> Single measurement 0|OFF Continuous measurement (Default) 1|ON Example of Use To execute the Continuous measurement. INIT:CONT ON :INITiate:CONTinuous? Continuous Measurement Query Function This command queries the sweep mode.

  • Page 264: Initiate:mode:continuous

    Chapter 2 SCPI Device Message Details :INITiate:MODE:CONTinuous Continuous Measurement Function This command sets the sweep mode to Continuous and starts continuous sweep. Command :INITiate:MODE:CONTinuous Example of Use To start continuous sweep. INIT:MODE:CONT :INITiate:MODE:SINGle Single Measurement Function This command sets the sweep mode to Single and starts the single sweep. Command :INITiate:MODE:SINGle Example of Use...

  • Page 265: Initiate[:Immediate]

    Sweep/Trigger/Gate :INITiate[:IMMediate] Initiate Function This command starts sweeping in the presently set sweep mode. Command :INITiate:[IMMediate] Details To read out the measurement results after executing this command, perform the synchronization control using the “ *WAI ” command. Example of Use To start sweeping in the presently set sweep mode.

  • Page 266: Initiate:swp?

    1 µs to 1000 s (in time axis measurement) 1 ms to 1000 s (in frequency axis measurement) [MS2850A] 1 µs to 1000 s (in time axis measurement) Suffix code None Value is returned in s units. Default 10 ms (MS2690A) [MS269xA] 135 ms (MS2691A) 2-256...
  • Page 267 Sweep/Trigger/Gate 265 ms (MS2692A) 1 ms (Option 040) [MS2830A] 2 ms (Option 041) 4 ms (Option 043) 89 ms (Option 044) 86 ms (Option 045) 1 ms (Option 040) [MS2840A] 2 ms (Option 041) 89 ms (Option 044) 86 ms (Option 046) 89 ms (Option 047) [MS2850A] 86 ms (Option 046)

  • Page 268: Sense]:Sweep:time?

    Chapter 2 SCPI Device Message Details [:SENSe]:SWEep:TIME? Sweep Time Query Function This command queries the sweep time. Each parameter is specified in accordance with the already-specified frequency axis or time axis measurement. Query [:SENSe]:SWEep:TIME? Response <time> Parameter Sweep time <time> Range 2 ms to 1000 s (in frequency axis measurement) [MS269xA]...

  • Page 269: Sense]:Sweep:time:auto Off|On|0|1

    Sweep/Trigger/Gate [:SENSe]:SWEep:TIME:AUTO OFF|ON|0|1 Sweep Time Auto/Manual Function This command enables/disables the automatic sweep time setting function. Each parameter is specified in accordance with the already-specified frequency axis or time axis measurement. Command [:SENSe]:SWEep:TIME:AUTO <switch> Parameter Automatic sweep time setting function On/Off <switch>...

  • Page 270: Sense]:Sweep:time:auto?

    Chapter 2 SCPI Device Message Details [:SENSe]:SWEep:TIME:AUTO? Sweep Time Auto/Manual Query Function This command queries the On/Off state of the automatic sweep time setting function. Each parameter is specified in accordance with the already-specified frequency axis or time axis measurement. Query [:SENSe]:SWEep:TIME:AUTO? Response...

  • Page 271: Sense]:Sweep:time:auto:mode?

    Sweep/Trigger/Gate Parameter Sweep time <mode> Fast sweep mode (MS2830A, MS2840A, FAST MS2850A, Default) Normal sweep mode (MS269xA Default) NORMal Details This command is not available during the Spectrum Emission Mask measurement. Example of Use To set the sweep time to normal sweep mode. SWE:TIME:AUTO:MODE NORM [:SENSe]:SWEep:TIME:AUTO:MODE? Auto Sweep Time Mode Query...

  • Page 272: Sense]:Sweep:points

    Chapter 2 SCPI Device Message Details [:SENSe]:SWEep:POINts <integer> Trace Point Function This command sets the number of the trace display points. When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement. Command [:SENSe]:SWEep:POINts <integer>...

  • Page 273: Sense]:Sweep:points?

    Sweep/Trigger/Gate [:SENSe]:SWEep:POINts? Trace Point Query Function This command queries the number of trace display points. When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement. Query [:SENSe]:SWEep:POINts? Response <integer>...

  • Page 274: Sense]:Sweep[:Type][:Auto]:Rules Drange|Speed|Osweep|Psweep|Pfft

    Chapter 2 SCPI Device Message Details [:SENSe]:SWEep[:TYPE][:AUTO]:RULes DRANge|SPEed|OSWeep|PSWeep|PFFT Auto Sweep Type Select Rules Function This command sets the rule for switching between sweep and FFT during measurement. Command [:SENSe]:SWEep[:TYPE][:AUTO]:RULes <rules> Parameter Switching rules <rules> Selects sweep/FFT prioritizing dynamic range. DRANge Selects sweep/FFT prioritizing measurement SPEed speed.

  • Page 275: Sense]:Sweep[:Type][:Auto]:Rules?

    Sweep/Trigger/Gate [:SENSe]:SWEep[:TYPE][:AUTO]:RULes? Auto Sweep Type Select Rules Query Function This command queries the rule for switching between sweep and FFT during measurement. Query [:SENSe]:SWEep[:TYPE][:AUTO]:RULes? Response <rules> Parameter Switching rules <rules> Selects sweep/FFT prioritizing dynamic range. DRAN Selects sweep/FFT prioritizing measurement speed.

  • Page 276: Sense]:Sweep[:Type][:Auto]:Rules:fft:width

    Chapter 2 SCPI Device Message Details [:SENSe]:SWEep[:TYPE][:AUTO]:RULes:FFT:WIDTh <freq> Sweep Type Select Rules FFT Width Function This command sets the FFT width when FFT Priority is selected, for the sweep/FFT Switching rules during measurement. Command [:SENSe]:SWEep[:TYPE][:AUTO]:RULes:FFT:WIDTh <freq> Parameter FFT width <freq> Range 40 kHz or 2 MHz Resolution...

  • Page 277: Sense]:Sweep[:Type][:Auto]:Rules:fft:width?

    Sweep/Trigger/Gate [:SENSe]:SWEep[:TYPE][:AUTO]:RULes:FFT:WIDTh? Sweep Type Select Rules FFT Width Query Function This command queries the FFT width when FFT Priority is selected, for the sweep/FFT Switching rules during measurement. Query [:SENSe]:SWEep[:TYPE][:AUTO]:RULes:FFT:WIDTh? Response <freq> Parameter FFT width <freq> Range 40 kHz or 2 MHz Resolution 1 Hz Suffix code...

  • Page 278: Sense]:Sweep[:Type][:Auto]:Rules:fft:rwidth?

    Chapter 2 SCPI Device Message Details [:SENSe]:SWEep[:TYPE][:AUTO]:RULes:FFT:RWIDth? Sweep Type Select Rules Real FFT Width Query Function This command queries the FFT width that is actually used for the sweep/FFT switch rule during measurement. Query [:SENSe]:SWEep[:TYPE][:AUTO]:RULes:FFT:RWIDth? Response <freq> Parameter FFT width <freq>...

  • Page 279: Sense]:Sweep[:Type][:Auto]:Rules:rtype?

    Sweep/Trigger/Gate [:SENSe]:SWEep[:TYPE][:AUTO]:RULes:RTYPe? Sweep Type Select Rules Real Type Query Function This command queries the sweep mode (sweep or FFT) that is executed during measurement. Query [:SENSe]:SWEep[:TYPE][:AUTO]:RULes:RTYPe? Response <type> Parameter Sweep mode <type> Performs measurement using sweep. Performs measurement using FFT. Details This command is not available for MS269x Series.

  • Page 280: Sense]:Detector[:Function] Normal|Positive|Sample|Negative|Rms|Qpeak Caverage|Crms

    Chapter 2 SCPI Device Message Details [:SENSe]:DETector[:FUNCtion] NORMal|POSitive|SAMPle|NEGative|RMS|QPEak|CAVerage|CRMS Detection Mode Function This command selects the waveform pattern detection mode. When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement.

  • Page 281: Sense]:Detector[:Function]?

    Sweep/Trigger/Gate Related command This command has the same function as the following commands. [:SENSe]:ACPower:DETector[:FUNCtion] [:SENSe]:CHPower:DETector[:FUNCtion] [:SENSe]:OBWidth:DETector[:FUNCtion] :CALCulate:DETector[:FUNCtion] :CALCulate:ACPower:DETector[:FUNCtion] :CALCulate:CHPower:DETector[:FUNCtion] :CALCulate:OBWidth:DETector[:FUNCtion] [:SENSe]:DETector[:FUNCtion]? Detection Mode Query Function This command selects the detection mode of the waveform pattern. When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement.

  • Page 282: Calculate:detector[:Function Normal|Positive|Sample|Negative|Rms|Qpeak|Caverage|Crms

    Chapter 2 SCPI Device Message Details Example of Use To query the detection mode. DET? > POS Related command This command has the same function as the following commands. [:SENSe]:ACPower:DETector[:FUNCtion]? [:SENSe]:CHPower:DETector[:FUNCtion]? [:SENSe]:OBWidth:DETector[:FUNCtion]? :CALCulate:DETector[:FUNCtion]? :CALCulate:ACPower:DETector[:FUNCtion]? :CALCulate:CHPower:DETector[:FUNCtion]? :CALCulate:OBWidth:DETector[:FUNCtion]? :CALCulate:DETector[:FUNCtion] NORMal|POSitive|SAMPle|NEGative|RMS|QPEak|CAVerage|CRMS Detection Mode Function This command selects the detection mode of the waveform pattern.

  • Page 283: Calculate:detector[:Function]?

    Sweep/Trigger/Gate :CALCulate:DETector[:FUNCtion]? Detection Mode Query Function This command selects the detection mode of the waveform pattern. When Couple Time/Freq. Domain is set to Off, each parameter is specified in accordance with the already-specified frequency axis or time axis measurement. Refer to [:SENSe]:DETector[:FUNCtion]? Related command This command has the same function as the following commands.

  • Page 284: Trigger[:Sequence][:State]?

    Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence][:STATe]? Trigger Switch Query Function This command queries the On/Off state of the trigger sweep. Query :TRIGger[:SEQuence][:STATe]? Response <switch> Parameter Trigger sweep On/Off <switch> Does not perform trigger sweep. Performs trigger sweep. Example of Use To query the On/Off state of the trigger sweep.
  • Page 285 Sweep/Trigger/Gate [MS2830A], [MS2840A] External input (External) EXTernal[1] Free run IMMediate Wide bandwidth IF detection (Wide IF Video) WIF|RFBurst Video detection (Video) VIDeo SG Marker Frame period trigger FRAMe [MS2850A] External input 1 (External 1) EXTernal[1] EXTernal2|EXT2 External input 2 (External 2) Free run IMMediate Wide bandwidth IF detection (Wide IF Video)

  • Page 286: Trigger[:Sequence]:Source?

    Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:SOURce? Trigger Source Query Function This command queries the trigger source. Query :TRIGger[:SEQuence]:SOURce? Response <source> Parameter Trigger signal source <source> [MS269xA] External input (External) Free run Wide bandwidth IF detection (Wide IF Video) Video detection (Video) SG Marker Baseband Interface (BBIF) BBIF...

  • Page 287: Trigger[:Sequence]:Video:level[:Logarithmic]

    Sweep/Trigger/Gate :TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce? :TRIGger[:SEQuence]:VIDeo:LEVel[:LOGarithmic] <level> Log Scale Video Trigger Level Function This command sets the threshold value of the level where trigger sweep starts. Command :TRIGger[:SEQuence]:VIDeo:LEVel[:LOGarithmic] <level> Parameter Threshold value of level where trigger sweep <level> starts. Range –150 to +50 dBm Resolution 1 dB Suffix code...

  • Page 288: Trigger[:Sequence]:Video:level[:Logarithmic]?

    Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:VIDeo:LEVel[:LOGarithmic]? Log Scale Video Trigger Level Query Function This command queries the threshold of the level where trigger sweep starts in video trigger in Log scale mode. Query :TRIGger[:SEQuence]:VIDeo:LEVel[:LOGarithmic]? Response <level> Parameter Threshold of the level where trigger sweep starts <level>...

  • Page 289: Trigger[:Sequence]:Video:level:linear?

    Sweep/Trigger/Gate :TRIGger[:SEQuence]:VIDeo:LEVel:LINear? Linear Scale Video Trigger Level Query Function This command queries the threshold of the level where trigger sweep starts in video trigger in Linear scale mode. Query :TRIGger[:SEQuence]:VIDeo:LEVel:LINear? Response <level> Parameter Threshold of the level where trigger sweep starts <level>...
  • Page 290 Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:WIF|:RFBurst:LEVel:ABSolute <level> Wide IF Trigger Level Function This command sets the threshold of the level where trigger sweep starts in Wide IF Video trigger. Command :TRIGger[:SEQuence]:WIF|:RFBurst:LEVel:ABSolute <level> Parameter Threshold value of level where trigger sweep <level>...

  • Page 291: Trigger[:Sequence]:External[1|2]:Slope Positive|Negative

    Sweep/Trigger/Gate :TRIGger[:SEQuence]:EXTernal[1|2]:SLOPe POSitive|NEGative Trigger Slope Function This command sets the trigger detection mode (rise/fall). Command :TRIGger[:SEQuence]:EXTernal[1|2]:SLOPe <mode> Parameter Trigger detection mode <mode> Detects at the rising edge (Default) POSitive Detects at the falling edge NEGative Details This function selects the trigger detection mode when the trigger signal source is video detection (Video), wideband IF detection (Wide IF Video), external input (External), SG Marker, or Baseband Interface (BBIF).

  • Page 292: Trigger[:Sequence]:External[1|2]:Slope?

    Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:EXTernal[1|2]:SLOPe? Trigger Slope Query Function This command queries the trigger detection mode (rise/fall). Query :TRIGger[:SEQuence]:EXTernal[1|2]:SLOPe? Response <mode> Parameter Trigger detection mode <mode> Detects at the rising edge Detects at the rising edge Details This function queries the detection mode for the trigger when the trigger signal source is video detection (Video), wide bandwidth IF detection (Wide IF Video), external input (External), SG marker (SG Marker), or Baseband Interface (BBIF).

  • Page 293: Trigger[:Sequence]:Wif|:Rfburst:slope Positive|Negative

    Sweep/Trigger/Gate :TRIGger[:SEQuence]:WIF|:RFBurst:SLOPe POSitive|NEGative Trigger Slope Function This command sets the detection mode for the trigger (rise/fall). Refer to :TRIGger[:SEQuence]:EXTernal[1|2]:SLOPe Related command This command has the same function as the following commands. :TRIGger[:SEQuence]:EXTernal[1|2]:SLOPe :TRIGger[:SEQuence]:VIDeo:SLOPe :TRIGger[:SEQuence]:WIF|:RFBurst:SLOPe? Trigger Slope Query Function This command queries the detection mode for the trigger (rise/fall). Refer to :TRIGger[:SEQuence]:EXTernal[1|2]:SLOPe? Related command...

  • Page 294: Trigger[:Sequence]:Video:slope?

    Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:VIDeo:SLOPe? Trigger Slope Query Function This command queries the detection mode for the trigger (rise/fall). Refer to :TRIGger[:SEQuence]:EXTernal[1|2]:SLOPe? Related command This command has the same function as the following commands. :TRIGger[:SEQuence]:EXTernal[1|2]:SLOPe? :TRIGger[:SEQuence]:WIF|:RFBurst:SLOPe? :TRIGger[:SEQuence]:EXTernal[1|2]:DELay <time> Trigger Delay Function This command sets the delay from the trigger occurrence point to sweep...

  • Page 295: Trigger[:Sequence]:External[1|2]:Delay?

    Sweep/Trigger/Gate :TRIGger[:SEQuence]:EXTernal[1|2]:DELay? Trigger Delay Query Function This command queries the delay from the trigger occurrence point to sweep start. Query :TRIGger[:SEQuence]:EXTernal[1|2]:DELay? Response <time> Parameter Delay time to the time when the gate starts. <time> Range –1 to 1 s Resolution 20 ns Suffix code None.

  • Page 296: Trigger[:Sequence]:Wif|:Rfburst:delay?

    Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:WIF|:RFBurst:DELay? Trigger Delay Query Function This command queries the delay time from generating the trigger to starting the sweep. Refer to :TRIGger[:SEQuence]:EXTernal[1|2]:DELay?. Related command This command has the same function as the following commands. :TRIGger[:SEQuence]:EXTernal[1|2]:DELay? :TRIGger[:SEQuence]:VIDeo:DELay? :TRIGger[:SEQuence]:VIDeo:DELay <time>...

  • Page 297: Trigger[:Sequence]:Holdoff

    Sweep/Trigger/Gate :TRIGger[:SEQuence]:HOLDoff <time> Trigger Hold Function This command sets the time during which trigger input is disabled for a set time, from the first trigger input until the next trigger input. Command :TRIGger[:SEQuence]:HOLDoff <time> Parameter <time> Offset time Range 0 to 1 s Resolution 10 ns Suffix code...

  • Page 298: Trigger[:Sequence]:Holdoff?

    Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:HOLDoff? Trigger Hold Query Function This command queries the time during which trigger input is disabled for a set time from the first trigger input until the next trigger input. Query TRIGger[:SEQuence]:HOLDoff? Response <time> Parameter Offset time <time>...

  • Page 299: Trigger[:Sequence]:Holdoff:state?

    Sweep/Trigger/Gate Details This command is not available for MS269x Series. The Trigger (On/Off) function is automatically set to On when this function is set to On. This function cannot be set in the case of video trigger. Example of Use To set the trigger input disable time setting to On.

  • Page 300: Trigger[:Sequence]:Frame:period

    Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:FRAMe:PERiod <time> Frame Trigger Period Function This command sets the trigger occurrence period of the frame trigger. Command :TRIGger[:SEQuence]:FRAMe:PERiod <time> Parameter Frame trigger <time> Range 1 µs to 1 s Resolution 10 ns Suffix code NS, US, MS, S S is used when the suffix code is omitted.

  • Page 301: Trigger[:Sequence]:Frame:period?

    Sweep/Trigger/Gate :TRIGger[:SEQuence]:FRAMe:PERiod? Frame Trigger Period Query Function This command queries the frame trigger occurrence period. Query :TRIGger[:SEQuence]:FRAMe:PERiod? Response <time> Parameter Delay time until gate start <time> Range 1 µs to 1 s Resolution 10 ns Suffix code None. Value is returned in s units. Details This command is not available for MS269x Series.

  • Page 302: Trigger[:Sequence]:Frame:sync External[1|2]|Ext2|Immediate|Off|Wif|Rfburst

    Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:FRAMe:SYNC EXTernal[1|2]|EXT2|IMMediate|Off|WIF|RFBurst Frame Sync Source Function This command selects the synchronized signal source for frame trigger start. Command :TRIGger[:SEQuence]:FRAMe:SYNC <sync> Parameter Synchronized signal source <sync> External input 1 (External 1) EXTernal[1] EXTernal2|EXT2 External input 2 (External 2) Free run IMMediate|Off Wideband IF detection (Wide IF Video)

  • Page 303: Trigger[:Sequence]:Frame:sync?

    Sweep/Trigger/Gate :TRIGger[:SEQuence]:FRAMe:SYNC? Frame Sync Source Query Function This command queries the synchronization signal source for frame trigger start. Query :TRIGger[:SEQuence]:FRAMe:SYNC? Response <sync> Parameter Synchronized signal source <sync> External input 1 (External 1) External input 2 (External 2) EXT2 Free run Wideband IF detection (Wide IF Video) Example of Use To query the frame trigger synchronized signal source.

  • Page 304: Trigger[:Sequence]:Frame:offset

    Chapter 2 SCPI Device Message Details :TRIGger[:SEQuence]:FRAMe:OFFSet <time> Frame Sync Offset Function This command sets the offset time from frame trigger occurrence signal source input until the frame trigger occurrence. Command :TRIGger[:SEQuence]:FRAMe:OFFSet <time> Parameter Offset time <time> Range 0 to 1 s Resolution 10 ns Suffix code...

  • Page 305: Trigger[:Sequence]:Frame:offset?

    Sweep/Trigger/Gate :TRIGger[:SEQuence]:FRAMe:OFFSet? Frame Sync Offset Query Function This command queries the offset time from the frame trigger occurrence signal source input until the frame trigger occurrence. Query :TRIGger[:SEQuence]:FRAMe:OFFSet? Response <time> Parameter Offset time <time> Range 0 to 1 s Resolution 10 ns Suffix code NS, US, MS, S...

  • Page 306: Sense]:Sweep:egate[:State] On|Off|1|0

    Chapter 2 SCPI Device Message Details [:SENSe]:SWEep:EGATe[:STATe] ON|OFF|1|0 Gate Sweep Function This command sets the gate sweep to On/Off. Command [:SENSe]:SWEep:EGATe[:STATe] <switch> Parameter Gate sweep On/Off <switch> Uses the gate sweep. ON|1 Does not use the gate sweep. OFF|0 Details This command is not available when Internal Signal Generator Control On/Off is On.

  • Page 307: Sense]:Sweep:egate:source External[1|2]|Ext2|Immediate|Wif|Rfburst|Sg Bbif|Frame

    Sweep/Trigger/Gate [:SENSe]:SWEep:EGATe:SOURce EXTernal[1|2]|EXT2|IMMediate|WIF|RFBurst|SG|BBIF|FRAMe Gate Source Function This command selects the gate signal source. Command [:SENSe]:SWEep:EGATe:SOURce <source> Parameter Trigger signal source <source> [MS269xA] External input (External) EXTernal[1] Free run IMMediate Wideband IF detection (Wide IF Video) WIF|RFBurst SG marker Baseband Interface (BBIF) BBIF [MS2830A], [MS2840A] External input (External)

  • Page 308: Sense]:Sweep:egate:source?

    Chapter 2 SCPI Device Message Details [:SENSe]:SWEep:EGATe:SOURce? Gate Source Query Function This command queries the gate signal source. Command [:SENSe]:SWEep:EGATe:SOURce? Response <source> Parameter Trigger signal source <source> [MS269xA] External input (External) Free run Wideband IF detection (Wide IF Video) SG marker Baseband Interface (BBIF) BBIF [MS2830A], [MS2840A]...

  • Page 309: Sense]:Sweep:egate:wif|:Rfburst:level:absolute

    Sweep/Trigger/Gate [:SENSe]:SWEep:EGATe:WIF|:RFBurst:LEVel:ABSolute <ampl> Gate Level Function This command sets the threshold of the level to start the gate sweep. Command [:SENSe]:SWEep:EGATe:WIF|:RFBurst:LEVel:ABSolute <ampl> Parameter Threshold of level to start gate sweep <ampl> Range –60 to 50 dBm Resolution 1 dB Suffix code DBM, DM dBm is used even when omitted.

  • Page 310: Sense]:Sweep:egate:slope Positive|Negative

    Chapter 2 SCPI Device Message Details Details This setting is enabled when the gate signal source is wideband IF detection (Wide IF Video). Example of Use To query the start level of the gate sweep. SWE:EGAT:WIF:LEV:ABS? > -10 [:SENSe]:SWEep:EGATe:SLOPe POSitive|NEGative Gate Slope Function This command sets the detection mode for the gate signal.

  • Page 311: Sense]:Sweep:egate:slope?

    Sweep/Trigger/Gate [:SENSe]:SWEep:EGATe:SLOPe? Gate Slope Query Function This command queries the detection mode for the gate signal. Query [:SENSe]:SWEep:EGATe:SLOPe? Response <mode> Parameter Detection mode for gate signal <mode> Detects at the rising edge. Detects at the falling edge. Details This setting is enabled when the gate signal source is wideband IF detection (Wide IF Video), external input (External), SG marker, or Baseband Interface (BBIF).

  • Page 312: Sense]:Sweep:egate:delay

    Chapter 2 SCPI Device Message Details [:SENSe]:SWEep:EGATe:DELay <time> Gate Delay Function This command sets the delay time to start the gate sweep. Command [:SENSe]:SWEep:EGATe:DELay <time> Parameter Delay time to start the gate. <time> Range 0 to 1 s Resolution 20 ns Suffix code NS, US, MS, S S is used when omitted.

  • Page 313: Sense]:Sweep:egate:length

    Sweep/Trigger/Gate [:SENSe]:SWEep:EGATe:LENGth <time> Gate Length Function This command sets the time length of the gate. Command [:SENSe]:SWEep:EGATe:LENGth <time> Parameter Time length of the gate <time> Range 50 µs to 1 s Resolution 20 ns Suffix code NS, US, MS, S S is used when omitted.

  • Page 314: Sense]:Sweep:egate:view[:State] On|Off|1|0

    Chapter 2 SCPI Device Message Details [:SENSe]:SWEep:EGATe:VIEW[:STATe] ON|OFF|1|0 Gate View Function This command sets whether to display the gate view. Command [:SENSe]:SWEep:EGATe:VIEW[:STATe] <switch> Parameter Displays or hides Gate View. <switch> Hides Gate View. OFF|0 Displays Gate View. ON|1 Details This command is not available during time domain measurement. This command is not available when Gate Sweep is set to Off.

  • Page 315: Sense]:Sweep:egate[:View]:Time

    Sweep/Trigger/Gate [:SENSe]:SWEep:EGATe[:VIEW]:TIME <time> Gate View Sweep Time Function This command sets the sweep time for Gate View. This parameter and the one for setting the sweep time for time axis measurement reference the same value. Command [:SENSe]:SWEep:EGATe[:VIEW]:TIME <time> Parameter Sweep time <time>...

  • Page 316: Sense]:Sweep:egate:view:bandwidth[:Resolution]:Auto On|Off|1|0

    Chapter 2 SCPI Device Message Details Example of Use To query the sweep time. SWE:EGAT:TIME? > 0.100000 [:SENSe]:SWEep:EGATe:VIEW:BANDwidth[:RESolution]:AUTO ON|OFF|1|0 Gate View Resolution Bandwidth Auto/Manual Function This command automatically sets the resolution bandwidth (RBW) for Gate View. This parameter and the one for automatically setting the RBW for time axis measurement reference the same value.

  • Page 317: Sense]:Sweep:egate:view:bandwidth[:Resolution]:Auto?

    Sweep/Trigger/Gate [:SENSe]:SWEep:EGATe:VIEW:BANDwidth[:RESolution]:AUTO? Gate View Resolution Bandwidth Auto/Manual Query Function This command queries the automatic resolution bandwidth (RBW) setting for Gate View. This parameter and the one for automatically setting the RBW for time axis measurement reference the same value. Query [:SENSe]:SWEep:EGATe:VIEW:BANDwidth[:RESolution]:AUTO? Response <switch>...

  • Page 318: Sense]:Sweep:egate:view:bandwidth[:Resolution]

    Chapter 2 SCPI Device Message Details [:SENSe]:SWEep:EGATe:VIEW:BANDwidth[:RESolution] <freq> Gate View Resolution Bandwidth Function This command sets the resolution bandwidth (RBW) for Gate View. This parameter and the one for setting the RBW for time axis measurement reference the same value. Command [:SENSe]:SWEep:EGATe:VIEW:BANDwidth[:RESolution] <freq>...

  • Page 319: Sense]:Sweep:egate:view:bandwidth[:Resolution]?

    Sweep/Trigger/Gate [:SENSe]:SWEep:EGATe:VIEW:BANDwidth[:RESolution]? Gate View Resolution Bandwidth Query Function This command selects the resolution bandwidth (RBW) for Gate View. This parameter and the one for setting the RBW for time axis measurement reference the same value. Query [:SENSe]:SWEep:EGATe:VIEW:BANDwidth[:RESolution]? Response <freq> Parameter Resolution bandwidth (RBW) <freq>...

  • Page 320: Sense]:Sweep:egate:view:bandwidth:video:auto?

    Chapter 2 SCPI Device Message Details Command [:SENSe]:SWEep:EGATe:VIEW:BANDwidth:VIDeo:AUTO <switch> Parameter Automatic setting <switch> Disables the automatic setting. 0|OFF Enables the automatic setting (Default). 1|ON Details This command is not available when Gate View is set to Off. Example of Use To enable the automatic setting for VBW.

  • Page 321: Sense]:Sweep:egate:view:bandwidth:video

    Sweep/Trigger/Gate [:SENSe]:SWEep:EGATe:VIEW:BANDwidth:VIDeo <freq> Gate View Video Bandwidth Function This command sets the video bandwidth (VBW) for Gate View. This parameter and the one for setting the VBW for time axis measurement reference the same value. Command [:SENSe]:SWEep:EGATe:VIEW:BANDwidth:VIDeo <freq> Parameter Video bandwidth (VBW) <freq>...

  • Page 322: Sense]:Sweep:egate:view:detector[:Function] Normal|Positive|Sample Negative|Rms

    Chapter 2 SCPI Device Message Details Parameter Video bandwidth (VBW) <freq> Range/Resolution 1 Hz to 10 MHz (1 to 3 sequences), 5 kHz, OFF Suffix code None. Value is returned in Hz units. Example of Use To query the VBW. SWE:EGAT:VIEW:BAND:VID? >...

  • Page 323: Sense]:Sweep:egate:view:detector[:Function]?

    Sweep/Trigger/Gate [:SENSe]:SWEep:EGATe:VIEW:DETector[:FUNCtion]? Gate View Detection Mode Query Function This command queries the waveform pattern detection mode for Gate View. This parameter and the one for setting the waveform pattern detection mode for time axis measurement reference the same value. Query [:SENSe]:SWEep:EGATe:VIEW:DETector[:FUNCtion]? Response <det>...

  • Page 324: Sense]:Sweep:egate:view:points

    Chapter 2 SCPI Device Message Details [:SENSe]:SWEep:EGATe:VIEW:POINts <integer> Gate View Trace Point Function This command sets the number of trace display points for Gate View. This parameter and the one for setting the number of trace display points for time axis measurement reference the same value. Command [:SENSe]:SWEep:EGATe:VIEW:POINts <integer>...

  • Page 325: Sense]:Sweep:egate:view:points?

    Sweep/Trigger/Gate [:SENSe]:SWEep:EGATe:VIEW:POINts? Gate View Trace Point Query Function This command queries the number of trace display points for Gate View. This parameter and the one for setting the number of trace display points for time axis measurement reference the same value. Query [:SENSe]:SWEep:EGATe:VIEW:POINts? Response...

  • Page 326: Sense]:Sweep:egate:view:frequency:auto On|Off|1|0

    Chapter 2 SCPI Device Message Details [:SENSe]:SWEep:EGATe:VIEW:FREQuency:AUTO ON|OFF|1|0 Gate View Frequency Mode Function This command selects the center frequency setting mode for Gate View. Command [:SENSe]:SWEep:EGATe:VIEW:FREQuency:AUTO <switch> Parameter Center frequency setting mode <switch> Sets the center frequency manually. 0|OFF Automatically sets the center frequency to that 1|ON for the frequency domain.

  • Page 327: Sense]:Sweep:egate:view:frequency

    Command [:SENSe]:SWEep:EGATe:VIEW:FREQuency <freq> Parameter Center Frequency <freq> Range –100 MHz to 6.05 GHz (MS2690A) [MS269xA] –100 MHz to 13.6 GHz (MS2691A) –100 MHz to 26.6 GHz (MS2692A) –100 MHz to 3.7 GHz (Option 040) [MS2830A] –100 MHz to 6.1 GHz (Option 041) –100 MHz to 13.6 GHz (Option 043)

  • Page 328: Sense]:Sweep:egate:view:frequency?

    Response <freq> Parameter Center Frequency <freq> Range –100 MHz to 6.05 GHz (MS2690A) [MS269xA] –100 MHz to 13.6 GHz (MS2691A) –100 MHz to 26.6 GHz (MS2692A) –100 MHz to 3.7 GHz (Option 040) [MS2830A] –100 MHz to 6.1 GHz (Option 041) –100 MHz to 13.6 GHz (Option 043)

  • Page 329: Sense]:Sweep:egate:holdoff

    Sweep/Trigger/Gate 3.0 GHz (Option 041) 13.25 GHz (Option 044) 22.25 GHz (Option 046) 16 GHz (Option 047) [MS2850A] 22.25 GHz (Option 046) Example of Use To query the center frequency. SWE:EGAT:VIEW:FREQ? > 123456 [:SENSe]:SWEep:EGATe:HOLDoff <time> Gate Hold Function This command sets the time during which gate input is disabled for a set time, from the first gate signal input until the next gate signal input, during gate sweep.

  • Page 330: Sense]:Sweep:egate:holdoff?

    Chapter 2 SCPI Device Message Details [:SENSe]:SWEep:EGATe:HOLDoff? Gate Hold Query Function This command queries the time during which gate input is disabled for a set time, from the first gate signal input until the next gate signal input, during gate sweep. Query [:SENSe]:SWEep:EGATe:HOLDoff? Response...

  • Page 331: Sense]:Sweep:egate:holdoff:state?

    Sweep/Trigger/Gate Parameter Gate Hold On/Off <switch> Gate Hold is On ON|1 Gate Hold is Off OFF|0 Details This command is not available for MS269x Series. The Gate Sweep (On/Off) function is automatically set to On when this function is set to On. Example of Use To set the gate input disable time setting to On.

  • Page 332: Initiate:restart

    Chapter 2 SCPI Device Message Details :INITiate:RESTart Restart Sweep Function This command restarts the sweep. Command :INITiate:RESTart Example of Use To restart the sweep. INIT:REST :ABORt Stop Sweep Function This command stops the sweep. Command :ABORt Example of Use To stop the sweep. ABOR 2-322...

  • Page 333: Measure Function

    Measure Function Measure Function Table 2.8-1 lists device messages for measure. Table 2.8-1 Device messages for measure Function Device Messages [:SENSe]:RADio:STANdard[:SELect] OFF|5GPRE|WCDMADN|WCDMAUP|MWIMAXDL|MWIMAXUL|3GLTE_DL|3GLTE_UL|ETC_D SRC|TDSCDMA|XGPHS|CDMA2KFWD|EVDOFWD|3GLTE_TDD_DL|3GLTE_TDD_UL|ISDBT Select Standard MM|WLAN|ISDBT|LRWPANS|APCO_P25|MICROLINKETSI|NXDN|ISDBTSB [:SENSe]:RADio:STANdard[:SELect]? Measurement Off :CONFigure:SANalyzer Current Measurement :CONFigure? Query [:SENSe]:RADio:STANdard:LOAD <function>[,<pattern>] Load Standard Parameter [:SENSe]:RADio:STANdard:LOAD? <function> 2-323...

  • Page 334: Glte_Tdd_Dl|3Glte_Tdd_Ul|Isdbtmm|Wlan|Isdbt|Lrwpans Apco_P25|Microlinketsi|Nxdn|Isdbtsb

    Chapter 2 SCPI Device Message Details [:SENSe]:RADio:STANdard[:SELect] OFF|5GPRE|WCDMADN|WCDMAUP|MWIMAXDL|MWIMAXUL|3GLTE_DL|3 GLTE_UL|ETC_DSRC|TDSCDMA|XGPHS|CDMA2KFWD|EVDOFWD|3GLTE _TDD_DL|3GLTE_TDD_UL|ISDBTMM|WLAN|ISDBT|LRWPANS|APCO_P25| MICROLINKETSI|NXDN|ISDBTSB Select Standard Function This command selects parameter setting type for the Measure function, using a communication standard. Command [:SENSe]:RADio:STANdard[:SELect] <standard> Parameter Communication standard <standard> 5G Pre-Standard 5GPRE 3GPP W-CDMA Downlink WCDMADN 3GPP W-CDMA Uplink WCDMAUP...

  • Page 335: Sense]:Radio:standard[:Select]?

    Measure Function [:SENSe]:RADio:STANdard[:SELect]? Select Standard Query Function This command queries the setting of the communication standard. Query [:SENSe]:RADio:STANdard[:SELect]? Response <standard> Parameter Communication standard <standard> 5G Pre-Standard 5GPRE 3GPP W-CDMA Downlink WCDMADN 3GPP W-CDMA Uplink WCDMAUP Mobile WiMAX (IEEE802.16e) Downlink MWIMAXDL Mobile WiMAX (IEEE802.16e) Uplink MWIMAXUL 3GPP LTE Downlink...

  • Page 336: Configure:sanalyzer

    Chapter 2 SCPI Device Message Details :CONFigure:SANalyzer Measurement Off Function This command disables currently running measure function. No operation is made if no measure function is running. Command :CONFigure:SANalyzer Example of Use To disable the currently running measure function. CONF:SAN :CONFigure? Current Measurement Query Function...

  • Page 337: Sense]:Radio:standard:load [,]

    Measure Function [:SENSe]:RADio:STANdard:LOAD <function>[,<pattern>] Load Standard Parameter Function This command selects the Measure function parameter. Selectable parameters vary depending on the setting for Standard. Command [:SENSe]:RADio:STANdard:LOAD <function>[,<pattern>] Parameter Measure function <function> ACP measurement Burst Average Power measurement BRSTAVGPWR OBW measurement Channel Power measurement CHPWR Spectrum Emission Mask measurement...
  • Page 338 Chapter 2 SCPI Device Message Details When Standard is set to W-CDMA Uplink (OBW measurement) Parameter to be set <pattern> 3GPP W-CDMA Uplink UPLINK When omitted: 3GPP W-CDMA Uplink When Standard is set to W-CDMA Uplink (Channel Power measurement) Parameter to be set <pattern>...
  • Page 339 Measure Function measurement When Standard is set to W-CDMA Downlink (OBW measurement) Parameter to be set <pattern> 3GPP W-CDMA Downlink DOWNLINK When omitted: 3GPP W-CDMA Downlink When Standard is set to W-CDMA Downlink (Channel Power measurement) Parameter to be set <pattern>...
  • Page 340 Chapter 2 SCPI Device Message Details When Standard is set to Mobile WiMAX (Spectrum Emission Mask measurement) Parameter to be set <pattern> 10 MHz BW (Channel Bandwidth 10 MHz) 5 MHz BW (Channel Bandwidth 5 MHz) When omitted: 10 MHz BW When Standard is set to Mobile WiMAX (Burst Average Power measurement) Parameter to be set...
  • Page 341 Measure Function 10 MHz BW (UTRA 10 MHz) 10MBW_UTRA10MHZ 10 MHz BW (E-UTRA 10 MHz) 10MBW_EUTRA10MHZ 10 MHz BW (Adv Mode) 10MBW_ADV 15 MHz BW (UTRA 1.6 MHz) 15MBW_UTRA1M6HZ 15 MHz BW (UTRA 5 MHz) 15MBW_UTRA5MHZ 15 MHz BW (UTRA 10 MHz) 15MBW_UTRA10MHZ 15 MHz BW (E-UTRA 15 MHz) 15MBW_EUTRA15MHZ...
  • Page 342 Chapter 2 SCPI Device Message Details When Standard is set to LTE Uplink/Downlink, and LTE TDD Uplink/Downlink (Channel Power measurement) Parameter to be set <pattern> Mean Power 1.4 MHz BW MEAN_1M4BW Mean Power 3 MHz BW MEAN_3MBW Mean Power 5 MHz BW MEAN_5MBW Mean Power 10 MHz BW MEAN_10MBW...
  • Page 343 Measure Function CategoryB < 1 GHz 10 MHz BW B_UNDER1G_10MBW CategoryB < 1 GHz 15 MHz BW B_UNDER1G_15MBW CategoryB < 1 GHz 20 MHz BW B_UNDER1G_20MBW CategoryB > 1 GHz 1.4 MHz BW B_OVER1G_1M4BW CategoryB > 1 GHz 3 MHz BW B_OVER1G_3MBW CategoryB >...
  • Page 344 Chapter 2 SCPI Device Message Details JAPAN 10MHz JAPAN_10M JAPAN 15MHz JAPAN_15M JAPAN 20MHz JAPAN_20M When omitted: General 5MHz When Standard is set to LTE TDD Uplink (Spectrum Emission Mask measurement) Parameter to be set <pattern> General 1.4MHz G_1_4M General 3MHz G_3M General 5MHz G_5M...
  • Page 345 Measure Function When Standard is set to TD-SCDMA (ACP Measurement) Parameter to be set <pattern> Single Carrier TDD128M1C 2 Carriers TDD128M2C 3 Carriers TDD128M3C 4 Carriers TDD128M4C 5 Carriers TDD128M5C 6 Carriers TDD128M6C When omitted: Single Carrier When Standard is set to TD-SCDMA (CHP, OBW Measurement) Parameter to be set <pattern>...
  • Page 346 Chapter 2 SCPI Device Message Details 10 MHz BW 10MBW 20 MHz BW 20MBW When omitted: 10 MHz BW When Standard is set to XG-PHS (CHP Measurement) Parameter to be set <pattern> Mean Power 10 MHz BW MEAN_10MBW Mean Power 20 MHz BW MEAN_20MBW When omitted: Mean Power 10 MHz BW...
  • Page 347 Measure Function EV-DO Forward Link EVDOFWD When omitted: EV-DO Forward Link When Standard is set to EV-DO Forward Link (Spectrum Emission Mask measurement) Parameter to be set <pattern> B and Class 0,2,5,7,9,10 Band Class 1,4,14,15 Band Class 6,8,13 Band Class 11,12 BC11 When omitted: Band Class 0,2,5,7,9,10...
  • Page 348 Chapter 2 SCPI Device Message Details Parameter to be set <pattern> 3.9 MHz BW 3M9BW When omitted: 3.9 MHz BW When Standard is set to ISDB-T (Channel Power measurement) Parameter to be set <pattern> 5.6 MHz BW MEAN_5M6BW When omitted: 5.6 MHz BW When Standard is set to ISDB-T (OBW measurement) Parameter to be set...
  • Page 349 Measure Function Data Communication System, Orthogonal Frequency Division Multiplexing System TELEC T-403 5 GHz Low Power Data T403_20MBW Communication System 20 MHz System TELEC T-403 5 GHz Low Power Data T403_40MBW Communication System 40 MHz System TELEC T-403 5 GHz Low Power Data T403_80MBW Communication System 80 MHz System TELEC T-403 5 GHz Low Power Data...
  • Page 350 Chapter 2 SCPI Device Message Details EN 301 893 4.5.2 Transmitter unwanted emissions within the 5 GHz RLAN bands 5 MHz ETSI_OFDM_10MHZ EN 301 893 4.5.2 Transmitter unwanted emissions within the 5 GHz RLAN bands 10 ETSI_OFDM_20MHZ EN 301 893 4.5.2 Transmitter unwanted emissions within the 5 GHz RLAN bands 20 ETSI_OFDM_40MHZ EN 301 893 4.5.2 Transmitter unwanted...
  • Page 351 Measure Function T403_18_19MHZ_5260_5320MHZ_LOWER TELEC T-403 5 GHz Low Power Data Communication System 5260 to 5320 MHz Lower sideband, OBW more than 18 MHz, less than 19 MHz T403_18_19MHZ_5260_5320MHZ_UPPER TELEC T-403 5 GHz Low Power Data Communication System 5260 to 5320 MHz Upper sideband, OBW more than 18 MHz, less than 19 MHz T403_5190_5230MHZ_LOWER TELEC T-403 5 GHz Low Power Data...
  • Page 352 Chapter 2 SCPI Device Message Details Communication System 5250 MHz Lower sideband T403_5250MHZ_UPPER TELEC T-403 5 GHz Low Power Data Communication System 5250 MHz Lower sideband T403_5210MHZ_80-80_LOWER TELEC T-403 5 GHz Low Power Data Communication System 5210 MHz 80+80 MHz Lower sideband T403_5210MHZ_80-80_UPPER TELEC T-403 5 GHz Low Power Data Communication System...
  • Page 353 Measure Function TELEC T-402 2.4 GHz Low Power Data T402 Communication System T403_18MHz_5_2GHz TELEC T-403 5 GHz Low Power Data Communication System 5.2 GHz OBW less than 18 MHz T403_18MHz_5_3GHz TELEC T-403 5 GHz Low Power Data Communication System 5.3 GHz OBW less than 18 MHz T403_18MHz_5_6GHz TELEC T-403 5 GHz Low Power Data...
  • Page 354 Chapter 2 SCPI Device Message Details Communication System 5.3 GHz OBW more than 38 MHz, less than 78 MHz T403_38_78MHz_5_6GHz TELEC T-403 5 GHz Low Power Data Communication System 5.6 GHz OBW more than 38 MHz, less than 78 MHz T403_78MHz_5_2GHZ_5_3GHZ TELEC T-403 5 GHz Low Power Data Communication System 5.2 GHz 5.3 GHz OBW...
  • Page 355 Measure Function MHz System Direct Sequence Spread Spectrum System 4,900 MHz to 5,000 MHz T405_20MHz_5_0GHz_OFDM TELEC T-405 5 GHz Wireless Access System 20 MHz System Orthogonal Frequency Division Multiplexing System 5,030 MHz to 5,091 MHz T405_20MHz_5_0GHz_DCCK TELEC T-405 5 GHz Wireless Access System 20 MHz System Direct Sequence Spread Spectrum System 5,030 MHz to 5,091 MHz T405_40MHz...
  • Page 356 Chapter 2 SCPI Device Message Details GFSK 100ksps (IEEE802.15.4g_d7) GFSK_100K_G GFSK 200ksps (IEEE802.15.4g_d7) GFSK_200K_G When omitted: BPSK 950MHz (ARIB STD-T96) When Standard is set to LR-WPANs(IEEE802.15.4) (Spectrum Emission Mask Measurement) Parameter to be set <pattern> O-QPSK 2450MHz (IEEE802.15.4-2011) OQPSK_2450M BPSK 950MHz (ARIB STD-T96) BPSK_950M GFSK 950MHz 50ksps (ARIB STD-T96) GFSK_950M_50K...
  • Page 357 Measure Function Frequency Band:3G-17GHz CS:7MHz Class:5B 7M5B17-30G Frequency Band:17G-30GHz CS:7MHz Class:5B 7M5BABV30G Frequency Band:above30GHz CS:14MHz Class:2 14M2 CS:14MHz Class:4L 14M4L3-17G Frequency Band:3G-17GHz CS:14MHz Class:4L 14M4L17-30G Frequency Band:17G-30GHz CS:14MHz Class:4L 14M4LABV30G Frequency Band:above30GHz CS:14MHz Class:5B 14M5B3-17G Frequency Band:3G-17GHz 14M5B17-30G CS:14MHz Class:5B Frequency Band:17G-30GHz CS:14MHz Class:5B 14M5BABV30G...
  • Page 358 Chapter 2 SCPI Device Message Details Frequency Band:3G-17GHz CS:56MHz Class:4L 56M4L17-30G Frequency Band:17G-30GHz CS:56MHz Class:4L 56M4LABV30G Frequency Band:above30GHz CS:56MHz Class:5A6A 56M5A6A3-17G Frequency Band:3G-17GHz CS:56MHz Class:5A6A 56M5A6A17-30G Frequency Band:17G-30GHz CS:56MHz Class:5A6A 56M5A6AABV30G Frequency Band:above30GHz CS:56MHz Class:5B6B 56M5B6B3-17G Frequency Band:3G-17GHz CS:56MHz Class:5B6B 56M5B6B17-30G Frequency Band:17G-30GHz CS:56MHz Class:5B6B...

  • Page 359: Sense]:Radio:standard:load?

    Measure Function [:SENSe]:RADio:STANdard:LOAD? <function> Load Standard Parameter Query Function This command queries the Measure function parameter. The parameter selected for the Standard setting differs. Query [:SENSe]:RADio:STANdard:LOAD? <function> Response <pattern> Parameter Refer to [:SENSe]:RADio:STANdard:LOAD <function>[,<pattern>] Details If the Standard parameter is not selected or is set to Off, *** is returned. Example of Use To query ACP measurement parameter.
  • Page 360 Chapter 2 SCPI Device Message Details Table 2.9-1 lists device messages for Adjacent Channel Power measurement. Table 2.9-1 Device messages for Adjacent Channel Power measurement Function Device Message [:SENSe]:ACPower[:STATe] ON|OFF|1|0 [:SENSe]:ACPower[:STATe]? Measure Adjacent Channel Power :CALCulate:ACPower[:STATe] ON|OFF|1|0 :CALCulate:ACPower[:STATe]? [:SENSe]:ACPower:CARRier[1]:RCARrier <integer> Adjacent Channel [:SENSe]:ACPower:CARRier[1]:RCARrier? Power Reference...
  • Page 361 Table 2.9-1 Device messages for Adjacent Channel Power measurement (Cont’d) Function Device Message [:SENSe]:ACPower:OFFSet[1]:LIST:STATe ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0 [:SENSe]:ACPower:OFFSet[1]:LIST:STATe? Adjacent Channel Power Offset :CALCulate:ACPower:OFFSet[1]:LIST:STATe ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0 :CALCulate:ACPower:OFFSet[1]:LIST:STATe? [:SENSe]:ACPower:OFFSet[1]:LIST[:FREQuency] <freq>,<freq>,<freq> Adjacent Channel [:SENSe]:ACPower:OFFSet[1]:LIST[:FREQuency]? Power Offset :CALCulate:ACPower:OFFSet[1]:LIST[:FREQuency] <freq>,<freq>,<freq> Frequency :CALCulate:ACPower:OFFSet[1]:LIST[:FREQuency]? [:SENSe]:ACPower:CARRier[1]:LIST:METHod IBW|RRC|RC [:SENSe]:ACPower:CARRier[1]:LIST:METHod? :CALCulate:ACPower:CARRier[1]:LIST:METHod IBW|RRC|RC :CALCulate:ACPower:CARRier[1]:LIST:METHod? Adjacent Channel Power Filter Type [:SENSe]:ACPower:CARRier[1]:FILTer:TYPE RECT|NYQuist|RNYQuist...
  • Page 362 Chapter 2 SCPI Device Message Details Table 2.9-1 Device messages for Adjacent Channel Power measurement (Cont’d) Function Device Message Adjacent Channel [:SENSe]:ACPower:ADVanced:OFFSet:LIST[:FREQuency] Power Offset <freq>,<freq>,<freq>,<freq>,<freq>,<freq>,<freq>,<freq> Frequency [:SENSe]:ACPower:ADVanced:OFFSet:LIST[:FREQuency]? - Advanced Mode [:SENSe]:ACPower:ADVanced:OFFSet:FILTer:TYPE Adjacent Channel RECT|NYQuist|RNYQuist,RECT|NYQuist|RNYQuist,RECT|NYQuist|RNYQuist,R Power Offset Filter ECT|NYQuist|RNYQuist,RECT|NYQuist|RNYQuist,RECT|NYQuist|RNYQuist,RE Type CT|NYQuist|RNYQuist,RECT|NYQuist|RNYQuist - Advanced Mode [:SENSe]:ACPower:ADVanced:OFFSet:FILTer:TYPE? Adjacent Channel...
  • Page 363 Table 2.9-1 Device messages for Adjacent Channel Power measurement (Cont’d) Function Device Message Adjacent Channel :READ:ACP[n]? Power Read Adjacent Channel :MEASure:ACP[n]? Power Measure All Marker Off :CALCulate:ACPower:MARKer:AOFF Peak Search :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum Next Peak Search :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:NEXT Power Peak Search :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:POWer Next Power :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:POWer:NEXT Peak Search Minimum Search...
  • Page 364 Chapter 2 SCPI Device Message Details Table 2.9-1 Device messages for Adjacent Channel Power measurement (Cont’d) Function Device Message [:SENSe]:ACPower:BANDwidth[:RESolution]:MODE NORMal|CISPr Resolution [:SENSe]:ACPower:BANDwidth[:RESolution]:MODE? Bandwidth :CALCulate:ACPower:BANDwidth[:RESolution]:MODE NORMal|CISPr Normal/CISPR :CALCulate:ACPower:BANDwidth[:RESolution]:MODE? [:SENSe]:ACPower:BANDwidth:VIDeo <freq> Video Bandwidth [:SENSe]:ACPower:BANDwidth:VIDeo? [:SENSe]:ACPower:BANDwidth:VIDeo:AUTO OFF|ON|0|1 Video Bandwidth Auto/Manual [:SENSe]:ACPower:BANDwidth:VIDeo:AUTO? [:SENSe]:ACPower:DETector[:FUNCtion] NORMal|POSitive|SAMPle|NEGative|RMS|QPEak|CAVerage|CRMS [:SENSe]:ACPower:DETector[:FUNCtion]? Detection Mode...

  • Page 365: Sense]:Acpower[:State] On|Off|1|0

    [:SENSe]:ACPower[:STATe] ON|OFF|1|0 Measure Adjacent Channel Power Function This command executes Adjacent Channel Power measurement. Command [:SENSe]:ACPower[:STATe] <switch> Parameter ACP measurement On/Off <switch> Sets ACP measurement to On. ON|1 Sets ACP measurement to Off (Default). OFF|0 Example of Use To set the ACP measurement to On. ACP ON Related command This command has the same function as the following command.

  • Page 366: Sense]:Acpower[:State]?

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower[:STATe]? Measure Adjacent Channel Power Query Function This command queries the On/Off state of the Adjacent Channel Power measurement. Query [:SENSe]:ACPower[:STATe]? Response <switch> Parameter ACP measurement On/Off <switch> Example of Use To query the On/Off state of the ACP measurement. ACP? >...

  • Page 367: Sense]:Acpower:carrier[1]:Rcarrier

    [:SENSe]:ACPower:CARRier[1]:RCARrier <integer> Adjacent Channel Power Reference Carrier Select Function This command sets the reference carrier number for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:CARRier[1]:RCARrier <integer> Parameter Reference carrier number <integer> Range 1 to Carrier Number Resolution Suffix code None Default Example of Use To set the reference carrier number of ACP measurement to 2.

  • Page 368: Sense]:Acpower:carrier[1]:Rcarrier?

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:CARRier[1]:RCARrier? Adjacent Channel Power Reference Carrier Select Query Function This command queries the reference carrier number for Adjacent Channel Power measurement. Query [:SENSe]:ACPower:CARRier[1]:RCARrier? Response <integer> Parameter Reference carrier number <integer> Range 1 to Carrier Number Resolution Suffix code None...

  • Page 369: Sense]:Acpower:carrier[1]:Rcarrier:method Stotal|Ctotal|Bsides|Cselect

    [:SENSe]:ACPower:CARRier[1]:RCARrier:METHod STOTal|CTOTal|BSIDes|CSELect Adjacent Channel Power Reference Function This command sets the reference of the relative level display for ACP measurement. Command [:SENSe]:ACPower:CARRier[1]:RCARrier:METHod <method> Parameter Reference method for the relative level display <method> for ACP measurement. Sets the integral power on the entire screen as a STOTal reference (Span Total method).

  • Page 370: Calculate:acpower:carrier[1]:Rcarrier:method Stotal|Ctotal|Bsides|Cselect

    Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CARRier[1]:RCARrier:METHod STOTal|CTOTal|BSIDes|CSELect Adjacent Channel Power Reference Function This command sets the reference of the relative level display for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:RCARrier:METHod. Related command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:RCARrier:METHod 2-360...

  • Page 371: Sense]:Acpower:carrier[1]:Rcarrier:method?

    [:SENSe]:ACPower:CARRier[1]:RCARrier:METHod? Adjacent Channel Power Reference Query Function This command queries the reference of the relative level display for Adjacent Channel Power measurement. Query [:SENSe]:ACPower:CARRier[1]:RCARrier:METHod? Response <method> Parameter Reference method for the relative level display <method> for ACP measurement. Sets the integral power on the whole screen to STOT the reference (Span Total method).

  • Page 372: Calculate:acpower:carrier[1]:Rcarrier:method?

    Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CARRier[1]:RCARrier:METHod? Adjacent Channel Power Reference Query Function This command queries the reference of the relative level display for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:RCARrier:METHod?. Related command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:RCARrier:METHod? 2-362...

  • Page 373: Sense]:Acpower:correction:noise[:Auto] On|Off|1|0

    [:SENSe]:ACPower:CORRection:NOISe[:AUTO] ON|OFF|1|0 Adjacent Channel Power Noise Cancel Function This command sets whether to enable the noise canceling function. Command [:SENSe]:ACPower:CORRection:NOISe[:AUTO] <switch> Parameter Type of result display <switch> Enables the noise canceling function. ON|1 Disables the noise canceling function (Default). OFF|0 Details This command is fixed to Off and cannot be set in the following cases.

  • Page 374: Calculate:acpower:correction:noise[:Auto] On|Off|1|0

    Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CORRection:NOISe[:AUTO] ON|OFF|1|0 Adjacent Channel Power Noise Cancel Function This command sets whether to enable the noise canceling function. Refer to [:SENSe]:ACPower:CORRection:NOISe[:AUTO]. Related command This command has the same function as the following command. [:SENSe]:ACPower:CORRection:NOISe[:AUTO] [:SENSe]:ACPower:CORRection:NOISe[:AUTO]? Adjacent Channel Power Noise Cancel Query Function...

  • Page 375: Sense]:Acpower:offset[1]:Bandwidth[:Integration]

    Example of Use To query the noise canceling function On/Off state. ACP:CORR:NOIS? > 0 Related command This command has the same function as the following command. :CALCulate:ACPower:CORRection:NOISe[:AUTO]? :CALCulate:ACPower:CORRection:NOISe[:AUTO]? Adjacent Channel Power Noise Cancel Query Function This command queries whether to apply the noise canceling function. Refer to [:SENSe]:ACPower:CORRection:NOISe[:AUTO]?.

  • Page 376: Calculate:acpower:offset[1]:Bandwidth[:Integration]

    Chapter 2 SCPI Device Message Details Example of Use To set the offset channel bandwidth to 3.84 MHz. ACP:OFFS:BAND 3.84MHZ Related command This command has the same function as the following command. :CALCulate:ACPower:OFFSet[1]:BANDwidth[:INTegration] :CALCulate:ACPower:OFFSet[1]:BANDwidth[:INTegration] <freq> Adjacent Channel Power Offset Channel Bandwidth Function This command sets the Offset Channel bandwidth for Adjacent Channel Power measurement.

  • Page 377: Calculate:acpower:offset[1]:Bandwidth[:Integration]?

    Example of Use To query the Offset Channel bandwidth. ACP:OFFS:BAND? > 3840000 Related command This command has the same function as the following command. :CALCulate:ACPower:OFFSet[1]:BANDwidth[:INTegration]? :CALCulate:ACPower:OFFSet[1]:BANDwidth[:INTegration]? Adjacent Channel Power Offset Channel Bandwidth Query Function This command queries the Offset Channel bandwidth for Adjacent Channel Power measurement.

  • Page 378: Calculate:acpower:carrier[1]:List:bandwidth[:Integration]

    Chapter 2 SCPI Device Message Details Example of Use To set the inband channel bandwidth to 3.84 MHz. ACP:CARR:BAND 3.84MHZ Related command This command has the same function as the following command. :CALCulate:ACPower:CARRier[1]:LIST:BANDwidth[:INTegratio :CALCulate:ACPower:CARRier[1]:LIST:BANDwidth[:INTegration] <freq> Adjacent Channel Power Carrier Bandwidth Function This command sets the measurement bandwidth of the carrier for Adjacent Channel Power measurement.

  • Page 379: Sense]:Acpower:carrier[1]:List:bandwidth[:Integration]?

    [:SENSe]:ACPower:CARRier[1]:LIST:BANDwidth[:INTegration]? Adjacent Channel Power Carrier Bandwidth Query Function This command sets the measurement bandwidth of the carrier for Adjacent Channel Power measurement. Query [:SENSe]:ACPower:CARRier[1]:LIST:BANDwidth[:INTegration] Response <freq> Parameter Inband channel bandwidth <freq> Range 1 to 1000000000 Hz Resolution 1 Hz Suffix code None.

  • Page 380: Calculate:acpower:carrier[1]:List:bandwidth[:Integration]?

    Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CARRier[1]:LIST:BANDwidth[:INTegration]? Adjacent Channel Power Carrier Bandwidth Query Function This command sets the measurement bandwidth of the carrier for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:LIST:BANDwidth[:INTegration] Related command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:LIST:BANDwidth[:INTegration] [:SENSe]:ACPower:CARRier[1]:RCFRequency <freq>...

  • Page 381: Calculate:acpower:carrier[1]:Rcfrequency

    :CALCulate:ACPower:CARRier[1]:RCFRequency <freq> Adjacent Channel Power In Band Center Function This command sets the In Band center frequency for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:RCFRequency. Related command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:RCFRequency [:SENSe]:ACPower:CARRier[1]:RCFRequency? Adjacent Channel Power In Band Center Query Function This command queries the In Band center frequency for Adjacent Channel Power measurement.

  • Page 382: Calculate:acpower:carrier[1]:Rcfrequency?

    Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CARRier[1]:RCFRequency? Adjacent Channel Power In Band Center Query Function This command queries the In Band center frequency for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:RCFRequency?. Related command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:RCFRequency? [:SENSe]:ACPower:CARRier[1]:COUNt <integer>...

  • Page 383: Calculate: Acpower:carrier[1]:Count

    :CALCulate: ACPower:CARRier[1]:COUNt <integer> Adjacent Channel Power Carrier Number Function This command sets the carrier number for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:COUNt. Related command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:COUNt [:SENSe]:ACPower:CARRier[1]:COUNt? Adjacent Channel Power Carrier Number Query Function This command queries the carrier number for Adjacent Channel Power measurement.

  • Page 384: Calculate:acpower:carrier[1]:Count?

    Chapter 2 SCPI Device Message Details Related command This command has the same function as the following command. :CALCulate:ACPower:CARRier[1]:COUNt? :CALCulate:ACPower:CARRier[1]:COUNt? Adjacent Channel Power Carrier Number Query Function This command queries the carrier number for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:COUNt?.

  • Page 385: Calculate:acpower:carrier[1]:List:width

    Example of Use To set the frequency interval among carriers to 12.3 MHz. ACP:CARR:WIDT 12300000 Related command This command has the same function as the following command. :CALCulate:ACPower:CARRier[1]:LIST:WIDTh :CALCulate:ACPower:CARRier[1]:LIST:WIDTh <freq> Adjacent Channel Power Carrier Spacing Function This command sets the frequency interval among carriers for Adjacent Channel Power measurement.

  • Page 386: Calculate:acpower:carrier[1]:List:width?

    Chapter 2 SCPI Device Message Details Details This command is available when ACP Reference is set to the following: • Span Total Example of Use To query the frequency interval among carriers. ACP:CARR:WIDT? > 12300000 Related command This command has the same function as the following command. :CALCulate:ACPower:CARRier[1]:LIST:WIDTh? :CALCulate:ACPower:CARRier[1]:LIST:WIDTh? Adjacent Channel Power Carrier Spacing Query...

  • Page 387: Sense]:Acpower:offset[1]:List:state On|Off|1|0,On|Off|1|0,On|Off|1|0

    [:SENSe]:ACPower:OFFSet[1]:LIST:STATe ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0 Adjacent Channel Power Offset Function This command sets offset channel On/Off for ACP measurement. Command [:SENSe]:ACPower:OFFSet[1]:LIST:STATe <switch_1>,<switch_2>,<switch_3> Parameter Measurement channel “n” On/Off <switch_n> Measures offset channel “n”. ON|1 Does not measure offset channel “n”. OFF|0 Default offset-1 offset-2 offset-3 Example of Use To set offset channel.

  • Page 388: Sense]:Acpower:offset[1]:List:state?

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:OFFSet[1]:LIST:STATe? Adjacent Channel Power Offset Query Function This command queries the On/Off state of the offset channel for Adjacent Channel Power measurement. Query [:SENSe]:ACPower:OFFSet[1]:LIST:STATe? Response <switch_1>,<switch_2>,<switch_3> Parameter Measurement channel “n” On/Off <switch_n> Measures the offset channel “n”. Does not measure the offset channel “n”.

  • Page 389: Sense]:Acpower:offset[1]:List[:Frequency] ,,

    [:SENSe]:ACPower:OFFSet[1]:LIST[:FREQuency] <freq>,<freq>,<freq> Adjacent Channel Power Offset Frequency Function This command sets the offset frequency of Offset Channel for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:OFFSet[1]:LIST[:FREQuency] <freq_1>,<freq_2>,<freq_3> Parameter Offset frequency of offset channel “n”. <freq_n> Range –1000000000 to 1000000000 Hz Resolution 1 Hz Suffix code HZ,KHZ,KZ,MHZ,MZ,GHZ,GZ Hz is used when omitted.

  • Page 390: Sense]:Acpower:offset[1]:List[:Frequency]?

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:OFFSet[1]:LIST[:FREQuency]? Adjacent Channel Power Offset Frequency Query Function This command queries the offset frequency of Offset Channel for Adjacent Channel Power measurement. Query [:SENSe]:ACPower:OFFSet[1]:LIST[:FREQuency]? Response <freq_1>,<freq_2>,<freq_3> Parameter Offset frequency of the offset channel “n” <freq_n>...

  • Page 391: Sense]:Acpower:carrier[1]:List:method Ibw|Rrc|Rc

    [:SENSe]:ACPower:CARRier[1]:LIST:METHod IBW|RRC|RC Adjacent Channel Power Filter Type Function This command sets the filter type of the carrier for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:CARRier[1]:LIST:METHod <method> Parameter Filter type of carrier <method> Rectangle filter Root Nyquist filter (Default) Nyquist filter Example of Use To set the filter type of the carrier for ACP measurement to Root Nyquist.

  • Page 392: Sense]:Acpower:carrier[1]:List:method?

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:CARRier[1]:LIST:METHod? Adjacent Channel Power Filter Type Query Function This command queries the filter type of the carrier for Adjacent Channel Power measurement. Query [:SENSe]:ACPower:CARRier[1]|2:LIST:METHod? Response <method> Parameter Filter type of carrier <method> Rectangle filter Root Nyquist filter (Default) Nyquist filter Example of Use...

  • Page 393: Sense]:Acpower:carrier[1]:Filter:type Rect|Nyquist|Rnyquist

    [:SENSe]:ACPower:CARRier[1]:FILTer:TYPE RECT|NYQuist|RNYQuist Adjacent Channel Power Filter Type Function This command sets the filter type of the carrier for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:CARRier[1]:FILTer:TYPE <filter> Parameter Filter type <filter> Rectangle filter RECT Nyquist filter NYQuist Root Nyquist filter (Default) RNYQuist Example of Use To set the filter type for ACP measurement to Nyquist.

  • Page 394: Sense]:Acpower:carrier[1]:Filter:type?

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:CARRier[1]:FILTer:TYPE? Adjacent Channel Power Filter Type Query Function This command queries the filter type of the carrier for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:CARRier[1]:FILTer:TYPE <filter> Response <filter> Parameter Filter type <filter> Rectangle filter RECT Nyquist filter Root Nyquist filter (Default) RNYQ...

  • Page 395: Sense]:Acpower:filter[:Rrc][:State] Off|On|0|1

    [:SENSe]:ACPower:FILTer[:RRC][:STATe] OFF|ON|0|1 Adjacent Channel Power Offset Filter Type Function This command sets the filter type of the offset channel for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:FILTer[:RRC][:STATe] <switch> Parameter Filter type <switch> Rectangle filter OFF|0 Root Nyquist filter ON|1 Example of Use To set the filter type of the offset channel for ACP measurement to Root Nyquist.

  • Page 396: Sense]:Acpower:filter[:Rrc][:State]?

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:FILTer[:RRC][:STATe]? Adjacent Channel Power Offset Filter Type Query Function This command queries the filter type of the offset channel for Adjacent Channel Power measurement. Query [:SENSe]:ACPower:FILTer[:RRC][:STATe]? Response <switch> Parameter Filter type <switch> Rectangle filter, Nyquist filter Root Nyquist filter Example of Use To query the filter type for ACP measurement.

  • Page 397: Sense]:Acpower:offset[1]:Filter:type Rect|Nyquist|Rnyquist

    [:SENSe]:ACPower:OFFSet[1]:FILTer:TYPE RECT|NYQuist|RNYQuist Adjacent Channel Power Offset Filter Type Function This command queries filter type of the offset for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:OFFSet[1]:FILTer:TYPE <filter> Parameter Filter type <filter> Rectangle filter RECT Nyquist filter NYQuist Root Nyquist filter (Default) RNYQuist Example of Use To set filter type for ACP measurement to Nyquist.

  • Page 398: Sense]:Acpower:offset[1]:Filter:type?

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:OFFSet[1]:FILTer:TYPE? Adjacent Channel Power Offset Filter Type Query Function This command queries filter type of the offset for Adjacent Channel Power measurement. Query [:SENSe]:ACPower:OFFSet[1]:FILTer:TYPE? Response <filter> Parameter Filter type <filter> Rectangle filter RECT Nyquist filter Root Nyquist filter RNYQ Example of Use...

  • Page 399: Sense]:Acpower:advanced:offset:mode Normal|Advanced

    [:SENSe]:ACPower:ADVanced:OFFSet:MODE NORMal|ADVanced Adjacent Channel Power Offset Mode Function This command selects offset mode for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:ADVanced:OFFSet:MODE <mode> Parameter Offset mode <mode> Normal setting NORMal Advanced setting ADVanced Default NORMal Details This function can be set when the following trace is active. •...

  • Page 400: Sense]:Acpower:advanced:offset:mode?

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:ADVanced:OFFSet:MODE? Adjacent Channel Power Offset Mode Query Function This command queries offset mode for ACP measurement. Query [:SENSe]:ACPower:ADVanced:OFFSet:MODE? Response <mode> Parameter Offset mode <mode> Normal setting NORM Advanced setting Details This function can be set when the following trace is active. •...
  • Page 401 [:SENSe]:ACPower:ADVanced:OFFSet:BANDwidth[:INTegration] <bandwidth>,<bandwidth>,<bandwidth>,<bandwidth>,<bandwidth>,<bandwid th>,<bandwidth>,<bandwidth> Adjacent Channel Power Offset Channel Bandwidth Function This command sets offset channel bandwidth for Adjacent Channel Power measurement. Command :SENSe]:ACPower:ADVanced:OFFSet:BANDwidth[:INTegration] <bandwidth_1>,<bandwidth_2>,<bandwidth_3>,<bandwidth_4>, <bandwidth_5>,<bandwidth_6>,<bandwidth_7>,<bandwidth_8> Parameter Channel bandwidth of Offset_n <bandwidth_n> Range 1 Hz to 125 MHz Resolution 1 Hz Suffix code HZ, KHZ, KZ, MHZ, MZ, GHZ, GZ Hz is used when omitted.

  • Page 402: Sense]:Acpower:advanced:offset:bandwidth[:Integration]?

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:ADVanced:OFFSet:BANDwidth[:INTegration]? Adjacent Channel Power Offset Channel Bandwidth Query Function This command queries offset channel bandwidth for Adjacent Channel Power measurement. Query [:SENSe]:ACPower:ADVanced:OFFSet:BANDwidth[:INTegration] Response <bandwidth_1>,<bandwidth_2>,<bandwidth_3>,<bandwidth_4>, <bandwidth_5>,<bandwidth_6>,<bandwidth_7>,<bandwidth_8> Parameter Channel bandwidth of Offset_n <bandwidth_n> Range 1 Hz to 125 MHz Resolution 1 Hz Suffix code...

  • Page 403: On|Off|1|0,On|Off|1|0,On|Off|1|0,On|Off|1|0,On|Off|1|0,On|Off|1|0 On|Off|1|0,On|Off|1|0

    [:SENSe]:ACPower:ADVanced:OFFSet:LIST:STATe ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0 Adjacent Channel Power Offset Function This command sets the offset channel for Adjacent Channel Power measurement On/Off. Command [:SENSe]:ACPower:ADVanced:OFFSet:LIST:STATe <switch_1>,<switch_2>,<switch_3>,<switch_4>,<switch_5>,< switch_6>,<switch_7>,<switch_8> Parameter Measurement Channel n On/Off <switch_n> Measures offset channel n ON|1 Does not measure offset channel n OFF|0 Default switch_1...

  • Page 404: Sense]:Acpower:advanced:offset:list:state?

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:ADVanced:OFFSet:LIST:STATe? Adjacent Channel Power Offset Query Function This command queries the On/Off status of the offset channel for Adjacent Channel Power measurement. Query [:SENSe]:ACPower:ADVanced:OFFSet:LIST:STATe? Response <switch_1>,<switch_2>,<switch_3>,<switch_4>,<switch_5>,< switch_6>,<switch_7>,<switch_8> Parameter Measurement Channel n On/Off <switch_n> Measures offset channel n Does not measure offset channel n Details This function can be set when the following trace is active.
  • Page 405 [:SENSe]:ACPower:ADVanced:OFFSet:LIST[:FREQuency] <freq>,<freq>,<freq>,<freq>,<freq>,<freq>,<freq>,<freq> Adjacent Channel Power Offset Frequency Function This command sets the offset channel frequency for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:ADVanced:OFFSet:LIST[:FREQuency] <freq_1>,<freq_2>,<freq_3>,<freq_4>,<freq_5>,<freq_6>,<f req_7>,<freq_8> Parameter Offset channel n offset frequency <freq_n> Range –125 to 125 MHz Resolution 1 Hz Suffix code HZ, KHZ, KZ, MHZ, MZ, GHZ, GZ Hz is used when omitted.

  • Page 406: Sense]:Acpower:advanced:offset:list[:Frequency]?

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:ADVanced:OFFSet:LIST[:FREQuency]? Adjacent Channel Power Offset Frequency Query Function This command queries the offset frequency of the offset channel for Adjacent Channel Power measurement. Query [:SENSe]:ACPower:ADVanced:OFFSet:LIST[:FREQuency]? Response <freq_1>,<freq_2>,<freq_3>,<freq_4>,<freq_5>,<freq_6>,<f req_7>,<freq_8> Parameter Offset channel n offset frequency <freq_n>...

  • Page 407: Rect|Nyquist|Rnyquist,Rect|Nyquist|Rnyquist,Rect|Nyquist|Rnyquist Rect|Nyquist|Rnyquist,Rect|Nyquist|Rnyquist

    [:SENSe]:ACPower:ADVanced:OFFSet:FILTer:TYPE RECT|NYQuist|RNYQuist,RECT|NYQuist|RNYQuist,RECT|NYQuist|RNYQui st,RECT|NYQuist|RNYQuist,RECT|NYQuist|RNYQuist,RECT|NYQuist|RNYQ uist, RECT|NYQuist|RNYQuist,RECT|NYQuist|RNYQuist Adjacent Channel Power Offset Filter Type Function This command sets offset filter for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:ADVanced:OFFSet:FILTer:TYPE <mode_1>,<mode_2>,<mode_3>,<mode_4>,<mode_5>,<mode_6>,<m ode_7>,<mode_8> Parameter Filter type of Offset_n <mode_n> Rectangular filter RECT Nyquist filter NYQuist Root Nyquist filter (Default) RNYQuist Details This function can be set when the following trace is active.

  • Page 408: Sense]:Acpower:advanced:offset:filter:type?

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:ADVanced:OFFSet:FILTer:TYPE? Adjacent Channel Power Offset Filter Type Query Function This command queries the offset filter for ACP measurement. Query [:SENSe]:ACPower:ADVanced:OFFSet:FILTer:TYPE? Response <mode_1>,<mode_2>,<mode_3>,<mode_4>,<mode_5>,<mode_6>,<m ode_7>,<mode_8> Parameter Filter type <mode> Rectangular filter RECT Nyquist filter Root Nyquist filter RNYQ Details This function can be set when the following trace is active.

  • Page 409: Sense]:Acpower:advanced:filter[:Rrc]:Alpha

    [:SENSe]:ACPower:ADVanced:FILTer[:RRC]:ALPHa <real> Adjacent Channel Power Offset Rolloff Ratio Function This command sets the roll-off rate of the Adjacent Channel Power measurement offset channel filter. Command [:SENSe]:ACPower:ADVanced:FILTer[:RRC]:ALPHa <real_1>,<real_2>,<real_3>,<real_4>,<real_5>,<real_6>,<r eal_7>,<real_8> Parameter Offset_n filter roll-off rate <real_n> Range 0.01 to 1.00 Resolution 0.01 Suffix code None Details...

  • Page 410: Sense]:Acpower:advanced:filter[:Rrc]:Alpha?

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:ADVanced:FILTer[:RRC]:ALPHa? Adjacent Channel Power Offset Rolloff Ratio Query Function This command queries the roll-off rate of the Adjacent Channel Power measurement offset channel filter. Command [:SENSe]:ACPower:ADVanced:FILTer[:RRC]:ALPHa? Response <real_1>,<real_2>,<real_3>,<real_4>,<real_5>,<real_6>,<r eal_7>,<real_8> Parameter Offset_n filter roll-off rate <real_n>...

  • Page 411: Display:acpower:result:type Carrier|Offset|All

    :DISPlay:ACPower:RESult:TYPE CARRier|OFFSet|ALL Adjacent Channel Power Result Type Function This command switches the result display type for ACP measurement. Command :DISPlay:ACPower:RESult:TYPE <type> Parameter Result display type <type> Sets the result display for ACP measurement to CARRier Carrier Power. Sets the result display for ACP measurement to OFFSet Offset Channel Power.

  • Page 412: Display:acpower:result:type?

    Chapter 2 SCPI Device Message Details :DISPlay:ACPower:RESult:TYPE? Adjacent Channel Power Result Type Query Function This command queries the type of the result display for Adjacent Channel Power measurement. Command :DISPlay:ACPower:RESult:TYPE? Response <type> Parameter Result display type <type> Sets the result display for ACP measurement CARR Carrier Power.

  • Page 413: Sense]:Acpower:carrier[1]:List:filter:alpha

    [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa <real> Adjacent Channel Power Rolloff Ratio Function This command sets the rolloff ratio of the filter of the reference channel for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa <real> Parameter Filter rolloff ratio <real> Range 0.01 to 1.00 Resolution 0.01 Suffix code None Default...

  • Page 414: Calculate:acpower:carrier[1]:List:filter:alpha

    Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CARRier[1]:LIST:FILTer:ALPHa <real> Adjacent Channel Power Rolloff Ratio Function This command sets the rolloff ratio of the filter of the reference channel for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa. Related command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa 2-404...

  • Page 415: Sense]:Acpower:carrier[1]:List:filter:alpha?

    [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa? Adjacent Channel Power Rolloff Ratio Query Function This command sets the rolloff ratio of the filter of the reference channel for Adjacent Channel Power measurement. Query [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa? Response <real> Parameter Filter rolloff ratio <real> Range 0.01 to 1.00 Resolution 0.01 Suffix code None...

  • Page 416: Calculate:acpower:carrier[1]:List:filter:alpha?

    Chapter 2 SCPI Device Message Details :CALCulate:ACPower:CARRier[1]:LIST:FILTer:ALPHa? Adjacent Channel Power Rolloff Ratio Query Function This command sets the rolloff ratio of the filter of the reference channel for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa?. Related command This command has the same function as the following command. [:SENSe]:ACPower:CARRier[1]:LIST:FILTer:ALPHa? 2-406...

  • Page 417: Sense]:Acpower:filter[:Rrc]:Alpha

    [:SENSe]:ACPower:FILTer[:RRC]:ALPHa <real> Adjacent Channel Power Offset Rolloff Ratio Function This command sets the rolloff ratio of the filter of the offset channel for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:FILTer[:RRC]:ALPHa <real> Parameter Filter rolloff ratio <real> Range 0.01 to 1.00 Resolution 0.01 Suffix code None...

  • Page 418: Sense]:Acpower:filter[:Rrc]:Alpha?

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:FILTer[:RRC]:ALPHa? Adjacent Channel Power Offset Rolloff Ratio Query Function This command sets the rolloff ratio of the filter of the offset channel for Adjacent Channel Power measurement. Command [:SENSe]:ACPower:FILTer[:RRC]:ALPHa? Response <real> Parameter Filter rolloff ratio <real>...

  • Page 419: Calculate:acpower:filter[:Rrc]:Alpha?

    :CALCulate:ACPower:FILTer[:RRC]:ALPHa? Adjacent Channel Power Offset Rolloff Ratio Query Function This command queries the rolloff ratio of the filter of the offset channel for Adjacent Channel Power measurement. Refer to [:SENSe]:ACPower:FILTer[:RRC]:ALPHa?. Related command This command has the same function as the following command. [:SENSe]:ACPower:FILTer[:RRC]:ALPHa? :CONFigure:ACP Adjacent Channel Power Configure...

  • Page 420: Initiate:acp

    Chapter 2 SCPI Device Message Details :INITiate:ACP Adjacent Channel Power Initiate Function This command starts Adjacent Channel Power measurement. Command :INITiate:ACP Details ACP measurement is set to On and the measurement starts, when this function is executed. To read out the measurement results after executing this command, perform the synchronization control using the “*WAI”...

  • Page 421: Fetch:acp[N]?

    :FETCh:ACP[n]? Adjacent Channel Power Read Fetch Function This command outputs the measurement result for Adjacent Channel Power measurement. Query :FETCh:ACP[n]? Response When the result mode is “A”: When Offset Setup Mode is Normal When ACP measurement (ACP Result Type is OFFSet) Two values of ref_carrier_a is output when ACP Reference is BSIDes.
  • Page 422 Chapter 2 SCPI Device Message Details When Offset Setup Mode is Advanced In ACP measurement (when ACP Result Type is OFFSet) Two values of ref_carrier_a are output when ACP Reference is BSIDes. <ref_carrier_a>(,<ref_carrier_a>), <lower_offset_1_rel>,<lower_offset_1_abs>, <upper_offset_1_rel>,<upper_offset_1_abs>, <lower_offset_2_rel>,<lower_offset_2_abs>, <upper_offset_2_rel>,<upper_offset_2_abs>, <lower_offset_3_rel>,<lower_offset_3_abs>, <upper_offset_3_rel>,<upper_offset_3_abs>, <lower_offset_4_rel>,<lower_offset_4_abs>, <upper_offset_4_rel>,<upper_offset_4_abs>, <lower_offset_5_rel>,<lower_offset_5_abs>, <upper_offset_5_rel>,<upper_offset_5_abs>,...
  • Page 423 In ACP measurement (when ACP Result Type is ALL) Two values of ref_carrier_a are output when ACP Reference is BSIDes. <integration_abs>,<total_carrier_a>, <power_1>,<power_2>,<power_3>,<power_4>, <power_5>,<power_6>,<power_7>,<power_8>, <power_9>,<power_10>,<power_11>,<power_12>, <ref_carrier_a>(,<ref_carrier_a>), <lower_offset_1_rel>,<lower_offset_1_abs>, <upper_offset_1_rel>,<upper_offset_1_abs>, <lower_offset_2_rel>,<lower_offset_2_abs>, <upper_offset_2_rel>,<upper_offset_2_abs>, <lower_offset_3_rel>,<lower_offset_3_abs>, <upper_offset_3_rel>,<upper_offset_3_abs>, <lower_offset_4_rel>,<lower_offset_4_abs>, <upper_offset_4_rel>,<upper_offset_4_abs>, <lower_offset_5_rel>,<lower_offset_5_abs>, <upper_offset_5_rel>,<upper_offset_5_abs>, <lower_offset_6_rel>,<lower_offset_6_abs>, <upper_offset_6_rel>,<upper_offset_6_abs>, <lower_offset_7_rel>,<lower_offset_7_abs>, <upper_offset_7_rel>,<upper_offset_7_abs>, <lower_offset_8_rel>,<lower_offset_8_abs>, <upper_offset_8_rel>,<upper_offset_8_abs>...
  • Page 424 Chapter 2 SCPI Device Message Details <upper_offset_1_rel>,<upper_offset_1_abs>, <lower_offset_2_rel>,<lower_offset_2_abs>, <upper_offset_2_rel>,<upper_offset_2_abs>, <lower_offset_3_rel>,<lower_offset_3_abs>, <upper_offset_3_rel>,<upper_offset_3_abs> (n = 1 or when omitted, and when ACP Reference is Both Sides of Carriers) <channel_1_rel>,<channel_1_abs>, <channel_2_rel>,<channel_2_abs>, ..<channel_12_rel>,<channel_12_abs>, <lower_offset_1_rel>,<lower_offset_1_abs>, <upper_offset_1_rel>,<upper_offset_1_abs>, <lower_offset_2_rel>,<lower_offset_2_abs>, <upper_offset_2_rel>,<upper_offset_2_abs>, <lower_offset_3_rel>,<lower_offset_3_abs>, <upper_offset_3_rel>,<upper_offset_3_abs> (in n=2) When Offset Setup Mode is Advanced When Carrier Number = 1 AND only Offset-1 = On <ref_carrier_b>,<lower_offset_1_rel>, <upper_offset_1_rel>...
  • Page 425 0.0,<total_carrier_b>, <ref_carrier_lower>,<ref_carrier_upper>, <lower_offset_1_rel>,<lower_offset_1_abs>, <upper_offset_1_rel>,<upper_offset_1_abs>, <lower_offset_2_rel>,<lower_offset_2_abs>, <upper_offset_2_rel>,<upper_offset_2_abs>, <lower_offset_3_rel>,<lower_offset_3_abs>, <upper_offset_3_rel>,<upper_offset_3_abs>, <lower_offset_4_rel>,<lower_offset_4_abs>, <upper_offset_4_rel>,<upper_offset_4_abs>, <lower_offset_5_rel>,<lower_offset_5_abs>, <upper_offset_5_rel>,<upper_offset_5_abs>, <lower_offset_6_rel>,<lower_offset_6_abs>, <upper_offset_6_rel>,<upper_offset_6_abs>, <lower_offset_7_rel>,<lower_offset_7_abs>, <upper_offset_7_rel>,<upper_offset_7_abs>, <lower_offset_8_rel>,<lower_offset_8_abs>, <upper_offset_8_rel>,<upper_offset_8_abs> (n=1 or when omitted, and when ACP Reference is Both Sides of Carriers) <channel_1_rel>,<channel_1_abs>, <channel_2_rel>,<channel_2_abs>, ..<channel_12_rel>,<channel_12_abs>, <lower_offset_1_rel>,<lower_offset_1_abs>, <upper_offset_1_rel>,<upper_offset_1_abs>, <lower_offset_2_rel>,<lower_offset_2_abs>, <upper_offset_2_rel>,<upper_offset_2_abs>, <lower_offset_3_rel>,<lower_offset_3_abs>, <upper_offset_3_rel>,<upper_offset_3_abs>, <lower_offset_4_rel>,<lower_offset_4_abs>, <upper_offset_4_rel>,<upper_offset_4_abs>,...
  • Page 426 Chapter 2 SCPI Device Message Details Parameter Relative power of the lower Offset-n <lower_offset_n_rel> Relative power of the upper Offset-n <upper_offset_n_rel> No suffix code, dB units, 0.01 dB resolution –999.0 is returned when an error occurs/no measurement is performed. Power of the reference carrier <ref_carrier_b>...

  • Page 427: Read:acp[N]?

    :READ:ACP[n]? Adjacent Channel Power Read Function This command performs the Adjacent Channel Power measurement and outputs the measurement result. It achieves the same result as when commands are sent in the order of :INITiate:ACP :*WAI :FETCh:ACP[n]? :MEASure:ACP[n]? Adjacent Channel Power Measure Function This command performs the measurement of Adjacent Channel Power measurement and outputs the measurement result.

  • Page 428: Calculate:acpower:marker[1]|2|3|4|5|6|7|8|9|10:Maximum

    Chapter 2 SCPI Device Message Details :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum Peak Search Function This command searches for the maximum level point of the active trace and moves the marker point. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum...

  • Page 429: Calculate:acpower:marker[1]|2|3|4|5|6|7|8|9|10:Maximum:power

    :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:POWer Power Peak Search Function This command moves the active marker to the position with peak total power in the active marker zone in the measurement band. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:POWer Related command This command has the same function as the following command. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:POWer :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum: POWer...

  • Page 430: Calculate:acpower:marker[1]|2|3|4|5|6|7|8|9|10:Minimum

    Chapter 2 SCPI Device Message Details :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum Minimum Search Function This command searches for the minimum level point of the active trace and moves the marker point to that point. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum Related Command This command has the same function as the following command. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum...

  • Page 431: Calculate:acpower:marker[1]|2|3|4|5|6|7|8|9|10:Mode Normal|Position|Delta Fixed|Off

    :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE NORMal|POSition|DELTa|FIXed|OFF Marker Mode Function This command sets the marker mode. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: MODE :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE? Marker Mode Query Function This command queries the marker mode. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE?.
  • Page 432 Chapter 2 SCPI Device Message Details :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X <freq>|<time> Zone Marker Frequency (Time) Function This command moves the center of the zone marker to the specified frequency or time. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:X...

  • Page 433: Calculate:acpower:marker[1]|2|3|4|5|6|7|8|9|10:X:position

    :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition <integer> Zone Marker Position Function This command moves the center of the zone marker to the specified position. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSiti :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSiti :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: X:POSition :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSit :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition? Zone Marker Position Query Function...

  • Page 434: Calculate:acpower:marker[1]|2|3|4|5|6|7|8|9|10:Y?

    Chapter 2 SCPI Device Message Details :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? Marker Level Query Function This command queries the level at the marker point. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y?. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y? :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :DISPlay:ACPower:ANNotation:TITLe:DATA <string>...

  • Page 435: Display:acpower:annotation:title:data?

    :DISPlay:ACPower:ANNotation:TITLe:DATA? Title Entry Query Function This command queries the title character string. Refer to :DISPlay:ANNotation:TITLe:DATA?. Related command This command has the same function as the following commands. :DISPlay:ANNotation:TITLe:DATA? :DISPlay:CHPower:ANNotation:TITLe:DATA? :DISPlay:OBWidth:ANNotation:TITLe:DATA? :DISPlay:SEMask:ANNotation:TITLe:DATA? :DISPlay:BPOWer|:TXPower:ANNotation:TITLe:DATA? :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision <rel_ampl> Log Scale Range Function This command sets the Y-axis scale magnification when Scale Mode is set to Log.

  • Page 436: Display:acpower:view[1]:Window[1]:Trace:y[:Scale]:Pdivision?

    Chapter 2 SCPI Device Message Details :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision? Log Scale Range Query Function This command queries the Y-axis scale magnification when Scale Mode is set to Log. Refer to :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:[LOGarithmic]:PDIVisi on?. Related command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:[LOGarithmic]:PDIVisi :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVi sion?

  • Page 437: Display:acpower:view[1]:Window[1]:Trace:y[:Scale]:Rlevel

    :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real> Reference Level Function This command sets the reference level. Refer to :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel. Related command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:SEMask:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel :DISPlay:BPOWer|:TXPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCAL e]:RLEVel :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? Reference Level Query Function This command queries the reference level. Refer to :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel?.

  • Page 438: Trigger:acpower[:Sequence]:Source External[1]|Immediate|Wif|Rfburst|Video|Sg|Bbif|Frame

    Chapter 2 SCPI Device Message Details :TRIGger:ACPower[:SEQuence]:SOURce EXTernal[1]|IMMediate|WIF|RFBurst|VIDeo|SG|BBIF|FRAMe Trigger Source Function This command selects the trigger source. Refer to :TRIGger[:SEQuence]:SOURce. Related command This command has the same function as the following commands. :TRIGger[:SEQuence]:SOURce :TRIGger:CHPower[:SEQuence]:SOURce :TRIGger:OBWidth[:SEQuence]:SOURce :TRIGger:SEMask[:SEQuence]:SOURce :TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce :TRIGger:ACPower[:SEQuence]:SOURce? Trigger Source Query Function This command queries the trigger source.

  • Page 439: Sense]:Acpower:average:count

    [:SENSe]:ACPower:AVERage:COUNt <integer> Average Count Function This command sets the storage count. Refer to [:SENSe]:AVERage:COUNt. Related command This command has the same function as the following commands. [:SENSe]:AVERage:COUNt [:SENSe]:CHPower:AVERage:COUNt [:SENSe]:OBWidth:AVERage:COUNt [:SENSe]:SEMask:AVERage:COUNt [:SENSe]:BPOWer|:TXPower:AVERage:COUNt [:SENSe]:ACPower:AVERage:COUNt? Average Count Query Function This command queries the storage count. Refer to [:SENSe]:AVERage:COUNt?.

  • Page 440: Sense]:Acpower:average[:State] On|Off|1|0

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:AVERage[:STATe] ON|OFF|1|0 Storage Mode Function This command sets the storage mode for Trace A. Refer to :TRACe[1]|2|3|4|5|6:STORage:MODE. Related command This command has the same function as the following commands. :TRACe[1]|2|3|4|5|6:STORage:MODE [:SENSe]:CHPower:AVERage[:STATe] [:SENSe]:OBWidth:AVERage[:STATe] [:SENSe]:SEMask:AVERage[:STATe] [:SENSe]:BPOWer|:TXPower:AVERage[:STATe] [:SENSe]:SPURious:AVERage[:STATe] [:SENSe]:ACPower:AVERage[:STATe]? Storage Mode Query...

  • Page 441: Sense]:Acpower:bandwidth[:Resolution]

    [:SENSe]:ACPower:BANDwidth[:RESolution] <freq> Resolution Bandwidth Function This command sets the resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]. Related command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution] [:SENSe]:CHPower:BANDwidth[:RESolution] [:SENSe]:OBWidth:BANDwidth[:RESolution] [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution] :CALCulate:BANDwidth|:BWIDth[:RESolution] :CALCulate:ACPower:BANDwidth[:RESolution] :CALCulate:CHPower:BANDwidth[:RESolution] :CALCulate:OBWidth:BANDwidth[:RESolution] :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution] :CALCulate:ACPower:BANDwidth[:RESolution] <freq> Resolution Bandwidth Function This command sets the resolution bandwidth (RBW).

  • Page 442: Sense]:Acpower:bandwidth[:Resolution]?

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:BANDwidth[:RESolution]? Resolution Bandwidth Query Function This command queries the resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]?. Related command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution]? [:SENSe]:CHPower:BANDwidth[:RESolution]? [:SENSe]:OBWidth:BANDwidth[:RESolution]? [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]? :CALCulate:BANDwidth|:BWIDth[:RESolution]? :CALCulate:ACPower:BANDwidth|:BWIDth[:RESolution]? :CALCulate:CHPower:BANDwidth[:RESolution]? :CALCulate:OBWidth:BANDwidth[:RESolution]? :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution]? :CALCulate:ACPower:BANDwidth[:RESolution]?

  • Page 443: Sense]:Acpower:bandwidth[:Resolution]:Auto On|Off|1|0

    [:SENSe]:ACPower:BANDwidth[:RESolution]:AUTO ON|OFF|1|0 Resolution Bandwidth Auto/Manual Function This command enables/disables the automatic resolution bandwidth (RBW) setting function. Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO. Related command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO [:SENSe]:CHPower:BANDwidth[:RESolution]:AUTO [:SENSe]:OBWidth:BANDwidth[:RESolution]:AUTO :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO :CALCulate:ACPower:BANDwidth[:RESolution]:AUTO :CALCulate:CHPower:BANDwidth[:RESolution]:AUTO :CALCulate:OBWidth:BANDwidth[:RESolution]:AUTO :CALCulate:ACPower:BANDwidth[:RESolution]:AUTO ON|OFF|1|0 Resolution Bandwidth Auto/Manual Function This command sets the resolution bandwidth (RBW) automatically.

  • Page 444: Sense]:Acpower:bandwidth[:Resolution]:Auto?

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:BANDwidth[:RESolution]:AUTO? Resolution Bandwidth Auto/Manual Query Function This command queries whether the automatic setting of the resolution bandwidth (RBW) is on or off. Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO?. Related command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth [:RESolution]:AUTO? [:SENSe]:ACPower:BANDwidth[:RESolution]:AUTO? [:SENSe]:CHPower:BANDwidth[:RESolution]:AUTO?

  • Page 445: Sense]:Acpower:bandwidth[:Resolution]:Mode Normal|Cispr

    [:SENSe]:ACPower:BANDwidth[:RESolution]:MODE NORMal|CISPr Resolution Bandwidth Normal/CISPR Function This command switches the Resolution Bandwidth mode. For details, refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:MODE. Related Command This command has the same function as the following commands. [:SENSe]:ACPower:BANDwidth[:RESolution]:MODE [:SENSe]:CHPower:BANDwidth[:RESolution]:MODE [:SENSe]:OBWidth:BANDwidth[:RESolution]:MODE [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]:MODE :CALCulate:BANDwidth|:BWIDth[:RESolution]:MODE :CALCulate:ACPower:BANDwidth[:RESolution]:MODE :CALCulate:CHPower:BANDwidth[:RESolution]:MODE :CALCulate:OBWidth:BANDwidth[:RESolution]:MODE :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution]:MODE :CALCulate:ACPower:BANDwidth[:RESolution]:MODE NORMal|CISPr Resolution Bandwidth Normal/CISPR Function This command switches the Resolution Bandwidth mode.

  • Page 446: Sense]:Acpower:bandwidth[:Resolution]:Mode?

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:BANDwidth[:RESolution]:MODE? Resolution Bandwidth Normal/CISPR Query Function This command queries the Resolution Bandwidth mode. For details, refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:MODE?. Related Command This command has the same function as the following commands. [:SENSe]:ACPower:BANDwidth[:RESolution]:MODE? [:SENSe]:CHPower:BANDwidth[:RESolution]:MODE? [:SENSe]:OBWidth:BANDwidth[:RESolution]:MODE? [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]:MODE? :CALCulate:BANDwidth|:BWIDth[:RESolution]:MODE? :CALCulate:ACPower:BANDwidth[:RESolution]:MODE? :CALCulate:CHPower:BANDwidth[:RESolution]:MODE?

  • Page 447: Sense]:Acpower:bandwidth:video

    [:SENSe]:ACPower:BANDwidth:VIDeo <freq> Video Bandwidth Function This command sets the video bandwidth (VBW). Refer to [:SENSe]:BANDwidth|:BWIDth:VIDeo. Related command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth:VIDeo [:SENSe]:CHPower:BANDwidth:VIDeo [:SENSe]:OBWidth:BANDwidth:VIDeo [:SENSe]:ACPower:BANDwidth:VIDeo? Video Bandwidth Query Function This command queries the video bandwidth (VBW). Refer to [:SENSe]:BANDwidth|:BWIDth:VIDeo?.

  • Page 448: Sense]:Acpower:bandwidth:video:auto Off|On|0|1

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:BANDwidth:VIDeo:AUTO OFF|ON|0|1 Video Bandwidth Auto/Manual Function This command sets the video bandwidth (VBW) automatically. Refer to [:SENSe]:BANDwidth|:BWIDth:VIDeo:AUTO. Related command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth:VIDeo:AUTO [:SENSe]:CHPower:BANDwidth:VIDeo:AUTO [:SENSe]:OBWidth:BANDwidth:VIDeo:AUTO [:SENSe]:ACPower:BANDwidth:VIDeo:AUTO? Video Bandwidth Auto/Manual Query Function This command queries the On/Off state of the automatic video bandwidth (VBW) setting.

  • Page 449: Sense]:Acpower:detector[:Function Normal|Positive|Sample|Negative|Rms|Qpeak|Caverage|Crms

    [:SENSe]:ACPower:DETector[:FUNCtion] NORMal|POSitive|SAMPle|NEGative|RMS|QPEak|CAVerage|CRMS Detection Mode Function This command selects the detection mode for the waveform pattern. Refer to [:SENSe]:DETector[:FUNCtion]. Related command This command has the same function as the following commands. [:SENSe]:DETector[:FUNCtion] [:SENSe]:CHPower:DETector[:FUNCtion] [:SENSe]:OBWidth:DETector[:FUNCtion] :CALCulate:DETector[:FUNCtion] :CALCulate:ACPower:DETector[:FUNCtion] :CALCulate:CHPower:DETector[:FUNCtion] :CALCulate:OBWidth:DETector[:FUNCtion] :CALCulate:ACPower:DETector[:FUNCtion] NORMal|POSitive|SAMPle|NEGative|RMS|QPEak|CAVerage|CRMS Detection Mode Function This command selects the detection mode for the waveform pattern.

  • Page 450: Sense]:Acpower:detector[:Function]?

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:DETector[:FUNCtion]? Detection Mode Query Function This command queries the detection mode for the waveform pattern. Refer to [:SENSe]:DETector[:FUNCtion]?. Related command This command has the same function as the following commands. [:SENSe]:DETector[:FUNCtion]? [:SENSe]:CHPower:DETector[:FUNCtion]? [:SENSe]:OBWidth:DETector[:FUNCtion]? :CALCulate:DETector[:FUNCtion]? :CALCulate:ACPower:DETector[:FUNCtion]? :CALCulate:CHPower:DETector[:FUNCtion]? :CALCulate:OBWidth:DETector[:FUNCtion]?

  • Page 451: Sense]:Acpower:frequency:span

    [:SENSe]:ACPower:FREQuency:SPAN <freq> Frequency Span Function This command sets the frequency span. Refer to [:SENSe]:FREQuency:SPAN. Related command This command has the same function as the following commands. [:SENSe]:FREQuency:SPAN [:SENSe]:CHPower:FREQuency:SPAN [:SENSe]:OBWidth:FREQuency:SPAN [:SENSe]:ACPower:FREQuency:SPAN? Frequency Span Query Function This command queries the frequency span. Refer to [:SENSe]:FREQuency:SPAN?.

  • Page 452: Sense]:Acpower:sweep:points

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:SWEep:POINts <integer> Trace Point Function This command sets the number of the trace display points. Refer to [:SENSe]:SWEep:POINts. Related command This command has the same function as the following commands. [:SENSe]:SWEep:POINts [:SENSe]:CHPower:SWEep:POINts [:SENSe]:OBWidth:SWEep:POINts [:SENSe]:ACPower:SWEep:POINts? Trace Point Query Function This command queries the number of the trace display points.

  • Page 453: Sense]:Acpower:sweep:time

    [:SENSe]:ACPower:SWEep:TIME <time> Sweep Time Function This command sets the sweep time. Refer to [:SENSe]:SWEep:TIME. Related command This command has the same function as the following commands. [:SENSe]:SWEep:TIME [:SENSe]:CHPower:SWEep:TIME [:SENSe]:OBWidth:SWEep:TIME [:SENSe]:BPOWer|:TXPower:SWEep:TIME [:SENSe]:ACPower:SWEep:TIME? Sweep Time Query Function This command queries the sweep time. Refer to [:SENSe]:SWEep:TIME?.

  • Page 454: Sense]:Acpower:sweep:time:auto Off|On|0|1

    Chapter 2 SCPI Device Message Details [:SENSe]:ACPower:SWEep:TIME:AUTO OFF|ON|0|1 Sweep Time Auto/Manual Function This command enables/disables the automatic sweep time setting function. Refer to [:SENSe]:SWEep:TIME:AUTO. Related command This command has the same function as the following commands. [:SENSe]:SWEep:TIME:AUTO [:SENSe]:CHPower:SWEep:TIME:AUTO [:SENSe]:OBWidth:SWEep:TIME:AUTO [:SENSe]:ACPower:SWEep:TIME:AUTO? Sweep Time Auto/Manual Query Function This command queries the On/Off state of the automatic sweep time.

  • Page 455: Calculate:acpower:marker[1]|2|3|4|5|6|7|8|9|10:Reference

    :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence <integer> Relative To Function This command sets the reference marker when the marker mode is set to Delta. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence <integer> Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: REFerence :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence? Relative To Function...

  • Page 456: Burst Average Power

    Chapter 2 SCPI Device Message Details 2.10 Burst Average Power Table 2.10-1 lists device messages for Burst Average Power measurement. Table 2.10-1 Device messages for Burst Average Power measurement Function Device Message [:SENSe]:BPOWer|:TXPower[:STATe] ON|OFF|1|0 [:SENSe]:BPOWer|:TXPower[:STATe]? Measure Burst Average Power :CALCulate:BPOWer|:TXPower[:STATe] ON|OFF|1|0 :CALCulate:BPOWer|:TXPower[:STATe]? [:SENSe]:BPOWer|:TXPower:CORRection:NOISe[:AUTO] ON|OFF|1|0 [:SENSe]:BPOWer|:TXPower:CORRection:NOISe[:AUTO]?
  • Page 457 2.10 Burst Average Power Table 2.10-1 Device messages for Burst Average Power measurement (Cont’d) Function Device Message :TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce EXTernal[1]|IMMediate|WIF|RFBurst|VIDeo|SG|BBIF|FRAMe Trigger Source :TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce? [:SENSe]:BPOWer|:TXPower:AVERage:COUNt <integer> Average Count [:SENSe]:BPOWer|:TXPower:AVERage:COUNt? [:SENSe]:BPOWer|:TXPower:AVERage[:STATe] ON|OFF|1|0 Storage Mode [:SENSe]:BPOWer|:TXPower:AVERage[:STATe]? [:SENSe]:BPOWer|:TXPower:SWEep:TIME <time> Sweep Time [:SENSe]:BPOWer|:TXPower:SWEep:TIME? :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE NORMal|POSition|DELTa|FIXed|OFF Marker Mode :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE? :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X Zone Marker...

  • Page 458: Sense]:Bpower|:Txpower[:State] On|Off|1|0

    Chapter 2 SCPI Device Message Details [:SENSe]:BPOWer|:TXPower[:STATe] ON|OFF|1|0 Measure Burst Average Power Function This command executes Burst Average Power measurement. Command [:SENSe]:BPOWer|:TXPower[:STATe] <switch> Parameter Burst Average Power measurement On/Off <switch> Sets Burst Average Power measurement On. ON|1 Sets Burst Average Power measurement Off. OFF|0 Example of Use To set Burst Average Power measurement On.

  • Page 459: Sense]:Bpower|:Txpower[:State]?

    2.10 Burst Average Power [:SENSe]:BPOWer|:TXPower[:STATe]? Measure Burst Average Power Query Function This command queries the On/Off state of the Burst Average Power measurement. Query [:SENSe]:BPOWer|:TXPower[:STATe]? Response <switch> Parameter Burst Average Power measurement On/Off <switch> Example of Use To query the On/Off state of the Burst Average Power measurement. BPOW? >...

  • Page 460: Sense]:Bpower|:Txpower:correction:noise[:Auto] On|Off|1|0

    Chapter 2 SCPI Device Message Details [:SENSe]:BPOWer|:TXPower:CORRection:NOISe[:AUTO] ON|OFF|1|0 Noise Cancel Function This command enables/disables the noise canceling function. Command [:SENSe]:BPOWer|:TXPower:CORRection:NOISe[:AUTO] <switch> Parameter Noise canceling function On/Off <switch> Enables the noise canceling function. ON|1 Disables the noise canceling function. OFF|0 Details This command is fixed to Off and cannot be set in the following cases: •...

  • Page 461: Calculate:bpower|:Txpower:correction:noise[:Auto] On|Off|1|0

    2.10 Burst Average Power :CALCulate:BPOWer|:TXPower:CORRection:NOISe[:AUTO] ON|OFF|1|0 Noise Cancel Function This command sets whether to enable the noise canceling function. Refer to [:SENSe]:BPOWer|:TXPower:CORRection:NOISe[:AUTO]. Related command This command has the same function as the following command. [:SENSe]:BPOWer|:TXPower:CORRection:NOISe[:AUTO] [:SENSe]:BPOWer|:TXPower:CORRection:NOISe[:AUTO]? Noise Cancel Query Function This command queries the On/Off state of the noise canceling function.

  • Page 462: Calculate:bpower|:Txpower:correction:noise[:Auto]?

    Chapter 2 SCPI Device Message Details Example of Use To query the noise canceling function On/Off state. BPOW:CORR:NOIS? > 0 Related command This command has the same function as the following command. :CALCulate:BPOWer|:TXPower:CORRection:NOISe[:AUTO]? :CALCulate:BPOWer|:TXPower:CORRection:NOISe[:AUTO]? Noise Cancel Query Function This command queries the setting of the noise canceling function. Refer to [:SENSe]:BPOWer|:TXPower:CORRection:NOISe[:AUTO]?.

  • Page 463: Sense]:Bpower|:Txpower:burst:start

    2.10 Burst Average Power [:SENSe]:BPOWer|:TXPower:BURSt:STARt <time> Burst Average Power Start Time Function This command specifies the start position (time) for Burst Average Power measurement. Command [:SENSe]:BPOWer|:TXPower:BURSt:STARt <time> Parameter Start position (time) <time> Range Within the frequency range of trace display Resolution Formula for calculating the resolution is: Sweep Time / (Trace Point –...

  • Page 464: Sense]:Bpower|:Txpower:burst:start?

    Chapter 2 SCPI Device Message Details [:SENSe]:BPOWer|:TXPower:BURSt:STARt? Burst Average Power Start Time Query Function This command queries the start position (time) for Burst Average Power measurement. Query [:SENSe]:BPOWer|:TXPower:BURSt:STARt? Response <time> Parameter Start position (time) <time> Range Within the frequency range of trace display Resolution Formula for calculating the resolution is: Sweep Time / (Trace Point –...

  • Page 465: Sense]:Bpower|:Txpower:burst:stop

    2.10 Burst Average Power [:SENSe]:BPOWer|:TXPower:BURSt:STOP <time> Burst Average Power Stop Time Function This command specifies the stop position (time) for Burst Average Power measurement. Command [:SENSe]:BPOWer|:TXPower:BURSt:STOP <time> Parameter Start position (time) <time> Range Within the frequency range of trace display Resolution Formula for calculating the resolution is: Sweep Time / (Trace Point –...

  • Page 466: Sense]:Bpower|:Txpower:burst:stop?

    Chapter 2 SCPI Device Message Details [:SENSe]:BPOWer|:TXPower:BURSt:STOP? Burst Average Power Stop Time Query Function This command queries the stop position (time) for Burst Average Power measurement. Query [:SENSe]:BPOWer|:TXPower:BURSt:STOP? Response <time> Parameter Stop position (time) <time> Range Within the frequency range of trace display Resolution Formula for calculating the resolution is: Sweep Time / (Trace Point –...

  • Page 467: Configure:bpower|:Txpower

    2.10 Burst Average Power :CONFigure:BPOWer|:TXPower Burst Average Power Configure Function This command sets Burst Average Power measurement to On. Command :CONFigure:BPOWer|:TXPower Details No measurement is executed. Example of Use To set Burst Average Power measurement to On. CONF:BPOW :INITiate:BPOWer|:TXPower Burst Average Power Initiate Function This command starts Burst Average Power measurement.

  • Page 468: Fetch:bpower|:Txpower[N]?

    Chapter 2 SCPI Device Message Details :FETCh:BPOWer|:TXPower[n]? Burst Average Power Fetch Function This command outputs the measurement result for Burst Average Power measurement. Query :FETCh:BPOWer|:TXPower[n]? Response When the result mode is “A”. (n=1 or when omitted) <power> When the result mode is “B”. <sweep_time>,<power>,<power>,<trace_point>, -999.0,-999.0,-999.0,-999.9, <burst_time>,-999.0...

  • Page 469: Read:bpower|:Txpower[N]?

    2.10 Burst Average Power Details This function outputs the measurement result of the Burst Average Power measurement last performed. It outputs the measurement result in a state that the measurement has already been done, or in a different style. You can use READ command if you perform a measurement along with starting a sweep again.

  • Page 470: Sense]:Bpower|:Txpower:burst:width

    Chapter 2 SCPI Device Message Details [:SENSe]:BPOWer|:TXPower:BURSt:WIDTh <time> Burst Average Power Width Function This command sets the measurement width of the burst for Burst Average Power measurement. Command [:SENSe]:BPOWer|:TXPower:BURSt:WIDTh <time> Parameter Measurement width (time) <time> Range Within the frequency range of trace display Suffix code NS,US,MS,KS,S S is used when omitted.

  • Page 471: Display:bpower|:Txpower:annotation:title:data

    2.10 Burst Average Power :DISPlay:BPOWer|:TXPower:ANNotation:TITLe:DATA <string> Title Entry Function This command registers the title character string. Refer to :DISPlay:ANNotation:TITLe:DATA. Related command This command has the same function as the following commands. :DISPlay:ANNotation:TITLe:DATA :DISPlay:ACPower:ANNotation:TITLe:DATA :DISPlay:CHPower:ANNotation:TITLe:DATA :DISPlay:OBWidth:ANNotation:TITLe:DATA :DISPlay:SEMask:ANNotation:TITLe:DATA :DISPlay:BPOWer|:TXPower:ANNotation:TITLe:DATA? Title Entry Query Function This command queries the title character string.

  • Page 472: Display:bpower|:Txpower:view[1]:Window[1]:Trace:y[:Scale]:Pdivision Rel_Ampl>

    Chapter 2 SCPI Device Message Details :DISPlay:BPOWer|:TXPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVisi on <rel_ampl> Log Scale Range Function This command sets the Y-axis scale magnification when Scale Mode is set to Log. Refer to :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:[LOGarithmic]:PDIVisi Related command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:[LOGarithmic]:PDIVisi :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVi sion...

  • Page 473: Display:bpower|:Txpower:view[1]:Window[1]:Trace:y[:Scale]:Rlevel

    2.10 Burst Average Power :DISPlay:BPOWer|:TXPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real> Reference Level Function This command sets the reference level. Refer to :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel. Related command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:SEMask:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel :DISPlay:BPOWer|:TXPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel Reference Level Query Function This command queries the reference level. Refer to :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel?.

  • Page 474: Trigger:bpower|:Txpower[:Sequence]:Source External[1]|Immediate|Wif|Rfburst|Video|Sg|Bbif|Frame

    Chapter 2 SCPI Device Message Details :TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce EXTernal[1]|IMMediate|WIF|RFBurst|VIDeo|SG|BBIF|FRAMe Trigger Source Function This command selects the trigger source. Refer to :TRIGger[:SEQuence]:SOURce. Related command This command has the same function as the following commands. :TRIGger[:SEQuence]:SOURce :TRIGger:ACPower[:SEQuence]:SOURce :TRIGger:CHPower[:SEQuence]:SOURce :TRIGger:OBWidth[:SEQuence]:SOURce :TRIGger:SEMask[:SEQuence]:SOURce :TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce? Trigger Source Query Function This command queries the trigger source.

  • Page 475: Sense]:Bpower|:Txpower:average:count

    2.10 Burst Average Power [:SENSe]:BPOWer|:TXPower:AVERage:COUNt <integer> Average Count Function This command sets the storage count. Refer to [:SENSe]:AVERage:COUNt. Command This command has the same function as the following commands. [:SENSe]:AVERage:COUNt [:SENSe]:ACPower:AVERage:COUNt [:SENSe]:CHPower:AVERage:COUNt [:SENSe]:OBWidth:AVERage:COUNt [:SENSe]:SEMask:AVERage:COUNt [:SENSe]:BPOWer|:TXPower:AVERage:COUNt? Average Count Query Function This command queries the storage count. Refer to [:SENSe]:AVERage:COUNt?.

  • Page 476: Sense]:Bpower|:Txpower:average[:State] On|Off|1|0

    Chapter 2 SCPI Device Message Details [:SENSe]:BPOWer|:TXPower:AVERage[:STATe] ON|OFF|1|0 Storage Mode Function This command sets the storage mode for Trace A. Refer to :TRACe[1]|2|3|4|5|6:STORage:MODE. Related command This command has the same function as the following commands. :TRACe[1]|2|3|4|5|6:STORage:MODE [:SENSe]:ACPower:AVERage[:STATe] [:SENSe]:CHPower:AVERage[:STATe] [:SENSe]:OBWidth:AVERage[:STATe] [:SENSe]:SEMask:AVERage[:STATe] [:SENSe]:SPURious:AVERage[:STATe] [:SENSe]:BPOWer|:TXPower:AVERage[:STATe]? Storage Mode Query...

  • Page 477: Sense]:Bpower|:Txpower:sweep:time

    2.10 Burst Average Power [:SENSe]:BPOWer|:TXPower:SWEep:TIME <time> Sweep Time Function This command sets the sweep time. Refer to [:SENSe]:SWEep:TIME. Related command This command has the same function as the following commands. [:SENSe]:SWEep:TIME [:SENSe]:ACPower:SWEep:TIME [:SENSe]:CHPower:SWEep:TIME [:SENSe]:OBWidth:SWEep:TIME [:SENSe]:BPOWer|:TXPower:SWEep:TIME? Sweep Time Query Function This command queries the sweep time. Refer to [:SENSe]:SWEep:TIME?.

  • Page 478: Calculate:bpower|:Txpower:marker[1]|2|3|4|5|6|7|8|9|10:Mode Normal|Position|Delta|Fixed|Off

    Chapter 2 SCPI Device Message Details :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE NORMal|POSition|DELTa|FIXed|OFF Marker Mode Function This command sets the marker mode. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE? Marker Mode Query Function This command queries the marker mode.

  • Page 479: Calculate:bpower|:Txpower:marker[1]|2|3|4|5|6|7|8|9|10:X |

    2.10 Burst Average Power :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X <freq>|<time> Zone Marker Frequency (Time) Function This command moves the center of the zone marker to the specified frequency or time. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X...

  • Page 480: Calculate:bpower|:Txpower:marker[1]|2|3|4|5|6|7|8|9|10:X:position

    Chapter 2 SCPI Device Message Details :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition <integer> Zone Marker Position Function This command moves the center of the zone marker to the specified position. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSiti :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSiti...

  • Page 481: Calculate:bpower|:Txpower:marker[1]|2|3|4|5|6|7|8|9|10:Y?

    2.10 Burst Average Power :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? Marker Level Query Function This command queries the level at the marker point. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y?. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y? :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :CALCulate:BPOWer|:TXPower:MARKer:AOFF All Marker Off Function This command sets all the markers to Off.

  • Page 482: Calculate:bpower|:Txpower:marker[1]|2|3|4|5|6|7|8|9|10:Maximum

    Chapter 2 SCPI Device Message Details :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum Peak Search Function This command searches for the maximum level point of the active trace and moves the marker point. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum...

  • Page 483: Calculate:bpower|:Txpower:marker[1]|2|3|4|5|6|7|8|9|10:Minimum

    2.10 Burst Average Power :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum Minimum Search Function This command searches for the minimum level point of the active trace and moves the marker point to that point. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum Related Command This command has the same function as the following command. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum...

  • Page 484: Calculate:bpower|:Txpower:bandwidth[:Resolution]

    Chapter 2 SCPI Device Message Details :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution] <freq> Resolution Bandwidth Function This command sets the resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]. Related command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution] [:SENSe]:ACPower:BANDwidth[:RESolution] [:SENSe]:CHPower:BANDwidth[:RESolution] [:SENSe]:OBWidth:BANDwidth[:RESolution] [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution] :CALCulate:BANDwidth|:BWIDth[:RESolution] :CALCulate:ACPower:BANDwidth[:RESolution] :CALCulate:CHPower:BANDwidth[:RESolution] :CALCulate:OBWidth:BANDwidth[:RESolution] [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]?

  • Page 485: Calculate:bpower|:Txpower:bandwidth[:Resolution]?

    2.10 Burst Average Power :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution]? Resolution Bandwidth Query Function This command queries the resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]?. Related command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution]? [:SENSe]:ACPower:BANDwidth[:RESolution]? [:SENSe]:CHPower:BANDwidth[:RESolution]? [:SENSe]:OBWidth:BANDwidth[:RESolution]? [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]? :CALCulate:BANDwidth|:BWIDth[:RESolution]? :CALCulate:ACPower:BANDwidth[:RESolution]? :CALCulate:CHPower:BANDwidth[:RESolution]? :CALCulate:OBWidth:BANDwidth[:RESolution]? [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]:MODE NORMal|CISPr Resolution Bandwidth Normal/CISPR...

  • Page 486: Calculate:bpower|:Txpower:bandwidth[:Resolution]:Mode Normal|Cispr

    Chapter 2 SCPI Device Message Details :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution]:MODE NORMal|CISPr Resolution Bandwidth Normal/CISPR Function This command switches the Resolution Bandwidth mode. For details, refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:MODE. Related Command This command has the same function as the following commands. [:SENSe]:ACPower:BANDwidth[:RESolution]:MODE [:SENSe]:CHPower:BANDwidth[:RESolution]:MODE [:SENSe]:OBWidth:BANDwidth[:RESolution]:MODE [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]:MODE :CALCulate:BANDwidth|:BWIDth[:RESolution]:MODE :CALCulate:ACPower:BANDwidth[:RESolution]:MODE :CALCulate:CHPower:BANDwidth[:RESolution]:MODE...

  • Page 487: Calculate:bpower|:Txpower:bandwidth[:Resolution]:Mode?

    2.10 Burst Average Power :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution]:MODE? Resolution Bandwidth Normal/CISPR Query Function This command queries the Resolution Bandwidth mode. For details, refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:MODE?. Related Command This command has the same function as the following commands. [:SENSe]:ACPower:BANDwidth[:RESolution]:MODE? [:SENSe]:CHPower:BANDwidth[:RESolution]:MODE? [:SENSe]:OBWidth:BANDwidth[:RESolution]:MODE? [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]:MODE? :CALCulate:BANDwidth|:BWIDth[:RESolution]:MODE? :CALCulate:ACPower:BANDwidth[:RESolution]:MODE? :CALCulate:CHPower:BANDwidth[:RESolution]:MODE? :CALCulate:OBWidth:BANDwidth[:RESolution]:MODE? :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution]:MODE?

  • Page 488: Calculate:bpower|:Txpower:marker[1]|2|3|4|5|6|7|8|9|10:Reference?

    Chapter 2 SCPI Device Message Details :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence? Relative To Function This command queries the reference marker when the marker mode is set to Delta. Refer To :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence?. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence? :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence? :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence? :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence?

  • Page 489: Channel Power

    2.11 Channel Power 2.11 Channel Power Table 2.11-1 lists device messages for Channel Power measurement. Table 2.11-1 Device messages for Channel Power measurement Function Device Message [:SENSe]:CHPower[:STATe] ON|OFF|1|0 [:SENSe]:CHPower[:STATe]? Measure Channel Power :CALCulate:CHPower[:STATe] ON|OFF|1|0 :CALCulate:CHPower[:STATe]? [:SENSe]:CHPower:FREQuency:CENTer <freq> Channel Power [:SENSe]:CHPower:FREQuency:CENTer? Channel Center :CALCulate:CHPower:FREQuency:CENTer <freq>...
  • Page 490 Chapter 2 SCPI Device Message Details Table 2.11-1 Device messages for Channel Power measurement (Cont’d) Function Device Message Power Peak Search :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:POWer Minimum Search :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE NORMal|POSition|DELTa|FIXed|OFF Marker Mode :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE? :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X <freq>|<time> Zone Marker Frequency (Time) :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X? :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition Zone Marker <integer>...
  • Page 491 2.11 Channel Power Table 2.11-1 Device messages for Channel Power measurement (Cont’d) Function Device Message [:SENSe]:CHPower:BANDwidth:VIDeo:AUTO OFF|ON|0|1 Video Bandwidth Auto/Manual [:SENSe]:CHPower:BANDwidth:VIDeo:AUTO? [:SENSe]:CHPower:DETector[:FUNCtion] NORMal|POSitive|SAMPle|NEGative|RMS|QPEak|CAVerage|CRMS [:SENSe]:CHPower:DETector[:FUNCtion]? Detection Mode :CALCulate:CHPower:DETector[:FUNCtion] NORMal|POSitive|SAMPle|NEGative|RMS|QPEak|CAVerage|CRMS :CALCulate:CHPower:DETector[:FUNCtion]? [:SENSe]:CHPower:FREQuency:SPAN <freq> Frequency Span [:SENSe]:CHPower:FREQuency:SPAN? Full Span [:SENSe]:CHPower:FREQuency:SPAN:FULL [:SENSe]:CHPower:SWEep:POINts <integer> Trace Point [:SENSe]:CHPower:SWEep:POINts? [:SENSe]:CHPower:SWEep:TIME <time>...

  • Page 492: Sense]:Chpower[:State] On|Off|1|0

    Chapter 2 SCPI Device Message Details [:SENSe]:CHPower[:STATe] ON|OFF|1|0 Measure Channel Power Function This command executes Channel Power measurement. Command [:SENSe]:CHPower[:STATe] <switch> Parameter CHP measurement On/Off <switch> Sets CHP measurement to On. ON|1 Sets CHP measurement to Off (Default). OFF|0 Example of Use To set CHP measurement to On.

  • Page 493: Sense]:Chpower[:State]?

    2.11 Channel Power [:SENSe]:CHPower[:STATe]? Measure Channel Power Query Function This command queries the On/Off state of the Channel Power measurement. Command [:SENSe]:CHPower[:STATe]? Parameter CHP measurement On/Off <switch> Example of Use To query the On/Off state of the CHP measurement. CHP? >...

  • Page 494: Sense]:Chpower:frequency:center

    Chapter 2 SCPI Device Message Details [:SENSe]:CHPower:FREQuency:CENTer <freq> Channel Power Channel Center Frequency Function This command sets the center frequency for Channel Power measurement. Command [:SENSe]:CHPower:FREQuency:CENTer <freq> Parameter Channel center frequency <freq> Range (Start Frequency) to (Stop Frequency) Resolution 1 Hz Suffix code HZ,KHZ,KZ,MHZ,MZ,GHZ,GZ Hz is used when omitted.

  • Page 495: Sense]:Chpower:frequency:center?

    2.11 Channel Power [:SENSe]:CHPower:FREQuency:CENTer? Channel Power Channel Center Frequency Query Function This command queries the center frequency for Channel Power measurement. Query [:SENSe]:CHPower:FREQuency:CENTer? Response <freq> Parameter Center frequency of channel <freq> Range (Start Frequency) to (Stop Frequency) Resolution 1 Hz Suffix code None.

  • Page 496: Sense]:Chpower:bandwidth:integration

    Chapter 2 SCPI Device Message Details [:SENSe]:CHPower:BANDwidth:INTegration <freq> Channel Power Channel Bandwidth Function This command sets the channel bandwidth for Channel Power measurement. Command [:SENSe]:CHPower:BANDwidth:INTegration <freq> Parameter Channel bandwidth <freq> Range 1 Hz to 2.5 GHz Resolution 1 Hz Suffix code HZ,KHZ,KZ,MHZ,MZ,GHZ,GZ Hz is used when omitted.

  • Page 497: Sense]:Chpower:bandwidth:integration?

    2.11 Channel Power [:SENSe]:CHPower:BANDwidth:INTegration? Channel Power Channel Bandwidth Query Function This command queries the channel bandwidth for Channel Power measurement. Query [:SENSe]:CHPower:BANDwidth:INTegration? Response <freq> Parameter Channel bandwidth <freq> Range 1 Hz to 2.5 GHz Resolution 1 Hz Suffix code None. Value is returned in Hz units. Example of Use To query the channel bandwidth.

  • Page 498: Sense]:Chpower:filter:type Rect|Nyquist|Rnyquist

    Chapter 2 SCPI Device Message Details [:SENSe]:CHPower:FILTer:TYPE RECT|NYQuist|RNYQuist Channel Power Filter Type Function This command sets filter type for Channel Power measurement. Command [:SENSe]:CHPower:FILTer:TYPE <filter> Parameter Filter type <filter> Rectangle filter RECT Nyquist filter NYQuist Root Nyquist filter (Default) RNYQuist Example of Use To set the filter type to Nyquist.

  • Page 499: Sense]:Chpower:filter:type?

    2.11 Channel Power [:SENSe]:CHPower:FILTer:TYPE? Channel Power Filter Type Query Function This command queries filter type for Channel Power measurement. Query [:SENSe]:CHPower:FILTer:TYPE? Response <filter> Parameter Filter type <filter> Rectangle filter RECT Nyquist filter Root Nyquist filter RNYQ Example of Use To query the filter type. CHP:FILT:TYPE? >...

  • Page 500: Sense]:Chpower:filter[:Rrc][:State] On|Off|1|0

    Chapter 2 SCPI Device Message Details [:SENSe]:CHPower:FILTer[:RRC][:STATe] ON|OFF|1|0 Channel Power Filter Type Function This command sets filter type for Channel Power measurement. Command [:SENSe]:CHPower:FILTer[:RRC][:STATe] <filter> Parameter Filter type <filter> Rectangle filter 0|OFF Root Nyquist filter (Default) 1|ON Example of Use To set filter type to Root Nyquist.

  • Page 501: Sense]:Chpower:filter[:Rrc][:State]?

    2.11 Channel Power [:SENSe]:CHPower:FILTer[:RRC][:STATe]? Channel Power Filter Type Query Function This command queries filter type for Channel Power measurement. Query [:SENSe]:CHPower:FILTer[:RRC][:STATe]? Response <filter> Parameter Filter type <filter> Rectangle filter Root Nyquist filter Example of Use To query the filter type. CHP:FILT? >...

  • Page 502: Sense]:Chpower:filter[:Rrc]:Alpha

    Chapter 2 SCPI Device Message Details [:SENSe]:CHPower:FILTer[:RRC]:ALPHa <real> Channel Power Rolloff Ratio Function This command sets filter rolloff ratio for Channel Power measurement. Command [:SENSe]:CHPower:FILTer[:RRC]:ALPHa <real> Parameter Rolloff ratio <real> Range 0.01 to 1.00 Resolution 0.01 Suffix code None Default 0.22 Details This command is available when the filter type (Channel Power Filter...

  • Page 503: Sense]:Chpower:filter[:Rrc]:Alpha?

    2.11 Channel Power [:SENSe]:CHPower:FILTer[:RRC]:ALPHa? Channel Power Rolloff Ratio Query Function This command queries the rolloff ratio for Channel Power measurement. Query [:SENSe]:CHPower:FILTer[:RRC]:ALPHa? Response <real> Parameter Filter rolloff ratio <real> Range 0.01 to 1.00 Resolution 0.01 Suffix code None Default 0.22 Details This function is set when the filter type (Channel Power Filter Type) is set to either of the following:...

  • Page 504: Calculate:chpower:filter[:Rrc]:Alpha?

    Chapter 2 SCPI Device Message Details :CALCulate:CHPower:FILTer[:RRC]:ALPHa? Channel Power Rolloff Ratio Query Function This command queries the rolloff ratio for Channel Power measurement. Refer to [:SENSe]:CHPower:FILTer[:RRC]:ALPHa?. Related command This command has the same function as the following command. [:SENSe]:CHPower:FILTer[:RRC]:ALPHa? :CONFigure:CHPower Channel Power Configure Function This command sets Channel Power measurement to On.

  • Page 505: Initiate:chpower

    2.11 Channel Power :INITiate:CHPower Channel Power Initiate Function This command starts Channel Power measurement. Command :INITiate:CHPower Details Channel Power measurement is set to On and the measurement starts, when this function is executed. To read out the measurement results after executing this command, perform the synchronization control using the “*WAI”...

  • Page 506: Fetch:chpower[N]?

    Chapter 2 SCPI Device Message Details :FETCh:CHPower[n]? Channel Power Fetch Function This command queries the measurement result for Channel Power measurement. Query :FETCh:CHPower[n]? Response When the result mode is “A”. <power>,<density> (n=1 or when omitted) When the result mode is “B”. <power>,<density>...
  • Page 507 2.11 Channel Power Details This function outputs the measurement result at the Channel Power measurement last performed. It is possible to output the measurement result in a state that the measurement has already been done, and in a different style. You can use READ command if you perform a measurement along with starting a sweep again.

  • Page 508: Fetch:chpower:chpower?

    Chapter 2 SCPI Device Message Details :FETCh:CHPower:CHPower? Channel Power Fetch Function This command queries the total In Band power for Channel Power measurement. Query :FETCh:CHPower:CHPower? Response <power> Parameter Total In Band power specified in Channel <power> bandwidth. This command returns a value without a suffix code and of Log Scale Unit ( dBm in V and W in W), when Scale Mode is set to Log.

  • Page 509: Fetch:chpower:density?

    2.11 Channel Power :FETCh:CHPower:DENSity? Channel Power Fetch Function This command queries the total In Band power density for Channel Power measurement. Query :FETCh:CHPower:DENSity? Response <density> Parameter In Band power density specified in Channel <density> bandwidth. This command returns a value without a suffix code and of Log Scale Unit (dBm in V and W in W), when Scale Mode is set to Log.

  • Page 510: Read:chpower[N]?

    Chapter 2 SCPI Device Message Details :READ:CHPower[n]? Channel Power Read Function This command performs the measurement for Channel Power and outputs the measurement result. It achieves the same result as when commands are sent in the order of :INITiate:CHPower :FETCh:CHPower[n]? :READ:CHPower:CHPower? Channel Power Read Function...

  • Page 511: Measure:chpower:chpower?

    2.11 Channel Power :MEASure:CHPower:CHPower? Channel Power Measure Function This command performs the measurement for Channel Power and outputs the total In Band power. It achieves the same result as when commands are sent in the order of :CONFigure:CHPower :INITiate:CHPower :FETCh:CHPower:CHPower? :MEASure:CHPower:DENSity? Channel Power Measure Function...

  • Page 512: Calculate:chpower:marker[1]|2|3|4|5|6|7|8|9|10:Maximum

    Chapter 2 SCPI Device Message Details :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum Peak Search Function This command searches for the maximum level point of the active trace and moves the marker point. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum...

  • Page 513: Calculate:chpower:marker[1]|2|3|4|5|6|7|8|9|10:Minimum

    2.11 Channel Power :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum Minimum Search Function This command searches for the minimum level point of the active trace and moves the marker point to that point. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum. Related Command This command has the same function as the following command. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum...

  • Page 514: Calculate:chpower:marker[1]|2|3|4|5|6|7|8|9|10:Mode Normal|Position|Delta Fixed|Off

    Chapter 2 SCPI Device Message Details :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE NORMal|POSition|DELTa|FIXed|OFF Marker Mode Function This command sets the marker mode. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: MODE :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE? Marker Mode Query Function This command queries the marker mode.

  • Page 515: Calculate:chpower:marker[1]|2|3|4|5|6|7|8|9|10:X |

    2.11 Channel Power :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X <freq>|<time> Zone Marker Frequency (Time) Function This command moves the center of the zone marker to the specified frequency or time. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:X...

  • Page 516: Calculate:chpower:marker[1]|2|3|4|5|6|7|8|9|10:X:position

    Chapter 2 SCPI Device Message Details :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition <integer> Zone Marker Position Function This command moves the center of the zone marker to the specified position. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSiti :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSiti...

  • Page 517: Calculate:chpower:marker[1]|2|3|4|5|6|7|8|9|10:Y?

    2.11 Channel Power :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? Marker Level Query Function This command queries the level at the marker point. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y?. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y? :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :DISPlay:CHPower:ANNotation:TITLe:DATA <string> Title Entry Function This command registers the title character string.

  • Page 518: Display:chpower:annotation:title:data?

    Chapter 2 SCPI Device Message Details :DISPlay:CHPower:ANNotation:TITLe:DATA? Title Entry Query Function This command queries the title character string. Refer to :DISPlay:ANNotation:TITLe:DATA?. Command This command has the same function as the following commands. :DISPlay:ANNotation:TITLe:DATA? :DISPlay:ACPower:ANNotation:TITLe:DATA? :DISPlay:OBWidth:ANNotation:TITLe:DATA? :DISPlay:SEMask:ANNotation:TITLe:DATA? :DISPlay:BPOWer|:TXPower:ANNotation:TITLe:DATA? :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision <rel_ampl> Log Scale Range Function This command sets the Y axis scale magnification when Scale Mode is set to Log.

  • Page 519: Display:chpower:view[1]:Window[1]:Trace:y[:Scale]:Pdivision?

    2.11 Channel Power :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision? Log Scale Range Query Function This command queries the Y axis scale magnification when Scale Mode is set to Log. Refer to :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:[LOGarithmic]:PDIVisi on?. Related command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:[LOGarithmic]:PDIVisi :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVi sion?

  • Page 520: Display:chpower:view[1]:Window[1]:Trace:y[:Scale]:Rlevel

    Chapter 2 SCPI Device Message Details :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real> Reference Level Function This command sets the reference level. Refer to :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel. Related command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:SEMask:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel :DISPlay:BPOWer|:TXPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCAL e]:RLEVel :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? Reference Level Query Function This command queries the reference level.

  • Page 521: Trigger:chpower[:Sequence]:Source External[1]|Immediate|Wif|Rfburst|Video|Sg|Bbif|Frame

    2.11 Channel Power :TRIGger:CHPower[:SEQuence]:SOURce EXTernal[1]|IMMediate|WIF|RFBurst|VIDeo|SG|BBIF|FRAMe Trigger Source Function This command selects the trigger source. Refer to :TRIGger[:SEQuence]:SOURce. Related command This command has the same function as the following commands. :TRIGger[:SEQuence]:SOURce :TRIGger:ACPower[:SEQuence]:SOURce :TRIGger:OBWidth[:SEQuence]:SOURce :TRIGger:SEMask[:SEQuence]:SOURce :TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce :TRIGger:CHPower[:SEQuence]:SOURce? Trigger Source Query Function This command queries the trigger source. Refer to :TRIGger[:SEQuence]:SOURce?.

  • Page 522: Sense]:Chpower:average:count

    Chapter 2 SCPI Device Message Details [:SENSe]:CHPower:AVERage:COUNt <integer> Average Count Function This command sets the storage count. Refer to [:SENSe]:AVERage:COUNt. Related command This command has the same function as the following commands. [:SENSe]:AVERage:COUNt [:SENSe]:ACPower:AVERage:COUNt [:SENSe]:OBWidth:AVERage:COUNt [:SENSe]:SEMask:AVERage:COUNt [:SENSe]:BPOWer|:TXPower:AVERage:COUNt [:SENSe]:CHPower:AVERage:COUNt? Average Count Query Function This command queries the storage count.

  • Page 523: Sense]:Chpower:average[:State] On|Off|1|0

    2.11 Channel Power [:SENSe]:CHPower:AVERage[:STATe] ON|OFF|1|0 Storage Mode Function This command sets the storage mode for Trace A. Refer to :TRACe[1]|2|3|4|5|6:STORage:MODE. Related command This command has the same function as the following commands. :TRACe[1]|2|3|4|5|6:STORage:MODE [:SENSe]:ACPower:AVERage[:STATe] [:SENSe]:OBWidth:AVERage[:STATe] [:SENSe]:SEMask:AVERage[:STATe] [:SENSe]:BPOWer|:TXPower:AVERage[:STATe] [:SENSe]:SPURious:AVERage[:STATe] [:SENSe]:CHPower:AVERage[:STATe]? Storage Mode Query Function This command queries the storage mode for Trace A.

  • Page 524: Sense]:Chpower:bandwidth[:Resolution]

    Chapter 2 SCPI Device Message Details [:SENSe]:CHPower:BANDwidth[:RESolution] <freq> Resolution Bandwidth Function This command sets the resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]. Related command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution] [:SENSe]:ACPower:BANDwidth[:RESolution] [:SENSe]:OBWidth:BANDwidth[:RESolution] [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution] :CALCulate:BANDwidth|:BWIDth[:RESolution] :CALCulate:ACPower:BANDwidth[:RESolution] :CALCulate:CHPower:BANDwidth[:RESolution] :CALCulate:OBWidth:BANDwidth[:RESolution] :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution] :CALCulate:CHPower:BANDwidth[:RESolution] <freq>...

  • Page 525: Sense]:Chpower:bandwidth[:Resolution]?

    2.11 Channel Power [:SENSe]:CHPower:BANDwidth[:RESolution]? Resolution Bandwidth Query Function This command queries the resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]?. Related command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution]? [:SENSe]:ACPower:BANDwidth[:RESolution]? [:SENSe]:OBWidth:BANDwidth[:RESolution]? [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]? :CALCulate:BANDwidth|:BWIDth[:RESolution] :CALCulate:ACPower:BANDwidth[:RESolution]? :CALCulate:CHPower:BANDwidth[:RESolution]? :CALCulate:OBWidth:BANDwidth[:RESolution]? :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution]? :CALCulate:CHPower:BANDwidth[:RESolution]? Resolution Bandwidth Query Function This command queries the resolution bandwidth (RBW).

  • Page 526: Sense]:Chpower:bandwidth[:Resolution]:Auto On|Off|1|0

    Chapter 2 SCPI Device Message Details [:SENSe]:CHPower:BANDwidth[:RESolution]:AUTO ON|OFF|1|0 Resolution Bandwidth Auto/Manual Function This command enables/disables the automatic resolution bandwidth (RBW) setting function. Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO. Related command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO [:SENSe]:ACPower:BANDwidth[:RESolution]:AUTO [:SENSe]:OBWidth:BANDwidth[:RESolution]:AUTO :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO :CALCulate:ACPower:BANDwidth[:RESolution]:AUTO :CALCulate:CHPower:BANDwidth[:RESolution]:AUTO...
  • Page 527 2.11 Channel Power [:SENSe]:CHPower:BANDwidth[:RESolution]:AUTO? Resolution Bandwidth Auto/Manual Query Function This command queries the On/Off state of the automatic resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO?. Related command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO? [:SENSe]:ACPower:BANDwidth[:RESolution]:AUTO? [:SENSe]:OBWidth:BANDwidth[:RESolution]:AUTO? :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO? :CALCulate:ACPower:BANDwidth[:RESolution]:AUTO? :CALCulate:CHPower:BANDwidth[:RESolution]:AUTO? :CALCulate:OBWidth:BANDwidth[:RESolution]:AUTO?

  • Page 528: Sense]:Chpower:bandwidth[:Resolution]:Mode Normal|Cispr

    Chapter 2 SCPI Device Message Details [:SENSe]:CHPower:BANDwidth[:RESolution]:MODE NORMal|CISPr Resolution Bandwidth Normal/CISPR Function This command switches the Resolution Bandwidth mode. For details, refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:MODE. Related Command This command has the same function as the following commands. [:SENSe]:ACPower:BANDwidth[:RESolution]:MODE [:SENSe]:CHPower:BANDwidth[:RESolution]:MODE [:SENSe]:OBWidth:BANDwidth[:RESolution]:MODE [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]:MODE :CALCulate:BANDwidth|:BWIDth[:RESolution]:MODE :CALCulate:ACPower:BANDwidth[:RESolution]:MODE :CALCulate:CHPower:BANDwidth[:RESolution]:MODE...

  • Page 529: Sense]:Chpower:bandwidth[:Resolution]:Mode?

    2.11 Channel Power [:SENSe]:CHPower:BANDwidth[:RESolution]:MODE? Resolution Bandwidth Normal/CISPR Query Function This command queries the Resolution Bandwidth mode. For details, refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:MODE?. Related Command This command has the same function as the following commands. [:SENSe]:ACPower:BANDwidth[:RESolution]:MODE [:SENSe]:CHPower:BANDwidth[:RESolution]:MODE [:SENSe]:OBWidth:BANDwidth[:RESolution]:MODE [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]:MODE :CALCulate:BANDwidth|:BWIDth[:RESolution]:MODE :CALCulate:ACPower:BANDwidth[:RESolution]:MODE :CALCulate:CHPower:BANDwidth[:RESolution]:MODE :CALCulate:OBWidth:BANDwidth[:RESolution]:MODE :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution]:MODE :CALCulate:CHPower:BANDwidth[:RESolution]:MODE?

  • Page 530: Sense]:Chpower:bandwidth:video

    Chapter 2 SCPI Device Message Details [:SENSe]:CHPower:BANDwidth:VIDeo <freq> Video Bandwidth Function This command sets the video bandwidth (VBW). Refer to [:SENSe]:BANDwidth|:BWIDth:VIDeo. Related command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth:VIDeo [:SENSe]:ACPower:BANDwidth:VIDeo [:SENSe]:OBWidth:BANDwidth:VIDeo [:SENSe]:CHPower:BANDwidth:VIDeo? Video Bandwidth Query Function This command queries the video bandwidth (VBW).

  • Page 531: Sense]:Chpower:bandwidth:video:auto Off|On|0|1

    2.11 Channel Power [:SENSe]:CHPower:BANDwidth:VIDeo:AUTO OFF|ON|0|1 Video Bandwidth Auto/Manual Function This command enables/disables the automatic video bandwidth (VBW) setting function. Refer to [:SENSe]:BANDwidth|:BWIDth:VIDeo:AUTO. Related command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth:VIDeo:AUTO [:SENSe]:ACPower:BANDwidth:VIDeo:AUTO [:SENSe]:OBWidth:BANDwidth:VIDeo:AUTO [:SENSe]:CHPower:BANDwidth:VIDeo:AUTO? Video Bandwidth Auto/Manual Query Function This command queries the On/Off state of the automatic video bandwidth (VBW) setting.

  • Page 532: Sense]:Chpower:detector[:Function Normal|Positive|Sample|Negative|Rms|Qpeak|Caverage|Crms

    Chapter 2 SCPI Device Message Details [:SENSe]:CHPower:DETector[:FUNCtion] NORMal|POSitive|SAMPle|NEGative|RMS|QPEak|CAVerage|CRMS Detection Mode Function This command selects the detection mode of the waveform pattern. Refer to [:SENSe]:DETector[:FUNCtion]. Related command This command has the same function as the following commands. [:SENSe]:DETector[:FUNCtion] [:SENSe]:ACPower:DETector[:FUNCtion] [:SENSe]:OBWidth:DETector[:FUNCtion] :CALCulate:ACPower:DETector[:FUNCtion] :CALCulate:CHPower:DETector[:FUNCtion] :CALCulate:OBWidth:DETector[:FUNCtion] :CALCulate:CHPower:DETector[:FUNCtion]...

  • Page 533: Sense]:Chpower:detector[:Function]?

    2.11 Channel Power [:SENSe]:CHPower:DETector[:FUNCtion]? Detection Mode Query Function This command queries the detection mode of the waveform pattern. Refer to [:SENSe]:DETector[:FUNCtion]?. Related command This command has the same function as the following commands. [:SENSe]:DETector[:FUNCtion]? [:SENSe]:ACPower:DETector[:FUNCtion]? [:SENSe]:OBWidth:DETector[:FUNCtion]? [:SENSe]:SEMask:DETector:CARRier[:FUNCtion]? :CALCulate:DETector[:FUNCtion]? :CALCulate:ACPower:DETector[:FUNCtion]? :CALCulate:CHPower:DETector[:FUNCtion]? :CALCulate:OBWidth:DETector[:FUNCtion]? :CALCulate:CHPower:DETector[:FUNCtion]? Detection Mode Query...

  • Page 534: Sense]:Chpower:frequency:span

    Chapter 2 SCPI Device Message Details [:SENSe]:CHPower:FREQuency:SPAN <freq> Frequency Span Function This command sets the frequency span. Refer to [:SENSe]:FREQuency:SPAN. Related command This command has the same function as the following commands. [:SENSe]:FREQuency:SPAN [:SENSe]:ACPower:FREQuency:SPAN [:SENSe]:OBWidth:FREQuency:SPAN [:SENSe]:CHPower:FREQuency:SPAN? Frequency Span Query Function This command queries the frequency span.

  • Page 535: Sense]:Chpower:sweep:points

    2.11 Channel Power [:SENSe]:CHPower:SWEep:POINts <integer> Trace Point Function This command sets the number of the trace display points. Refer to [:SENSe]:SWEep:POINts. Related command This command has the same function as the following commands. [:SENSe]:SWEep:POINts [:SENSe]:ACPower:SWEep:POINts [:SENSe]:OBWidth:SWEep:POINts [:SENSe]:CHPower:SWEep:POINts? Trace Point Query Function This command queries the number of the trace display points.

  • Page 536: Sense]:Chpower:sweep:time?

    Chapter 2 SCPI Device Message Details [:SENSe]:CHPower:SWEep:TIME? Sweep Time Query Function This command queries the sweep time. Refer to [:SENSe]:SWEep:TIME?. Related command This command has the same function as the following commands. [:SENSe]:SWEep:TIME? [:SENSe]:ACPower:SWEep:TIME? [:SENSe]:OBWidth:SWEep:TIME? [:SENSe]:BPOWer|:TXPower:SWEep:TIME? [:SENSe]:CHPower:SWEep:TIME:AUTO OFF|ON|0|1 Sweep Time Auto/Manual Function This command enables/disable the automatic sweep time setting function.

  • Page 537: Sense]:Chpower:sweep:time:auto?

    2.11 Channel Power [:SENSe]:CHPower:SWEep:TIME:AUTO? Sweep Time Auto/Manual Query Function This command queries the On/Off state of the automatic sweep time setting. Refer to [:SENSe]:SWEep:TIME:AUTO?. Related command This command has the same function as the following commands. [:SENSe]:SWEep:TIME:AUTO? [:SENSe]:ACPower:SWEep:TIME:AUTO? [:SENSe]:OBWidth:SWEep:TIME:AUTO? :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence <integer> Relative To Function This command sets the reference marker when the marker mode is set to...
  • Page 538 Chapter 2 SCPI Device Message Details This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence? :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence? :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence? :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: REFerence? 2-528...
  • Page 539 2.12 OBW 2.12 Table 2.12-1 lists device messages for occupied bandwidth measurement. Table 2.12-1 Device Messages for Occupied Bandwidth measurement Function Device Message [:SENSe]:OBWidth[:STATe] ON|OFF|1|0 [:SENSe]:OBWidth[:STATe]? Measure Occupied Bandwidth :CALCulate:OBWidth[:STATe] ON|OFF|1|0 :CALCulate:OBWidth[:STATe]? [:SENSe]:OBWidth:METHod NPERcent|XDB [:SENSe]:OBWidth:METHod? OBW Method :CALCulate:OBWidth:METHod NPERcent|XDB :CALCulate:OBWidth:METHod? [:SENSe]:OBWidth:PERCent <real>...
  • Page 540 Chapter 2 SCPI Device Message Details Table 2.12-1 Device Messages for Occupied Bandwidth measurement (Cont’d) Function Device Message :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE NORMal|POSition|DELTa|FIXed|OFF Marker Mode :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE? :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:X <freq>|<time> Zone Marker Frequency (Time) :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:X? :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition Zone Marker <integer> Position :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition? Marker Level :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :DISPlay:OBWidth:ANNotation:TITLe:DATA <string> Title Entry :DISPlay:OBWidth:ANNotation:TITLe:DATA? :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision...
  • Page 541 2.12 OBW Table 2.12-1 Device Messages for Occupied Bandwidth measurement (Cont’d) Function Device Message [:SENSe]:OBWidth:BANDwidth:VIDeo <freq> Video Bandwidth [:SENSe]:OBWidth:BANDwidth:VIDeo? [:SENSe]:OBWidth:BANDwidth:VIDeo:AUTO OFF|ON|0|1 Video Bandwidth Auto/Manual [:SENSe]:OBWidth:BANDwidth:VIDeo:AUTO? [:SENSe]:OBWidth:DETector[:FUNCtion] NORMal|POSitive|SAMPle|NEGative|RMS|QPEak|CAVerage|CRMS [:SENSe]:OBWidth:DETector[:FUNCtion]? Detection Mode :CALCulate:OBWidth:DETector[:FUNCtion] NORMal|POSitive|SAMPle|NEGative|RMS|QPEak|CAVerage|CRMS :CALCulate:OBWidth:DETector[:FUNCtion]? [:SENSe]:OBWidth:FREQuency:SPAN <freq> Frequency Span [:SENSe]:OBWidth:FREQuency:SPAN? Full Span [:SENSe]:OBWidth:FREQuency:SPAN:FULL [:SENSe]:OBWidth:SWEep:POINts <integer>...

  • Page 542: Sense]:Obwidth[:State] On|Off|1|0

    Chapter 2 SCPI Device Message Details [:SENSe]:OBWidth[:STATe] ON|OFF|1|0 Measure Occupied Bandwidth Function This command executes Occupied Bandwidth measurement. Command [:SENSe]:OBWidth[:STATe] <switch> Parameter OBW measurement On/Off <switch> ON|1 Sets OBW measurement to On. OFF|0 Sets OBW measurement to Off. Example of Use To set OBW measurement to On.

  • Page 543: Calculate:obwidth[:State] On|Off|1|0

    2.12 OBW Related command This command has the same function as the following command. :CALCulate:OBWidth[:STATe]? :CALCulate:OBWidth[:STATe] ON|OFF|1|0 Measure Occupied Bandwidth Function This command executes Occupied Bandwidth measurement. Refer to [:SENSe]:OBWidth[:STATe]. Related command This command has the same function as the following command. [:SENSe]:OBWidth[:STATe] ON|OFF|1|0 :CALCulate:OBWidth[:STATe]? Measure Occupied Bandwidth Query...

  • Page 544: Sense]:Obwidth:method Npercent|Xdb

    Chapter 2 SCPI Device Message Details [:SENSe]:OBWidth:METHod NPERcent|XDB OBW Method Function This command sets the Occupied Bandwidth measurement method. Command [:SENSe]:OBWidth:METHod <method> Parameter Measurement method <method> N% method (Default) NPERcent X dB Down method Example of Use To set the Occupied Bandwidth measurement method to X dB Down. OBW:METH XDB Related command This command has the same function as the following command.

  • Page 545: Calculate:obwidth:method Npercent|Xdb

    2.12 OBW Example of Use To query the measurement method for Occupied Bandwidth measurement. OBW:METH? > XDB Related command This command has the same function as the following command. :CALCulate:OBWidth:METHod? :CALCulate:OBWidth:METHod NPERcent|XDB OBW Method Function This command sets the measurement method for Occupied Bandwidth measurement.

  • Page 546: Sense]:Obwidth:percent

    Chapter 2 SCPI Device Message Details [:SENSe]:OBWidth:PERCent <real> OBW N% Ratio Function This command sets the Occupied Frequency Bandwidth (N% method) condition. Command [:SENSe]:OBWidth:PERCent <real> Parameter <real> Range 0.01 to 99.99 % Resolution 0.01 Suffix code None Default 99.00% Example of Use To set to 12.34%.

  • Page 547: Sense]:Obwidth:percent?

    2.12 OBW [:SENSe]:OBWidth:PERCent? OBW N% Ratio Query Function This command queries the Occupied Frequency Bandwidth (N% method) condition. Query [:SENSe]:OBWidth:PERCent? Response <real> Parameter <real> Range 0.01 to 99.99 % Resolution 0.01 Suffix code None. Value is returned in % units. Example of Use To query the Occupied Frequency Bandwidth (N% method) condition.

  • Page 548: Calculate:obwidth:percent

    Chapter 2 SCPI Device Message Details :CALCulate:OBWidth:PERCent <real> OBW N% Ratio Function This command sets the Occupied Frequency Bandwidth (N% method) condition. Refer to [:SENSe]:OBWidth:PERCent. Related command This command has the same function as the following command. [:SENSe]:OBWidth:PERCent :CALCulate:OBWidth:PERCent? OBW N% Ratio Query Function This command queries the Occupied Frequency Bandwidth (N% method) condition.

  • Page 549: Sense]:Obwidth:xdb

    2.12 OBW [:SENSe]:OBWidth:XDB <rel_ampl> OBW X dB Value Function This command sets the Occupied Frequency Bandwidth (X dB) condition. Command [:SENSe]:OBWidth:XDB <rel_ampl> Parameter X dB <rel_ampl> Range 0.01 to 100.00 dB Resolution 0.01 dB Suffix code dB is used even when omitted. Default 25.00 dB Example of Use...

  • Page 550: Sense]:Obwidth:xdb?

    Chapter 2 SCPI Device Message Details [:SENSe]:OBWidth:XDB? OBW X dB Value Query Function This command queries the Occupied Frequency Bandwidth (X dB) condition. Query [:SENSe]:OBWidth:XDB? Response <rel_ampl> Parameter < rel_ampl> X dB Range 0.01 to 100.00 dB Resolution 0.01 dB Suffix code None.

  • Page 551: Calculate:obwidth:xdb

    2.12 OBW :CALCulate:OBWidth:XDB <rel_ampl> OBW X dB Value Function This command sets the Occupied Frequency Bandwidth (X dB) condition. Refer to [:SENSe]:OBWidth:XDB. Related command This command has the same function as the following command. [:SENSe]:OBWidth:XDB :CALCulate:OBWidth:XDB? OBW X dB Value Query Function This command queries the Occupied Frequency Bandwidth (X dB) condition.

  • Page 552: Configure:obwidth

    Chapter 2 SCPI Device Message Details :CONFigure:OBWidth Occupied Bandwidth Configure Function This command sets OBW measurement to On. Command :CONFigure:OBWidth Details No measurement is performed. Example of Use To set OBW measurement to On. CONF:OBW :INITiate:OBWidth Occupied Bandwidth Initiate Function This command starts OBW measurement.

  • Page 553: Fetch:obwidth[N]?

    2.12 OBW :FETCh:OBWidth[n]? Occupied Bandwidth Fetch Function This command outputs the measurement result of OBW measurement. Query :FETCh:OBWidth[n]? Response When the result mode is “A”. <obw>,<center>,<start>,<stop> (n=1 or when omitted) When the result mode is “B”. <obw_nper>,-999.0,<span>,<trace_point>, <rbw>,<freq_error>,<obw_xdb> (n=1 or when omitted) <tracedata_1>,<tracedata_2>,<tracedata_3>, ..
  • Page 554 Chapter 2 SCPI Device Message Details Trace point number <trace_point> Suffix code None. “–999.0” is returned when no measurement is executed. Details This function outputs the measurement result of the OBW measurement performed last. It is possible to output the measurement result in a state that the measurement has already been done, and in a different style.

  • Page 555: Fetch:obwidth:ferror?

    2.12 OBW :FETCh:OBWidth:FERRor? Occupied Bandwidth Fetch Function This command outputs the difference between the center frequency of occupied bandwidth of OBW measurement and the center frequency. Query :FETCh:OBWidth:FERRor? Response <freq_error> Parameter Difference between the center frequency of <freq_error> occupied bandwidth and the center frequency. Suffix code None.

  • Page 556: Read:obwidth[N]?

    Chapter 2 SCPI Device Message Details :READ:OBWidth[n]? Occupied Bandwidth Read Function This command performs the OBW measurement and outputs the measurement result. It achieves the same result as when commands are sent in the order of :INITiate:OBWidth :FETCh:OBWidth[n]? :READ:OBWidth:FERRor? Occupied Bandwidth Read Function This command performs the OBW measurement of OBW and outputs the difference between the center frequency of Occupied Bandwidth and the...

  • Page 557: Measure:obwidth:ferror?

    2.12 OBW :MEASure:OBWidth:FERRor? Occupied Bandwidth Measure Function This command performs the measurement of OBW and outputs the difference between the center frequency of Occupied Bandwidth and the center frequency. It achieves the same result as when commands are sent in the order of :CONFigure:OBWidth :INITiate:OBWidth :FETCh:OBWidth:FERRor?

  • Page 558: Calculate:obwidth:marker[1]|2|3|4|5|6|7|8|9|10:Maximum

    Chapter 2 SCPI Device Message Details :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum Peak Search Function This command searches for the maximum level point of the active trace and moves the marker point. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum...

  • Page 559: Calculate:obwidth:marker[1]|2|3|4|5|6|7|8|9|10:Minimum

    2.12 OBW :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum Minimum Search Function This command searches for the minimum level point of the active trace and moves the marker point to that point. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum. Related Command This command has the same function as the following command. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum...

  • Page 560: Calculate:obwidth:marker[1]|2|3|4|5|6|7|8|9|10:Mode Normal|Position|Delta Fixed|Off

    Chapter 2 SCPI Device Message Details :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE NORMal|POSition|DELTa|FIXed|OFF Marker Mode Function This command sets the marker mode. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: MODE :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE? Marker Mode Query Function This command queries the marker mode.

  • Page 561: Calculate:obwidth:marker[1]|2|3|4|5|6|7|8|9|10:X |

    2.12 OBW :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:X <freq>|<time> Zone Marker Frequency (Time) Function This command moves the center of the zone marker to the specified frequency or time. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10:...

  • Page 562: Calculate:obwidth:marker[1]|2|3|4|5|6|7|8|9|10:X:position

    Chapter 2 SCPI Device Message Details :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition <integer> Zone Marker Position Function This command moves the center of the zone marker to the specified position. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSiti :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSiti...

  • Page 563: Calculate:obwidth:marker[1]|2|3|4|5|6|7|8|9|10:Y?

    2.12 OBW :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? Marker Level Query Function This command queries the level at the marker point. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y?. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y? :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? 2-553...

  • Page 564: Display:obwidth:annotation:title:data

    Chapter 2 SCPI Device Message Details :DISPlay:OBWidth:ANNotation:TITLe:DATA <string> Title Entry Function This command registers the title character string. Refer to :DISPlay:ANNotation:TITLe:DATA. Related command This command has the same function as the following commands. :DISPlay:ANNotation:TITLe:DATA :DISPlay:ACPower:ANNotation:TITLe:DATA :DISPlay:CHPower:ANNotation:TITLe:DATA :DISPlay:SEMask:ANNotation:TITLe:DATA :DISPlay:BPOWer|:TXPower:ANNotation:TITLe:DATA :DISPlay:OBWidth:ANNotation:TITLe:DATA? Title Entry Query Function This command queries the title character string.

  • Page 565: Display:obwidth:view[1]:Window[1]:Trace:y[:Scale]:Pdivision

    2.12 OBW :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision <rel_ampl> Log Scale Range Function This command sets the Y-axis scale magnification when Scale Mode is set to Log. Refer to :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:[LOGarithmic]:PDIVisi Related command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:[LOGarithmic]:PDIVisi :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVi sion :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVi sion :DISPlay:SEMask:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVis...

  • Page 566: Display:obwidth:view[1]:Window[1]:Trace:y[:Scale]:Pdivision?

    Chapter 2 SCPI Device Message Details :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision? Log Scale Range Query Function This command queries the Y-axis scale magnification when Scale Mode is set to Log. Refer to :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:[LOGarithmic]:PDIVisi on?. Related command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:[LOGarithmic]:PDIVisi :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVi sion?

  • Page 567: Display:obwidth:view[1]:Window[1]:Trace:y[:Scale]:Rlevel

    2.12 OBW :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real> Reference Level Function This command sets the reference level. Refer to :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel. Related command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVe :DISPlay:SEMask:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel :DISPlay:BPOWer|:TXPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCAL e]:RLEVel :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? Reference Level Query Function This command queries the reference level. Refer to :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel?.

  • Page 568: Trigger:obwidth[:Sequence]:Source External[1]|Immediate|Wif|Rfburst|Video|Sg|Bbif|Frame

    Chapter 2 SCPI Device Message Details :TRIGger:OBWidth[:SEQuence]:SOURce EXTernal[1]|IMMediate|WIF|RFBurst|VIDeo|SG|BBIF|FRAMe Trigger Source Function This command selects the trigger source. Refer to :TRIGger[:SEQuence]:SOURce. Related command This command has the same function as the following commands. :TRIGger[:SEQuence]:SOURce :TRIGger:ACPower[:SEQuence]:SOURce :TRIGger:CHPower[:SEQuence]:SOURce :TRIGger:SEMask[:SEQuence]:SOURce :TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce :TRIGger:OBWidth[:SEQuence]:SOURce? Trigger Source Query Function This command queries the trigger source.

  • Page 569: Sense]:Obwidth:average:count

    2.12 OBW [:SENSe]:OBWidth:AVERage:COUNt <integer> Average Count Function This command sets the storage count. Refer to [:SENSe]:AVERage:COUNt. Related command This command has the same function as the following commands. [:SENSe]:AVERage:COUNt [:SENSe]:ACPower:AVERage:COUNt [:SENSe]:CHPower:AVERage:COUNt [:SENSe]:SEMask:AVERage:COUNt [:SENSe]:BPOWer|:TXPower:AVERage:COUNt [:SENSe]:OBWidth:AVERage:COUNt? Average Count Query Function This command queries the storage count. Refer to [:SENSe]:AVERage:COUNt?.

  • Page 570: Sense]:Obwidth:average[:State] On|Off|1|0

    Chapter 2 SCPI Device Message Details [:SENSe]:OBWidth:AVERage[:STATe] ON|OFF|1|0 Storage Mode Function This command sets the storage mode for Trace A. Refer to :TRACe[1]|2|3|4|5|6:STORage:MODE. Related command This command has the same function as the following commands. :TRACe[1]|2|3|4|5|6:STORage:MODE [:SENSe]:ACPower:AVERage[:STATe] [:SENSe]:CHPower:AVERage[:STATe] [:SENSe]:SEMask:AVERage[:STATe] [:SENSe]:BPOWer|:TXPower:AVERage[:STATe] [:SENSe]:SPURious:AVERage[:STATe] [:SENSe]:OBWidth:AVERage[:STATe]? Storage Mode Query...

  • Page 571: Sense]:Obwidth:bandwidth[:Resolution]

    2.12 OBW [:SENSe]:OBWidth:BANDwidth[:RESolution] <freq> Resolution Bandwidth Function This command sets the resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]. Related command This command has the same function as the following commands. :CALCulate:BANDwidth|:BWIDth[:RESolution] [:SENSe]:BANDwidth|:BWIDth[:RESolution] [:SENSe]:ACPower:BANDwidth[:RESolution] [:SENSe]:CHPower:BANDwidth[:RESolution] [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution] :CALCulate:ACPower:BANDwidth[:RESolution] :CALCulate:CHPower:BANDwidth[:RESolution] :CALCulate:OBWidth:BANDwidth[:RESolution] :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution] [:SENSe]:OBWidth:BANDwidth[:RESolution]? Resolution Bandwidth Query Function This command queries the resolution bandwidth (RBW).

  • Page 572: Calculate:obwidth:bandwidth[:Resolution]

    Chapter 2 SCPI Device Message Details :CALCulate:OBWidth:BANDwidth[:RESolution] <freq> Resolution Bandwidth Function This command sets the resolution bandwidth (RBW). Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]. Related command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth[:RESolution] [:SENSe]:ACPower:BANDwidth[:RESolution] [:SENSe]:CHPower:BANDwidth[:RESolution] [:SENSe]:OBWidth:BANDwidth[:RESolution] [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution] :CALCulate:BANDwidth|:BWIDth[:RESolution] :CALCulate:ACPower:BANDwidth[:RESolution] :CALCulate:CHPower:BANDwidth[:RESolution] :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution] :CALCulate:OBWidth:BANDwidth[:RESolution]?

  • Page 573: Sense]:Obwidth:bandwidth[:Resolution]:Auto On|Off|1|0

    2.12 OBW [:SENSe]:OBWidth:BANDwidth[:RESolution]:AUTO ON|OFF|1|0 Resolution Bandwidth Auto/Manual Function This command enables/disables the automatic resolution bandwidth (RBW) setting function. Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO. Related command This command has the same function as the following commands. :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO [:SENSe]:ACPower:BANDwidth[:RESolution]:AUTO [:SENSe]:CHPower:BANDwidth[:RESolution]:AUTO :CALCulate:ACPower:BANDwidth[:RESolution]:AUTO :CALCulate:CHPower:BANDwidth[:RESolution]:AUTO :CALCulate:OBWidth:BANDwidth[:RESolution]:AUTO [:SENSe]:OBWidth:BANDwidth[:RESolution]:AUTO? Resolution Bandwidth Auto/Manual Query Function...

  • Page 574: Calculate:obwidth:bandwidth[:Resolution]:Auto On|Off|1|0

    Chapter 2 SCPI Device Message Details :CALCulate:OBWidth:BANDwidth[:RESolution]:AUTO ON|OFF|1|0 Resolution Bandwidth Auto/Manual Function This command enables/disables the automatic resolution bandwidth(RBW) setting function. Refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO. Related command This command has the same function as the following commands. :CALCulate:BANDwidth|:BWIDth[:RESolution]:AUTO [:SENSe]:BANDwidth|:BWIDth[:RESolution]:AUTO [:SENSe]:ACPower:BANDwidth[:RESolution]:AUTO [:SENSe]:CHPower:BANDwidth[:RESolution]:AUTO [:SENSe]:OBWidth:BANDwidth[:RESolution]:AUTO :CALCulate:ACPower:BANDwidth[:RESolution]:AUTO :CALCulate:CHPower:BANDwidth[:RESolution]:AUTO...

  • Page 575: Sense]:Obwidth:bandwidth[:Resolution]:Mode Normal|Cispr

    2.12 OBW [:SENSe]:OBWidth:BANDwidth[:RESolution]:MODE NORMal|CISPr Resolution Bandwidth Normal/CISPR Function This command switches the Resolution Bandwidth mode. For details, refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:MODE. Related Command This command has the same function as the following commands. [:SENSe]:ACPower:BANDwidth[:RESolution]:MODE [:SENSe]:CHPower:BANDwidth[:RESolution]:MODE [:SENSe]:OBWidth:BANDwidth[:RESolution]:MODE [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]:MODE :CALCulate:BANDwidth|:BWIDth[:RESolution]:MODE :CALCulate:ACPower:BANDwidth[:RESolution]:MODE :CALCulate:CHPower:BANDwidth[:RESolution]:MODE :CALCulate:OBWidth:BANDwidth[:RESolution]:MODE :CALCulate:BPOWer|:TXPower:BANDwidth[:RESolution]:MODE [:SENSe]:OBWidth:BANDwidth[:RESolution]:MODE? Resolution Bandwidth Normal/CISPR Query...

  • Page 576: Calculate:obwidth:bandwidth[:Resolution]:Mode Normal|Cispr

    Chapter 2 SCPI Device Message Details :CALCulate:OBWidth:BANDwidth[:RESolution]:MODE NORMal|CISPr Resolution Bandwidth Normal/CISPR Function This command switches the Resolution Bandwidth mode. For details, refer to [:SENSe]:BANDwidth|:BWIDth[:RESolution]:MODE. Related Command This command has the same function as the following commands. [:SENSe]:ACPower:BANDwidth[:RESolution]:MODE [:SENSe]:CHPower:BANDwidth[:RESolution]:MODE [:SENSe]:OBWidth:BANDwidth[:RESolution]:MODE [:SENSe]:BPOWer|:TXPower:BANDwidth[:RESolution]:MODE :CALCulate:BANDwidth|:BWIDth[:RESolution]:MODE :CALCulate:ACPower:BANDwidth[:RESolution]:MODE :CALCulate:CHPower:BANDwidth[:RESolution]:MODE...

  • Page 577: Sense]:Obwidth:bandwidth:video

    2.12 OBW [:SENSe]:OBWidth:BANDwidth:VIDeo <freq> Video Bandwidth Function This command sets the video bandwidth (VBW). Refer to [:SENSe]:BANDwidth|:BWIDth:VIDeo. Related command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth:VIDeo [:SENSe]:ACPower:BANDwidth:VIDeo [:SENSe]:CHPower:BANDwidth:VIDeo [:SENSe]:OBWidth:BANDwidth:VIDeo? Video Bandwidth Query Function This command queries the video bandwidth (VBW). Refer to [:SENSe]:BANDwidth|:BWIDth:VIDeo?.
  • Page 578 Chapter 2 SCPI Device Message Details [:SENSe]:OBWidth:BANDwidth:VIDeo:AUTO OFF|ON|0|1 Video Bandwidth Auto/Manual Function This command sets the video bandwidth (VBW). Refer to [:SENSe]:BANDwidth|:BWIDth:VIDeo:AUTO. Related command This command has the same function as the following commands. [:SENSe]:BANDwidth|:BWIDth:VIDeo:AUTO [:SENSe]:ACPower:BANDwidth:VIDeo:AUTO [:SENSe]:CHPower:BANDwidth:VIDeo:AUTO [:SENSe]:OBWidth:BANDwidth:VIDeo:AUTO? Video Bandwidth Auto/Manual Query Function This command queries whether the resolution bandwidth (RBW) is set to Auto.

  • Page 579: Sense]:Obwidth:detector[:Function Normal|Positive|Sample|Negative|Rms|Qpeak|Caverage|Crms

    2.12 OBW [:SENSe]:OBWidth:DETector[:FUNCtion] NORMal|POSitive|SAMPle|NEGative|RMS|QPEak|CAVerage|CRMS Detection Mode Function This command selects the detection mode of the waveform pattern. Refer to [:SENSe]:DETector[:FUNCtion]. Related command This command has the same function as the following commands. [:SENSe]:DETector[:FUNCtion] [:SENSe]:ACPower:DETector[:FUNCtion] [:SENSe]:CHPower:DETector[:FUNCtion] :CALCulate:ACPower:DETector[:FUNCtion] :CALCulate:CHPower:DETector[:FUNCtion] :CALCulate:OBWidth:DETector[:FUNCtion] [:SENSe]:OBWidth:DETector[:FUNCtion]? Detection Mode Query Function This command queries the detection mode of the waveform pattern.

  • Page 580: Calculate:obwidth:detector[:Function Normal|Positive|Sample|Negative|Rms|Qpeak|Caverage|Crms

    Chapter 2 SCPI Device Message Details :CALCulate:OBWidth:DETector[:FUNCtion] NORMal|POSitive|SAMPle|NEGative|RMS|QPEak|CAVerage|CRMS Detection Mode Function This command selects the detection mode of the waveform pattern. Refer to [:SENSe]:DETector[:FUNCtion]. Related command This command has the same function as the following commands. [:SENSe]:DETector[:FUNCtion] [:SENSe]:ACPower:DETector[:FUNCtion] [:SENSe]:CHPower:DETector[:FUNCtion] [:SENSe]:OBWidth:DETector[:FUNCtion] :CALCulate:ACPower:DETector[:FUNCtion] :CALCulate:CHPower:DETector[:FUNCtion] :CALCulate:OBWidth:DETector[:FUNCtion]?

  • Page 581: Sense]:Obwidth:frequency:span

    2.12 OBW [:SENSe]:OBWidth:FREQuency:SPAN <freq> Frequency Span Function This command sets the frequency span. Refer to [:SENSe]:FREQuency:SPAN. Related command This command has the same function as the following commands. [:SENSe]:FREQuency:SPAN [:SENSe]:ACPower:FREQuency:SPAN [:SENSe]:CHPower:FREQuency:SPAN [:SENSe]:OBWidth:FREQuency:SPAN? Frequency Span Query Function This command queries the frequency span. Refer to [:SENSe]:FREQuency:SPAN?.

  • Page 582: Sense]:Obwidth:sweep:points

    Chapter 2 SCPI Device Message Details [:SENSe]:OBWidth:SWEep:POINts <integer> Trace Point Function This command sets the number of the trace display points. Refer to [:SENSe]:SWEep:POINts. Related command This command has the same function as the following commands. [:SENSe]:SWEep:POINts [:SENSe]:ACPower:SWEep:POINts [:SENSe]:CHPower:SWEep:POINts [:SENSe]:OBWidth:SWEep:POINts? Trace Point Query Function This command queries the number of the trace display points.

  • Page 583: Sense]:Obwidth:sweep:time

    2.12 OBW [:SENSe]:OBWidth:SWEep:TIME <time> Sweep Time Function This command sets the sweep time. Refer to [:SENSe]:SWEep:TIME. Related command This command has the same function as the following commands. [:SENSe]:SWEep:TIME [:SENSe]:ACPower:SWEep:TIME [:SENSe]:CHPower:SWEep:TIME [:SENSe]:BPOWer|:TXPower:SWEep:TIME [:SENSe]:OBWidth:SWEep:TIME? Sweep Time Query Function This command queries the sweep time. Refer to [:SENSe]:SWEep:TIME?.

  • Page 584: Sense]:Obwidth:sweep:time:auto Off|On|0|1

    Chapter 2 SCPI Device Message Details [:SENSe]:OBWidth:SWEep:TIME:AUTO OFF|ON|0|1 Sweep Time Auto/Manual Function This command enables/disables the automatic sweep time setting function. Refer to [:SENSe]:SWEep:TIME:AUTO. Related command This command has the same function as the following commands. [:SENSe]:SWEep:TIME:AUTO [:SENSe]:ACPower:SWEep:TIME:AUTO [:SENSe]:CHPower:SWEep:TIME:AUTO [:SENSe]:OBWidth:SWEep:TIME:AUTO? Sweep Time Auto/Manual Query Function This command queries whether the automatic sweep time setting...

  • Page 585: Calculate:obwidth:marker[1]|2|3|4|5|6|7|8|9|10:Reference

    2.12 OBW :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence <integer> Relative To Function This command sets the reference marker when the marker mode is set to Delta. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence. Related command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerenc :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerenc :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: REFerence :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence? Relative To Query...

  • Page 586: Spectrum Emission Mask

    Chapter 2 SCPI Device Message Details 2.13 Spectrum Emission Mask Table 2.13-1 lists device messages for Spectrum Emission Mask measurement. Table 2.13-1 Device messages for Spectrum Emission Mask measurement Function Device Message [:SENSe]:SEMask[:STATe] ON|OFF|1|0 Measure Spectrum Emission Mask [:SENSe]:SEMask[:STATe]? [:SENSe]:SEMask:OFFSet[1]:SIDE BOTH|POSitive|NEGative Spectrum Emission Mask Limit Side [:SENSe]:SEMask:OFFSet[1]:SIDE?
  • Page 587 2.13 Spectrum Emission Mask Table 2.13-1 Device messages for Spectrum Emission Mask measurement (Cont’d) Function Device Message [:SENSe]:SEMask:OFFSet[1]:LIST:BANDwidth[1][:RESolution] Spectrum Emission <bandwidth_1>[,<bandwidth_2>[,<bandwidth_3>[,<bandwidth_4>[,<bandw Mask Offset idth_5>[,<bandwidth_6>[,<bandwidth_7>[,<bandwidth_8>[,<bandwidth_9 Resolution >[,<bandwidth_10>[,<bandwidth_11>[,<bandwidth_12>]]]]]]]]]]] Bandwidth [:SENSe]:SEMask:OFFSet[1]:LIST:BANDwidth[1][:RESolution]? [:SENSe]:SEMask:OFFSet[1]:LIST:BANDwidth[1][:RESolution]:AUTO Spectrum Emission <switch_1>[,<switch_2>[,<switch_3>[,<switch_4>[,<switch_5>[,<switc Mask Offset h_6>[,<switch_7>[,<switch_8>[,<switch_9>[,<switch_10>[,<switch_11> Resolution [,<switch_12>]]]]]]]]]]] Bandwidth Auto/Manual [:SENSe]:SEMask:OFFSet[1]:LIST:BANDwidth[1][:RESolution]:AUTO? Spectrum Emission [:SENSe]:SEMask:BANDwidth[1]:VIDeo <bandwidth>|OFF Mask Video...
  • Page 588 Chapter 2 SCPI Device Message Details Table 2.13-1 Device messages for Spectrum Emission Mask measurement (Cont’d) Function Device Message [:SENSe]:SEMask:SWEep[1]:TIME <time> Spectrum Emission Mask Sweep Time [:SENSe]:SEMask:SWEep[1]:TIME? [:SENSe]:SEMask:OFFSet[1]:LIST:SWEep[1]:TIME Spectrum Emission <time_1>,<time_2>,<time_3>,<time_4>,<time_5>,<time_6>[,<time_7>[, Mask Offset Sweep <time_8>[,<time_9>[,<time_10>[,<time_11>[,<time_12>]]]]]]]]]]] Time [:SENSe]:SEMask:OFFSet[1]:LIST:SWEep[1]:TIME? Spectrum Emission [:SENSe]:SEMask:SWEep[1]:TIME:AUTO ON|OFF|1|0 Mask Sweep Time [:SENSe]:SEMask:SWEep[1]:TIME:AUTO? Auto/Manual...
  • Page 589 2.13 Spectrum Emission Mask Table 2.13-1 Device messages for Spectrum Emission Mask measurement (Cont’d) Function Device Message Spectrum Emission [:SENSe]:SEMask:FILTer:TYPE RECT|NYQuist|RNYQuist Mask Reference [:SENSe]:SEMask:FILTer:TYPE? Filter Type Spectrum Emission [:SENSe]:SEMask:FILTer[:RRC]:ALPHa <real> Mask Reference [:SENSe]:SEMask:FILTer[:RRC]:ALPHa? Roll-off Factor [:SENSe]:SEMask:OFFSet[1]:LIST:FREQuency:STARt <freq_1>[,<freq_2>[,<freq_3>[,<freq_4>[,<freq_5>[,<freq_6>[,<freq Spectrum Emission _7>[,<freq_8>[,<freq_9>[,<freq_10>[,<freq_11>[,<freq_12>]]]]]]]]] Mask Offset Start Frequency [:SENSe]:SEMask:OFFSet[1]:LIST:FREQuency:STARt?
  • Page 590 Chapter 2 SCPI Device Message Details Table 2.13-1 Device messages for Spectrum Emission Mask measurement (Cont’d) Function Device Message [:SENSe]:SEMask:OFFSet[1]:LIST:STARt:ABSolute[1]|2 <ampl_1>[,<ampl_2>[,<ampl_3>[,<ampl_4>[,<ampl_5>[,<ampl_6>[,<ampl _7>[,<ampl_8>[,<ampl_9>[,<ampl_10>[,<ampl_11>[,<ampl_12>]]]]]]]]] Spectrum Emission [:SENSe]:SEMask:OFFSet[1]:LIST:STARt:ABSolute[1]|2? Mask Offset Start Frequency Absolute :CALCulate:SEMask:OFFSet[1]:LIST:STARt:ABSolute[1]|2 Limit Level <ampl_1>[,<ampl_2>[,<ampl_3>[,<ampl_4>[,<ampl_5>[,<ampl_6>[,<ampl _7>[,<ampl_8>[,<ampl_9>[,<ampl_10>[,<ampl_11>[,<ampl_12>]]]]]]]]] :CALCulate:SEMask:OFFSet[1]:LIST:STARt:ABSolute[1]|2? [:SENSe]:SEMask:OFFSet[1]:LIST:STOP:ABSolute[1]|2 <ampl_1>[,<ampl_2>[,<ampl_3>[,<ampl_4>[,<ampl_5>[,<ampl_6>[,<ampl _7>[,<ampl_8>[,<ampl_9>[,<ampl_10>[,<ampl_11>[,<ampl_12>]]]]]]]]] Spectrum Emission [:SENSe]:SEMask:OFFSet[1]:LIST:STOP:ABSolute[1]|2? Mask Offset Stop Frequency Absolute...
  • Page 591 2.13 Spectrum Emission Mask Table 2.13-1 Device messages for Spectrum Emission Mask measurement (Cont’d) Function Device Message [:SENSe]:SEMask:LOGic:OFFSet[1]:LIST:TEST <logic_1>[,<logic_2>[,<logic_3>[,<logic_4>[,<logic_5>[,<logic_6>[ ,<logic_7>[,<logic_8>[,<logic_9>[,<logic_10>[,<logic_11>[,<logic_ 12>]]]]]]]]]]] [:SENSe]:SEMask:LOGic:OFFSet[1]:LIST:TEST? Spectrum Emission Mask Fail Logic :CALCulate:SEMask:LOGic:OFFSet[1]:LIST:TEST <logic_1>[,<logic_2>[,<logic_3>[,<logic_4>[,<logic_5>[,<logic_6>[ ,<logic_7>[,<logic_8>[,<logic_9>[,<logic_10>[,<logic_11>[,<logic_ 12>]]]]]]]]]]] :CALCulate:SEMask:LOGic:OFFSet[1]:LIST:TEST? Spectrum Emission :CONFigure:SEMask Mask Configure Spectrum Emission :INITiate:SEMask Mask Initiate Spectrum Emission :FETCh:SEMask[n]?
  • Page 592 Chapter 2 SCPI Device Message Details Table 2.13-1 Device messages for Spectrum Emission Mask measurement (Cont’d) Function Device Message Spectrum Emission Mask Sweep Type [:SENSe]:SEMask:SWEep[1][:TYPE][:AUTO]:RULes:FFT:RWIDth? Select Rules Real FFT Width Query Spectrum Emission Mask Offset Sweep [:SENSe]:SEMask:OFFSet[1]:LIST:SWEep[1][:TYPE][:AUTO]:RULes:FFT:RWIDt Type Select Rules Real FFT Width Query Spectrum Emission...

  • Page 593: Sense]:Semask[:State] On|Off|1|0

    2.13 Spectrum Emission Mask [:SENSe]:SEMask[:STATe] ON|OFF|1|0 Measure Spectrum Emission Mask Function This command performs Spectrum Emission Mask measurement. Command [:SENSe]:SEMask[:STATe] <switch> Parameter SEM measurement On/Off <switch> Sets SEM measurement to On. ON|1 Sets SEM measurement to Off. OFF|0 Example of Use To set SEM measurement to On.

  • Page 594: Sense]:Semask:offset[1]:Side Both|Positive|Negative

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:OFFSet[1]:SIDE BOTH|POSitive|NEGative Spectrum Emission Mask Limit Side Function This command selects the judgment target area for the Spectrum Emission Mask measurement. This commend selects an area Command [:SENSe]:SEMask:OFFSet[1]:SIDE <side> Parameter Judgment target area <side> Upper/Lower offset BOTH Upper offset...

  • Page 595: Sense]:Semask:offset[1]:Side?

    2.13 Spectrum Emission Mask [:SENSe]:SEMask:OFFSet[1]:SIDE? Spectrum Emission Mask Limit Side Query Function This command queries the judgment target area for the Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:OFFSet[1]:SIDE? Response <side> Parameter Judgment target area <side> Upper/Lower offset BOTH Upper offset Lower offset Example of Use To query the judgment target area.

  • Page 596: Sense]:Semask:type Tpref|Pkref|Fix

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:TYPE TPRef|PKRef|FIX Spectrum Emission Mask Reference Type Function This command sets the reference for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:TYPE <type> Parameter Type of reference <type> Uses the reference power as the integral power TPRef in Channel BW.

  • Page 597: Sense]:Semask:type?

    2.13 Spectrum Emission Mask [:SENSe]:SEMask:TYPE? Spectrum Emission Mask Reference Type Query Function This command queries the reference power type for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:TYPE? Response <type> Parameter Type of reference <type> Uses the reference power as the integral power in Channel BW.

  • Page 598: Calculate:semask:type Tpref|Pkref|Fix

    Chapter 2 SCPI Device Message Details :CALCulate:SEMask:TYPE TPRef|PKRef|FIX Spectrum Emission Mask Reference Type Function This command sets the reference for Spectrum Emission Mask measurement. Command :CALCulate:SEMask:TYPE <type> Parameter Type of reference <type> Uses the reference power as the integral power TPRef in Channel BW.

  • Page 599: Calculate:semask:type?

    2.13 Spectrum Emission Mask :CALCulate:SEMask:TYPE? Spectrum Emission Mask Reference Type Query Function This command queries the reference power type for Spectrum Emission Mask measurement. Query :CALCulate:SEMask:TYPE? Response <type> Parameter Type of reference <type> Uses the reference power as the integral power in Channel BW.

  • Page 600: Sense]:Semask:carrier[:Power]

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:CARRier[:POWer] <ampl> Spectrum Emission Mask Reference Power Function This command sets the reference power for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:CARRier[:POWer] <ampl> Parameter Reference power <ampl> Range –200 to 200 dBm Resolution 0.01 dB Suffix code DBM,DM dBm is used when omitted.

  • Page 601: Sense]:Semask:carrier[:Power]?

    2.13 Spectrum Emission Mask [:SENSe]:SEMask:CARRier[:POWer]? Spectrum Emission Mask Reference Power Query Function This command queries the reference power for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:CARRier[:POWer]? Response <ampl> Parameter Reference power <ampl> Range –200 to 200 dBm Resolution 0.01 dB Suffix code None.

  • Page 602: Calculate:semask:carrier[:Power]

    Chapter 2 SCPI Device Message Details :CALCulate:SEMask:CARRier[:POWer] <ampl> Spectrum Emission Mask Reference Power Function This command sets the reference power for Spectrum Emission Mask measurement. Command :CALCulate:SEMask:CARRier[:POWer] <ampl> Parameter Reference power <ampl> Range –200 to 200 dBm Resolution 0.01 dB Suffix code DBM,DM dBm is used when omitted.

  • Page 603: Calculate:semask:carrier[:Power]?

    2.13 Spectrum Emission Mask :CALCulate:SEMask:CARRier[:POWer]? Spectrum Emission Mask Reference Power Query Function This command queries the reference power for Spectrum Emission Mask measurement. Query :CALCulate:SEMask:CARRier[:POWer]? Response <ampl> Parameter Reference power <ampl> Range –200 to 200 dBm Resolution 0.01 dB Suffix code None.

  • Page 604: Sense]:Semask:bandwidth[1]:Channel|:Integration

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:BANDwidth[1]:CHANnel|:INTegration <bandwidth> Spectrum Emission Mask Integrate Bandwidth Function This command sets the measurement bandwidth of the reference power for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:BANDwidth[1]:CHANnel|:INTegration <bandwidth> Parameter Measurement bandwidth of reference power <bandwidth> Range 1000 to 200000000 Hz Resolution 1 Hz...

  • Page 605: Sense]:Semask:bandwidth[1]:Channel|Integration?

    2.13 Spectrum Emission Mask [:SENSe]:SEMask:BANDwidth[1]:CHANnel|INTegration? Spectrum Emission Mask Integrate Bandwidth Query Function This command queries the measurement bandwidth of the reference power for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:BANDwidth[1]:CHANnel|:INTegration? Response <bandwidth> Parameter Measurement bandwidth of reference power <bandwidth> Range 1000 to 200000000 Hz Resolution 1 Hz Suffix code...

  • Page 606: Sense]:Semask: Attenuation |Auto

    Sets attenuation automatically. AUTO Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.

  • Page 607: Sense]:Semask:attenuation?

    None. Value is returned in dB units. Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.

  • Page 608: Rel_Ampl_12>|Auto]]]]]]]]]]]

    Sets the attenuation automatically. AUTO Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.

  • Page 609: Sense]:Semask:offset[1]:List:attenuation?

    None. Value is returned in dB units. Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.

  • Page 610: Sense]:Semask:bandwidth[1][:Resolution]

    For MS2830A, MS2840A, RBW 20 MHz or greater is available for MS2830A-005/105/007/009/109, MS2840A-005/105/009/109. The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Function Operation)

  • Page 611: Sense]:Semask:bandwidth[1][:Resolution]?

    For MS2830A, MS2840A, RBW 20 MHz or greater is only available for MS2830A-005/105/007/009/109, MS2840A-005/105/009/109. The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Function Operation)

  • Page 612: Sense]:Semask:bandwidth[1][:Resolution]:Auto On|Off|1|0

    OFF|0 setting function. Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.

  • Page 613: Sense]:Semask:bandwidth[1][:Resolution]:Auto?

    Automatic resolution bandwidth setting function is disabled. Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.
  • Page 614 For MS2830A, MS2840A, RBW 20 MHz or greater is only available for MS2830A-005/105/007/009/109, MS2840A-005/105/009/109. The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Function Operation)

  • Page 615: Sense]:Semask:offset[1]:List:bandwidth[1][:Resolution]?

    For MS2830A, MS2840A, RBW 20 MHz or greater is only available for MS2830A-005/105/007/009/109, MS2840A-005/105/009/109. The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Operation)
  • Page 616 OFF|0 setting function. Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.

  • Page 617: Sense]:Semask:offset[1]:List:bandwidth[1][:Resolution]:Auto?

    Disables the automatic resolution bandwidth setting function. Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.

  • Page 618: Sense]:Semask:bandwidth[1]:Video |Off

    • RMS The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.

  • Page 619: Sense]:Semask:bandwidth[1]:Video?

    This command is fixed to Auto and cannot be set, when Detection is set to the following: • RMS The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal Analyzer RBW. Refer to the Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.

  • Page 620: Bandwidth_8>|Off [,|Off [,|Off Bandwidth_11>|Off [,|Off]]]]]]]]]]]

    Hz is used when omitted. Sets VBW to Off. Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal Analyzer RBW. Refer to the Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.

  • Page 621: Sense]:Semask:offset[1]:List:bandwidth[1]:Video?

    This command is fixed to Auto and cannot be set, when Detection is set to the following: • RMS The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal Analyzer RBW. Refer to the Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.

  • Page 622: Sense]:Semask:bandwidth[1]:Video:auto On|Off|1|0

    Disables the automatic video bandwidth setting OFF|0 function. Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal Analyzer RBW. Refer to the Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.

  • Page 623: Sense]:Semask:bandwidth[1]:Video:auto?

    This command is fixed to Auto and cannot be set, when Detection is set to the following: • RMS The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal Analyzer RBW. Refer to the Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.
  • Page 624 Disables the automatic video bandwidth setting OFF|0 function. Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal Analyzer RBW. Refer to the Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.

  • Page 625: Sense]:Semask:offset[1]:List:bandwidth[1]:Video:auto?

    Automatic video bandwidth setting function is disabled. Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal Analyzer RBW. Refer to the Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.

  • Page 626: Sense]:Semask:bandwidth[1]:Video:mode Video|Power

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:BANDwidth[1]:VIDeo:MODE VIDeo|POWer Spectrum Emission Mask Video Bandwidth Mode Function This command sets the processing method for the video bandwidth (VBW) when measuring the reference power for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:BANDwidth[1]:VIDeo:MODE <method> Parameter Processing method for VBW <method>...

  • Page 627: Sense]:Semask:bandwidth[1]:Video:mode?

    2.13 Spectrum Emission Mask [:SENSe]:SEMask:BANDwidth[1]:VIDeo:MODE? Spectrum Emission Mask Video Bandwidth Mode Query Function This command queries the processing method for the video bandwidth (VBW) when measuring the reference power for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:BANDwidth[1]:VIDeo:MODE? Response <method> Parameter Processing method for VBW <method>...
  • Page 628 Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:OFFSet[1]:LIST:BANDwidth[1]:VIDeo:MODE <method_1>[,<method_2>[,<method_3>[,<method_4>[,<method_5>[,<metho d_6>[,<method_7>[,<method_8>[,<method_9>[,<method_10>[,<method_11> [,<method_12>]]]]]]]]]]] Spectrum Emission Mask Offset Video Bandwidth Mode Function This command sets the processing method for the video bandwidth (VBW) of the offset for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:OFFSet[1]:LIST:BANDwidth[1]:VIDeo:MODE <method_n> Parameter Processing method for VBW of Offset-n <method_n>...

  • Page 629: Sense]:Semask:offset[1]:List:bandwidth[1]:Video:mode?

    2.13 Spectrum Emission Mask [:SENSe]:SEMask:OFFSet[1]:LIST:BANDwidth[1]:VIDeo:MODE? Spectrum Emission Mask Offset Video Bandwidth Mode Query Function This command queries the processing method for the video bandwidth (VBW) of the offset for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:OFFSet[1]:LIST:BANDwidth[1]:VIDeo:MODE? Response <method_n> Parameter Processing method for VBW of Offset-n <method_n>...

  • Page 630: Sense]:Semask:sweep[1]:Time

    NS,US,MS,S S is used when omitted. Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.

  • Page 631: Sense]:Semask:sweep[1]:Time?

    None. Value is returned in S units. Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.
  • Page 632 NS,US,MS,S S is used when omitted. Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.

  • Page 633: Sense]:Semask:offset[1]:List:sweep[1]:Time?

    Suffix code None. Value is returned in S units. Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Operation) for details.

  • Page 634: Sense]:Semask:sweep[1]:Time:auto On|Off|1|0

    Disables the automatic sweep time setting OFF|0 function. Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Function Operation) ” or MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.

  • Page 635: Sense]:Semask:sweep[1]:Time:auto?

    Automatic sweep time setting function is disabled. Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.
  • Page 636 Disables the automatic sweep time setting OFF|0 function. Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.
  • Page 637 Automatic sweep time setting function is disabled. Details The setting range of this function is limited depending on the settings of MS2690A/MS2691A/MS2692A Signal other parameters. Refer to the Analyzer Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.
  • Page 638 Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:SWEep[1]:TIME:AUTO:MODE NORMal|FAST Spectrum Emission Mask Auto Sweep Time Select Function This command sets the sweep mode (Normal/Fast) when the automatic sweep time setting function is enabled for measuring of the reference power during Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:SWEep[1]:TIME:AUTO:MODE <mode>...

  • Page 639: Sense]:Semask:sweep[1]:Time:auto:mode?

    2.13 Spectrum Emission Mask [:SENSe]:SEMask:SWEep[1]:TIME:AUTO:MODE? Spectrum Emission Mask Auto Sweep Time Select Query Function This command queries the sweep mode (Normal/Fast) when the automatic sweep time setting function is enabled for measuring the reference power during Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:SWEep[1]:TIME:AUTO:MODE? Response...
  • Page 640 Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:OFFSet[1]:LIST:SWEep[1]:TIME:AUTO:MODE <mode_1>[,<mode_2>[,<mode_3>[,<mode_4>[,<mode_5>[,<mode_6>[,<mo de_7>[,<mode_8>[,<mode_9>[,<mode_10>[,<mode_11>[,<mode_12>]]]]]]]]]]] Spectrum Emission Mask Offset Auto Sweep Time Select Function This command queries the sweep mode (Normal/Fast) when the automatic sweep time setting function is enabled for the offset during Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:OFFSet[1]:LIST:SWEep[1]:TIME:AUTO:MODE <mode_n>...

  • Page 641: Sense]:Semask:offset[1]:List:sweep[1]:Time:auto:mode?

    2.13 Spectrum Emission Mask [:SENSe]:SEMask:OFFSet[1]:LIST:SWEep[1]:TIME:AUTO:MODE? Spectrum Emission Mask Offset Auto Sweep Time Select Query Function This command queries the sweep mode (Normal/Fast) when the automatic sweep time setting function is enabled for the offset during Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:OFFSet[1]:LIST:SWEep[1]:TIME:AUTO:MODE? Response <mode_n>...

  • Page 642: Sense]:Semask:detector[:Function] Normal|Positive|Negative|Sample|Rms Average

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:DETector[:FUNCtion] NORMal|POSitive|NEGative|SAMPle|RMS|AVERage Spectrum Emission Mask Detection Mode Function This command selects the detection mode of the waveform pattern when measuring the reference power for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:DETector <mode> Parameter Detection mode <mode>...

  • Page 643: Sense]:Semask:detector[:Function]?

    2.13 Spectrum Emission Mask [:SENSe]:SEMask:DETector[:FUNCtion]? Spectrum Emission Mask Detection Mode Query Function This command queries the detection mode of the waveform pattern when measuring the reference power for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:DETector? Response <mode> Parameter Detection mode selection <mode>...

  • Page 644: Calculate:semask:detector[:Function] Normal|Positive|Negative|Sample|Rms Average

    Chapter 2 SCPI Device Message Details :CALCulate:SEMask:DETector[:FUNCtion] NORMal|POSitive|NEGative|SAMPle|RMS|AVERage Spectrum Emission Mask Detection Mode Function This command selects the detection mode of the waveform pattern when measuring the reference power for Spectrum Emission Mask measurement. Command :CALCulate:SEMask:DETector[:FUNCtion] <mode> Parameter Detection mode selection <mode>...

  • Page 645: Calculate:semask:detector[:Function]?

    2.13 Spectrum Emission Mask :CALCulate:SEMask:DETector[:FUNCtion]? Spectrum Emission Mask Detection Mode Query Function This command queries the detection mode of the waveform pattern when measuring the reference power for Spectrum Emission Mask measurement. Query :CALCulate:SEMask:DETector[:FUNCtion]? Response <mode> Parameter Detection mode selection <mode>...
  • Page 646 Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:OFFSet[1]:LIST:DETector <mode_1>[,<mode_2>[,<mode_3>[,<mode_4>[,<mode_5>[,<mode_6>[,<mo de_7>[,<mode_8>[,<mode_9>[,<mode_10>[,<mode_11>[,<mode_12>]]]]]]]]]]] Spectrum Emission Mask Offset Detection Mode Function This command selects the detection mode of the waveform pattern of the offset for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:OFFSet[1]:LIST:DETector <mode_n> Parameter Detection mode selection for Offset-n <mode_n>...

  • Page 647: Sense]:Semask:offset[1]:List:detector?

    2.13 Spectrum Emission Mask [:SENSe]:SEMask:OFFSet[1]:LIST:DETector? Spectrum Emission Mask Offset Detection Mode Query Function This command queries the detection mode of the waveform pattern of the offset for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:OFFSet[1]:LIST:DETector? Response <mode_n> Parameter Detection mode selection for Offset-n <mode_n>...

  • Page 648: Sense]:Semask:detector:offset[:Function Normal|Positive|Negative|Sample|Rms|Average

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:DETector:OFFSet[:FUNCtion] NORMal|POSitive|NEGative|SAMPle|RMS|AVERage Spectrum Emission Mask Offset Detection Mode Function This command selects the detection mode of the waveform pattern of the offset for Spectrum Emission Mask measurement in a lump sum. Command [:SENSe]:SEMask:DETector:OFFSet[:FUNCtion] <mode> Parameter Detection mode selection for all offsets <mode>...

  • Page 649: Sense]:Semask:sweep[1]:Points

    2.13 Spectrum Emission Mask [:SENSe]:SEMask:SWEep[1]:POINts <integer> Spectrum Emission Mask Trace Point Function This command selects the number of frequency display points when measuring the reference power for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:SWEep[1]:POINts <integer> Parameter Number of frequency display points <integer>...

  • Page 650: Sense]:Semask:sweep[1]:Points?

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:SWEep[1]:POINts? Spectrum Emission Mask Trace Point Query Function This command queries the number of frequency display points when measuring the reference power for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:SWEep[1]:POINts? Response <integer> Parameter Number of frequency display points <integer>...
  • Page 651 2.13 Spectrum Emission Mask [:SENSe]:SEMask:OFFSet[1]:LIST:SWEep[1]:POINts <integer_1>[,<integer_2>[,<integer_3>[,<integer_4>[,<integer_5>[,<integer_6 >[,<integer_7>[,<integer_8>[,<integer_9>[,<integer_10>[,<integer_11>[,<integ er_12>]]]]]]]]]]] Spectrum Emission Mask Offset Trace Point Function This command queries the number of frequency display points of the offset for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:OFFSet[1]:LIST:SWEep[1]:POINts <integer_n> Parameter Number of frequency display points of Offset-n <integer_n>...

  • Page 652: Sense]:Semask:offset[1]:List:sweep[1]:Points?

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:OFFSet[1]:LIST:SWEep[1]:POINts? Spectrum Emission Mask Offset Trace Point Query Function This command queries the frequency display point number of the offset for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:OFFSet[1]:LIST:SWEep[1]:POINts? Response <integer_n> Parameter Number of frequency display points of Offset-n <integer_n>...

  • Page 653: Sense]:Semask:filter:type Rect|Nyquist|Rnyquist

    2.13 Spectrum Emission Mask [:SENSe]:SEMask:FILTer:TYPE RECT|NYQuist|RNYQuist Spectrum Emission Mask Reference Filter Type Function This command selects the filter type when measuring the reference power for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:FILTer:TYPE <type> Parameter Filter type <type> Rectangle Filter RECT Nyquist Filter NYQuist Root Nyquist Filter RNYQuist...

  • Page 654: Sense]:Semask:filter:type?

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:FILTer:TYPE? Spectrum Emission Mask Reference Filter Type Query Function This command queries the filter type when measuring the reference power for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:FILTer:TYPE? Response <type> Parameter Filter type <type> Rectangle Filter RECT Nyquist Filter Root Nyquist Filter...

  • Page 655: Sense]:Semask:filter[:Rrc]:Alpha

    2.13 Spectrum Emission Mask [:SENSe]:SEMask:FILTer[:RRC]:ALPHa <real> Spectrum Emission Mask Reference Roll-off Factor Function This command sets the rolloff ratio of the filter when measuring the reference power for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:FILTer[:RRC]:ALPHa <real> Parameter Rolloff ratio of the filter <real>...

  • Page 656: Sense]:Semask:filter[:Rrc]:Alpha?

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:FILTer[:RRC]:ALPHa? Spectrum Emission Mask Reference Roll-off Factor Query Function This command queries the rolloff ratio of the filter when measuring the reference power for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:FILTer[:RRC]:ALPHa? Response <real> Parameter Filter rolloff ratio <real>...
  • Page 657 2.13 Spectrum Emission Mask [:SENSe]:SEMask:OFFSet[1]:LIST:FREQuency:STARt <freq_1>[,<freq_2>[,<freq_3>[,<freq_4>[,<freq_5>[,<freq_6>[,<freq_7>[,<freq _8>[,<freq_9>[,<freq_10>[,<freq_11>[,<freq_12>]]]]]]]]]]] Spectrum Emission Mask Offset Start Frequency Function This command sets the start frequency of the offset for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:OFFSet[1]:LIST:FREQuency:STARt <freq_n> Parameter Start frequency of Offset-n <freq_n> Range 0 to 4999999700 Hz Resolution 2 Hz Suffix code...

  • Page 658: Sense]:Semask:offset[1]:List:frequency:start?

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:OFFSet[1]:LIST:FREQuency:STARt? Spectrum Emission Mask Offset Start Frequency Query Function This command queries the start frequency of the offset for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:OFFSet[1]:LIST:FREQuency:STARt? Response <freq_n> Parameter Start frequency of Offset-n <freq_n> Range 0 to 4999999700 Hz Resolution 2 Hz...
  • Page 659 2.13 Spectrum Emission Mask [:SENSe]:SEMask:OFFSet[1]:LIST:FREQuency:STOP <freq_1>[,<freq_2>[,<freq_3>[,<freq_4>[,<freq_5>[,<freq_6>[,<freq_7>[,<freq _8>[,<freq_9>[,<freq_10>[,<freq_11>[,<freq_12>]]]]]]]]]]] Spectrum Emission Mask Offset Stop Frequency Function This command sets the stop frequency of the offset for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:OFFSet[1]:LIST:FREQuency:STOP <freq_n> Parameter Stop frequency of Offset-n <freq_n> Range 300 to 5000000000 Hz Resolution 2 Hz Suffix code...

  • Page 660: Sense]:Semask:offset[1]:List:frequency:stop?

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:OFFSet[1]:LIST:FREQuency:STOP? Spectrum Emission Mask Offset Stop Frequency Query Function This command queries the stop frequency of the offset for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:OFFSet[1]:LIST:FREQuency:STOP? Response <freq_n> Parameter Stop frequency of Offset-n <freq_n> Range 300 to 5000000000 Hz Resolution 2 Hz...

  • Page 661: Bandwidth_11>[,]]]]]]]]]]]

    HZ,KHZ,KZ,MHZ,MZ,GHZ,GZ Hz is used when omitted. Details The setting range of this function is limited depending on the setting of MS2690A/MS2691A/MS2692A RBW of the target offset. Refer to the Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.

  • Page 662: Sense]:Semask:offset[1]:List:bandwidth[1]:Integration?

    Suffix code None. Value is returned in Hz units. Details The setting range of this function is limited depending on the setting of MS2690A/MS2691A/MS2692A RBW of the target offset. Refer to the Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation)
  • Page 663 Disables the automatic Integrate BW setting OFF|0 function. Details The setting range of this function is limited depending on the setting of MS2690A/MS2691A/MS2692A RBW of the target offset. Refer to the Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.

  • Page 664: Sense]:Semask:offset[1]:List:bandwidth[1]:Integration:auto?

    Automatic Integrate BW setting function is disabled. Details The setting range of this function is limited depending on the setting of MS2690A/MS2691A/MS2692A RBW of the target offset. Refer to the Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual (Spectrum Analyzer Function Operation) for details.
  • Page 665 2.13 Spectrum Emission Mask [:SENSe]:SEMask:OFFSet[1]:LIST:RLEVel <ampl_1>[,<ampl_2>[,<ampl_3>[,<ampl_4>[,<ampl_5>[,<ampl_6>[,<ampl_7 >[,<ampl_8>[,<ampl_9>[,<ampl_10>[,<ampl_11>[,<ampl_12>]]]]]]]]]]] Spectrum Emission Mask Offset Reference Level Function This command sets the reference level of the offset for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:OFFSet[1]:LIST:RLEVel <ampl_n> Parameter Reference level of Offset-n <ampl_n> Range Value equivalent to −120 to +50 dBm Resolution 0.01 dB Suffix code...

  • Page 666: Sense]:Semask:offset[1]:List:rlevel?

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:OFFSet[1]:LIST:RLEVel? Spectrum Emission Mask Offset Reference Level Query Function This command queries the reference level for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:OFFSet[1]:LIST:RLEVel? Response <ampl_n> Parameter Reference level of Offset-n <ampl_n> Range Value equivalent to −120 to +50 dBm Resolution 0.01 dB Suffix code...
  • Page 667 2.13 Spectrum Emission Mask [:SENSe]:SEMask:OFFSet[1]:LIST:RLEVel:AUTO <switch_1>[,<switch_2>[,<switch_3>[,<switch_4>[,<switch_5>[,<switch_6>[,< switch_7>[,<switch_8>[,<switch_9>[,<switch_10>[,<switch_11>[,<switch_12>] ]]]]]]]]]] Spectrum Emission Mask Offset Reference Level Auto/Manual Function This command enables/disables the automatic reference level setting function for the offset during Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:OFFSet[1]:LIST:RLEVel:AUTO <switch_n> Parameter Automatic reference level setting function On/Off <switch_n>...

  • Page 668: Sense]:Semask:offset[1]:List:rlevel:auto?

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:OFFSet[1]:LIST:RLEVel:AUTO? Spectrum Emission Mask Offset Reference Level Auto/Manual Query Function This command queries the automatic reference level setting function On/Off state for the offset during Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:OFFSet[1]:LIST:RLEVel:AUTO? Response <switch_n> Parameter Automatic reference level setting function On/Off <switch_n>...
  • Page 669 2.13 Spectrum Emission Mask [:SENSe]:SEMask:OFFSet[1]:LIST:STATe <switch_1>[,<switch_2>[,<switch_3>[,<switch_4>[,<switch_5>[,<switch_6>[,< switch_7>[,<switch_8>[,<switch_9>[,<switch_10>[,<switch_11>[,<switch_12>] ]]]]]]]]]] Spectrum Emission Mask Offset On/Off Function This command sets the offset for Spectrum Emission Mask measurement On/Off. Command [:SENSe]:SEMask:OFFSet[1]:LIST:STATe <switch_n> Parameter Offset-n On/Off <switch_n> Sets the offset to On. ON|1 Sets the offset to Off. OFF|0 Example of Use To set the offset.

  • Page 670: Sense]:Semask:offset[1]:List:state?

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:OFFSet[1]:LIST:STATe? Spectrum Emission Mask Offset On/Off Query Function This command queries the On/Off state of the offset for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:OFFSet[1]:LIST:STATe? Response <switch_n> Parameter Offset-n On/Off <switch_n> Example of Use To query the On/Off state of the offset. SEM:OFFS:LIST:STAT? >...
  • Page 671 2.13 Spectrum Emission Mask [:SENSe]:SEMask:OFFSet[1]:LIST:STARt:ABSolute[1]|2 <ampl_1>[,<ampl_2>[,<ampl_3>[,<ampl_4>[,<ampl_5>[,<ampl_6>[,<ampl_7 >[,<ampl_8>[,<ampl_9>[,<ampl_10>[,<ampl_11>[,<ampl_12>]]]]]]]]]]] Spectrum Emission Mask Offset Start Frequency Absolute Limit Level Function This command sets the absolute level upper limit of the offset start frequency for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:OFFSet[1]:LIST:STARt:ABSolute[1]|2 <ampl_n> Parameter Absolute level upper limit of Offset-n start <ampl_n>...

  • Page 672: Sense]:Semask:offset[1]:List:start:absolute[1]|2?

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:OFFSet[1]:LIST:STARt:ABSolute[1]|2? Spectrum Emission Mask Offset Start Frequency Absolute Limit Level Query Function This command queries the absolute level upper limit of the offset start frequency for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:OFFSet[1]:LIST:STARt:ABSolute[1]|2? Response <ampl_n> Parameter Absolute level upper limit of Offset-n start <ampl_n>...
  • Page 673 2.13 Spectrum Emission Mask :CALCulate:SEMask:OFFSet[1]:LIST:STARt:ABSolute[1]|2 <ampl_1>[,<ampl_2>[,<ampl_3>[,<ampl_4>[,<ampl_5>[,<ampl_6>[,<ampl_7 >[,<ampl_8>[,<ampl_9>[,<ampl_10>[,<ampl_11>[,<ampl_12>]]]]]]]]]]] Spectrum Emission Mask Offset Start Frequency Absolute Limit Level Function This command sets the absolute level upper limit of the offset start frequency for Spectrum Emission Mask measurement. Command :CALCulate:SEMask:OFFSet[1]:LIST:STARt:ABSolute[1]|2 <ampl_n> Parameter Absolute level upper limit of Offset-n start <ampl_n>...

  • Page 674: Calculate:semask:offset[1]:List:start:absolute[1]|2?

    Chapter 2 SCPI Device Message Details :CALCulate:SEMask:OFFSet[1]:LIST:STARt:ABSolute[1]|2? Spectrum Emission Mask Offset Start Frequency Absolute Limit Level Query Function This command queries the absolute level upper limit of the offset start frequency for Spectrum Emission Mask measurement. Query :CALCulate:SEMask:OFFSet[1]:LIST:STARt:ABSolute[1]|2? Response <ampl_n> Parameter Absolute level upper limit of Offset-n start <ampl_n>...
  • Page 675 2.13 Spectrum Emission Mask [:SENSe]:SEMask:OFFSet[1]:LIST:STOP:ABSolute[1]|2 <ampl_1>[,<ampl_2>[,<ampl_3>[,<ampl_4>[,<ampl_5>[,<ampl_6>[,<ampl_7 >[,<ampl_8>[,<ampl_9>[,<ampl_10>[,<ampl_11>[,<ampl_12>]]]]]]]]]]] Spectrum Emission Mask Offset Stop Frequency Absolute Limit Level Function This command sets the absolute level upper limit of the offset stop frequency for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:OFFSet[1]:LIST:STOP:ABSolute[1]|2 <ampl_n> Parameter Absolute level upper limit of Offset-n stop <ampl_n>...

  • Page 676: Sense]:Semask:offset[1]:List:stop:absolute[1]|2?

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:OFFSet[1]:LIST:STOP:ABSolute[1]|2? Spectrum Emission Mask Offset Stop Frequency Absolute Limit Level Query Function This command queries the absolute level upper limit of the offset stop frequency for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:OFFSet[1]:LIST:STOP:ABSolute[1]|2? Response <ampl_n> Parameter Absolute level upper limit of Offset-n stop <ampl_n>...
  • Page 677 2.13 Spectrum Emission Mask :CALCulate:SEMask:OFFSet[1]:LIST:STOP:ABSolute[1]|2 <ampl_1>[,<ampl_2>[,<ampl_3>[,<ampl_4>[,<ampl_5>[,<ampl_6>[,<ampl_7 >[,<ampl_8>[,<ampl_9>[,<ampl_10>[,<ampl_11>[,<ampl_12>]]]]]]]]]]] Spectrum Emission Mask Offset Stop Frequency Absolute Limit Level Function This command sets the absolute level upper limit of the offset stop frequency for Spectrum Emission Mask measurement. Command :CALCulate:SEMask:OFFSet[1]:LIST:STOP:ABSolute[1]|2 <ampl_n> Parameter Absolute level upper limit of Offset-n stop <ampl_n>...

  • Page 678: Calculate:semask:offset[1]:List:stop:absolute[1]|2?

    Chapter 2 SCPI Device Message Details :CALCulate:SEMask:OFFSet[1]:LIST:STOP:ABSolute[1]|2? Spectrum Emission Mask Offset Stop Frequency Absolute Limit Level Query Function This command queries the absolute level upper limit of the offset stop frequency for Spectrum Emission Mask measurement. Query :CALCulate:SEMask:OFFSet[1]:LIST:STOP:ABSolute[1]|2? Response <ampl_n> Parameter Absolute level upper limit of Offset-n stop <ampl_n>...
  • Page 679 2.13 Spectrum Emission Mask [:SENSe]:SEMask:OFFSet[1]:LIST:STARt:RCARrier <ampl_1>[,<ampl_2>[,<ampl_3>[,<ampl_4>[,<ampl_5>[,<ampl_6>[,<ampl_7 >[,<ampl_8>[,<ampl_9>[,<ampl_10>[,<ampl_11>[,<ampl_12>]]]]]]]]]]] Spectrum Emission Mask Offset Start Frequency Limit Level Function This command sets the relative level upper limit of the offset start frequency for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:OFFSet[1]:LIST:STARt:RCARrier <ampl_n> Parameter <ampl_n> Relative level upper limit of Offset-n start frequency Range –200 to +50 dB...

  • Page 680: Sense]:Semask:offset[1]:List:start:rcarrier?

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:OFFSet[1]:LIST:STARt:RCARrier? Spectrum Emission Mask Offset Start Frequency Limit Level Query Function This command queries the relative level upper limit of the offset start frequency for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:OFFSet[1]:LIST:STARt:RCARrier? Response <ampl_n> Parameter Relative level upper limit of Offset-n start <ampl_n>...

  • Page 681: Ampl_8>[,[,[,[,]]]]]]]]]]]

    2.13 Spectrum Emission Mask :CALCulate:SEMask:OFFSet[1]:LIST:STARt:RCARrier <ampl_1>[,<ampl_2>[,<ampl_3>[,<ampl_4>[,<ampl_5>[,<ampl_6>[,<ampl_7 >[,<ampl_8>[,<ampl_9>[,<ampl_10>[,<ampl_11>[,<ampl_12>]]]]]]]]]]] Spectrum Emission Mask Offset Start Frequency Limit Level Function This command sets the relative level upper limit of the offset start frequency for Spectrum Emission Mask measurement. Command :CALCulate:SEMask:OFFSet[1]:LIST:STARt:RCARrier <ampl_n> Parameter Relative level upper limit of Offset-n start <ampl_n>...

  • Page 682: Calculate:semask:offset[1]:List:start:rcarrier?

    Chapter 2 SCPI Device Message Details :CALCulate:SEMask:OFFSet[1]:LIST:STARt:RCARrier? Spectrum Emission Mask Offset Start Frequency Limit Level Query Function This command sets the relative level upper limit of the offset start frequency for Spectrum Emission Mask measurement. Query :CALCulate:SEMask:OFFSet[1]:LIST:STARt:RCARrier? Response <ampl_n> Parameter Relative level upper limit of Offset-n start <ampl_n>...
  • Page 683 2.13 Spectrum Emission Mask [:SENSe]:SEMask:OFFSet[1]:LIST:STOP:RCARrier <ampl_1>[,<ampl_2>[,<ampl_3>[,<ampl_4>[,<ampl_5>[,<ampl_6>[,<ampl_7 >[,<ampl_8>[,<ampl_9>[,<ampl_10>[,<ampl_11>[,<ampl_12>]]]]]]]]]]] Spectrum Emission Mask Offset Stop Frequency Limit Level Function This command sets the relative level upper limit of the offset stop frequency for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:OFFSet[1]:LIST:STOP:RCARrier <ampl_n> Parameter Relative level upper limit of Offset-n stop <ampl_n>...

  • Page 684: Sense]:Semask:offset[1]:List:stop:rcarrier?

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:OFFSet[1]:LIST:STOP:RCARrier? Spectrum Emission Mask Offset Stop Frequency Limit Level Query Function This command sets the relative level upper limit of the offset stop frequency for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:OFFSet[1]:LIST:STOP:RCARrier? Response <ampl_n> Parameter Relative level upper limit of Offset-n stop <ampl_n>...
  • Page 685 2.13 Spectrum Emission Mask :CALCulate:SEMask:OFFSet[1]:LIST:STOP:RCARrier <ampl_1>[,<ampl_2>[,<ampl_3>[,<ampl_4>[,<ampl_5>[,<ampl_6>[,<ampl_7 >[,<ampl_8>[,<ampl_9>[,<ampl_10>[,<ampl_11>[,<ampl_12>]]]]]]]]]]] Spectrum Emission Mask Offset Stop Frequency Limit Level Function This command sets the relative level upper limit of the offset stop frequency for Spectrum Emission Mask measurement. Command :CALCulate:SEMask:OFFSet[1]:LIST:STOP:RCARrier <ampl_n> Parameter Relative level upper limit of Offset-n stop <ampl_n>...

  • Page 686: Calculate:semask:offset[1]:List:stop:rcarrier?

    Chapter 2 SCPI Device Message Details :CALCulate:SEMask:OFFSet[1]:LIST:STOP:RCARrier? Spectrum Emission Mask Offset Stop Frequency Limit Level Query Function This command sets the relative level upper limit of the offset stop frequency for Spectrum Emission Mask measurement. Query :CALCulate:SEMask:OFFSet[1]:LIST:STOP:RCARrier? Response <ampl_n> Parameter Relative level upper limit of Offset-n stop <ampl_n>...
  • Page 687 2.13 Spectrum Emission Mask [:SENSe]:SEMask:LOGic:OFFSet[1]:LIST:TEST <logic_1>[,<logic_2>[,<logic_3>[,<logic_4>[,<logic_5>[,<logic_6>[,<logic_7>[, <logic_8>[,<logic_9>[,<logic_10>[,<logic_11>[,<logic_12>]]]]]]]]]]] Spectrum Emission Mask Fail Logic Function This command selects the judgment method of the offset for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:LOGic:OFFSet[1]:LIST:TEST <logic_n> Parameter Judgment method for offset n <logic_n> Does not judge. ABS1 ABSolute Judges by using the absolute level upper limit 1.

  • Page 688: Sense]:Semask:logic:offset[1]:List:test?

    Chapter 2 SCPI Device Message Details Related command This command has the same function as the following command. :CALCulate:SEMask:LOGic:OFFSet[1]:LIST:TEST [:SENSe]:SEMask:LOGic:OFFSet[1]:LIST:TEST? Spectrum Emission Mask Fail Logic Query Function This command queries the judgment method of the offset for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:LOGic:OFFSet[1]:LIST:TEST? Response...
  • Page 689 2.13 Spectrum Emission Mask and the absolute level upper limit 2. Example of Use To query the judgment result. SEM:LOG:OFF:LIST:TEST? > ABS,ABS,ABS,ABS,ABS,ABS,ABS,ABS,ABS,ABS,ABS,ABS Related command This command has the same function as the following command. :CALCulate:SEMask:LOGic:OFFSet[1]:LIST:TEST? :CALCulate:SEMask:LOGic:OFFSet[1]:LIST:TEST <logic_1>[,<logic_2>[,<logic_3>[,<logic_4>[,<logic_5>[,<logic_6>[,<logic_7>[, <logic_8>[,<logic_9>[,<logic_10>[,<logic_11>[,<logic_12>]]]]]]]]]]] Spectrum Emission Mask Fail Logic Function This command selects the judgment method of the offset for Spectrum Emission Mask measurement.
  • Page 690 Chapter 2 SCPI Device Message Details Judges “OR” using the absolute level upper limit 1 and relative level upper limit. Judges “AND” using the result and the absolute level upper limit 2. ABS1 and ABS2 AND2 Judges using the absolute level upper limit 1 and the absolute level upper limit 2.

  • Page 691: Calculate:semask:logic:offset[1]:List:test?

    2.13 Spectrum Emission Mask :CALCulate:SEMask:LOGic:OFFSet[1]:LIST:TEST? Spectrum Emission Mask Fail Logic Query Function This command queries the judgment method of the offset for Spectrum Emission Mask measurement. Query :CALCulate:SEMask:LOGic:OFFSet[1]:LIST:TEST? Response <logic_n> Parameter Judgment method for offset n <logic_n> Does not judge. ABS1 Judges by using the absolute level upper limit 1.

  • Page 692: Configure:semask

    Chapter 2 SCPI Device Message Details > ABS,ABS,ABS,ABS,ABS,ABS,ABS,ABS,ABS,ABS,ABS,ABS,OFF,OFF Related command This command has the same function as the following command. [:SENSe]:SEMask:LOGic:OFFSet[1]:LIST:TEST? :CONFigure:SEMask Spectrum Emission Mask Configure Function This command sets Spectrum Emission Mask measurement to On. Command :CONFigure:SEMask Details No measurement is executed. Example of Use To set SEM measurement to On.

  • Page 693: Fetch:semask[N]?

    2.13 Spectrum Emission Mask :FETCh:SEMask[n]? Spectrum Emission Mask Fetch Function This command outputs the measurement result of Spectrum Emission Mask measurement. Query :FETCh:SEMask[n]? Response When the result mode is A: <total_judge>,<ref_power>, <abs_lower_offset_1>, <margin_lower_offset_1>,<freq_lower_offset_1>, <lower_offset_1>,<abs_upper_offset_1>, <margin_upper_offset_1>,<freq_upper_offset_1>, <upper_offset_1>, <abs_lower_offset_2>, <margin_lower_offset_2>,<freq_lower_offset_2>, <lower_offset_2>,<abs_upper_offset_2>, <margin_upper_offset_2>,<freq_upper_offset_2>, <upper_offset_2>, ..
  • Page 694 Chapter 2 SCPI Device Message Details -999.0,-999.0, <rel_upper_offset_2>,<abs_upper_offset_2>, <freq_upper_offset_2> ..-999.0,-999.0, <rel_lower_offset_12>,<abs_lower_offset_12>, <freq_lower_offset_12> -999.0,-999.0, <rel_upper_offset_12>,<abs_upper_offset_12>, <freq_upper_offset_12> <margin_lower_offset_1>,<margin_upper_offset_1>, <margin_lower_offset_2>,<margin_upper_offset_2>, ..<margin_lower_offset_12>,<margin_upper_offset_12>, (n=1 or when omitted.) -999.0,-999.0, <lower_offset_1>,<upper_offset_1>, <lower_offset_2>,<upper_offset_2>, ..<lower_offset_12>,<upper_offset_12> (n=7 or 8) -999.0,-999.0, <abs_lower_offset_1>,<abs_upper_offset_1>, <abs_lower_offset_2>,<abs_upper_offset_2>, ..<abs_lower_offset_12>,<abs_upper_offset_12> (n=10) -999.0,-999.0, <rel_lower_offset_1>,<rel_upper_offset_1>, <rel_lower_offset_2>,<rel_upper_offset_2>, ..
  • Page 695 2.13 Spectrum Emission Mask <margin_lower_offset_12>,<margin_upper_offset_12>, <freq_lower_offset_12>,<freq_upper_offset_12>, <lower_offset_12>,<upper_offset_12> (n=13) Parameter Reference absolute power <ref_power> Peak value of absolute power of lower <abs_lower_offset_n> Offset-n Peak value of absolute power of upper <abs_upper_offset_n> Offset-n No suffix code, dBm unit, 0.001 dB resolution. “–999.0” is returned when no measurement is performed.
  • Page 696 Chapter 2 SCPI Device Message Details Details This function outputs the measurement result at the Spectrum Emission Mask measurement performed last. It is possible to output the measurement result in a state that the measurement has already been done, and in a different style. You can use the READ command if you perform a measurement along with starting a sweep again.

  • Page 697: Read:semask[N]?

    2.13 Spectrum Emission Mask :READ:SEMask[n]? Spectrum Emission Mask Read Function This command outputs Spectrum Emission Mask measurement and outputs the measurement result. It achieves the same result as when commands are sent in the order of :INITiate:SEMask :FETCh:SEMask[n]? :MEASure:SEMask[n]? Spectrum Emission Mask Measure Function This command performs Spectrum Emission Mask measurement and outputs the measurement result.

  • Page 698: Sense]:Semask:filter[:Rrc][:State] On|Off|1|0

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:FILTer[:RRC][:STATe] ON|OFF|1|0 Spectrum Emission Mask Root Nyquist Filter State Function This command sets the filter type for Spectrum Emission Mask measurement. Command [:SENSe]:SEMask:FILTer[:RRC][:STATe] <filter> Parameter Filter type <filter> Rectangle filter OFF|0 Root Nyquist filter (Default) ON|1 Example of Use To set the filter type to Root Nyquist.

  • Page 699: Sense]:Semask:filter[:Rrc][:State]?

    2.13 Spectrum Emission Mask [:SENSe]:SEMask:FILTer[:RRC][:STATe]? Spectrum Emission Mask Root Nyquist Filter State Query Function This command queries the filter type for Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:FILTer[:RRC][:STATe]? Response <filter> Parameter Filter type <filter> Rectangle filter, Nyquist filter Root Nyquist filter (Default) Example of Use To query the filter type.

  • Page 700: Display:semask:result:type Peak|Margin

    Chapter 2 SCPI Device Message Details :DISPlay:SEMask:RESult:TYPE PEAK|MARGin Spectrum Emission Mask Result Type Function This command switches the type of the result display for Spectrum Emission Mask measurement. Command DISPlay:SEMask:RESult:TYPE <type> Parameter Type of result display <type> Displays the peak PEAK Displays the margin to the limit line.

  • Page 701: Display:semask:annotation:title:data

    2.13 Spectrum Emission Mask :DISPlay:SEMask:ANNotation:TITLe:DATA <string> Title Entry Function This command registers the title character string. Command :DISPlay:SEMask:ANNotation:TITLe:DATA <string> Parameter Character string within 32 characters enclosed <string> by double quotation marks (" ") or single quotation marks (′ ′). Example of Use To set the title character string.

  • Page 702: Display:semask:annotation:title:data?

    Chapter 2 SCPI Device Message Details :DISPlay:SEMask:ANNotation:TITLe:DATA? Title Entry Query Function This command queries the title character string. Command :DISPlay:SEMask:ANNotation:TITLe:DATA? Parameter Character string within 32 characters enclosed <string> by double quotation marks (" ") or single quotation marks (′ ′). Example of Use To query the title character string.

  • Page 703: Display:semask:view[1]:Window[1]:Trace:y[:Scale]:Pdivision

    2.13 Spectrum Emission Mask :DISPlay:SEMask:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision <rel_ampl> Log Scale Range Function This command sets the Y-axis scale magnification when Scale Mode is set to Log. Command DISPlay:SEMask:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVisi on <rel_ampl> Parameter Y-axis scale magnification <rel_ampl> 0.1 dB/div 0.2 dB/div 0.5 dB/div 1 dB/div 2 dB/div 5 dB/div 10 dB/div...

  • Page 704: Display:semask:view[1]:Window[1]:Trace:y[:Scale]:Pdivision?

    Chapter 2 SCPI Device Message Details :DISPlay:SEMask:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision? Log Scale Range Query Function This command queries the Y-axis scale magnification when Scale Mode is set to Log. Query :DISPlay:SEMask:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVis ion? Response <rel_ampl> Parameter Y-axis scale magnification <rel_ampl> 0.1 dB/div 0.2 dB/div 0.5 dB/div 1 dB/div 2 dB/div...

  • Page 705: Display:semask:view[1]:Window[1]:Trace:y[:Scale]:Rlevel

    2.13 Spectrum Emission Mask :DISPlay:SEMask:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real> Reference Level Function This command sets the reference level. Command :DISPlay:SEMask:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real> Parameter Reference level <real> Range Value equivalent to –120 to +50 dBm Resolution 0.01 dB (When scale unit settings are dB-system units.) 0.01 pV (When scale unit settings are V-system units.) 0.01 yW (When scale unit settings are W -system...
  • Page 706 Chapter 2 SCPI Device Message Details Related command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:RLEVel :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel :DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel :DISPlay:BPOWer|:TXPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCAL e]:RLEVel 2-696...

  • Page 707: Display:semask:view[1]:Window[1]:Trace:y[:Scale]:Rlevel?

    2.13 Spectrum Emission Mask :DISPlay:SEMask:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? Reference Level Query Function This command queries the reference level. Query :DISPlay:SEMask:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel Response <real> Parameter Reference level <real> Range Value equivalent to –120 to +50 dBm Resolution 0.01 dB (When scale unit settings are dB-system units.) 0.01 pV (When scale unit settings are V-system units.)

  • Page 708: Display:semask:view[1]:Window[1]:Page:number

    Chapter 2 SCPI Device Message Details :DISPlay:SEMask:VIEW[1]:WINDow[1]:PAGE:NUMBer <integer> Page Number Function This command sets the display page number of Spectrum Emission Mask. Command :DISPlay:SEMask:VIEW[1]:WINDow[1]:PAGE:NUMBer <integer> Parameter Page number <integer> Range 1 to 2 Resolution Suffix code None Example of Use To set the display page number of Spectrum Emission Mask to 1.

  • Page 709: Trigger:semask[:Sequence]:Source External[1|2]|Ext2|Immediate|Wif|Rfburst|Video|Sg|Bbif|Frame

    2.13 Spectrum Emission Mask :TRIGger:SEMask[:SEQuence]:SOURce EXTernal[1|2]|EXT2|IMMediate|WIF|RFBurst|VIDeo|SG|BBIF|FRAMe Trigger Source Function This command selects the trigger source. Command :TRIGger:SEMask[:SEQuence]:SOURce <source> Parameter Trigger signal source <source> [MS269xA] External input (External) EXTernal[1] Free run IMMediate Wideband IF detection (Wide IF Video) WIF|RFBurst Video detection(Video) VIDeo SG marker BBIF...

  • Page 710: Trigger:semask[:Sequence]:Source?

    Chapter 2 SCPI Device Message Details TRIG:SEM:SOUR VID Related command This command has the same function as the following commands. :TRIGger[:SEQuence]:SOURce :TRIGger:ACPower[:SEQuence]:SOURce :TRIGger:CHPower[:SEQuence]:SOURce :TRIGger:OBWidth[:SEQuence]:SOURce :TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce :TRIGger:SEMask[:SEQuence]:SOURce? Trigger Source Query Function This command queries the trigger source. Query :TRIGger:SEMask[:SEQuence]:SOURce? Response <source> Parameter Trigger signal source <source>...
  • Page 711 2.13 Spectrum Emission Mask Video detection (Video) Frame period trigger FRAM Details [MS269xA] SG marker trigger can be selected only when the Option 020/120 Vector Signal Generator is installed. BBIF trigger cannot be selected only when the Option 040/140 Baseband Interface Unit is not installed or the software package is Ver.6.00.00 or later.

  • Page 712: Sense]:Semask:average:count

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:AVERage:COUNt <integer> Average Count Function This command sets the storage count. Command [:SENSe]:SEMask:AVERage:COUNt <integer> Parameter Storage count <integer> Range 2 to 9999 Default Example of Use To set the storage count to 110. SEM:AVER:COUN 110 Related command This command has the same function as the following commands.

  • Page 713: Sense]:Semask:average:count?

    2.13 Spectrum Emission Mask [:SENSe]:SEMask:AVERage:COUNt? Average Count Query Function This command queries the storage count. Command [:SENSe]:SEMask:AVERage:COUNt? Parameter Storage count <integer> Range 2 to 9999 Default Example of Use To query the storage count. SEM:AVER:COUN? > 110 Related command This command has the same function as the following commands. [:SENSe]:AVERage:COUNt? [:SENSe]:ACPower:AVERage:COUNt? [:SENSe]:CHPower:AVERage:COUNt?

  • Page 714: Sense]:Semask:average[:State] On|Off|1|0

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:AVERage[:STATe] ON|OFF|1|0 Storage Mode Function This command sets the storage mode for Trace A. Command [:SENSe]:SEMask:AVERage[:STATe] <switch> Parameter Setting of Storage Mode <switch> Sets Storage Mode to Linear Average. ON|1 Sets Storage Mode to Off (Default). OFF|0 Example of Use To set the storage mode for Trace A to Off.

  • Page 715: Sense]:Semask:average[:State]?

    2.13 Spectrum Emission Mask [:SENSe]:SEMask:AVERage[:STATe]? Storage Mode Query Function This command queries the storage mode for Trace A. Query [:SENSe]:SEMask:AVERage[:STATe]? Response <switch> Parameter Setting of Storage Mode <switch> Linear Average Other than Linear Average Example of Use To query the storage mode for Trace A. SEM:AVER? >...

  • Page 716: Sense]:Semask:racouple Off|On|0|1

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:RACouple OFF|ON|0|1 Couple Ref & ATT Function This command sets the shared setting for Reference Level and Attenuator for Spectrum Emission Mask measurement to On/Off. Command [:SENSe]:SEMask:RACouple <switch> Parameter Shared setting On/Off <switch> Sets the shared setting to On.(Default) ON|1 Sets the shared setting to Off.

  • Page 717: Sense]:Semask:racouple?

    2.13 Spectrum Emission Mask [:SENSe]:SEMask:RACouple? Couple Ref & ATT Query Function This command sets the shared setting for Reference Level and Attenuator for Spectrum Emission Mask measurement to On/Off. Query [:SENSe]:SEMask:RACouple? Response <switch> Parameter Shared setting On/Off <switch> Sets the shared setting to On. Sets the shared setting to Off.

  • Page 718: Sense]:Semask:sweep[1][:Type][:Auto]:Rules:fft:rwidth?

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:SWEep[1][:TYPE][:AUTO]:RULes:FFT:RWIDth? Spectrum Emission Mask Sweep Type Select Rules Real FFT Width Query Function This command queries the FFT width that is actually used for the sweep/FFT switch rule during reference power measurement in the Spectrum Emission Mask measurement.

  • Page 719: Sense]:Semask:offset[1]:List:sweep[1][:Type][:Auto]:Rules:fft:rwidth?

    2.13 Spectrum Emission Mask [:SENSe]:SEMask:OFFSet[1]:LIST:SWEep[1][:TYPE][:AUTO]:RULes:FFT:RW IDth? Spectrum Emission Mask Offset Sweep Type Select Rules Real FFT Width Query Function This command queries the FFT width that is actually used for the sweep/FFT switch rule during offset measurement in the Spectrum Emission Mask measurement.

  • Page 720: Sense]:Semask:sweep[1][:Type][:Auto]:Rules:rtype?

    Chapter 2 SCPI Device Message Details [:SENSe]:SEMask:SWEep[1][:TYPE][:AUTO]:RULes:RTYPe? Spectrum Emission Mask Sweep Type Select Rules Real Type Query Function This command queries the sweep mode (sweep or FFT) that is executed during reference power measurement in the Spectrum Emission Mask measurement. Query [:SENSe]:SEMask:SWEep[1][:TYPE][:AUTO]:RULes:RTYPe? Response...
  • Page 721 2.13 Spectrum Emission Mask <type_7>,<type_8>,<type_9>,<type_10>,<type_11>,<type_12> Parameter Sweep mode <type_n> Performs measurement using sweep. Performs measurement using FFT. Details This command is not available for MS269x Series. Example of Use To query the sweep type used for measurement under the current setting. SEM:OFFS:LIST:SWE:RUL:RTYP? >...

  • Page 722: Spurious Emission Measurement Function

    Chapter 2 SCPI Device Message Details 2.14 Spurious Emission Measurement Function Table 2.14-1 lists device messages for setting the Spurious Emission measurement functions. Table 2.14-1 Device Messages for Spurious Emission Measurement Function Function Device Message [:SENSe]:SPURious[:STATe] ON|OFF|1|0 Measure Spurious Emission [:SENSe]:SPURious[:STATe]? [:SENSe]:SPURious:TYPE WORSt|EXAMine|PEAKs|FULL Spurious Emission...
  • Page 723 2.14 Spurious Emission Measurement Function Table 2.14-1 Device Messages for Spurious Emission Measurement Function (Cont’d) Function Device Message [:SENSe]:SPURious[:RANGe][:LIST]:FREQuency:STOP <freq_1>,<freq_2>,<freq_3>,<freq_4>,<freq_5>,<freq_6>,<freq_7>,<fre Spurious Emission q_8>,<freq_9>,<freq_10>,<freq_11>,<freq_12>,<freq_13>,<freq_14>,<fr Stop Frequency eq_15>,<freq_16>,<freq_17>,<freq_18>,<freq_19>,<freq_20> [:SENSe]:SPURious[:RANGe][:LIST]:FREQuency:STOP? :DISPlay:SPURious:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real_1>,<real_2>,<real_3>,<real_4>,<real_5>,<real_6>,<real_7>,<rea Spurious Emission l_8>,<real_9>,<real_10>,<real_11>,<real_12>,<real_13>,<real_14>,<re Reference Level al_15>,<real_16>,<real_17>,<real_18>,<real_19>,<real_20> :DISPlay:SPURious:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? [:SENSe]:SPURious:ATTenuation <rel_ampl>|AUTO,<rel_ampl>|AUTO,<rel_ampl>|AUTO,<rel_ampl>|AUTO,<re l_ampl>|AUTO,<rel_ampl>|AUTO,<rel_ampl>|AUTO,<rel_ampl>|AUTO,<rel_a Spurious Emission mpl>|AUTO,<rel_ampl>|AUTO,<rel_ampl>|AUTO,<rel_ampl>|AUTO,<rel_ampl Attenuator >|AUTO,<rel_ampl>|AUTO,<rel_ampl>|AUTO,<rel_ampl>|AUTO,<rel_ampl>|A...
  • Page 724 Chapter 2 SCPI Device Message Details Table 2.14-1 Device Messages for Spurious Emission Measurement Function (Cont’d) Function Device Message [:SENSe]:SPURious[:RANGe][:LIST]:BANDwidth:VIDeo <bandwidth_1>|OFF,<bandwidth_2>|OFF,<bandwidth_3>|OFF,<bandwidth_4> |OFF,<bandwidth_5>|OFF,<bandwidth_6>|OFF,<bandwidth_7>|OFF,<bandwid th_8>|OFF,<bandwidth_9>|OFF,<bandwidth_10>|OFF,<bandwidth_11>|OFF,< Spurious Emission bandwidth_12>|OFF,<bandwidth_13>|OFF,<bandwidth_14>|OFF,<bandwidth_ Video Bandwidth 15>|OFF,<bandwidth_16>|OFF,<bandwidth_17>|OFF,<bandwidth_18>|OFF,<b andwidth_19>|OFF,<bandwidth_20>|OFF [:SENSe]:SPURious[:RANGe][:LIST]:BANDwidth:VIDeo? [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:TIME:AUTO ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, Spurious Emission ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, Sweep Time ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, Auto/Manual ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0 [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:TIME:AUTO? [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:TIME...
  • Page 725 2.14 Spurious Emission Measurement Function Table 2.14-1 Device Messages for Spurious Emission Measurement Function (Cont’d) Function Device Message [:SENSe]:SPURious[:RANGe][:LIST]:DETector[1][:FUNCtion] NORMal|POSitive|SAMPle|NEGative|RMS,NORMal|POSitive|SAMPle|NEGative |RMS,NORMal|POSitive|SAMPle|NEGative|RMS,NORMal|POSitive|SAMPle|NEG ative|RMS,NORMal|POSitive|SAMPle|NEGative|RMS,NORMal|POSitive|SAMPl e|NEGative|RMS,NORMal|POSitive|SAMPle|NEGative|RMS,NORMal|POSitive| SAMPle|NEGative|RMS,NORMal|POSitive|SAMPle|NEGative|RMS,NORMal|POSi Spurious Emission tive|SAMPle|NEGative|RMS,NORMal|POSitive|SAMPle|NEGative|RMS,NORMal Detection Mode |POSitive|SAMPle|NEGative|RMS,NORMal|POSitive|SAMPle|NEGative|RMS,N ORMal|POSitive|SAMPle|NEGative|RMS,NORMal|POSitive|SAMPle|NEGative| RMS,NORMal|POSitive|SAMPle|NEGative|RMS,NORMal|POSitive|SAMPle|NEGa tive|RMS,NORMal|POSitive|SAMPle|NEGative|RMS,NORMal|POSitive|SAMPle |NEGative|RMS,NORMal|POSitive|SAMPle|NEGative|RMS [:SENSe]:SPURious[:RANGe][:LIST]:DETector[1][:FUNCtion]? [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:POINts <integer_1>,<integer_2>,<integer_3>,<integer_4>,<integer_5>,<intege r_6>,<integer_7>,<integer_8>,<integer_9>,<integer_10>,<integer_11>, Spurious Emission <integer_12>,<integer_13>,<integer_14>,<integer_15>,<integer_16>,<i Trace Point nteger_17>,<integer_18>,<integer_19>,<integer_20>...
  • Page 726 Chapter 2 SCPI Device Message Details Table 2.14-1 Device Messages for Spurious Emission Measurement Function (Cont’d) Function Device Message :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer]:DATA[:STA <ampl_1>,<ampl_2>,<ampl_3>,<ampl_4>,<ampl_5>,<ampl_6>,<ampl_7>,<amp Spurious Emission l_8>,<ampl_9>,<ampl_10>,<ampl_11>,<ampl_12>,<ampl_13>,<ampl_14>,<am Limit Start Level pl_15>,<ampl_16>,<ampl_17>,<ampl_18>,<ampl_19>,<ampl_20> :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer]:DATA[:STA Rt]? :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer]:DATA:STOP :AUTO ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, Spurious Emission ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, Limit Stop Level ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0 Auto/Manual :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer]:DATA:STOP...
  • Page 727 2.14 Spurious Emission Measurement Function Table 2.14-1 Device Messages for Spurious Emission Measurement Function (Cont’d) Function Device Message [:SENSe]:SPURious:TDOMain:[:RANGe][:LIST]:BANDwidth[:RESolution] <bandwidth_1>,<bandwidth_2>,<bandwidth_3>,<bandwidth_4>,<bandwidth_ 5>,<bandwidth_6>,<bandwidth_7>,<bandwidth_8>,<bandwidth_9>,<bandwid Spurious Emission th_10>,<bandwidth_11>,<bandwidth_12>,<bandwidth_13>,<bandwidth_14>, Time Domain <bandwidth_15>,<bandwidth_16>,<bandwidth_17>,<bandwidth_18>,<bandwi dth_19>,<bandwidth_20> [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth[:RESolution]? [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth:VIDeo:COUPle ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, Spurious Emission ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, Couple Segment ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0 [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth:VIDeo:COUPle? [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth:VIDeo <bandwidth_1>|OFF,<bandwidth_2>|OFF,<bandwidth_3>|OFF,<bandwidth_4>...
  • Page 728 Chapter 2 SCPI Device Message Details Table 2.14-1 Device Messages for Spurious Emission Measurement Function (Cont’d) Function Device Message Recall Spurious Emission :MMEMory:LOAD:SPURious:TABLe <register> Parameter Spurious Emission :CONFigure:SPURious Configure Spurious Emission :INITiate:SPURious Initiate Spurious Emission :FETCh:SPURious[n]? Fetch Spurious Emission :READ:SPURious[n]? Read Spurious Emission :MEASure:SPURious[n]?
  • Page 729 2.14 Spurious Emission Measurement Function Table 2.14-1 Device Messages for Spurious Emission Measurement Function (Cont’d) Function Device Message :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition Spurious Emission <integer> Zone Marker Position :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition? Spurious Emission :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? Marker Level Query Spurious Emission :CALCulate:SPURious:MARKer:AOFF All Marker Off Spurious Emission :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum Peak Search Spurious Emission...

  • Page 730: Sense]:Spurious[:State] On|Off|1|0

    Chapter 2 SCPI Device Message Details [:SENSe]:SPURious[:STATe] ON|OFF|1|0 Measure Spurious Emission Function This command executes the Spurious Emission measurement. Command [:SENSe]:SPURious[:STATe] <switch> Parameter Spurious measurement On/Off <switch> Spurious measurement is enabled. ON|1 Spurious measurement is disabled. OFF|0 Details This command is not available in the following cases: •...

  • Page 731: Sense]:Spurious[:State]?

    2.14 Spurious Emission Measurement Function [:SENSe]:SPURious[:STATe]? Measure Spurious Emission Query Function This command queries the On/Off state of the Spurious Emission measurement. Query [:SENSe]:SPURious[:STATe]? Response <switch> Parameter Spurious measurement On/Off <switch> Example of Use To query the On/Off state of the Spurious measurement. SPUR? >...

  • Page 732: Sense]:Spurious:type Worst|Examine|Peaks|Full

    Chapter 2 SCPI Device Message Details [:SENSe]:SPURious:TYPE WORSt|EXAMine|PEAKs|FULL Spurious Emission Result Type Function This command selects the measurement result type. Command [:SENSe]:SPURious:TYPE <type> Parameter Measurement result type <type> Point with the least margin from the limit line is WORSt|EXAMine displayed. Spurious detected by the detection resolution PEAKs|FULL and the threshold set in each segment is...

  • Page 733: Sense]:Spurious:type?

    2.14 Spurious Emission Measurement Function [:SENSe]:SPURious:TYPE? Spurious Emission Result Type Query Function This command queries the measurement result type. Query [:SENSe]:SPURious:TYPE? Response <type> Parameter Measurement result type <type> Point with the least margin from the limit line is WORS displayed. Spurious detected by the detection resolution PEAK and the threshold set in each segment is...

  • Page 734: Display:spurious:segment:mode?

    Chapter 2 SCPI Device Message Details :DISPlay:SPURious:SEGMent:MODE? Displayed Segment Mode Query Function This command queries the display mode of a segment. Query :DISPlay:SPURious:SEGMent:MODE? Response <switch> Parameter Display mode <switch> Auto Manual Example of Use To query the display mode of a segment. DISP:SPUR:SEGM:MODE? >...

  • Page 735: Display:spurious:segment?

    2.14 Spurious Emission Measurement Function Example of Use To specify 2 as the segment in which the trace data is displayed. DISP:SPUR:SEGM 2 :DISPlay:SPURious:SEGMent? Displayed Segment Query Function This command queries the segment to display the trace data in. Query :DISPlay:SPURious:SEGMent? Response <integer>...

  • Page 736: Display:spurious:segment:auto On|Off|1|0

    Chapter 2 SCPI Device Message Details :DISPlay:SPURious:SEGMent:AUTO ON|OFF|1|0 Page of Summary Auto/Manual Function This command turns on/off the summary page auto numbering. Command :DISPlay:SPURious:SEGMent:AUTO <switch> Parameter Auto mode On/Off <switch> Sets Auto mode to On. ON|1 Sets Auto mode to Off. OFF|0 Details Auto mode makes it possible to display the page on which the segment set...

  • Page 737: Display:spurious:stable Result|Range

    2.14 Spurious Emission Measurement Function Example of Use To query the On/Off state of the summary page auto numbering. DISP:SPUR:SEG:AUTO? > 1 :DISPlay:SPURious:STABle RESult|RANGe Displayed Summary Table Function This command sets the content to be displayed in the Summary Table. Command :DISPlay:SPURious:STABle <mode>...

  • Page 738: Display:spurious:segment:next

    Chapter 2 SCPI Device Message Details Example of Use To query the content setting in the Summary Table. DISP:SPUR:STAB? >RES :DISPlay:SPURious:SEGMent:NEXT Next Page Function This command displays the summary on the next page. Command :DISPlay:SPURious:SEGMent:NEXT Details The summary set in Result Type is displayed. Example of Use To display the summary on the next page.

  • Page 739: Display:spurious:segment:restart?

    2.14 Spurious Emission Measurement Function :DISPlay:SPURious:SEGMent:RESTart? Displayed Restart Query Function This command queries whether the remeasurement message is displayed on the trace. Query :DISPlay:SPURious:SEGMent:RESTart? Response <switch> Parameter Message displayed/not displayed <switch> Message is displayed. Message is not displayed. Details When the sweep has paused and Spurious Emission is set to On, switch Time Domain Measurement into On.

  • Page 740: Sense]:Spurious:tdomain:span:zero On|Off|1|0

    Chapter 2 SCPI Device Message Details [:SENSe]:SPURious:TDOMain:SPAN:ZERO ON|OFF|1|0 Time Domain Measurement Function This command sets whether to measure the spurious power by using Time Domain. Command [:SENSe]:SPURious:TDOMain:SPAN:ZERO <switch> Parameter Time Domain measurement On/Off <switch> Sets Time Domain measurement to On. ON|1 Sets Time Domain measurement to Off.

  • Page 741: Sense]:Spurious:fstop On|Off|1|0

    2.14 Spurious Emission Measurement Function [:SENSe]:SPURious:FSTop ON|OFF|1|0 Fail Stop Function This command sets whether to stop the measurement when a “Fail” segment has been found. Command [:SENSe]:SPURious:FStop <switch> Parameter Fail Stop On/Off <switch> Sets Fail Stop to On. ON|1 Sets Fail Stop to Off. OFF|0 Example of Use To stop the measurement when a “Fail”...

  • Page 742: Sense]:Spurious:segment:number

    Chapter 2 SCPI Device Message Details [:SENSe]:SPURious:SEGMent:NUMBer <integer> Edit Segment Number Function This command sets the number of the segment to set a parameter in. Command [:SENSe]:SPURious:SEGMent:NUMBer <integer> Parameter Segment number <integer> Range 1 to 20 Resolution Example of Use To set 3 for the segment to set a parameter in.

  • Page 743: On|Off|1|0,On|Off|1|0,On|Off|1|0,On|Off|1|0,On|Off|1|0 On|Off|1|0,On|Off|1|0,On|Off|1|0,On|Off|1|0,On|Off|1|0

    Segment is set to Off. OFF|0 Default [MS269xA] Segment 1 to 8 Segment 9 to 15 On (Off for MS2690A) Segment 16 to 20 [MS2830A] Segment 1 to 6 Segment 7 to 8 On (Off for Option 040) Segment 9 to 15...

  • Page 744: Sense]:Spurious[:Range][:List]:Segment:state?

    Chapter 2 SCPI Device Message Details [:SENSe]:SPURious[:RANGe][:LIST]:SEGMent:STATe? Segment On/Off Query Function This command queries the On/Off state of the segment. Query [:SENSe]:SPURious[:RANGe][:LIST]:SEGMent:STATe? Response <switch_n> Parameter Segment n On/Off <switch_n> Example of Use To query the On/Off state of the segment. SPUR:SEGM:STAT? >...
  • Page 745 [:SENSe]:SPURious[:RANGe][:LIST]:FREQuency:STARt <freq_n> Parameter Start frequency of segment n <freq_n> Range – 100 MHz to 6.0499997 GHz (MS2690A) [MS269xA] – 100 MHz to 13.5999997 GHz (MS2691A) – 100 MHz to 26.5999997 GHz(MS2692A) – 100 MHz to 3.6999997 GHz (Option 040) [MS2830A] –...
  • Page 746 Chapter 2 SCPI Device Message Details Segment 9 6 GHz Segment 10 7 GHz (1 GHz for MS2690A) Segment 11 8 GHz (1 GHz for MS2690A) Segment 12 9 GHz (1 GHz for MS2690A) Segment 13 10 GHz (1 GHz for MS2690A)
  • Page 747 2.14 Spurious Emission Measurement Function Segment 15 12 GHz (1 GHz for Option 040/041) Segment 16 14 GHz (1 GHz for Option 040/041) Segment 17 18 GHz (1 GHz for Option 040/041) Segment 18 24 GHz (1 GHz for Option 040/041) Segment 19 32 GHz (1 GHz for Option 040/041/044) Segment 20...

  • Page 748: Sense]:Spurious[:Range][:List]:Frequency:start?

    Response <freq_n> Parameter Start frequency of segment n <freq_n> – 100 MHz to 6.0499997 GHz (MS2690A) [MS269xA] – 100 MHz to 13.5999997 GHz (MS2691A) – 100 MHz to 26.5999997 GHz (MS2692A) – 100 MHz to 3.6999997 GHz (Option 040) [MS2830A] –...
  • Page 749 This command sets the stop frequency of each segment. Command [:SENSe]:SPURious[:RANGe][:LIST]:FREQuency:STOP <freq_n> Parameter Stop frequency of Segment n <freq_n> –99.9997 MHz to 6.05 GHz (MS2690A) [MS269xA] –99.9997 MHz to 13.6 GHz (MS2691A) –99.9997 MHz to 26.6 GHz (MS2692A) –99.9997 MHz to 3.7 GHz (Option 040) [MS2830A] –99.9997 MHz to 6.1 GHz (Option 041)
  • Page 750 Chapter 2 SCPI Device Message Details Segment 12 10 GHz (6 GHz for MS2690A) Segment 13 11 GHz (6 GHz for MS2690A) Segment 14 12 GHz (6 GHz for MS2690A) Segment 15 to 20 12.75 GHz (6 GHz for MS2690A)
  • Page 751 2.14 Spurious Emission Measurement Function [MS2840A] Segment 1 150 kHz Segment 2 30 MHz Segment 3 1 GHz Segment 4 2 GHz Segment 5 3 GHz Segment 6 4 GHz (3.6 GHz for Option 040) Segment 7 5 GHz (3.6 GHz for Option 040) Segment 8 6 GHz (3.6 GHz for Option 040) Segment 9...
  • Page 752 Chapter 2 SCPI Device Message Details Segment 10 8 GHz Segment 11 9 GHz Segment 12 10 GHz Segment 13 11 GHz Segment 14 14 GHz Segment 16 18 GHz Segment 17 24 GHz Segment 18 32 GHz Segment 19 42 GHz (32 GHz for Option 047) Segment 20 43 GHz (32 GHz for Option 047)

  • Page 753: Sense]:Spurious[:Range][:List]:Frequency:stop?

    [:SENSe]:SPURious[:RANGe][:LIST]:FREQuency:STOP? <freq_n> Response <freq_n> Parameter Stop frequency of Segment n <freq_n> –99.9997 MHz to 6.05 GHz (MS2690A) [MS269xA] –99.9997 MHz to 13.6 GHz (MS2691A) –99.9997 MHz to 26.6 GHz (MS2692A) –99.9997 MHz to 3.7 GHz (Option 040) [MS2830A] –99.9997 MHz to 6.1 GHz (Option 041) –99.9997 MHz to 13.6 GHz (Option 043)
  • Page 754 Chapter 2 SCPI Device Message Details :DISPlay:SPURious:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real_1>,<real_2>,<real_3>,<real_4>,<real_5>,<real_6>,<real_7>,<real_8>,< real_9>,<real_10>,<real_11>,<real_12>,<real_13>,<real_14>,<real_15>,<rea l_16>,<real_17>,<real_18>,<real_19>,<real_20> Spurious Emission Reference Level Function This command sets the reference level of each segment. Command :DISPlay:SPURious:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEV el <real_n> Parameter Reference level of Segment n <real_n> Range Value equivalent to –120 to +50 dBm Resolution 0.01 dB Suffix Code...
  • Page 755 2.14 Spurious Emission Measurement Function :DISPlay:SPURious:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? Spurious Emission Reference Level Query Function This command queries the reference level of each segment. Query :DISPlay:SPURious:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEV Response <real_n> Parameter Reference level of Segment n <real_n> Range Value equivalent to –120 to +50 dBm Resolution 0.01 dB Suffix Code...
  • Page 756 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious:ATTenuation <rel_ampl_1>|AUTO,<rel_ampl_2>|AUTO,<rel_ampl_3>|AUTO,<rel_ampl_4> |AUTO,<rel_ampl_5>|AUTO,<rel_ampl_6>|AUTO,<rel_ampl_7>|AUTO,<rel_a mpl_8>|AUTO,<rel_ampl_9>|AUTO,<rel_ampl_10>|AUTO,<rel_ampl_11>|AU TO,<rel_ampl_12>|AUTO,<rel_ampl_13>|AUTO,<rel_ampl_14>|AUTO,<rel_a mpl_15>|AUTO,<rel_ampl_16>|AUTO,<rel_ampl_17>|AUTO,<rel_ampl_18>| AUTO,<rel_ampl_19>|AUTO,<rel_ampl_20>|AUTO Spurious Emission Attenuator Function This command sets the attenuator value of each segment. Command [:SENSe]:SPURious:ATTenuation <rel_ampl_n>|AUTO Parameter Attenuator of Segment n <rel_ampl_n> Range 0 to 60 dB Resolution [MS269xA] , [MS2850A] 2 dB...
  • Page 757 2.14 Spurious Emission Measurement Function [:SENSe]:SPURious:ATTenuation? Spurious Emission Attenuator Query Function This command queries the attenuator value of each segment. Query [:SENSe]:SPURious:ATTenuation? Response <rel_ampl_n> Parameter Attenuator value of Segment n <rel_ampl_n> Range 0 to 60 dB Resolution [MS269xA], [MS2850A] 2 dB [MS2830A], [MS2840A] 2 dB or 10 dB Refer to “Table 2.4.2-3 Resolution of Input Attenuator”...
  • Page 758 RBW is set to Manual. OFF|0 Default [MS269xA] Segment 1 to 8 Manual Segment 9 to 15 Manual (Auto for MS2690A) Segment 16 to 20 Auto [MS2830A] Segment 1 to 6 Manual Segment 7 to 8 Manual (Auto for Option 040)
  • Page 759 2.14 Spurious Emission Measurement Function [:SENSe]:SPURious[:RANGe][:LIST]:BANDwidth[:RESolution]:AUTO? Spurious Emission Resolution Bandwidth Auto/Manual Query Function This command queries the Auto/Manual state of RBW in each segment. Query [:SENSe]:SPURious[:RANGe][:LIST]:BANDwidth[:RESolution]: AUTO? Response <switch_n> Parameter RBW in segment n Auto/Manual <switch_n> Auto Manual Example of Use To query the Auto/Manual state of RBW.
  • Page 760 1 kHz Segment 2 10 kHz Segment 3 100 kHz Segment 4 to 8 1 MHz Segment 9 to 15 1 MHz (Auto for MS2690A) Segment 16 to 20 Auto value [MS2830A], [MS2840A] Segment 1 1 kHz Segment 2 10 kHz...
  • Page 761 2.14 Spurious Emission Measurement Function [MS2830A] Segment 7 to 8 1 MHz (Auto for Option 040) Segment 9 to 15 1 MHz (Auto for Option 040/041) Segment 16 to 18 1 MHz (Auto for Option 040/041/043) Segment 19 to 20 1 MHz (Auto for Option 040/041/043/044) [MS2840A] Segment 7 to 8...
  • Page 762 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious[:RANGe][:LIST]:BANDwidth[:RESolution]? Spurious Emission Resolution Bandwidth Query Function This command queries the resolution bandwidth (RBW) of each segment. Query [:SENSe]:SPURious[:RANGe][:LIST]:BANDwidth[:RESolution]? Response <bandwidth_n> Parameter Resolution bandwidth (RBW) of Segment n <bandwidth_n> [MS269xA] Range/Resolution Value is returned in any of 30 Hz to 3 MHz (1-3 sequence), 50 kHz, 5 MHz, 10 MHz, and 20 MHz.
  • Page 763 2.14 Spurious Emission Measurement Function [:SENSe]:SPURious[:RANGe][:LIST]:BANDwidth:VIDeo:AUTO ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0 Spurious Emission Video Bandwidth Auto/Manual Function This command sets the video bandwidth (VBW) of each segment to Auto/Manual. Command [:SENSe]:SPURious[:RANGe][:LIST]:BANDwidth:VIDeo:AUTO <switch_n> Parameter Auto mode of VBW in segment n On/Off <switch_n>...
  • Page 764 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious[:RANGe][:LIST]:BANDwidth:VIDeo:AUTO? Spurious Emission Video Bandwidth Auto/Manual Query Function This command queries the Auto/Manual state of the video bandwidth (RBW) in each segment. Query [:SENSe]:SPURious[:RANGe][:LIST]:BANDwidth:VIDeo:AUTO? Parameter Auto mode On/Off <switch_n> Example of Use To query VBW of each segment. SPUR:BAND:VID:AUTO? >...
  • Page 765 Hz is used when omitted. VBW is set to Off. Details The setting range of this function is limited depending on the setting of MS2690A/MS2691A/MS2692A Signal Analyzer RBW. For details, refer to Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual...
  • Page 766 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious[:RANGe][:LIST]:BANDwidth:VIDeo? Spurious Emission Video Bandwidth Query Function This command queries the video bandwidth (VBW) of each segment. Query [:SENSe]:SPURious[:RANGe][:LIST]:BANDwidth:VIDeo? Response <bandwidth_n> Parameter Video bandwidth (VBW) of Segment n <bandwidth_n> Range/Resolution 1 Hz to 10 MHz (1-3 sequence), 5 kHz Suffix Code None.
  • Page 767 2.14 Spurious Emission Measurement Function [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:TIME:AUTO ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0 Spurious Emission Sweep Time Auto/Manual Function This command sets the sweep time of each segment to Auto/Manual. Command [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:TIME:AUTO <switch_n> Parameter Sweep time of Segment n Auto/Manual <switch_n> Sweep Time is set to Auto. ON|1 Sweep Time is set to Manual.
  • Page 768 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:TIME:AUTO? Spurious Emission Sweep Time Auto/Manual Query Function This command queries the Auto/Manual state of the sweep time in each segment. Query [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:TIME:AUTO? Response <switch_n> Parameter Sweep time of Segment n Auto/Manual <switch_n> Sweep Time is set to Auto. Sweep Time is set to Manual.
  • Page 769 2.14 Spurious Emission Measurement Function [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:TIME <seconds_1>,<seconds_2>,<seconds_3>,<seconds_4>,<seconds_5>,<seco nds_6>,<seconds_7>,<seconds_8>,<seconds_9>,<seconds_10>,<seconds_ 11>,<seconds_12>,<seconds_13>,<seconds_14>,<seconds_15>,<seconds_ 16>,<seconds_17>,<seconds_18>,<seconds_19>,<seconds_20> Spurious Emission Sweep Time Function This command sets the sweep time of each segment. Command [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:TIME <seconds_n> Parameter Sweep Time of Segment n <seconds_n> Range 2 ms to 1000 s [MS269xA] 1 ms to 1000 s [MS2830A]...
  • Page 770 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:TIME? Spurious Emission Sweep Time Query Function This command queries the sweep time of each segment. Query [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:TIME? Response <seconds_n> Parameter <seconds_n> Range 2 ms to 1000 s [MS269xA] 1 ms to 1000 s [MS2830A] 1 ms to 1000 s [MS2840A]...
  • Page 771 2.14 Spurious Emission Measurement Function [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:PAUSe ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0 Pause before Sweep Function This command configures the setting to pause before sweep of each segment. Command [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:PAUSe <switch_n> Parameter Pause before sweep On/Off <switch_n> Pause before sweep. ON|1 Not pause before sweep. OFF|0 Default Details...
  • Page 772 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:PAUSe? Pause before Sweep Query Function This command queries the setting to pause before sweep of each segment. Query [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:PAUSe? Response <switch_n> Parameter Pause before sweep On/Off <switch_n> Pause before sweep. Not pause before sweep. Example of Use To query the setting to pause before sweep of each segment.
  • Page 773 2.14 Spurious Emission Measurement Function [:SENSe]:SPURious:POWer[:RF]:GAIN[:STATe] ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0 Spurious Emission Preamp On/Off Function This command sets the pre-amp of each segment to On/Off. Command [:SENSe]:SPURious:POWer[:RF]:GAIN[:STATe] <switch_n> Parameter Pre-amp On/Off <switch_n> Sets Pre-amp to On ON|1 Sets Pre-amp to Off OFF|0 Default Details...
  • Page 774 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious:POWer[:RF]:GAIN[:STATe]? Spurious Emission Preamp On/Off Query Function This command queries the On/Off state of the pre-amp in each segment. Query [:SENSe]:SPURious:POWer[:RF]:GAIN[:STATe]? Response <switch_n> Parameter Pre-amp On/Off <switch> Example of Use To query the On/Off state of the pre-amp in each segment. SPUR:POW:GAIN? >...
  • Page 775 2.14 Spurious Emission Measurement Function [:SENSe]:SPURious[:RANGe][:LIST]:DETector[1][:FUNCtion] NORMal|POSitive|SAMPle|NEGative|RMS,NORMal|POSitive|SAMPle|NEGat ive|RMS,NORMal|POSitive|SAMPle|NEGative|RMS,NORMal|POSitive|SAMP le|NEGative|RMS,NORMal|POSitive|SAMPle|NEGative|RMS,NORMal|POSiti ve|SAMPle|NEGative|RMS,NORMal|POSitive|SAMPle|NEGative|RMS,NOR Mal|POSitive|SAMPle|NEGative|RMS,NORMal|POSitive|SAMPle|NEGative|R MS,NORMal|POSitive|SAMPle|NEGative|RMS,NORMal|POSitive|SAMPle|N EGative|RMS,NORMal|POSitive|SAMPle|NEGative|RMS,NORMal|POSitive|S AMPle|NEGative|RMS,NORMal|POSitive|SAMPle|NEGative|RMS,NORMal|P OSitive|SAMPle|NEGative|RMS,NORMal|POSitive|SAMPle|NEGative|RMS,N ORMal|POSitive|SAMPle|NEGative|RMS,NORMal|POSitive|SAMPle|NEGativ e|RMS,NORMal|POSitive|SAMPle|NEGative|RMS,NORMal|POSitive|SAMPle |NEGative|RMS Spurious Emission Detection Mode Function This command selects the detection mode of the waveform pattern in each segment. Command [:SENSe]:SPURious[:RANGe][:LIST]:DETector[1][:FUNCtion] <mode_n> Parameter Detection mode of Segment n <mode_n>...
  • Page 776 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious[:RANGe][:LIST]:DETector[1][:FUNCtion]? Spurious Emission Detection Mode Query Function This command queries the detection mode of the waveform pattern in each segment. Query [:SENSe]:SPURious[:RANGe][:LIST]:DETector[1][:FUNCtion]? Response <mode_n> Parameter Detection mode of Segment n <mode_n> Simultaneous detection of Positive and Negative NORM peaks Positive peak detection...
  • Page 777 2.14 Spurious Emission Measurement Function [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:POINts <integer_1>,<integer_2>,<integer_3>,<integer_4>,<integer_5>,<integer_6>,< integer_7>,<integer_8>,<integer_9>,<integer_10>,<integer_11>,<integer_12 >,<integer_13>,<integer_14>,<integer_15>,<integer_16>,<integer_17>,<inte ger_18>,<integer_19>,<integer_20> Spurious Emission Trace Point Function This command sets the number of the points in the trace data of each segment. Command [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:POINts <integer_n> Parameter Number of points in trace data of Segment n <integer_n>...
  • Page 778 Chapter 2 SCPI Device Message Details Example of Use To set the number of the points in the trace data of each segment. SPUR:SWE:POIN 1001,5001,5001,5001,10001,10001,10001,10001,10001,10001, 10001,10001,10001,10001,10001,10001,10001,10001,10001,10 [:SENSe]:SPURious[:RANGe][:LIST]:SWEep:POINts? Spurious Emission Trace Point Query Function This command queries the number of the points in the trace data of each segment.
  • Page 779 2.14 Spurious Emission Measurement Function [:SENSe]:SPURious:AVERage:COUNt:COUPle ON|OFF|1|0 Couple Storage Count Function This command sets the shared setting of the storage count in each segment to On/Off. Command [:SENSe]:SPURious:AVERage:COUNt:COUPle <switch> Parameter Shared setting On/Off <switch> Sets the Shared setting to On (Default). ON|1 Sets the Shared setting to Off.
  • Page 780 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious:AVERage:COUNt:COUPle? Couple Storage Count Query Function This command queries the On/Off state of the shared setting of the storage count in each segment. Query [:SENSe]:SPURious:AVERage:COUNt:COUPle? Response <switch> Parameter Shared setting of Storage count On/Off <switch>...
  • Page 781 2.14 Spurious Emission Measurement Function [:SENSe]:SPURious[:RANGe][:LIST]:AVERage:COUNt <integer_1>,<integer_2>,<integer_3>,<integer_4>,<integer_5>,<integer_6>,< integer_7>,<integer_8>,<integer_9>,<integer_10>,<integer_11>,<integer_12 >,<integer_13>,<integer_14>,<integer_15>,<integer_16>,<integer_17>,<inte ger_18>,<integer_19>,<integer_20> Spurious Emission Storage Count Function This command sets the storage count of each segment. Command [:SENSe]:SPURious[:RANGe][:LIST]:AVERage:COUNt <integer_n> Parameter Storage count of Segment n <integer_n> Range 1 to 9999 Resolution Default 10 times Example of Use To set the storage count of each segment.
  • Page 782 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious[:RANGe][:LIST]:AVERage:COUNt? Spurious Emission Storage Count Query Function This command queries the storage count of each segment. Query [:SENSe]:SPURious[:RANGe][:LIST]:AVERage:COUNt? Response <integer_n> Parameter Storage count of Segment n <integer_n> Range 1 to 9999 Resolution Example of Use To query the storage count of each segment.
  • Page 783 2.14 Spurious Emission Measurement Function :CALCulate:SPURious[:RANGe][:LIST]:CORRection:RECall <segment>,<filename>[,<device>] Recall Correction Table Function This command selects the correction table to use in a segment. Command :CALCulate:SPURious[:RANGe][:LIST]:CORRection:RECall <segment>,<filename>[,<device>] Parameter Segment <segment> Range 1 to 20 Resolution Name of File <filename> Character string within 32 characters enclosed by double quotation marks ("...
  • Page 784 Chapter 2 SCPI Device Message Details :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer]:DATA[:STARt] <ampl_1>,<ampl_2>,<ampl_3>,<ampl_4>,<ampl_5>,<ampl_6>,<ampl_7>,<a mpl_8>,<ampl_9>,<ampl_10>,<ampl_11>,<ampl_12>,<ampl_13>,<ampl_14> ,<ampl_15>,<ampl_16>,<ampl_17>,<ampl_18>,<ampl_19>,<ampl_20> Spurious Emission Limit Start Level Function This command sets the absolute level limit of the start frequency in each segment for the Spurious Emission measurement. Command :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer ]:DATA[:STARt] <ampl_n> Parameter Absolute level limit of start Frequency of <ampl_n>...
  • Page 785 2.14 Spurious Emission Measurement Function :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer]:DATA[:STARt] Spurious Emission Limit Start Level Query Function This command queries the absolute level limit of the start frequency in each segment for the Spurious Emission measurement. Query :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer ]:DATA[:STARt]? Response <ampl_n> Parameter <ampl_n> Absolute level limit of start frequency of Segment n Range –200 to 50 dBm...
  • Page 786 Chapter 2 SCPI Device Message Details :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer]:DATA:STOP: AUTO ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0 Spurious Emission Limit Stop Level Auto/Manual Function This command sets the absolute level limit of the stop frequency in each segment for the Spurious Emission measurement to Auto/Manual. Command :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer ]:DATA:STOP:AUTO <switch_n>...
  • Page 787 2.14 Spurious Emission Measurement Function :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer]:DATA:STOP: AUTO? Spurious Emission Limit Stop Level Auto/Manual Query Function This command queries Auto/Manual of the absolute level limit of the stop frequency in each segment for the Spurious Emission measurement. Query :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer ]:DATA:STOP:AUTO? Response <switch_n>...
  • Page 788 Chapter 2 SCPI Device Message Details :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer]:DATA:STOP <ampl_1>,<ampl_2>,<ampl_3>,<ampl_4>,<ampl_5>,<ampl_6>,<ampl_7>,<a mpl_8>,<ampl_9>,<ampl_10>,<ampl_11>,<ampl_12>,<ampl_13>,<ampl_14> ,<ampl_15>,<ampl_16>,<ampl_17>,<ampl_18>,<ampl_19>,<ampl_20> Spurious Emission Limit Stop Level Function This command sets the absolute level limit of the stop frequency of each segment for the Spurious Emission measurement. Command :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer ]:DATA:STOP <ampl_n> Parameter Absolute level limit of stop frequency in Segment <ampl_n>...
  • Page 789 2.14 Spurious Emission Measurement Function :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer]:DATA:STOP? Spurious Emission Limit Stop Level Query Function This command queries the absolute level limit of the stop frequency in each segment for the Spurious Emission measurement. Query :CALCulate:SPURious[:RANGe][:LIST]:LIMit:ABSolute[:UPPer ]:DATA:STOP? Response <ampl_n> Parameter Absolute level limit of stop frequency of Segment <ampl_n>...
  • Page 790 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious[:RANGe][:LIST]:PEAK:RESolution|:EXCursion <rel_ampl_1>,<rel_ampl_2>,<rel_ampl_3>,<rel_ampl_4>,<rel_ampl_5>,<rel_ ampl_6>,<rel_ampl_7>,<rel_ampl_8>,<rel_ampl_9>,<rel_ampl_10>,<rel_am pl_11>,<rel_ampl_12>,<rel_ampl_13>,<rel_ampl_14>,<rel_ampl_15>,<rel_a mpl_16>,<rel_ampl_17>,<rel_ampl_18>,<rel_ampl_19>,<rel_ampl_20> Spurious Emission Search Resolution Function This command sets the spurious search resolution when Result Type is set to Peaks. Command [:SENSe]:SPURious[:RANGe][:LIST]:PEAK:RESolution|:EXCurs ion <rel_ampl_n> Parameter Spurious search resolution <rel_ampl_n> Range 0.001 to 50.00 dB Resolution 0.001 dB...
  • Page 791 2.14 Spurious Emission Measurement Function [:SENSe]:SPURious[:RANGe][:LIST]:PEAK:RESolution|:EXCursion? Spurious Emission Search Resolution Function This command queries the spurious search resolution when Result Type is Peaks. Query [:SENSe]:SPURious[:RANGe][:LIST]:PEAK:RESolution|:EXCurs ion? Response <rel_ampl_n> Parameter Spurious search resolution <rel_ampl_n> Range 0.001 to 50.00 dB Resolution 0.001 dB Suffix code None.
  • Page 792 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious[:RANGe][:LIST]:PEAK:THReshold <real_1>,<real_2>,<real_3>,<real_4>,<real_5>,<real_6>,<real_7>,<real_8>,< real_9>,<real_10>,<real_11>,<real_12>,<real_13>,<real_14>,<real_15>,<rea l_16>,<real_17>,<real_18>,<real_19>,<real_20> Spurious Emission Search Threshold Level Function This command sets the spurious search threshold when Result Type is Peaks. Command [:SENSe]:SPURious[:RANGe][:LIST]:PEAK:THReshold <real_n> Parameter Spurious search threshold <real_n> Range –200 to 50 dBm Resolution 0.01 dB Suffix Code...
  • Page 793 2.14 Spurious Emission Measurement Function [:SENSe]:SPURious[:RANGe][:LIST]:PEAK:THReshold? Spurious Emission Search Threshold Level Query Function This command queries the spurious search threshold when Result Type is Peaks. Query [:SENSe]:SPURious[:RANGe][:LIST]:PEAK:THReshold? Response <real_n> Parameter Spurious search threshold <real_n> Range –200 to 50 dBm Resolution 0.01 dB Suffix code None.
  • Page 794 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth[:RESolution]:CO UPle ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0 Spurious Emission Couple Segment RBW Function This command sets whether the same as the value set in Segment Setup is automatically set to RBW Value in Time Domain Setup. Command [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth[:RESo lution]:COUPle <switch_n>...
  • Page 795 2.14 Spurious Emission Measurement Function [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth[:RESolution]:CO UPle? Spurious Emission Couple Segment RBW Query Function This command queries the On/Off state of the setting for whether the same as the value set in Segment Setup is automatically set to RBW Value in Time Domain Setup. Query [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth[:RESo lution]:COUPle?
  • Page 796 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth[:RESolution] <bandwidth_1>,<bandwidth_2>,<bandwidth_3>,<bandwidth_4>,<bandwidth_ 5>,<bandwidth_6>,<bandwidth_7>,<bandwidth_8>,<bandwidth_9>,<bandwid th_10>,<bandwidth_11>,<bandwidth_12>,<bandwidth_13>,<bandwidth_14>, <bandwidth_15>,<bandwidth_16>,<bandwidth_17>,<bandwidth_18>,<bandw idth_19>,<bandwidth_20> Spurious Emission Time Domain RBW Function This command sets RBW in Time Domain Setup. Command [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth[:RESo lution] <bandwidth_n> Parameter Resolution bandwidth (RBW) of Segment n <bandwidth_n> [MS269xA] Range/Resolution 30 Hz to 31.25 MHz Set to any of 30 Hz to 3 MHz (1-3 sequence), 50 kHz, 5 MHz, 10 MHz, 20 MHz, and 31.25 MHz.
  • Page 797 2.14 Spurious Emission Measurement Function For RBW 31.25 MHz, it is not a Gauss filter but a flat-top characteristic filter. Example of Use To set RBW in Time Domain Setup. SPUR:TDOM:BAND 3KHZ,3KHZ,10KHZ,10KHZ,10KHZ,10KHZ,10KHZ,10KHZ,10KHZ,10KH Z,10KHZ,10KHZ,10KHZ,10KHZ,10KHZ,10KHZ,10KHZ,10KHZ,10KHZ, 10KHZ 2-787...
  • Page 798 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth[:RESolution]? Spurious Emission Time Domain RBW Query Function This command queries RBW in Time Domain Setup. Query [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth[:RESo lution]? Response <bandwidth_n> Parameter Resolution bandwidth(RBW) of Segment n <bandwidth_n> [MS269xA] Range/Resolution 30 Hz to 31.25 MHz Value is returned in any of 30 Hz to 3 MHz (1-3 sequence), 50 kHz, 5 MHz, 10 MHz, 20 MHz, and 31.25 MHz.
  • Page 799 2.14 Spurious Emission Measurement Function [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth:VIDeo:COUPle ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0, ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0,ON|OFF|1|0 Spurious Emission Couple Segment VBW Function This command sets whether the same as the value set in Segment Setup is automatically set to VBW Value in Time Domain Setup. Command [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth:VIDeo :COUPle <switch_n>...
  • Page 800 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth:VIDeo:COUPle? Spurious Emission Couple Segment VBW Query Function This command queries the On/Off state of the setting for whether the same as the value set in Segment Setup is automatically set to VBW Value in Time Domain Setup. Query [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth:VIDeo :COUPle?
  • Page 801 Hz is used when omitted. VBW is set to Off. Details The setting range of this function is limited depending on the setting of MS2690A/MS2691A/MS2692A Signal Analyzer RBW. For details, refer to Operation Manual (Spectrum Analyzer Function Operation) MS2830A/MS2840A/MS2850A Signal Analyzer Operation Manual...
  • Page 802 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth:VIDeo? Spurious Emission Time Domain VBW Query Function This command queries VBW in Time Domain Setup. Query [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:BANDwidth:VIDeo Response <bandwidth_n> Parameter Video bandwidth of Segment n (VBW) <bandwidth_n> Range/Resolution 1 Hz to 10 MHz (1 to 3 sequence), 5 kHz Suffix Code None.
  • Page 803 2.14 Spurious Emission Measurement Function [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:SWEep:TIME <seconds_1>,<seconds_2>,<seconds_3>,<seconds_4>,<seconds_5>,<seco nds_6>,<seconds_7>,<seconds_8>,<seconds_9>,<seconds_10>,<seconds_ 11>,<seconds_12>,<seconds_13>,<seconds_14>,<seconds_15>,<seconds_ 16>,<seconds_17>,<seconds_18>,<seconds_19>,<seconds_20> Spurious Emission Time Domain Sweep Time Function This command sets the sweep time in Time Domain Setup. Command [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:SWEep:TIME <seconds_n> Parameter Sweep time <seconds_n> Range 1 µs to 1000 s (For Time-axis measurement) Suffix Code NS,US,MS,S S is used when omitted.
  • Page 804 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:SWEep:TIME? Spurious Emission Time Domain Sweep Time Query Function This command queries the sweep time in Time Domain Setup. Query [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:SWEep:TIME? Response <seconds_n> Parameter Sweep time <seconds_n> Range 1 µs to 1000 s Suffix code None.
  • Page 805 2.14 Spurious Emission Measurement Function [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:DETector[1][:FUNCtion] POSitive|SAMPle|RMS,POSitive|SAMPle|RMS,POSitive|SAMPle|RMS,POSiti ve|SAMPle|RMS,POSitive|SAMPle|RMS,POSitive|SAMPle|RMS,POSitive|SA MPle|RMS,POSitive|SAMPle|RMS,POSitive|SAMPle|RMS,POSitive|SAMPle| RMS,POSitive|SAMPle|RMS,POSitive|SAMPle|RMS,POSitive|SAMPle|RMS, POSitive|SAMPle|RMS,POSitive|SAMPle|RMS,POSitive|SAMPle|RMS,POSiti ve|SAMPle|RMS,POSitive|SAMPle|RMS,POSitive|SAMPle|RMS,POSitive|SA MPle|RMS Spurious Emission Time Domain Detection Function This command selects the detection mode of the waveform pattern in Time Domain Setup. Command [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:DETector[1][:FU NCtion] <mode_n> Parameter Detection mode of Segment n <mode_n>...
  • Page 806 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:DETector[1][:FUNCtion]? Spurious Emission Time Domain Detection Query Function This command queries the detection mode of the waveform pattern in Time Domain Setup. Query [:SENSe]:SPURious:TDOMain[:RANGe][:LIST]:DETector[1][:FU NCtion]? Response <mode_n> Parameter Detection mode of Segment n <mode_n> Positive peak detection Sample detection SAMP...
  • Page 807 2.14 Spurious Emission Measurement Function :MMEMory:STORe:SPURious:TABLe <register> Save Spurious Emission Parameter Function This command saves the parameter for the Spurious Emission measurement. Command :MMEMory:STORe:SPURious:TABLe <register> Parameter Register to be saved. <register> Range 1 to 8 Example of Use To save the parameter in Register 3. MMEM:STOR:SPUR:TABL 3 :MMEMory:LOAD:SPURious:TABLe <register>...
  • Page 808 Chapter 2 SCPI Device Message Details :CONFigure:SPURious Spurious Emission Configure Function This command sets the Spurious Emission measurement to On. Command :CONFigure:SPURious Details No measurement is performed. When Spurious Emission measurement is set to On, the active trace is set to A.
  • Page 809 2.14 Spurious Emission Measurement Function :FETCh:SPURious[n]? Spurious Emission Fetch Function This command outputs the measurement result for the Spurious Emission measurement. Query :FETCh:SPURious[n]? Response When Result Mode is A: (When Spurious Emission Result Type is Worst) <judge>,<spur_1>,<range_1>,<freq_1>,<peak_1>,<margin_1>, <limit_1>,<judge_1>,<spur_2>,<range>,<freq_2>,<peak_2>,< margin_2>,<limit_2>,<judge_2> ..<spur_20>,<range_20>,<freq_20>,<peak_20>,<margin_20>,<li mit_20>,<judge_20>...
  • Page 810 Chapter 2 SCPI Device Message Details <number> (n=22) <tracedata_1>,<tracedata_2>..<tracedata_m> (n=23 to 42) Parameter Spurious number <spur_n> Segment number of the detected spurious <range_n> Number of the detected spurious <number> –999.0 is returned when an error occurs/no measurement is performed. Frequency of Spurious <freq_n>...
  • Page 811 2.14 Spurious Emission Measurement Function n=2 to 21 <tracedata_m> Returns a comma separated list of the trace data for the selected segment (where segment number = n-1). n=23 to 42 Returns a comma separated list of the trace data for the selected segment (where segment number = n-22).
  • Page 812 Chapter 2 SCPI Device Message Details :READ:SPURious[n]? Spurious Emission Read Function This command performs the Spurious Emission measurement and outputs the result. It works in the same way as the two commands are transmitted in the following order: :INITiate:SPURious :FETCh:SPURious[n]? :MEASure:SPURious[n]? Spurious Emission Measure Function...
  • Page 813 2.14 Spurious Emission Measurement Function :DISPlay:SPURious:ANNotation:TITLe:DATA? Spurious Emission Title Entry Query Function This command queries the title character string. Refer to :DISPlay:ANNotation:TITLe:DATA?. Related Command This command has the same function as the following commands. :DISPlay:ANNotation:TITLe:DATA? :DISPlay:ACPower:ANNotation:TITLe:DATA? :DISPlay:CHPower:ANNotation:TITLe:DATA? :DISPlay:OBWidth:ANNotation:TITLe:DATA? :DISPlay:SEMask:ANNotation:TITLe:DATA? :DISPlay:BPOWer|:TXPower:ANNotation:TITLe:DATA? :DISPlay:SPURious:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision <rel_ampl>...
  • Page 814 Chapter 2 SCPI Device Message Details :DISPlay:SPURious:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision? Spurious Emission Log Scale Range Query Function This command queries the Y-axis scale range when Scale Mode is set to Log. Refer to :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:[LOGarithmic]:PDIVisi on?. Related Command This command has the same function as the following commands. :DISPlay:WINDow[1]:TRACe:Y[:SCALe]:[LOGarithmic]:PDIVisi :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVi sion?
  • Page 815 2.14 Spurious Emission Measurement Function [:SENSe]:SPURious:AVERage[:STATe] ON|OFF|1|0 Spurious Emission Storage Mode Function This command sets the storage mode of Trace A. Refer to :TRACe[1]|2|3|4|5|6:STORage:MODE. Related Command This command has the same function as the following commands. :TRACe[1]|2|3|4|5|6:STORage:MODE [:SENSe]:ACPower:AVERage[:STATe] [:SENSe]:CHPower:AVERage[:STATe] [:SENSe]:OBWidth:AVERage[:STATe] [:SENSe]:SEMask:AVERage[:STATe] [:SENSe]:BPOWer|:TXPower:AVERage[:STATe] [:SENSe]:SPURious:AVERage[:STATe]?
  • Page 816 Chapter 2 SCPI Device Message Details :TRIGger:SPURious[:SEQuence]:SOURce EXTernal[1]|IMMediate|WIF|RFBurst|VIDeo|SG|BBIF|FRAMe Spurious Emission Trigger Source Function This command selects the trigger signal source. Refer to :TRIGger[:SEQuence]:SOURce. Related Command This command has the same function as the following commands. :TRIGger[:SEQuence]:SOURce :TRIGger:ACPower[:SEQuence]:SOURce? :TRIGger:CHPower[:SEQuence]:SOURce :TRIGger:OBWidth[:SEQuence]:SOURce :TRIGger:SEMask[:SEQuence]:SOURce :TRIGger:BPOWer|:TXPower[:SEQuence]:SOURce :TRIGger:SPURious[:SEQuence]:SOURce? Spurious Emission Trigger Source Query...
  • Page 817 2.14 Spurious Emission Measurement Function :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE NORMal|POSition|DELTa|FIXed|OFF Spurious Emission Marker Mode Function This command sets the marker mode. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE. Related Command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: MODE :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:MODE? Spurious Emission Marker Mode Query Function This command queries the marker mode.
  • Page 818 Chapter 2 SCPI Device Message Details :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:X <freq> Spurious Emission Zone Marker Frequency (Time) Function This command moves the center of the zone marker to the specified frequency (time). Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X. Related Command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X...
  • Page 819 2.14 Spurious Emission Measurement Function :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition <integer> Spurious Emission Zone Marker Position Function This command moves the center of the zone marker to the specified position. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition. Related Command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSition :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSiti :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:X:POSiti...
  • Page 820 Chapter 2 SCPI Device Message Details :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? Spurious Emission Marker Level Query Function This command queries the level of the marker point. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y?. Related Command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10[:PEAK]:Y? :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :CALCulate:OBWidth:MARKer[1]|2|3|4|5|6|7|8|9|10:Y? :CALCulate:BPOWer|:TXPower:MARKer[1]|2|3|4|5|6|7|8|9|10: :CALCulate:SPURious:MARKer:AOFF...
  • Page 821 2.14 Spurious Emission Measurement Function :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum Spurious Emission Peak Search Function This command searches for the maximum level point of active trace and moves the marker point to it. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum. Related Command This command has the same function as the following commands. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum...
  • Page 822 Chapter 2 SCPI Device Message Details :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:POWer Spurious Emission Power Peak Search Function This command moves the active marker to the position where the peak power of the zone width of the active marker becomes maximum in the measurement band. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MAXimum:POWer Related command...
  • Page 823 2.14 Spurious Emission Measurement Function :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum Spurious Emission Minimum Search Function This command searches for the minimum level point of the active trace and moves the marker point to that point. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum. Related Command This command has the same function as the following command. :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum :CALCulate:ACPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum :CALCulate:CHPower:MARKer[1]|2|3|4|5|6|7|8|9|10:MINimum...
  • Page 824 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious:SWEep:TIME:AUTO:MODE NORMal|FAST Spurious Emission Auto Sweep Time Mode Function This command sets the Fast/Normal mode when the automatic setting of the sweep time is set to On. Refer to [:SENSe]:SWEep:TIME:AUTO:MODE <mode>. Related Command This command has the same function as the following command. [:SENSe]:SWEep:TIME:AUTO:MODE [:SENSe]:SPURious:SWEep:TIME:AUTO:MODE? Spurious Emission Auto Sweep Time Mode Query...
  • Page 825 2.14 Spurious Emission Measurement Function :CALCulate:SPURious:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence <integer> Spurious Emission Relative To Function This command sets the reference marker when the marker mode is set to Delta. Refer to :CALCulate:MARKer[1]|2|3|4|5|6|7|8|9|10:REFerence. Related Command This command has the same function as the following commands. :CALCulate:ACPower:MARKer[n]:REFerence :CALCulate:CHPower:MARKer[n]:REFerence :CALCulate:OBWidth:MARKer[n]:REFerence...
  • Page 826 Chapter 2 SCPI Device Message Details :CALCulate:SPURious:MARKer:COUPle[:STATe] ON|OFF|1|0 Spurious Emission Couple Zone Function This command enables/disables the setting of the function that the same value is automatically set to Zone Width in each marker. Refer to :CALCulate:MARKer:COUPle:ZONE[:STATe]. Related Command This command has the same function as the following command. :CALCulate:MARKer:COUPle:ZONE[:STATe] :CALCulate:SPURious:MARKer:COUPle[:STATe]? Spurious Emission Couple Zone Query...
  • Page 827 2.14 Spurious Emission Measurement Function :INITiate:SPURious:PAUSe:CONTinue Spurious Emission Continue Function Pause is cancelled and measurement will continue when this command is sent while it is in remote control state and paused. Command :INITiate:SPURious:PAUSe:CONTinue Details It will pause before the pertinent segment is swept when Pause before Sweep is set to On.
  • Page 828 Chapter 2 SCPI Device Message Details :INITiate:SPURious:PAUSe:STATe? Spurious Emission Pause Status Query Function This command queries whether the Spurious Emission measurement is in remote control state and paused or not. Query :INITiate:SPURious:PAUSe:STATe? Response <switch> Parameter Status of the Spurious Emission measurement <switch>...
  • Page 829 2.14 Spurious Emission Measurement Function [:SENSe]:SPURious:SYNThesis:LPHase ON|OFF|1|0 Low Phase Noise for Spurious Emission Measurement Function This command enables/disables Low Phase Noise function during Spurious Emission measurement. Command [:SENSe]:SPURious:SYNThesis:LPHase <switch> Parameter Low Phase Noise switch <switch> Enables Low Phase Noise switch. ON|1 Disables Low Phase Noise switch.
  • Page 830 Chapter 2 SCPI Device Message Details [:SENSe]:SPURious:SYNThesis:LPHase? Low Phase Noise for Spurious Emission Measurement Query Function This command queries the Low Phase Noise function On/Off state during Spurious Emission measurement. Query [:SENSe]:SPURious:SYNThesis:LPHase? Response Low Phase Noise switch <switch> Parameter Low Phase Noise switch <switch>...
  • Page 831 2.14 Spurious Emission Measurement Function Refer to the mainframe Operation Manual (Operation) for details about spurious noise generation and appropriate conditions for using the Low Phase Noise Function. Example of Use To query the On/Off state of Low Phase Noise function during Spurious Emission measurement.
  • Page 832 Chapter 2 SCPI Device Message Details [:SENSe]:FREQuency:SYNThesis:LPHase:STATe? Low Phase Noise Status Query Function This command queries the state of Low Phase Noise function with the current measurement conditions. Query [:SENSe]:FREQuency:SYNThesis:LPHase:STATe? Response Low Phase Noise function On/Off state <status> Parameter Low Phase Noise function On/Off state <status>...
  • Page 833 2.15 Setting the TOI Measurement Functions 2.15 Setting the TOI Measurement Functions Table 2.15-1 lists device messages for setting the TOI (Third Order Intercept) measurement functions. Table 2.15-1 Device messages for setting the TOI measurement functions Function Device Message [:SENSe]:TOI[:STATe] ON|OFF|1|0 [:SENSe]:TOI[:STATe]? Measure TOI :CALCulate:TOI[:STATe] ON|OFF|1|0...
  • Page 834 Chapter 2 SCPI Device Message Details Table 2.15-1 Device messages for setting the TOI measurement functions (Cont’d) Function Device Message [:SENSe]:TOI:FREQuency:IM3:SEARch ON|OFF|1|0 [:SENSe]:TOI:FREQuency:IM3:SEARch? TOI 3rd Frequency Search On/Off :CALCulate:TOI:FREQuency:IM3:SEARch ON|OFF|1|0 :CALCulate:TOI:FREQuency:IM3:SEARch? TOI Configure :CONFigure:TOI TOI Initiate :INITiate:TOI TOI Read Fetch :FETCh:TOI[n]? TOI Read :READ:TOI[n]?
  • Page 835 2.15 Setting the TOI Measurement Functions [:SENSe]:TOI[:STATe] ON|OFF|1|0 Measure TOI Function This command executes the TOI (Third Order Intercept) measurement. Command [:SENSe]:TOI[:STATe] <switch> Parameter Turns on and off the TOI measurement. <switch> Turns on the TOI measurement. ON|1 Turns off the TOI measurement. (Default) OFF|0 Example of use To turn on the TOI measurement.
  • Page 836 Chapter 2 SCPI Device Message Details [:SENSe]:TOI[:STATe]? Measure TOI Query Function This command queries whether the TOI measurement is on or off. Query [:SENSe]:TOI[:STATe]? Response <switch> Parameter TOI measurement On/Off <switch> ON|1 OFF|0 Example of use To query whether the TOI measurement is on or off. TOI? >...
  • Page 837 Command [:SENSe]:TOI:FREQuency:BASE:LOWer <freq> Parameter Lower tone frequency for the TOI measurement <freq> Range –100 MHz to 6.05 GHz (MS2690A) [MS269xA] –100 MHz to 13.6 GHz (MS2691A) –100 MHz to 26.6 GHz (MS2692A) –100 MHz to 3.7 GHz (Option 040) [MS2830A] –100 MHz to 6.1 GHz (Option 041)
  • Page 838 Chapter 2 SCPI Device Message Details 5.0625 GHz (MS2691A) 9.9375 GHz (MS2692A) 1.125 GHz (Option 040) [MS2830A] 2.25 GHz (Option 041) 5.0625 GHz (Option 043) 9.9375 GHz (Option 044) 16.125 GHz (Option 045) 1.125 GHz (Option 040) [MS2840A] 2.25 GHz (Option 041) 9.9375 GHz (Option 044) 16.125 GHz (Option 046) 12.0 GHz (Option 047)
  • Page 839 Response <freq> Parameter Lower tone frequency for the TOI measurement <freq> Range −100 MHz to 6.05 GHz (MS2690A) [MS269xA] −100 MHz to 13.6 GHz (MS2691A) −100 MHz to 26.6 GHz (MS2692A) −100 MHz to 3.7 GHz (Option 040) [MS2830A] −100 MHz to 6.1 GHz (Option 041) −100 MHz to 13.6 GHz (Option 043)
  • Page 840 Command [:SENSe]:TOI:FREQuency:BASE:UPPer <freq> Parameter Upper tone frequency for the TOI measurement <freq> Range –100 MHz to 6.05 GHz (MS2690A) [MS269xA] –100 MHz to 13.6 GHz (MS2691A) –100 MHz to 26.6 GHz (MS2692A) –100 MHz to 3.7 GHz (Option 040) [MS2830A] –100 MHz to 6.1 GHz (Option 041)
  • Page 841 Response <freq> Parameter Upper tone frequency for the TOI measurement <freq> Range –100 MHz to 6.05 GHz (MS2690A) [MS269xA] –100 MHz to 13.6 GHz (MS2691A) –100 MHz to 26.6 GHz (MS2692A) –100 MHz to 3.7 GHz (Option 040) [MS2830A] –100 MHz to 6.1 GHz (Option 041) –100 MHz to 13.6 GHz (Option 043)
  • Page 842 Chapter 2 SCPI Device Message Details –100 MHz to 32.5 GHz (Option 047) [MS2850A] –100 MHz to 45 GHz (Option 046) Resolution 1 Hz Suffix code None. Value is returned in Hz units. Example of Use To query the upper tone frequency. TOI:FREQ:BASE:UPP? >...
  • Page 843 2.15 Setting the TOI Measurement Functions [:SENSe]:TOI:FREQuency:BASE[:LOWer[:UPPer]]:AUTO ON|OFF|1|0 TOI Tone Frequency Auto/Manual Function This command turns on and off the automatic setting of the tone frequency for the TOI measurement. Command [:SENSe]:TOI:FREQuency:BASE[:LOWer[:UPPer]]:AUTO <switch> Parameter Automatic setting of the frequency for the TOI <switch>...
  • Page 844 Chapter 2 SCPI Device Message Details [:SENSe]:TOI:FREQuency:BASE[:LOWer[:UPPer]]:AUTO? TOI Tone Frequency Auto/Manual Query Function This command queries whether the automatic setting of the tone frequency for the TOI measurement is on or off. Query [:SENSe]:TOI:FREQuency:BASE[:LOWer[:UPPer]]:AUTO? Response <switch> Parameter Automatic setting of the frequency for the TOI <switch>...
  • Page 845 2.15 Setting the TOI Measurement Functions :CALCulate:TOI:FREQuency:BASE[:LOWer[:UPPer]]:AUTO? TOI Tone Frequency Auto/Manual Query Function This command queries whether the automatic setting of the tone frequency for the TOI measurement is on or off. Refer to [:SENSe]:TOI:FREQuency:BASE[:LOWer[:UPPer]]:AUTO? Related Command This command has the same function as the following command. [:SENSe]:TOI:FREQuency:BASE[:LOWer[:UPPer]]:AUTO? [:SENSe]:TOI:ZSPan[:STATe] ON|OFF|1|0 TOI Zero Span Measurement On/Off...
  • Page 846 Chapter 2 SCPI Device Message Details [:SENSe]:TOI:ZSPan[:STATe]? TOI Zero Span Measurement On/Off Query Function This command queries whether the Zero Span Measurement in the TOI measurement is on or off. Query [:SENSe]:TOI:ZSPan[:STATe]? <switch> Response <switch> Parameter Turns on and off the Zero Span Measurement in <switch>...
  • Page 847 2.15 Setting the TOI Measurement Functions [:SENSe]:TOI:ZSPan:BANDwidth|BWIDth[:RESolution] <freq> TOI Zero Span Measurement Resolution Bandwidth Function This command sets the resolution bandwidth for the Zero Span Measurement in the TOI measurement. Command [:SENSe]:TOI:ZSPan:BANDwidth|BWIDth[:RESolution] <freq> Parameter Resolution bandwidth for the Zero Span <freq>...
  • Page 848 Chapter 2 SCPI Device Message Details [:SENSe]:TOI:ZSPan:BANDwidth|BWIDth[:RESolution]? TOI Zero Span Measurement Resolution Bandwidth Query Function This command queries the resolution bandwidth for the Zero Span Measurement in the TOI measurement. Query [:SENSe]:TOI:ZSPan:BANDwidth|BWIDth[:RESolution]? Response <freq> Parameter Resolution bandwidth for the Zero Span <freq>...
  • Page 849 2.15 Setting the TOI Measurement Functions [:SENSe]:TOI:ZSPan:BANDwidth|BWIDth[:RESolution]:AUTO ON|OFF|1|0 TOI Zero Span Measurement Resolution Bandwidth Auto/Manual Function This command turns on and off the automatic setting of the resolution bandwidth for the Zero Span Measurement in the TOI measurement. Command [:SENSe]:TOI:ZSPan:BANDwidth|BWIDth[:RESolution]:AUTO <switch>...
  • Page 850 Chapter 2 SCPI Device Message Details [:SENSe]:TOI:ZSPan:BANDwidth|BWIDth[:RESolution]:AUTO? TOI Zero Span Measurement Resolution Bandwidth Auto/Manual Query Function This command queries whether the automatic setting of the resolution bandwidth for the Zero Span Measurement in the TOI measurement is on or off. Query [:SENSe]:TOI:ZSPan:BANDwidth|BWIDth[:RESolution]:AUTO? Response...
  • Page 851 TOI measurement. Range 1 µs to 1000 s Suffix code NS,US,MS,S S is used when the suffix code is omitted. Default 10 ms (MS2690A) [MS269xA] 135 ms (MS2691A) 265 ms (MS2692A) 1 ms (Option 040) [MS2830A] 2 ms (Option 041)
  • Page 852 Chapter 2 SCPI Device Message Details [:SENSe]:TOI:ZSPan:SWEep:TIME? TOI Zero Span Measurement Sweep Time Query Function This command queries the sweep time for the Zero Span Measurement in the TOI measurement. Query [:SENSe]:TOI:ZSPan:SWEep:TIME? Response <time> Parameter Sweep time for the Zero Span Measurement in <time>...
  • Page 853 2.15 Setting the TOI Measurement Functions [:SENSe]:TOI:ZSPan:SWEep:TIME:AUTO ON|OFF|1|0 TOI Zero Span Measurement Sweep Time Auto/Manual Function This command turns on and off the automatic setting of the sweep time for the Zero Span Measurement in the TOI measurement. Command [:SENSe]:TOI:ZSPan:SWEep:TIME:AUTO <switch> Parameter Automatic setting of the sweep time for the Zero <switch>...
  • Page 854 Chapter 2 SCPI Device Message Details [:SENSe]:TOI:ZSPan:SWEep:TIME:AUTO? TOI Zero Span Measurement Sweep Time Auto/Manual Query Function This command queries whether the automatic setting of the sweep time for the Zero Span Measurement in the TOI measurement is on or off. Query [:SENSe]:TOI:ZSPan:SWEep:TIME:AUTO? Response...
  • Page 855 2.15 Setting the TOI Measurement Functions [:SENSe]:TOI:FREQuency:IM3:SEARch ON|OFF|1|0 TOI 3rd Frequency Search On/Off Function This command turns on and off the search function for the third-order distortion frequency in the TOI measurement. Command [:SENSe]:TOI:FREQuency:IM3:SEARch <switch> Parameter Setting of the search function for the third-order <switch>...
  • Page 856 Chapter 2 SCPI Device Message Details [:SENSe]:TOI:FREQuency:IM3:SEARch? TOI 3rd Frequency Search On/Off Function This command queries whether the search function for the third-order distortion frequency in the TOI measurement is on or off. Query [:SENSe]:TOI:FREQuency:IM3:SEARch? Response <switch> Parameter Setting of the search function for the third-order <switch>...
  • Page 857 2.15 Setting the TOI Measurement Functions :CONFigure:TOI TOI Configure Function This command turns on the TOI measurement. Command :CONFigure:TOI Details No measurement is made. Example of Use To turn on the TOI measurement. CONF:TOI :INITiate:TOI TOI Initiate Function This command starts the TOI measurement. Command :INITiate:TOI Details...
  • Page 858 Chapter 2 SCPI Device Message Details :FETCh:TOI[n]? TOI Read Fetch Function This command outputs the measurement result of the TOI measurement. Query :FETCh:TOI[n]? Response <tracedata_1>,<tracedata_2>,... ( n=0 ) <worst_toi>,<worst_toi_freq>, <lower_toi>,<lower_3rd_freq>, <upper_toi>,<upper_3rd_freq>, ( n=1 ) <worst_toi_freq>,<worst_3rd_abs>,<worst_toi>, <lower_tone_freq>,<lower_tone_abs>, <upper_tone_freq>,<upper_tone_abs>, <lower_3rd_freq>,<lower_3rd_abs>,<lower_toi>, <upper_3rd_freq>,<upper_3rd_abs>,<upper_toi>, <worst_3rd_rel>,<lower_3rd_rel>,<upper_3rd_rel> (n=2) Parameter Worst value of TOI...
  • Page 859 2.15 Setting the TOI Measurement Functions TOI and absolute level: No suffix code, in dBm units, 0.01 dB resolution (–999.0 is returned when there is an error or no measurement is performed.) frequency: No suffix code, in Hz unit, 1 Hz resolution (–999999999999 is returned when there is an error or no measurement is performed.) Details...
  • Page 860 Chapter 2 SCPI Device Message Details :MEASure:TOI[n]? TOI Measure Function This command performs the TOI measurement and outputs the measurement result. This command has the same function as the following commands executed in this order: :CONFigure:TOI :INITiate:TOI :*WAI :FETCh:TOI[n]? :FETCh:TOI:IP3? TOI Read Fetch IP3 Function This command outputs the measurement result of the TOI measurement.
  • Page 861 2.15 Setting the TOI Measurement Functions :READ:TOI:IP3? TOI Read IP3 Function This command performs the TOI measurement and outputs the measurement result. This command has the same function as the following commands executed in this order: :INITiate:TOI :*WAI :FETCh:TOI:IP3? :MEASure:TOI:IP3? TOI Measure IP3 Function This command performs the TOI measurement and outputs the...
  • Page 862 Chapter 2 SCPI Device Message Details 2.16 Internal Signal Generator Control function Table 2.16-1 lists device messages for setting the Internal Signal Generator Control function. Table 2.16-1 Device messages for setting the Internal Signal Generator Control functions Function Device Message Internal Signal :CALCulate:SGControl[:STATe] ON|OFF|1|0 Generator Control...
  • Page 863 2.16 Internal Signal Generator Control function :CALCulate:SGControl[:STATe] ON|OFF|1|0 Internal Signal Generator Control Function This command enables/disables Internal Signal Generator Control function. Command :CALCulate:SGControl[:STATe] <switch> Parameter Internal Signal Generator Control function <switch> On/Off Enables Internal Signal Generator Control ON|1 function. Disables Internal Signal Generator Control OFF|0 function.
  • Page 864 Chapter 2 SCPI Device Message Details :CALCulate:SGControl[:STATe]? Internal Signal Generator Control Query Function This command queries the On/Off state of Internal Signal Generator Control function. Query :CALCulate:SGControl[:STATe]? Response <switch> Parameter Internal Signal Generator Control function <switch> On/Off Internal Signal Generator Control function is enabled.
  • Page 865 2.16 Internal Signal Generator Control function :CALCulate:SGControl:POWer <numeric_value> Internal Signal Generator Control SG Output Level Function This command sets the SG output level when Internal Signal Generator Control measurement is executed. Command :CALCulate:SGControl:POWer Parameter SG output level <numeric_value> Range –40.00 to +20.00 dBm (Start Frequency > 25 MHz) (*) –40.00 to +2.00 dBm (Start Frequency ≤...
  • Page 866 Chapter 2 SCPI Device Message Details :CALCulate:SGControl:POWer? Internal Signal Generator Control SG Output Level Query Function This command queries the SG output level. Query :CALCulate:SGControl:POWer? Response <numeric_value> Parameter SG output level <numeric_value> Range –40.00 to +20.00 dBm (Start Frequency > 25 MHz) (*) –40.00 to +2.00 dBm (Start Frequency ≤...
  • Page 867 2.16 Internal Signal Generator Control function :OUTPut[:STATe] ON|OFF|1|0 Internal Signal Generator Output Function This command turns RF output On/Off in the Internal Signal Generator Control function. Command :OUTPut[:STATe] <switch> Parameter RF output On/Off <switch> ON|1 Turns on RF output. OFF|0 Turns off RF output.
  • Page 868 Chapter 2 SCPI Device Message Details :OUTPut[:STATe]? Internal Signal Generator Output Query Function This command queries the On/Off state of RF output in the Internal Signal Generator Control function. Query :OUTPut[:STATe]? Response <switch> Parameter RF output On/Off <switch> RF output is On RF output is Off Details This command is available only for MS2830A.
  • Page 869 2.17 Configuring Batch Measurement Settings 2.17 Configuring Batch Measurement Settings Table 2.17-1 lists device messages for setting the Batch Measurement function. Table 2.17-1 Device Messages for Batch Measurement Settings Function Device Message Reloading Parameter :MMEMory:RELoad:BATCh [<device>] List Files Adjacent Channel :MEASure:BATCh:ACP[n]? <filename>[,<device>] Power Batch Measure Occupied Bandwidth...
  • Page 870 Place the parameter list files in the following folder on the specified drive. <device>:\Anritsu Corporation\Signal Analyzer\User Data\Batch This command supports updates of the parameter list files used for the following commands. To update the parameter list file of another application, first execute system change to that application, and then send the update command.
  • Page 871 The return values of this function vary depending on the result mode. (cf. :SYSTem:RESut:MODE ) Place the parameter list files in the following folder on the specified drive. <device>:\Anritsu Corporation\Signal Analyzer\User Data\Batch If the parameter list file has been changed, the changes must be applied with the :MMEMory:RELoad:BATCh command.
  • Page 872 Chapter 2 SCPI Device Message Details Parameter list format Table 2.17-2 lists the parameter list example. Table 2.17-2 Parameter List Example (ACP Measurement) <?xml version=”1.0” encoding=”UTF-8"?> <SignalAnalyzerProject> <ProjectDefine> <Attribute Name="Type" Value="Application" /> <Attribute Name="Name" Value="Batch Parameter List" /> <Attribute Name="FileVersion" Value="1.0.0.0" /> </ProjectDefine>...
  • Page 873 2.17 Configuring Batch Measurement Settings Table 2.17-2 Parameter List Example (ACP Measurement) (Cont’d) <Attribute Name="ACP Ofset Ch Bw" Value="4515000" /> <Attribute Name="ACP Offset FilterType" Value="Rect" /> <Attribute Name="ACP Offset Roll-off Factor" Value="22" /> </CommonParams> </AcpParams> </Params> </SignalAnalyzerProject> Describe the setting parameters in the part enclosed between the CommonParams elements.
  • Page 874 Chapter 2 SCPI Device Message Details Table 2.17-3 Parameter List Settings (ACP Measurement) Parameter Attribute Name Setting Attribute Value Setting Value is described Center Frequency “Center Freq.” in Hz units. “ Normal ”: Normal “Frequency Band Spurious Spurious Mode “ Spurious ”: Spurious Mode”...
  • Page 875 2.17 Configuring Batch Measurement Settings Table 2.17-3 Parameter List Settings (ACP Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ 1Hz ”: 1 Hz “ 3Hz ”: 3 Hz “ 10Hz ”: 10 Hz “ 30Hz ”: 30 Hz “...
  • Page 876 Chapter 2 SCPI Device Message Details Table 2.17-3 Parameter List Settings (ACP Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Off ”: Off Trigger Switch “Trigger Switch” “ On ”: On “ Video ”: Video “ External ”: External “...
  • Page 877 2.17 Configuring Batch Measurement Settings Table 2.17-3 Parameter List Settings (ACP Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Describes reference carrier ACP Carrier Select Number “ACP Carrier Select Number” number. Value is described ACP In Band Center “ACP In Band Center” in Hz units.
  • Page 878 The return values of this function vary depending on the result mode. (cf. :SYSTem:RESult:MODE ) Place the parameter list files in the following folder on the specified drive. <device>:\Anritsu Corporation\Signal Analyzer\User Data\Batch If the parameter list file has been changed, the changes must be applied with the :MMEMory:RELoad:BATCh command.
  • Page 879 2.17 Configuring Batch Measurement Settings Parameter list format Table 2.17-4 lists the parameter list example. Table 2.17-4 Parameter List Example (OBW Measurement) <?xml version="1.0" encoding="UTF-8"?> <SignalAnalyzerProject> <ProjectDefine> <Attribute Name="Type" Value="Application" /> <Attribute Name="Name" Value="Batch Parameter List" /> <Attribute Name="FileVersion" Value="1.0.0.0" /> </ProjectDefine>...
  • Page 880 Chapter 2 SCPI Device Message Details Since the settings are done in sequence from the top, be careful about the description order when setting parameters that have relationships of dependence. Also, if a value that is either out of the setting range or that cannot be set has been input, that setting is ignored.
  • Page 881 2.17 Configuring Batch Measurement Settings Table 2.17-5 Parameter List Settings (OBW Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ 1Hz ”: 1 Hz “ 3Hz ”: 3 Hz “ 10Hz ”: 10 Hz “ 30Hz ”: 30 Hz “...
  • Page 882 Chapter 2 SCPI Device Message Details Table 2.17-5 Parameter List Settings (OBW Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Off ”: Off Trigger Switch “Trigger Switch” “ On ”: On “ Video ”: Video “ External ”: External “...
  • Page 883 The return values of this function vary depending on the result mode. (cf. :SYSTem:RESult:MODE ) Place the parameter list files in the following folder on the specified drive. <device>:\Anritsu Corporation\Signal Analyzer\User Data\Batch If the parameter list file has been changed, the changes must be reflected with the :MMEMory:RELoad:BATCh command.
  • Page 884 Chapter 2 SCPI Device Message Details Example of Use To acquire the peak value of absolute power of SEM measurement using the MyParam.xls parameter list file (n = 10). MEAS:BATC:SEM10? "MyParam" > 999.0,-999.0,-100.000,-100.000,-60.000,-60.000,45.000,-4 5.000,-30.000,-30.000,-10.000,-10.000,0.000,0.000 Parameter list format Table 2.17-6 lists the parameter list example. 2-874...
  • Page 885 2.17 Configuring Batch Measurement Settings Table 2.17-6 Parameter List Example (SEM Measurement) <?xml version="1.0" encoding="UTF-8"?> <!-- System Template XML Parameter --> <SignalAnalyzerProject> <ProjectDefine> <Attribute Name="Type" Value="Application" /> <Attribute Name="Name" Value="Batch Parameter List" /> <Attribute Name="FileVersion" Value="1.0.0.0" /> </ProjectDefine> <Params> <SystemTemplate> <Attribute Name="ListString"...
  • Page 886 Chapter 2 SCPI Device Message Details Table 2.17-6 Parameter List Example (SEM Measurement) (Cont’d) <Attribute Name="SEM Offset1 ABS1 Start Level" Value="-550" /> <Attribute Name="SEM Offset1 ABS1 Stop Level" Value="-1250" /> <Attribute Name="SEM Offset1 Fail Logic" Value="ABS1" /> <Attribute Name="SEM Offset2 Switch" Value="On" /> <Attribute Name="SEM Offset2 Start Freq"...
  • Page 887 2.17 Configuring Batch Measurement Settings Describe the setting parameters in the part enclosed between the CommonParams elements. The description method consists in describing the parameter name to be set in the Name attribute in the Attribute element, and the setting value in Value. The parts in bold characters in Table 2.17-6 are an actual setting example.
  • Page 888 Chapter 2 SCPI Device Message Details Table 2.17-7 Parameter List Settings (SEM Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Off ”: Off Trigger Switch “Trigger Switch” “ On ”: On “ Video ”: Video “ External ”: External “...
  • Page 889 2.17 Configuring Batch Measurement Settings Table 2.17-7 Parameter List Settings (SEM Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Channel ”: Channel SEM Reference Mode “ Peak ”: Peak “SEM Reference Mode” “ Fix ”: Fix Value is described SEM Reference Power “SEM Reference Power”...
  • Page 890 Chapter 2 SCPI Device Message Details Table 2.17-7 Parameter List Settings (SEM Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ 1 Hz ”: 1 Hz “ 3 Hz ”: 3 Hz “ 10 Hz ”: 10 Hz “ 30Hz ”: 30 Hz “...
  • Page 891 2.17 Configuring Batch Measurement Settings Table 2.17-7 Parameter List Settings (SEM Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Off ”: Off SEM Offset1 Switch “SEM Offset1 Switch” “ On ”: On SEM Offset2 Switch Same as above “SEM Offset2 Switch”...
  • Page 892 Chapter 2 SCPI Device Message Details Table 2.17-7 Parameter List Settings (SEM Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Value is described “SEM Offset1 Reference SEM Offset1 Reference Level in 0.01 dBm units. Level” “SEM Offset2 Reference SEM Offset2 Reference Level Same as above Level”...
  • Page 893 2.17 Configuring Batch Measurement Settings Table 2.17-7 Parameter List Settings (SEM Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Auto ”: Auto SEM Offset1 RBW Auto/Manual “SEM Offset1 RBW Switch” “ Manual ”: Manual SEM Offset2 RBW Auto/Manual Same as above “SEM Offset2 RBW Switch”...
  • Page 894 Chapter 2 SCPI Device Message Details Table 2.17-7 Parameter List Settings (SEM Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Auto ”: Auto SEM Offset1 Integrate BW “SEM Offset1 Integrate BW Auto/Manual “ Manual ”: Manual Switch” SEM Offset2 Integrate BW “SEM Offset2 Integrate BW Same as above Auto/Manual...
  • Page 895 2.17 Configuring Batch Measurement Settings Table 2.17-7 Parameter List Settings (SEM Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ 1Hz ”: 1 Hz “ 3Hz ”: 3 Hz “ 10Hz ”: 10 Hz “ 30Hz ”: 30 Hz “...
  • Page 896 Chapter 2 SCPI Device Message Details Table 2.17-7 Parameter List Settings (SEM Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Auto ”: Auto SEM Offset1 SweepTime “SEM Offset1 SweepTime Auto/Manual “ Manual ”: Manual Switch” SEM Offset2 SweepTime “SEM Offset2 SweepTime Same as above Auto/Manual...
  • Page 897 2.17 Configuring Batch Measurement Settings Table 2.17-7 Parameter List Settings (SEM Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Pos &amp; Neg ”: Pos & Neg “ Positive ”: Positive SEM Offset1 Detection “SEM Offset1 Detection” “ Negative ”: Negative “...
  • Page 898 Chapter 2 SCPI Device Message Details Table 2.17-7 Parameter List Settings (SEM Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Value is described “SEM Offset1 ABS1 Stop SEM Offset1 ABS1 Stop Level in 0.01 dBm units. Level” “SEM Offset2 ABS1 Stop SEM Offset2 ABS1 Stop Level Same as above Level”...
  • Page 899 2.17 Configuring Batch Measurement Settings Table 2.17-7 Parameter List Settings (SEM Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Value is described “SEM Offset1 REL Start SEM Offset1 REL Start Level in 0.01 dBm units. Level” “SEM Offset2 REL Start SEM Offset2 REL Start Level Same as above Level”...
  • Page 900 Chapter 2 SCPI Device Message Details Table 2.17-7 Parameter List Settings (SEM Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ ABS1 ”: ABS1 “REL”: REL “ ABS1 and REL ”: ABS1 and REL “ ABS1 or REL ”: ABS1 or REL “...
  • Page 901 The return values of this function vary depending on the result mode. (cf. :SYSTem:RESult:MODE ) Place the parameter list files in the following folder on the specified drive. <device>:\Anritsu Corporation\Signal Analyzer\User Data\Batch If the parameter list file has been changed, the changes must be applied with the :MMEMory:RELoad:BATCh command.
  • Page 902 Chapter 2 SCPI Device Message Details Example of Use To acquire the measurement result of Spurious Emission measurement using the MyParam.xls parameter list file (when Result Mode = A, Spurious Emission Result Type = Worst) FETC:SPUR? "MyParam.xml" > 0,1,1,135618.00,-64.25,51.25,-13.00,0,2,2,155970.00,-63. 91,50.91,-13.00,0..Parameter list format Table 2.17-8 lists the parameter list example.
  • Page 903 2.17 Configuring Batch Measurement Settings Table 2.17-8 Parameter List Example (Spurious Emission Measurement) <?xml version="1.0" encoding="UTF-8"?> <!-- System Template XML Parameter --> <SignalAnalyzerProject> <ProjectDefine> <Attribute Name="Type" Value="Application" /> <Attribute Name="Name" Value="Batch Parameter List" /> <Attribute Name="FileVersion" Value="1.0.0.0" /> </ProjectDefine> <Params> <SystemTemplate>...
  • Page 904 Chapter 2 SCPI Device Message Details Table 2.17-8 Parameter List Example (Spurious Emission Measurement) (Cont’d) <Attribute Name="Spurious Segment Switch18" Value="Off" /> <Attribute Name="Spurious Segment Switch19" Value="Off" /> <Attribute Name="Spurious Segment Switch20" Value="Off" /> <Attribute Name="Spurious Start Freq1" Value="9000" /> <Attribute Name="Spurious Start Freq2" Value="150000" /> <Attribute Name="Spurious Start Freq3"...
  • Page 905 2.17 Configuring Batch Measurement Settings Table 2.17-8 Parameter List Example (Spurious Emission Measurement) (Cont’d) <Attribute Name="Spurious Limit Stop Level Mode1" Value="Auto" /> <Attribute Name="Spurious Limit Stop Level Mode2" Value="Auto" /> <Attribute Name="Spurious Limit Stop Level Mode3" Value="Auto" /> <Attribute Name="Spurious Limit Stop Level Mode4" Value="Auto" /> </CommonParams>...
  • Page 906 Chapter 2 SCPI Device Message Details Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) Parameter Attribute Name Setting Attribute Value Setting Value is described Reference Level “Reference Level” in dBm units. “ On ”: On Reference Level Offset “Reference Level Offset” “Off”: Off Value is described “Reference Level Offset...
  • Page 907 2.17 Configuring Batch Measurement Settings Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Off ”: Off Pre-amp “Pre-amp” “ On ”: On “ Power ”: Power VBW Mode “VBW Mode” “ Video ”: Video “...
  • Page 908 Chapter 2 SCPI Device Message Details Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Off ”: Off Spurious Segment1 On/Off “Spurious Segment Switch1” “ On ”: On Spurious Segment2 On/Off Same as above “Spurious Segment Switch2”...
  • Page 909 2.17 Configuring Batch Measurement Settings Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Value is described Spurious Segment1 Start Freq “Spurious Start Freq1” in Hz units. Spurious Segment2 Start Freq Same as above “Spurious Start Freq2”...
  • Page 910 Chapter 2 SCPI Device Message Details Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Value is described Spurious Segment1 Stop Freq1 “Spurious Stop Freq1” in Hz units. Spurious Segment2 Stop Freq1 Same as above “Spurious Stop Freq2”...
  • Page 911 2.17 Configuring Batch Measurement Settings Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Spurious Segment1 Value is described “Spurious Reference Level1” Reference Level in dBm units. Spurious Segment2 Same as above “Spurious Reference Level2” Reference Level Spurious Segment3 Same as above...
  • Page 912 Chapter 2 SCPI Device Message Details Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Auto ”: Auto Spurious Segment1 “Spurious Attenuator Switch1” Attenuator Auto/Manual “ Manual ”: Manual Spurious Segment2 Same as above “Spurious Attenuator Switch2”...
  • Page 913 2.17 Configuring Batch Measurement Settings Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Spurious Segment1 Value is described “Spurious Attenuator1” Attenuator in dB units. Spurious Segment2 Same as above “Spurious Attenuator2” Attenuator Spurious Segment3 Same as above “Spurious Attenuator3”...
  • Page 914 Chapter 2 SCPI Device Message Details Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Auto ”: Auto Spurious Segment1 “Spurious RBW Switch1” RBW Auto/Manual “ Manual ”: Manual Spurious Segment2 Same as above “Spurious RBW Switch2”...
  • Page 915 2.17 Configuring Batch Measurement Settings Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ 30Hz ”: 30 Hz “ 100Hz ”: 100 Hz “ 300Hz ”: 300 Hz “ 500Hz ”: 500 Hz “...
  • Page 916 Chapter 2 SCPI Device Message Details Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ 30Hz ”: 30 Hz “ 100Hz ”: 100 Hz “ 300Hz ”: 300 Hz “ 500Hz ”: 500 Hz “...
  • Page 917 2.17 Configuring Batch Measurement Settings Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Auto ”: Auto Spurious Segment1 “Spurious VBW Switch1” VBW Auto/Manual “ Manual ”: Manual Spurious Segment2 Same as above “Spurious VBW Switch2”...
  • Page 918 Chapter 2 SCPI Device Message Details Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ 1Hz ”: 1 Hz “ 3Hz ”: 3 Hz “ 10Hz ”: 10 Hz “ 30Hz ”: 30 Hz “...
  • Page 919 2.17 Configuring Batch Measurement Settings Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ 1Hz ”: 1 Hz “ 3Hz ”: 3 Hz “ 10Hz ”: 10 Hz “ 30Hz ”: 30 Hz “...
  • Page 920 Chapter 2 SCPI Device Message Details Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Auto ”: Auto Spurious Segment1 “Spurious Sweep Time Sweep Time Auto/Manual “ Manual ”: Manual Switch1” Spurious Segment2 “Spurious Sweep Time Same as above Sweep Time Auto/Manual...
  • Page 921 2.17 Configuring Batch Measurement Settings Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Spurious Segment1 Value is described “Spurious Sweep Time1” Sweep Time in ms units. Spurious Segment2 Same as above “Spurious Sweep Time2” Sweep Time Spurious Segment3 Same as above...
  • Page 922 Chapter 2 SCPI Device Message Details Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Off ”: Off Spurious Segment1 “Spurious Pause before Pause before Sweep “ On ”: On Sweep1” Spurious Segment2 “Spurious Pause before Same as above Pause before Sweep...
  • Page 923 2.17 Configuring Batch Measurement Settings Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Off ”: Off Spurious Segment1 Preamp “Spurious Preamp1” “ On ”: On Spurious Segment2 Preamp Same as above “Spurious Preamp2”...
  • Page 924 Chapter 2 SCPI Device Message Details Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Pos &amp; Neg ”: Pos & Neg “ Positive ”: Positive Spurious Segment1 Detection “Spurious Detection1” “ Negative ”: Negative “...
  • Page 925 2.17 Configuring Batch Measurement Settings Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Describes the number of Spurious Segment1 Trace Point “Spurious Trace Point1” trace points. Spurious Segment2 Trace Point Same as above “Spurious Trace Point2”...
  • Page 926 Chapter 2 SCPI Device Message Details Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Spurious Segment1 Storage Count Describes the storage count. “Spurious Storage Count1” Spurious Segment2 Storage Count Same as above “Spurious Storage Count2”...
  • Page 927 2.17 Configuring Batch Measurement Settings Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “Default”: Common To use a user defined “Spurious Correction Data Spurious Segment1 Correction correction value, describe Type1” the file name of the correction file.
  • Page 928 Chapter 2 SCPI Device Message Details Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Spurious Segment1 Value is described “Spurious Limit Start Level1” Limit Start Level in 0.01 dBm units. Spurious Segment2 Same as above “Spurious Limit Start Level2”...
  • Page 929 2.17 Configuring Batch Measurement Settings Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Auto ”: Auto Spurious Segment1 “Spurious Limit Stop Level Limit Stop Level Auto/Manual “ Manual ”: Manual Mode1” Spurious Segment2 “Spurious Limit Stop Level Same as above...
  • Page 930 Chapter 2 SCPI Device Message Details Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Spurious Segment1 Value is described “Spurious Limit Stop Level1” Limit Stop Level in 0.01 dBm units. Spurious Segment2 Same as above “Spurious Limit Stop Level2”...
  • Page 931 2.17 Configuring Batch Measurement Settings Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Spurious Segment1 Value is described “Spurious Search Search Resolution in 0.001 dB units. Resolution1” Spurious Segment2 “Spurious Search Same as above Search Resolution Resolution2”...
  • Page 932 Chapter 2 SCPI Device Message Details Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Spurious Segment1 Value is described “Spurious Search Threshold Search Threshold Level in 0.01 dBm units. Level1” Spurious Segment2 “Spurious Search Threshold Same as above Search Threshold Level...
  • Page 933 2.17 Configuring Batch Measurement Settings Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Spurious Segment1 “ On ”: On “Spurious Couple Segment Time Domain Couple Segment RBW “ Off ”: Off RBW1” On/Off Spurious Segment2 “Spurious Couple Segment...
  • Page 934 Chapter 2 SCPI Device Message Details Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Spurious Segment11 “ On ”: On “Spurious Couple Segment Time Domain Couple Segment RBW “ Off ”: Off RBW11”...
  • Page 935 2.17 Configuring Batch Measurement Settings Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ 30Hz ”: 30 Hz “ 100Hz ”: 100 Hz “ 300Hz ”: 300 Hz “ 500Hz ”: 500 Hz “...
  • Page 936 Chapter 2 SCPI Device Message Details Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ 30Hz ”: 30 Hz “ 100Hz ”: 100 Hz “ 300Hz ”: 300 Hz “ 500Hz ”: 500 Hz “...
  • Page 937 2.17 Configuring Batch Measurement Settings Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Spurious Segment1 “ On ”: On “Spurious Couple Segment Time Domain Couple Segment VBW “ Off ”: Off VBW1” On/Off Spurious Segment2 “Spurious Couple Segment...
  • Page 938 Chapter 2 SCPI Device Message Details Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Spurious Segment11 “ On ”: On “Spurious Couple Segment Time Domain Couple Segment VBW “ Off ”: Off VBW11”...
  • Page 939 2.17 Configuring Batch Measurement Settings Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ 1Hz ”: 1 Hz “ 3Hz ”: 3 Hz “ 10Hz ”: 10 Hz “ 30Hz ”: 30 Hz “...
  • Page 940 Chapter 2 SCPI Device Message Details Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ 1Hz ”: 1 Hz “ 3Hz ”: 3 Hz “ 10Hz ”: 10 Hz “ 30Hz ”: 30 Hz “...
  • Page 941 2.17 Configuring Batch Measurement Settings Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Spurious Segment1 Value is described “Spurious Time Domain Time Domain Sweep Time in µs units. Sweep Time1” Spurious Segment2 “Spurious Time Domain Same as above Time Domain Sweep Time...
  • Page 942 Chapter 2 SCPI Device Message Details Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Pos &amp; Neg ”: Pos & Neg “ Positive ”: Positive Spurious Segment1 “Spurious Time Domain Time Domain Detection “...
  • Page 943 2.17 Configuring Batch Measurement Settings Table 2.17-9 Parameter List Settings (Spurious Emission Measurement) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Pos &amp; Neg ”: Pos & Neg “ Positive ”: Positive Spurious Segment11 “Spurious Time Domain Time Domain Detection “...
  • Page 944 Specify with any character string enclosed by double quotes (" ") or single quotes (' '). Center frequency of Spectrum Analyzer function <spa_freq> Range –100 MHz to +6.05 GHz (MS2690A) –100 MHz to +13.6 GHz (MS2691A) –100 MHz to +26.6 GHz (MS2692A) Resolution 1 Hz...
  • Page 945 Place the parameter list files in the following folder on the specified drive. <device>:\Anritsu Corporation\Signal Analyzer\User Data\Batch If the parameter list file has been changed, the changes must be applied with the :MMEMory:RELoad:BATCh command.
  • Page 946 Chapter 2 SCPI Device Message Details Parameter list format Table 2.17-10 lists the parameter list example. Table 2.17-10 Parameter List Example (IM Measurement) <?xml version="1.0" encoding="UTF-8"?> <!-- System Template XML Parameter --> <SignalAnalyzerProject> <ProjectDefine> <Attribute Name="Type" Value="Application" /> <Attribute Name="Name" Value="Batch Parameter List" /> <Attribute Name="FileVersion"...
  • Page 947 2.17 Configuring Batch Measurement Settings Table 2.17-10 Parameter List Example (IM Measurement) (Cont’d) <Attribute Name="ACP Offset3 Switch" Value="Off" /> <Attribute Name="ACP Ofset Ch Bw" Value="4515000" /> <Attribute Name="ACP Offset FilterType" Value="Rect" /> <Attribute Name="ACP Offset Roll-off Factor" Value="22" /> </CommonParams> </ImAcpParams>...
  • Page 948 Chapter 2 SCPI Device Message Details Describe the setting parameters in the part enclosed between the CommonParams elements. The description method consists in describing the parameter name to be set in the Name attribute in the Attribute element, and the setting value in Value. The parts in bold characters in Table 2.17-10 are an actual setting example.
  • Page 949 2.17 Configuring Batch Measurement Settings Table 2.17-11 Parameter List Settings (IM Measurement – SG Settings) Parameter Attribute Name Setting Attribute Value Setting Describes the Package name Package Name “Package Name” to use. Describes the Pattern name Pattern Name “Pattern Name” to use.
  • Page 950 Chapter 2 SCPI Device Message Details Table 2.17-12 Parameter List Settings (IM Measurement – ACP Settings) Parameter Attribute Name Setting Attribute Value Setting Value is described Center Frequency “Center Freq.” in Hz units. “ Normal ”: Normal “Frequency Band Spurious Spurious Mode “...
  • Page 951 2.17 Configuring Batch Measurement Settings Table 2.17-12 Parameter List Settings (IM Measurement – ACP Settings) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ 1Hz ”: 1 Hz “ 3Hz ”: 3 Hz “ 10Hz ”: 10 Hz “ 30Hz ”: 30 Hz “...
  • Page 952 Chapter 2 SCPI Device Message Details Table 2.17-12 Parameter List Settings (IM Measurement – ACP Settings) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Off ”: Off Trigger Switch “Trigger Switch” “ On ”: On “ Video ”: Video “...
  • Page 953 2.17 Configuring Batch Measurement Settings Table 2.17-12 Parameter List Settings (IM Measurement – ACP Settings) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting Describes reference carrier ACP Carrier Select Number “ACP Carrier Select Number” number. Value is described ACP In Band Center “ACP In Band Center”...
  • Page 954 Chapter 2 SCPI Device Message Details Table 2.17-13 Parameter List Settings (IM Measurement – SPA Settings) Parameter Attribute Name Setting Attribute Value Setting When this parameter is used, the relative frequency can be set from command argument <spa_freq> as Relative Frequency “Relative Freq.”...
  • Page 955 2.17 Configuring Batch Measurement Settings Table 2.17-13 Parameter List Settings (IM Measurement – SPA Settings) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ 1Hz ”: 1 Hz “ 3Hz ”: 3 Hz “ 10Hz ”: 10 Hz “ 30Hz ”: 30 Hz “...
  • Page 956 Chapter 2 SCPI Device Message Details Table 2.17-13 Parameter List Settings (IM Measurement – SPA Settings) (Cont’d) Parameter Attribute Name Setting Attribute Value Setting “ Off ”: Off Trigger Switch “Trigger Switch” “ On ”: On “ Video ”: Video “...
  • Page 957 2.17 Configuring Batch Measurement Settings :MEASure:POWadj? <rbw>,<length>,<sg_start_level>,<sg_max_level>,<target>,<range>[,<freque ncy>[,<tracepoint>[,<count>[,<adjust_log>[,<sg_offset_switch>]]]]] Measure Power Adjust Function This command executes power adjustment and reads the result. Power adjustment combines the SG option and power measurement functions to set the output level of the DUT, such as an amplifier, to the specified level.
  • Page 958 Chapter 2 SCPI Device Message Details level and RF Input so the maximum input level is not exceeded. Range – 140 dBm to – 5 dBm [MS269xA] [MS2830A], [MS2840A] –40.00 dBm to +20.00 dBm (>25 MHz) – 40.00 dBm to +2.00 dBm ( ≤ 25 MHz) –...
  • Page 959 2.17 Configuring Batch Measurement Settings MAXimum, MINimum, and DEFault cannot be used. The currently set frequency cannot be used when omitted. trace point <tracepoint> 11 point 21 point 41 point 51 point 101 point 201 point 251 point 401 point 501 point 1001 point 1001...
  • Page 960 Chapter 2 SCPI Device Message Details Added to response when Log Output on Suffix code None, dBm (unit) 0.01 dB (resolution) Output level from SG Output at each power <sg_output_log_n> adjustment Added to response when Log Output on Power adjustment count <count_log_n>...
  • Page 961 2.17 Configuring Batch Measurement Settings ● Sets Sweep Mode to Single ● Sets Scale Mode to Log ● Sets Log Scale Unit to dBm When using the SG offset function, switch to the SG application and set the offset level. Set the value with offset to this command arguments, sg_start_level and sg_max_level and set sg_offset_switch to sg_output and sg_output_log_n returns the output level with offset.
  • Page 962 Chapter 2 SCPI Device Message Details 2.18 Other Settings Table 2.18-1 lists device messages for other settings. Table 2.18-1 Device Messages for Other Settings Function Device Message Measurement :STATus:ERRor? Status Query Uncal Status :STATus:UNCal? Query Erase Warm Up :DISPlay:ANNotation:WUP:ERASe Message :DISPlay:ANNotation:UNCal[:STATe] ON|OFF|1|0 Display Uncal Message...
  • Page 963 2.18 Other Settings :STATus:ERRor? Measurement Status Query Function This command queries the measurement status. Query :STATus:ERRor? Response <status> Parameter Measurement status <status> Value = bit0 + bit1 + bit2 + bit3 + bit4 + bit5 + bit6 + bit7 + bit8 + bit9 + bit10 + bit11 + bit12 + bit13 + bit14 + bit15 bit0 : 2 Not measured...
  • Page 964 Chapter 2 SCPI Device Message Details :STATus:UNCal? Uncal Status Query Function This command queries UNCAL status. Query :STATus:UNCal? Response <status> Parameter UNCAL status <status> Normal NORM UNCAL Example of Use To query UNCAL status. STAT:UNC? > NORM :DISPlay:ANNotation:WUP:ERASe Erase Warm Up Message Function This command erases the warm up message displayed after startup.
  • Page 965 2.18 Other Settings :DISPlay:ANNotation:UNCal[:STATe] ON|OFF|1|0 Display Uncal Message Function This command enables/disables the UNCAL display when Uncal occurs. Command :DISPlay:ANNotation:UNCal[:STATe] <switch> Parameter UNCAL display On/Off <switch> Enables the UCAL display. ON|1 Disables the UCAL display. OFF|0 Example of Use To disable the UNCAL display. DISP:ANN:UNC OFF :DISPlay:ANNotation:UNCal[:STATe]? Display Uncal Message Query...
  • Page 966 Chapter 2 SCPI Device Message Details :DISPlay:ANNotation:TITLe[:STATe] ON|OFF|1|0 Display Title Function This command enables/disables the title display. Command :DISPlay:ANNotation:TITLe[:STATe] <switch> Parameter Title display On/Off <switch> Enables the title display. ON|1 Disables the title display. OFF|0 Example of Use To enable the title display. DISP:ANN:TITL ON :DISPlay:ANNotation:TITLe[:STATe]? Display Title Query...
  • Page 967 2.18 Other Settings :DISPlay:ANNotation:TITLe:DATA <string> Title Entry Function This command registers the title character string. Command :DISPlay:ANNotation:TITLe:DATA <string> Parameter Character string within 32 characters enclosed <string> by double quotation marks (" ") or single quotation marks (' '). Example of Use To set the title character string.
  • Page 968 ● Frequency Band Mode is Normal and center frequency is ≤ 6.0 GHz ● Frequency Band Mode is Spurious and center frequency is ≤ 4.0 GHz [MS269xA] ● MS2690A is used. [MS2830A], [MS2840A], [MS2850A] ● MS2830A-040/041/043 is used. ● MS2840A-040/041 is used.
  • Page 969 This command is not available in the following conditions: [Common] ● During the Spurious Emission measurement and Displayed Segment Mode is set to Auto. [MS269xA] ● MS2690A is used. [MS2830A], [MS2840A], [MS2850A] ● MS2830A-040/041/043 is used. ● MS2840A-040/041 is used. Example of Use To query the pre-selector settings.
  • Page 970 ● Frequency Band Mode is Normal and center frequency is ≤ 6.0 GHz ● Frequency Band Mode is Spurious and center frequency is ≤ 4.0 GHz This command is not available in the following condition. [MS269xA] ● MS2690A is used. [MS2830A], [MS2840A], [MS2850A] ● MS2830A-040/041/043 is used. ● MS2840A-040/041 is used.
  • Page 971 Range –128 to 127 Resolution Details This command is not available in the following conditions: [MS269xA] ● MS2690A is used. [MS2830A], [MS2840A], [MS2850A] ● MS2830A-040/041/043 is used. ● MS2840A-040/041 is used. Example of Use To query the peaking bias value.
  • Page 972 Chapter 2 SCPI Device Message Details :CALibration:RCLock[:VALue] <integer> Adjust Reference Clock Function This command sets the adjustment value for the internal reference signal oscillator (Reference Clock). Command :CALibration:RCLock[:VALue] <integer> Parameter Adjustment value <integer> Range 0 to 1023 (MS2830A) 0 to 4095 (MS2840A) 0 to 4095 (MS2850A) Resolution Example of Use...
  • Page 973 2.18 Other Settings :CALibration:RCLock[:VALue]:PRESet Adjust Reference Clock Preset Function This command resets the adjustment value of the internal reference signal oscillator (Reference Clock). Command :CALibration:RCLock[:VALue]:PRESet Example of Use To reset the adjustment value of the internal reference signal oscillator. CAL:RCL:PRES [:SENSe]:POWer[:RF]:MW:PRESelector[:STATe] ON|OFF|1|0 Micro Wave Preselector Bypass Function...
  • Page 974 Chapter 2 SCPI Device Message Details [:SENSe]:POWer[:RF]:MW:PRESelector[:STATe]? Micro Wave Preselector Bypass Query Function This command queries the Micro Wave Preselector Bypass. Query [:SENSe]:POWer[:RF]:MW:PRESelector[:STATe]? Response <status> Parameter Microwave Preselector Bypass <status> Enables bypassing Disables bypassing Details This function is available when Option 067/167 is installed for MS269xA. This function is available when Option 007/067/167 is installed for MS2830A.
  • Page 975 2.19 QUEStionable Status Register 2.19 QUEStionable Status Register The figure below shows the layer structure of the QUEStionable status register. VOLTage (NOT USED) CURRent (NOT USED) TIME (NOT USED) Status Byte Register DB3 POWer (NOT USED) TEMPerature (NOT USED) FREQuency (NOT USED) PHASe (NOT USED) MODulation (NOT USED) CALibration (NOT USED)
  • Page 976 Chapter 2 SCPI Device Message Details Table 2.19-3 lists device messages for the QUEStionable status register. Table 2.19-3 Device messages for QUEStionable Status Register Function Device message Questionable Status Register :STATus:QUEStionable[:EVENt]? Event Questionable Status Register :STATus:QUEStionable:CONDition? Condition Questionable :STATus:QUEStionable:ENABle <integer> Status Register Enable :STATus:QUEStionable:ENABle?
  • Page 977 2.19 QUEStionable Status Register :STATus:QUEStionable[:EVENt]? Questionable Status Register Event Function This command queries the event register of the QUEStionable status register. Query :STATus:QUEStionable[:EVENt]? Response <integer> Parameter Total bytes of event register <integer> Resolution Range 0 to 65535 Details This command is available only in the SCPI mode. Example of Use To query the contents of the event register of the QUEStionable status register.
  • Page 978 Chapter 2 SCPI Device Message Details :STATus:QUEStionable:CONDition? Questionable Status Register Condition Function This command queries the condition register of the QUEStionable status register. Query :STATus:QUEStionable:CONDition? Response <integer> Parameter Total byte of condition register <integer> Resolution Range 0 to 65535 Example of Use To query the contents of the condition register of the QUEStionable status register.
  • Page 979 2.19 QUEStionable Status Register :STATus:QUEStionable:ENABle <integer> Questionable Status Register Enable Function This command sets the event enable register of the QUEStionable status register. Command :STATus:QUEStionable:ENABle <integer> Parameter Total byte of event enable register <integer> Resolution Range 0 to 65535 Details This command is available only in the SCPI mode.
  • Page 980 Chapter 2 SCPI Device Message Details :STATus:QUEStionable:ENABle? Questionable Status Register Enable Query Function This command queries the event enable register of the QUEStionable status register. Query :STATus:QUEStionable:ENABle? Response <integer> Parameter Total byte of the event enable register <integer> Resolution Range 0 to 65535 Example of Use To query the event enable register of the QUEStionable status register.
  • Page 981 2.19 QUEStionable Status Register :STATus:QUEStionable:NTRansition <integer> Questionable Status Register Negative Transition Function This command sets the transition filter (negative direction change) of the QUEStionable status register. Command :STATus:QUEStionable:NTRansition <integer> Parameter Total byte of transition filter (negative direction <integer> change) Resolution Range 0 to 65535 Details...
  • Page 982 Chapter 2 SCPI Device Message Details Example of Use To query the transition filter (negative direction change) of the QUEStionable status register. STAT:QUES:NTR? > 16 :STATus:QUEStionable:PTRansition <integer> Questionable Status Register Positive Transition Function This command sets the transition filter (positive direction change) of the QUEStionable status register.
  • Page 983 2.19 QUEStionable Status Register :STATus:QUEStionable:PTRansition? Questionable Status Register Positive Transition Query Function This command queries the transition filter (positive direction change) of the QUEStionable status register. Query :STATus:QUEStionable:PTRansition? Response <integer> Parameter Total byte of transition filter (positive direction <integer> change) Resolution Range 0 to 65535...
  • Page 984 Chapter 2 SCPI Device Message Details :STATus:QUEStionable:MEASure[:EVENt]? Questionable Measure Register Event Function This command queries the event register of the QUEStionable Measure register. Query :STATus:QUEStionable:MEASure[:EVENt]? Response <integer> Parameter Total byte of event register <integer> Resolution Range 0 to 65535 Example of Use To query the contents of the event register of the QUEStionable Measure register.
  • Page 985 2.19 QUEStionable Status Register Example of Use To query the contents of the condition register of the QUEStionable Measure register. STAT:QUES:MEAS:COND? > 0 :STATus:QUEStionable:MEASure:ENABle <integer> Questionable Measure Register Enable Function This command sets the event enable register of the QUEStionable Measure register.
  • Page 986 Chapter 2 SCPI Device Message Details :STATus:QUEStionable:MEASure:ENABle? Questionable Measure Register Enable Query Function This command queries the event enable register of the QUEStionable Measure register. Query :STATus:QUEStionable:MEASure:ENABle? Response <integer> Parameter Total byte of event enable register <integer> Resolution Range 0 to 65535 Example of Use To query the event enable register of the QUEStionable Measure register.
  • Page 987 2.19 QUEStionable Status Register :STATus:QUEStionable:MEASure:NTRansition <integer> Questionable Measure Register Negative Transition Function This command sets the transition filter (negative direction change) of the QUEStionable Measure register. Command :STATus:QUEStionable:MEASure:NTRansition <integer> Parameter Total byte of transition filter (negative direction <integer> change) Resolution Range 0 to 65535 Details...
  • Page 988 Chapter 2 SCPI Device Message Details Example of Use To query the transition filter (negative direction change) of the QUEStionable Measure register. STAT:QUES:MEAS:NTR? > 16 :STATus:QUEStionable:MEASure:PTRansition <integer> Questionable Measure Register Positive Transition Function This command sets the transition filter (positive direction change) of the QUEStionable Measure register.
  • Page 989 2.19 QUEStionable Status Register :STATus:QUEStionable:MEASure:PTRansition? Questionable Measure Register Positive Transition Query Function This command queries the transition filter (positive direction change) of the QUEStionable Measure register. Query :STATus:QUEStionable:MEASure:PTRansition? Response <integer> Parameter Total byte of transition filter (positive direction <integer> change) Resolution Range 0 to 65535...
  • Page 990 Chapter 2 SCPI Device Message Details 2.20 OPERation Status Register The figure below shows the layer structure of the OPERation Status Register. CALibrating SETTling RANGing (NOT USED) SWEeping MEASuring (NOT USED) Status Byte Register DB7 Wainting for TRIG Waiting for ARM (NOT USED) CORRecting (NOT USED) FILE Operating NOT USED...
  • Page 991 2.20 OPERation Status Register The table below shows device messages for the OPERation status register. Table 2.20-2 Device messages for OPERation status register Function Device message Operation Status Register :STATus:OPERation[:EVENt]? Event Operation Status Register :STATus:OPERation:CONDition? Condition Operation :STATus:OPERation:ENABle <integer> Status Register :STATus:OPERation:ENABle? Enable Operation...
  • Page 992 Chapter 2 SCPI Device Message Details :STATus:OPERation[:EVENt]? Operation Status Register Event Function This command queries the event register of the OPERation Status Register. Query :STATus:OPERation[:EVENt]? Response <integer> Parameter Total byte of event register <integer> Resolution Range 0 to 65535 Details This command is available only in the SCPI mode.
  • Page 993 2.20 OPERation Status Register :STATus:OPERation:CONDition? Operation Status Register Condition Function This command queries the condition register of the OPERation Status Register. Query :STATus:OPERation:CONDition? Response <integer> Parameter Total byte of condition register <integer> Resolution Range 0 to 65535 Example of Use To query the contents of the condition register of the OPERation Status Register.
  • Page 994 Chapter 2 SCPI Device Message Details :STATus:OPERation:ENABle <integer> Operation Status Register Enable Function This command sets the event enable register of the OPERation status register. Command :STATus:OPERation:ENABle <integer> Parameter Total byte of event enable register <integer> Resolution Range 0 to 65535 Details This command is available only in the SCPI mode.
  • Page 995 2.20 OPERation Status Register Example of Use To query the event enable register of the OPERation status register. STAT:OPER:ENAB? > 16 :STATus:OPERation:NTRansition <integer> Operation Status Register Negative Transition Function This command sets the transition filter (negative direction change) of the OPERation status register.
  • Page 996 Chapter 2 SCPI Device Message Details :STATus:OPERation:NTRansition? Operation Status Register Negative Transition Query Function This command queries the transition filter (negative direction change) of the OPERation status register. Query :STATus:OPERation:NTRansition? Response <integer> Parameter Total byte of transition filter (negative direction <integer>...
  • Page 997 2.20 OPERation Status Register :STATus:OPERation:PTRansition <integer> Operation Status Register Positive Transition Function This command sets the transition filter (positive direction change) of the OPERation status register. Command :STATus:OPERation:PTRansition <integer> Parameter Total byte of transition filter (positive direction <integer> change) Resolution Range 0 to 65535 Details...
  • Page 998 Chapter 2 SCPI Device Message Details :STATus:OPERation:PTRansition? Operation Status Register Positive Transition Query Function This command queries the transition filter (positive direction change) of the OPERation status register. Query :STATus:OPERation:PTRansition? Response <integer> Parameter Total byte of transition filter (positive direction <integer>...
  • Page 999 2.21 Setting Ext ternal Mixer 2.21 Setting Extern nal Mix le 2.21-1 list ts the device e messages r related to Ex xternal Mix xer settings. Table 2.21-1 1 Device m messages fo or setting Ex xternal Mixe evice messa Func ction [:SENSe]:M...
  • Page 1000 Chapter 2 SCPI Device Message Details [:SENSe]:MIXer[:STATe] ON|OFF|1|0 External Mixer Mode Function This command switches between Internal and External Mixer. Command [:SENSe]:MIXer[:STATe] <switch> Parameter External mixer switch <switch> Selects External Mixer ON|1 Selects Internal Mixer OFF|0 Details This function is available when Option 044/045 is installed for MS2830A. This function is available when Option 044/046 is installed for MS2840A.
  • Page 1001 2.21 Setting External Mixer [:SENSe]:MIXer[:HARMonic]:BAND VHP|EHP|A|Q|U|V|E|W|F|D|G|Y|J External Mixer Band Function This command selects external mixer band. Command [:SENSe]:MIXer[:HARMonic]:BAND <band> Parameter External mixer band <band> High Performance Waveguide Mixer Band VHP (50.0 to 75.0 GHz, 8+) High Performance Waveguide Mixer Band EHP (60.0 to 90.0 GHz, 12–) Band A (26.5 to 40.0 GHz, 4+) Band Q (33.0 to 50.0 GHz, 5+) Band U (40.0 to 60.0 GHz, 6+)
