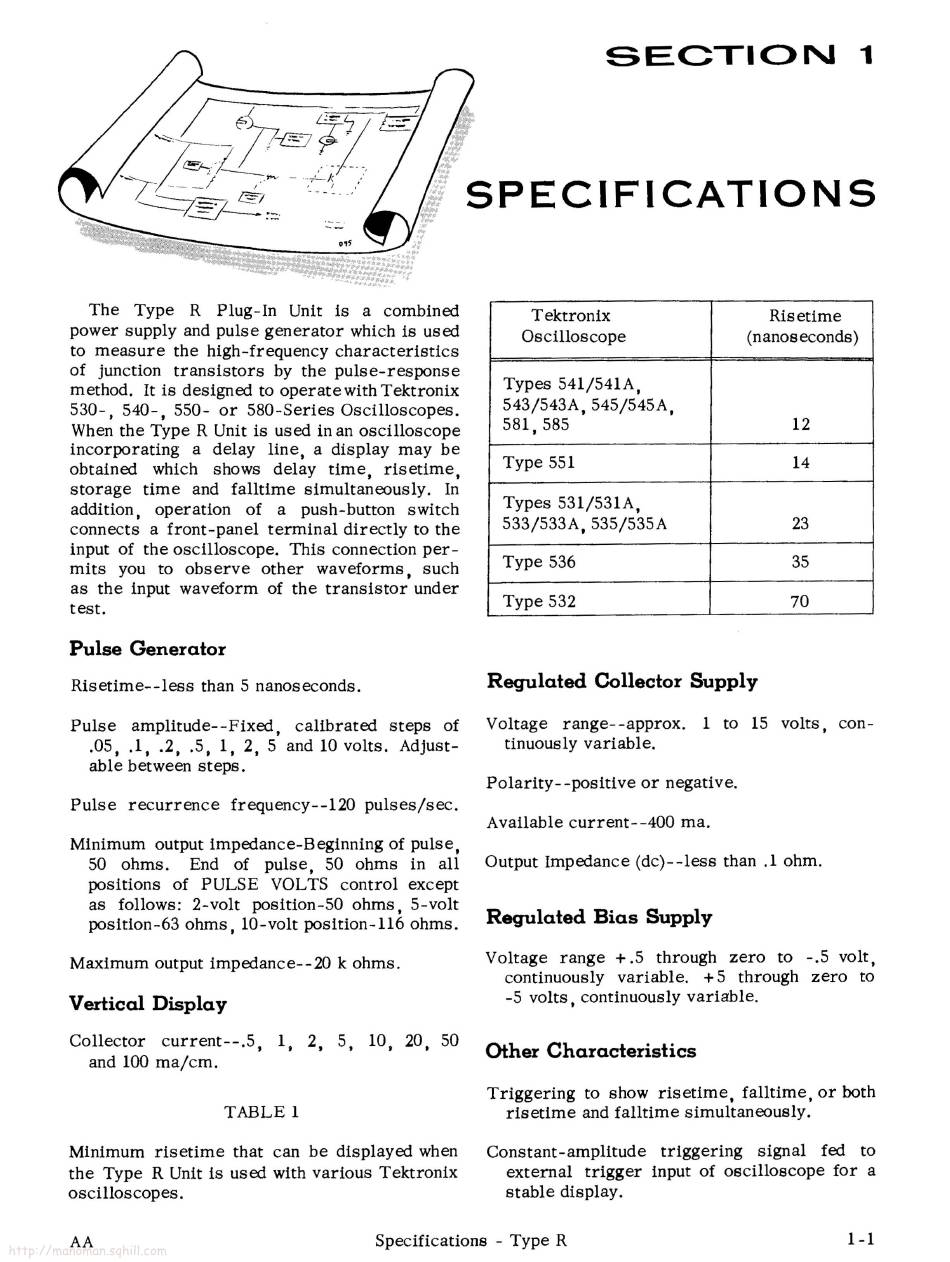

The Type R Plug-In Unit is a combined
power supply and pulse generator which is used
to measure the high-frequency characteristics
of junction transistors by the pulse-response
method, It is designed to operate with Tektronix
530-, 540-, 550- or 580-Series Oscilloscopes.
When the Type R Unit is used in an oscilloscope
incorporating a delay line, a display may be
obtained which shows delay time, risetime,
storage time and falltime simultaneously. In
addition, operation of a push-button switch
connects a front-panel terminal directly to the
input of the oscilloscope. This connection per-
mits you to observe other waveforms, such
as the input waveform of the transistor under
test.
Pulse Generator
Risetime--less than 5 nanoseconds.
Pulse amplitude--Fixed, calibrated steps of
05, .1, .2, .5, 1, 2, 5 and 10 volts. Adjust-
able between steps.
Pulse recurrence frequency--120 pulses/sec.
Minimum output impedance-Beginning of pulse,
50 ohms. End of pulse, 50 ohms in all
positions of PULSE VOLTS control except
as follows: 2-volt position-50 ohms, 5-volt
position-63 ohms, 10-volt position-116 ohms.
Maximum output impedance--20 k ohms.
Vertical Display
Collector current--.5, 1, 2, 5,
% BJ 10 9 20 , 50
and 100 ma/cm.
TABLE 1
Minimum risetime that can be displayed when
the Type R Unit is used with various Tektronix
oscilloscopes.
SECTION 1
/ SPECIFICATIONS
Tektronix Risetime
Oscilloscope (nanoseconds)
Types 541/541A,
543/543A, 545/545A,
581, 585 12
Type 551 14
Types 531/531A,
533/533A, 535/535A 23
Type 536 35
Type 532 70
Regulated Collector Supply
Voltage range--approx.
tinuously variable.
1 to 15 volts, con-
Polarity--positive or negative.
Available current--400 ma.
Output Impedance (dc)--less than .1 ohm.
Regulated Bias Supply
Voltage range +.5 through zero to -.5 volt,
continuously variable. +5 through zero to
-5 volts, continuously variable.
Other Characteristics
Triggering to show risetime, falltime, or both
risetime and falltime simultaneously.
Constant-amplitude triggering signal fed to
external trigger input of oscilloscope for a
stable display.
AA Specifications - Type R 1-1
