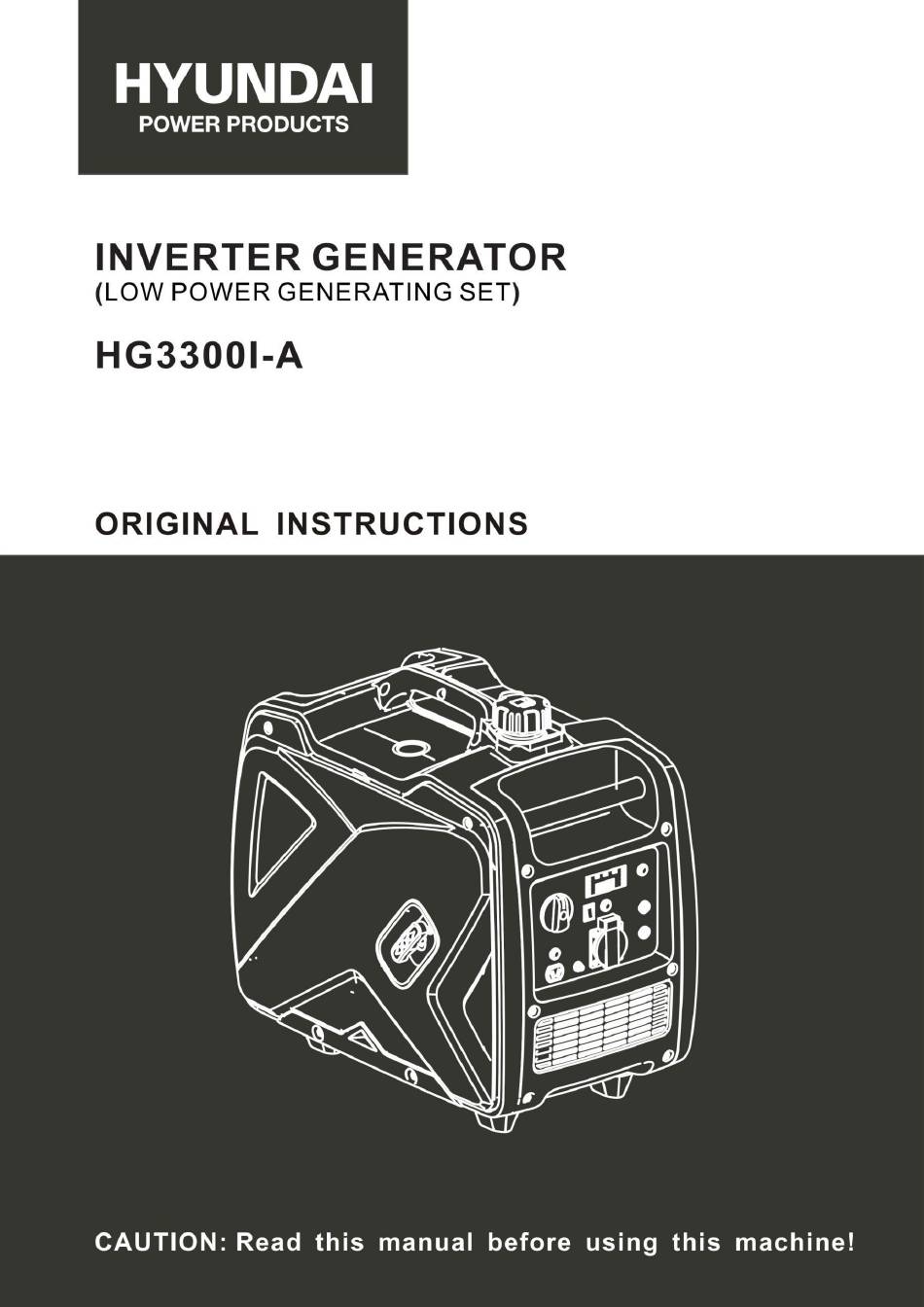

Hyundai HG3300I-A Original Instructions Manual
  1. Manuals
  2. Brands
  3. Hyundai Manuals
  4. Portable Generator
  5. HG3300I-A
  6. Original instructions manual

Hyundai HG3300I-A Original Instructions Manual

Inverter generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HG3300I-A and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai HG3300I-A

Summary of Contents for Hyundai HG3300I-A

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS........................... 3 2. SAFETY LABEL POSITION..........................7 3. PARTS IDENTIFICATION............................8 4. CONTROL FUNCTION............................9 5. PREPARATION..............................11 6. OPERATING THE GENERATOR........................13 7. MAINTENANCE..............................15 8. TRANSPORTATION/WAREHOUSING......................20 9. TROUBLESHOOTING............................21 10. SPECIFICATIONS............................23 11. CIRCUIT DIAGRAM............................24 12. DECLARATION OF CONFORMITY......................25 13.

  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS WARNING 1. Attention! Exhaust gases are toxic. Do not operate the generator in a room without ventilation system! 2. Children should be protected by keeping them at a safe distance from the generator set! 3. Refilling of the generating sets are not allowed during the operation! 4.
  • Page 4  Keep the fuel filter clean, and change the oil of the motor regularly.  Periodically check the installation of the connections and the tightness of the fixations, re-tightening them if necessary.  Clean the components of the air filter periodically, and replace the air filter when necessary. ...
  • Page 5 see a doctor immediately. If a certain quantity of fuel is spilt on your skin or clothing, wash or change your clothes.  Always stop the motor of the generator when filling it with fuel.  Never fill the fuel tank while smoking or near a naked flame. ...
  • Page 6 SYMBOL Attention! Please read the manual carefully before using the unit! Conforms to relevant safety standards Do not dispose of old appliances with domestic rubbish . Guaranteed sound power level Ground connection Fill in engine oil It is forbidden to run the generator in an enclosed room because exhaust emissions can lead humans or animals to coma to death.

  • Page 7: Safety Label Position

    2. SAFETY LABEL POSITION These decals indicate serious accident that you may cause. Please read the decals, safety precautions and precautions mentioned in this manual carefully.

  • Page 8: Parts Identification

    3. PARTS IDENTIFICATION Carrying handle Recoil starter Muffler Fuel tank cap Oil filler cap Spark plug Control panel Louver maintenance cover CONTROL PANEL Switch knob (L) Overload indicator light AC pilot light Oil warning light AC reset Ground (earth) terminal AC receptacle 8Parallel function, ESC(Engine Smart Control)

  • Page 9: Control Function

    4. CONTROL FUNCTION SWITCH KNOB 1,Engine switch \fuel valve “OFF” Ignition circuit is switched off Fuel is switched off. The engine will not run. 2,Engine switch \fuel valve \ choke “ON” Ignition circuit is switched on. Fuel is switched on. Choke is switched on. The engine can be running.
  • Page 10 The overload indicator light (2) comes on when an overload of a connected electrical device is detected, the inverter control unit overheats, or the AC output voltage rises. Then, the AC protector will trip, stopping power generation in order to protect the generator and any connected electric devices.

  • Page 11: Preparation

    Tip: The ESC must be turned to”OFF”when using electric devices that require a large starting current, such as a compressor of a submersible pump. GROUND (EARTH) TERMINAL Ground (Earth) terminal connects the earth line for prevention of electric shock. When the electric device is earthed, always the generator must be earthed. Optional configuration PARALLEL CONNECTIONS The parallel connection function allows two units to be connected in...
  • Page 12 ENGINE OIL The generator has been shipped without engine oil. Do not start the engine till fill with the sufficient engine oil.  Place the generator on a level surface.  Remove the screws (1), and then remove the cover(2) ...

  • Page 13: Operating The Generator

    6. OPERATING THE GENERATOR WARNING  In order to prevent electric shock caused by improper use, the generator should be grounded. Connect a thick cable between the ground terminal of the generator and the external ground source.  If the unit is used as a backup power source for a building, the connection of the generator to its power system shall be carried out by a professional electrician and must comply with the applicable laws and regulations.
  • Page 14 4) After the engine starts, warm up the engine until the engine does not stop when the choke knob is returned to the “ON” position. TIP: When starting the engine, with the ESC “ON”, and there is no load on the generator: STOPPING THE ENGINE TIP: Turn off any electric devices.

  • Page 15: Maintenance

    The overload indicator light comes on when total wattage exceeds the application range.  NOTICE:  Do not overload. The total load of all electrical appliances appliance must not exceed the supply range of the generator. Overloading will damage the generator. ...
  • Page 16  The above regular maintenance schedule is calculated at ambient temperature of 25°C. If the ambient temperature exceeds 30°C, reduce the load power of the generator or shorten the time interval for replacing the oil (choose one operation). Oil change When the engine is warm, you can quickly and completely discharge the oil.
  • Page 17  Check the spark plug type and gap. Standard Spark Plug: F6RTC Spark Plug Gap: 0.7-0.8mm TIP: The spark plug gap should be measured with a wire thickness gauge and, If necessary, adjusted to specification. Install the spark plug. Spark Plug Torque: 28 N.m ...
  • Page 18 NOTICE Do not tilt the generator when adding engine oil. This could result in overfilling and damage to the engine. NOTICE: Be sure no foreign material enters the crankcase.  Install the oil filler cap.  Install the cover and tighten the screws. Air filter 1) Remove the screws (1), and then remove the cover(2) 2) Remove the air filter case cover(3)
  • Page 19 3) Clean the carbon deposits on the muffler screen and spark arrester using a wire brush. NOTICE When cleaning, use the wire brush lightly to avoid damaging or scratching of muffler screen and spark arrester. 4) Check the muffler screen and spark arrester.

  • Page 20: Transportation/Warehousing

    8. TRANSPORTATION/WAREHOUSING To prevent fuel leakage during transport or temporary storage, turn off the oil switch and place the generator in a location where no fuel leaks. WARNING When transporting the generator：  Do not fill too much fuel into fuel tank. (There should be no fuel in the filler). ...

  • Page 21: Troubleshooting

    9. TROUBLESHOOTING Cannot start the engine Is there any fuel in the tank？ Refuel 有 否 Is the start switch & fuel switch on? Turn the switch to “ON” position 是 否 Does the engine has enough oil？ Add recommended oil 是...
  • Page 22 Connected device does not work Is the output indicator ON or OFF? Return the generator to an authorized Is overload indicator ON? dealer for further assistance. Shut off the generator and wait until the overload indicator turns off, then start Does the connected device again or press the reset button to restart work?

  • Page 23: Specifications

    10. SPECIFICATIONS Engine Model No. R185-Vi Engine type 4-stroke, single cylinder, OHV Displacement( CC) 185cc Rated speed 3600/min Starting system Recoil Fuel Volume (L) 5,5L Lube. Oil capacity (L) 0.55 L Spark plug F6RTC Sound pressure level: L 73,3 dB(A) Sound power level L 93,3 dB(A), K = 2,81dB(A) Guaranteed sound power level...

  • Page 24: Circuit Diagram

    11. CIRCUIT DIAGRAM...

  • Page 25: Declaration Of Conformity

    Fax : +33 (0)5.34.502.503 States that the designated below machine: Product: Petrol Inverter generator Model: HG3300I-A Serial number: 20230134332-20230134543 is in confirmity with the essential requirements and other relavant provisions of the applicable European Directives,based on the application of European harmonized standerds.Any unauthorized modification of the apparatus voids this declaration.

  • Page 26: Warranty

    13. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 27: Product Failure

    14. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 28: Warranty Exclusions

    15. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
