  • Page 1 HG1600I INVERTER GENERATOR Portable 4 stroke gasoline generator USER’S MANUAL (Please read this manual before operating the generator)
  • Page 2 SAFETY Thank you for purchasing our generator. This manual covers operation and maintainance of the generator. All rights reserved to make changes at any time without notice, and without incurring any obligation. Generator is designed to give safe and dependable service if This publication can not be reproduced without written permission.

  • Page 3: Component Identification

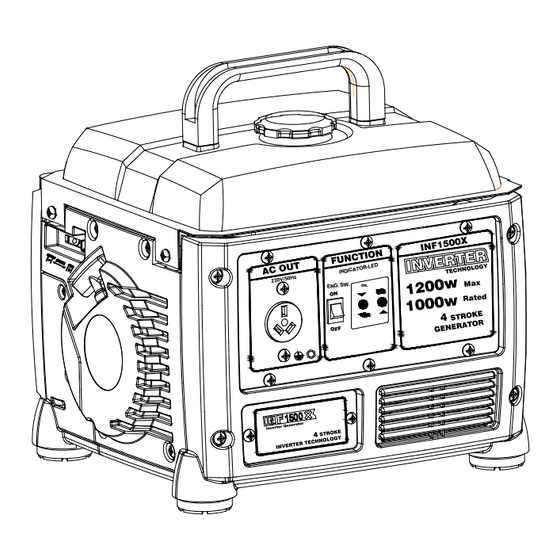

    COMPONENT IDENTIFICATION Tank Cap Fuel Tank Choke Lever Starter Grip Engine Switch For safety reason, stop the engine before refueling. Gasoline is extremely flammable and potentially explosive materiel Filter Cover therefore refueling must take place in a ventilated environment. Keep away from cigarette, smoke and sparks when refueling. Always refuel the generator in a well-ventilated location.

  • Page 4: Pre-Operation Check

    · CHECK FUEL PRE-OPERATION CHECK 1.Unscrew fuel cap (PIC 3） · CHECK ENGINE OIL Note, running the generator with insufficient engine oil can cause serious engine damage. Engine oil should be replaced during regular maintenance or when the oil level is below the end of the dipstick. 1.

  • Page 5: Starting The Engine

    　　 STARTING THE ENGINE Choke Closed While Choke Open After Starting the Engine Starting the Engine ATTENTION! Always check the oil level before starting the engine(see Page 5). Perform the specified daily inspection to see if it is in normal condition.

  • Page 6: Control Panel Introduction

    CONTROL PANEL INTRODUCTION STOPPING THE GENERATOR ATTENTION! AC OUT INF1500X FUNCTION In case of emergency, the easiest way to stop the generator is to 230V/50Hz INDICATOR-LED directly put engine switch to OFF position. ENG. SW. TECHNOLOGY Avoid doing so in non-emergency circumstances as it carries the risk 1200w of damaging the generator.

  • Page 7: Maintenance

    MAINTENANCE 3.Spark plug 1. ENGINE OIL REPLACEMENT a.Remove Spark plug cap，clean dust around spark plug.(PIC 16) Initial oil change: After the first 20 hours of operation. b.Use spark plug socket to remove spark plug(PIC 17). Thereafter: Every 50 hours of operation. c.Remove carbon deposits.
  • Page 8 STORAGE 4.Fuel Switch If you need store this unit for long term(over 6 months), please a.Put Fuel switch to OFF position. make sure to: b.Unscrew 4 bolts on fuel tank,use pliers to losse 1.Store this unit at a dry and ventilated place. tubing clamp and unplug it.(PIC 18 &...

  • Page 9: Troubleshooting

    TROUBLESHOOTING WARNING! When the engine failed to start. Be sure there is no spilled fuel around the spark plug, this may cause fire hazard. Is there fuel in tank? Is the fuel switch on? CHECK! 1.Put out spark plug cap，clean dirt around spark plug. 2.Remove spark plug and install it in the plug cap.

  • Page 10: Specifications

    SPECIFICATIONS If the engine operateing without output: Model HG1600I Is the output indicator light ON(Green)? Engine Type 4-stroke, forced air, 1 cylinder FLASHING Displacement 53.5cc Engine Speed 3800 - 5000rpm Ignition System Electronic Refer to Page 9 Control Panel Introduction...
