Summary of Contents for Hyundai HG4000-A

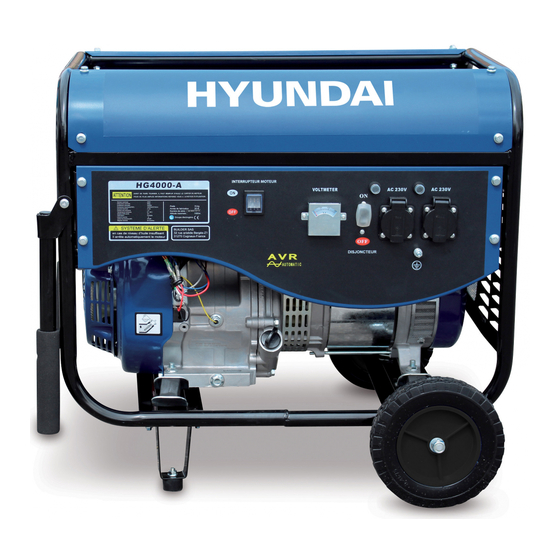

- Page 1 -EN- LOW POWER GENERATING SET HG4000-A WARNING: Read thoroughly the instruction manual before use...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTION 2. COMPONENT IDENTIFICATION 3. INSTALLATION 4. CONTROLS 1) Engine Switch 2) Recoil Starter 3) Fuel Valve 4) Choke 5) Circuit Breaker 6) Ground Terminal 7) Oil Alert System 5. GENERATOR USE 1) Connections to a Building's Electrical System 2) Ground System 3) AC Applications 4) AC Operation... -
Page 3: Safety Instruction
1. SAFETY INSTRUCTION Warning: 1. Attention! Exhaust gases are toxic. Do not operate the generator in a room without ventilation system! 2. Children should be protected by keeping them at a safe distance from the generator set! 3. Refilling of the generating sets are not allowed during the operation! 4. - Page 4 The silencer of the generator becomes extremely hot when the motor runs or even for a time after it has stopped. Do not touch it as it will burn you. Do not transport or move the generator until it has cooled down. ...
- Page 5 Before use, the generating set and its electrical equipment (including lines and plug connections) should be checked to ensure that they are not defective. Protection against electrical shock depends on circuit breakers specially matched to the generating set. If the circuit breakers require replacement, they should be replaced with a circuit breaker having identical ratings and performances characteristics.
- Page 6 To prevent fire, move the generator at least 4 meters away from the area for filling with fuel. Make sure that the fuel cap is tightly closed before starting. Do not keep petrol in the tank for a long time. ...
- Page 7 Protection of the environment You must periodically check the silencer (Before doing this, switch off the generator and let it cool completely). A damaged silencer increases noise. Do not throw motor oil into the drains but deposit it at a collection point set up for that purpose. ...
- Page 8 Warnings on product; Read them carefully before use the tool.
-
Page 9: Component Identification
2. COMPONENT IDENTIFICATION CIRCUIT MOTOR SWITCH BREAKER LEVIER THE STARTER FUEL VALVE AIR FILTER AC OUTLETS STARTER REEL OIL FILTER CAP HANDLE NOTE: Diagrams may vary according to the types. Set nameplate... -
Page 10: Installation
3. INSTALLATION 1) Wheels Put upside down the tool. Add the axis on the support On each side add a washer, a wheel, a washer and a pin to lock the wheel in place. 2) Foot pad Keep the tool upside down. In the food pad (2 pieces), put a washer and a screw on each foot pad Localise the two holes on the bar. -
Page 11: Controls
4. CONTROLS 1) Engine Switch To start and stop the engine. Switch position: OFF: To Stop the engine. Key can be removed/inserted. ON: To run the engine after starting. START: To start the engine by turning the starter motor. With in Electric Starter Without Electric Starter Return the key to the ON position once the engine has started. -
Page 12: Generator Use
4) Choke The choke is used to provide an enriched fuel mixture when starting a cold engine. It can be opened and closed by operating the choke lever or choke rod manually. Move the lever or the rod to the CLOSE position to enrich the mixture. 5) Circuit Breaker The circuit breaker will automatically switch OFF if there is a short circuit or a significant overload of the generator at the receptacle. - Page 13 Connections for standby power to a building's electrical system must be made by a qualified electrician. The connection must isolate the generator power from utility power, and must comply with all applicable laws and electrical codes. WARNING Improper connections to a building's electrical system, can allow electrical current from the generator to feedback into the utility lines.
-
Page 14: Pre-Operation Check
NOTICE Substantial overloading will switch off the circuit breaker. Exceeding the time limit for maximum power operation or slightly overloading the generator may not switch the circuit breaker OFF, but will shorten the service life of the generator. Limit operation requiring maximum power to 30 minutes. For continuous operation, do not exceed the rated power. - Page 15 Engine oil is a major factor affecting engine performance and service life. Non-detergent and 2-stroke engine oils will damage the engine and are not recommended. Check the oil level BEFORE EACH USE with the generator on a level surface with the engine stopped.
- Page 16 • Do not overfill the fuel tank (there should be no fuel in the filler neck). After refueling, make sure the tank cap is closed properly and securely. Be careful not to spill fuel when refueling. Spilled fuel or fuel vapor may ignite. If any fuel is spilled, make sure the area is dry before starting the engine.
-
Page 17: Starting/Stopping The Engine
Methanol (methyl or wood alcohol) Gasoline containing methanol must contain cosolvents and corrosion inhibitors to protect the fuel system. Gasoline containing more than 5% methanol by volume may cause starting and/or performance problems and may damage metal, rubber and plastic parts of your fuel system. MTBE (methyl tertiary butyl ether) You may use gasoline containing up to 15% MTBE by volume. -
Page 18: Maintenance
again. If the speed of the starter motor drops after a period of time, it indicates that the battery should be recharged. When the engine starts, allow the engine switch to return to the ON position. 1. Turn the choke lever or push the choke rod to the OPEN position as the engine warms up. Stopping the engine In an emergency: To stop the engine in an emergency, move the engine switch to the OFF position. - Page 19 1) Service more frequently when used in dusty areas. 2) These items should be serviced by an authorized generator dealer, unless the owner has the proper tools and is mechanically proficient. (3) For professional commercial use, long hours of operation to determine proper maintenance intervals.
- Page 20 Used motor oil may cause skin cancer if repeatedly left in CAUTION Used motor oil may cause cancer if repeatedly left in contact with the skin for prolonged periods. Although this is unlikely unless you handle used oil on a daily basis, it is still advisable to thoroughly wash your hands with soap and water as soon as possible after handling used oil.
- Page 21 5) Spark Plug Service Recommended spark plugs: F7RTC or other equivalents To ensure proper engine operation, the spark plug must be properly gapped and free of deposits. If the engine has been running, the muffler will be very hot. Be careful not to touch the muffler. 1) Remove the spark plug cap.
-
Page 22: Transporting And Storage
7) After the spark plug is seated, tighten with a spark plug wrench to compress the washer. If installing a new spark plug, tighten I/2 turn after the spark plug seats to compress the washer. If reinstalling a used spark plug, tighten I/8 -1/4 turn after the spark plug seats to compress the washer. - Page 23 1) Drain the carburetor by loosening the drain screw. Drain the gasoline into a suitable container. WARNING Gasoline is extremely flammable and is explosive under certain conditions. Perform this task in a well ventilated area with the engine stopped. Do not smoke or allow flames or sparks in the area during this procedure.
-
Page 24: Troubleshooting
10. TROUBLESHOOTING When the engine will not start: Is there fuel in the tank? Refill the fuel tank Is there oil in the tank? Add the recommended oil. STILL SPARK Is there spark from Replace the Take the generator to an spark plug. - Page 25 No electricity at the AC receptacles Is the AC circuit breaker ON Turn the AC circuit breaker ON NO DEFECTS Check the electrical appliance or Take the generator to an equipment for any defects. authorized generator dealer. Replace the electrical appliance DEFECTS or equipment.
- Page 26 11. CIRCUIT DIAGRAM...
-
Page 27: Specifications
12. SPECIFICATIONS Engine Engine model 188F1 Engine type Single cylinder, 4-strokes, Forced air cooling, OHV. Displacement( CC) 389cc Rated speed 3000/min Igniting system Transistor magneto Starting system Recoil Fuel Volume (L) 25 L Continuous operation time (h) 13 h Min. Fuel consumption (g/kW.h) 349 g/kW.h Lube Oil capacity (L) 1.1 L... -
Page 28: Ec Declaration Of Conformity
BUIDLER SAS ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declares that the machinery designated below: LOW POWER GENERATING SET HG4000-A Model: 20210500001-20210500124 Serial number: Complies with the provisions of the Directive “machinery” 2006/42/CE and national laws transposing it:... -
Page 29: Warranty
14. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 30: Product Failure
15. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 31: Warranty Exclusions
16. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
