Summary of Contents for Hyundai HG3600-A

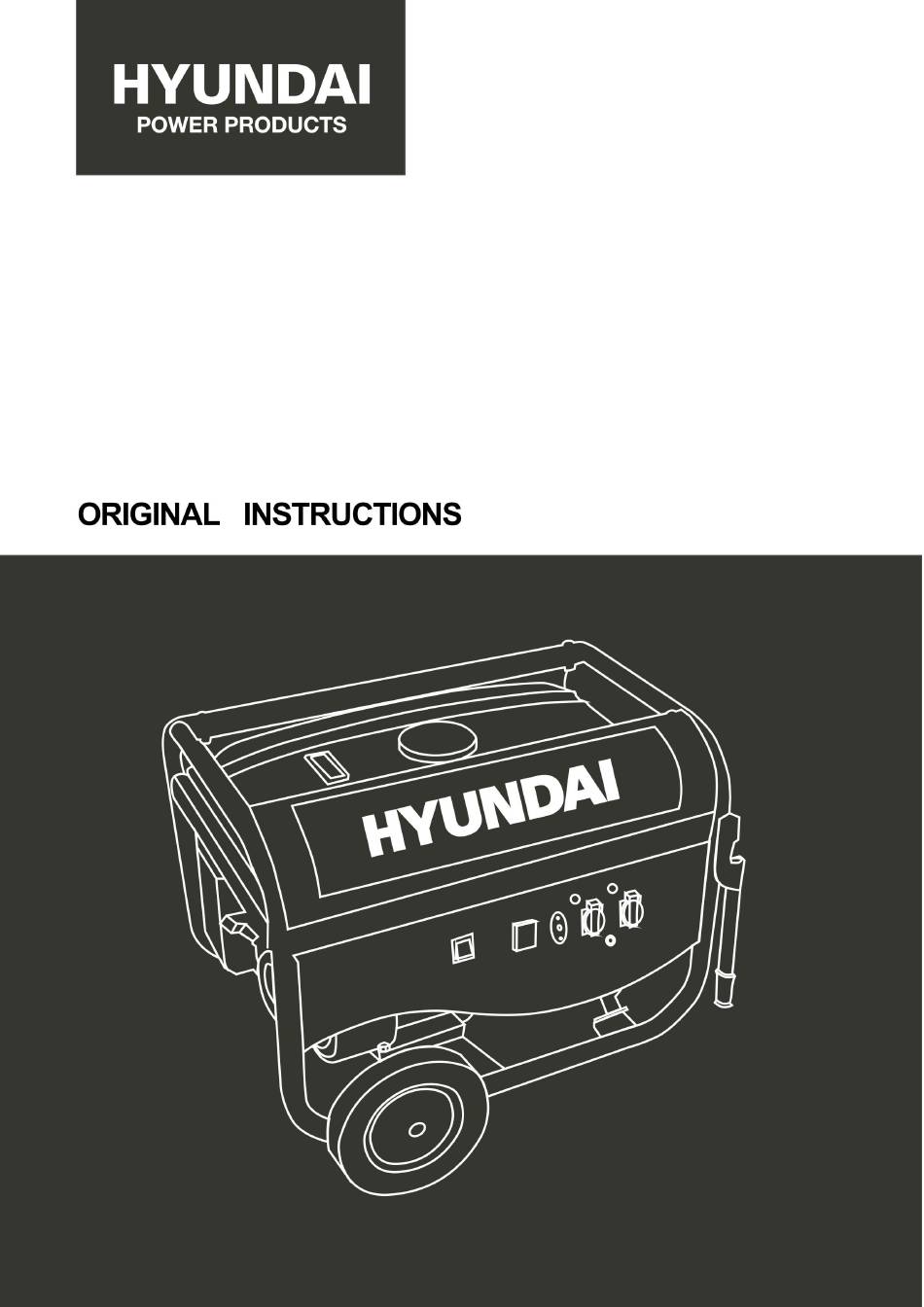

- Page 1 OPEN FRAME PETROL GENERATOR HG3600-A WARNING: Read thoroughly the instruction manual before use.
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTION 2. COMPONENT IDENTIFICATION 3. INSTALLATION 4. CONTROLS 5. GENERATOR USE 6. PRE-OPERATION CHECK 7. STARTING / STOPPING THE ENGINE 8. MAINTENANCE 9. TRANSPORTING AND STORAGE 10. TROUBLESHOOTING 11. WIRING DIAGRAM 12. SPECIFICATIONS 13. EC DECLARATION OF CONFORMITY 14. -
Page 3: Safety Instruction
1. SAFETY INSTRUCTION Warning: 1. Attention! Exhaust gases are toxic. Do not operate the generator in a room without ventilation system! 2. Children should be protected by keeping them at a safe distance from the generator set! 3. Refilling of the generating sets are not allowed during the operation! 4. - Page 4 The generator uses a system of air-cooling, and it is necessary to clean its components regularly, including the grilles, the cover of the fan and the fan itself so as to ensure cooling. Keep the fuel filter clean, and change the oil of the motor regularly. ...
- Page 5 The user must respect the requirements and precautions in the case of resupply by generating sets of an installation, depending on existing protective measures in this installation and applicable regulations. Generating sets should only be loaded up to their rated power under the rated ambient conditions. ...
- Page 6 generator into the lines of the public electricity company. Such leakage could electrocute the workers of the public electricity company working on the network or other persons in contact with the line during a power cut. Also, when the public power supply is re-established, the generator can explode, catch fire or generate fires in the building’s electrical installation.
-
Page 7: Component Identification
Carbon monoxide (CO)danger Fire hazard Risk of being burnt 2. COMPONENT IDENTIFICATION NOTE: Diagrams may vary according to the types. 3. ASSEMBLY 3.1 WHEELS Put upside down the tool. Add the axis on the support On each side add a washer, a wheel, a washer and a pin to lock the wheel in place. -
Page 8: Controls
3.2 FOOT PAD Keep the tool upside down. In the food pad (2 pieces), put a washer and a screw on each foot pad Localise the two holes on the bar. Screw each foot bar in each hole 3.3 HANDLE Put the tool in the normal position. - Page 9 4.2 RECOIL STARTER To start the engine, pull the starter grip lightly until resistance is felt, then pull briskly. NOTE: Do not allow the starter to snap back against the engine. Return it gently to prevent damage to the starter. 4.3 FUEL VALVE The fuel valve is located between the fuel tank and carburetor.
-
Page 10: Generator Use
4.6 GROUND TERMINAL The generator ground terminal is connected to the panel of the generator, the metal non-current carrying parts of the generator, and the ground terminals of each receptacle. Before using the ground terminal, consult a qualified electrician, electrical inspector or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator. - Page 11 Special Requirements There may be Federal or State Occupational Safety and Health Administration (OSHA) regulations, local codes, or ordinances that apply to the intended use of the generator. Please consult a qualified electrician, electrical inspector, or the local agency having jurisdiction. •...
-
Page 12: Pre-Operation Check
6. PRE-OPERATION CHECK 6.1 ENGINE OIL NOTE: Engine oil is a major factor affecting engine performance and service life. Non-detergent and 2-stroke engine oils will damage the engine and are not recommended. Check the oil level BEFORE EACH USE with the generator on a level surface with the engine stopped. Use 4-stroke oil, or equivalent high detergent, premium quality motor oil certified to meet or exceed U.S. - Page 13 • Refuel in a well-ventilated area with the engine stopped. Do not smoke or allow flames or sparks in the area where the engine is refueled or where gasoline is stored. • Do not overfill the fuel tank (there should be no fuel in the filler neck). After refueling, make sure the tank cap is closed properly and securely.
-
Page 14: Starting/Stopping The Engine
7. STARTING/STOPPING THE ENGINE 7.1 STARTING THE ENGINE 1. Make sure that the AC circuit breaker is in the OFF position. The generator may be hard to start if a load is connected. 2. Turn the fuel valve to the ON position. 3. - Page 15 8.1 MAINTENANCE SCHEDULE REGULAR SERVICE PERIOD Each First Every 3 Every 6 Every Performed at every indicated month or month or months or months or year or operating hour interval, whichever comes 20 Hrs. 50 Hrs. (3) 100 Hrs. 300 Hrs. first.
- Page 16 Used motor oil may cause skin cancer if repeatedly left in. CAUTION Used motor oil may cause cancer if repeatedly left in contact with the skin for prolonged periods. Although this is unlikely unless you handle used oil on a daily basis, it is still advisable to thoroughly wash your hands with soap and water as soon as possible after handling used oil.
- Page 17 8.5 FUEL SEDIMENT CUP CLEANING The sediment cup prevents dirt or water which may be in the fuel tank from entering the carburetor. If the engine has not been run for a long time, the sediment cup should be cleaned. 1) Turn the fuel valve to the OFF position.
-
Page 18: Transporting And Storage
6) Check that the spark plug washer is in good condition, and thread the spark plug in by hand to prevent cross-threading. 7) After the spark plug is seated, tighten with a spark plug wrench to compress the washer. If installing a new spark plug, tighten I/2 turn after the spark plug seats to compress the washer. - Page 19 WARNING Gasoline is extremely flammable and is explosive under certain conditions. Perform this task in a well ventilated area with the engine stopped. Do not smoke or allow flames or sparks in the area during this procedure. The fuel of this machine is combustible and deflagrating. After the machine has been shut down, the additional fuel must be treated properly and the local environmental requirements must be met.
-
Page 20: Troubleshooting
10. TROUBLESHOOTING When the engine will not start: Is there fuel in the tank? Refill the fuel tank Is there oil in the tank? Add the recommended oil. STILL SPARK Is there spark from Replace the Take the generator to an spark plug. -
Page 21: Wiring Diagram
11. CIRCUIT DIAGRAM... -
Page 22: Specifications
12. SPECIFICATIONS Engine Engine model HG3600-A Engine type Single cylinder, 4-strokes, Forced air cooling, OHV. Displacement( CC) 212cc Rated speed 3000/min Igniting system Transistor magneto Starting system Recoil Fuel Volume (L) 15 L Continuous operation time (h) 10.5 h Min. Fuel consumption (g/kW.h) 360 g/kW.h... -
Page 23: Ec Declaration Of Conformity
ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declares that the machinery designated below: OPEN FRAME PETROL GENERATOR Model: HG3600-A Serial number: 20220208458-20220208682 Complies with the provisions of the Directive “machinery” 2006/42/CE and national laws transposing it: Also complies with the following European directives:... -
Page 24: Warranty
14. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 25: Product Failure
15. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 26: Warranty Exclusions
16. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
