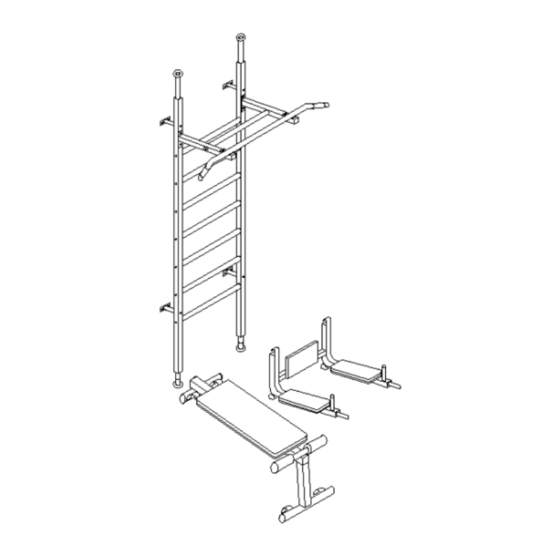

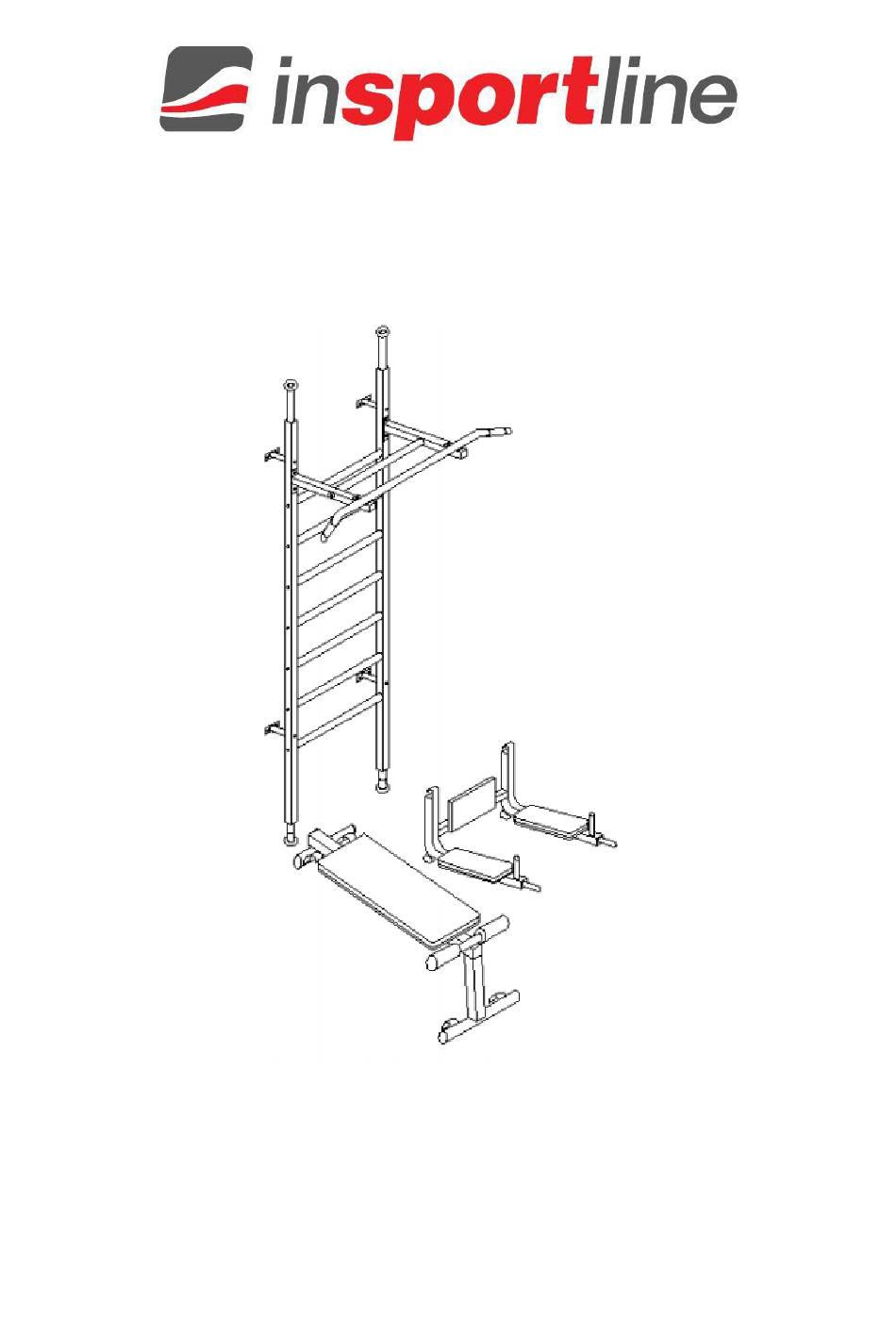

- Page 1 USER MANUAL – EN IN BE004 Wall Bars Benchmark Energy...
- Page 2 CONTENTS INTRODUCTION ............................. 3 TECHNICAL DESCRIPTION ........................3 PARTS LIST ............................3 DIAGRAM ..............................4 ASSEMBLY ............................. 4 SAFETY INSTRUCTIONS ........................5 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ........... 5...
- Page 3 INTRODUCTION This wall bars are suitable for effective exercise of whole body from the comfort of your home. Exercising on wall bars leads to better physical condition, coordination and increase the strength of muscles. WARNING: Thanks to constant innovation of products, there can be a small diversion in design of the product –...
- Page 4 DIAGRAM ASSEMBLY Mounting to the ceiling: 1. Attach the bracket (3) to the bar (3) using the bolts (4). 2. Attach the brackets (2) to the rail (3) to the bolts (1) with the bolts (5). 3. Insert the top and bottom span (8) and (9) into the side walls (1). Fix the top span (8) so that there is a little bit of space between top span (8) and ceiling after standing up of the ladder.
- Page 5 4. Raise the rails to the vertical position. 5. Stabilize the bottom span (9) by jam nuts. 6. Fasten the parallel bars (10) and the bench (11) to the bead. Mounting to the wall: 1. Attach to the pull-up bar (3) support bar (2) using the bolts (4). 2.
- Page 6 Borivojova 35/878, 130 00 Praha 3, Czech Republic Headquarters: Delnicka 957, 749 01 Vitkov, Czech Republic Warranty & Service Centre: Cermenska 486, 749 01 Vitkov, Czech Republic CRN: 26847264 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.insportline.cz...
- Page 7 INSPORTLINE s.r.o. Headquarters, Warranty & Service centre: Elektricna 6471, 911 01 Trencin, Slovakia CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk Web: www.insportline.sk Date of Sale: Stamp and Signature of Seller:...
