Summary of Contents for Insportline IN 564

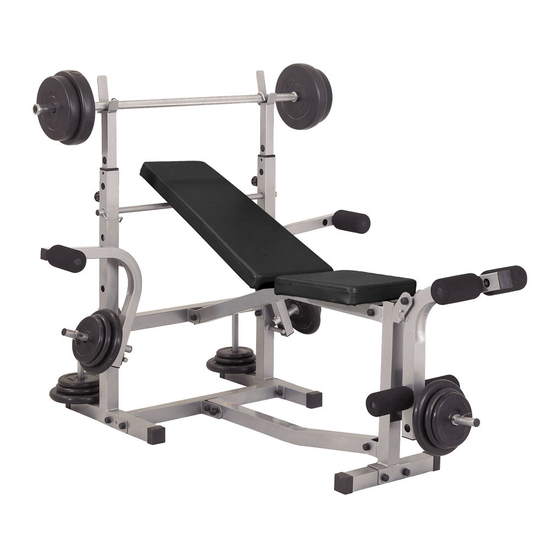

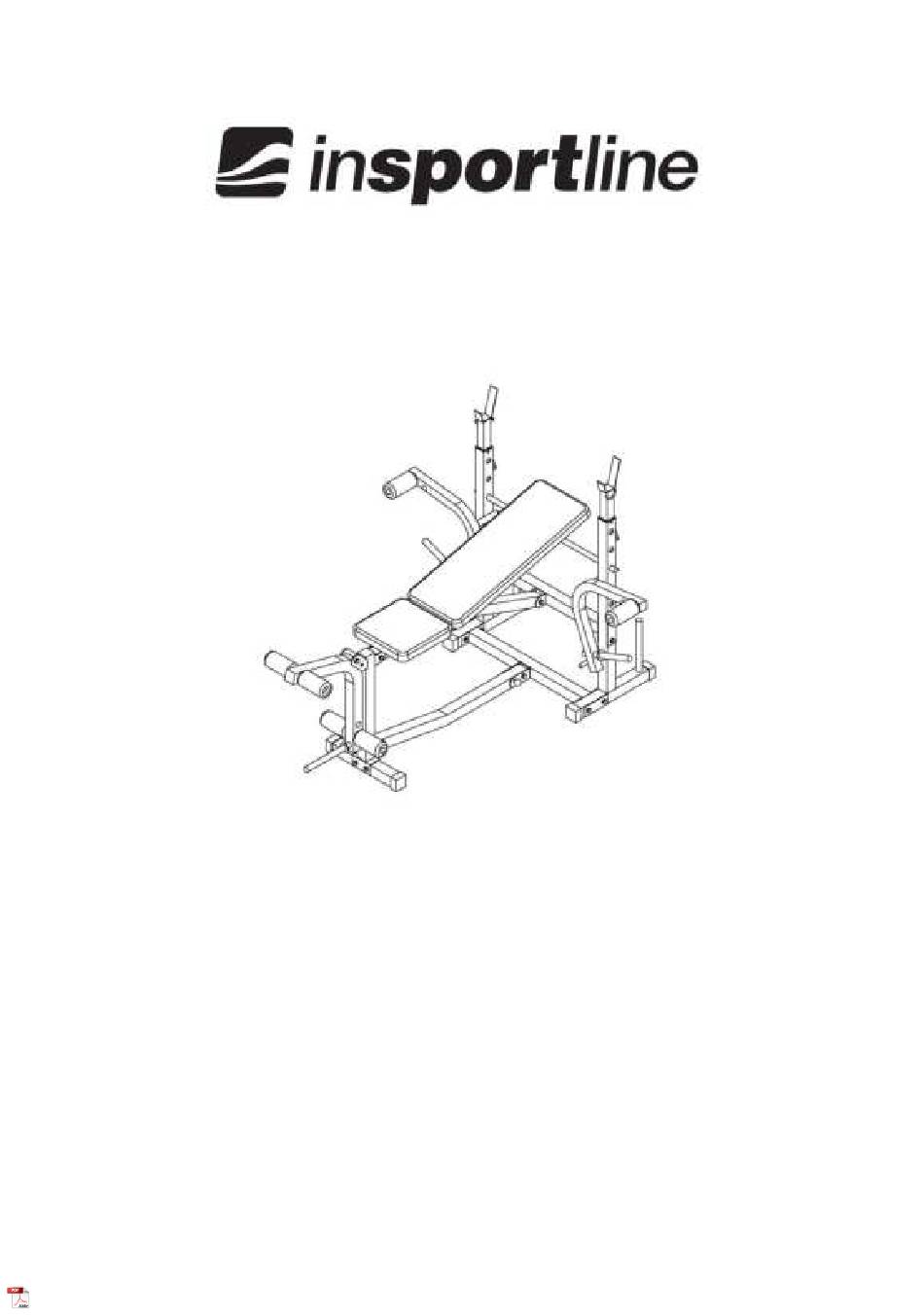

- Page 1 USER MANUAL – EN IN 564 Workout Bench inSPORTline Adjust...
- Page 2 CONTENTS SAFETY PRECAUTIONS .........................3 PARTS LIST .............................4 ASSEMBLY INSTRUCTIONS ........................5 FOLDING INSTRUCTIONS ........................6 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMSChyba! Záložka není definována.
- Page 3 Thank you for purchasing this device. Prior to assemble it, check that all parts are complete and faultless. If there is some damaged or missing part, contact the service. This product is intended only for home use. Don’t use it for commercial purposes. SAFETY PRECAUTIONS •...
- Page 4 PARTS LIST DESCRIPTION LEFT UPRIGHT FRAME RIGHT UPRIGHT FRAME ADJUSTABLE BARBELL SUPPORT BACK UP HORIZONTAL SUPPORT BACK DOWN HORIZONTAL SUPPORT MAIN FRAME DOWN JOINT TUBE FRONT SUPPORT FRONT DOWN TUBE LEFT BUTTERFLY ARM RIGHT BUTTERFLY ARM LEG EXTENSION BEAM ADJUSTABLE BACK REST SUPPORT BACK REST BEAM LEG EXTENSION FOAM TUBE BUTTERFLY ARM FOAM TUBE...
- Page 5 ASSEMBLY INSTRUCTIONS • Make sure the Metal Joint Plates (17) are mounted on the side of the Upright Frames (1&2) and the Upright Frames are facing the same direction. Then securely fasten each Upright Frame to the Back Up Horizontal Support (4) and Back Down Horizontal Support (5) use the Bolts M10*75 (36), Washers (42) and Nuts (44) as shown.
- Page 6 FOLDING INSTRUCTIONS To fold your weight bench for storage, first fetch out the Spheral Head Pin (48) and the Adjustable Back Rest Support (13), be sure to hold the unit bench unit in an upright position, then insert the Adjustable Back Rest Support (13) through the holes in the Upright frames (1&2) and the interspace between the Front Support (8) and the Main Frame (6).
- Page 7 SEVEN SPORT s.r.o. Strakonická 1151/2c, Praha 5, 150 00, ČR Registered Office: Dělnická 957, Vítkov, 749 01 Headquaters: Warranty & Service: Čermenská 486, Vítkov 749 01 CRN: 26847264 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz...
- Page 8 Web: www.inSPORTline.cz inSPORTline s.r.o. Headquaters, warranty & service center: Električná 6471, Trenčín 911 01, SK CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk Web: www.inSPORTline.sk...
