Summary of Contents for Insportline Ele IN 20709

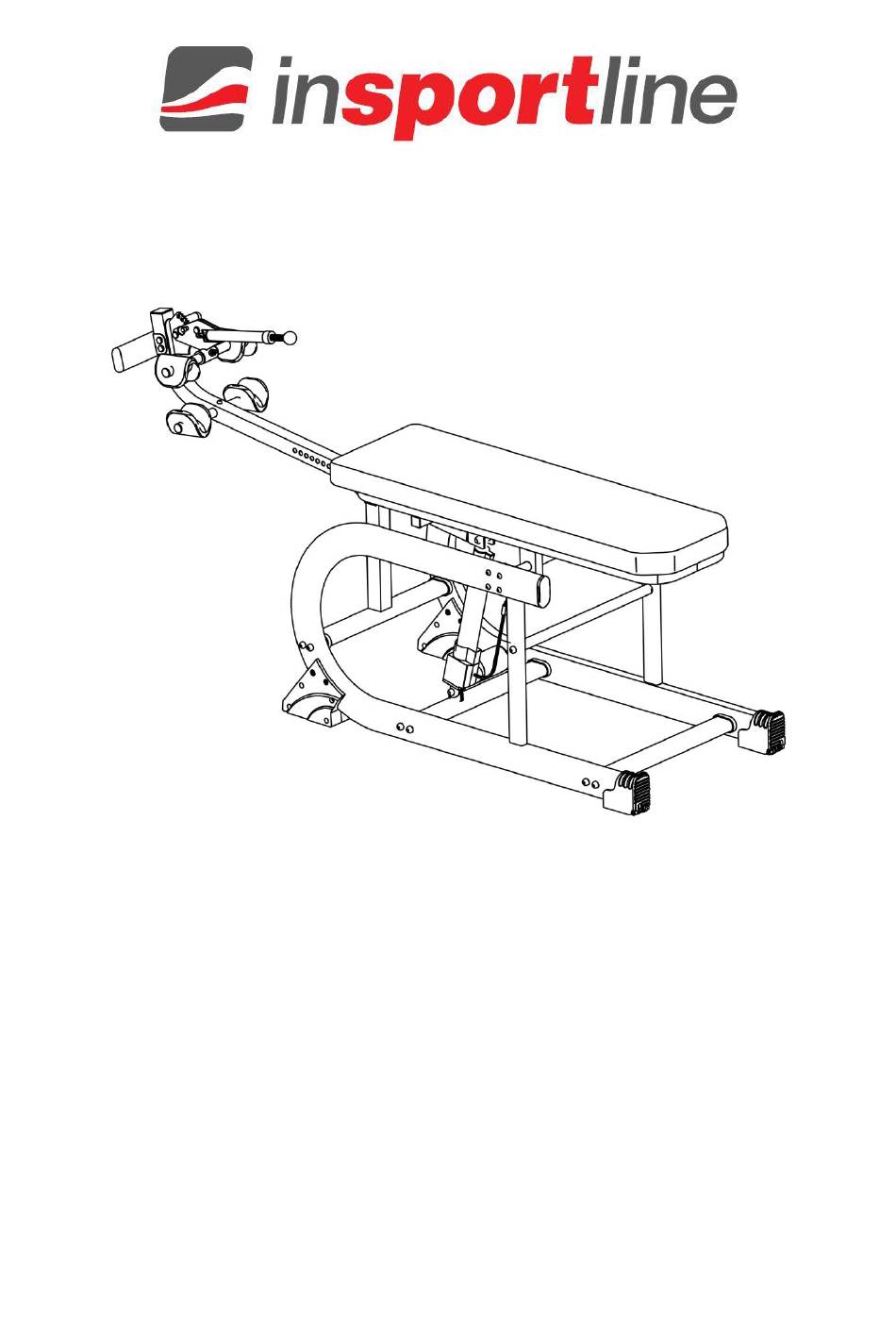

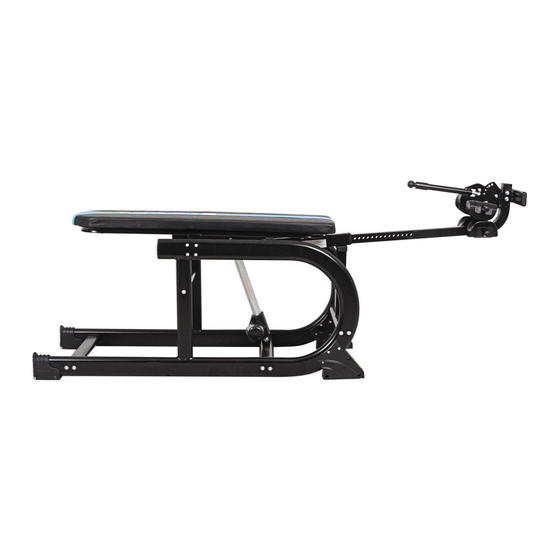

- Page 1 USER MANUAL – EN IN 20709 Inversion table inSPORTline Ele...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 PARTS LIST ............................4 HARDWARE & TOOLS ........................... 5 ASSEMBLY ............................. 7 BALANCING THE INVERSION TABLE ....................9 USING THE INVERSION TABLE ......................9 MAINTENANCE ............................ 10 ENVIRONMENT PROTECTION ......................10 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ..........10... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Before using the product, please, consult your physician. This is extremely important for people with pre-existing medical conditions. Do not use the Confidence Pro Folding Inversion table if you have any of the following conditions: • Extreme Obesity •... -
Page 4: Parts List
PARTS LIST Main frame Backrest Stabilizer Motor holder Heel holder Adjustable rod Connection frame... -
Page 5: Hardware & Tools
Motor Footrest Heel holder Supply cable Connection rod Controller (Note：Batteries not included, please use battery (2x AAA) HARDWARE & TOOLS Picture Name Specifications Qty. Bolt M8 x 50 Bolt M6 x 65 Bolt M8 x 40 Bolt M10 x 40... - Page 6 Bolt M10x50 Bolt M6 x 45 Ø20 x 10 x1,5 Washer Bolt M6 x 40 Bolt M8 x 55 Bolt M6 x 10 Ø16 x 8 x 1,5 Washer Ø12 x 6 x 1,5 Washer Wrench Wrench Allen key Allen key...
-
Page 7: Assembly
ASSEMBLY Make sure you have enough free space before assembly. Make sure you have all the parts. STEP 1 Connect the main frames (A) using the stabilizer (D), the engine holder (E), the connection frame (H) with 12x bolts (1), 12x washers (13) and the connection rods (X) with 2x bolts (3) and 2x washer (13). STEP 2 Attach the backrest (B) with 8x screws (2), 8x washers (14) and 8x nuts (9). - Page 8 STEP 3 Attach the motor (J) on the top with bolt (5) washer (8) and nut (7). Attach the bottom with bolt (4), washer (8) and nut (7). STEP 4 Assemble the foot restraint system. Attach the heel holder (F) to the adjustable rod (G) with the bolt (6), washer (14) and nut (9) and the heel holder (L) with the bolt (10), washer (14) and nut (9).
-
Page 9: Balancing The Inversion Table
STEP 5 Attach the adjustable rod (G) to the frame. Make sure that all bolts and nuts are properly tightened. BALANCING THE INVERSION TABLE The inversion table is like a very sensitively balanced fulcrum. It responds to very slight changes in weight distribution. -
Page 10: Maintenance
1. Begin slowly: invert only 15~20 degrees to begin with. Stay inverted only as long as you are comfortable. Return upright slowly． 2. Make gradual changes: Increase the angle only if it is comfortable. Increase angle only a few degrees at a time. Increase the time of use 1~2 minutes up to ten over a period of weeks. Add stretching and light exercise only after you are comfortable with inversion. - Page 11 Code, and Act No. 634/1992 Coll., Consumer Protection, as amended, also in cases that are not specified by these Warranty rules. The seller is SEVEN SPORT s.r.o. with its registered office in Strakonická street 1151/2c, Prague 150 00, Company Registration Number: 26847264, registered in the Trade Register at Regional Court in Prague, Section C, Insert No.
- Page 12 26847264 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.inSPORTline.cz inSPORTline s.r.o. Headquaters, warranty & service center: Električná 6471, Trenčín 911 01, SK CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk...
