Summary of Contents for Harken 40RWA

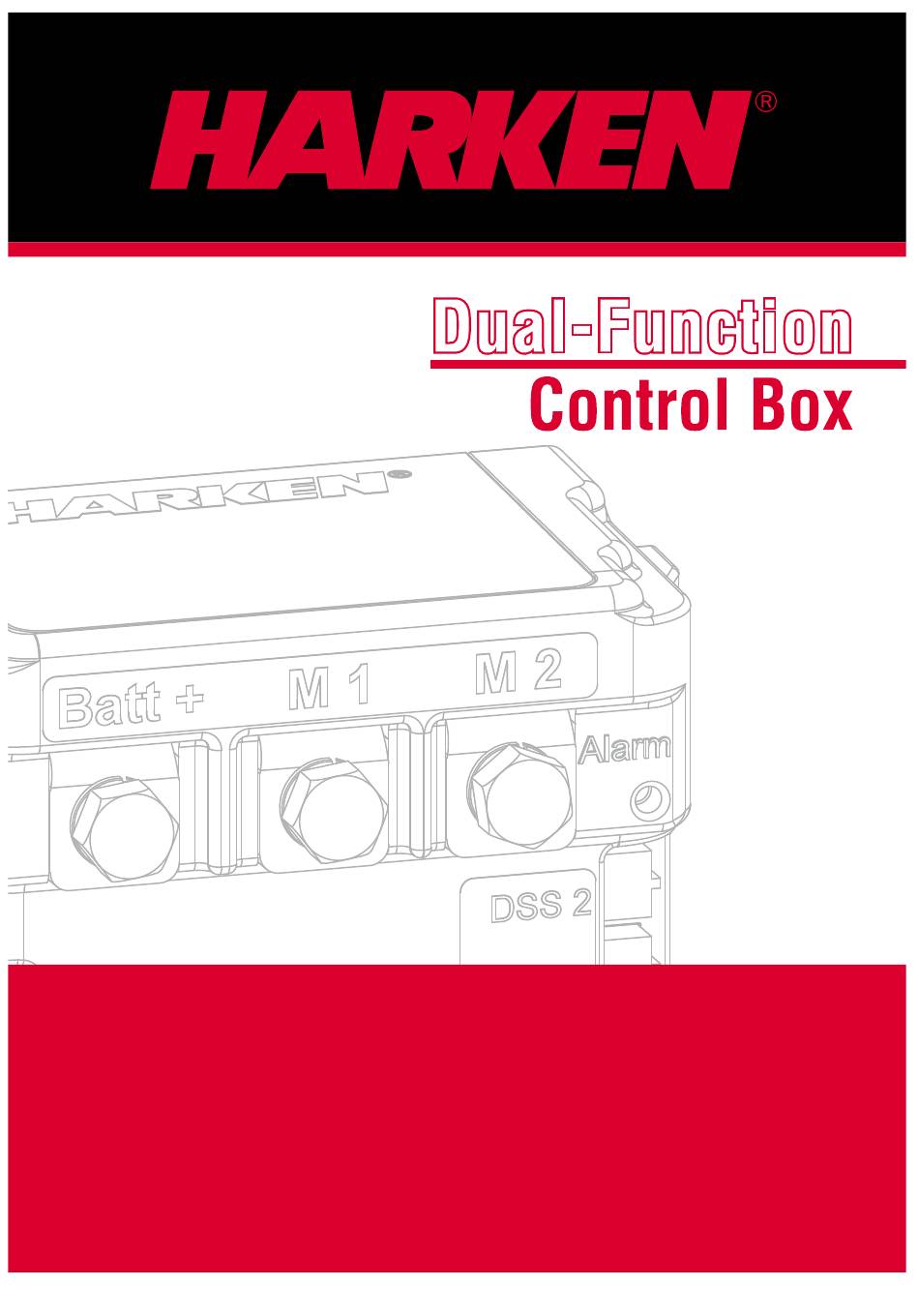

  • Page 1 Installations manual (EN) Mod.C...
  • Page 2: Table Of Contents

    INDEX GLOSSARY..........................SYMBOLS..........................SAFETY INFORMATION......................INTRODUCTION........................WINCH RADIAL-PERFORMA-CLASSIC-FLATWINDER 250..........WINCH RADIAL-PERFORMA-CLASSIC-FLATWINDER 250 48V........... WINCH REWIND-FLATWINDER 500..................WINCH REWIND-FLATWINDER 500 48V................WINCH UNIPOWER........................WINCH UNIPOWER 48V......................WINCH RADIAL-PERFORMA-CLASSIC-FLATWINDER 250 BRS.......... WINCH UNIPOWER BRS......................WINCH REWIND-FLATWINDER 500 BRS................WINCH RADIAL-PERFORMA-REWIND-UNIPOWER-CLASSIC-FLATWINDER DSS DECODER CAPTIVE WINCH........................
  • Page 3: Glossary

    GLOSSARY Intended use: specific and proper use of the device for which it is designed Improper use: use of the device in a different way from that indicated in the instructions for use specified in this manual Qualified operator: person who has attended specialisation and training about the use of the device User: person who uses the device regularly SYMBOLS...
  • Page 4: Safety Information

    Harken, the non-original part may not be suitable and the warranty will be invalidated. - Failure to install the device will void its warranty and the Harken product to which it is connected. - Refer to the warranty on the web site www.harken.com.
  • Page 5: Introduction

    INTRODUCTION An overview of the product Harken Dual Function Control Box is shown below: Motor connections Led alarm Qrcode Digital System Switch connections BRS1 connections BRS2 connections D0000 YYnnnnnnn Current monitor (optional) Serial number Details: - BRS1 and BRS2: two terminals for each Harken BRS switch.
  • Page 6 This manual gives information about the standard installations of the Dual Function Control Box for the following Harken products: - Winch Radial - Winch Performa - Winch Rewind - Winch UniPower - Winch Classic - FlatWinder - FlatWinder - Captive Winch...
  • Page 7: Winch Radial-Performa-Classic-Flatwinder Tm 250

    Fig.1 WINCH RADIAL - PERFORMA - CLASSIC - FLATWINDER Max cables length: 10m NOTE! All ground connections (Batt - ) must be connected at the same point: Batt- of DFCB to - of battery (as shown in the wiring above) NOTE! Minimize the distance between motor and DFCB.
  • Page 8: Tm 250 48V

    Fig.2 WINCH RADIAL - PERFORMA - CLASSIC - FLATWINDER MAX 1+1 12 or 24V Max cables length: 10m Side Connector 5A circuit breaker NOTE! 48V is the main battery tension value supplied to the motor through DFCB. 12V or 24V is the auxiliary battery supplied to the DFCB through the side connector. NOTE! All ground connections (Batt - ) must be connected at the same point: Batt- of DFCB to - of battery (as shown in the wiring above)
  • Page 9: Winch Rewind-Flatwinder Tm 500

    Fig.3 WINCH REWIND - FLATWINDER Max cables length: 10m NOTE! All ground connections (Batt - ) must be connected at the same point: Batt- of DFCB to - of battery (as shown in the wiring above) NOTE! Minimize the distance between motor and DFCB. Minimize the distance between DFCB and HCP.
  • Page 10 Fig.4 WINCH REWIND - FLATWINDER Motor Thermal Protection MAX 1+1 12 or 24V Max cables length: 10m Side Connector 5A circuit breaker NOTE! 48V is the main battery tension value supplied to the motor through DFCB. 12V or 24V is the auxiliary battery supplied to the DFCB through the side connector. NOTE! All ground connections (Batt - ) must be connected at the same point: Batt- of DFCB to - of battery (as shown in the wiring above)
  • Page 11: Winch Unipower

    Fig.5 WINCH UNIPOWER Max cables length: 10m NOTE! All ground connections (Batt - ) must be connected at the same point: Batt- of DFCB to - of battery (as shown in the wiring above) NOTE! Minimize the distance between motor and DFCB. Minimize the distance between DFCB and HCP.
  • Page 12: Winch Unipower 48V

    Fig.6 WINCH UNIPOWER MAX 1+1 12 or 24V Max cables length: 10m Side Connector 5A circuit breaker NOTE! 48V is the main battery tension value supplied to the motor through DFCB. 12V or 24V is the auxiliary battery supplied to the DFCB through the side connector. NOTE! All ground connections (Batt - ) must be connected at the same point: Batt- of DFCB to - of battery (as shown in the wiring above)
  • Page 13: Winch Radial-Performa-Classic-Flatwinder Tm 250 Brs

    10m CAUTION! Connect only one BRS switch to own couple of terminals, as shown in the image above. To install more BRS switches, please contact Harken Technical Service at techservice@harken.it NOTE! All ground connections (Batt - ) must be connected at the same point: Batt- of DFCB to -...
  • Page 14: Winch Unipower Brs

    10m CAUTION! Connect only one BRS switch to own couple of terminals, as shown in the image above. To install more BRS switches, please contact Harken Technical Service at techservice@harken.it NOTE! All ground connections (Batt - ) must be connected at the same point: Batt- of DFCB to -...
  • Page 15: Winch Rewind-Flatwinder Tm 500 Brs

    10m CAUTION! Connect only one BRS switch to own couple of terminals, as shown in the image above. To install more BRS switches, please contact Harken Technical Service at techservice@harken.it NOTE! All ground connections (Batt - ) must be connected at the same point: Batt- of DFCB to -...
  • Page 16: Winch Radial-Performa-Rewind-Unipower-Classic-Flatwinder

    Fig.10 WINCH RADIAL - PERFORMA - REWIND - UNIPOWER - CLASSIC - FLATWINDER DSS DECODER 1 or 2 x DSS Use DSS with decoder Max cables length: 10m NOTE! For more than 2 Digital System Switches: - do not connect any BRS switches - connect the DSS outputs to BRS1 and BRS2 inputs as shown in the image above - the connection to the motor follows the wiring schemes shown in this manual - for UniPower Winch use Single DSS version...
  • Page 17: Captive Winch

    Fig.11 CAPTIVE WINCH Motor Thermal Protection MAX 1+1 Max cables length: 10m 6 ways connectors LMT-OUT SLACK LMT-IN PROVIDED BY HARKEN PROVIDED BY HARKEN LMT-IN 6 ways connector 6 ways connector POLE #1 SLACK POLE #1 LMT-OUT NOTE! All ground connections (Batt - ) must be connected at the same point: Batt- of DFCB to -...
