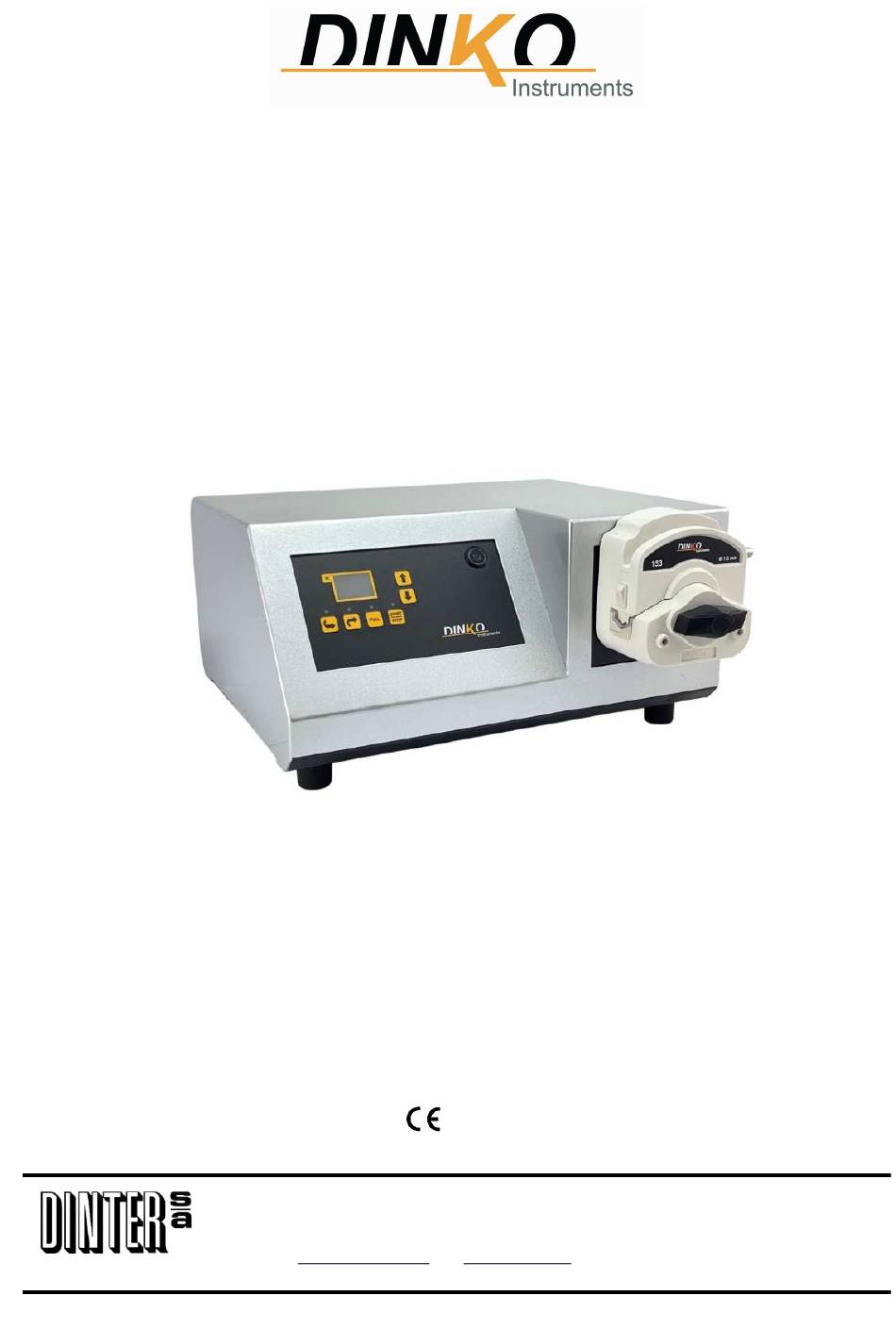

- Page 1 VARIABLE FLOW PERISTALTIC PUMPS Model D-25Vplus Codes 1.9747.00 , 1.9747.11 and 1.9747.50 MANUAL April 2023 Marked c/ Encarnació, 123 -125. Tel. +34 932 846 962. Fax +34 932 104 307 08024 - Barcelona e-mail: dinter@dinko.es www.dinko.es...
-
Page 2: Table Of Contents
INDEX Page 1- GENERAL INTRODUCTION······················································································· 3 2- PACKING LIST ········································································································ 3 3- RECEPTION ··········································································································· 4 4- DESCRIPTION ········································································································ 5 5- START UP ·············································································································· 8 6- CHANGE OF TUBES ······························································································· 10 7- ORDERING INFORMATION ······················································································ 11 8- MAINTENANCE - SPARE PARTS ·············································································· 12 9- COMPLEMENTS ·····································································································... -
Page 3: 1- General Introduction
GENERAL INTRODUCTION Peristaltic pumps pump all kinds of liquid substances without coming into contact with mechanical elements as in other pumps. They are easy to use with minimal maintenance. The pumped substance is impelled into an elastic tube by the vacuum generated by rotors that successively press and release the surface of the tube. -
Page 4: 3- Reception
RECEPTION To ensure correct reception, use of the device, and user safety, we recommend reading this manual in detail before proceeding to unpack the device and subsequent use, and especially the following points: 3.1- THE MANUAL This manual must be permanently kept within the equipment user's reach. 3.2- UNPACKING Unpack the appliance, checking that the contents match the packing list Immediately notify any eventuality. -
Page 5: 4- Description

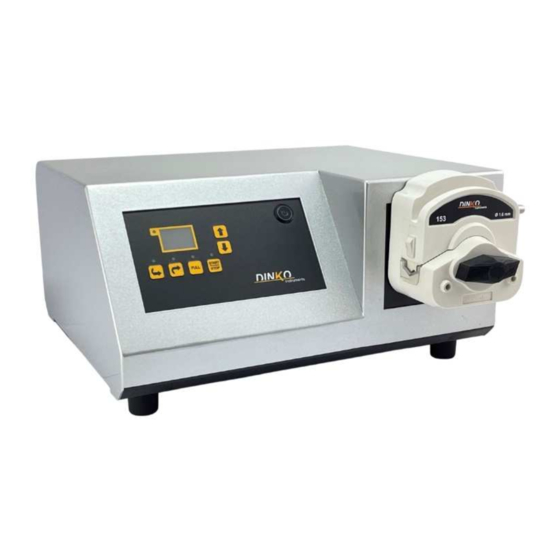

DESCRIPTION The D-25Vplus peristaltic pumps in this manual mount the 153-3r head that allows easy access to the tube for removal when it must be replaced. On the easy-load 153-3r head, simply pull up and to the left of the lever (1) located on the top right of the head to raise the top and open the head for tube replacement. - Page 6 4.2- DESCRIPTION OF THE FRONT PANEL A-Digital Reader 1-Key direction of rotation 2-Key direction of rotation 3-Key Full 4-Start / Stop key-Memo start 5 and 6- Decrease and increase keys 7- Switch for programming 4.3- DESCRIPTION OF THE REAR PANEL 1- ON/OFF general switch 4- Input for voltage-free pedal 2- Fuse box...
- Page 7 5 PIN CONNECTOR (0-10V / 4-20 mA). 0-10V and 4-20 mA CONNECTION 1- Positive (+) pin for 0-10V control 2- Negative (-) pin for 0-10V control 3- not connect 4- Positive (+) pin for 4-20 mA control 5- Negative (-) pin for 4-20 mA control WARNING : Do not use simultaneously the two inputs (0-10 V and 4-20 mA).
-
Page 8: 5- Start Up
5- START UP Make sure that the mains voltage is between 110 and 230 V. Connect the power cable to the rear plug and to the network. Consult the indicative flow table and install the appropriate tube. See tips in the Tube Change and Head Description section. Select the desired function. - Page 9 · Cycle Programming Function 1- Connect to the network 2- Hold down keys no. 1 and no. 3 while operating the rear ON/OFF general switch no. 7 and then the front switch no. 13. The green light will light up and the yellow light of key no. 1 will light intermittently.
-
Page 10: 6- Change Of Tubes
6- CHANGE OF TUBES Press the OFF switch. Extract the tube according to the indications described in the “Description” and “Head” section. When the new tube is installed, it should be centered over the rollers to prevent the rotor from pinching it. Check that the pump is OFF. -
Page 11: 7- Ordering Information
AVAILABLE MATERIALS PHARMA Autoclavable multiple times. ETO and Gamma sterilizable . Medical-food grade, class VI USP, 21CFR 177.2600 and FDA. Not hemolytic. Excellent resistance to chemicals. ISO 10993. Low permeability and good resistance to abrasion. Long duration. Use temperature, -51ºC to 132ºC Beige. -
Page 12: 8- Maintenance-Spare Parts
Before any examination or repair of the appliance, it is necessary to disconnect the mains plug. Any initiative must be carried out by qualified personnel to avoid greater evils. Entrust your device to a technical service authorized by DINKO Instruments. The engine and its block do not require greasing, so they do not have maintenance. -
Page 13: 9- Complements
9- ACCESSORIES 9.1 Balance for flow and dosage calibration . Reproducibility 0,01 g. 1000g capacity. Code 1.9812.01 To measure the quantity dosed in the Calibration process of peristaltic pumps, it is very effective to use a precision balance with digital reading. If the liquid to be pumped has density "1"... - Page 14 CONNECTORS FOR PERISTALTIC TUBES 9.5 Reducing Splice Connectors / Same Ends, Polypropylene For tubes 1,6/3,2mm. inside Ø. Code1.0080.15 For tubes 3,2/4,8mm inside Ø. Code 1.0080.18 For tubes 4,8/6,4mm inside Ø. Code 1.0080.05 For tubes 6,4/8mm inside Ø. Code 1.0080.14 For tubes 8/12,7mm inside Ø. Code 1.0080.20 9.6 Straight connector for fitting/reducer, polypropylene Straight connector / reducer Ø...
-
Page 15: 10- Changing The Fuses
10- CHANGE OF FUSES The fuse box is part of the power base located at the rear of the pump. See Figure. main switch Fuse box power base Pry with a screwdriver between the central part of the fuse holder box and the upper part of the power supply base to remove the fuse holder box. -
Page 16: 12- Warranty
12- WARRANTY 12.1 DURATION The guarantee is established for a period of 1 year from the date of commissioning of the device, provided that the guarantee card is returned to us within 8 days of said commissioning. Without this condition the guarantee will not be valid. 12.2 SCOPE OF WARRANTY: The guarantee is given against manufacturing and material defects for an average work week of 40 hours. -
Page 17: 13- Ec Declaration Of Conformity
13- “CE” DECLARATION OF CONFORMITY DINTER SA DINKO Instruments c/ Encarnació, 123-125 / 08024- Barcelona Declares that the items mentioned in the attached list, to which this declaration refers, comply with the essential safety requirements of the applicable European Directive:... -
Page 18: 14- Other Appliances
