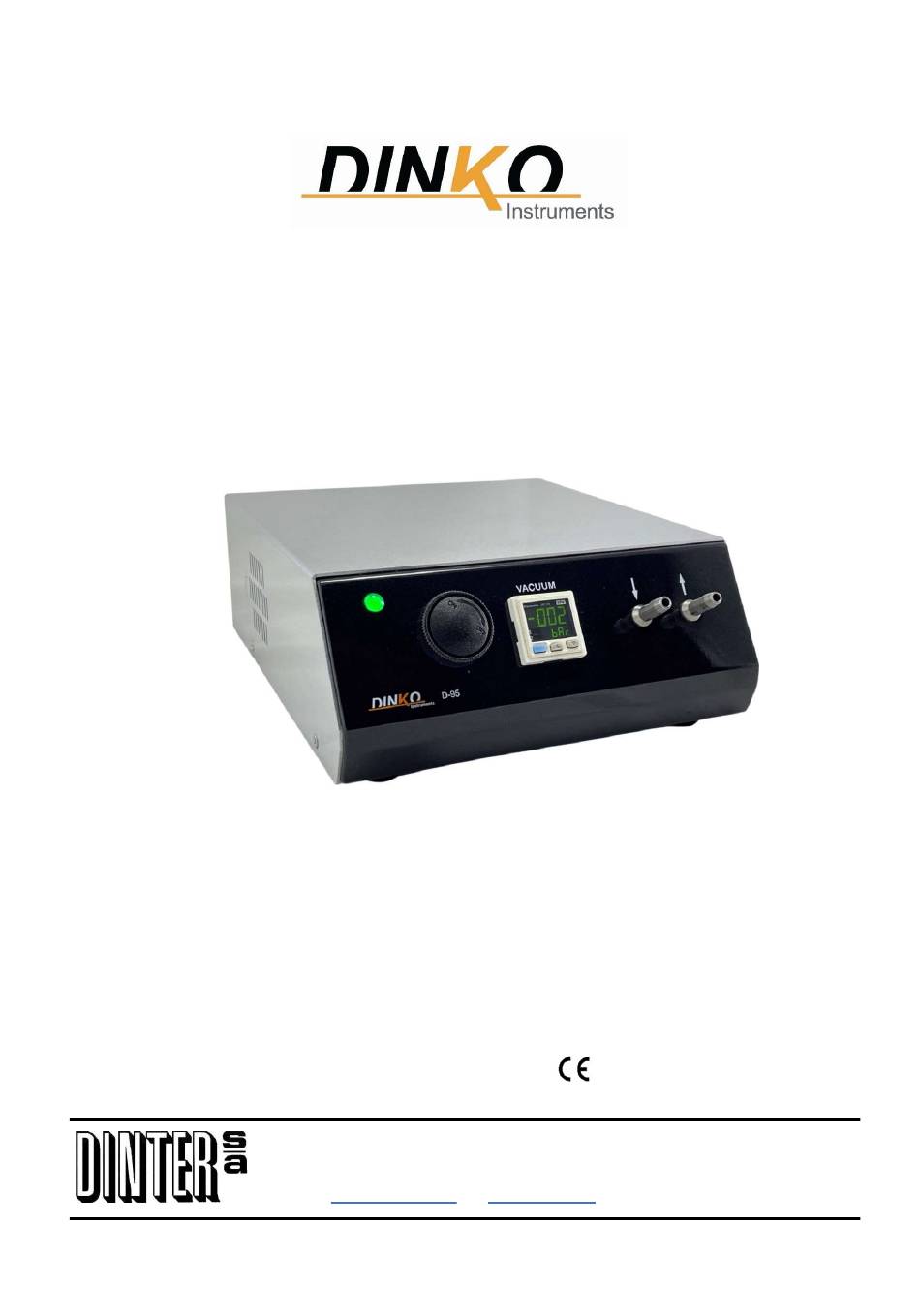

- Page 1 D-95 DIGITAL VACUUM PUMPS Code 1.9513.00 MANUAL June 2024 Marked c/ Encarnació , 123 -125. Tel. +34 93 284 69 62. Fax +34 93 210 43 07 e-mail: dinter@dinko.es www.dinko.es 08024 - Barcelona...
-
Page 2: Table Of Contents
INDEX Page 1- General introduction ············································· 3 2- Packing list ·························································· 3 3- Overview ····························································· 4 Front view ··························································· 4 Rear view ···························································· 4 4- Commissioning and Control ··································· 5 5- Digital vacuum indicator ········································ 5 6- Configuration ······················································· 6 7- Lock/Unlock ·························································... -
Page 3: Vacuum Pump
VACUUM PUMP With digital vacuum indicator MODEL D-95 Code 1.9513.00-Flow rate 15L/min. Maximum vacuum -0.86 ± 2% bar-Maximum pressure 2 bar 1- GENERAL INTRODUCTION The following considerations are intended to ensure proper reception, use of the device, and user safety. We recommend reading this manual before unpacking the device and subsequent use. -
Page 4: General Description
3- GENERAL DESCRIPTION DINKO vacuum pumps are membrane pumps. On its front panel there are vacuum and pressure nozzles, a digital vacuum indicator and vacuum regulator control. The membranes are made of FPM ® material and the pump head is made of PPS / PRIMEF ® (polyphenylene sulfide ) containing fiberglass, which makes them more resistant to acids and solvents. -
Page 5: 4- Commissioning And Control
4- COMMISSIONING AND CONTROL Check that the start switch (1) is in position O Connect the power cable to the equipment and to the power supply at 230V AC 50Hz Install the silicone tube to the suction nozzle Press the rear main switch, close the silicone tube with a clamp or by hand and turn the adjustment knob completely to the right. -
Page 6: 6- Configuration
6- SETTING The vacuum gauge is factory configured to work in vacuum units in bars with a range between 0.00 and -1.000 bar. It is also locked at the factory, so it is not possible to modify the parameters without unlocking it. 7- LOCK/UNLOCK The indicator is factory programmed in a blocked situation. -
Page 7: 8- Programming
8- PROGRAMMING The digital indicator is programmed at the factory. It is advisable not to modify these parameters. To view it, with the pump connected and the external connector installed in its base, press M for 2 seconds to obtain the following succession of screens Home Screen Press M 2 sec... - Page 8 To modify press ▲▼ Press M Screen color To modify press ▲▼ Press M Selection To modify press ▲▼ Press M Home Screen The programming shown in the previous configuration is the most indicated and it is preferable not to modify it.
-
Page 9: 9- Vacuum Regulation
9- VACUUM REGULATION With the pump connected to the system under vacuum and the regulation knob “2” completely closed (turning it clockwise), the vacuum indicator will show the maximum vacuum reached by the system. If you want to adjust to a lower range, turn the adjustment knob “2” slowly to the left, until the desired vacuum is reached. -
Page 10: 12- Tables
12- BOARDS Data of interest based on the relationship: Vacuum gauge reading = Atmospheric pressure – residual pressure The following usefulness equivalences can be established from…to Kgf /cm mmHg In Hg mm H 0.001 0.000001 0.000010197 0.00750062 0.000145038 0.00001 0.0002593 0.101968 1kPa 1000,000... -
Page 11: 13- External Connection Operation
13- EXTERNAL CONNECTION OPERATION Using the connector supplied with the pump, any system (PLC, etc.) that activates the pump's relay control can be connected. You can also connect a pedal that will operate the pump when stepped on. When you connect the pedal, the pump will remain stopped. -
Page 12: Electrical Power Supply
Before proceeding with any examination or repair of the device, it is necessary to disconnect the mains socket. All initiatives must be carried out by qualified personnel to avoid greater harm. Entrust your device to a technical service authorized by DINKO Instruments. DINKO vacuum pumps do not require maintenance, as they have self-ventilated magnetic induction motors that work dry. -
Page 13: 19- Exploded View
19- DIAGRAMM Pumps 1.9513.00 Note of interest: Disposal of waste electrical and electronic equipment by users within the European Union. This symbol on the product or packaging indicates that it cannot be disposed of as household waste. You must dispose of your residual equipment by handing it over to the collection agency for the recycling of electrical and electronic equipment. -
Page 14: 20- Anomalies
20- ANOMALIES The pump does not seem to give the expected vacuum: There may be an entry of air into the vacuum chamber. Disconnect the pump from the system, turn the vacuum regulation knob completely to the right and close the suction nozzle with your finger. The pump vacuum gauge should indicate the maximum usual vacuum of the pump. -
Page 15: Warranty
22- “CE” DECLARATION OF CONFORMITY DINTER SA DINKO Instruments . c/ Encarnació , 123-125 / 08024 - Barcelona Declares that the articles mentioned in the attached list, to which this declaration refers, comply with the essential safety requirements of the applicable European Directive:... -
Page 16: 23- Other Dinko Devices
OTHER DINKO APPARATUS -Blenders-Homogenizers -Colorimeters - Conductivity meters - Extractor for meat analysis - Heating Plates - Infrared ovens - Kits for water analysis - Magnetic Stirrers. - Metallic Block Heaters - Microscopes - Nephelometers - Orbital Shakers -Oxygen Meters - Peristaltic pumps - pH-meters - Photometers...
