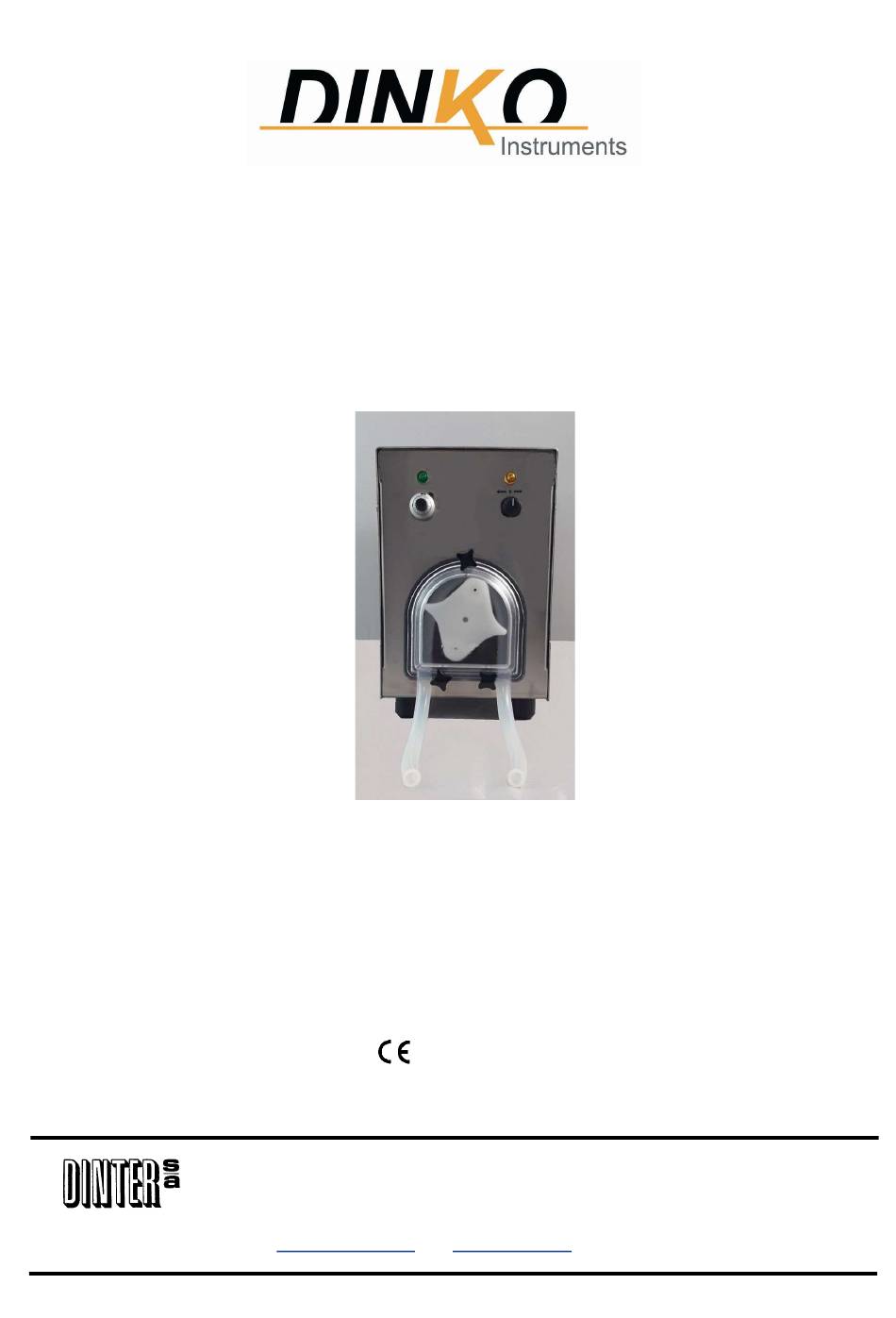

- Page 1 VARIABLE FLOW PERISTALTIC PUMPS Model D-21V Codes 1.9730.29 and 1.9730.31 MANUAL May 2024 c/ Encarnació , 123 -125. Tel. +34 93 284 69 62. Fax +34 93 210 43 07 e-mail: dinter@dinko.es www.dinko.es 08024-Barcelona...
- Page 2 INDEX Page Introduction Packing list Reception Description Description of heads Specifications Commissioning Ordering information Maintenance-Spare Parts Complements Tube change Changing fuses Troubleshooting Guarantee CE” DECLARATION OF CONFORMITY...
- Page 3 1- GENERAL INTRODUCTION Peristaltic pumps pump all kinds of liquid substances without coming into contact with the mechanical elements as occurs in other pumps. They are simple to use and require minimal maintenance costs. The pumped substance is propelled inside an elastic tube thanks to the vacuum generated by a set of rotors that successively press and release the surface of the tube.
- Page 4 3- RECEPTION To guarantee correct reception, use of the device, and the safety of the user, we recommend reading this manual in detail before proceeding to unpack the device and subsequent use and especially the following points: 3.1- THE MANUAL This manual must be kept permanently within reach of the user of the equipment.
- Page 5 5- Fan 5- HEAD DESCRIPTION The D-21V peristaltic pumps allow access to the tube for extraction when it needs to be replaced. The cover is removed by extracting the three retaining knobs. They allow two sizes of tube which, combined with the electronic speed regulation, gives a variety of flows, as can be seen in the table.
- Page 6 European Machinery Directive 2006/42/EC are met! 8- ORDERING INFORMATION Code ▼ Description 1.9730.31 D-21V pump with 1500-2r head, 110rpm, 100...240V 50/60Hz 1.9730.29 D-21V pump with 1500-2r head, 330rpm, 100...240V 50/60Hz 1.9740.01 Foot switch (pedal). 1.8119.00...
- Page 7 9.1 Before proceeding with any repair on the device, it is necessary to disconnect the mains socket. All initiatives must be carried out by qualified personnel to avoid greater harm. Entrust your device to a technical service authorized by DINKO Instruments. 9.2 The engine and block do not require lubrication, so they are maintenance-free. rotor bearings They are self-lubricating but it is advisable to lightly lubricate them along with the roller and the tube with grease silicone from time to time, especially if you have washed the pump head.
- Page 8 10 -COMPLEMENTS 10.1 Scale for calibration of flow rates and dosages. Reproducibility 0.1 g. Capacity 600g. Code 8.9812.02 To measure the dosed quantity in the Calibration process of peristaltic pumps, it is very effective to use a precision scale with digital reading. If the liquid to be pumped has a density of “1”...
- Page 9 CONNECTORS FOR PERISTALTIC TUBES 10.5 Reducing Connectors - Splice/Equal Ends, Polypropylene For tubes with 1.6mm ID. Code1.0080.15 For tubes with 3.2mm ID. Code 1.0080.18 For tubes with 4.8mm ID. Code 1.0080.05 For tubes with 6.4/8 mm ID. Code 1.0080.14 For 8/12mm ID tubes. Code 1.0080.20 10.7 Y-shaped connectors, polypropylene Y shape connector, 6mm.
- Page 10 11- CHANGE OF TUBES A set of medical/food grade silicone peristaltic tubes are supplied with each pump according to FDA and USP standards, autoclavable at 120ºC, with peristaltic use range up to 80ºC and medium duration. For industrial use, it is supplied with Tygon A-60-G tube. ® The peristaltic quality of the tubes or rubbers consists of their ability to quickly recover their roundness once the rollers of the peristaltic head of the pump have compressed it to generate the circulation of liquids inside.
- Page 11 1 1.1 AVAILABLE TUBES PHARMA Autoclavable multiple times. Sterilizable by ETO and Gamma. Food-medical grade, USP class VI, 21CFR 177.2600 and FDA. Not hemolytic. Excellent resistance to chemicals. ISO 10993. Low permeability and good abrasion resistance. Long duration. Use temperature, -51ºC to 132ºC Beige.
- Page 12 12- FUSE CHANGE The rifle holder is part of the power supply base located at the back of the bomb. See Figure. Main ON/OFF switch Fuse holder box Connection for power cable Pry with a screwdriver between the central part of the fuse holder box and the top part of the power supply base to remove the fuse holder box.
- Page 13 14- WARRANTY DURATION: The warranty is established for a period of 1 year from the date of commissioning of the device as long as the warranty card is returned to us within 8 days following said commissioning. Without this condition the guarantee will not be valid. SCOPE OF WARRANTY: The guarantee is given against manufacturing and material defects for an average of 40 hours of work per week.
- Page 14 - Safety rules for electrical measurement, control and laboratory devices. Part I. Prescriptions general EN 61010-1 However, the user must observe the assembly and connection instructions indicated in the product catalogs. Technical instructions. Name: Joan A. Bravo Josep X. Sensada Post: Technical director Quality manager Signature D-21V Peristaltic Pumps...
- Page 15 OTHER DINKO APPARATUS / OTHER DINKO APPARATUS - Blenders-Homogenizers - Colorimeters - Conductivity Meters - Dosing Pumps - Extractor for meat analysis - Heating Plates - Infrared Stoves - Kits for water analysis - Magnetic Stirrers - Metallic block heaters - Microscopes - Nephelometers - Orbital Shakers...
