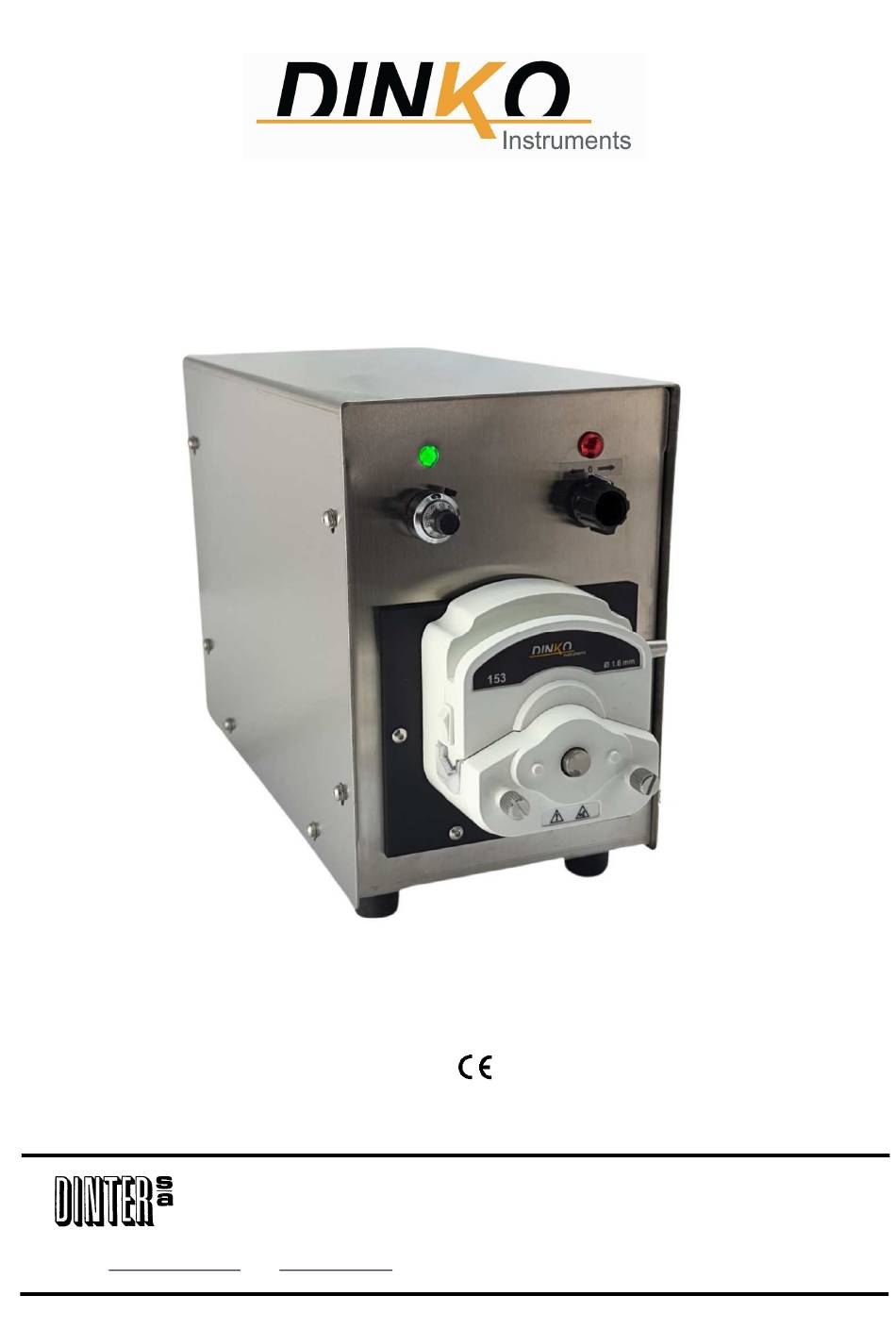

- Page 1 VARIABLE FLOW PERISTALTIC PUMPS Model D-21V Codes 1.9730.14, 1.9730.32 and 1.9730.54 MANUAL January 2024 c/ Encarnació , 123 -125. Tel. +34 93 284 69 62. Fax +34 93 210 43 07 e-mail: dinter@dinko.es www.dinko.es 08024-Barcelona...
- Page 2 INDEX Page 1- Introduction 2- Packing list 3- Reception 4- Description 5- Description of heads 6- Specifications 7- Commissioning 8- Tube change 9- Available materials 10- Ordering information 11- Maintenance-Spare Parts 12- Accessories 13- Changing fuses 14- Troubleshooting 15- Warranty 16- “CE”...
-
Page 3: General Introduction
A large number of tubes or hoses of different sizes are available made of materials resistant to various conflicting substances. 2- PACKING LIST Item Code Quantity Peristaltic Pump D-21V 1.9730.14 or 1.9730.32 or 1.9730.54 Connections set Power cable Instruction Manual... - Page 4 3- RECEPTION To guarantee correct reception, use of the device, and the safety of the user, we recommend reading this manual in detail before proceeding to unpack the device and subsequent use and especially the following points: 3.1- THE MANUAL This manual must be kept permanently within reach of the user of the equipment.
-
Page 5: Front Panel Description
4- DESCRIPTION 4-1 FRONT PANEL DESCRIPTION 1- Green pilot light for network connection indicator. 2- Red pilot light operating indicator 3- Speed regulation dial potentiometer 4-Rotation direction selector ←,→ and stop. 5-Pump head 4-2 BACK PANEL DESCRIPTION 1 - Main ON/OFF switch 2 - Fuse holder box 3- Power socket 4- Voltage-free pedal input... - Page 6 5- HEAD DESCRIPTION The D-21V peristaltic pumps in this manual have the 153-3r head that allows easy access to the tube for extraction when it needs to be replaced. On the easy-load 153-3r head, simply pull up and to the left on the lever (1) located at the top right of the head to raise the top and open the head for tube replacement.
-
Page 7: Specifications
6- SPECIFICATIONS 6.1 Dimensions: 165 x305 x 240mm. Width x depth x height. Weight: 7 Kg. Operation: 100…230V 50/60Hz. 1Amp 6.2 FLOW TABLE - Indicative regulation intervals for each tube, ml/min Code Pump Tube ◄ ▼ head Ø mm 153-3r 175-1300 1.9730.32 0.5-8.5... - Page 8 8- CHANGE OF TUBES Press the OFF switch. Extract the tube according to the instructions described in the “153-3r head description” section of this manual. When the new tube is installed, it must be centered over the rollers to prevent the rotor from pinching it. Check that the pump is OFF.
-
Page 9: Ordering Information
Before any examination or repair of the device, it is necessary to disconnect the mains socket. All initiatives must be carried out by qualified personnel to avoid greater harm. Entrust your device to a technical service authorized by DINKO Instruments. The engine and its block do not require lubrication, so they do not have maintenance. - Page 10 12- ACCESSORIES 12.1 Scale for calibration of flow rates and dosages Reproducibility 0,1 g. Capacity 600g. Code 1.9812.02 To measure the dosed quantity in the Calibration process of peristaltic pumps, it is very effective to use a precision scale with digital reading. If the liquid to be pumped has a density of “1”...
- Page 11 CONNECTORS FOR PERISTALTIC TUBES 12.5 Straight Splice/Equal End Connectors, Polypropylene Straight connector for 6,4/8mm inner Ø tubes. Code 1.0080.05 Straight connector for 8/12,7mm inner Ø tubes. Code 1.0080.20 12.6 Straight Splice/Reducer Connector, Polypropylene Straight connector / reducer Ø 4-5-8 to 7-10-12mm. Code 1.0120.31 12.7: Y-shaped connectors, polypropylene Y shape connector, 6mm.
-
Page 12: Changing Fuses
13- CHANGING FUSES The fuse holder box is part of the power supply base located at the back of the pump. See Figure. Main switch Fuse holder box Power base Pry with a screwdriver between the central part of the fuse holder box and the top part of the power supply base to remove the fuse holder box. -
Page 13: Warranty
WARRANTY DURATION: The warranty is established for a period of 1 year from the date of commissioning of the device as long as the warranty card is returned to us within 8 days following said commissioning. Without this condition the guarantee will not be valid. SCOPE OF WARRANTY: The guarantee is given against manufacturing and material defects for an average of 40 hours of work per week. - Page 14 - Safety rules for electrical measurement, control and laboratory devices. Part I. Prescriptions general EN 61010-1 However, the user must observe the assembly and connection instructions indicated in the product catalogs. Technical instructions. Name: Joan A. Bravo Josep X. Sensada Post: Technical director Quality manager Signature Peristaltic Pumps D-21V...
- Page 15 OTHER DINKO APPARATUS / OTHER DINKO APPARATUS - Blenders-Homogenizers - Colorimeters - Conductivity Meters - Dosing Pumps - Extractor for meat analysis - Heating Plates - Infrared Stoves - Kits for water analysis - Magnetic Stirrers - Metallic block heaters - Microscopes - Nephelometers - Orbital Shakers...
