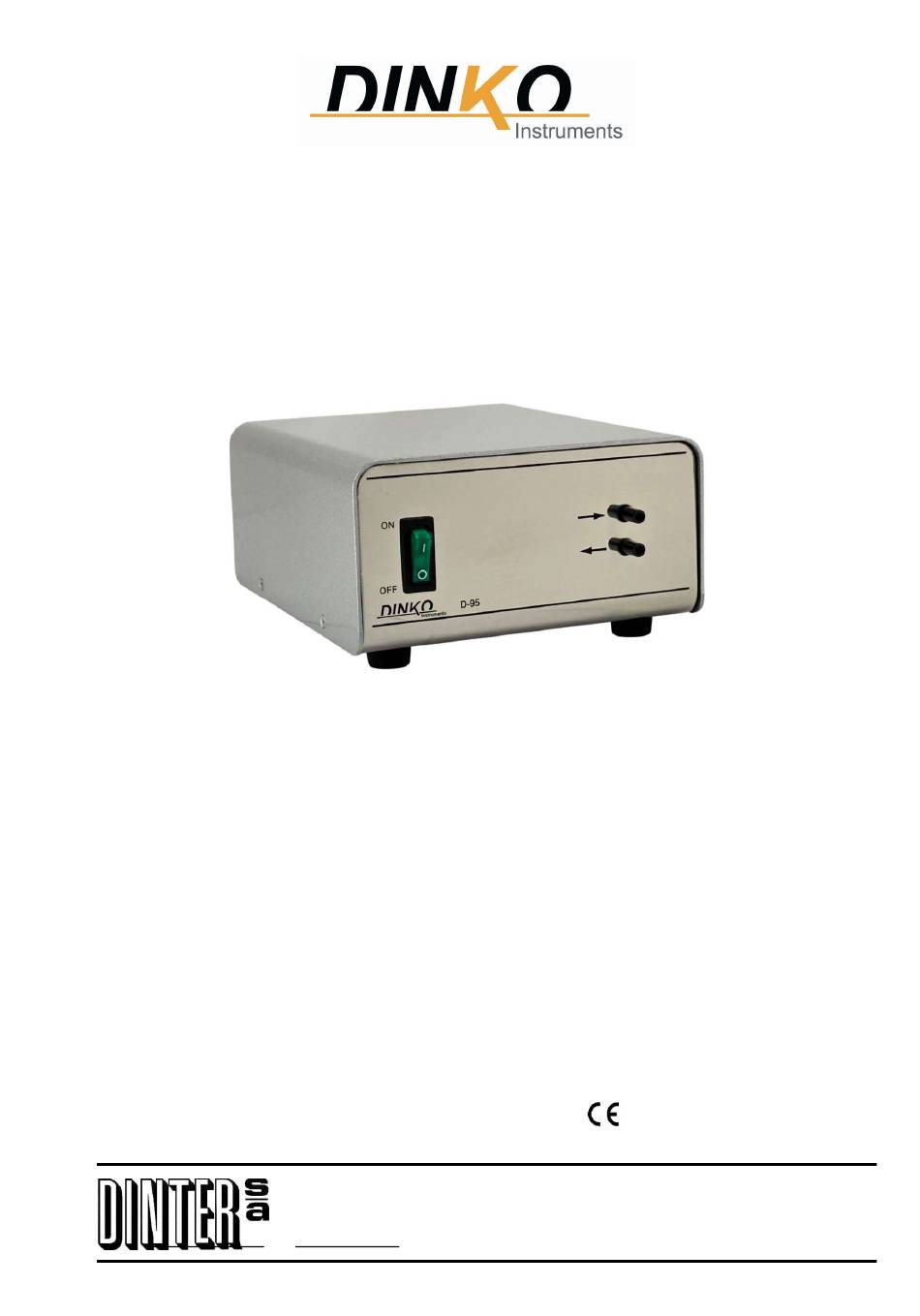

- Page 1 D-95 VACUUM PUMPS Code 1.9511.00 MANUAL June 2024 Marked c/ Encarnació, 123 -125. Tel. +34 93 284 69 62. e-mail: dinter@dinko.es www.dinko.es 08024 - Barcelona...
-
Page 2: Table Of Contents
INDEX Page General introduction ············································································· 3 Packing list ························································································· 3 Description ························································································· 3 Commissioning ···················································································· 4 Accessories ························································································ 4 Vacuum trap installation diagram ··························································· 4 Specifications ······················································································ 4 Operation-Electrical data ······································································· 4 Changing fuses ···················································································· 5 Maintenance-spare parts ······································································· 5 Guarantee ···························································································... -
Page 3: 1- General Introduction
Vacuum nozzle pressure nozzle D-95 vacuum pump. Code 1.9511.00: Maximum vacuum -0.860 ± 2%. Flow rate: 6l/min. Pressure: 2bar DINKO vacuum pumps are diaphragm pumps. They consist of the main ON/OFF switch and the vacuum and pressure nozzles on their front panel. -
Page 4: 4- Commissioning
4- START UP Connect the power cable to the 230V 50Hz network. Install the silicone tube in the front suction nozzle and press the main ON/OFF switch. The free end of the tube will begin to suck in air. If the system to be vacuumed is prepared, connect the tube to this system. -
Page 5: Fuse Change
Before proceeding with any examination or repair of the device, it is necessary to disconnect the mains socket. All initiatives must be carried out by qualified personnel to avoid greater harm. Entrust your device to a technical service authorized by DINKO Instruments. DINKO vacuum pumps do not require maintenance, as they have self-ventilated magnetic induction motors that work dry. -
Page 6: 11- Guarantee
12- “CE” DECLARATION OF CONFORMITY DINTER SA DINKO Instruments c/ Encarnació, 123-125 / 08024 – Barcelona Declares that the articles mentioned in the attached list, to which this declaration refers, comply with the essential safety requirements of the applicable European Directive:... -
Page 7: 13- Exploded View
13- DIAGRAMM Currently applicable to Pumps 1.9511.00, 1.9511.10, 1.9511.11 and 1.9511.12... -
Page 8: 14- Anomalies
14- ANOMALIES The pump does not seem to give the expected vacuum: a) There may be an entry of air into the vacuum chamber. With the pump running, disconnect the pump from the enclosure and plug the suction nozzle with your finger. -
Page 9: 15- Other Devices
OTHER DINKO APPARATUS -Blenders-Homogenizers -Colorimeters - Conductivity meters - Extractor for meat analysis - Heating Plates - Infrared ovens - Kits for water analysis - Magnetic Stirrers. - Metallic Block Heaters - Microscopes - Nephelometers - Orbital Shakers Oxygen Meters - Peristaltic pumps - pH-meters - Photometers...
