Summary of Contents for DINKO Instruments D-25VXi

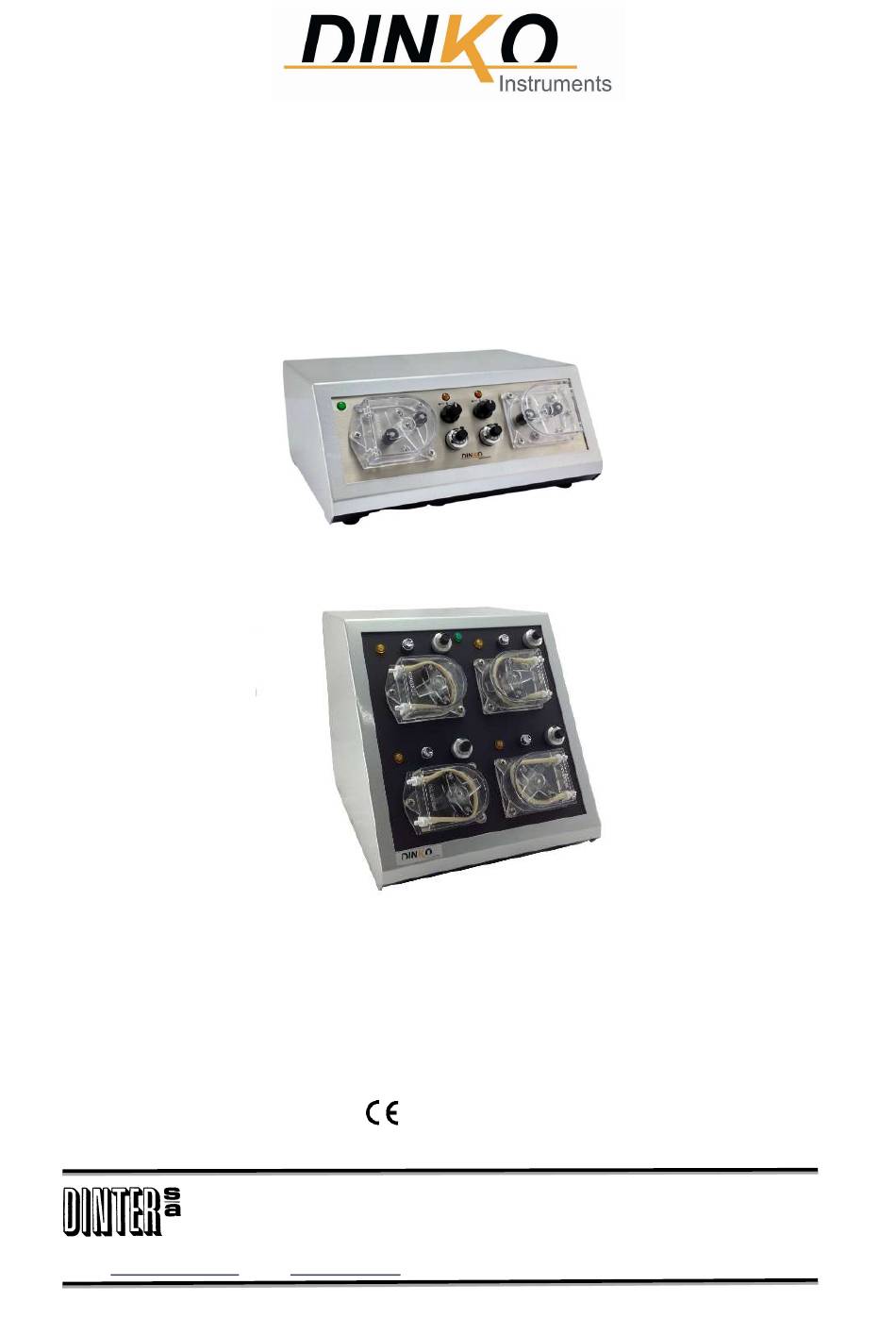

- Page 1 PERISTALTIC PUMP VARIOUS HEADS Model D-25VXi Codes 1.9733.05/9738.00/1.9738.01/3734.05/1.9739.00/1.9739.01 MANUAL June 2023 c/ Encarnació , 123 -125. Tel. +34 93 284 69 62. Fax +34 93 210 43 07 dinter@dinko.es www.dinko.es e-mail: 08024-Barcelona...
-
Page 2: Table Of Contents
INDEX Page 1- GENERAL INTRODUCTION …………………………………………………………………………. 3 2- PACKING LIST ……………………..………………………………………………………….....3 3- RECEPTION ……………………….…………………………………………………………………… 4 4- DESCRIPTION …………..…………………………………………………………………………..5 5- START UP ..………………………………………………………………………………....5 6- CHANGING THE TUBES ..………………………………..…………………………………….….… 6 7- ORDERING INFORMATION .…………..……………………………………………………..... 7 8- MAINTENANCE – SPARE PARTS ..……………………………………………………………..7 9- COMPLEMENTS …….…………………………………………..……………………………………. -
Page 3: 1- General Introduction
-The devices that are sent to the technical services of DINKO Instruments must be perfectly clean and disinfected . Otherwise, they will be rejected and returned with postage paid by the owner. -
Page 4: 3- Reception
3- RECEPTION To ensure correct reception, use of the device, and user safety, we recommend reading this manual in detail before proceeding to unpack the device and subsequent use, and especially the following points: 3.1- THE MANUAL This manual must be permanently kept within the equipment user's reach. 3.2- UNPACKING Unpack the appliance, checking that the contents match the packing list. -
Page 5: 4- Description

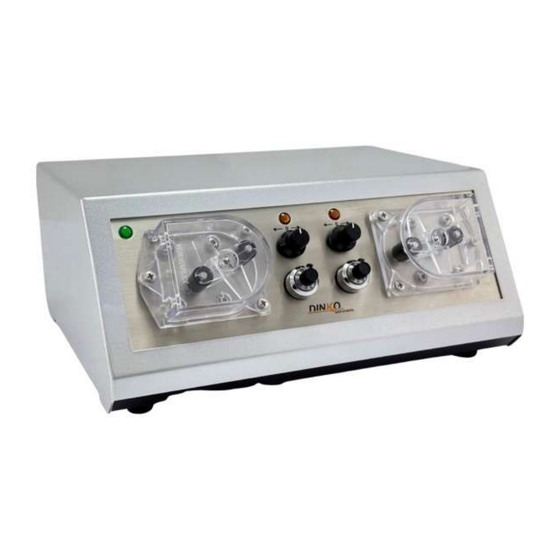

4- DESCRIPTION The D-25VXi peristaltic pump is provided with 50-2r heads that allow access to the tube for extraction when it must be replaced due to wear or for sterilization. It will suffice to remove the cover by removing the three fastening screws. -
Page 6: 6- Changing The Tubes
6- CHANGE OF TUBES Press the OFF switch. Extract the tube according to the indications described in the “Description” and “Heads” section. When removing the tube from the heads, do it together with its fixing terminals. When the new tube is installed, it should be centered over the rollers to prevent the rotor from pinching it. Take advantage of the slow rotation of the rotor to insert the new tube. -
Page 7: 7- Ordering Information
Before proceeding with any examination or repair of the device, disconnect the power supply. Any initiative must be carried out by qualified personnel to avoid greater evils. Entrust your device to a technical service authorized by DINKO Instruments. LUBRICATED The engine and its block do not require greasing, so they are maintenance-free. -
Page 8: 9- Complements
Codes for 2 connectors with 15cm tube for 50-3r head. Pack with 5 games Internal Ø tube ► 0,5mm 0,8mm 1,6mm 3,2mm 4,0mm 4,8mm 6,4mm ▼ PHARMA 1.8717.08 1.8717.16 1.8717.32 1.8717.48 1.8717.64 Tygon A-60-C ® 1.8745.16 1.8745.32 1.8745.48 1.8745.64 Tygon A-60-G ® 1.8755.16 1.8755.32 1.8755.48 1.8755.64... - Page 9 CONNECTORS FOR PERISTALTIC TUBES 9.5 Reducing Connectors - Splice / Same Ends, Polypropylene For 1,6/3,2mm internal Ø tubes. Code1.0080.15 For 3,2/4,8mm internal Ø tubes. Code 1.0080.18 For 4,8/6,4mm internal Ø tubes. Code 1.0080.05 For 6,4/8mm internal Ø tubes. Code 1.0080.14 For 8/12,7mm internal Ø...
-
Page 10: 10-Troubleshooting
10-TROUBLESHOOTING The following table of faults, their causes and possible solutions, is not intended to cover all possibilities. However, inconveniences to the user can be avoided which actually have easily avoidable causes. PROBLEM CAUSE SOLUTION Check cable and plugs lack of food change fuse It does not start and the pilot lights do not light blown fuse... -
Page 11: 12- Flow Chart
13- FLOW TABLES Indicative adjustment intervals for each tube diameter 0,5mm 0,8mm 1,6mm 3,2mm 4,0mm 4,8mm 6,4mm ◄Tube Ø ▼ 0,6-5,2 1,5-16 5,6-65 25-225 35-283 70-400 130-700 0,15-2,2 0,4-5,6 1,3-24 3,8-73 5,9-114 8,9-145 16-258 ml/min 0,05-0.8 0,13-2,0 0,6-7,5 1,5-23 2,1-35 3,2-45 5,7-81 The indicated flows are approximate and refer to liquids with a viscosity similar to water at 20ºC without... -
Page 12: 14- Ec Declaration Of Conformity
- Safety rules for electrical measurement, control and laboratory devices. Part I. General prescriptions EN 61010-1 However, the user must observe the assembly and connection instructions indicated in the technical instructions catalogues. Name Joan A. Bravo Josep X. Sensada Position: Technical Director Responsible for Quality Signature Model: Peristaltic Pump D-25VXi... -
Page 13: 15- Other Dinko Appliances
OTHER DINKO APPARATUS - Blenders-Homogenizers - Colorimeters - Conductivity Meters - Dosing Pumps - Extractor for meat analysis - Heating Plates - Infrared Stoves - Kits for water analysis - Magnetic Stirrers - Metallic block heaters - Microscopes - Nephelometers - Orbital Shakers - Oximeters - Peristaltic Pumps...
