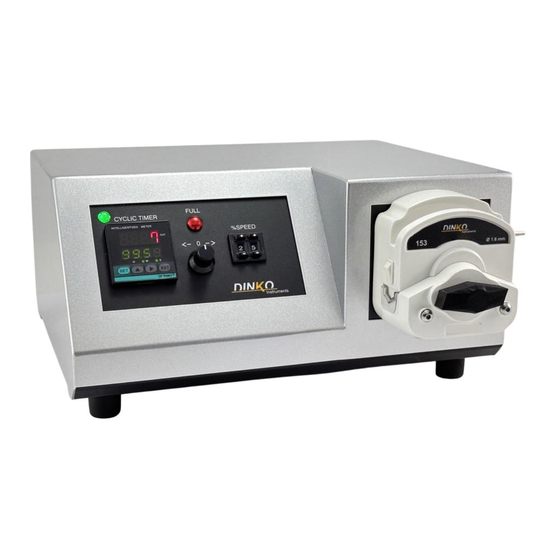

PERISTALTIC PUMPS VARIABLE FLOW D-25VT
INSTRUCTION MANUAL
Rev. August 2022
c/ Encarnació, 123 -125. Tel. +34 93 284 69 62. Fax +34 93 210 43 07
e-mail: dinter@dinko.es
www.dinko.es
08024-Barcelona
1
