Liebert
GXT3
User Manual
230V, 5000-10,000VA
AC Power
For Business-Critical Continuity™

Advertisement

Table of Contents
loading

Summary of Contents for Emerson Liebert GXT3-5000RT230

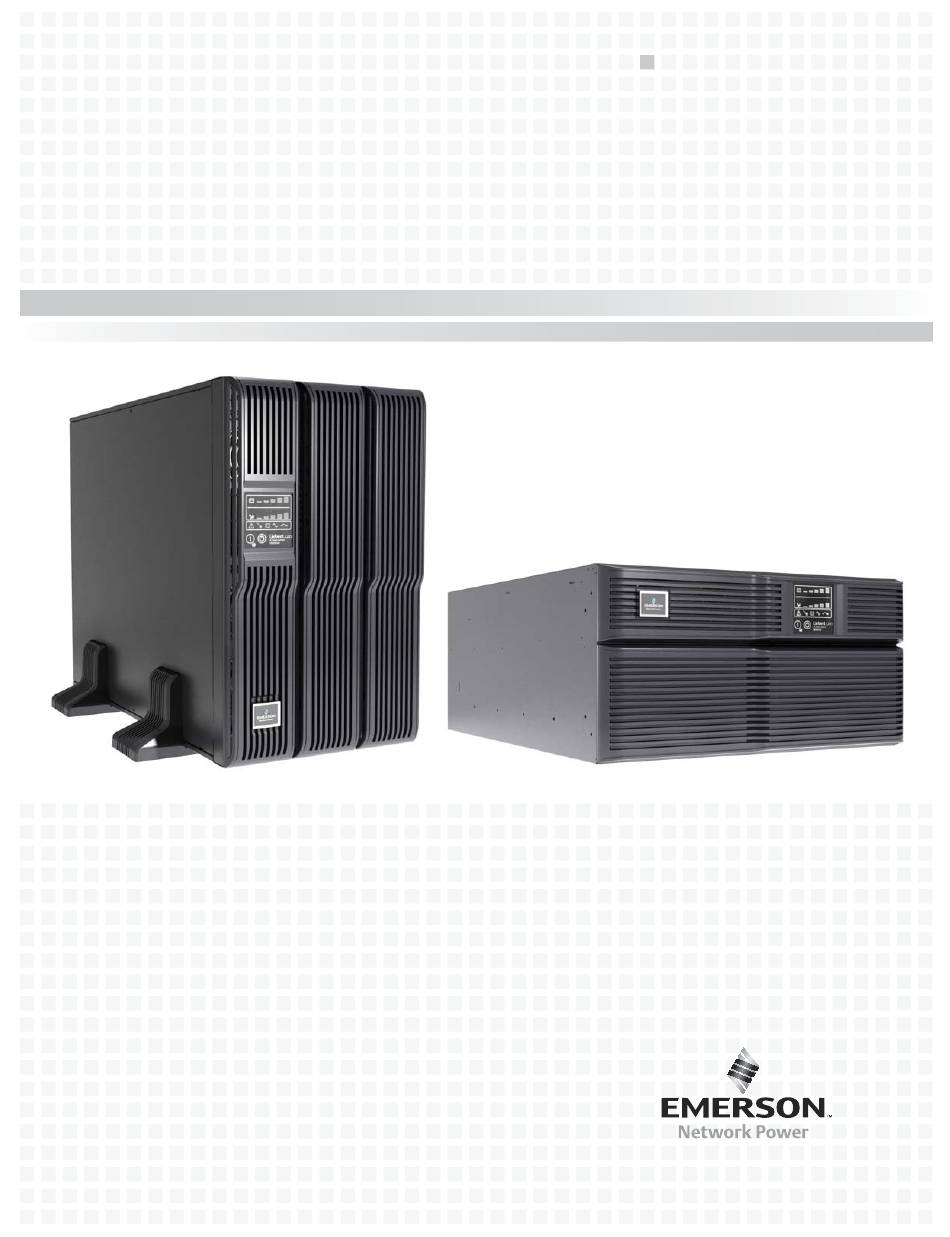

  • Page 1 AC Power For Business-Critical Continuity™ ® ™ Liebert GXT3 230V, 5000-10,000VA User Manual...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS ..........1 MPORTANT AFETY NSTRUCTIONS...
  • Page 4 Shut Down the Liebert GXT3 ..........24 Disconnecting Input Power from the Liebert GXT3.
  • Page 5 FIGURES Figure 1 Liebert GXT3 5000VA and 6000VA, front view 7 Figure 2 Liebert GXT3, rear view 8 Figure 3 Internal battery pack with connector 9 Figure 4 Power distribution box for GXT3 5000VA and 6000VA models 9 Figure 5 Power distribution box for GXT3 10,000VA model 9 Figure 6 Support bases 11...
  • Page 7: Important Safety Instructions

    “critical” devices. Maximum load must not exceed that shown on the UPS rating label. The UPS is designed for data processing equipment. If uncertain, consult your dealer or local Emerson Network Power representative. This UPS is designed for use on a properly earthed (grounded), 220-240 VAC, 50Hz or 60Hz supply, for installation by qualified personnel.
  • Page 8 The Liebert GXT3 series complies with the requirements of EMC Directive 2004/108/EC and the published technical standards. Continued compliance requires installation in accordance with these instructions and use of accessories approved by Emerson. NOTICE This is a Category C2 UPS product. In a residential environment, this product may cause radio interference, in which case the user may be required to take additional measures.
  • Page 9: Glossary O F Symbols

    LOSSARY YMBOLS Risk of electrical shock Indicates caution followed by important instructions AC input AC output Requests the user to consult the manual Indicates the unit contains a valve-regulated lead acid battery PbH2SO4 Recycle DC voltage Equipment grounding conductor Bonded to ground AC voltage ON/Alarm Silence/Manual Battery Test OFF/Bypass...
  • Page 10: Introduction

    Introduction NTRODUCTION Congratulations on your choice of the Liebert GXT3 uninterruptible power system (UPS). The Liebert GXT3 comes in nominal power ratings of 5000VA, 6000VA and 10,000VA. It is designed to provide conditioned power to microcomputers and other sensitive electronic equipment. When it is generated, alternating current is clean and stable.
  • Page 11: System Description

    System Description YSTEM ESCRIPTION Output Input Dynamic Bypass Rectifier TVSS & /PFC EMI/RFI Inverter DC-to-DC Filters Converter Battery Battery Charger Transient Voltage Surge Suppression (TVSS) and EMI/RFI Filters These UPS components provide surge protection and filter both electromagnetic interference (EMI) and radio frequency interference (RFI).
  • Page 12: Dc-To-Dc Converter

    System Description DC-to-DC Converter The DC-to-DC converter utilizes energy from the battery system and raises the DC voltage to the optimum operating voltage for the inverter. This allows the inverter to operate continuously at its optimum efficiency and voltage, thus increasing reliability. Battery The Liebert GXT3 utilizes valve-regulated, nonspillable, lead acid batteries.
  • Page 13: Major Components

    Major Components AJOR OMPONENTS The Liebert GXT3 is composed of three major assemblies to provide easier handling, installation and versatility. Main Frame and Electronics The cabinet is shipped with internal batteries installed and a basic, hardwire distribution box attached and ready to install. Figure 1 Liebert GXT3 5000VA and 6000VA, front view Upper Bezel...
  • Page 14: Figure 2 Liebert Gxt3, Rear View

    Major Components Figure 2 Liebert GXT3, rear view Terminal Block Liebert GXT3, 5,000 & 6000VA Communication REPO C19 Output Power Liebert IntelliSlot Port USB Port Receptacles External Battery Connector Output Circuit Breakers IT Power System Access Cover Output Circuit Breakers C13 Output Receptacles Removable Power...
  • Page 15: Internal Battery Packs

    Major Components Internal Battery Packs The UPS has two internal battery packs behind a battery access door on the front of the unit. Each internal battery pack is fitted with a connector to link to the UPS. Figure 3 Internal battery pack with connector Battery Handle Battery Connector GXT3 10,000 Battery...
  • Page 16: What ' S Included

    What’s Included ’ NCLUDED The Liebert GXT3 is shipped with the following items: • Terminal Block Communication terminals • Compact Disk with • Liebert MultiLink • Configuration program • User manual (electronic version) • USB cable, one; 2m (6-1/2 ft.) long •...
  • Page 17: Installation And Configuration

    Installation and Configuration NSTALLATION AND ONFIGURATION Do NOT attempt to start the UPS, turn on any circuit breaker or energize the input power until instructed to do so in 8.2 - Initial Startup and Electrical Checks. Visually inspect the UPS for freight damage. Report any damage to the carrier and your local dealer or Liebert representative.
  • Page 18: Rack-Mount Ups Installation

    Installation and Configuration b. Pull the operation and display panel gently, rotate it 90 degrees clockwise and snap it back into position, as shown in Figure 8. Figure 8 Rotate the operation and display panel Operation and Display Panel Rotated Clockwise 90 Degrees Pull the logo on the front plastic bezel cover gently, rotate it 90 degrees clockwise and snap it back into position.
  • Page 19 Installation and Configuration The adjustable rack-mounting brackets (Part#: RMKIT18-32) feature retaining latches to prevent users from inadvertently sliding the UPS or battery cabinet out of the rack. To install the rack mount brackets: Return flanges 1. Unpack two (2) rack-mounting bracket assemblies and mounting hardware from this kit.
  • Page 20: External Battery Cabinet Installation

    Lifting equipment into the rack may be a two-person job, depending on the weight of the equipment. Apply Emerson recommends taking the internal batteries grease out of the UPS during rack installation. This will (inside) make the UPS cabinet lighter and easier to handle.
  • Page 21: Figure 9 External Battery Cabinets Connected To 10,000Va Liebert Gxt3

    Installation and Configuration Figure 9 External battery cabinets connected to 10,000VA Liebert GXT3 10,000VA Liebert GXT3 Cables connecting battery cabinets to 10,000VA Liebert GXT3 Battery Cabinets 1. Visually inspect the external battery cabinet for freight damage. Report damage to the carrier and your local dealer or Liebert representative.
  • Page 22: Connect Input/Output Power

    Installation and Configuration Connect Input/Output Power Figure 10 Power Distribution box removal—captive screws and maintenance bypass breaker Extract these captive screws Maintenance Bypass Breaker The UPS should arrive with the power distribution box attached. If the box needs to be removed for maintenance or replacement, follow these instructions to remove and install the power distribution pack.
  • Page 23: Distribution Box Electrical Connections

    Terminal Block Connections—PD2-CE6HDWRMBS and PD2-CE10HDWRMBS Conduit entry holes are provided on the rear and side of the box. Input and output wiring should not share the same conduit. Emerson recommends using strain relief when installing the wire. Table 2 Electrical specifications...
  • Page 24: Figure 12 Terminal Block Connections-Pd2-Ce6Hdwrmbs And Pd2-Ce10Hdwrmbs

    Installation and Configuration Figure 12 Terminal block connections—PD2-CE6HDWRMBS and PD2-CE10HDWRMBS PD2-CE6HDWRMBS PD2-CE10HDWRMBS OUTPUT INPUT INPUT OUTPUT NOTE The installer must provide circuit breaker protection according to local codes. The mains disconnect should be within sight of the UPS or have an appropriate lock-out. Maintain service space around the UPS or use flexible conduit.
  • Page 25: Configuration Program

    Configuration Program ONFIGURATION ROGRAM The final step of installation may require custom configuration of your UPS using the enclosed configuration program. Some configuration settings may be changed only while the UPS is off. These should be set before the UPS is put into full-time service powering the critical load. For most users operating with 230VAC and with no external batteries, the factory default settings will be adequate.
  • Page 26: Controls And Indicators

    • After 24 hours, retest the batteries. • After the batteries have been retested, if only three of the five Battery LEDs illuminate, contact your local dealer, Emerson representative or Emerson Channel Support. Standby/Manual Bypass Button This button controls output power to connected load(s) and has dual functions: Standby and Manual Bypass.
  • Page 27: Load Level Indicators (4 Green, 1 Amber)

    Controls and Indicators off power to the output sockets and connected loads. Perform all necessary shutdown procedures on connected loads before pressing this button twice. Load Level Indicators (4 Green, 1 Amber) The load level indicator is composed of five sets of LED bars that illuminate to indicate the relative load on the UPS output in 25% increments (±5%).
  • Page 28: Ups Status Indicators

    Controls and Indicators Figure 14 Battery level indicators. Charging Discharging 0 - 20% Flash OFF 21 - 40% Flash 41 - 60% Flash OFF 61 - 80% Flash 81 - 100% Flash Fully Charged UPS Status Indicators UPS status is indicated by five symbols: fault indicator, AC input indicator, battery indicator, inverter indicator and bypass indicator.
  • Page 29: Operation

    Operation PERATION This section describes checks to be made before starting the UPS, how to start the UPS, manual battery test, manual bypass, shutting down the UPS and disconnecting the mains power from the UPS. NOTE The Liebert GXT3’s battery has been fully charged before delivery, but some charge will be lost during storage and shipping.
  • Page 30: Manual Battery Test

    • If none of the five Battery LEDs illuminate during the second manual battery test, replace batter- ies and contact your local Emerson representative or Emerson Channel Support. Put the Liebert GXT3 in Manual Bypass Press the Standby/Manual Bypass button and hold it for about 2 seconds while the UPS is in Mains (AC) Mode.
  • Page 31: Power System Configuration

    Operation IT Power System Configuration 1. Remove screws on the IT Power System Access Cover as shown in Figure 15. 2. Disconnect the connectors as shown in figure. 3. Install IT Power System Access Cover and screws. Figure 15 Remove cover from IT Power System Connectors compartment IT Power System Remove Screws Connectors...
  • Page 32: Communication

    Communication OMMUNICATION Communication Interface Port The Liebert GXT3 UPS has a terminal block on the rear of the UPS unit. Several signals are provided on this port and are assigned as follows. Terminal Block Communication The terminal block includes eight pins, as shown in Figure 16. Figure 16 Terminal block communication terminals Low Battery On-Battery...
  • Page 33: Battery Mode Shutdown

    Communication 9.2.2 Battery Mode Shutdown Battery Mode Shutdown permits shutting down the UPS by turning off the rectifier, inverter and static switch so that there is no power to the load when the UPS is On Battery. The auxiliary power for the UPS will still be active.
  • Page 34: Liebert Multilink

    Liebert MultiLink License Kit. For more information about the Liebert IntelliSlot SNMP/Web Card and Liebert MultiLink License Kits, visit our Web site (www.liebert.com) or contact your local dealer or Emerson representative. Several option cards are available for use in the Liebert IntelliSlot port of the Liebert GXT3. The Liebert IntelliSlot SNMP/Web Card provides SNMP and Web-based monitoring and control of the UPS across the network.
  • Page 35: Maintenance

    The Liebert GXT3 is designed to allow the user to replace the internal battery pack safely. Read the safety cautions before proceeding. Contact your local dealer or Emerson representative to obtain the part number and pricing of the appropriate replacement battery pack.
  • Page 36: Battery Charging

    The Liebert GXT3 charges the batteries continuously when it is connected to the mains input power. If the Liebert GXT3 will be stored for a long time, Emerson recommends connecting the UPS to input power for at least 24 hours every four to six months to ensure full recharge of the batteries.
  • Page 37: Checking Ups Status

    Emerson Channel Support. • Check whether the battery is discharging. When the mains input is normal, the battery should not discharge. If the UPS is operating in Battery Mode, stop and contact your local Emerson rep- resentative or Emerson Channel Support.
  • Page 38: Troubleshooting

    Troubleshooting 11.0 T ROUBLESHOOTING This section indicates various UPS symptoms a user may encounter and provides a troubleshooting guide in the event the UPS develops a problem. Use the following information to determine whether external factors caused the problem and how to remedy the situation. 11.1 UPS Symptoms The following symptoms indicate the Liebert GXT3 is malfunctioning:...
  • Page 39: 11.1.2 Audible Alarm

    Check load level indicator and reduce the load on the UPS has reduced battery UPS is overloaded UPS. backup time Replace batteries. Contact your local dealer, Emerson Batteries may not be able to representative or Emerson Channel Support for hold a full charge due to age replacement battery kit.
  • Page 40 When reporting a UPS issue to Emerson, include the UPS model and serial number. These are on the top panel of the Liebert GXT3.
  • Page 41: Specifications

    Specifications 12.0 S PECIFICATIONS Table 7 UPS specifications Model # GXT3-5000RT230 GXT3-6000RT230 GXT3-10000RT230 5000VA/4000W 6000VA/4800W 10000VA/9000W Rating Dimensions, mm (in) 430 x 574 x 217 (16.9 x 22.4 x 8.5) 430 x 581 x 261 (16.9 x 22.9 x 10.3) Unit, W x D x H 516 x 745 x 530 (20.3 x 29.3 x 20.9) 530 x 745 x 563 (20.9 x 29.3 x 22.2)
  • Page 42: Operating Temperature Parameters

    Specifications Table 7 UPS specifications (continued) Model # GXT3-5000RT230 GXT3-6000RT230 GXT3-10000RT230 0-95% non-condensing Relative Humidity Operating Elevation Up to 1000m (3281 ft) at 25°C (77°F) without derating Audible Noise <55 dBA, at 1 meter from the rear <50 dBA, at 1 meter from the front or sides Agency Safety IEC62040-1:2008 version, GS mark...
  • Page 43: Table 10 External Battery Cabinet Specifications

    Specifications Table 10 External battery cabinet specifications GXT3-240VBATTCE GXT3-240RTVBATT Model Number GXT3-5000RT230 GXT3-6000RT230 GXT3-10000RT230 Used with UPS Model Dimensions, W x D x H, mm (in.) Unit (with bezel) 430 x 574 x 130 (16.9 x 22.6 x 5.8) 430 x 581 x 173 (16.9 x 22.9 x 6.8) Shipping 530 x 745 x 407 (20.9 x 20.3 x 16.0) 530 x 745 x 475 (20.9 x 29.3 x 18.7)
  • Page 44: Table 11 Battery Run Time, Minutes, All Models

    Specifications Table 11 Battery run time, minutes, all models 230VAC RT Models Load Percent Number of of Capacity 5kVA 6kVA 10kVA Batteries/Cabinets Internal Battery 100% Internal Battery + 1 External Battery Cabinet 100% Internal Battery + 2 External Battery Cabinets 100% Internal Battery + 3 External...
  • Page 45: Auto-Learning Battery Run Times

    Specifications Table 11 Battery run time, minutes, all models 230VAC RT Models Load Percent Number of of Capacity 5kVA 6kVA 10kVA Batteries/Cabinets Internal Battery + 4 External Battery Cabinets 100% Using the configuration program, the user may specify the number of GXT3-240VBATT external battery cabinets attached to the UPS.
  • Page 46 Specifications...
  • Page 48 Power Switching & Controls Services DC Power Infrastructure Management & Monitoring Precision Cooling Surge Protection Emerson, Business-Critical Continuity, Emerson Network Power and the Emerson Network Power logo are trademarks of Emerson Electric Co. or one of its affiliated companies. ©2010 Emerson Electric Co.
