GB
www.lehmann-locks.com
L033-A01
L033-A02
M300 L033-A01 / -A02
Operating instructions
Contents
Page
General description / Technical data / Safety instructions ............................................. 2
Overview of transponder cards ... ................................................................................... 4
System components / Package contents / Installation .................................................... 5
Installation variant for internal RFID reader . .................................................................. 6
Dimensions ...................................................................................................................... 8
Using the installation card / Programming the master card .......................................... 10
Programming the user cards / Closing & opening ......................................................... 11
Changing the operating mode ....................................................................................... 14
Battery warning ............................................................................................................. 16
External power supply / Firmware update .................................................................... 17
Reordering master cards / Troubleshooting .................................................................. 18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M300 L033-A01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEHMANN M300 L033-A01

Summary of Contents for LEHMANN M300 L033-A01

  • Page 1: Table Of Contents

    L033-A01 L033-A02 M300 L033-A01 / -A02 Operating instructions Contents Page General description / Technical data / Safety instructions ..........2 Care and maintenance / Factory settings / Functional description ......... 3 Overview of transponder cards ..................4 System components / Package contents / Installation ............ 5 Installation variant for internal RFID reader .

  • Page 2: General Description / Technical Data / Safety Instructions

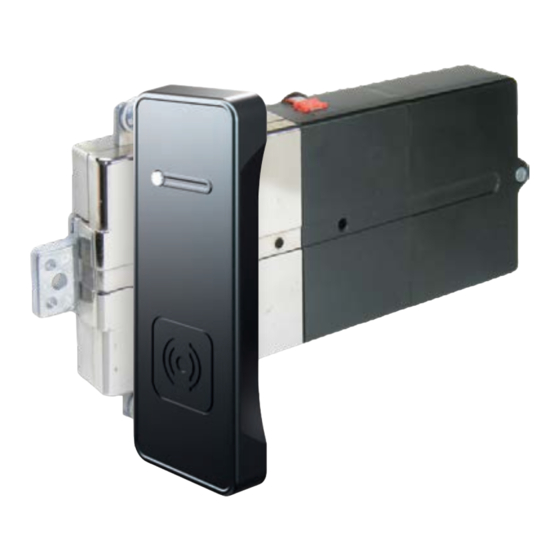

    GENERAL DESCRIPTION The M300 L033-A01 / -A02 locking system is an electronic furniture lock with a RFID reader. The system is intended for indoor use in the home and office. Using the system in applications for which it is not intended may result in irreparable damage to it and render any claims null and void.

  • Page 3: Care And Maintenance / Factory Settings / Functional Description

    Keep the product away from children, as small parts may be swallowed! Any persons swallowing batteries must seek immediate medical advice! Damaged and/or leaking batteries may cause acid burns and/or poisoning! CARE AND MAINTENANCE Do not spill any liquid over or into the individual components of the system, and never immerse the components in any liquid.

  • Page 4: Overview Of Transponder Cards

    This card has no electronic function! As user cards, you can either use LEHMANN user cards or cards of a third-party provider complying with ISO 14443A. Please note the following possible restrictions when using user cards of third-party providers: •...

  • Page 5: System Components / Package Contents / Installation

    SYSTEM COMPONENTS / PACKAGE CONTENTS / INSTALLATION Please note that these operating instructions apply to different product versions. The package content therefore depends on the respective product variant. The product variants and mounting recommendations shown here are intended for wooden furniture with a thickness of 19mm. In the case of deviating thicknesses and materials, the screws for mounting the lock and the RFID reader must be adapted.

  • Page 6: Installation Variant For Internal Rfid Reader

    The motor unit (M-Box) and the electronic unit (E-Box) are not connected on delivery. Please perform the following steps in order to get a functional unit. Klick Please note the different mounting positions and drilling pattern for the RFID readers. M300 RFID reader L033-A01 RFID reader L033-A02...
  • Page 7    (3x30) (3x13) Internal mounting of M300 and RFID reader L033-A01...

  • Page 8: Dimensions

    Install the lock as described above and pay attention to the following points: Remove the protective film from one side of the adhesive tape and apply the adhesive tape to the front of the RFID reader (LED is covered). Connect the optical cable to the RFID reader and route it in the direction of the cable outlet.

  • Page 9: Getting Started And Changing Batteries / Tips For Programming Steps

    GETTING STARTED AND CHANGING BATTERIES Make sure that the lock and the RFID reader are correctly connected to each other with the connecting cable. Make sure that the connections between the plugs and sockets are properly aligned. Open the battery compartment cover by loosening the screw.

  • Page 10: Using The Installation Card / Programming The Master Card

    USING THE INSTALLATION CARD (optional) During installation, one or more installation cards can be used. The installation cards are ready for immediate use and do not have to be programmed. With the installation cards, the basic functions (opening and closing) can be carried out on the lock.

  • Page 11: Programming The User Cards / Closing & Opening

    PROGRAMMING THE USER CARDS (only for “Assigned use“ mode) In “Assigned use“ mode, a maximum of 50 different user cards can be programmed per lock. It is not possible to program user cards in “Shared use“ mode. In “Shared use“ mode, the lock can be opened and closed without first programming the user cards (see Closing and Opening, P.

  • Page 12: Unauthorised Transponder Cards / Facility Manager Function / Emergency Opening

    UNAUTHORISED TRANSPONDER CARDS Rejection of an unauthorised user card User Unauthorised user card is held in front of the reader. The card is rejected. FACILITY MANAGER FUNCTION In the event that an authorised person only briefly wants to check whether for example a cabinet is actually occu- pied, the lock can be opened with the master card.

  • Page 13: Deleting Individual Transponder Cards / Deleting All Transponder Cards

    DELETING INDIVIDUAL TRANSPONDER CARDS (only for “Assigned use“ mode) Insofar as further user cards were programmed on the lock, these can continue to be used on this lock after an individual user card has been deleted. For the deleting process, the lock must be open. To do this, first carry out an emergency opening with the master card if necessary (see Emergency opening, P.

  • Page 14: Changing The Operating Mode

    When the lock is open, you have the option of changing the mode. To do this, the master card and the programming card No. 1 (P1: Mode) are required. The programming card set must be bought separately from LEHMANN Vertriebs- gesellschaft mbH &...

  • Page 15: Deactivating And Activating Acoustic Signals / Resetting To Factory Settings

    Please note that the acoustic signals for the battery warning and for changing the operating mode cannot be deactivated. The programming card set must be bought separately from LEHMANN Vertriebsgesellschaft mbH & Co. KG. The cards are for universal use.

  • Page 16: Battery Warning

    Resetting to factory settings Master Hold the master card in front of the reader. P3: Reset Hold the programming card No. 3 (P3: Reset) in front of the reader. P3: Reset Hold the programming card No. 3 (P3: Reset) in front of the reader again.

  • Page 17: External Power Supply / Firmware Update

    Firmware updates are provided only when needed (for example, technical need). To update the firmware you need the software LEHMANN Firmware Updater. The software can be found on the website www.lehmann-locks.com under Electronic Locking Systems and there under Software Solutions. The individual steps for updating the firmware...

  • Page 18: Reordering Master Cards / Troubleshooting

    For this you obtained a service key together with the master cards. Please keep the service key carefully and securely. The service key makes it possible to reorder the master card specified there. To reorder these cards, please contact LEHMANN Vertriebsgesellschaft mbH & Co. KG at the following email address: sales@lehmann-locks.com In your email, please give us your contact data and the service key.
  • Page 19 (see installation recommendation). • If you are using an existing user card (not from the Lehmann company), check to see whether the appropriate write permission has been given for the transponder card.
  • Page 20 LEHMANN Vertriebsgesellschaft mbH & Co. KG Postfach 26 20 • D-32383 Minden Fon +49 571 / 50 599-0 • Fax +49 571 / 50 599-822 info@lehmann-locks.com • www.lehmann-locks.com DIN EN ISO 9001:2008 zertifiziert...
