LEHMANN M410 Operating Instructions Manual

Keypad lock
Hide thumbs Also See for M410:
Table of Contents

Advertisement

Quick Links

Download this manual
GB
www.lehmann-locks.com

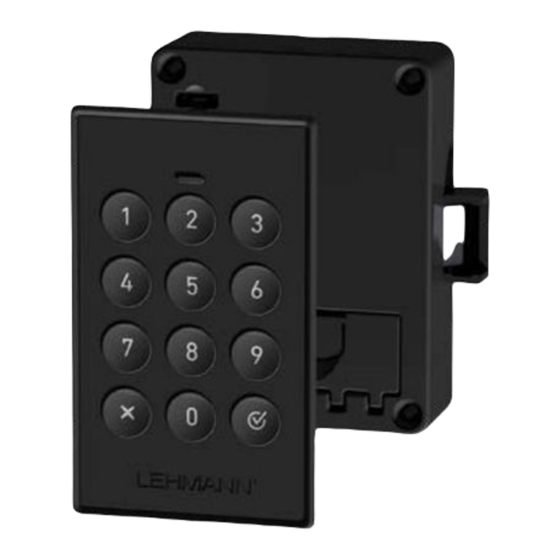

M410 Keypad lock
(M410 TA03)
Operating Instructions
Content
Page
General system description / Operating description ....................................................... 2
System components & package contents ........................................................................ 4
Dimensions ...................................................................................................................... 5
Getting started & changing battery ................................................................................. 6
Emergency power supply / Installing the bolt protector ................................................. 7
Installing the labeling clip / Mounting the locking system .............................................. 8
Factory settings / Opening & closing in Free Code mode .............................................. 11
User changes the Fixed Code ........................................................................................ 13
Switching to Free Code mode........................................................................................ 14
Changing the master code ............................................................................................. 15
Changing the emergency opening code ........................................................................ 16
Emergency opening / Reset to factory settings ............................................................. 17
Automatic locking in Fixed Code mode ......................................................................... 18
Automatic opening in Free Code mode ......................................................................... 19
Battery warning / Firmware update / Disposal ............................................................. 20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M410 and is the answer not in the manual?

Questions and answers

Related Manuals for LEHMANN M410

Summary of Contents for LEHMANN M410

  • Page 1: Table Of Contents

    M410 Keypad lock (M410 TA03) Operating Instructions Content Page General system description / Operating description ............2 Safety precautions / Care & maintenance / Technical specifications ......3 System components & package contents ................ 4 Dimensions ........................5 Getting started & changing battery ................. 6 Emergency power supply / Installing the bolt protector ..........

  • Page 2: General System Description / Operating Description

    GENERAL SYSTEM DESCRIPTION The M410 TA03 (keypad) locking system is a furniture lock with a motor-driven locking bolt intended for use in the home and office. This manual gives you information in order to install and operate the locking system correctly. Keep the operating instructions in an easily accessible place.

  • Page 3: Safety Precautions / Care & Maintenance / Technical Specifications

    Replace the battery in good time, but at the latest when the visual battery warning on the keypad lights up. TECHNICAL SPECIFICATIONS Power supply Battery type: 1 x CR123A Operating temperature -5 °C to +60 °C Storage temparature -25 °C to +70 °C Type designation Lock M410: SLI2CBM6 Keypad TA03: MAIIC3M6...

  • Page 4: System Components & Package Contents

    19 mm. For different wood thicknesses and materials, the screws for fixing the lock and the keypad must be adjusted.  Components: 6. Striker plate 4005 1. Lock M410 7. Keypad TA03 2. 4 x pan-head screw (3,5 x 35 mm) 8. Cover of keypad TA03 3. Cable 9.

  • Page 5: Dimensions

    DIMENSIONS Lock M410 Striker plate 4005 Keypad TA03 without labeling clip For Ø19 x 16 Für Stanzbild ø19 x 16 15,9 Keypad TA03 with optional labeling clip All figures in mm.

  • Page 6: Getting Started & Changing Battery

    GETTING STARTED & CHANGING BATTERY Make sure that the lock and keypad are correctly connected to each other by the connection cable. Pay attention to the correct connection of the plugs and sockets. IMPORTANT: Only use one CR123A primary battery! Insert the battery first with the Close the battery compartment minus pole as shown above.

  • Page 7: Emergency Power Supply / Installing The Bolt Protector

    The bolt protector provided with the M410 can be used for additional protection of the locking system against exter- nal mechanical manipulation. Depending on the purpose the lock M410 is being used for and where it is installed, we recommend fitting this additional, easy-to-mount protector.

  • Page 8: Installing The Labeling Clip / Mounting The Locking System

    2 x right side (top / bottom) 2 x left side (top / bottom) MOUNTING THE LOCKING SYSTEM Mounting position of lock M410 Mounting position of keypad TA03 Door Door Exemplary for a right door.
  • Page 9 Mounting position of striker plate 4005 Door Sidewall Door X + 13* 13** Inlay doors * Overlay doors ** X = Door thickness In order to attach the cover to the already mounted keypad unit TA03, insert the two guide lugs of the cover into the recesses and press the cover until it clicks into place.

  • Page 10: Structure Of The Keypad Ta03 / Bolt End Position Scan Function

    STRUCTURE OF THE KEYPAD TA03 LED display Numbers 0-9 Cancel Enter Trip point for removing the cover for emergency power supply You can cancel any operation at any time by pressing the cancel button . When the cancel button is pressed, there is one short red flashing.

  • Page 11: Factory Settings / Opening & Closing In Free Code Mode

    FACTORY SETTINGS The following settings apply for the locking system as delivered from the factory: Free Code mode The lock is in open position Master code: 9-0-8-0-7-0-5-5-5-5 Emergency opening code: 1-0-1-0-5 Automatic locking is deactivated Automatic opening is deactivated ATTENTION: It is highly recommended to change the factory set master code and factory set emergency opening code! OPENING &...

  • Page 12: Switching To Fixed Code Mode / Opening & Closing In Fixed Code Mode

    SWITCHING TO FIXED CODE MODE The lock must be in open position. There must be no battery warning. The fixed code must be 3 to 10 digits. If you have already changed the default master code, enter your valid master code here. In order to confirm the master code, press the keys simultaneously.

  • Page 13: User Changes The Fixed Code

    USER CHANGES THE FIXED CODE The lock must be in open position. There must be no battery warning. The fixed code must be 3 to 10 digits.. If you have already changed the default fixed code for the user, enter your valid code here. The previous code will be overwritten by entering the new code.

  • Page 14: Switching To Free Code Mode

    SWITCHING TO FREE CODE MODE The lock must be in open position. There must be no battery warning. If you have already changed the default master code, enter your valid master code here. In order to confirm the master code, press the keys simultaneously.

  • Page 15: Changing The Master Code

    CHANGING THE MASTER CODE It is highly recommended that you change the default master code and to choose the longest possible and secure master code. The lock must be in open position. There must be no battery warning. The master code must be 3 to 10 digits. If you have already changed the default master code, enter your valid master code here.

  • Page 16: Changing The Emergency Opening Code

    CHANGING THE EMERGENCY OPENING CODE It is highly recommended that you change the default emergency opening code and to choose the longest possible and secure emergency opening code. The lock must be in open position. There must be no battery warning. The emergency opening code must be 3 to 10 digits.

  • Page 17: Emergency Opening / Reset To Factory Settings

    EMERGENCY OPENING If you have already changed the default emergency opening code, enter your valid emergency opening code here. Enter emergency opening code (example: factory settings) Keys Lock opens Display After an emergency opening in the Fixed Code mode, the lock can be used again normally with the previously pro- grammed fixed code.

  • Page 18: Automatic Locking In Fixed Code Mode

    AUTOMATIC LOCKING IN FIXED CODE MODE The lock must be in open position. There must be no battery warning. This feature can only be activated in Fixed Code mode. If you have already changed the default master code, enter your valid master code here. In order to confirm the master code, press the keys simultaneously.

  • Page 19: Automatic Opening In Free Code Mode

    AUTOMATIC OPENING IN FREE CODE MODE The lock must be in open position. There must be no battery warning. This feature can only be activated in Free Code mode. If you have already changed the default master code, enter your valid master code here. In order to confirm the master code, press the keys simultaneously.

  • Page 20: Battery Warning / Firmware Update / Disposal

    (for example, technical need). To update the firmware you need the software LEHMANN Firmware Updater. The software can be found on the website www.lehmann-locks.com under Electronic Locking Systems and there under Software Solutions. The individual steps for updating the firmware are described in the software.
