GB
www.lehmann-locks.com
Captura
(Captura 100 MIFARE®)
Operating instructions
Content
Page
Care and Maintenance / Factory Settings / Functional Description .........................................3
Overview of Transponder Cards ..............................................................................................4
System Components and Package Contents ...........................................................................5
Dimensions............................................................................................................................... 6
Mounting on non-metal surfaces ............................................................................................ 7
Mounting on metal surfaces ...................................................................................................9
Getting started and battery change / Tips for programming steps .......................................10
Using the installation card / Programming the Master card ..................................................11
Programming the Master card / Closing and Opening ..........................................................12
Changing Operating Mode .....................................................................................................15
Activation and deactivation of automatic locking ..................................................................17
Battery warning ..................................................................................................................... 18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Captura 100 MIFARE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEHMANN Captura 100 MIFARE

Summary of Contents for LEHMANN Captura 100 MIFARE

  • Page 1: Table Of Contents

    Captura (Captura 100 MIFARE®) Operating instructions Content Page General Description / Technical Specifications / Safety Precautions ........2 Care and Maintenance / Factory Settings / Functional Description .........3 Overview of Transponder Cards ....................4 System Components and Package Contents ................5 Dimensions..........................6 Mounting on non-metal surfaces ....................

  • Page 2: General Description / Technical Specifications / Safety Precautions

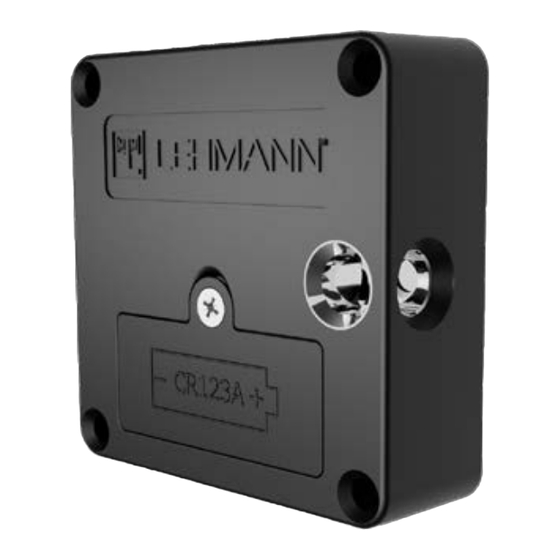

    GENERAL DESCRIPTION The Captura 100 MIFARE® lock is a battery-operated electronic furniture lock based on RFID technology, which is intended for use in living and office areas inside buildings. These operating instructions provide you with information on how to operate the locking system without errors. Keep the operating instructions in an easily accessible place.

  • Page 3: Care And Maintenance / Factory Settings / Functional Description

    “assigned use“ and the installation card cannot be used any more. FUNCTIONAL DESCRIPTION With the Captura 100 MIFARE® lock, you can conveniently lock and unlock your furniture. Non-contact RFID techno- logy based on 13.56 MHz is used as the “key“. Two operating modes are available: Operating mode...

  • Page 4: Overview Of Transponder Cards

    Please note the following possible restrictions when using user cards of third-party providers: • The comprehensive security concept, which was specially designed for this locking system in conjunction with the user cards of LEHMANN Vertriebsgesellschaft mbH & Co. KG, may be affected by the use of user cards of a third-party provider.

  • Page 5: System Components And Package Contents

    SYSTEM COMPONENTS AND PACKAGE CONTENTS Please note that these operating instructions apply to different product versions. The package content therefore depends on the respective product variant. The product variants and mounting recommendations shown here are intended for wooden furniture with a thickness of 16-19 mm. In the case of deviating thicknesses and materials, the screws for mounting the lock and the RFID reader must be adapted.
  • Page 6 Locking pin unit SD Type A Locking pin unit SD Type A with ejector pin A1 The ejector pin A1 can only be installed together with the locking pin unit SD Type A. Locking pin unit SD Type B Front cover C1 for metallic surfaces ( 8 , ( 8 , ( 8 ,...

  • Page 7: Mounting On Non-Metal Surfaces

    A lightpoint pin can optionally be installed to display optical signals on the furniture front. Lightpoint O16 Lightpoint O10 for material thickness of 16-21 mm for material thickness of 10-15 mm IMPORTANT: Install the lock only when it is unlocked. Hand-tighten all screws. Carry out all programming processes and functional checks with the cabinet door open.
  • Page 8 Note that the lightpoint can be installed as an option. Without a lightpoint, only acoustic signaling is available. Mounting the lightpoint: To be installed without tools. Mounting the lock with locking pin SD Type B, e.g. drawer: Top Shelf - inside view All dimensions in mm.

  • Page 9: Mounting On Metal Surfaces

    ATTENTION: If no lightpoint is installed, a sticker is recommended on the outside of the door, centered behind the lock, for correct positioning of the RFID transponder. Using the LEHMANN RFID sticker: 1) Remove the backing paper. 2) Stick the self-adhesive transfer film with the RFID symbol on the outside of the door, centered behind the lock.

  • Page 10: Getting Started And Battery Change / Tips For Programming Steps

    GETTING STARTED AND CHANGING BATTERIES 1. Opening the cover of the battery compartment by loosening the screw. 2. Insert the battery. Pay attention to the correct polarity of the battery. A long acoustic and an optical signal are provided. 3. Then close the battery compartment cover and hand-tighten the screw.

  • Page 11: Using The Installation Card / Programming The Master Card

    USING THE INSTALLATION CARD (optional) During installation, one or more installation cards can be used. The installation cards are ready for immediate use and do not have to be programmed. With the installation cards, the basic functions (opening and closing) can be carried out on the lock.

  • Page 12: Programming The Master Card / Closing And Opening

    Programming the User Cards (only for “assigned use” mode) In “assigned use“ mode, a maximum of 250 different user cards can be programmed per lock. It is not possible to program user cards in “shared use“ mode. In “shared use“ mode, the lock can be opened and closed without first programming the user cards (see Closing and Opening, see below).

  • Page 13: Unauthorised Transponders Cards / Facility Manager Function / Emergency Opening

    UNAUTHORISED TRANSPONDERS CARDS Rejection of an unauthorised user card Unauthorised user card is held in front of the lock. The card is rejected. FACILITY MANAGER FUNCTION In the event that an authorised person only briefly wants to check whether for example a cabinet is actually occupied, the lock can be opened with the master card.

  • Page 14: Deleting Individual Transponder Cards / Deleting All Transponder Cards

    DELETING INDIVIDUAL TRANSPONDER CARDS (only for “assigned use” mode) Insofar as further user cards were programmed on the lock, these can continue to be used on this lock after an individual user card has been deleted. For the deleting process, the lock must be open. To do this, first carry out an emergency opening with the master card if necessary (see Emergency opening, P.

  • Page 15: Changing Operating Mode

    To do this, the master card and the programming card “P1: Mode“ are required. The programming card set must be bought separately from LEHMANN Vertriebsgesellschaft mbH & Co. KG. The cards are for universal use. Changing the operating mode Hold the master card in front of the lock.

  • Page 16: Deactivating And Activating Acoustic Signals / Resetting To Factory Settings

    The reset function can be used with the help of the master card and programming card “P3: Reset“. For this, the lock must be open. The programming card set must be bought separately from LEHMANN Vertriebsgesellschaft mbH & Co. KG. The cards are for universal use.

  • Page 17: Activation And Deactivation Of Automatic Locking

    “assigned use“ and in an open position. If the operating mode changes, this function is automatically deactivated. The programming card must be purchased separately from LEHMANN Vertriebsgesellschaft mbH & Co. KG. The card can be used universally.

  • Page 18: Battery Warning

    Hold the programming Automatic locking is activated. card “P4: Auto Locking“ in front of the lock again. Automatic locking is activated. Hold the programming Automatic locking is deactivated. card “P4: Auto Locking“ in front of the lock again. Automatic locking is deactivated.

  • Page 19: Reordering Master Cards / Firmware Update / Disposal / Troubleshooting

    For this you obtained a service key together with the master cards. Please keep the service key carefully and secu- rely. The service key makes it possible to reorder the master card specified there. To reorder these cards, please contact LEHMANN Vertriebsgesellschaft mbH & Co. KG at the following email address: sales@lehmann-locks.com In your email, please give us your contact data and the service key.
  • Page 20 LEHMANN Vertriebsgesellschaft mbH & Co. KG Postfach 26 20 • D-32383 Minden Fon +49 571 / 50 599-0 • Fax +49 571 / 50 599-822 info@lehmann-locks.com • www.lehmann-locks.com DIN EN ISO 9001:2015 zertifiziert...
