LEHMANN M610 L043-A03 Operating Instructions Manual

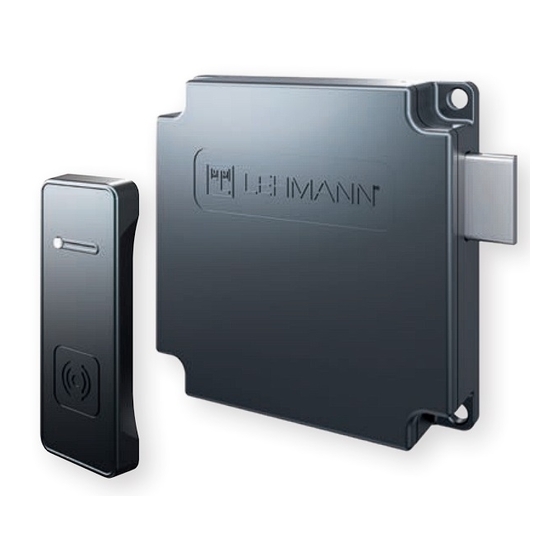

Locker lock
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GB
www.lehmann-locks.com
Locker Lock
M610 LEGIC L043-A03
Operating Instructions
Contents
Page
Overview of Transponder Cards ...................................................................................... 4
System Components / Package Contents / Installation ................................................... 5
Dimensions ...................................................................................................................... 7
Using the Installation Card / Programming the Master Card .......................................... 9
Programming the User Cards / Closing and Opening ................................................... 10
Emergency Opening ..................................................................................................... 11
Resetting to Factory Settings ......................................................................................... 14
Emergency Power Supply / Firmware Update ............................................................... 17
Reordering Master Cards /Troubleshooting .................................................................. 18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M610 L043-A03 and is the answer not in the manual?

Questions and answers

Related Manuals for LEHMANN M610 L043-A03

Summary of Contents for LEHMANN M610 L043-A03

  • Page 1: Table Of Contents

    Locker Lock M610 LEGIC L043-A03 Operating Instructions Contents Page General Description / Technical Specifications / Safety Precautions ....... 2 Care and Maintenance / Factory Settings / Functional Descrition ........3 Overview of Transponder Cards ..................4 System Components / Package Contents / Installation ........... 5 Dimensions ........................

  • Page 2: General Description / Technical Specifications / Safety Precautions

    GENERAL DESCRIPTION The M610 L043-A03 locking system is an electronic locker lock with a RFID reader. The system is intended for indoor use. Using the system in applications for which it is not intended may result in irreparable damage to it and render any claims null and void.

  • Page 3: Care And Maintenance / Factory Settings / Functional Descrition

    Keep the product away from children, as small parts may be swallowed! Any person swallowing batteries must seek immediate medical advice! Damaged and/or leaking batteries may cause acid burns and/or poisoning! CARE AND MAINTENANCE Do not spill any liquid over or into the individual components of the system, and never immerse the components in any liquid.

  • Page 4: Overview Of Transponder Cards

    This card has no electronic function! As user cards, you can either use LEHMANN user cards or cards of a third-party provider complying with the supported transponders mentioned on page 2 under the technical specifications. Please note the following possible restrictions when using user cards of third-party providers: •...

  • Page 5: System Components / Package Contents / Installation

    SYSTEM COMPONENTS / PACKAGE CONTENTS / INSTALLATION M610 with external RFID reader L043-A03 Please note, that these operating instructions apply to different product versions. Therefore the packaging content depends on the respective product variant. The product variants and mounting recommendations shown here are intended for wooden furniture with a thickness of 19mm.
  • Page 6 Please note the different mounting positions and drilling pattern for the RFID readers. M610 RFID reader L043-A03 RFID reader L043-A03 without spacer with spacer CAUTION: - For mounting the RFID reader L043-A03 • without spacer please use drill holes of 5,5mm. •...

  • Page 7: Dimensions

    DIMENSIONS M610 RFID reader L043-A03 RFID reader L043-A03 with spacer 29,5 29,5 29,5 28,5 28,5 28,5 ø ø ø ø Striker plate 15,5 15,5...

  • Page 8: Getting Started And Changing Batteries / Tips For Programming

    GETTING STARTED AND CHANGING BATTERIES Please make sure the lock and the RFID reader are properly connected by using the connection cable. Make sure that the connections between the plugs and the sockets are properly aligned. CAUTION: Use only CR123A primary-batteries. Open the battery compartment cover by inserting the pin into the small holes and releasing the cover.

  • Page 9: Using The Installation Card / Programming The Master Card

    USING THE INSTALLATION CARD (optional) During installation, one or more installation cards can be used. The installation cards are ready for immediate use and do not have to be programmed. With the installation cards, the basic functions (opening and closing) can be carried out on the lock.

  • Page 10: Programming The User Cards / Closing And Opening

    PROGRAMMING THE USER CARDS (only for “Assigned use“ mode) In “Assigned use“ mode, a maximum of 50 different user cards can be programmed per lock. It is not possible to program user cards in “Shared use“ mode. In “Shared use“ mode, the lock can be opened and closed without first programming the user cards (see Closing and Opening, P.

  • Page 11: Unauthorised Transponder Cards / Facility Manager Function / Emergency Opening

    UNAUTHORISED TRANSPONDER CARDS Rejection of an unauthorised user card User Unauthorised user card is held in front of the reader. The card is rejected. FACILITY MANAGER FUNCTION In the event that an authorised person only briefly wants to check whether for example a cabinet is actually occu- pied, the lock can be opened with the master card.

  • Page 12: Deleting Individual Transponder Cards / Deleting All Transponder Cards

    DELETING INDIVIDUAL TRANSPONDER CARDS (only for “Assigned use“ mode) Insofar as further user cards were programmed on the lock, these can continue to be used on this lock after an individual user card has been deleted. For the deleting process, the lock must be open. To do this, first carry out an emergency opening with the master card if necessary (see Emergency opening, P.

  • Page 13: Changing The Operating Mode / Deactivating And Activating Acoustic Signals

    When the lock is open, you have the option of changing the mode. To do this, the master card and the programming card No. 1 (P1: Mode) are required. The programming card set must be bought separately from LEHMANN Vertriebs- gesellschaft mbH &...

  • Page 14: Resetting To Factory Settings

    The reset function can be used with the help of the master card and programming card No. 3 (P3: Reset). For this, the lock must be open. The programming card set must be bought separately from LEHMANN Vertriebsgesellschaft mbH & Co. KG. The cards are for universal use.

  • Page 15: Configure Rfid System With Legic System Authorization Media (Sam)

    P3: Reset Hold the programming card No. 3 (P3: Reset) in front of the reader. P3: Reset Hold the programming card No. 3 (P3: Reset) in front of the reader again. Hold the master card Master in front of the reader. During initialisation, no transponders should be placed within the read...

  • Page 16: Remove Legic Mtsc Configuration On Rfid System / Battery Warning

    REMOVE LEGIC MTSC CONFIGURATION ON RFID SYSTEM With the SAM 64 (System Authorization Media) card, which is part of the LEGIC MTSC (Master-Token System-Control), the previously created authorizations and configurations by using the SAM 63 card are deleted again in the RFID reader. Following that, all types of transponders mentioned on page 2 under technical specifications can be used again.

  • Page 17: Emergency Power Supply / Firmware Update

    You have the option of updating the firmware of the lock and the RFID reader via the micro USB ports on the lock or the RFID reader. Firmware updates are provided only when needed (for example, technical need). To update the firmware you need the software LEHMANN Firmware Updater. The software can be found on the website www.lehmann-locks.com under Electronic Locking Systems and there under Software Solutions.

  • Page 18: Reordering Master Cards /Troubleshooting

    For this you obtained a service key together with the master cards. Please keep the service key carefully and securely. The service key makes it possible to reorder the master card specified there. To reorder these cards, please contact LEHMANN Vertriebsgesellschaft mbH & Co. KG at the following email address: sales@lehmann-locks.com In your email, please give us your contact data and the service key.
  • Page 19 (see installation recommendation). • If you are using an existing user card (not from the Lehmann company), check to see whether the appropriate write permission has been given for the transponder card.
  • Page 20 LEHMANN Vertriebsgesellschaft mbH & Co. KG Postfach 26 20 • D-32383 Minden Fon +49 571 / 50 599-0 • Fax +49 571 / 50 599-822 info@lehmann-locks.com • www.lehmann-locks.com DIN EN ISO 9001:2008 zertifiziert...
