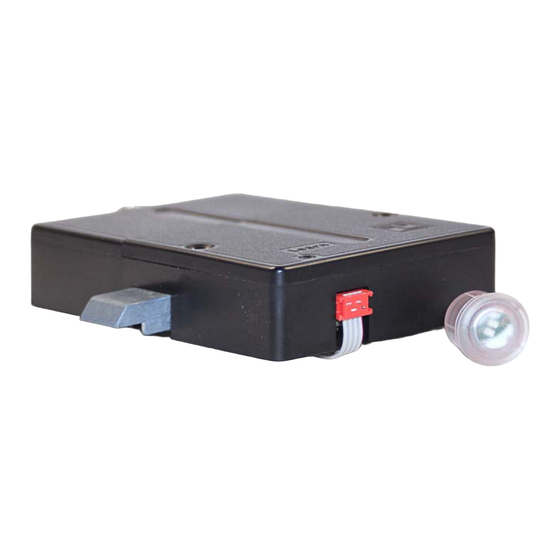

M400 SV SimonsVoss Lock
Operating instructions
Contents
General description and mode of operation ....................................................... 2
System components / package contents, Dimensions ....................................... 4
Function control with transponder ....................................................................... 6
Installation of optical display, installing the protector .......................................... 7
Light indicators and signals ................................................................................. 8
GB
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEHMANN M400

Summary of Contents for LEHMANN M400

  • Page 1 M400 SV SimonsVoss Lock Operating instructions Contents Page General description and mode of operation ............2 Safety precautions, advice on operation and care, technical specifications ..3 System components / package contents, Dimensions ........4 Getting started / changing batteries, Monitoring the stop position of lock ... 5 Function control with transponder ...............
  • Page 2 Using the system in applications for which it is not intended may result in irreparable damage to it and render any claims null and void. The user manual tells you how to install and operate the M400 system in the proper manner. To program the furniture lock, you will need the management software as well as the requisite hardware from SimonsVoss Technologies GmbH in Munich.
  • Page 3 SAFETY PRECAUTIONS On changing the batteries, ensure correct battery polarity and position! Dispose of spent batteries in the proper manner. Do not heat batteries, take them apart or short-circuit them. Never throw batteries into fire. The batteries must not be charged. Keep batteries out of children‘s reach.
  • Page 4 M400 SV 2 x Spax 3x30 Indicator unit 2 x 1,5V AA Operating instructions  Furniture lock www.lehmann-locks.com M400 SV SimonsVoss Lock 3 x Spax 3x13 Bolt protector Striker plate 3 x Spax 3x13 Operating instructions Contents Page General description and mode of operation ............2 Safety precautions, advice on operation and care, technical specifi...
  • Page 5 MONITORING THE STOP POSITION OF LOCK The M400 is provided with a sensor that identifies when the bolt is extended and has reached its end posi- tion. A visual warning signal (indicator‘s red LED flashes) is given if the bolt fails to reach the end position after a locking command.
  • Page 6 FUNCTION CONTROL WITH TRANSPONDER Check the open / close function of M400 before installation with the appropriate authorized transponder.  Transponder: Open Bolt retracts Press button Optical display LED-colour: GREEN Pause about 1 sec.  Transponder: Close Bolt extends Press button...
  • Page 7 INSTALLING THE PROTECTOR The bolt protector provided with the M400 can be used for additionally guarding the system against external mechanical manipulation. Depending on the purpose the M400 is being used for and where it is installed, we recommend fitting this additional, easy-to-mount guard.
  • Page 8 Lock cannot be engaged any Pause more. The batteries in the lock are spent. Change the batteries. 1 sec. LEHMANN Vertriebsgesellschaft mbH & Co. KG Postfach / P.O.B 2620 Telefon +49 (0) 571/505 99 - 0 www.lehmann-locks.com D - 32383 Minden...
