GB
www.lehmann-locks.com

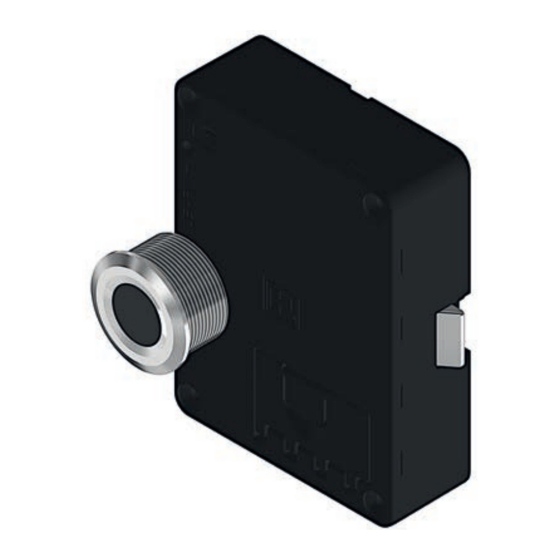

M410 FP pro
(M410 Fingerprint pro)
Operating Instructions
Content
Page
Factory Settings ............................................................................................................... 2
System components and Package Contents ................................................................... 4
Dimensions ..................................................................................................................... 5
Mounting on wood .......................................................................................................... 6
Mounting the bolt protector ........................................................................................... 7
Getting started and changing batteries / Bolt end position scan function /
Information for the programming .................................................................................. 8
Installation mode / Programming the first admin finger ............................................... 10
Locking and unlocking in "assigned use" operating mode ............................................ 11
Programming further admin fingers / Deleting an user finger ...................................... 12
Deleting an admin finger ............................................................................................... 13
Facility Manager Function / Emergency Opening /
Activate / deactivate auto locking ................................................................................. 14
Reset to factory settings ................................................................................................ 15
Changing the operating mode ....................................................................................... 16
Locking and unlocking in "shared use" mode ................................................................ 18
Battery warning / Firmware update / Disposal ............................................................. 19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M410 Fingerprint pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEHMANN M410 Fingerprint pro

Summary of Contents for LEHMANN M410 Fingerprint pro

  • Page 1: Table Of Contents

    M410 FP pro (M410 Fingerprint pro) Operating Instructions Content Page General system description / Safety precautions / Care and maintenance / Factory Settings ....................... 2 Operating Description / Admin Finger and User Finger / Technical Specifications ..3 System components and Package Contents ..............4 Dimensions ........................

  • Page 2: General System Description / Safety Precautions / Care And Maintenance / Factory Settings

    GENERAL SYSTEM DESCRIPTION The locking system is a battery-operated biometric locking system for furniture. The locking system consists of a lock and a fingerprint module, which are connected to each other by a cable. The locking system is intended for use in residential and office areas inside buildings.

  • Page 3: Operating Description / Admin Finger And User Finger / Technical Specifications

    OPERATING DESCRIPTION With the locking system, you can conveniently unlock and lock your furniture. The fingerprint of an user is used as a "key". A maximum of 200 fingers (maximum number of admin and user fingers) can be programmed on the locking system.

  • Page 4: System Components And Package Contents

    False Acceptance Rate (FAR) < 0.001 % False Rejection Rate (FRR) < 1 % Lock M410: -5 °C / +60 °C @ RH 30 % … 99 % Operating conditions FP module: -20 °C / +60 °C @ RH 10 % … 85 % Lock M410: -25 °C / +70 °C @ RH 30 % …...

  • Page 5: Dimensions

    Components: 5. Striker plate 4005 1. Lock M410 6. 3x screw 3 x 13 for striker plate 4005 2. 4 x countersunk screw 3,5 x 35 cross recess 7. Fingerprint module incl. connecting cable 3. Battery CR 123A 4. Bolt protector 8.

  • Page 6: Mounting On Wood

    Fingerprint module 22,6 Ø 14,9 14,9 14,9 For fasting nur M25x1 Für Mutter M25x1 Für Mutter M25x1 Für Mutter M25x1 Screw thread Gewinde M25 12,6 12,6 12,6 24,6 Ø MOUNTING ON WOOD Only install the locking system when it is unlocked. Carry out all programming processes and function checks with the cabinet door open.

  • Page 7: Mounting The Bolt Protector

    MOUNTING THE BOLT PROTECTOR (not in version with fixed bolt) The bolt protector provided with the M410 can be used for additional protection of the locking system against external mechanical manipulation. Depending on the purpose the lock M410 is being used for and where it is installed, we recommend fitting this additional, easy-to-mount protector.

  • Page 8: Information For The Programming

    GETTING STARTED AND CHANGING BATTERIES Make sure that the lock and fingerprint module are correctly connected to each other with the connection cable. Make sure that the plug and the socket are connected in the correct position. When connecting to the lock, the plug contacts must point downwards to the circuit board in the lock.
  • Page 9 • There are long and short flashes, which are shown as follows. The flashing signals are available in different colors. long short Furthermore, with some programming steps or warnings, there are long and short acoustic signals in parallel to the flashing signals (e.g. in the case of configuration changes). This is represented as follows: •...

  • Page 10: Installation Mode / Programming The First Admin Finger

    INSTALLATION MODE During assembly, you have the option of locking and unlocking the lock with any finger. In this mode, the basic functions (locking and unlocking) can be tested on the lock. There is no processing of fingerprints. Locking Touch die reading field. The LED flashes 2x short red.

  • Page 11: Programming An User Finger In "Assigned Use" Mode

    PROGRAMMING AN USER FINGER IN "ASSIGNED USE" MODE A maximum of 200 different fingers (admin and user fingers) can be programmed per lock in the "assigned use" operating mode. The lock must be in position open. An admin finger that has already been programmed cannot be programmed as a user finger.

  • Page 12: Programming Further Admin Fingers / Deleting An User Finger

    PROGRAMMING FURTHER ADMIN FINGERS Additional admin fingers can be programmed on the locking system. The locking system must be open for this programming process. Start programming Place a programmed admin finger on the mode reading field until the LED lights up yellow. The finger was captured.

  • Page 13: Deleting An Admin Finger

    Start programming Place a programmed admin finger on the mode reading field until the LED lights up yellow. The finger was captured. The LED flashes 1x short green together with one acoustic signal. Delete user finger The LED pulsates light yellow-green, the reading field is ready to scan the finger.

  • Page 14: Activate / Deactivate Auto Locking

    FACILITY MANAGER FUNCTION A locked lock can be opened for 30 seconds with an admin finger. After 30 seconds, the lock locks automatically. After automatic locking, authorized user fingers can continue to be used both in the "assigned use" operating mode and in the "shared use"...

  • Page 15: Reset To Factory Settings

    Switch programming The LED pulsates light yellow-green. mode Use the programming stick to press the learn button once in the lock. The LED on the fingerprint module flashes 2x short yellow with two acoustic signals. This programming step is skipped, if the lock is in “shared use" mode. Switch programming The LED pulsates light yellow-green.

  • Page 16: Changing The Operating Mode

    This programming step is skipped, if the lock is in “shared use" mode. Switch programming The LED pulsates light yellow-green. mode Use the programming stick to press the learn button once in the lock. The LED on the fingerprint module flashes 3x short purple with three acoustic signals.
  • Page 17 Switch programming The LED pulsates light yellow-green. mode Use the programming stick to press the learn button once in the lock. The LED on the fingerprint module flashes 2x short yellow with two acoustic signals. This programming step is skipped, if the lock is in “shared use" mode. Switch programming The LED pulsates light yellow-green.

  • Page 18: Locking And Unlocking In "Shared Use" Mode

    LOCKING AND UNLOCKING IN "SHARED USE" MODE Locking Check user finger Briefly place an user finger on the reading field and remove it as soon as the LED lights up yellow. The finger was captured. The LED flashes 1x long red. The finger is unknown.

  • Page 19: Battery Warning / Firmware Update / Disposal

    (e.g. technical necessity). The LEHMANN Firmware Updater software is required for this. Further information on implementation and installation is available in the LEHMANN Firmware Updater software. DISPOSAL Dispose the locking system according to local regulations and guidelines.
  • Page 20 LEHMANN Vertriebsgesellschaft mbH & Co. KG Postfach 26 20 • D-32383 Minden Fon +49 571 / 50 599-0 • Fax +49 571 / 50 599-822 info@lehmann-locks.com • www.lehmann-locks.com DIN EN ISO 9001:2008 zertifiziert...
