M400 Smart Secure
Operating instructions
Content
General system description ............................................................................... 2
Safety precautions, care and maintenance, technical specifications .................. 3
System components / Package contents, dimensions ........................................ 4
Commissioning / Battery replacement, monitoring of the stop position of lock ... 5
Installation of optical display, installation of protector ......................................... 6
Explanation of icons and functions ..................................................................... 7
Teaching in furniture locks .................................................................................. 9
Opening and closing of furniture locks .............................................................. 10
More operating instructions can be found on our internet page as a download.
GB
Page
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LEHMANN M400 Smart Secure
Summary of Contents for LEHMANN M400 Smart Secure
- Page 1 M400 Smart Secure Operating instructions Content Page General system description ................2 Safety precautions, care and maintenance, technical specifications ....3 System components / Package contents, dimensions ........4 Commissioning / Battery replacement, monitoring of the stop position of lock ... 5 Installation of optical display, installation of protector .........

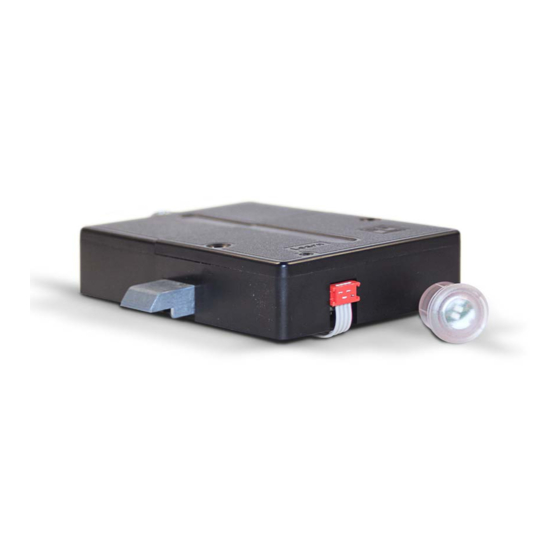

- Page 2 GENERAL SYSTEM DESCRIPTION The electronic lock M400 Smart Secure can be opened and closed with a smartphone/tablet and an app using the latest Bluetooth low energy technology. It is designed for use inside buildings and is not suitable for wet rooms. You can operate the lock with its basic functions with the free Basis App. Depending on requirements, additional functions can be uploaded subject to a charge.
- Page 3 SAFETY PRECAUTIONS Different types and brands as well as fresh and used batteries must not be mixed! When replacing the batteries, observe correct battery polarity and position! Do not reverse polarity! The batteries must not be charged! Do not heat or deform batteries, take them apart or short-circuit them! Never throw batteries into open fire! Keep the batteries away from children! Dispose of used batteries properly!
- Page 4 Explanation of icons and functions ..............7 Teaching in furniture locks .................. 9 Opening and closing of furniture locks .............. 10 More operating instructions can be found on our internet page as a download. DIMENSIONS M400 Smart Secure electronics Display unit Striker plate...
- Page 5 MONITORING THE STOP POSITION OF LOCK The M400 Smart Secure furniture lock is equipped with a sensor for the stop position of the lock. If the lock does not reach the stop position following a closing command, an optical warning message is issued (see test function).
- Page 6 INSTALLING THE PROTECTOR The bolt protector provided with the M400 Smart Secure can be used for additionally guarding the system against external mechanical manipulation. Depending on the purpose the M400 Smart Secure is being used for and where it is installed, we recommend fitting this additional, easy-to-mount guard.
- Page 7 Groups Under this menu item you can manage the grouping of locks. Help Quick guide and help topics. Online documentation: www.lehmann-locks.com Legal Notice Manufacturer specifications, licensing information. Functions Under this menu item you can enable additional functions that...
- Page 8 EXPLANATION OF ICONS AND FUNCTIONS Customised name of the selected furniture lock. Shows which group this lock is assigned to. Shows the last known locking status. locked, open. Indicates the operating mode. Here you can switch the locking type for the selected lock from manual (locking process only on command) to automatic locking following a lost connection.
- Page 9 PROGRAMMING OF FURNITURE LOCKS Display / Menu Description Action Select the Smart Secure App to start the program. The “Help page” is displayed the first time you start and when the list of locks is empty. Select the “Menu” icon. Select the item “New Lock”...
- Page 10 PROGRAMMING OF FURNITURE LOCKS Display / Menu Description Action Briefly press the programming stick for the lock you want to pair. “Learn” button. The selected lock is displayed as “bondable” after a short period of time. Use the “add” function. If the lock is paired for the first time, a “pairing request”...
- Page 11 PROGRAMMING OF FURNITURE LOCKS Display / Menu Description Action The following screen is shown automatically. Give the lock a unique name of your choice and then confirm with the “Add” button. The connection is established in the background. Once the name has been assigned, the lock is displayed as a known lock.
- Page 12 PROGRAMMING OF FURNITURE LOCKS Display / Menu Description Action Select the following option from the menu: “Visible Locks”. Shows all known locks in signal range as well as currently connecting locks and locks which are successfully connected to your smartphone / tablet You can now open and close the locks.
- Page 13 OPENING AND CLOSING OF FURNITURE LOCKS Display / Menu Description Action Switch to the display: “Visible Locks”. The locking status of the locks is shown. You can change the locking status by tapping on the lock icon of the respective lock.
- Page 14 NOTES...
- Page 15 NOTES...
- Page 16 LEHMANN Vertriebsgesellschaft mbH & Co. KG Uphauser Weg 82 • D-32429 Minden Fon +49 571 / 50 599-0 • Fax +49 571 / 50 599-822 info@lehmann-locks.com • www.lehmann-locks.com DIN EN ISO 9001:2008 certified...
