Summary of Contents for FAAC FSL 700

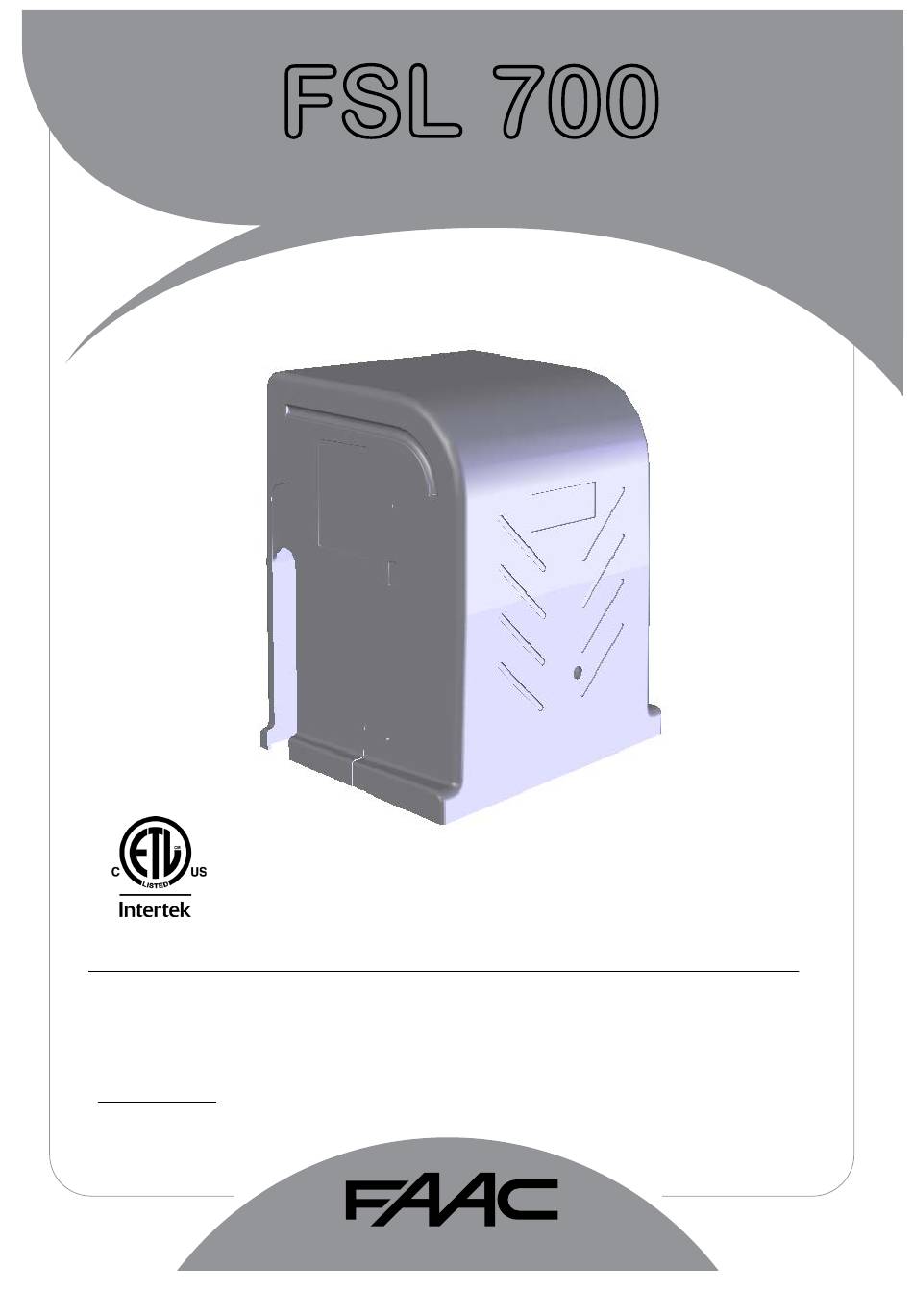

  • Page 1 FSL 700 Slide Gate Operator UL325 - UL991 FAAC International Inc. FAAC International Inc. Headquarter & East Coast Operations West Coast Operations 3160 Murrell Rd 357 South Acacia Avenue Rockledge, FL 32955 Fullerton, CA 92831 Tel. 800 221 8278 www.faacusa.com...
  • Page 3: Table Of Contents

    CONTENTS Important Safety Information Accessory Connections Overview ............... 20 Important Safety Instructions ........4 Photocell Sensor Connections ........21 Important Installation Instructions ........ 4 Edge Sensor Connections ..........22 General Safety Precautions.........5 Standard Reverse Connection ........23 UL325 Gate Operator Classification ......6 Open, Close, Stop Connections ........
  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION Important Safety Instructions Important Installation Instructions WARNING - TO REDUCE THE RISK OF SEVERE 1. Install the gate operator only when the following INJURY OR DEATH: conditions have been met: • READ AND FOLLOW ALL INSTRUCTIONS. • The operator is appropriate for the type and usage class of the gate.
  • Page 5: General Safety Precautions

    • The manufacturer cannot be held responsible • Use only FAAC XS 55 edge sensors with with CN 60 for damage caused by improper, erroneous or E controller. unreasonable use. •...
  • Page 6: Ul325 Gate Operator Classification

    Installing the Warning Signs This FAAC gate operator is supplied with two warning signs to alert people that a possible hazard exists and that appropriate actions should be taken to avoid the hazard or to reduce exposure to it.
  • Page 7: Restrictions And Warnings

    Restrictions and Warnings Gate operator controls must be placed far enough from the gate to prevent the user from coming in contact with the gate while operating the controls. All activating devices must be installed in a clear line-of-sight with the gate and Vehicular Gate Only its travel.
  • Page 8: Entrapment Protection

    Entrapment Protection Inherent Entrapment Protection: This vehicular gate operator is equipped with an inherent (Type A) entrapment sensing device. The system will sense an obstruction in both the open and close cycles, and will reverse the direction of the gate travel upon encountering an obstruction. If the system detects a second obstruction before reaching the full open or close limit after the initial reversal, a warning alarm will activate and the operator will require a reset before resuming normal operation.
  • Page 9: Manual Release

    Post edge sensors help protect areas inside and outside of the gate and around the operator Fence Fence Fence Trailing edge sensor Leading edge sensor helps protect areas be- helps protect areas in Protect against all entrapments tween the gate and the front of the gate.
  • Page 10: Technical Specification

    FS L 700 S lid e Ga t e Op e r a t o r The FAAC Model FSL 700 is an electro-mechanical vehicular slide gate operator. The direct drive 24V motor allows for smooth start and stop operation, with easy to set limit switches. It has a built in battery backup system and 2 accessory power plugs. The adjust- able chain idlers allow front, rear and post mount operation.
  • Page 11: Concrete Pad Size & Location

    Concrete Pad Size & Location: The FSL700 vehicular gate operator is designed to be mounted on a concrete pad. Select a location for the gate operator to be installed. For pad location and size: Determine the location for the operator to be installed. (Front Mount v. Rear Mount) 24”...
  • Page 12: Gate Operator Bolt Down

    Gate Operator Bolt Down To align the operator to the gate and bolt it down: Remove the gate operator cover and place the operator on the concrete pad. Position the operator with a distance of 3.5” from the gate to the back frame of the operator. IMPORTANT: Make sure the gate and operator are parallel and level with each other.
  • Page 13: Chain Connection - Rear Mount

    Chain Connection - Rear Mount Rear mount operators require the use of an endless idler assembly and twice as much chain. Approximately 1 foot of added open- ing space is needed. Once the gate operator is securely bolted down, the chain may be installed for a rear mount system. Adjust the chain idler sprocket inside the gate operator for a rear mount application.
  • Page 14: Limit Switch Setup

    Limit Switch Setup The gate operator uses a limit switch assembly to adjust the dis- tance of travel. These adjustments should be made before power is supplied to the operator. To adjust the distance of travel using the limits: Turn power OFF! Use the power switch on the side to assure AC and Battery power are both OFF.
  • Page 15: Electrical Installation

    ELECTRICAL INSTALLATION Power Switch Location The gate operator uses a built-in power switch to control power to the operator and controller. This switch should be turned OFF during installation and service. Failure to use this switch can result in unexpected gate movement. Please note: The switch is located on the LEFT side of the control box.
  • Page 16: Battery Power Connection

    Battery Power Connection If AC power is connected, the system does not need the batteries to function. However, the batteries must be connected for the Power Fail Battery Backup features to operate. When AC power is active, the batteries will charge until fully charged. Once the batteries have fully charged, the system will stop charging.
  • Page 17: Master/Slave Connection

    Master/Slave Connection The operator can be used in a Master-Slave configuration to control the two leafs of a bi-parting gate. That can be done with a wired or wireless connection. The wired connection should be the default choice if there is a way to bring a cable across the gate opening.
  • Page 18: Gate Operator Adjustments

    GATE OPERATOR ADJUSTMENTS Reverse Sensitivity Adjustment The gate operator is equipped with an inherent (Type A) entrapment sensing system. The sensor detects obstructions in both the open and close path of the gate. There is an OPEN SENSITIVITY Adjustment and a CLOSE SENSITIVITY Adjustment. To adjust the sensitivity: Activate the gate to open.
  • Page 19: Close Time Delay Adjustment

    Close Time Delay Adjustment The gate operator is equipped with a built-in automatic timer to close feature. This feature should be set to the OFF position un- til proper safety and reverse devices have been installed. CAUTION: Turning on the Close Time Delay without proper safety and reverse devices can cause serious injury, death, and property damage.
  • Page 20: Accessory Connections

    ACCESSORY CONNECTIONS Overview Master / Slave Shadow Reverse Open Interconnect Power Time Delay Off On Monitor Photo / Edge Anti-Tailgate Open Sensitivity Master / Slave Close Timer Power Fail Open / Cycle Open Left / Right Quick Close Close Sensitivity Stop (NC / NO) Low Battery Cycle / Open Activity...
  • Page 21: Photocell Sensor Connections

    Photocell sensor connections To comply with the UL325 standard monitored safety inputs must be used to protect every entrapment zone. An entrapment zone is defined as a location or point of contact where a person can be entrapped between the moving gate and a rigid object. The operator has inputs for entrapment protection photo sensors in the opening and closing direction.
  • Page 22: Edge Sensor Connections

    The operator has inputs for entrapment protection edge sensors in the opening and closing direction. Use FAAC CN 60 E edge sensor controller and the schematic below for proper monitoring.
  • Page 23: Standard Reverse Connection

    Standard Reverse Connection The Standard Reverse Terminal can be used to re-open a closing gate. This N.O. input behaves the same as a Reverse Loop. This connection should not be used for Safety Reverse Devices. Use Edge and Photo inputs for proper Safety connections. Standard Reverse Input: The input is inactive when gate is closed or in the open cycle When the gate is open and Time Delay Close is ON, an input...
  • Page 24: Access Control Connection

    Access Control Connection Access Control Devices such as Telephone Entry Systems, Digital Locks and Card Readers may be connected to the Access Input to control the gate operator. When an Access Device is active, the Access LED will light. Access Input: TELEPHONE ENTRY Allows external Access Control Devices to activate the gate.
  • Page 25: Radio Receiver Connections

    Radio Receiver Connections Radio Controls may be connected to the Radio Inputs to control the gate operator. When a Radio Control is active, the Radio LED will light. Radio Input: Allows Radio Controls to activate the gate and provides 24VDC Receiver Connecting Generic Radio Receivers: N.O.
  • Page 26: Warning Light Connections

    Warning Light connection An external Warning Light may be connected to the gate operator. The light will be active while the gate is in motion both opening and closing LIGHT Warning light input: Allows external Warning Light to be active during gate motion. This output is N.O.
  • Page 27: Loop & Loop Detectors

    LOOP & LOOP DETECTOR Basic loop layout The following diagram shows a typical slide gate application for two-way traffic or exit traffic. For one-way entry traffic, the exit loop is not needed. (This diagram is a basic loop layout and does not show safety devices, pedestrian gate, fencing, etc. Refer to “IM- PORTANT SAFETY INFORMATION”...
  • Page 28: Plug-In Loop Detector Connections

    Plug-in loop detector connections The gate operator may utilize standard 10 pins Plug-in Loop Detectors to simplify installation, save space and eliminate extra wir- ing. There are three plug-in terminals (Shadow, Reverse, Open) located on the gate controller. Detectors plugged into a specific socket will perform that function.
  • Page 29: Troubleshooting Tips

    TROUBLESHOOTING TIPS Fault Light Count The gate operator control board has a Fault Light to help determine fault shutdowns. If the operator is not functioning properly, remove the cover and check the Fault Light for the operator Fault Status. Use the following chart to determine the Fault: Number of Fault Description Cause &...
  • Page 30: Spare Parts

    SPARE PARTS Part Part Number Description GC3100 Controller PCB with heat sink and faceplate assembly GC3200 Controller PCB with heat sink and faceplate assembly UL2016 GC-2002 Faceplate GC-2003 Faceplate UL2016 GC3000 Controller Assembly (No PCB, faceplate) MOTOR-0500-24 Motor - 500W, 24VDC SL-0020 Gearbox 15:1 SL-1000...
  • Page 31 Part Part Number Description SL-0010 Limit nut SWITCH-0100 Limit switch AAA-0450 Sensor cup assembly WIRE-1101SK Sensors wire assembly with screws AAA-0402 Motor Adapter Plate...
  • Page 32: Limited Warranty

    FAAC S.p.A. provided it has been properly installed and or FAAC International, Inc. The warranty herein operated.
