FEATURES
Input Voltage Range
Output Current
Current Limit / Regulation
Over Current Protection
Over Temperature Protection
Operation Temperature
*For more details about the MP6515, please visit MPS' website:
MP5402M Module Board SpecificationRev. 1.0
6/10/2016
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
USER GUIDE

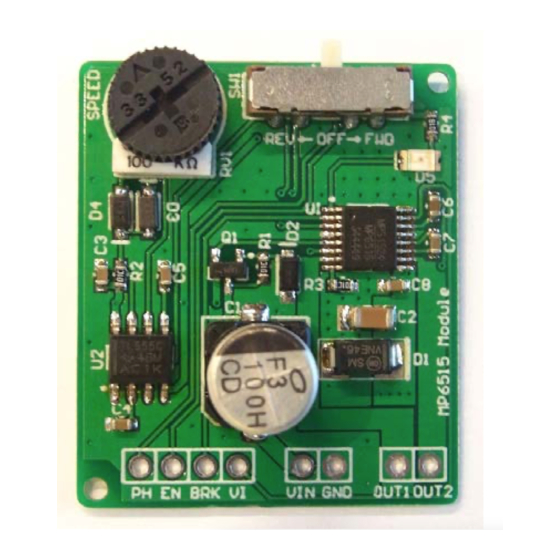

To quickly start using the EVKT6515 DC brush
motor driver board, do the following:
1. Connect the motor to OUT1 and OUT2 pins.
7V to 35V
2. Connect a power supply (between 7V and
Up to 1.5A
35V) to the VIN and GND pins.
3. Slide the switch to "FWD" or "REV" to control
Yes
the direction of the motor.
Yes
4. Adjust the motor speed by turning the
thumbwheel pot.
Yes
-40°C to +85°C
Note:
polarity connection, to avoid damage due to
reversed connection.
www.MonolithicPower.com
© 2016 MPS. All Rights Reserved.
EVKT6515 DC Brush
Motor Driver Board
Please pay attention to the correct input
http://www.monolithicpower.com
(Dimensions in millimeters)
1
