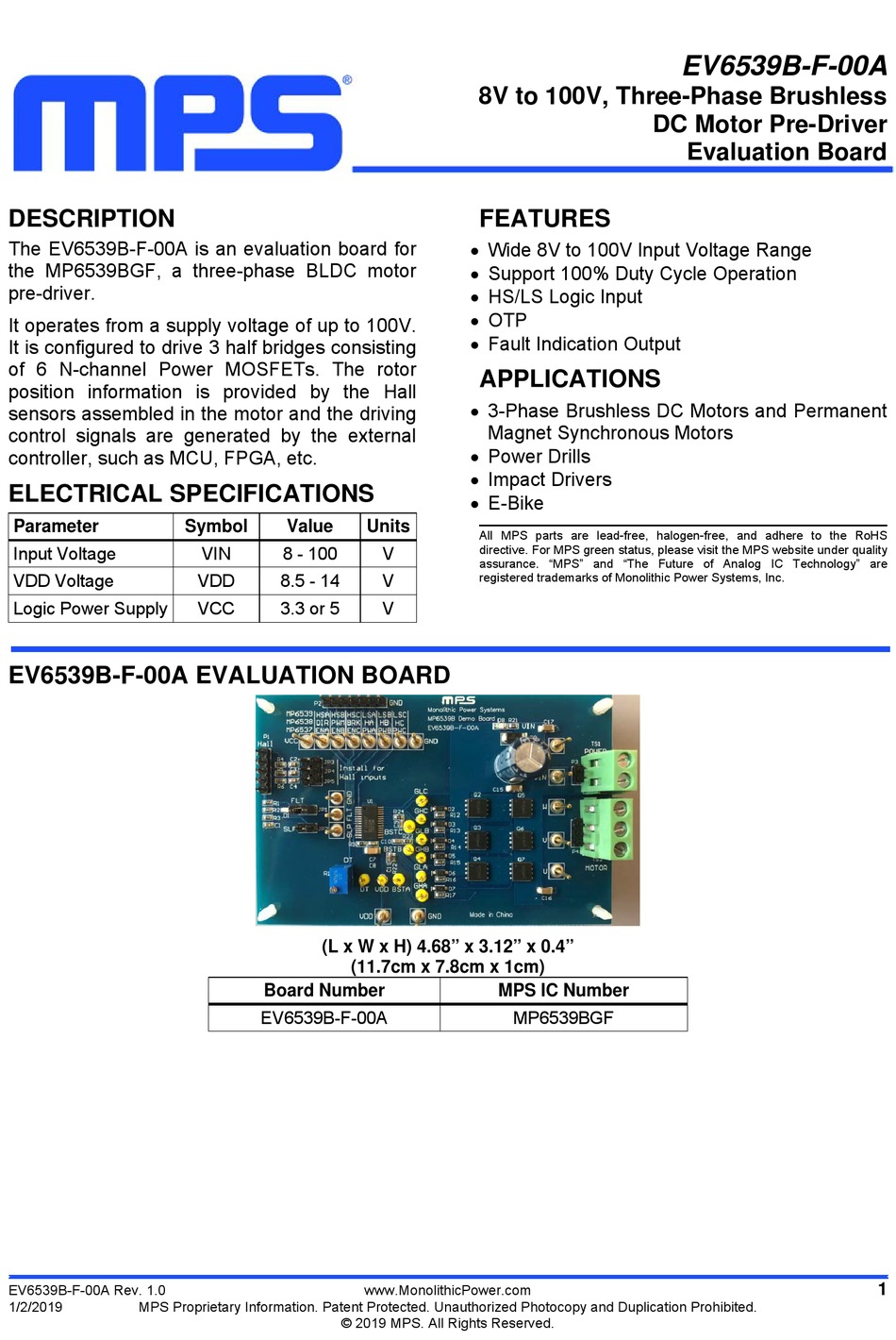

MPS EV6539B-F-00A Manual

DESCRIPTION

The EV6539B-F-00A is an evaluation board for
the MP6539BGF, a three-phase BLDC motor
pre-driver.
It operates from a supply voltage of up to 100V.
It is configured to drive 3 half bridges consisting
of 6 N-channel Power MOSFETs. The rotor
position information is provided by the Hall
sensors assembled in the motor and the driving
control signals are generated by the external
controller, such as MCU, FPGA, etc.

ELECTRICAL SPECIFICATIONS

Parameter
Input Voltage
VDD Voltage
Logic Power Supply

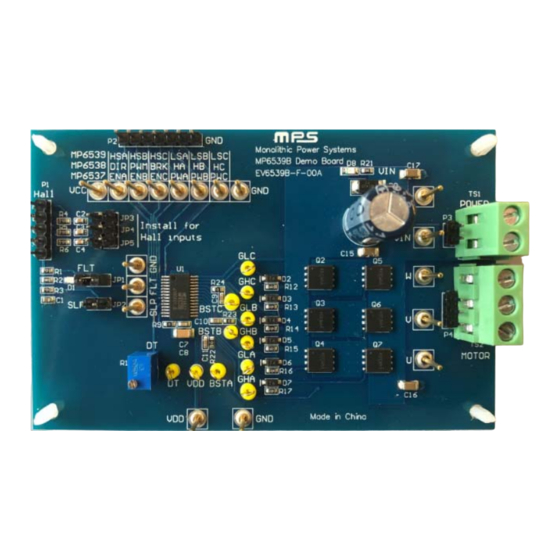

EV6539B-F-00A EVALUATION BOARD
EV6539B-F-00A Rev. 1.0
1/2/2019 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
Symbol Value
VIN 8 - 100
VDD 8.5 - 14
VCC 3.3 or 5
(L x W x H) 4.68" x 3.12" x 0.4"
(11.7cm x 7.8cm x 1cm)
Board Number
EV6539B-F-00A
© 2019 MPS. All Rights Reserved.
8V to 100V, Three-Phase Brushless

FEATURES

 Wide 8V to 100V Input Voltage Range
 Support 100% Duty Cycle Operation
 HS/LS Logic Input
 OTP
 Fault Indication Output

APPLICATIONS

 3-Phase Brushless DC Motors and Permanent
Magnet Synchronous Motors
 Power Drills
 Impact Drivers
 E-Bike
Units
All MPS parts are lead-free, halogen-free, and adhere to the RoHS
directive. For MPS green status, please visit the MPS website under quality
V
assurance. "MPS" and "The Future of Analog IC Technology" are
V registered trademarks of Monolithic Power Systems, Inc.
V
MPS IC Number
MP6539BGF
www.MonolithicPower.com
EV6539B-F-00A
DC Motor Pre-Driver
Evaluation Board
1
