Reasons to open these connections:
• To remove any and all influence from the XDS110-ET debug probe for high accuracy target power
measurements
• To control 3.3-V and 5-V power flow between the XDS110-ET and target domains
• To expose the target MCU pins for other use than onboard debugging and application UART communication
• To expose the programming and UART interface of the XDS110-ET so that it can be used for devices other
than the onboard MCU.
Jumper
GND Ground
5V 5-V VBUS from USB
3V3 3.3-V rail, derived from VBUS in the XDS110-ET domain
Backchannel UART: The target M0G3507 receives data through this signal. The arrows indicate the direction of the
RXD<<
signal
Backchannel UART: The target M0G3507 sends data through this signal. The arrows indicate the direction of the
TXD>>
signal
SLAU873A – JANUARY 2023 – REVISED MARCH 2023
Submit Document Feedback
USB Connector
USB
IN OUT
LDO
EnergyTrace
5-V Power
3.3-V
Power
Application
UART0
MSPM0G3507
Target MCU
Pin Extension Header

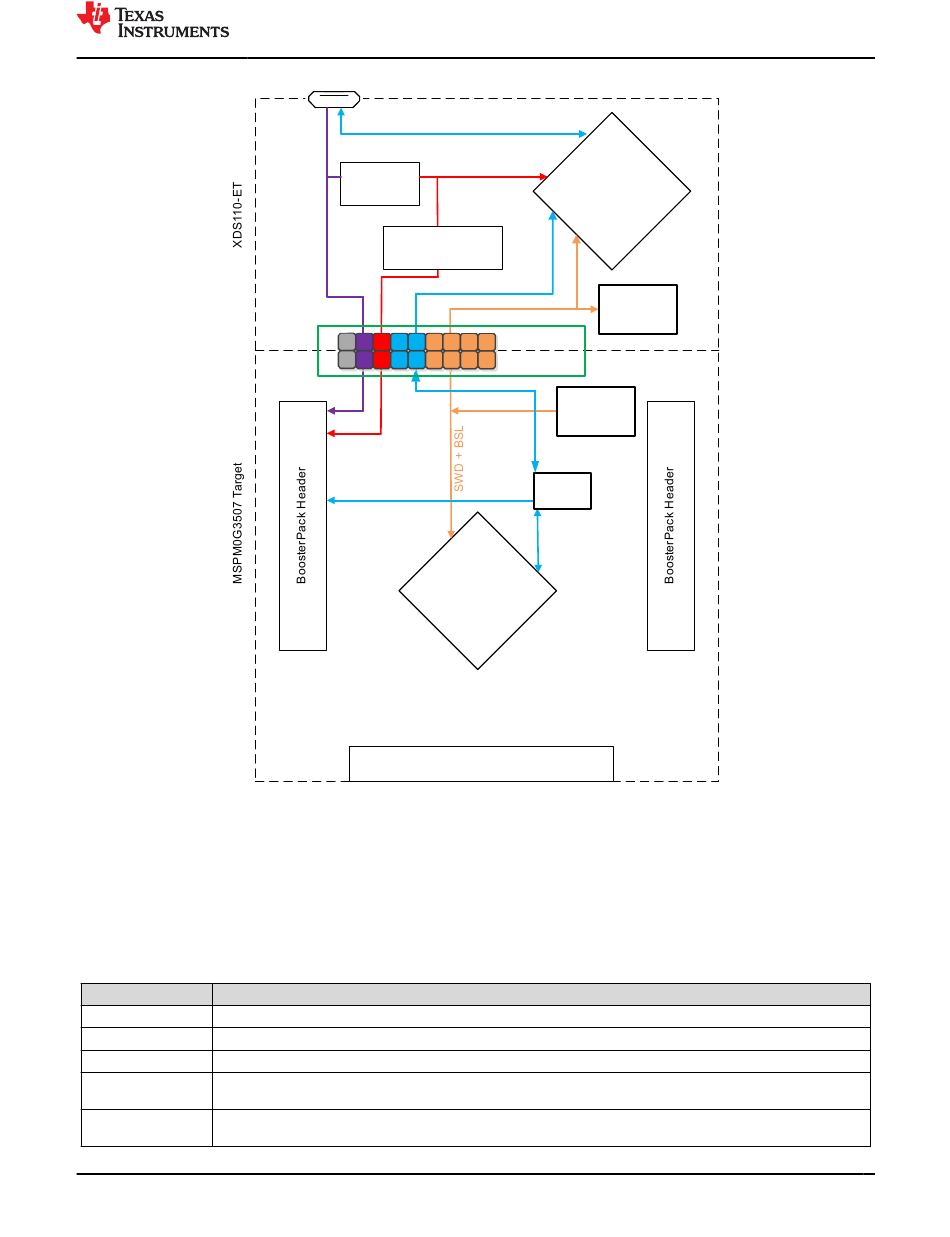

Figure 2-5. Isolation Jumper Block
Copyright © 2023 Texas Instruments Incorporated
XDS110-ET
Debug Probe
MCU
XDS110
Debug
Out
J101
Isolation
External
Debug
In
To XDS
To BP
UART
Header
Path
Description
MSPM0G3507 LaunchPad Development Kit (LP
