The BT-MSPAUDSOURCE-RD is a TI Design that enables streaming out Bluetooth audio (SBC encoded)
using the SimpleLink™ CC2560 Bluetooth controller, the MSP430F5229 ultra-low power microcontroller,
and the TLV320ADC3101 low-power ADC plus a BQ24055 USB charge management device. This
reference design is a cost-effective Bluetooth audio implementation with full design files provided for
evaluation and end-product development. The software supported includes Stonestreet One Bluetopia
Bluetooth stack (certified and royalty free).
This document will help you quickly get started on the BT-MSPAUDSOURCE out-of-the-box experience
demo.
This design is compliant with the following standards:
• FCC/IC Regulatory Compliance
• FCC Part 15 Class A Compliant
• IC ICES-003 Class A Compliant
This kit contains:
• One BT-MSPAUDSOURCE board
• One mini-USB cable
• One stereo audio cable with 3.5-mm plug connectors
JTAG Debugging Port
(J2)
3.5-mm Line-In Jack
(J39)
Mini USB port
(J4)
TIDU459A – August 2014 – Revised November 2014
Submit Documentation Feedback
and MSP430 Audio Source Reference Design
MSP430F5229
Ultra-Low Power Microcontroller
Capacitive Touch
Buttons
LDO/JTAG Switch
(S3)

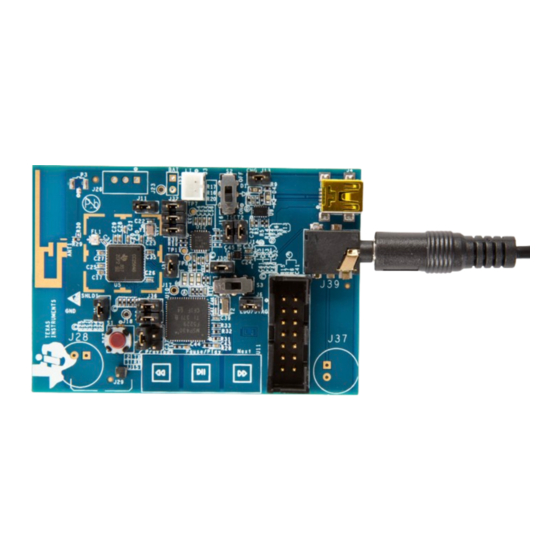

Figure 1. BT-MSPAUDSOURCE Board
Bluetooth
Copyright © 2014, Texas Instruments Incorporated
TIDU459A – August 2014 – Revised November 2014
MSP430 User UART
(J15)
PWR ON/OFF Switch
(S2)
®
and MSP430 Audio Source Reference Design Quick Start Guide
Quick Start Guide
Quick Start Guide
MSP430 Reset Button
(S1)
PCB Antenna
CC2560B QFN
Bluetooth Controller
TVL320ADC3101
Low-Power Stereo ADC
®
