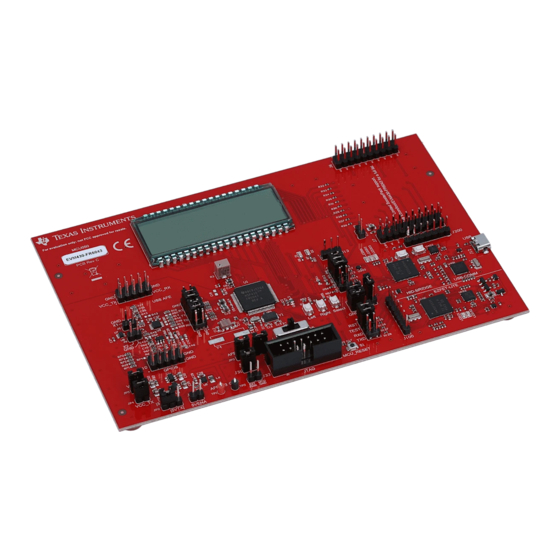

This guide is a reference to the different hardware configurations available with the
Ultrasonic Sensing Evaluation Module
configurations and pinouts, and communication interfaces.
..........................................................................................................................
1
1.1
1.2
2
2.1
2.2
2.3
2.4
2.5
..........................................................................................................................
3
4
4.1
4.2
4.3
..................................................................................................................
5
Trademarks
BoosterPack is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
SLAU764 - January 2019
Submit Documentation Feedback
EVM430-FR6043 hardware guide
(EVM430-FR6043). These configurations include power, header
..........................................................................................................
......................................................................................................
.........................................................................................................
...............................................................................................
................................................................................................
.................................................................................................................
....................................................................................................
..........................................................................................................
......................................................................................................
.........................................................................................................
.........................................................................................................
Copyright © 2019, Texas Instruments Incorporated
Contents
..................................................................
EVM430-FR6043 hardware guide
User's Guide
SLAU764 - January 2019
MSP430FR6043
2
2
3
5
5
6
7
8
8
10
11
11
11
11
12
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSP430FR6043 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texas Instruments MSP430FR6043

Summary of Contents for Texas Instruments MSP430FR6043

  • Page 1: Table Of Contents

    TX Voltage ......................5-V Enable ........................References Trademarks BoosterPack is a trademark of Texas Instruments. All other trademarks are the property of their respective owners. SLAU764 – January 2019 EVM430-FR6043 hardware guide Submit Documentation Feedback Copyright © 2019, Texas Instruments Incorporated...

  • Page 2: Power

    Power The USB or an external power supply (for example, a battery or a bench supply) can supply power to the EVM430-FR6043. Jumper and switch configurations set the power source for the MSP430FR6043 microcontroller (MCU). USB Power To use USB as the power source, set the S5 (POW_SEL) switch to the middle position (ezFET) (see Figure Figure 1.

  • Page 3: External Power

    J3. If the circuit does not use a regulator (which is optional), the operational supply voltage range is 1.8 V to 3.6 V. If communicating through USB, set GND on J2 and the communication jumpers on J1. Figure 3. External Power SLAU764 – January 2019 EVM430-FR6043 hardware guide Submit Documentation Feedback Copyright © 2019, Texas Instruments Incorporated...
  • Page 4 To measure current consumption, remove the J32 jumper and place an ammeter across the header (see Figure 4). When current measurements are not being performed, make sure to set this jumper. Figure 4. Current Measurement Header EVM430-FR6043 hardware guide SLAU764 – January 2019 Submit Documentation Feedback Copyright © 2019, Texas Instruments Incorporated...

  • Page 5: Header Connections

    Provides power to the AFE transmit circuitry. Can be used for power measurement. Provides power to the AFE receive circuitry. Can be used for power measurement. SLAU764 – January 2019 EVM430-FR6043 hardware guide Submit Documentation Feedback Copyright © 2019, Texas Instruments Incorporated...

  • Page 6: Transducer Headers

    You can connect two transducers to the board on J5 and J6. The PCB silkscreen shows signal (X1 or X2) and ground (GND) for each transducer. Figure 5. Transducer Header EVM430-FR6043 hardware guide SLAU764 – January 2019 Submit Documentation Feedback Copyright © 2019, Texas Instruments Incorporated...

  • Page 7: Connectors For Boosterpack Plug-In Modules

    N.C. N.C. GPIO N.C. N.C. N.C. N.C. N.C. N.C. SPI_MOSI SPI_CLK N.C. N.C. SPI_MISO N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. GPIO SLAU764 – January 2019 EVM430-FR6043 hardware guide Submit Documentation Feedback Copyright © 2019, Texas Instruments Incorporated...

  • Page 8: Jtag

    J3 connects JTAG TX and RX (UART). To use this interface with the on-board eZ-FET circuit, place jumpers on the J3 TXD and RXD pins (see Figure Figure 8. JTAG UART Jumpers EVM430-FR6043 hardware guide SLAU764 – January 2019 Submit Documentation Feedback Copyright © 2019, Texas Instruments Incorporated...
  • Page 9 J3 TEST and RST pins (see Figure Figure 9. Spy-Bi-Wire Jumpers J1 provides a connection between the MSP430FR6043 MCU and the high-speed USB HID interface. To enable I C, put jumpers on the J1 COMM_SDA, COMM_SCL, and COMM_IRQ pins (see Figure 10).

  • Page 10: Lcd

    12). Use a small flathead screwdriver to adjust the resistance of R3 and monitor the contrast on the display. Figure 12. LCD Contrast Control EVM430-FR6043 hardware guide SLAU764 – January 2019 Submit Documentation Feedback Copyright © 2019, Texas Instruments Incorporated...

  • Page 11: Afe Configuration

    The AFE includes a DC/DC step-up converter to enable 5-V TX voltage. To enable the step up converter, set JP1. For 5-V operation, also set JP2 for 5-V operation (see Figure 14). SLAU764 – January 2019 EVM430-FR6043 hardware guide Submit Documentation Feedback Copyright © 2019, Texas Instruments Incorporated...

  • Page 12: References

    References www.ti.com References MSP430FR6043-based ultrasonic gas flow meter quick start guide MSP430FR604x, MSP430FR504x ultrasonic sensing MSP430™ microcontrollers for gas and water flow metering applications data sheet EVM430-FR6043 hardware guide SLAU764 – January 2019 Submit Documentation Feedback Copyright © 2019, Texas Instruments Incorporated...
  • Page 13 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 14 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 15 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 16 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 17 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2019, Texas Instruments Incorporated...
  • Page 18 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2021, Texas Instruments Incorporated...
